6-47 — MUD GUARD AND INSULATOR (#34452) — 688 parça

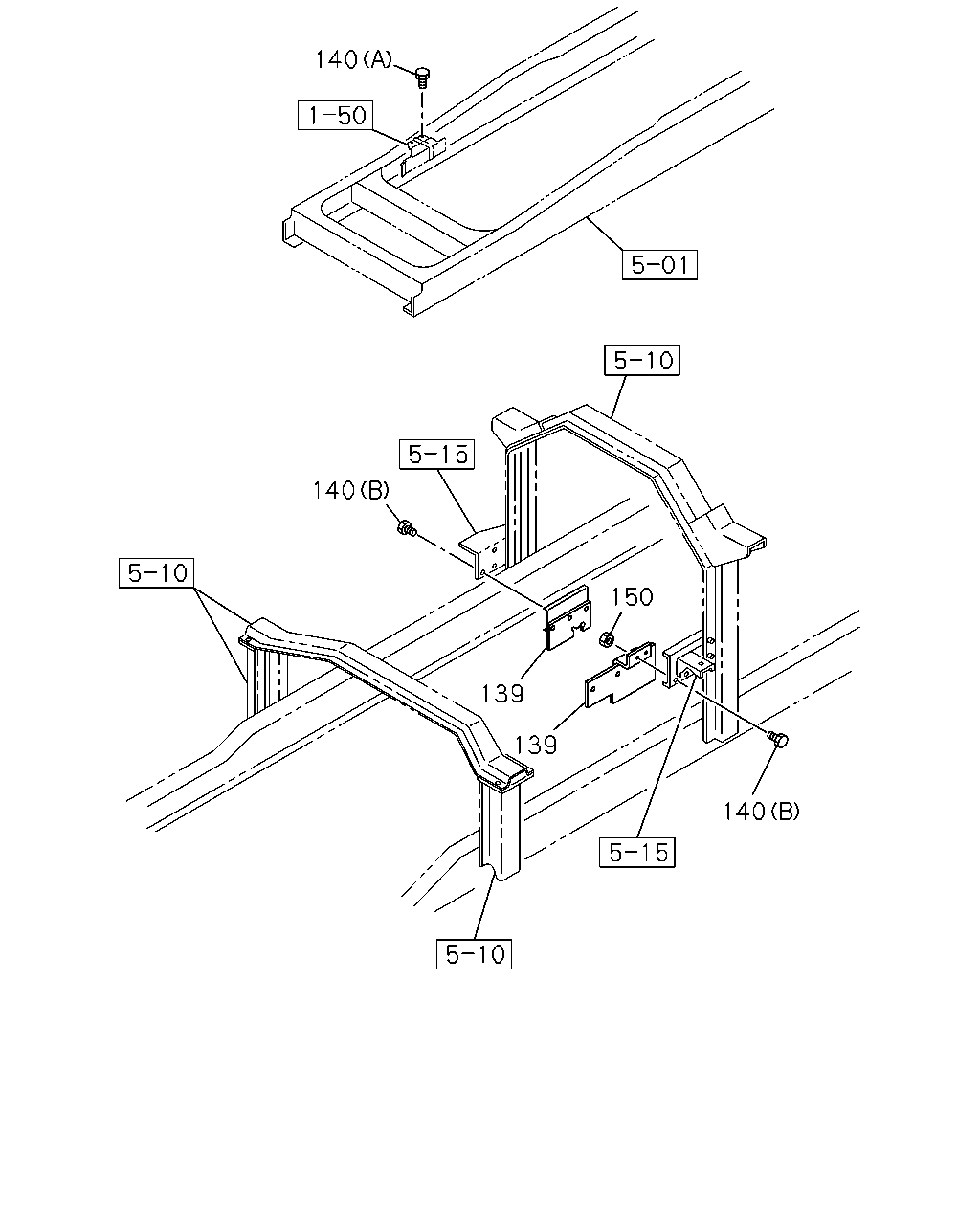

140 140 150 139 139 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
139	PANEL; SIDE	1-53192-129-1	01	1	9604-0004	●	●
139	PANEL; SIDE	1-53192-128-0	01	1	9604-0004	●	●
140	BOLT; SIDE PANEL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●	●	●	●
140	BOLT; SIDE PANEL (A) M8X20 FLANGE	0-28080-820-0	02	1	9604-9606					●
140	BOLT; SIDE PANEL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-0004	●	●	●	●
140	BOLT; SIDE PANEL (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-0004					●
140	BOLT; SIDE PANEL (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512			●		●
140	BOLT; SIDE PANEL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512				●
140	BOLT; SIDE PANEL (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-			●		●
140	BOLT; SIDE PANEL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
140	BOLT; SIDE PANEL (B) M8X20 FLANGE	0-28080-820-0	04	1	9604-9803	●	●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28680-825-0	04	1	9804-0004	●	●
150	NUT; SIDE PANEL M8 FLANGE	0-91150-108-0	02	1	9812-0004	●	●

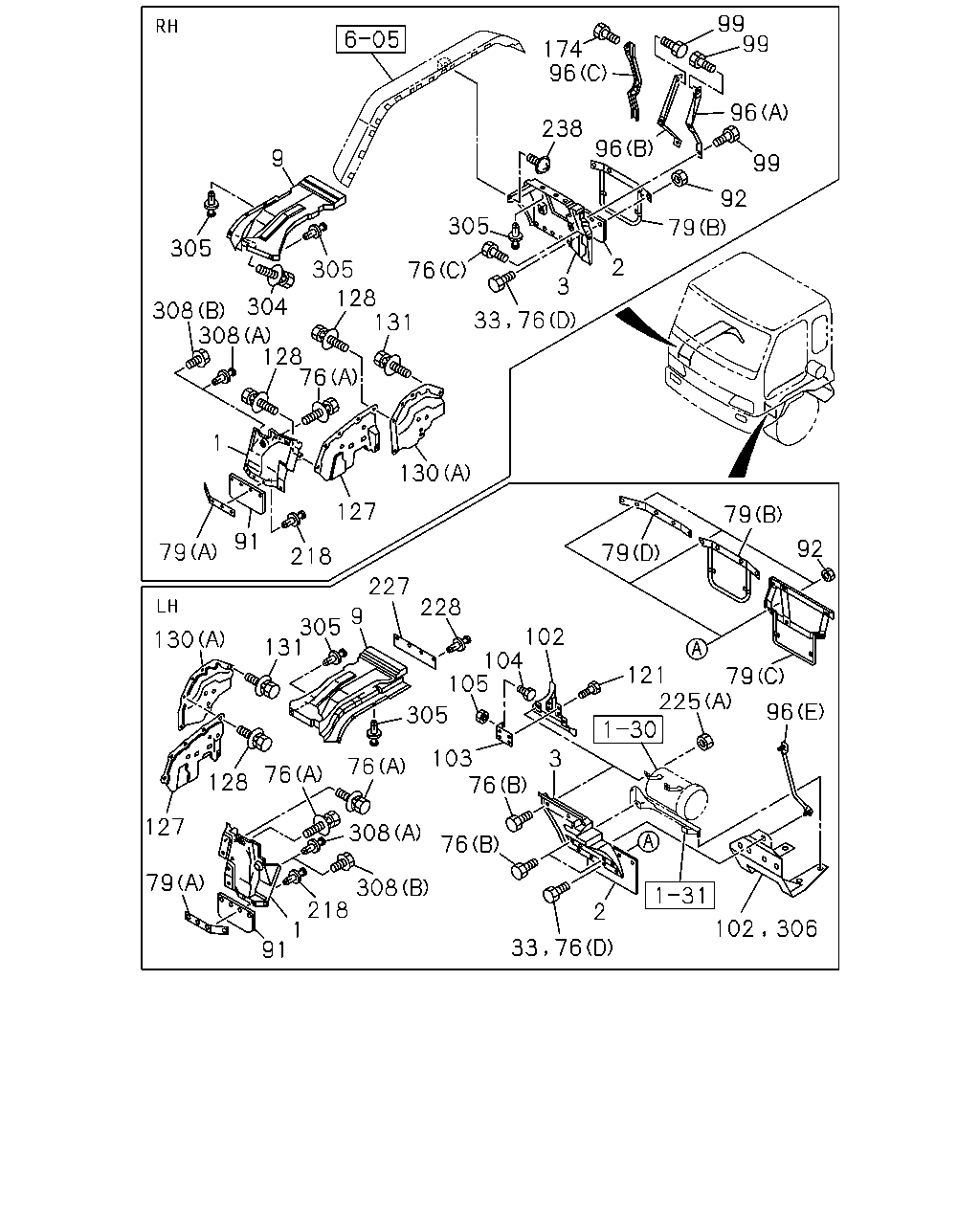

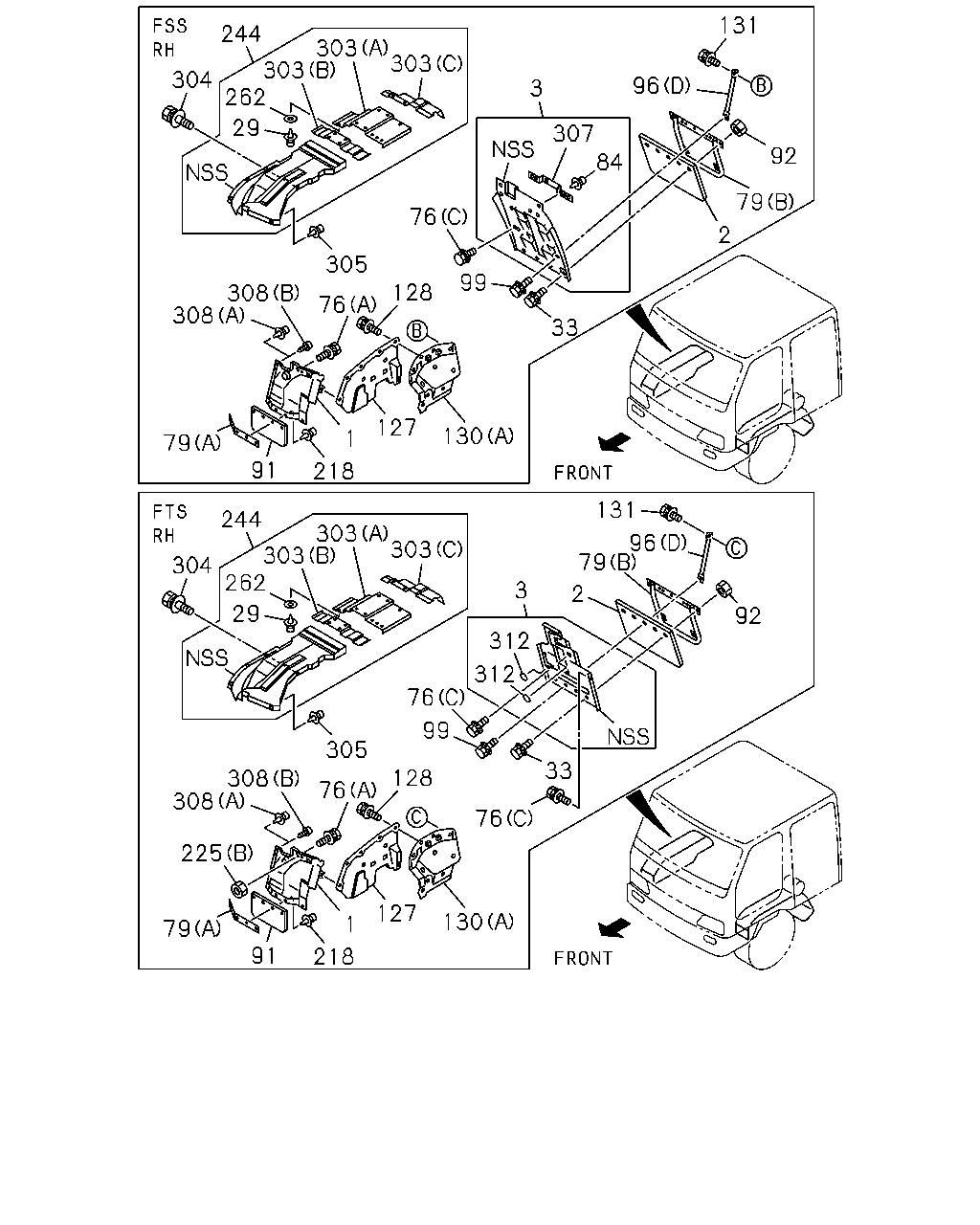

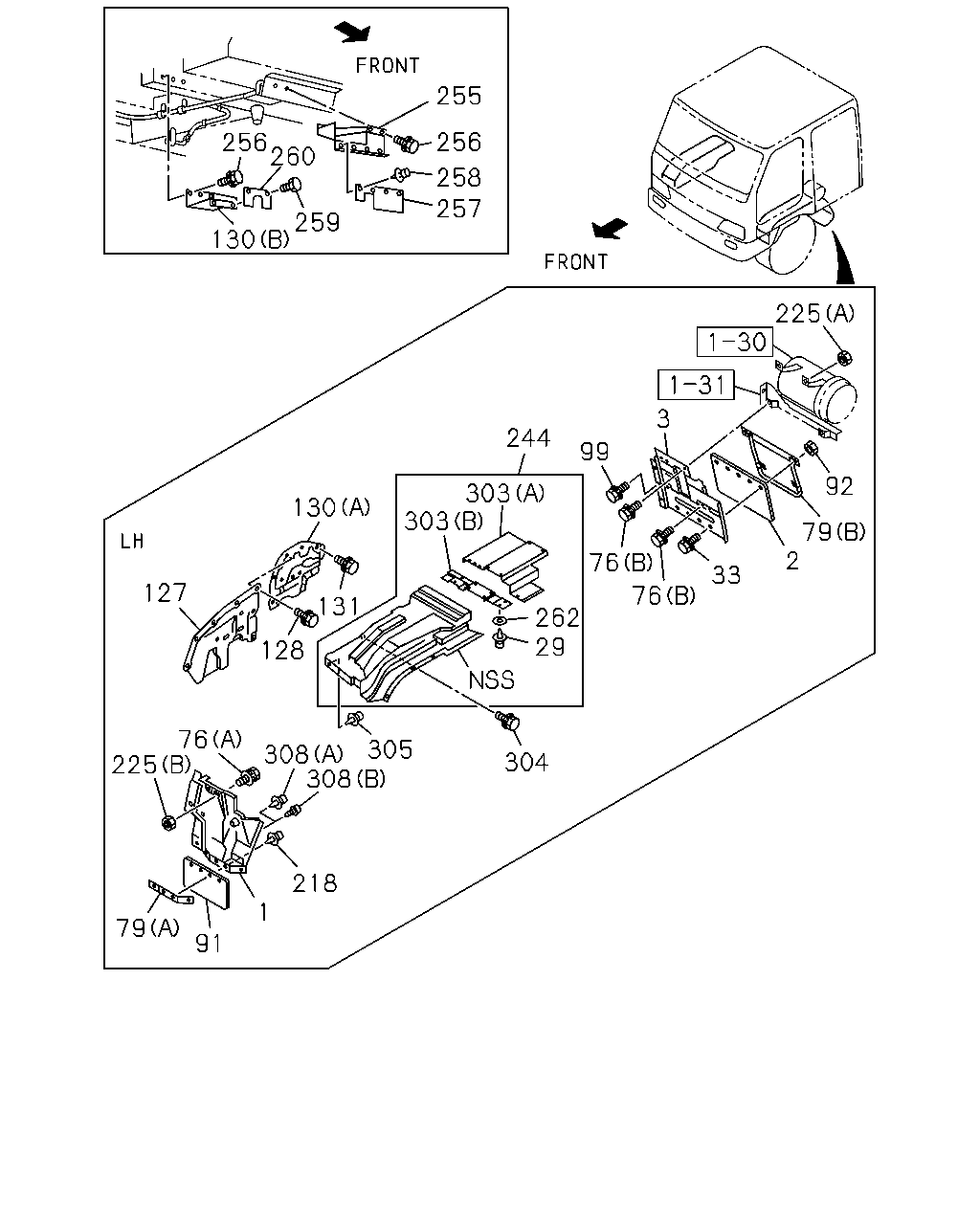

255 256 260 256 258 257 259 130 225 3 244 99 92 303 303 130 79 2 76 33 127 76 131 262 29 128 76 225 305 308 308 304 218 1 79 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	GUARD; MUD,FRT	1-79938-812-8	01	1	9604-0004	●	●	●	●	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0005-			●	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	9604-0004	●	●	●	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0005-			●	●	●
2	COVER; MUD,TIRE RR	1-79930-963-0	01	1	9604-9803			●
2	COVER; MUD,TIRE RR EXC. WEST MALAYSIA EQUIPMENT(SEQ)	1-79930-963-1	01	1	9804-9911			●
2	COVER; MUD,TIRE RR	1-79930-963-2	01	1	9912-			●
2	COVER; MUD,TIRE RR WEST MALAYSIA EQUIPMENT(SEQ)	1-79930-485-2	01	1	9804-9911			●
2	COVER; MUD,TIRE RR WEST MALAYSIA EQUIPMENT(SEQ)	1-79930-484-1	01	1	9804-9911			●
2	COVER; MUD,TIRE RR	1-79931-230-1	01	1	9604-9803	●		●
2	COVER; MUD,TIRE RR EXC. WEST MALAYSIA EQUIPMENT(SEQ)	1-79931-230-1	01	1	9804-9911			●
2	COVER; MUD,TIRE RR	1-79931-230-1	01	1	9804-9911	●
2	COVER; MUD,TIRE RR	1-79931-230-1	01	1	9912-0004	●		●
2	COVER; MUD,TIRE RR	1-79931-230-2	01	1	0005-			●
2	COVER; MUD,TIRE RR	1-79931-220-1	01	1	9604-0004	●
2	COVER; MUD,TIRE RR	1-79931-255-1	01	1	9604-0403				●	●
2	COVER; MUD,TIRE RR	1-79931-255-1	01	1	0404-0404					●
2	COVER; MUD,TIRE RR 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)	1-79931-255-1	01	1	0404-0404				●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	0405-				●	●
2	COVER; MUD,TIRE RR	1-79931-254-1	01	1	9604-0403				●	●
2	COVER; MUD,TIRE RR	1-79931-254-1	01	1	0404-0404					●
2	COVER; MUD,TIRE RR 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)	1-79931-254-1	01	1	0404-0404				●
2	COVER; MUD,TIRE RR	1-79931-254-2	01	1	0405-				●	●
2	COVER; MUD,TIRE RR	1-79931-229-1	02	1	9604-0004		●
3	GUARD; MUD,RR 6HK1 TCC ENG(81L)	1-79936-012-0	01	1	0406-				●
3	GUARD; MUD,RR	1-79938-933-2	01	1	9604-9604			●
3	GUARD; MUD,RR	1-79938-961-2	01	1	9605-			●
3	GUARD; MUD,RR	1-79938-932-4	01	1	9604-			●
3	GUARD; MUD,RR	1-79938-942-0	01	1	9604-0004	●
3	GUARD; MUD,RR	1-79938-945-1	01	1	9604-0004	●
3	GUARD; MUD,RR	1-79938-826-9	01	1	9604-9605				●	●
3	GUARD; MUD,RR	1-79938-959-1	01	1	9606-9711				●	●
3	GUARD; MUD,RR	1-79938-998-0	01	1	9712-				●	●
3	GUARD; MUD,RR	1-79938-827-9	01	1	9604-9607				●	●
3	GUARD; MUD,RR	1-79938-971-1	01	1	9608-0403				●	●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0404-0405					●
3	GUARD; MUD,RR 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)	1-79938-971-1	01	1	0404-0405				●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0406-					●
3	GUARD; MUD,RR 6HH1 STD ENG(65L)	1-79938-971-1	01	1	0406-				●
3	GUARD; MUD,RR	1-79938-776-0	01	1	9604-9903		●
3	GUARD; MUD,RR	1-79936-025-0	01	1	9904-0004		●
3	GUARD; MUD,RR	1-79938-940-0	01	1	9604-0004		●
29	RIVET	1-09987-240-0	09	1	9604-0004	●	●
29	RIVET	1-09987-240-0	12	1	9604-0004	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	09	1	9604-9612			●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	09	1	9701-			●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9604-9609	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9610-9612	●			●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9701-9701	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	13	1	9604-9609				●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9610-9702				●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	9703-				●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9701-9701				●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9702-9702	●			●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9703-9805	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	9806-0004	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	14	1	9604-9612		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	14	1	9701-0004		●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9604-9605	●	●	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9606-0004	●	●	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0805			●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0806-			●	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9604-0004	●	●	●	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-			●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9604-0004		●	●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-			●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9604-0004	●
76	BOLT; MUD GUARD (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9604-0004	●	●
76	BOLT; MUD GUARD (D) M6X16 W/LK&PL WASHER	1-09980-492-0	01	1	9712-9712				●	●
76	BOLT; MUD GUARD (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9801-				●	●
79	RETAINER; MUD COVER 6HK1 TCC ENG(81L) (B)	1-79931-131-0	01	1	0406-0406				●
79	RETAINER; MUD COVER 6HK1 TCC ENG(81L) (C)	1-79931-288-0	01	1	0406-				●
79	RETAINER; MUD COVER (B)	1-79930-962-1	01	1	9604-9803			●
79	RETAINER; MUD COVER (B) L=509	1-79930-695-1	01	1	9604-9803			●
79	RETAINER; MUD COVER EXC. WEST MALAYSIA EQUIPMENT(SEQ) (B) L=509	1-79930-695-1	01	1	9804-9911			●
79	RETAINER; MUD COVER (B) L=509	1-79930-695-1	01	1	9912-			●
79	RETAINER; MUD COVER (D)	1-79930-962-1	01	1	0005-			●
79	RETAINER; MUD COVER WEST MALAYSIA EQUIPMENT(SEQ) (D)	1-79931-045-2	01	1	9804-9911			●
79	RETAINER; MUD COVER WEST MALAYSIA EQUIPMENT(SEQ) (B)	1-79930-962-1	01	1	9804-9911			●
79	RETAINER; MUD COVER EXC. WEST MALAYSIA EQUIPMENT(SEQ) (B)	1-79930-962-1	01	1	9804-			●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	9604-0004	●	●	●	●	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0005-			●	●	●
79	RETAINER; MUD COVER (B) L=468	1-79930-487-2	01	1	9604-0004	●
79	RETAINER; MUD COVER (B) L=428	1-79930-696-0	01	1	9604-9805	●
79	RETAINER; MUD COVER (B)	1-79931-329-1	01	1	9806-0004	●
79	RETAINER; MUD COVER (B)	1-79931-253-0	01	1	9604-9611				●	●
79	RETAINER; MUD COVER (C)	1-79931-278-1	01	1	9612-9711				●	●
79	RETAINER; MUD COVER (C)	1-79931-304-0	01	1	9712-0403				●	●
79	RETAINER; MUD COVER (C)	1-79931-304-0	01	1	0404-0405					●
79	RETAINER; MUD COVER 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (C)	1-79931-304-0	01	1	0404-0405				●
79	RETAINER; MUD COVER (C)	1-79931-304-0	01	1	0406-					●
79	RETAINER; MUD COVER 6HH1 STD ENG(65L) (C)	1-79931-304-0	01	1	0406-				●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	9604-0403				●	●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	0404-0404					●
79	RETAINER; MUD COVER 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (B)	1-79931-252-0	01	1	0404-0404				●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	0405-				●	●
79	RETAINER; MUD COVER (B)	1-79931-131-0	02	1	9604-0004		●
91	COVER; MUD,FRT	1-79931-214-1	02	1	9604-0004	●	●	●	●	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0005-			●	●	●
92	NUT; MUD COVER 6HK1 TCC ENG(81L) M6 FLANGE	0-91180-106-0	07	1	0603-				●
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9604-9607			●	●	●
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9608-9609			●
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9610-9612			●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9701-0403			●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	08	1	0404-0405			●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	08	1	0406-0602			●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	08	1	0603-0603			●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	09	1	0603-			●		●
92	NUT; MUD COVER 6HH1 STD ENG(65L) M6 FLANGE	0-91180-106-0	09	1	0603-				●
92	NUT; MUD COVER M6	9-09110-406-0	07	1	9604-9607	●
92	NUT; MUD COVER M6	9-09110-406-0	07	1	9608-9609	●			●	●
92	NUT; MUD COVER M6	9-09110-406-0	07	1	9610-9612	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	9701-0004	●
92	NUT; MUD COVER M6	9-09110-406-0	10	1	9604-9612		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	10	1	9701-0004		●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9604-			●	●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9604-0004	●	●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53193-152-2	01	1	0406-				●
127	APRON; FRT	1-53193-222-0	01	1	9604-9803	●		●
127	APRON; FRT AUSTRALIA EQUIPMENT(RR3)	1-53193-222-1	01	1	9804-0004	●		●
127	APRON; FRT	1-53192-301-3	01	1	9604-0004	●		●
127	APRON; FRT	1-53192-301-3	01	1	0005-			●
127	APRON; FRT EXC. AUSTRALIA EQUIPMENT(RR3)	1-53193-223-1	01	1	9804-0004	●		●
127	APRON; FRT	1-53193-223-1	01	1	0005-			●
127	APRON; FRT	1-53193-153-1	01	1	9804-0004					●
127	APRON; FRT EXC. AUSTRALIA EQUIPMENT(RR3)	1-53193-153-1	01	1	9804-0004		●		●
127	APRON; FRT	1-53193-153-1	01	1	0005-0403				●	●
127	APRON; FRT	1-53193-153-1	01	1	0404-0405				●	●
127	APRON; FRT	1-53193-153-1	01	1	0406-					●
127	APRON; FRT 6HH1 STD ENG(65L)	1-53193-153-1	01	1	0406-				●
127	APRON; FRT	1-53193-152-1	01	1	9604-9803		●		●	●
127	APRON; FRT AUSTRALIA EQUIPMENT(RR3)	1-53193-152-1	01	1	9804-0004		●		●
127	APRON; FRT	1-53193-150-1	01	1	9604-0004		●		●	●
127	APRON; FRT	1-53193-150-1	01	1	0005-				●	●
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9604-9608	●	●	●	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9604-9802	●	●	●	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9803-			●	●	●
128	BOLT; APRON,FRT M8X30 W/LK&PL WASHER	1-09030-080-0	02	1	9803-0004	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9803-0004	●	●
130	PANEL; SHUTTER NOISE 6HK1 TCC ENG(81L) (A)	1-53192-955-2	01	1	0406-0602				●
130	PANEL; SHUTTER NOISE 6HK1 TCC ENG(81L) (A)	1-53192-955-2	01	1	0604-				●
130	PANEL; SHUTTER NOISE 6HK1 TCC ENG(81L) (A)	1-53193-704-1	01	1	0406-				●
130	PANEL; SHUTTER NOISE (A)	1-53192-307-3	01	1	9604-9803			●		●
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-307-3	01	1	9604-9803				●
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-307-4	01	1	9804-0004			●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	9604-0004			●		●
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-305-2	01	1	9604-0004				●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	0005-0403			●	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	0404-0405			●	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	0406-			●		●
130	PANEL; SHUTTER NOISE 6HH1 STD ENG(65L) (A)	1-53192-305-2	01	1	0406-				●
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-308-3	01	1	9804-0004			●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-308-3	01	1	9804-0004					●
130	PANEL; SHUTTER NOISE (A)	1-53192-308-3	01	1	0005-0403			●	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-308-3	01	1	0404-0405			●	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-308-3	01	1	0406-			●		●
130	PANEL; SHUTTER NOISE 6HH1 STD ENG(65L) (A)	1-53192-308-3	01	1	0406-				●
130	PANEL; SHUTTER NOISE (A)	1-53192-718-3	01	1	9604-0004	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-717-3	01	1	9604-0004	●	●
130	PANEL; SHUTTER NOISE (B)	1-79938-793-0	01	1	9604-0004	●	●
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-955-2	01	1	9604-0004				●
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-954-2	01	1	9604-0004				●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9604-			●	●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9604-0004	●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	9604-0004	●	●	●	●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	0005-			●	●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	0603-			●		●
225	NUT; MUD GUARD 6HH1 STD ENG(65L) (A) M8 FLANGE	0-91180-108-0	02	1	0603-				●
225	NUT; MUD GUARD 6HK1 TCC ENG(81L) (A) M8 FLANGE	0-91180-108-0	03	1	0603-				●
225	NUT; MUD GUARD 6HH1 N ENG(66L) (A) M8	9-09110-408-0	03	1	9604-9612			●
225	NUT; MUD GUARD 6HH1 N ENG(66L) (A) M8 FLANGE	0-91150-108-0	03	1	9701-0004			●
225	NUT; MUD GUARD 6HH1 STD ENG(65L) (A) M8	9-09110-408-0	02	1	9604-9612			●
225	NUT; MUD GUARD (A) M8	9-09110-408-0	02	1	9604-9612	●	●		●	●
225	NUT; MUD GUARD 6HH1 STD ENG(65L) (A) M8 FLANGE	0-91150-108-0	02	1	9701-0004			●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91150-108-0	02	1	9701-0004	●	●		●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91150-108-0	02	1	0005-0403			●	●	●
225	NUT; MUD GUARD (B) M6 FLANGE	1-09984-141-0	02	1	9604-0004		●
244	GUARD; MUD,SPLASH	1-79938-920-3	01	1	9604-0004	●
244	GUARD; MUD,SPLASH	1-79938-921-6	01	1	9604-0004	●	●
244	GUARD; MUD,SPLASH	1-79938-947-1	01	1	9604-0004		●
255	COVER; SIDE,REAR	1-79938-785-0	01	1	9604-9604	●	●
255	COVER; SIDE,REAR	1-79938-951-0	01	1	9605-0004	●	●
255	COVER; SIDE,REAR	1-79938-784-0	01	1	9604-0004	●	●
256	BOLT; SIDE COVER REAR M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9604-0004	●	●
257	SHUTTER; RUBBER,SIDE COVER REAR	1-79938-791-0	01	1	9604-9604	●	●
257	SHUTTER; RUBBER,SIDE COVER REAR	1-79938-950-0	01	1	9605-0004	●	●
257	SHUTTER; RUBBER,SIDE COVER REAR	1-79938-790-0	01	1	9604-0004	●	●
258	RIVET; SCREW,SHUTTER D6X16 PUSH RIVET	1-09983-105-0	10	1	9604-9604	●	●
258	RIVET; SCREW,SHUTTER D6X16 PUSH RIVET	1-09983-105-0	09	1	9605-0004	●	●
259	BOLT; NOISE PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9604-0004	●	●
260	SHUTTER; RUBBER,NOISE PANEL	1-79938-792-0	01	1	9604-0004	●	●
262	WASHER; MUD GUARD ID=5.3 OD=10 T=0.8	1-09985-175-0	09	1	9604-0004	●	●
262	WASHER; MUD GUARD ID=5.3 OD=10 T=0.8	1-09985-175-0	12	1	9604-0004	●	●
303	EXTENSION; SPLASH GUARD (C)	1-79938-930-2	01	1	9604-0004	●
303	EXTENSION; SPLASH GUARD (A)	1-79938-923-4	01	1	9604-0004	●	●
303	EXTENSION; SPLASH GUARD (B)	1-79938-929-4	01	1	9604-0004	●	●
303	EXTENSION; SPLASH GUARD (A)	1-79938-922-2	01	1	9604-0004	●	●
303	EXTENSION; SPLASH GUARD (B)	1-79938-928-2	01	1	9604-0004	●	●
303	EXTENSION; SPLASH GUARD (C)	1-79938-948-0	01	1	9604-0004		●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9604-0004		●	●	●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-			●	●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	9604-0004	●
304	BOLT; SPLASH GUARD M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9604-0004	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	01	1	0405-				●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	10	1	9604-			●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	07	1	9604-9710			●	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	05	1	9711-0004			●	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	0005-			●	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	04	1	9604-9710	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	9711-0004	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	0005-			●	●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	01	1	9709-9711	●		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9604-9605	●	●	●	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9606-9708	●	●	●	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	03	1	9709-9711	●		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9712-0004	●		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	0005-			●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	9606-0004		●		●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	0005-0404				●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	0405-				●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9709-0004		●		●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	0005-0404				●	●

99 99 174 96 96 238 96 9 99 92 305 79 305 2 305 128 131 76 3 304 308 308 128 76 1 130 127 79 91 92 79 79 218 227 228 9 305 131 102 104 105 130 121 225 79 96 305 3 103 76 76 76 128 127 308 76 79 308 218 1 2 91 33 76 102 306 33 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	GUARD; MUD,FRT	1-79938-812-8	01	1	9604-0004	●	●	●	●	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0005-			●	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	9604-0004	●	●	●	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0005-			●	●	●
2	COVER; MUD,TIRE RR	1-79930-963-0	01	1	9604-9803			●
2	COVER; MUD,TIRE RR EXC. WEST MALAYSIA EQUIPMENT(SEQ)	1-79930-963-1	01	1	9804-9911			●
2	COVER; MUD,TIRE RR	1-79930-963-2	01	1	9912-			●
2	COVER; MUD,TIRE RR WEST MALAYSIA EQUIPMENT(SEQ)	1-79930-485-2	01	1	9804-9911			●
2	COVER; MUD,TIRE RR WEST MALAYSIA EQUIPMENT(SEQ)	1-79930-484-1	01	1	9804-9911			●
2	COVER; MUD,TIRE RR	1-79931-230-1	01	1	9604-9803	●		●
2	COVER; MUD,TIRE RR EXC. WEST MALAYSIA EQUIPMENT(SEQ)	1-79931-230-1	01	1	9804-9911			●
2	COVER; MUD,TIRE RR	1-79931-230-1	01	1	9804-9911	●
2	COVER; MUD,TIRE RR	1-79931-230-1	01	1	9912-0004	●		●
2	COVER; MUD,TIRE RR	1-79931-230-2	01	1	0005-			●
2	COVER; MUD,TIRE RR	1-79931-220-1	01	1	9604-0004	●
2	COVER; MUD,TIRE RR	1-79931-255-1	01	1	9604-0403				●	●
2	COVER; MUD,TIRE RR	1-79931-255-1	01	1	0404-0404					●
2	COVER; MUD,TIRE RR 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)	1-79931-255-1	01	1	0404-0404				●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	0405-				●	●
2	COVER; MUD,TIRE RR	1-79931-254-1	01	1	9604-0403				●	●
2	COVER; MUD,TIRE RR	1-79931-254-1	01	1	0404-0404					●
2	COVER; MUD,TIRE RR 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)	1-79931-254-1	01	1	0404-0404				●
2	COVER; MUD,TIRE RR	1-79931-254-2	01	1	0405-				●	●
2	COVER; MUD,TIRE RR	1-79931-229-1	02	1	9604-0004		●
3	GUARD; MUD,RR 6HK1 TCC ENG(81L)	1-79936-012-0	01	1	0406-				●
3	GUARD; MUD,RR	1-79938-933-2	01	1	9604-9604			●
3	GUARD; MUD,RR	1-79938-961-2	01	1	9605-			●
3	GUARD; MUD,RR	1-79938-932-4	01	1	9604-			●
3	GUARD; MUD,RR	1-79938-942-0	01	1	9604-0004	●
3	GUARD; MUD,RR	1-79938-945-1	01	1	9604-0004	●
3	GUARD; MUD,RR	1-79938-826-9	01	1	9604-9605				●	●
3	GUARD; MUD,RR	1-79938-959-1	01	1	9606-9711				●	●
3	GUARD; MUD,RR	1-79938-998-0	01	1	9712-				●	●
3	GUARD; MUD,RR	1-79938-827-9	01	1	9604-9607				●	●
3	GUARD; MUD,RR	1-79938-971-1	01	1	9608-0403				●	●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0404-0405					●
3	GUARD; MUD,RR 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)	1-79938-971-1	01	1	0404-0405				●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0406-					●
3	GUARD; MUD,RR 6HH1 STD ENG(65L)	1-79938-971-1	01	1	0406-				●
3	GUARD; MUD,RR	1-79938-776-0	01	1	9604-9903		●
3	GUARD; MUD,RR	1-79936-025-0	01	1	9904-0004		●
3	GUARD; MUD,RR	1-79938-940-0	01	1	9604-0004		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-041-1	01	1	0306-			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-042-2	01	1	0306-			●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-919-6	01	1	9604-0305			●	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-919-8	01	1	0306-				●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-2	01	1	9604-0305			●	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	0306-				●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	09	1	9604-9612			●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	09	1	9701-			●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9604-9609	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9610-9612	●			●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9701-9701	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	13	1	9604-9609				●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9610-9702				●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	9703-				●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9701-9701				●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9702-9702	●			●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9703-9805	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	9806-0004	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	14	1	9604-9612		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	14	1	9701-0004		●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9604-9605	●	●	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9606-0004	●	●	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0805			●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0806-			●	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9604-0004	●	●	●	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-			●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9604-0004		●	●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-			●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9604-0004	●
76	BOLT; MUD GUARD (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9604-0004	●	●
76	BOLT; MUD GUARD (D) M6X16 W/LK&PL WASHER	1-09980-492-0	01	1	9712-9712				●	●
76	BOLT; MUD GUARD (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9801-				●	●
79	RETAINER; MUD COVER 6HK1 TCC ENG(81L) (B)	1-79931-131-0	01	1	0406-0406				●
79	RETAINER; MUD COVER 6HK1 TCC ENG(81L) (C)	1-79931-288-0	01	1	0406-				●
79	RETAINER; MUD COVER (B)	1-79930-962-1	01	1	9604-9803			●
79	RETAINER; MUD COVER (B) L=509	1-79930-695-1	01	1	9604-9803			●
79	RETAINER; MUD COVER EXC. WEST MALAYSIA EQUIPMENT(SEQ) (B) L=509	1-79930-695-1	01	1	9804-9911			●
79	RETAINER; MUD COVER (B) L=509	1-79930-695-1	01	1	9912-			●
79	RETAINER; MUD COVER (D)	1-79930-962-1	01	1	0005-			●
79	RETAINER; MUD COVER WEST MALAYSIA EQUIPMENT(SEQ) (D)	1-79931-045-2	01	1	9804-9911			●
79	RETAINER; MUD COVER WEST MALAYSIA EQUIPMENT(SEQ) (B)	1-79930-962-1	01	1	9804-9911			●
79	RETAINER; MUD COVER EXC. WEST MALAYSIA EQUIPMENT(SEQ) (B)	1-79930-962-1	01	1	9804-			●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	9604-0004	●	●	●	●	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0005-			●	●	●
79	RETAINER; MUD COVER (B) L=468	1-79930-487-2	01	1	9604-0004	●
79	RETAINER; MUD COVER (B) L=428	1-79930-696-0	01	1	9604-9805	●
79	RETAINER; MUD COVER (B)	1-79931-329-1	01	1	9806-0004	●
79	RETAINER; MUD COVER (B)	1-79931-253-0	01	1	9604-9611				●	●
79	RETAINER; MUD COVER (C)	1-79931-278-1	01	1	9612-9711				●	●
79	RETAINER; MUD COVER (C)	1-79931-304-0	01	1	9712-0403				●	●
79	RETAINER; MUD COVER (C)	1-79931-304-0	01	1	0404-0405					●
79	RETAINER; MUD COVER 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (C)	1-79931-304-0	01	1	0404-0405				●
79	RETAINER; MUD COVER (C)	1-79931-304-0	01	1	0406-					●
79	RETAINER; MUD COVER 6HH1 STD ENG(65L) (C)	1-79931-304-0	01	1	0406-				●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	9604-0403				●	●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	0404-0404					●
79	RETAINER; MUD COVER 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (B)	1-79931-252-0	01	1	0404-0404				●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	0405-				●	●
79	RETAINER; MUD COVER (B)	1-79931-131-0	02	1	9604-0004		●
91	COVER; MUD,FRT	1-79931-214-1	02	1	9604-0004	●	●	●	●	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0005-			●	●	●
92	NUT; MUD COVER 6HK1 TCC ENG(81L) M6 FLANGE	0-91180-106-0	07	1	0603-				●
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9604-9607			●	●	●
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9608-9609			●
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9610-9612			●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9701-0403			●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	08	1	0404-0405			●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	08	1	0406-0602			●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	08	1	0603-0603			●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	09	1	0603-			●		●
92	NUT; MUD COVER 6HH1 STD ENG(65L) M6 FLANGE	0-91180-106-0	09	1	0603-				●
92	NUT; MUD COVER M6	9-09110-406-0	07	1	9604-9607	●
92	NUT; MUD COVER M6	9-09110-406-0	07	1	9608-9609	●			●	●
92	NUT; MUD COVER M6	9-09110-406-0	07	1	9610-9612	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	9701-0004	●
92	NUT; MUD COVER M6	9-09110-406-0	10	1	9604-9612		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	10	1	9701-0004		●
96	STAY; MUD GUARD CAB UP +50MM<W60> (E)	1-53497-592-1	01	1	0406-				●
96	STAY; MUD GUARD (B)	1-79938-925-1	01	1	9604-			●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9604-9607			●	●	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9608-			●
96	STAY; MUD GUARD (D)	1-79938-859-0	01	1	9604-0004	●	●
96	STAY; MUD GUARD (B)	1-79938-738-0	01	1	9604-9607				●	●
96	STAY; MUD GUARD (B)	1-79938-968-2	01	1	9608-				●	●
96	STAY; MUD GUARD (A)	1-79938-969-1	01	1	9608-				●	●
96	STAY; MUD GUARD (C)	1-79938-996-0	01	1	9712-				●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9604-			●	●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9604-0004	●	●
102	STAY; LWR,MUD GUARD CAB UP +50MM<W60>	1-53497-535-0	01	1	0406-				●
103	BRACKET ASM; RR MUD FLAP CAB UP +50MM<W60>	1-53497-486-2	01	1	0406-				●
104	BOLT; BRKT CAB UP +50MM<W60> M8X20 FLANGE	0-28680-820-0	06	1	0406-0512				●
104	BOLT; BRKT CAB UP +50MM<W60> M8X20 FLANGE	0-28650-820-0	06	1	0601-				●
105	NUT; BRKT CAB UP +50MM<W60> M8 FLANGE	0-91150-108-0	02	1	0406-0602				●
105	NUT; BRKT CAB UP +50MM<W60> M8 FLANGE	0-91180-108-0	02	1	0603-				●
121	BOLT CAB UP +50MM<W60> M10X30 FLANGE	0-28681-030-0	04	1	0406-0512				●
121	BOLT CAB UP +50MM<W60> M10X30 FLANGE	0-28651-030-0	04	1	0601-				●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53193-152-2	01	1	0406-				●
127	APRON; FRT	1-53193-222-0	01	1	9604-9803	●		●
127	APRON; FRT AUSTRALIA EQUIPMENT(RR3)	1-53193-222-1	01	1	9804-0004	●		●
127	APRON; FRT	1-53192-301-3	01	1	9604-0004	●		●
127	APRON; FRT	1-53192-301-3	01	1	0005-			●
127	APRON; FRT EXC. AUSTRALIA EQUIPMENT(RR3)	1-53193-223-1	01	1	9804-0004	●		●
127	APRON; FRT	1-53193-223-1	01	1	0005-			●
127	APRON; FRT	1-53193-153-1	01	1	9804-0004					●
127	APRON; FRT EXC. AUSTRALIA EQUIPMENT(RR3)	1-53193-153-1	01	1	9804-0004		●		●
127	APRON; FRT	1-53193-153-1	01	1	0005-0403				●	●
127	APRON; FRT	1-53193-153-1	01	1	0404-0405				●	●
127	APRON; FRT	1-53193-153-1	01	1	0406-					●
127	APRON; FRT 6HH1 STD ENG(65L)	1-53193-153-1	01	1	0406-				●
127	APRON; FRT	1-53193-152-1	01	1	9604-9803		●		●	●
127	APRON; FRT AUSTRALIA EQUIPMENT(RR3)	1-53193-152-1	01	1	9804-0004		●		●
127	APRON; FRT	1-53193-150-1	01	1	9604-0004		●		●	●
127	APRON; FRT	1-53193-150-1	01	1	0005-				●	●
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9604-9608	●	●	●	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9604-9802	●	●	●	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9803-			●	●	●
128	BOLT; APRON,FRT M8X30 W/LK&PL WASHER	1-09030-080-0	02	1	9803-0004	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9803-0004	●	●
130	PANEL; SHUTTER NOISE 6HK1 TCC ENG(81L) (A)	1-53192-955-2	01	1	0406-0602				●
130	PANEL; SHUTTER NOISE 6HK1 TCC ENG(81L) (A)	1-53192-955-2	01	1	0604-				●
130	PANEL; SHUTTER NOISE 6HK1 TCC ENG(81L) (A)	1-53193-704-1	01	1	0406-				●
130	PANEL; SHUTTER NOISE (A)	1-53192-307-3	01	1	9604-9803			●		●
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-307-3	01	1	9604-9803				●
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-307-4	01	1	9804-0004			●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	9604-0004			●		●
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-305-2	01	1	9604-0004				●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	0005-0403			●	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	0404-0405			●	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	0406-			●		●
130	PANEL; SHUTTER NOISE 6HH1 STD ENG(65L) (A)	1-53192-305-2	01	1	0406-				●
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-308-3	01	1	9804-0004			●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-308-3	01	1	9804-0004					●
130	PANEL; SHUTTER NOISE (A)	1-53192-308-3	01	1	0005-0403			●	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-308-3	01	1	0404-0405			●	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-308-3	01	1	0406-			●		●
130	PANEL; SHUTTER NOISE 6HH1 STD ENG(65L) (A)	1-53192-308-3	01	1	0406-				●
130	PANEL; SHUTTER NOISE (A)	1-53192-718-3	01	1	9604-0004	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-717-3	01	1	9604-0004	●	●
130	PANEL; SHUTTER NOISE (B)	1-79938-793-0	01	1	9604-0004	●	●
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-955-2	01	1	9604-0004				●
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-954-2	01	1	9604-0004				●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9604-			●	●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9604-0004	●	●
174	BOLT; STAY FIX M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9712-0004				●	●
174	BOLT; STAY FIX M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	0005-				●	●
174	BOLT; STAY FIX M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9804-0004				●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	9604-0004	●	●	●	●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	0005-			●	●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	0603-			●		●
225	NUT; MUD GUARD 6HH1 STD ENG(65L) (A) M8 FLANGE	0-91180-108-0	02	1	0603-				●
225	NUT; MUD GUARD 6HK1 TCC ENG(81L) (A) M8 FLANGE	0-91180-108-0	03	1	0603-				●
225	NUT; MUD GUARD 6HH1 N ENG(66L) (A) M8	9-09110-408-0	03	1	9604-9612			●
225	NUT; MUD GUARD 6HH1 N ENG(66L) (A) M8 FLANGE	0-91150-108-0	03	1	9701-0004			●
225	NUT; MUD GUARD 6HH1 STD ENG(65L) (A) M8	9-09110-408-0	02	1	9604-9612			●
225	NUT; MUD GUARD (A) M8	9-09110-408-0	02	1	9604-9612	●	●		●	●
225	NUT; MUD GUARD 6HH1 STD ENG(65L) (A) M8 FLANGE	0-91150-108-0	02	1	9701-0004			●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91150-108-0	02	1	9701-0004	●	●		●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91150-108-0	02	1	0005-0403			●	●	●
225	NUT; MUD GUARD (B) M6 FLANGE	1-09984-141-0	02	1	9604-0004		●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	9604-			●	●	●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	9604-			●	●	●
238	SCREW; MUD GUARD M6X30	1-65481-387-0	01	1	9604-9705				●	●
238	SCREW; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9706-				●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9604-0004		●	●	●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-			●	●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	9604-0004	●
304	BOLT; SPLASH GUARD M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9604-0004	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	01	1	0405-				●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	10	1	9604-			●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	07	1	9604-9710			●	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	05	1	9711-0004			●	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	0005-			●	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	04	1	9604-9710	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	9711-0004	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	0005-			●	●	●
306	BRACKET; MUD GUARD CAB UP +50MM<W60>	1-53497-702-0	01	1	0406-				●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	01	1	9709-9711	●		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9604-9605	●	●	●	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9606-9708	●	●	●	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	03	1	9709-9711	●		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9712-0004	●		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	0005-			●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	9606-0004		●		●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	0005-0404				●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	0405-				●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9709-0004		●		●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	0005-0404				●	●

131 244 303 303 262 303 304 96 3 29 307 92 84 79 76 2 305 99 128 308 308 76 33 127 130 1 79 91 218 131 244 303 303 262 303 96 79 304 3 2 29 92 312 312 76 99 305 33 128 308 308 76 76 225 127 130 1 79 91 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	GUARD; MUD,FRT	1-79938-812-8	01	1	9604-0004	●	●	●	●	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0005-			●	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	9604-0004	●	●	●	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0005-			●	●	●
2	COVER; MUD,TIRE RR	1-79930-963-0	01	1	9604-9803			●
2	COVER; MUD,TIRE RR EXC. WEST MALAYSIA EQUIPMENT(SEQ)	1-79930-963-1	01	1	9804-9911			●
2	COVER; MUD,TIRE RR	1-79930-963-2	01	1	9912-			●
2	COVER; MUD,TIRE RR WEST MALAYSIA EQUIPMENT(SEQ)	1-79930-485-2	01	1	9804-9911			●
2	COVER; MUD,TIRE RR WEST MALAYSIA EQUIPMENT(SEQ)	1-79930-484-1	01	1	9804-9911			●
2	COVER; MUD,TIRE RR	1-79931-230-1	01	1	9604-9803	●		●
2	COVER; MUD,TIRE RR EXC. WEST MALAYSIA EQUIPMENT(SEQ)	1-79931-230-1	01	1	9804-9911			●
2	COVER; MUD,TIRE RR	1-79931-230-1	01	1	9804-9911	●
2	COVER; MUD,TIRE RR	1-79931-230-1	01	1	9912-0004	●		●
2	COVER; MUD,TIRE RR	1-79931-230-2	01	1	0005-			●
2	COVER; MUD,TIRE RR	1-79931-220-1	01	1	9604-0004	●
2	COVER; MUD,TIRE RR	1-79931-255-1	01	1	9604-0403				●	●
2	COVER; MUD,TIRE RR	1-79931-255-1	01	1	0404-0404					●
2	COVER; MUD,TIRE RR 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)	1-79931-255-1	01	1	0404-0404				●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	0405-				●	●
2	COVER; MUD,TIRE RR	1-79931-254-1	01	1	9604-0403				●	●
2	COVER; MUD,TIRE RR	1-79931-254-1	01	1	0404-0404					●
2	COVER; MUD,TIRE RR 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)	1-79931-254-1	01	1	0404-0404				●
2	COVER; MUD,TIRE RR	1-79931-254-2	01	1	0405-				●	●
2	COVER; MUD,TIRE RR	1-79931-229-1	02	1	9604-0004		●
3	GUARD; MUD,RR 6HK1 TCC ENG(81L)	1-79936-012-0	01	1	0406-				●
3	GUARD; MUD,RR	1-79938-933-2	01	1	9604-9604			●
3	GUARD; MUD,RR	1-79938-961-2	01	1	9605-			●
3	GUARD; MUD,RR	1-79938-932-4	01	1	9604-			●
3	GUARD; MUD,RR	1-79938-942-0	01	1	9604-0004	●
3	GUARD; MUD,RR	1-79938-945-1	01	1	9604-0004	●
3	GUARD; MUD,RR	1-79938-826-9	01	1	9604-9605				●	●
3	GUARD; MUD,RR	1-79938-959-1	01	1	9606-9711				●	●
3	GUARD; MUD,RR	1-79938-998-0	01	1	9712-				●	●
3	GUARD; MUD,RR	1-79938-827-9	01	1	9604-9607				●	●
3	GUARD; MUD,RR	1-79938-971-1	01	1	9608-0403				●	●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0404-0405					●
3	GUARD; MUD,RR 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L)	1-79938-971-1	01	1	0404-0405				●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0406-					●
3	GUARD; MUD,RR 6HH1 STD ENG(65L)	1-79938-971-1	01	1	0406-				●
3	GUARD; MUD,RR	1-79938-776-0	01	1	9604-9903		●
3	GUARD; MUD,RR	1-79936-025-0	01	1	9904-0004		●
3	GUARD; MUD,RR	1-79938-940-0	01	1	9604-0004		●
29	RIVET	1-09987-240-0	09	1	9604-0004	●	●
29	RIVET	1-09987-240-0	12	1	9604-0004	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	09	1	9604-9612			●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	09	1	9701-			●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9604-9609	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9610-9612	●			●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9701-9701	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	13	1	9604-9609				●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9610-9702				●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	9703-				●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9701-9701				●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9702-9702	●			●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9703-9805	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	9806-0004	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	14	1	9604-9612		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	14	1	9701-0004		●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9604-9605	●	●	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9606-0004	●	●	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0805			●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0806-			●	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9604-0004	●	●	●	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-			●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9604-0004		●	●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-			●	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9604-0004	●
76	BOLT; MUD GUARD (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9604-0004	●	●
76	BOLT; MUD GUARD (D) M6X16 W/LK&PL WASHER	1-09980-492-0	01	1	9712-9712				●	●
76	BOLT; MUD GUARD (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9801-				●	●
79	RETAINER; MUD COVER 6HK1 TCC ENG(81L) (B)	1-79931-131-0	01	1	0406-0406				●
79	RETAINER; MUD COVER 6HK1 TCC ENG(81L) (C)	1-79931-288-0	01	1	0406-				●
79	RETAINER; MUD COVER (B)	1-79930-962-1	01	1	9604-9803			●
79	RETAINER; MUD COVER (B) L=509	1-79930-695-1	01	1	9604-9803			●
79	RETAINER; MUD COVER EXC. WEST MALAYSIA EQUIPMENT(SEQ) (B) L=509	1-79930-695-1	01	1	9804-9911			●
79	RETAINER; MUD COVER (B) L=509	1-79930-695-1	01	1	9912-			●
79	RETAINER; MUD COVER (D)	1-79930-962-1	01	1	0005-			●
79	RETAINER; MUD COVER WEST MALAYSIA EQUIPMENT(SEQ) (D)	1-79931-045-2	01	1	9804-9911			●
79	RETAINER; MUD COVER WEST MALAYSIA EQUIPMENT(SEQ) (B)	1-79930-962-1	01	1	9804-9911			●
79	RETAINER; MUD COVER EXC. WEST MALAYSIA EQUIPMENT(SEQ) (B)	1-79930-962-1	01	1	9804-			●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	9604-0004	●	●	●	●	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0005-			●	●	●
79	RETAINER; MUD COVER (B) L=468	1-79930-487-2	01	1	9604-0004	●
79	RETAINER; MUD COVER (B) L=428	1-79930-696-0	01	1	9604-9805	●
79	RETAINER; MUD COVER (B)	1-79931-329-1	01	1	9806-0004	●
79	RETAINER; MUD COVER (B)	1-79931-253-0	01	1	9604-9611				●	●
79	RETAINER; MUD COVER (C)	1-79931-278-1	01	1	9612-9711				●	●
79	RETAINER; MUD COVER (C)	1-79931-304-0	01	1	9712-0403				●	●
79	RETAINER; MUD COVER (C)	1-79931-304-0	01	1	0404-0405					●
79	RETAINER; MUD COVER 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (C)	1-79931-304-0	01	1	0404-0405				●
79	RETAINER; MUD COVER (C)	1-79931-304-0	01	1	0406-					●
79	RETAINER; MUD COVER 6HH1 STD ENG(65L) (C)	1-79931-304-0	01	1	0406-				●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	9604-0403				●	●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	0404-0404					●
79	RETAINER; MUD COVER 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (B)	1-79931-252-0	01	1	0404-0404				●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	0405-				●	●
79	RETAINER; MUD COVER (B)	1-79931-131-0	02	1	9604-0004		●
84	RIVET; MUD GUARD	1-09987-128-0	02	1	9604-0004	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	9604-0004	●	●	●	●	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0005-			●	●	●
92	NUT; MUD COVER 6HK1 TCC ENG(81L) M6 FLANGE	0-91180-106-0	07	1	0603-				●
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9604-9607			●	●	●
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9608-9609			●
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9610-9612			●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9701-0403			●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	08	1	0404-0405			●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	08	1	0406-0602			●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	08	1	0603-0603			●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	09	1	0603-			●		●
92	NUT; MUD COVER 6HH1 STD ENG(65L) M6 FLANGE	0-91180-106-0	09	1	0603-				●
92	NUT; MUD COVER M6	9-09110-406-0	07	1	9604-9607	●
92	NUT; MUD COVER M6	9-09110-406-0	07	1	9608-9609	●			●	●
92	NUT; MUD COVER M6	9-09110-406-0	07	1	9610-9612	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	9701-0004	●
92	NUT; MUD COVER M6	9-09110-406-0	10	1	9604-9612		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	10	1	9701-0004		●
96	STAY; MUD GUARD CAB UP +50MM<W60> (E)	1-53497-592-1	01	1	0406-				●
96	STAY; MUD GUARD (B)	1-79938-925-1	01	1	9604-			●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9604-9607			●	●	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9608-			●
96	STAY; MUD GUARD (D)	1-79938-859-0	01	1	9604-0004	●	●
96	STAY; MUD GUARD (B)	1-79938-738-0	01	1	9604-9607				●	●
96	STAY; MUD GUARD (B)	1-79938-968-2	01	1	9608-				●	●
96	STAY; MUD GUARD (A)	1-79938-969-1	01	1	9608-				●	●
96	STAY; MUD GUARD (C)	1-79938-996-0	01	1	9712-				●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9604-			●	●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9604-0004	●	●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53193-152-2	01	1	0406-				●
127	APRON; FRT	1-53193-222-0	01	1	9604-9803	●		●
127	APRON; FRT AUSTRALIA EQUIPMENT(RR3)	1-53193-222-1	01	1	9804-0004	●		●
127	APRON; FRT	1-53192-301-3	01	1	9604-0004	●		●
127	APRON; FRT	1-53192-301-3	01	1	0005-			●
127	APRON; FRT EXC. AUSTRALIA EQUIPMENT(RR3)	1-53193-223-1	01	1	9804-0004	●		●
127	APRON; FRT	1-53193-223-1	01	1	0005-			●
127	APRON; FRT	1-53193-153-1	01	1	9804-0004					●
127	APRON; FRT EXC. AUSTRALIA EQUIPMENT(RR3)	1-53193-153-1	01	1	9804-0004		●		●
127	APRON; FRT	1-53193-153-1	01	1	0005-0403				●	●
127	APRON; FRT	1-53193-153-1	01	1	0404-0405				●	●
127	APRON; FRT	1-53193-153-1	01	1	0406-					●
127	APRON; FRT 6HH1 STD ENG(65L)	1-53193-153-1	01	1	0406-				●
127	APRON; FRT	1-53193-152-1	01	1	9604-9803		●		●	●
127	APRON; FRT AUSTRALIA EQUIPMENT(RR3)	1-53193-152-1	01	1	9804-0004		●		●
127	APRON; FRT	1-53193-150-1	01	1	9604-0004		●		●	●
127	APRON; FRT	1-53193-150-1	01	1	0005-				●	●
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9604-9608	●	●	●	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9604-9802	●	●	●	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9803-			●	●	●
128	BOLT; APRON,FRT M8X30 W/LK&PL WASHER	1-09030-080-0	02	1	9803-0004	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9803-0004	●	●
130	PANEL; SHUTTER NOISE 6HK1 TCC ENG(81L) (A)	1-53192-955-2	01	1	0406-0602				●
130	PANEL; SHUTTER NOISE 6HK1 TCC ENG(81L) (A)	1-53192-955-2	01	1	0604-				●
130	PANEL; SHUTTER NOISE 6HK1 TCC ENG(81L) (A)	1-53193-704-1	01	1	0406-				●
130	PANEL; SHUTTER NOISE (A)	1-53192-307-3	01	1	9604-9803			●		●
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-307-3	01	1	9604-9803				●
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-307-4	01	1	9804-0004			●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	9604-0004			●		●
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-305-2	01	1	9604-0004				●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	0005-0403			●	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	0404-0405			●	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	0406-			●		●
130	PANEL; SHUTTER NOISE 6HH1 STD ENG(65L) (A)	1-53192-305-2	01	1	0406-				●
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-308-3	01	1	9804-0004			●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-308-3	01	1	9804-0004					●
130	PANEL; SHUTTER NOISE (A)	1-53192-308-3	01	1	0005-0403			●	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-308-3	01	1	0404-0405			●	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-308-3	01	1	0406-			●		●
130	PANEL; SHUTTER NOISE 6HH1 STD ENG(65L) (A)	1-53192-308-3	01	1	0406-				●
130	PANEL; SHUTTER NOISE (A)	1-53192-718-3	01	1	9604-0004	●	●
130	PANEL; SHUTTER NOISE (A)	1-53192-717-3	01	1	9604-0004	●	●
130	PANEL; SHUTTER NOISE (B)	1-79938-793-0	01	1	9604-0004	●	●
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-955-2	01	1	9604-0004				●
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-954-2	01	1	9604-0004				●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9604-			●	●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9604-0004	●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	9604-0004	●	●	●	●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	0005-			●	●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	0603-			●		●
225	NUT; MUD GUARD 6HH1 STD ENG(65L) (A) M8 FLANGE	0-91180-108-0	02	1	0603-				●
225	NUT; MUD GUARD 6HK1 TCC ENG(81L) (A) M8 FLANGE	0-91180-108-0	03	1	0603-				●
225	NUT; MUD GUARD 6HH1 N ENG(66L) (A) M8	9-09110-408-0	03	1	9604-9612			●
225	NUT; MUD GUARD 6HH1 N ENG(66L) (A) M8 FLANGE	0-91150-108-0	03	1	9701-0004			●
225	NUT; MUD GUARD 6HH1 STD ENG(65L) (A) M8	9-09110-408-0	02	1	9604-9612			●
225	NUT; MUD GUARD (A) M8	9-09110-408-0	02	1	9604-9612	●	●		●	●
225	NUT; MUD GUARD 6HH1 STD ENG(65L) (A) M8 FLANGE	0-91150-108-0	02	1	9701-0004			●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91150-108-0	02	1	9701-0004	●	●		●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91150-108-0	02	1	0005-0403			●	●	●
225	NUT; MUD GUARD (B) M6 FLANGE	1-09984-141-0	02	1	9604-0004		●
244	GUARD; MUD,SPLASH	1-79938-920-3	01	1	9604-0004	●
244	GUARD; MUD,SPLASH	1-79938-921-6	01	1	9604-0004	●	●
244	GUARD; MUD,SPLASH	1-79938-947-1	01	1	9604-0004		●
262	WASHER; MUD GUARD ID=5.3 OD=10 T=0.8	1-09985-175-0	09	1	9604-0004	●	●
262	WASHER; MUD GUARD ID=5.3 OD=10 T=0.8	1-09985-175-0	12	1	9604-0004	●	●
303	EXTENSION; SPLASH GUARD (C)	1-79938-930-2	01	1	9604-0004	●
303	EXTENSION; SPLASH GUARD (A)	1-79938-923-4	01	1	9604-0004	●	●
303	EXTENSION; SPLASH GUARD (B)	1-79938-929-4	01	1	9604-0004	●	●
303	EXTENSION; SPLASH GUARD (A)	1-79938-922-2	01	1	9604-0004	●	●
303	EXTENSION; SPLASH GUARD (B)	1-79938-928-2	01	1	9604-0004	●	●
303	EXTENSION; SPLASH GUARD (C)	1-79938-948-0	01	1	9604-0004		●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9604-0004		●	●	●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-			●	●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	9604-0004	●
304	BOLT; SPLASH GUARD M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9604-0004	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	01	1	0405-				●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	10	1	9604-			●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	07	1	9604-9710			●	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	05	1	9711-0004			●	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	0005-			●	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	04	1	9604-9710	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	9711-0004	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	0005-			●	●	●
307	RETAINER	1-79938-899-1	01	1	9604-0004	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	01	1	9709-9711	●		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9604-9605	●	●	●	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9606-9708	●	●	●	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	03	1	9709-9711	●		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9712-0004	●		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	0005-			●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	9606-0004		●		●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	0005-0404				●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	0405-				●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9709-0004		●		●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	0005-0404				●	●
312	SEAL; DUMMY HOLE	1-76798-018-0	03	1	9604-9803		●
312	SEAL; DUMMY HOLE	5-76777-035-0	03	1	9804-0004		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
