Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#3445) — 319 parça

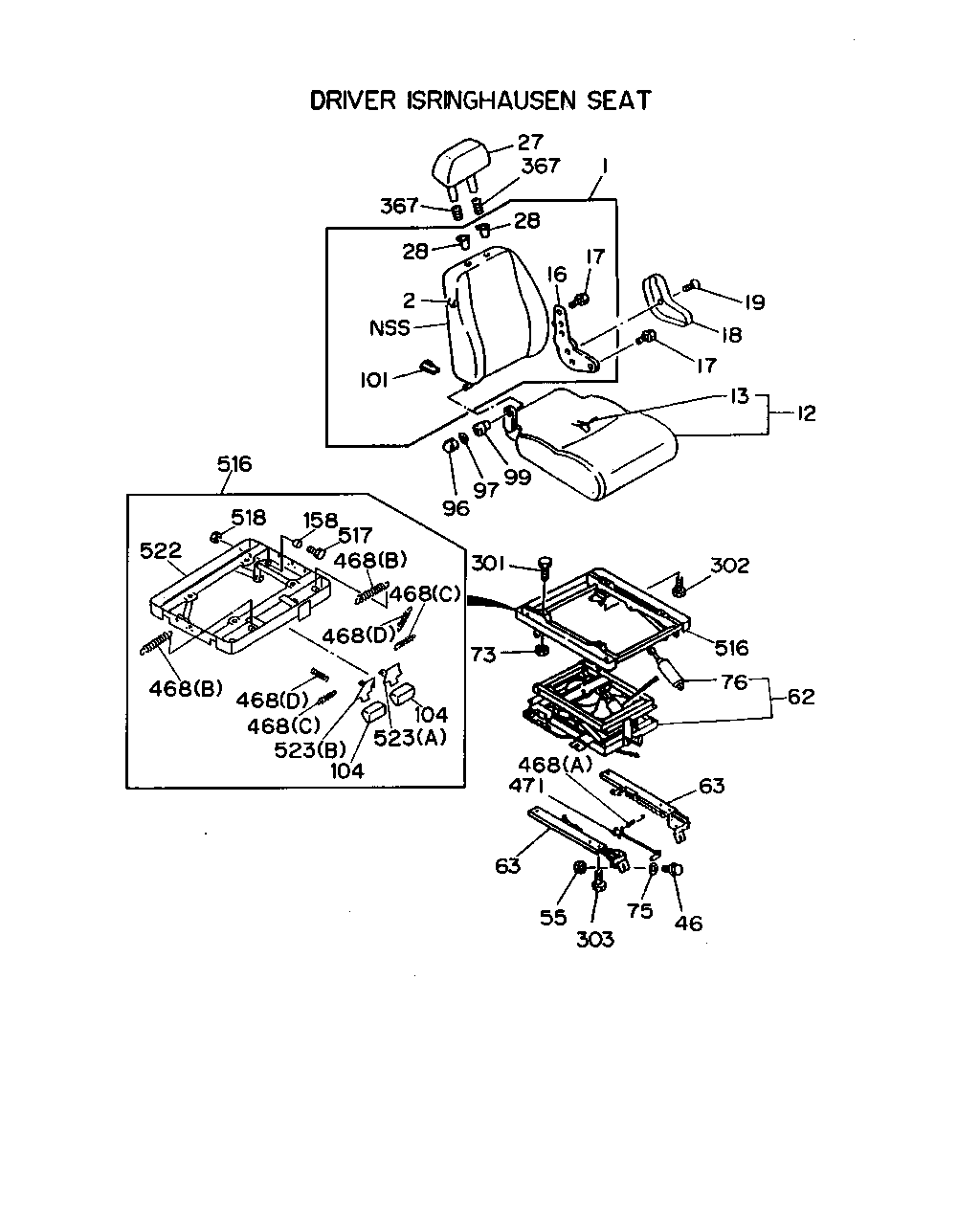

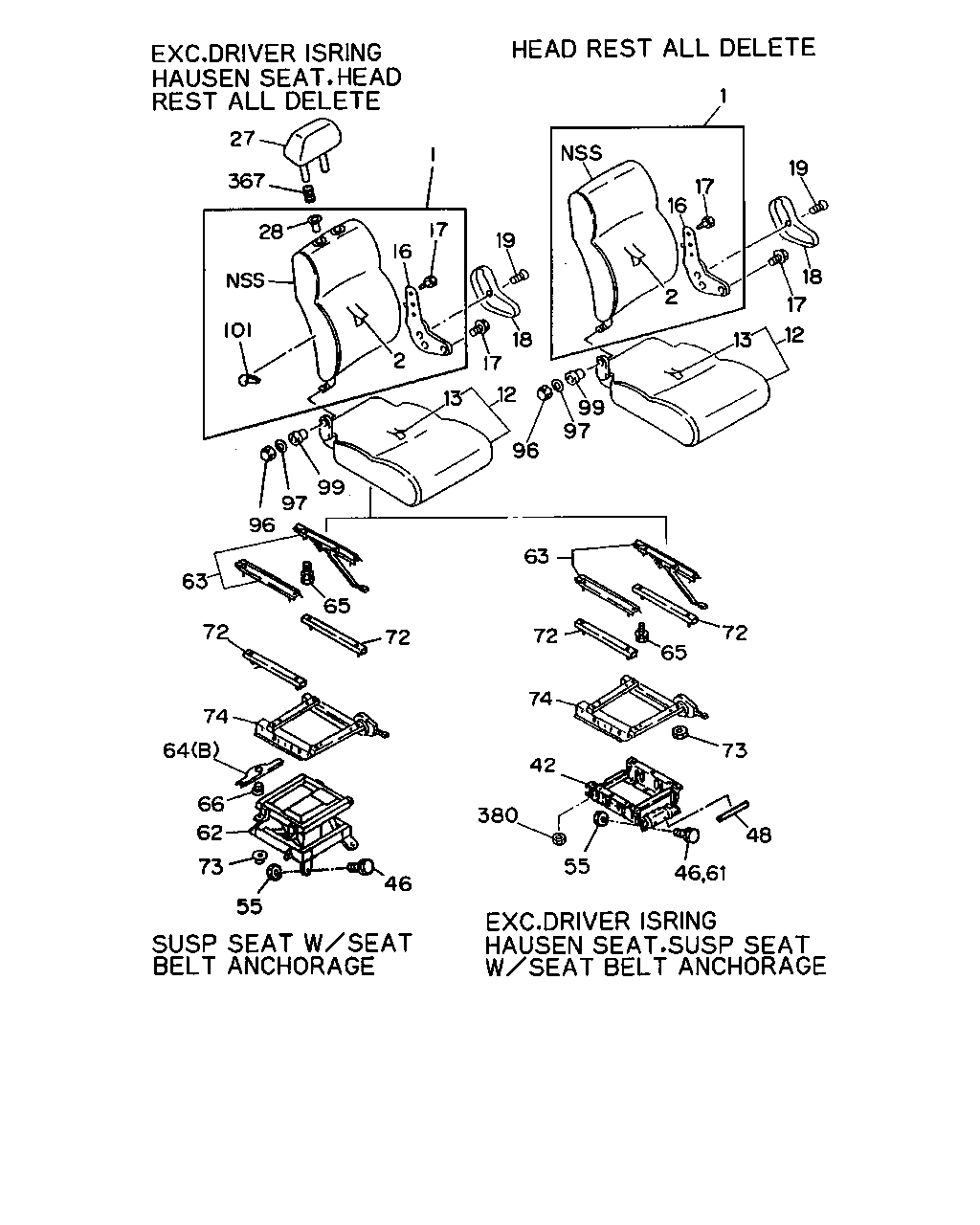

27 1 367 1 19 18 17 17 12 13 2 16 99 12 18 17 96 13 2 16 17 28 101 99 97 96 63 65 63 72 65 72 74 72 72 74 64 66 62 73 55 46 380 55 46 61 48 73 42 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BACK ASM; SEAT EXC. DELUXE SEAT(PQ8)	1-75027-333-0	01	1	9307-	●
1	BACK ASM; SEAT EXC. FRONT SEAT STD(AR7),DELUXE SEAT(PQ8)	1-75027-333-0	01	1	9307-		●	●
1	BACK ASM; SEAT DELUXE SEAT(PQ8)	1-75027-273-0	01	1	9307-	●	●	●
1	BACK ASM; SEAT DELUXE SEAT(PQ8) EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-75027-190-0	01	1	9002-9205	●	●	●
1	BACK ASM; SEAT DELUXE SEAT(PQ8) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SAUDI ARABIA EQUIPMENT(WH1)	1-75027-190-0	01	1	9206-9306	●	●	●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-300-0	01	1	9206-9306	●	●	●
1	BACK ASM; SEAT EXC. FRONT SEAT STD(AR7),DELUXE SEAT(PQ8),SAUDI ARABIA EQUIPMENT(WH1)	1-75027-188-0	01	1	9002-9306	●	●	●
1	BACK ASM; SEAT DELUXE SEAT(PQ8) SAUDI ARABIA EQUIPMENT(WH1)	1-75027-191-0	01	1	9002-9306		●	●
1	BACK ASM; SEAT FRONT SEAT STD(AR7)	1-75027-331-0	01	1	9307-		●	●
1	BACK ASM; SEAT FRONT SEAT STD(AR7) EXC. HEAD REST ALL DELETE<SBJ>,SAUDI ARABIA EQUIPMENT(WH1)	1-75027-186-0	01	1	9002-9306		●	●
1	BACK ASM; SEAT FRONT SEAT STD(AR7) SAUDI ARABIA EQUIPMENT(WH1) EXC. HEAD REST ALL DELETE<SBJ>	1-75027-187-0	01	1	9002-9306		●	●
1	BACK ASM; SEAT HEAD REST ALL DELETE<SBJ> SAUDI ARABIA EQUIPMENT(WH1)	1-75027-185-0	01	1	9002-9306		●	●
1	BACK ASM; SEAT HEAD REST ALL DELETE<SBJ> EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-75027-184-0	01	1	9002-9306		●	●
1	BACK ASM; SEAT SAUDI ARABIA EQUIPMENT(WH1) EXC. FRONT SEAT STD(AR7),DELUXE SEAT(PQ8)	1-75027-189-0	01	1	9002-9306		●	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8)	1-75117-696-0	01	1	9307-	●	●	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8) EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-75117-644-0	01	1	9002-9205	●	●	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SAUDI ARABIA EQUIPMENT(WH1)	1-75117-644-0	01	1	9206-9306	●	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. DELUXE SEAT(PQ8)	1-75117-781-0	01	1	9307-	●	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. DELUXE SEAT(PQ8),HEAD REST ALL DELETE<SBJ>, SAUDI ARABIA EQUIPMENT(WH1)	1-75117-642-0	01	1	9002-9306	●	●	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-771-0	01	1	9206-9306	●	●	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8) SAUDI ARABIA EQUIPMENT(WH1)	1-75117-645-0	01	1	9002-9306		●	●
2	COVER; TRIM,FRT SEAT,BACK HEAD REST ALL DELETE<SBJ> SAUDI ARABIA EQUIPMENT(WH1)	1-75117-641-0	01	1	9002-9306		●	●
2	COVER; TRIM,FRT SEAT,BACK HEAD REST ALL DELETE<SBJ> EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-75117-640-0	01	1	9002-9306		●	●
2	COVER; TRIM,FRT SEAT,BACK SAUDI ARABIA EQUIPMENT(WH1) EXC. DELUXE SEAT(PQ8),HEAD REST ALL DELETE<SBJ>	1-75117-643-0	01	1	9002-9306		●	●
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-325-0	01	1	9307-	●	●	●
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-75027-173-0	01	1	9002-9205	●	●	●
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SAUDI ARABIA EQUIPMENT(WH1)	1-75027-173-0	01	1	9206-9306	●	●	●
12	CUSHION; SEAT,FRT EXC. DELUXE SEAT(PQ8),DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-326-0	01	1	9307-	●	●	●
12	CUSHION; SEAT,FRT EXC. DELUXE SEAT(PQ8),SAUDI ARABIA EQUIPMENT(WH1)	1-75027-170-0	01	1	9002-9306	●	●	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-301-0	01	1	9206-9306	●	●	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-272-0	01	1	9307-	●	●	●
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) SAUDI ARABIA EQUIPMENT(WH1)	1-75027-172-0	01	1	9002-9306		●	●
12	CUSHION; SEAT,FRT SAUDI ARABIA EQUIPMENT(WH1) EXC. DELUXE SEAT(PQ8)	1-75027-171-0	01	1	9002-9306		●	●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-776-0	01	1	9307-	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-75117-631-0	01	1	9002-9205	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SAUDI ARABIA EQUIPMENT(WH1)	1-75117-631-0	01	1	9206-9306	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. DELUXE SEAT(PQ8),DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-777-0	01	1	9307-	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. DELUXE SEAT(PQ8),SAUDI ARABIA EQUIPMENT(WH1)	1-75117-628-0	01	1	9002-9306	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-772-0	01	1	9206-9306	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-744-0	01	1	9307-	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) SAUDI ARABIA EQUIPMENT(WH1)	1-75117-630-0	01	1	9002-9306		●	●
13	COVER; TRIM,FRT SEAT,CUSHION SAUDI ARABIA EQUIPMENT(WH1) EXC. DELUXE SEAT(PQ8)	1-75117-629-0	01	1	9002-9306		●	●
16	ADJUSTER ASM; RECLINING	1-75418-015-2	01	1	9002-	●	●	●
17	BOLT; RECLINING M8X20	1-09980-438-0	04	1	9002-	●	●	●
18	COVER; RECLINING BLACK	8-94266-795-0	01	1	9002-9205	●	●	●
18	COVER; RECLINING EXC. DRIVER ISRINGHAUSEN SEAT(SJA) BLACK	8-94266-795-0	01	1	9206-9306	●	●	●
18	COVER; RECLINING	1-75418-046-0	01	1	9307-	●	●	●
18	COVER; RECLINING DRIVER ISRINGHAUSEN SEAT(SJA)	1-75417-061-0	01	1	9206-9306	●	●	●
19	SCREW; COVER M6X6	1-09981-499-0	01	1	9002-	●	●	●
27	REST; HD,FRT SEAT	1-75657-023-0	01	1	9307-	●	●	●
27	REST; HD,FRT SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75657-020-0	01	1	9206-9306	●	●	●
27	REST; HD,FRT SEAT EXC. HEAD REST ALL DELETE<SBJ>,DRIVER ISRINGHAUSEN SEAT(SJA)	1-75657-017-0	01	1	9002-9306	●	●	●
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-441-0	02	1	9002-9306	●
28	HOLDER; GUIDE,HD REST EXC. HEAD REST DELETE<AR1>,HEAD REST ALL DELETE<SBJ> LIGHT BLUE	8-94477-441-0	02	1	9002-9306		●	●
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-444-0	02	1	9002-9306	●
28	HOLDER; GUIDE,HD REST EXC. HEAD REST DELETE<AR1>,HEAD REST ALL DELETE<SBJ> LIGHT BLUE	8-94477-444-0	02	1	9002-9306		●	●
28	HOLDER; GUIDE,HD REST GRAY	8-94477-446-0	02	1	9307-	●
28	HOLDER; GUIDE,HD REST EXC. HEAD REST DELETE<AR1> GRAY	8-94477-446-0	02	1	9307-		●	●
28	HOLDER; GUIDE,HD REST GRAY	8-94477-443-0	02	1	9307-	●
28	HOLDER; GUIDE,HD REST EXC. HEAD REST DELETE<AR1> GRAY	8-94477-443-0	02	1	9307-		●	●
42	STAND; DRIVER SEAT EXC. FRONT SEAT STD(AR7),DRIVER ISRINGHAUSEN SEAT(SJA),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75557-405-0	01	1	9002-	●	●	●
42	STAND; DRIVER SEAT FRONT SEAT STD(AR7)	1-75557-391-8	01	1	9002-		●	●
46	BOLT; STAND TO FLOOR	1-09980-566-0	02	1	9002-	●	●	●
48	PROTECTOR; SEAT STAND FRONT SEAT STD(AR7) SERVICED BY L=500	1-79937-746-0	01	1	9002-		●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M8 FLANGE	8-94279-504-1	02	1	9002-	●	●	●
61	BOLT; SEAT TO STAND	1-09980-566-0	04	1	9505-	●	●	●
61	BOLT; SEAT TO STAND FRONT SEAT STD(AR7)	1-09980-566-0	04	1	9002-9306		●	●
62	DAMPER ASM; SEAT SUSP DRIVER ISRINGHAUSEN SEAT(SJA)	1-75530-088-2	01	1	9206-9404	●	●	●
62	DAMPER ASM; SEAT SUSP DRIVER ISRINGHAUSEN SEAT(SJA)	1-75530-099-1	01	1	9405-	●	●	●

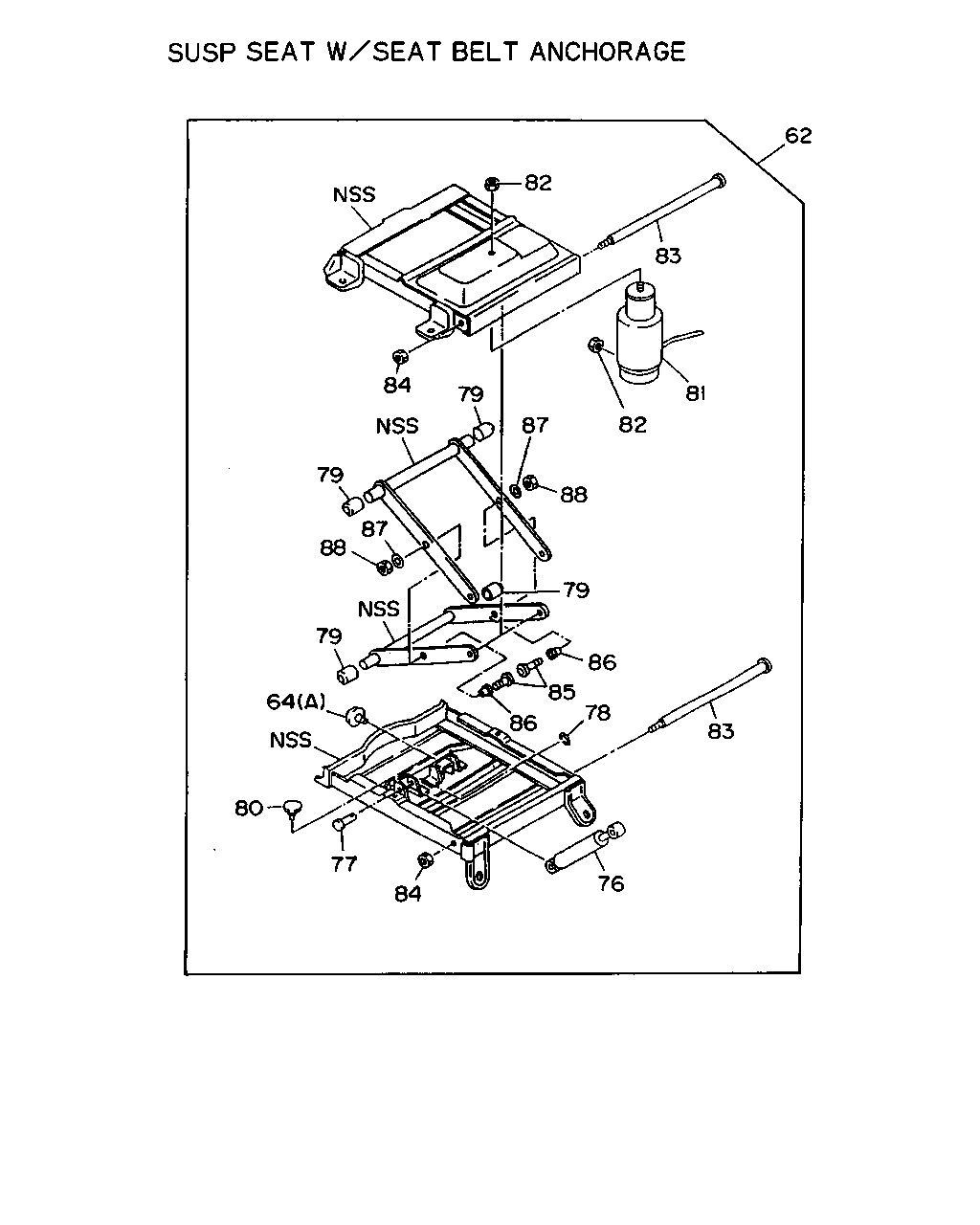

62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75538-114-7	01	1	9002-	●	●	●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-064-0	01	1	9206-	●	●	●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-063-1	01	1	9206-	●	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-020-1	01	1	9002-	●	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-019-1	01	1	9002-	●	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (A)	1-09987-123-0	02	1	9002-	●	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (B)	1-75537-194-0	01	1	9002-	●	●	●
65	SCREW; ADJ TO SEAT M8X23 W/LK WASHER	8-94254-743-0	04	1	9002-9205	●	●	●
65	SCREW; ADJ TO SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M8X23 W/LK WASHER	8-94254-743-0	04	1	9206-	●	●	●
66	RUBBER; LWR STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-130-0	01	1	9002-	●	●	●
72	SPACER; SEAT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75537-189-2	02	1	9002-	●	●	●
73	NUT; ADJ,HEIGHT CONT DRIVER ISRINGHAUSEN SEAT(SJA) M8 FLANGE	5-09440-005-0	06	1	9206-	●	●	●
73	NUT; ADJ,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) M8 FLANGE	8-94279-518-0	04	1	9505-	●	●	●
73	NUT; ADJ,HEIGHT CONT EXC. FRONT SEAT STD(AR7),DRIVER ISRINGHAUSEN SEAT(SJA),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) M8 FLANGE	5-09440-005-0	08	1	9002-	●	●	●
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) M8 FLANGE	5-09440-005-0	12	1	9002-	●	●	●
73	NUT; ADJ,HEIGHT CONT FRONT SEAT STD(AR7) M8 FLANGE	5-09440-005-0	04	1	9002-		●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. FRONT SEAT STD(AR7),DRIVER ISRINGHAUSEN SEAT(SJA)	1-75517-018-4	01	1	9002-	●	●	●
96	NUT; LK,HINGE M8	1-09984-109-0	01	1	9002-	●	●	●
97	WASHER; PL,RECLINING ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9002-	●	●	●
99	BUSHING; SEAT BACK	1-75508-004-0	01	1	9002-	●	●	●
101	LEVER ASM; LUMBAR EXC. FRONT SEAT STD(AR7)	1-75508-003-0	01	1	9206-	●	●	●
367	BOOT; HD REST	8-94412-828-0	04	1	9002-	●
367	BOOT; HD REST EXC. HEAD REST DELETE<AR1>,HEAD REST ALL DELETE<SBJ>	8-94412-828-0	04	1	9002-		●	●
380	NUT; DRIVER SEAT EXC. FRONT SEAT STD(AR7),DRIVER ISRINGHAUSEN SEAT(SJA),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) M8 FLANGE	8-94279-504-1	04	1	9002-9504	●	●	●

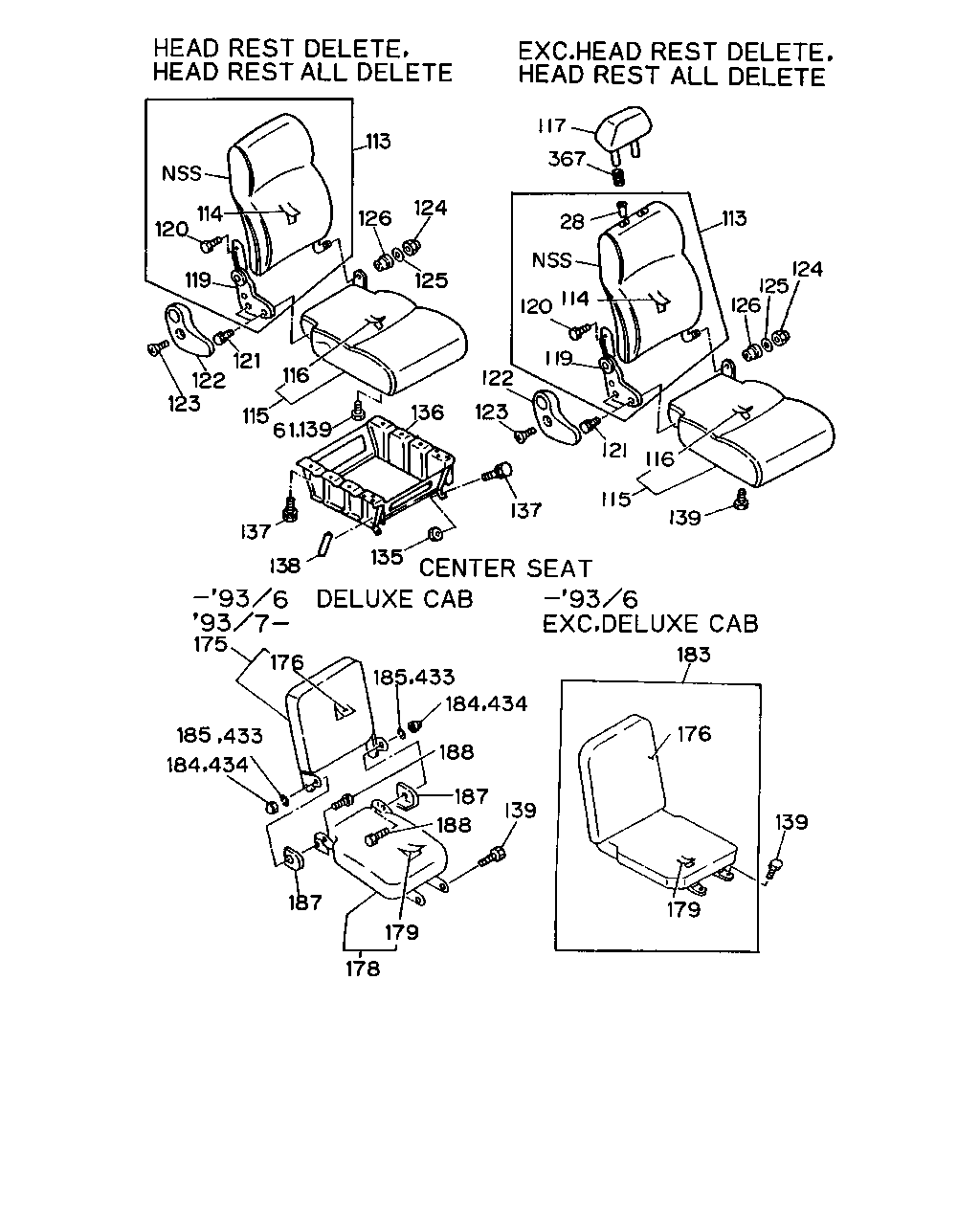

114 120 113 126 124 125 122 119 120 114 28 367 117 113 124 116 126 125 139 115 121 123 136 137 135 138 137 61 139 116 115 121 122 123 119 175 185 433 434 184 176 185 433 184 434 188 187 188 139 179 178 187 179 139 176 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-441-0	02	1	9002-9306	●
28	HOLDER; GUIDE,HD REST EXC. HEAD REST DELETE<AR1>,HEAD REST ALL DELETE<SBJ> LIGHT BLUE	8-94477-441-0	02	1	9002-9306		●	●
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-444-0	02	1	9002-9306	●
28	HOLDER; GUIDE,HD REST EXC. HEAD REST DELETE<AR1>,HEAD REST ALL DELETE<SBJ> LIGHT BLUE	8-94477-444-0	02	1	9002-9306		●	●
28	HOLDER; GUIDE,HD REST GRAY	8-94477-446-0	02	1	9307-	●
28	HOLDER; GUIDE,HD REST EXC. HEAD REST DELETE<AR1> GRAY	8-94477-446-0	02	1	9307-		●	●
28	HOLDER; GUIDE,HD REST GRAY	8-94477-443-0	02	1	9307-	●
28	HOLDER; GUIDE,HD REST EXC. HEAD REST DELETE<AR1> GRAY	8-94477-443-0	02	1	9307-		●	●
61	BOLT; SEAT TO STAND	1-09980-566-0	04	1	9505-	●	●	●
61	BOLT; SEAT TO STAND FRONT SEAT STD(AR7)	1-09980-566-0	04	1	9002-9306		●	●
113	BACK ASM; SEAT EXC. DELUXE SEAT(PQ8)	1-75027-334-0	01	1	9307-	●
113	BACK ASM; SEAT EXC. HEAD REST DELETE<AR1>,DELUXE SEAT(PQ8)	1-75027-334-0	01	1	9307-		●	●
113	BACK ASM; SEAT DELUXE SEAT(PQ8)	1-75027-275-0	01	1	9307-	●	●	●
113	BACK ASM; SEAT DELUXE SEAT(PQ8) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SAUDI ARABIA EQUIPMENT(WH1)	1-75027-182-0	01	1	9002-9306	●	●	●
113	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-302-0	01	1	9206-9306	●	●	●
113	BACK ASM; SEAT EXC. HEAD REST DELETE<AR1>,DELUXE SEAT(PQ8),HEAD REST ALL DELETE<SBJ>,SAUDI ARABIA EQUIPMENT(WH1)	1-75027-178-0	01	1	9002-9306	●	●	●
113	BACK ASM; SEAT DELUXE SEAT(PQ8) SAUDI ARABIA EQUIPMENT(WH1)	1-75027-183-0	01	1	9002-9306		●	●
113	BACK ASM; SEAT HEAD REST DELETE<AR1>	1-75027-335-0	01	1	9307-		●	●
113	BACK ASM; SEAT HEAD REST DELETE<AR1>,HEAD REST ALL DELETE<SBJ> SAUDI ARABIA EQUIPMENT(WH1)	1-75027-180-0	01	1	9002-9306		●	●
113	BACK ASM; SEAT HEAD REST DELETE<AR1>,HEAD REST ALL DELETE<SBJ> EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-75027-181-0	01	1	9002-9306		●	●
113	BACK ASM; SEAT SAUDI ARABIA EQUIPMENT(WH1) EXC. HEAD REST DELETE<AR1>,DELUXE SEAT(PQ8),HEAD REST ALL DELETE<SBJ>	1-75027-179-0	01	1	9002-9306		●	●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. DELUXE SEAT(PQ8)	1-75117-782-0	01	1	9307-	●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. HEAD REST DELETE<AR1>,DELUXE SEAT(PQ8)	1-75117-782-0	01	1	9307-		●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT(PQ8)	1-75117-747-0	01	1	9307-	●	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT(PQ8) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SAUDI ARABIA EQUIPMENT(WH1)	1-75117-635-0	01	1	9002-9306	●	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-773-0	01	1	9206-9306	●	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. HEAD REST DELETE<AR1>,DELUXE SEAT(PQ8),HEAD REST ALL DELETE<SBJ>,SAUDI ARABIA EQUIPMENT(WH1)	1-75117-634-0	01	1	9002-9306	●	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT(PQ8) SAUDI ARABIA EQUIPMENT(WH1)	1-75117-639-0	01	1	9002-9306		●	●
114	COVER; TRIM,PASSENGER SEAT,BACK HEAD REST DELETE<AR1>	1-75117-784-0	01	1	9307-		●	●
114	COVER; TRIM,PASSENGER SEAT,BACK HEAD REST DELETE<AR1>,HEAD REST ALL DELETE<SBJ> SAUDI ARABIA EQUIPMENT(WH1)	1-75117-637-0	01	1	9002-9306		●	●
114	COVER; TRIM,PASSENGER SEAT,BACK HEAD REST DELETE<AR1>,HEAD REST ALL DELETE<SBJ> EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-75117-638-0	01	1	9002-9306		●	●
114	COVER; TRIM,PASSENGER SEAT,BACK SAUDI ARABIA EQUIPMENT(WH1) EXC. HEAD REST DELETE<AR1>,DELUXE SEAT(PQ8),HEAD REST ALL DELETE<SBJ>	1-75117-636-0	01	1	9002-9306		●	●
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT(PQ8)	1-75027-274-0	01	1	9307-	●	●	●
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT(PQ8) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SAUDI ARABIA EQUIPMENT(WH1)	1-75027-167-0	01	1	9002-9306	●	●	●
115	CUSHION ASM; PASSENGER SEAT EXC. DELUXE SEAT(PQ8)	1-75027-328-0	01	1	9307-	●	●	●
115	CUSHION ASM; PASSENGER SEAT EXC. DELUXE SEAT(PQ8),DRIVER ISRINGHAUSEN SEAT(SJA),SAUDI ARABIA EQUIPMENT(WH1)	1-75027-164-0	01	1	9002-9306	●	●	●
115	CUSHION ASM; PASSENGER SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-303-0	01	1	9206-9306	●	●	●
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT(PQ8) SAUDI ARABIA EQUIPMENT(WH1)	1-75027-168-0	01	1	9002-9306		●	●
115	CUSHION ASM; PASSENGER SEAT SAUDI ARABIA EQUIPMENT(WH1) EXC. DELUXE SEAT(PQ8)	1-75027-169-0	01	1	9002-9306		●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT(PQ8)	1-75117-746-0	01	1	9307-	●	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT(PQ8) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SAUDI ARABIA EQUIPMENT(WH1)	1-75117-625-0	01	1	9002-9306	●	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. DELUXE SEAT(PQ8)	1-75117-779-0	01	1	9307-	●	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. DELUXE SEAT(PQ8),DRIVER ISRINGHAUSEN SEAT(SJA),SAUDI ARABIA EQUIPMENT(WH1)	1-75117-622-0	01	1	9002-9306	●	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-774-0	01	1	9206-9306	●	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT(PQ8) SAUDI ARABIA EQUIPMENT(WH1)	1-75117-626-0	01	1	9002-9306		●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SAUDI ARABIA EQUIPMENT(WH1) EXC. DELUXE SEAT(PQ8)	1-75117-627-0	01	1	9002-9306		●	●
117	REST; HD DRIVER ISRINGHAUSEN SEAT(SJA)	1-75657-020-0	01	1	9206-9306	●	●	●
117	REST; HD EXC. HEAD REST DELETE<AR1>	1-75657-023-0	01	1	9307-	●	●	●
117	REST; HD EXC. HEAD REST DELETE<AR1>,HEAD REST ALL DELETE<SBJ>,DRIVER ISRINGHAUSEN SEAT(SJA)	1-75657-017-0	01	1	9002-9306	●	●	●
119	ADJ; SEAT RECLINING,ASSIST SIDE	1-75418-014-2	01	1	9002-	●	●	●
120	BOLT; RECLINING ADJ M8X20	1-09980-438-0	02	1	9002-9306	●	●	●
120	BOLT; RECLINING ADJ M8X20	1-09980-438-0	04	1	9307-	●	●	●
121	BOLT; COVER,RECLINING M8X20	1-09980-438-0	02	1	9002-9306	●	●	●
122	COVER; ADJ,RECLINING DRIVER ISRINGHAUSEN SEAT(SJA)	1-75417-060-0	01	1	9206-9306	●	●	●
122	COVER; ADJ,RECLINING	1-75418-042-0	01	1	9307-	●	●	●
122	COVER; ADJ,RECLINING EXC. DRIVER ISRINGHAUSEN SEAT(SJA) BLACK	8-94266-789-0	01	1	9002-9306	●	●	●
123	SCREW; COVER,RECLINING M6X6	1-09981-499-0	01	1	9002-	●	●	●
124	NUT; CAP,RECLINING M8	1-09984-109-0	01	1	9002-	●	●	●
125	WASHER; PL,RECLINING ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9002-	●	●	●
126	BUSHING; HINGE,RECLINING	1-75508-004-0	01	1	9002-	●	●	●
135	NUT; SEAT STAND M8 FLANGE	8-94279-504-1	02	1	9002-	●	●	●
136	STAND; PASSENGER SEAT	1-75557-391-8	01	1	9002-9306	●	●	●
136	STAND; PASSENGER SEAT	1-75558-294-4	01	1	9307-	●	●	●
137	BOLT; STAND	1-09980-566-0	02	1	9002-	●	●	●
138	PROTECTOR; SEAT STAND SERVICED BY L=500	1-79937-746-0	01	1	9002-9306	●	●	●
139	BOLT; PASSENGER SEAT	1-09980-566-0	02	1	9002-9306	●
139	BOLT; PASSENGER SEAT EXC. CENTER SEAT DELETE(SP9)	1-09980-566-0	02	1	9002-9306		●	●
139	BOLT; PASSENGER SEAT	1-09980-566-0	04	1	9002-9306	●	●	●
139	BOLT; PASSENGER SEAT	1-09980-566-0	06	1	9307-9504	●	●	●
139	BOLT; PASSENGER SEAT	1-09980-566-0	02	1	9505-	●	●	●
175	BACK ASM; PASSENGER CENTER SEAT	1-75027-255-1	01	1	9307-	●	●	●
175	BACK ASM; PASSENGER CENTER SEAT DELUXE CAB(W14) EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-75027-086-2	01	1	9002-9306	●	●	●
175	BACK ASM; PASSENGER CENTER SEAT SAUDI ARABIA EQUIPMENT(WH1) DELUXE CAB(W14)	1-75027-197-0	01	1	9002-9306		●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK	1-75117-715-1	01	1	9307-	●	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE CAB(W14) EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-75117-558-1	01	1	9002-9306	●	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE SEAT(PQ8) EXC. SAUDI ARABIA EQUIPMENT(WH1),DELUXE CAB(W14)	1-75117-653-0	01	1	9002-9306	●	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. DELUXE SEAT(PQ8),CENTER SEAT DELETE(SP9), SAUDI ARABIA EQUIPMENT(WH1)	1-75117-652-0	01	1	9002-9306	●	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE SEAT(PQ8) SAUDI ARABIA EQUIPMENT(WH1) EXC. DELUXE CAB(W14)	1-75117-654-0	01	1	9002-9306		●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SAUDI ARABIA EQUIPMENT(WH1) DELUXE CAB(W14)	1-75117-658-0	01	1	9002-9306		●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SAUDI ARABIA EQUIPMENT(WH1) EXC. DELUXE SEAT(PQ8),CENTER SEAT DELETE(SP9)	1-75117-655-0	01	1	9002-9306		●	●
178	CUSHION ASM; PASSENGER CENTER SEAT	1-75027-254-1	01	1	9307-	●	●	●
178	CUSHION ASM; PASSENGER CENTER SEAT DELUXE CAB(W14) SAUDI ARABIA EQUIPMENT(WH1)	1-75027-199-0	01	1	9002-9306	●	●	●
178	CUSHION ASM; PASSENGER CENTER SEAT DELUXE CAB(W14) EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-75027-085-1	01	1	9002-9306	●	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH	1-75117-714-1	01	1	9307-	●	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE CAB(W14) EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-75117-559-0	01	1	9002-9306	●	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE SEAT(PQ8) EXC. SAUDI ARABIA EQUIPMENT(WH1),DELUXE CAB(W14)	1-75117-647-0	01	1	9002-9306	●	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. DELUXE SEAT(PQ8),CENTER SEAT DELETE(SP9), SAUDI ARABIA EQUIPMENT(WH1)	1-75117-646-0	01	1	9002-9306	●	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE SEAT(PQ8) SAUDI ARABIA EQUIPMENT(WH1) EXC. DELUXE CAB(W14)	1-75117-648-0	01	1	9002-9306		●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SAUDI ARABIA EQUIPMENT(WH1) DELUXE CAB(W14)	1-75117-660-0	01	1	9002-9306		●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SAUDI ARABIA EQUIPMENT(WH1) EXC. DELUXE SEAT(PQ8),CENTER SEAT DELETE(SP9)	1-75117-649-0	01	1	9002-9306		●	●
183	SEAT ASM; PASSENGER CENTER DELUXE SEAT(PQ8) EXC. SAUDI ARABIA EQUIPMENT(WH1),DELUXE CAB(W14)	1-75027-137-0	01	1	9002-9306	●	●	●
183	SEAT ASM; PASSENGER CENTER EXC. DELUXE SEAT(PQ8),CENTER SEAT DELETE(SP9), SAUDI ARABIA EQUIPMENT(WH1)	1-75027-135-0	01	1	9002-9306	●	●	●
183	SEAT ASM; PASSENGER CENTER DELUXE SEAT(PQ8) SAUDI ARABIA EQUIPMENT(WH1) EXC. DELUXE CAB(W14)	1-75027-139-0	01	1	9002-9306		●	●
183	SEAT ASM; PASSENGER CENTER SAUDI ARABIA EQUIPMENT(WH1) EXC. DELUXE SEAT(PQ8),CENTER SEAT DELETE(SP9)	1-75027-140-0	01	1	9002-9306		●	●
184	NUT; CAP,CENTER SEAT DELUXE CAB(W14)	8-94279-505-0	02	1	9002-9306	●	●	●
185	WASHER; LK,CAP NUT DELUXE CAB(W14) ID=8.2	9-09150-508-0	02	1	9002-9306	●	●	●
187	COVER; CENTER SEAT	1-75417-063-0	01	1	9307-	●	●	●
187	COVER; CENTER SEAT	1-75417-062-0	01	1	9307-	●	●	●
187	COVER; CENTER SEAT DELUXE CAB(W14)	1-75417-063-0	01	1	9002-9306	●	●	●
187	COVER; CENTER SEAT DELUXE CAB(W14)	1-75417-062-0	01	1	9002-9306	●	●	●
188	BOLT; BACK TO CUSHION DELUXE CAB(W14)	1-09980-577-0	02	1	9002-9306	●	●	●
188	BOLT; BACK TO CUSHION	1-09980-577-0	02	1	9307-	●	●	●
367	BOOT; HD REST	8-94412-828-0	04	1	9002-	●
367	BOOT; HD REST EXC. HEAD REST DELETE<AR1>,HEAD REST ALL DELETE<SBJ>	8-94412-828-0	04	1	9002-		●	●
433	WASHER; BRKT TO CENTER SEAT ID=8.2	9-09150-508-0	02	1	9307-	●	●	●
434	NUT; BRKT	8-94279-505-0	02	1	9307-	●	●	●

82 83 62 81 87 79 84 79 82 88 79 86 78 86 79 88 87 64 80 77 84 76 83 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
62	DAMPER ASM; SEAT SUSP DRIVER ISRINGHAUSEN SEAT(SJA)	1-75530-088-2	01	1	9206-9404	●	●	●
62	DAMPER ASM; SEAT SUSP DRIVER ISRINGHAUSEN SEAT(SJA)	1-75530-099-1	01	1	9405-	●	●	●
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75538-114-7	01	1	9002-	●	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (A)	1-09987-123-0	02	1	9002-	●	●	●
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (B)	1-75537-194-0	01	1	9002-	●	●	●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT(SJA)	1-75530-032-1	01	1	9206-	●	●	●
76	DAMPER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-197-0	01	1	9002-	●	●	●
77	PIN; DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	9-08201-035-0	02	1	9002-	●	●	●
78	RING; SNAP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) ID=8	9-09185-008-0	02	1	9002-	●	●	●
79	ROLLER ASM; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75538-119-0	04	1	9002-	●	●	●
80	RUBBER; STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	9-61468-039-0	02	1	9002-	●	●	●
81	SPRING; AIR SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-195-0	01	1	9002-	●	●	●
82	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-09984-096-0	02	1	9002-	●	●	●
83	PIN; LOW & UPR SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75530-016-0	02	1	9002-	●	●	●
84	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75530-014-0	02	1	9002-	●	●	●
85	BOLT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75538-118-0	02	1	9002-	●	●	●
86	BUSHING; GUIDE SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75148-153-0	02	1	9002-	●	●	●
87	WASHER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) ID=10.5 OD=26	9-09160-710-0	02	1	9002-	●	●	●
88	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) M10	8-94279-519-0	02	1	9002-	●	●	●

367 367 27 28 1 28 16 17 2 101 19 13 12 17 18 302 516 76 62 63 46 75 303 63 55 471 73 468 301 99 97 96 468 468 517 158 518 516 522 468 468 468 523 523 104 468 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BACK ASM; SEAT EXC. DELUXE SEAT(PQ8)	1-75027-333-0	01	1	9307-	●
1	BACK ASM; SEAT EXC. FRONT SEAT STD(AR7),DELUXE SEAT(PQ8)	1-75027-333-0	01	1	9307-		●	●
1	BACK ASM; SEAT DELUXE SEAT(PQ8)	1-75027-273-0	01	1	9307-	●	●	●
1	BACK ASM; SEAT DELUXE SEAT(PQ8) EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-75027-190-0	01	1	9002-9205	●	●	●
1	BACK ASM; SEAT DELUXE SEAT(PQ8) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SAUDI ARABIA EQUIPMENT(WH1)	1-75027-190-0	01	1	9206-9306	●	●	●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-300-0	01	1	9206-9306	●	●	●
1	BACK ASM; SEAT EXC. FRONT SEAT STD(AR7),DELUXE SEAT(PQ8),SAUDI ARABIA EQUIPMENT(WH1)	1-75027-188-0	01	1	9002-9306	●	●	●
1	BACK ASM; SEAT DELUXE SEAT(PQ8) SAUDI ARABIA EQUIPMENT(WH1)	1-75027-191-0	01	1	9002-9306		●	●
1	BACK ASM; SEAT FRONT SEAT STD(AR7)	1-75027-331-0	01	1	9307-		●	●
1	BACK ASM; SEAT FRONT SEAT STD(AR7) EXC. HEAD REST ALL DELETE<SBJ>,SAUDI ARABIA EQUIPMENT(WH1)	1-75027-186-0	01	1	9002-9306		●	●
1	BACK ASM; SEAT FRONT SEAT STD(AR7) SAUDI ARABIA EQUIPMENT(WH1) EXC. HEAD REST ALL DELETE<SBJ>	1-75027-187-0	01	1	9002-9306		●	●
1	BACK ASM; SEAT HEAD REST ALL DELETE<SBJ> SAUDI ARABIA EQUIPMENT(WH1)	1-75027-185-0	01	1	9002-9306		●	●
1	BACK ASM; SEAT HEAD REST ALL DELETE<SBJ> EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-75027-184-0	01	1	9002-9306		●	●
1	BACK ASM; SEAT SAUDI ARABIA EQUIPMENT(WH1) EXC. FRONT SEAT STD(AR7),DELUXE SEAT(PQ8)	1-75027-189-0	01	1	9002-9306		●	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8)	1-75117-696-0	01	1	9307-	●	●	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8) EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-75117-644-0	01	1	9002-9205	●	●	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SAUDI ARABIA EQUIPMENT(WH1)	1-75117-644-0	01	1	9206-9306	●	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. DELUXE SEAT(PQ8)	1-75117-781-0	01	1	9307-	●	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. DELUXE SEAT(PQ8),HEAD REST ALL DELETE<SBJ>, SAUDI ARABIA EQUIPMENT(WH1)	1-75117-642-0	01	1	9002-9306	●	●	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-771-0	01	1	9206-9306	●	●	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8) SAUDI ARABIA EQUIPMENT(WH1)	1-75117-645-0	01	1	9002-9306		●	●
2	COVER; TRIM,FRT SEAT,BACK HEAD REST ALL DELETE<SBJ> SAUDI ARABIA EQUIPMENT(WH1)	1-75117-641-0	01	1	9002-9306		●	●
2	COVER; TRIM,FRT SEAT,BACK HEAD REST ALL DELETE<SBJ> EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-75117-640-0	01	1	9002-9306		●	●
2	COVER; TRIM,FRT SEAT,BACK SAUDI ARABIA EQUIPMENT(WH1) EXC. DELUXE SEAT(PQ8),HEAD REST ALL DELETE<SBJ>	1-75117-643-0	01	1	9002-9306		●	●
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-325-0	01	1	9307-	●	●	●
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-75027-173-0	01	1	9002-9205	●	●	●
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SAUDI ARABIA EQUIPMENT(WH1)	1-75027-173-0	01	1	9206-9306	●	●	●
12	CUSHION; SEAT,FRT EXC. DELUXE SEAT(PQ8),DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-326-0	01	1	9307-	●	●	●
12	CUSHION; SEAT,FRT EXC. DELUXE SEAT(PQ8),SAUDI ARABIA EQUIPMENT(WH1)	1-75027-170-0	01	1	9002-9306	●	●	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-301-0	01	1	9206-9306	●	●	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-272-0	01	1	9307-	●	●	●
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) SAUDI ARABIA EQUIPMENT(WH1)	1-75027-172-0	01	1	9002-9306		●	●
12	CUSHION; SEAT,FRT SAUDI ARABIA EQUIPMENT(WH1) EXC. DELUXE SEAT(PQ8)	1-75027-171-0	01	1	9002-9306		●	●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-776-0	01	1	9307-	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-75117-631-0	01	1	9002-9205	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SAUDI ARABIA EQUIPMENT(WH1)	1-75117-631-0	01	1	9206-9306	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. DELUXE SEAT(PQ8),DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-777-0	01	1	9307-	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. DELUXE SEAT(PQ8),SAUDI ARABIA EQUIPMENT(WH1)	1-75117-628-0	01	1	9002-9306	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-772-0	01	1	9206-9306	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-744-0	01	1	9307-	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) SAUDI ARABIA EQUIPMENT(WH1)	1-75117-630-0	01	1	9002-9306		●	●
13	COVER; TRIM,FRT SEAT,CUSHION SAUDI ARABIA EQUIPMENT(WH1) EXC. DELUXE SEAT(PQ8)	1-75117-629-0	01	1	9002-9306		●	●
16	ADJUSTER ASM; RECLINING	1-75418-015-2	01	1	9002-	●	●	●
17	BOLT; RECLINING M8X20	1-09980-438-0	04	1	9002-	●	●	●
18	COVER; RECLINING BLACK	8-94266-795-0	01	1	9002-9205	●	●	●
18	COVER; RECLINING EXC. DRIVER ISRINGHAUSEN SEAT(SJA) BLACK	8-94266-795-0	01	1	9206-9306	●	●	●
18	COVER; RECLINING	1-75418-046-0	01	1	9307-	●	●	●
18	COVER; RECLINING DRIVER ISRINGHAUSEN SEAT(SJA)	1-75417-061-0	01	1	9206-9306	●	●	●
19	SCREW; COVER M6X6	1-09981-499-0	01	1	9002-	●	●	●
27	REST; HD,FRT SEAT	1-75657-023-0	01	1	9307-	●	●	●
27	REST; HD,FRT SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75657-020-0	01	1	9206-9306	●	●	●
27	REST; HD,FRT SEAT EXC. HEAD REST ALL DELETE<SBJ>,DRIVER ISRINGHAUSEN SEAT(SJA)	1-75657-017-0	01	1	9002-9306	●	●	●
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-441-0	02	1	9002-9306	●
28	HOLDER; GUIDE,HD REST EXC. HEAD REST DELETE<AR1>,HEAD REST ALL DELETE<SBJ> LIGHT BLUE	8-94477-441-0	02	1	9002-9306		●	●
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-444-0	02	1	9002-9306	●
28	HOLDER; GUIDE,HD REST EXC. HEAD REST DELETE<AR1>,HEAD REST ALL DELETE<SBJ> LIGHT BLUE	8-94477-444-0	02	1	9002-9306		●	●
28	HOLDER; GUIDE,HD REST GRAY	8-94477-446-0	02	1	9307-	●
28	HOLDER; GUIDE,HD REST EXC. HEAD REST DELETE<AR1> GRAY	8-94477-446-0	02	1	9307-		●	●
28	HOLDER; GUIDE,HD REST GRAY	8-94477-443-0	02	1	9307-	●
28	HOLDER; GUIDE,HD REST EXC. HEAD REST DELETE<AR1> GRAY	8-94477-443-0	02	1	9307-		●	●
46	BOLT; STAND TO FLOOR	1-09980-566-0	02	1	9002-	●	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M8 FLANGE	8-94279-504-1	02	1	9002-	●	●	●
62	DAMPER ASM; SEAT SUSP DRIVER ISRINGHAUSEN SEAT(SJA)	1-75530-088-2	01	1	9206-9404	●	●	●
62	DAMPER ASM; SEAT SUSP DRIVER ISRINGHAUSEN SEAT(SJA)	1-75530-099-1	01	1	9405-	●	●	●
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75538-114-7	01	1	9002-	●	●	●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-064-0	01	1	9206-	●	●	●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-063-1	01	1	9206-	●	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-020-1	01	1	9002-	●	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-019-1	01	1	9002-	●	●	●
73	NUT; ADJ,HEIGHT CONT DRIVER ISRINGHAUSEN SEAT(SJA) M8 FLANGE	5-09440-005-0	06	1	9206-	●	●	●
73	NUT; ADJ,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) M8 FLANGE	8-94279-518-0	04	1	9505-	●	●	●
73	NUT; ADJ,HEIGHT CONT EXC. FRONT SEAT STD(AR7),DRIVER ISRINGHAUSEN SEAT(SJA),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) M8 FLANGE	5-09440-005-0	08	1	9002-	●	●	●
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) M8 FLANGE	5-09440-005-0	12	1	9002-	●	●	●
73	NUT; ADJ,HEIGHT CONT FRONT SEAT STD(AR7) M8 FLANGE	5-09440-005-0	04	1	9002-		●	●
75	WASHER; SEAT ADJ DRIVER ISRINGHAUSEN SEAT(SJA) ID=4.3 OD=10	9-09160-604-0	02	1	9206-9404	●	●	●
75	WASHER; SEAT ADJ DRIVER ISRINGHAUSEN SEAT(SJA) ID=4.3 OD=10	9-09160-604-0	04	1	9405-	●	●	●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT(SJA)	1-75530-032-1	01	1	9206-	●	●	●
76	DAMPER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-197-0	01	1	9002-	●	●	●
96	NUT; LK,HINGE M8	1-09984-109-0	01	1	9002-	●	●	●
97	WASHER; PL,RECLINING ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9002-	●	●	●
99	BUSHING; SEAT BACK	1-75508-004-0	01	1	9002-	●	●	●
101	LEVER ASM; LUMBAR EXC. FRONT SEAT STD(AR7)	1-75508-003-0	01	1	9206-	●	●	●
104	KNOB; TILT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75517-875-0	02	1	9405-	●	●	●
158	BUSHING; LINK ARM DRIVER ISRINGHAUSEN SEAT(SJA)	1-09983-171-0	04	1	9405-	●	●	●
301	BOLT; ADJ CONT DRIVER ISRINGHAUSEN SEAT(SJA)	1-09980-585-0	02	1	9206-	●	●	●
302	BOLT; ADJ,HEIGHT CONT DRIVER ISRINGHAUSEN SEAT(SJA) M8X18	8-94279-109-1	04	1	9206-	●	●	●
303	BOLT; HINGE,DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-09980-590-0	01	1	9206-	●	●	●
367	BOOT; HD REST	8-94412-828-0	04	1	9002-	●
367	BOOT; HD REST EXC. HEAD REST DELETE<AR1>,HEAD REST ALL DELETE<SBJ>	8-94412-828-0	04	1	9002-		●	●
468	SPRING; RETURN DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75517-034-0	01	1	9206-	●	●	●
468	SPRING; RETURN DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75517-878-0	02	1	9405-	●	●	●
468	SPRING; RETURN DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-75517-879-0	02	1	9405-	●	●	●
468	SPRING; RETURN DRIVER ISRINGHAUSEN SEAT(SJA) (D)	1-75517-880-0	01	1	9405-	●	●	●
471	LEVER; SEAT ADJ DRIVER ISRINGHAUSEN SEAT(SJA)	1-75517-033-2	01	1	9206-9404	●	●	●
471	LEVER; SEAT ADJ DRIVER ISRINGHAUSEN SEAT(SJA)	1-75517-883-0	01	1	9405-	●	●	●
516	ADJUSTER; TILT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75517-035-0	01	1	9206-	●	●	●
517	BOLT; TILT ADJ DRIVER ISRINGHAUSEN SEAT(SJA)	1-09980-590-0	04	1	9405-	●	●	●
518	NUT; TILT ADJ DRIVER ISRINGHAUSEN SEAT(SJA)	8-94279-521-0	04	1	9405-	●	●	●
522	BUSHING; LEVER DRIVER ISRINGHAUSEN SEAT(SJA)	1-75517-876-0	01	1	9405-	●	●	●
523	PLATE; LEVER DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75517-881-0	01	1	9405-	●	●	●
523	PLATE; LEVER DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75517-882-0	01	1	9405-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
