◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10716 - FSS/FTS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#34446) — 45 parça

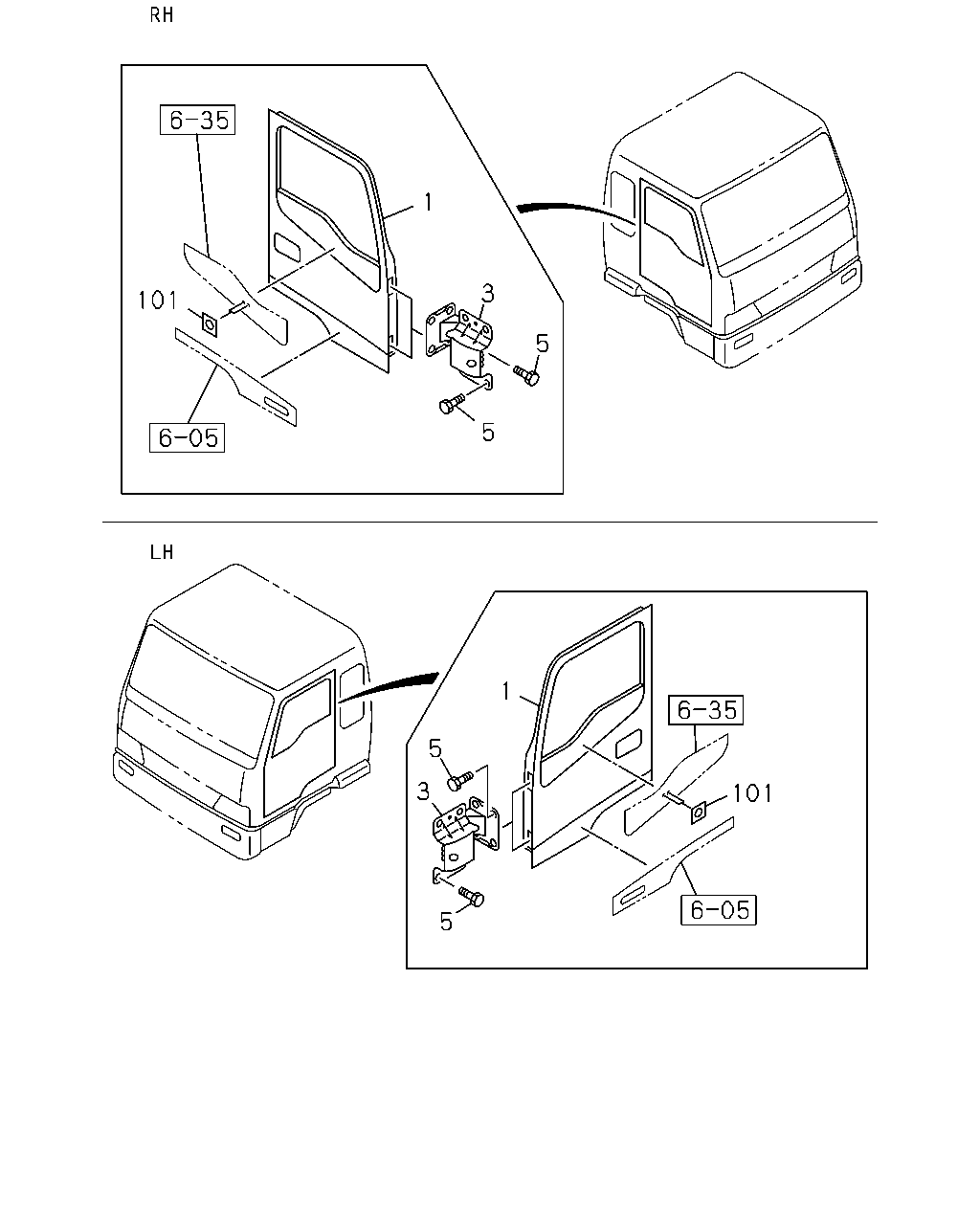

çizim 152889
1 3 101 5 5 1 5 3 101 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW LONG ARM(DH2) PRIMER 		1-64080-333-0 01 1 9802-9901 ● ● ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW LONG ARM(DH2) 		1-64080-388-2 01 1 9902- ● ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW LONG ARM(DH2) 		1-64080-325-0 01 1 9802-9901 ● ● ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-325-0 01 1 9802-9901 ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW LONG ARM(DH2) 		1-64080-390-0 01 1 9902-0004 ● ● ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-390-0 01 1 9902-0004 ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW LONG ARM(DH2) 		1-64080-390-2 01 1 0005- ● ● ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-325-0 01 1 9604-9801 ● ● ● ● ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW WIDE(WU4) 		1-64080-328-0 01 1 9604-9801 ● ● ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW LONG ARM(DH2),MIR O/S RR VIEW WIDE(WU4) 		1-64080-328-0 01 1 9802-9901 ● ● ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW LONG ARM(DH2),MIR O/S RR VIEW WIDE(WU4) 		1-64080-392-0 01 1 9902-0010 ● ● ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW LONG ARM(DH2),MIR O/S RR VIEW WIDE(WU4) 		1-64080-392-2 01 1 0011- ● ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW LONG ARM(DH2),MIR O/S RR VIEW WIDE(WU4) EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-392-2 01 1 0011- ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW WIDE(WU4) 		1-64080-326-0 01 1 9604-9801 ● ● ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-326-0 01 1 9604-9801 ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW LONG ARM(DH2),MIR O/S RR VIEW WIDE(WU4) 		1-64080-326-0 01 1 9802-9901 ● ● ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-326-0 01 1 9802-9901 ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW LONG ARM(DH2),MIR O/S RR VIEW WIDE(WU4) 		1-64080-391-0 01 1 9902-0004 ● ● ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-391-0 01 1 9902-0004 ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW LONG ARM(DH2),MIR O/S RR VIEW WIDE(WU4) 		1-64080-391-2 01 1 0005- ● ● ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW LONG ARM(DH2),MIR O/S RR VIEW WIDE(WU4) DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-389-2 01 1 0011- ●
3 HINGE; DOOR FRT
UPPER 		1-64780-088-2 02 1 9604-9804 ● ● ● ● ●
3 HINGE; DOOR FRT
UPPER 		1-64780-088-2 02 1 9604-9804 ● ●
3 HINGE; DOOR FRT
UPPER 		1-64780-088-2 01 1 9805-0004 ● ● ● ● ●
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW LONG ARM(DH2) UPPER 		1-64780-088-2 01 1 9805-0004 ● ● ●
3 HINGE; DOOR FRT
UPPER 		1-64780-088-2 01 1 9805-0004 ● ●
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW LONG ARM(DH2) UPPER 		1-64780-088-3 01 1 0005- ● ● ●
3 HINGE; DOOR FRT
UPPER 		1-64780-088-3 01 1 0005- ● ● ●
3 HINGE; DOOR FRT
LOWER 		1-64780-089-2 02 1 9604-9804 ● ● ● ● ●
3 HINGE; DOOR FRT
LOWER 		1-64780-089-2 02 1 9604-9804 ● ●
3 HINGE; DOOR FRT
LOWER 		1-64780-089-2 01 1 9805-0004 ● ● ● ● ●
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW LONG ARM(DH2) LOWER 		1-64780-089-2 01 1 9805-0004 ● ● ●
3 HINGE; DOOR FRT
LOWER 		1-64780-089-2 01 1 9805-0004 ● ●
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW LONG ARM(DH2) LOWER 		1-64780-089-4 01 1 0005- ● ● ●
3 HINGE; DOOR FRT
LOWER 		1-64780-089-4 01 1 0005- ● ● ●
3 HINGE; DOOR FRT
MIR O/S RR VIEW LONG ARM(DH2) LOWER 		1-64780-090-2 01 1 9805- ● ● ●
3 HINGE; DOOR FRT
MIR O/S RR VIEW LONG ARM(DH2) UPPER 		1-64780-091-2 01 1 9805- ● ● ●
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 32 1 9604-0004 ● ● ● ● ●
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0005- ● ● ●
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0005- ● ● ●
101 SEAL; BODY METAL
MIR O/S RR VIEW WIDE(WU4) 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9604-9806 ● ● ●
101 SEAL; BODY METAL
EXC. MIR O/S RR VIEW WIDE(WU4) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9604-9801 ● ● ●
101 SEAL; BODY METAL
14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9604-9801 ● ●
101 SEAL; BODY METAL
EXC. MIR O/S RR VIEW LONG ARM(DH2),MIR O/S RR VIEW WIDE(WU4) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9802-9806 ● ● ●
101 SEAL; BODY METAL
14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9802-9806 ● ●
