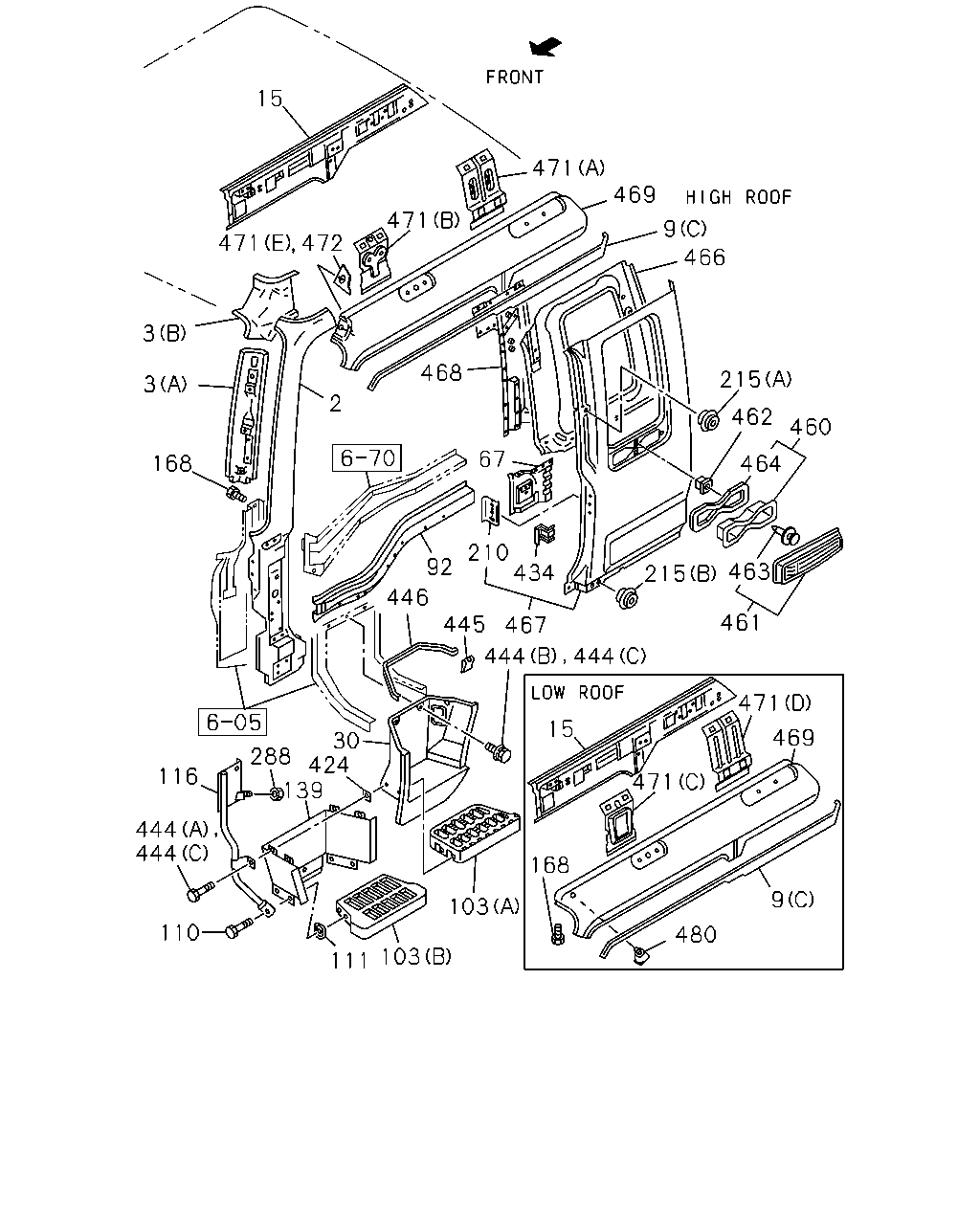

6-20 — SIDE PANEL AND STEP (#34445) — 413 parça

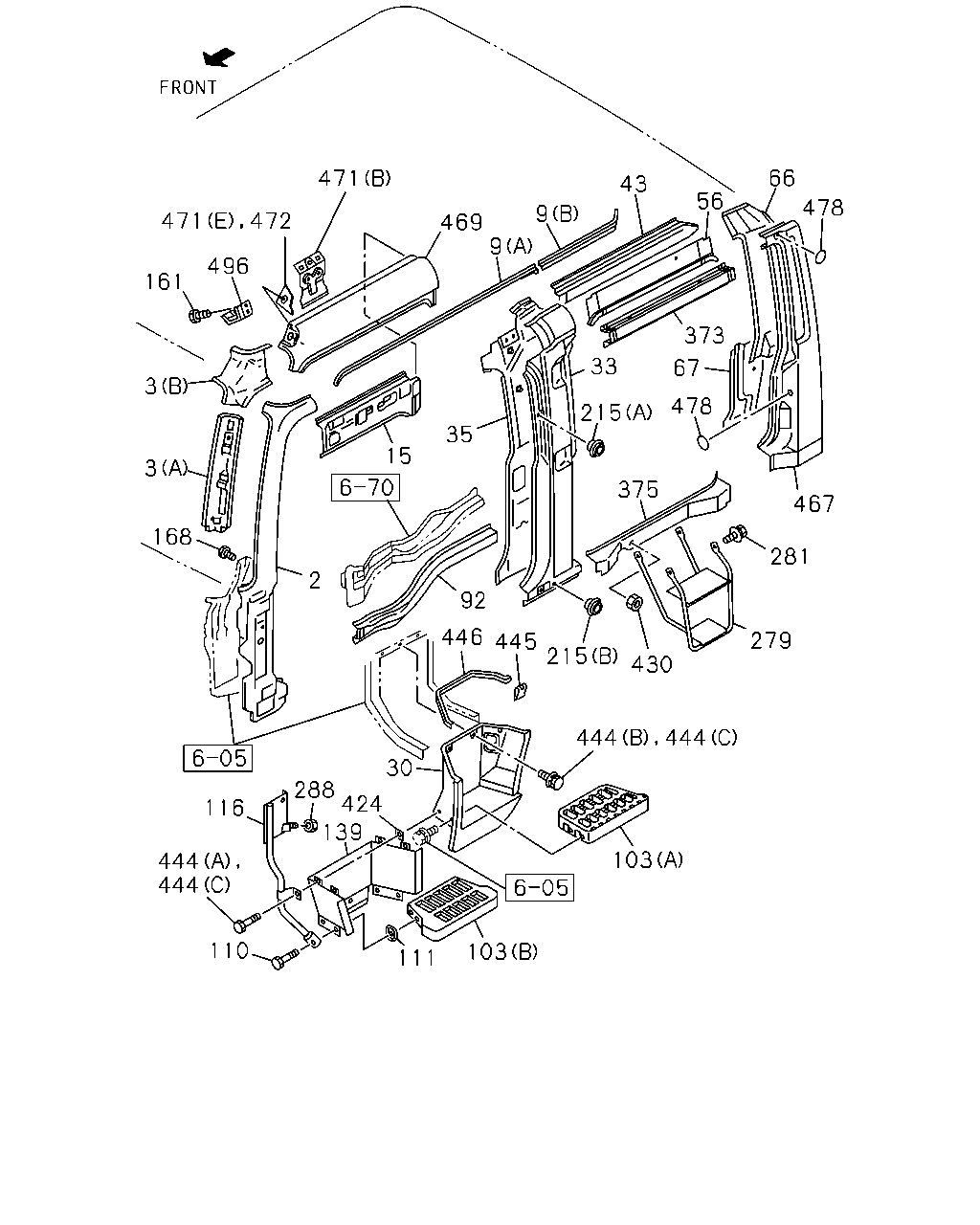

çizim 152887
66 471 43 56 478 9 469 9 496 161 373 33 67 3 478 215 35 15 3 375 467 168 281 2 92 446 279 445 215 430 30 288 424 116 139 103 444 444 111 110 103 471 472 444 444
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 PILLAR; FRT 1-61281-156-4 01 1 9604-0004 ● ● ● ● ●
2 PILLAR; FRT 1-61281-156-4 01 1 0005- ● ● ●
2 PILLAR; FRT 1-61281-155-4 01 1 9604-0004 ● ● ● ● ●
2 PILLAR; FRT 1-61281-155-4 01 1 0005- ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 9604-0004 ● ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 0005- ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 9604-0004 ● ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 0005- ● ● ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-170-5 01 1 9604-0004 ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-170-5 01 1 9604-0004 ● ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-170-5 01 1 0005- ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-169-5 01 1 9604-0004 ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-169-5 01 1 9604-0004 ● ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-169-5 01 1 0005- ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-250-4 01 1 9604-0104 ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-250-4 01 1 9604-0104 ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-250-4 01 1 0105- ● ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-250-4 01 1 0105- ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-249-4 01 1 9604-0104 ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-249-4 01 1 9604-0104 ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-249-4 01 1 0105- ● ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-249-4 01 1 0105- ●
9 MOLDING; DRIP,CAB SIDE
(C) 		1-61281-281-5 01 1 9604- ● ● ●
9 MOLDING; DRIP,CAB SIDE
(C) 		1-61281-280-5 01 1 9604- ● ● ●
9 MOLDING; DRIP,CAB SIDE
(B) 		1-61281-334-4 01 1 9604-0004 ● ●
9 MOLDING; DRIP,CAB SIDE
(A) 		1-61281-340-6 01 1 9604-0004 ● ●
9 MOLDING; DRIP,CAB SIDE
(B) 		1-61281-333-4 01 1 9604-0004 ● ●
9 MOLDING; DRIP,CAB SIDE
(A) 		1-61281-339-6 01 1 9604-0004 ● ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-178-8 01 1 9604-0004 ● ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-178-8 01 1 0005- ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-177-8 01 1 9604-0004 ● ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-177-8 01 1 0005- ●
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-254-5 01 1 9604-0104 ● ●
15 PANEL; CANT RAIL SIDE 1-61281-254-5 01 1 9604-0104 ●
15 PANEL; CANT RAIL SIDE 1-61281-254-5 01 1 0105- ● ●
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-254-5 01 1 0105- ●
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-253-5 01 1 9604-0104 ● ●
15 PANEL; CANT RAIL SIDE 1-61281-253-5 01 1 9604-0104 ●
15 PANEL; CANT RAIL SIDE 1-61281-253-5 01 1 0105- ● ●
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-253-5 01 1 0105- ●
15 PANEL; CANT RAIL SIDE 1-61281-358-8 01 1 9604-0004 ● ●
15 PANEL; CANT RAIL SIDE 1-61281-357-8 01 1 9604-0004 ● ●
30 CLOSING; SIDE STEP 1-71996-143-0 01 1 9604-0004 ● ● ● ● ●
30 CLOSING; SIDE STEP 1-71996-143-0 01 1 0005- ● ● ●
30 CLOSING; SIDE STEP 1-71996-142-0 01 1 9604-0004 ● ● ● ● ●
30 CLOSING; SIDE STEP 1-71996-142-0 01 1 0005- ● ● ●
33 PANEL; CENTER PILLAR,OUTER 1-61281-548-1 01 1 9604-0004 ● ●
33 PANEL; CENTER PILLAR,OUTER 1-61281-485-1 01 1 9604-0004 ● ●
35 PANEL; CENTER PILLAR,INNER 1-61281-493-1 01 1 9604-0004 ● ●
35 PANEL; CENTER PILLAR,INNER 1-61281-486-1 01 1 9604-0004 ● ●
43 CANTRAIL; SIDE OUTER,FRT 1-61181-038-2 01 1 9604-0004 ● ●
43 CANTRAIL; SIDE OUTER,FRT 1-61181-037-2 01 1 9604-0004 ● ●
56 CANTRAIL; SIDE 1-61281-114-0 01 1 9604-0004 ● ●
56 CANTRAIL; SIDE 1-61281-113-0 01 1 9604-0004 ● ●
66 PANEL; BACK SIDE INNER 1-61280-855-2 01 1 9604-0004 ● ●
66 PANEL; BACK SIDE INNER 1-61280-854-2 01 1 9604-0004 ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 9604- ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 9604- ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61280-862-3 01 1 9604-0004 ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61280-861-3 01 1 9604-0004 ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-7 01 1 9604-0004 ● ● ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0005- ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-8 01 1 9604-0004 ● ● ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0005- ● ● ●
103 PLATE; STEP
(B) 		1-71998-312-2 02 1 9604-9604 ● ● ● ● ●
103 PLATE; STEP
(B) 		1-71996-100-1 02 1 9605-0004 ● ● ● ● ●
103 PLATE; STEP
(B) 		1-71996-100-1 02 1 0005- ● ● ●
103 PLATE; STEP
(A) 		1-71996-050-0 01 1 9604-9607 ● ● ● ● ●
103 PLATE; STEP
(A) 		1-71996-176-0 01 1 9608-0004 ● ● ● ● ●
103 PLATE; STEP
(A) 		1-71996-176-0 01 1 0005- ● ● ●
103 PLATE; STEP
(A) 		1-71996-049-0 01 1 9604-9607 ● ● ● ● ●
103 PLATE; STEP
(A) 		1-71996-175-0 01 1 9608-0004 ● ● ● ● ●
103 PLATE; STEP
(A) 		1-71996-175-0 01 1 0005- ● ● ●
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		1-09980-496-0 10 1 9604-0004 ● ● ● ● ●
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		1-09980-496-0 10 1 0005- ● ● ●
111 COVER; 1ST STEP 1-71998-153-0 10 1 9604-0004 ● ● ● ● ●
111 COVER; 1ST STEP 1-71998-153-0 10 1 0005- ● ● ●
116 STAY; 1ST STEP,FRT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-71996-252-1 01 1 0301-0604 ●
116 STAY; 1ST STEP,FRT
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-71996-252-1 01 1 0605- ●
116 STAY; 1ST STEP,FRT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-71996-252-1 01 1 0605- ●
116 STAY; 1ST STEP,FRT 1-71998-887-3 01 1 9604-0004 ● ● ● ● ●
116 STAY; 1ST STEP,FRT 1-71998-887-3 01 1 0005- ● ● ●
116 STAY; 1ST STEP,FRT 1-71998-886-3 01 1 9604-0004 ● ● ● ● ●
116 STAY; 1ST STEP,FRT 1-71998-886-3 01 1 0005-0212 ● ● ●
116 STAY; 1ST STEP,FRT 1-71998-886-3 01 1 0301-0604 ● ●
116 STAY; 1ST STEP,FRT
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-71998-886-3 01 1 0301-0604 ●
116 STAY; 1ST STEP,FRT 1-71998-886-3 01 1 0605- ● ●
116 STAY; 1ST STEP,FRT
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ>, HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-71998-886-3 01 1 0605- ●
139 CLOSING; 1ST STEP 1-71996-141-0 01 1 9604-0004 ● ● ● ● ●
139 CLOSING; 1ST STEP 1-71996-141-1 01 1 0005- ● ● ●
139 CLOSING; 1ST STEP 1-71996-140-0 01 1 9604-0004 ● ● ● ● ●
139 CLOSING; 1ST STEP 1-71996-140-0 01 1 0005- ● ● ●
161 BOLT; FIX
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9604-0004 ● ●
168 BOLT; BODY SIDE PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9604-9702 ● ● ● ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9604-9702 ● ●
168 BOLT; BODY SIDE PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9604-9702 ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9703-0004 ● ● ● ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28080-610-0 04 1 9703-0004 ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9703-0004 ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0005-0104 ● ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28080-610-0 04 1 0005-0104 ● ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0105-0512 ● ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0105-0512 ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28080-610-0 04 1 0105-0512 ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28050-610-0 04 1 0601- ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-155-0 02 1 9604-9709 ● ● ● ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 9710-0004 ● ● ● ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0005- ● ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 9604-0004 ● ● ● ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0005- ● ● ●
279 BOARD; STEP 1ST 1-65680-808-0 01 1 9604-0004 ●
279 BOARD; STEP 1ST 1-65680-807-1 01 1 9604-0004 ●
279 BOARD; STEP 1ST 1-65681-080-1 01 1 9604-0004 ●
279 BOARD; STEP 1ST 1-65681-079-0 01 1 9604-0004 ●
281 BOLT; STEP BOARD TO FLOOR
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 08 1 9604-0004 ● ●
288 NUT; STEP
M8 FLANGE 		0-91150-108-0 02 1 9604-0004 ● ● ● ● ●
288 NUT; STEP
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ●
288 NUT; STEP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
373 PANEL; CANTRAIL,CLOSING RR 1-61280-568-2 02 1 9604-0004 ● ●
375 PANEL; SIDE SILL RR,CAB 1-61280-638-3 01 1 9604-9811 ● ●
375 PANEL; SIDE SILL RR,CAB 1-61280-638-3 01 1 9812-0004 ●
375 PANEL; SIDE SILL RR,CAB 1-61280-637-3 01 1 9604-9811 ● ●
375 PANEL; SIDE SILL RR,CAB 1-61280-637-3 01 1 9812-0004 ●
375 PANEL; SIDE SILL RR,CAB 1-61281-640-0 01 1 9812-0004 ●
375 PANEL; SIDE SILL RR,CAB 1-61281-639-0 01 1 9812-0004 ●
424 SEAL; CLOSING
25X25 		8-94272-533-0 08 1 9604-0004 ● ● ● ● ●
424 SEAL; CLOSING
25X25 		8-94272-533-0 08 1 0005- ● ● ●
430 NUT; PANEL
M6 		9-09114-086-0 02 1 9804-0004 ● ●
444 BOLT; CLOSING
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 08 1 9604-0004 ● ● ● ● ●
444 BOLT; CLOSING
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 14 1 0005-0009 ● ● ●
444 BOLT; CLOSING
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0010-0904 ● ● ●
444 BOLT; CLOSING
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ● ● ●
444 BOLT; CLOSING
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9604-0004 ● ● ● ● ●
444 BOLT; CLOSING
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010- ● ● ●
445 NUT; CLOSING 8-94279-723-0 04 1 0405-0405 ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0405-0609 ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0610- ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 9604-0004 ● ● ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0005-0404 ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0405-0405 ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9604-0004 ● ● ● ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0005- ● ● ●
467 PANEL; OUTER,BACK CORNER
AUSTRALIA EQUIPMENT(RR3) HIGH ROOF<S2F> 		1-61281-476-1 01 1 9604-0004 ● ●
467 PANEL; OUTER,BACK CORNER
AUSTRALIA EQUIPMENT(RR3) HIGH ROOF<S2F> 		1-61281-477-1 01 1 9604-0004 ● ●
467 PANEL; OUTER,BACK CORNER
LOW ROOF<6XQ> 		1-61281-204-2 01 1 9604-0004 ● ●
467 PANEL; OUTER,BACK CORNER
HIGH ROOF<S2F> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61281-204-2 01 1 9604-0004 ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-204-2 01 1 9604-0004 ●
467 PANEL; OUTER,BACK CORNER 1-61281-204-4 01 1 0005- ● ● ●
467 PANEL; OUTER,BACK CORNER
LOW ROOF<6XQ> 		1-61281-203-2 01 1 9604-0004 ● ●
467 PANEL; OUTER,BACK CORNER
HIGH ROOF<S2F> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61281-203-2 01 1 9604-0004 ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-2 01 1 9604-0004 ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-4 01 1 0005- ● ● ●
467 PANEL; OUTER,BACK CORNER 1-61280-509-5 01 1 9604-0004 ● ●
467 PANEL; OUTER,BACK CORNER 1-61280-508-4 01 1 9604-0004 ● ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-199-5 01 1 9604-0004 ● ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-199-8 01 1 0005- ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-198-5 01 1 9604-0004 ● ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-198-8 01 1 0005- ●
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-268-6 01 1 9604-0104 ● ●
469 ROOF; SIDE 1-61281-268-6 01 1 9604-0104 ●
469 ROOF; SIDE 1-61281-268-6 01 1 0105- ● ●
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-268-6 01 1 0105- ●
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-267-6 01 1 9604-0104 ● ●
469 ROOF; SIDE 1-61281-267-6 01 1 9604-0104 ●
469 ROOF; SIDE 1-61281-267-6 01 1 0105- ● ●
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-267-6 01 1 0105- ●
469 ROOF; SIDE 1-61281-338-3 01 1 9604-0004 ● ●
469 ROOF; SIDE 1-61281-337-3 01 1 9604-0004 ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (A) 		1-61281-202-3 02 1 9604-0004 ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (A) 		1-61281-202-3 02 1 0005- ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-201-3 01 1 9604-0004 ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 9604-0004 ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-201-3 01 1 0005- ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (E) 		1-61281-233-3 01 1 9604-0004 ● ●
471 PATCH; AIR DEFLECTOR
(E) 		1-61281-233-3 01 1 9604-0004 ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (E) 		1-61281-233-4 01 1 0005-0812 ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (E) 		8-98132-463-0 01 1 0901- ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-200-3 01 1 9604-0004 ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 9604-0004 ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-200-3 01 1 0005- ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (D) 		1-61281-273-3 02 1 9604-0104 ● ●
471 PATCH; AIR DEFLECTOR
(D) 		1-61281-273-3 02 1 9604-0104 ●
471 PATCH; AIR DEFLECTOR
(D) 		1-61281-273-3 02 1 0105- ● ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (D) 		1-61281-273-3 02 1 0105- ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (C) 		1-61281-270-3 01 1 9604-0104 ● ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-270-3 01 1 9604-0104 ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-270-3 01 1 0105- ● ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (C) 		1-61281-270-3 01 1 0105- ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (C) 		1-61281-269-3 01 1 9604-0104 ● ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-269-3 01 1 9604-0104 ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-269-3 01 1 0105- ● ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (C) 		1-61281-269-3 01 1 0105- ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61281-232-3 01 1 9604-9907 ● ●
472 PATCH; STAY,ROOF 1-61281-232-3 01 1 9604-9907 ● ●
472 PATCH; STAY,ROOF
AUSTRALIA EQUIPMENT(RR3) HIGH ROOF<S2F> 		1-61281-232-3 01 1 9908-9910 ● ●
472 PATCH; STAY,ROOF 1-61281-232-3 01 1 9908-9910 ● ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61270-943-0 01 1 9908-9910 ● ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61270-943-0 01 1 9911-0004 ● ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61270-943-1 01 1 0005- ●
478 SEAL; RR PILLAR
OD=25 BLACK 		1-76798-019-0 07 1 9604-0004 ● ●
478 SEAL; RR PILLAR
OD=45 T=0.08 BLACK 		8-94291-688-2 01 1 9604-0004 ● ●
496 SUPPORT ASM 1-72448-324-1 01 1 9604-0004 ● ●
496 SUPPORT ASM 1-72448-323-1 01 1 9604-0004 ● ●
çizim 152890
15 471 469 471 9 466 3 468 215 3 2 462 460 67 168 464 210 434 92 463 215 446 461 445 467 471 15 469 30 424 139 471 288 116 444 444 168 9 103 110 480 103 111 471 472 444 444
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 PILLAR; FRT 1-61281-156-4 01 1 9604-0004 ● ● ● ● ●
2 PILLAR; FRT 1-61281-156-4 01 1 0005- ● ● ●
2 PILLAR; FRT 1-61281-155-4 01 1 9604-0004 ● ● ● ● ●
2 PILLAR; FRT 1-61281-155-4 01 1 0005- ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 9604-0004 ● ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 0005- ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 9604-0004 ● ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 0005- ● ● ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-170-5 01 1 9604-0004 ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-170-5 01 1 9604-0004 ● ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-170-5 01 1 0005- ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-169-5 01 1 9604-0004 ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-169-5 01 1 9604-0004 ● ●
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-169-5 01 1 0005- ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-250-4 01 1 9604-0104 ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-250-4 01 1 9604-0104 ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-250-4 01 1 0105- ● ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-250-4 01 1 0105- ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-249-4 01 1 9604-0104 ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-249-4 01 1 9604-0104 ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-249-4 01 1 0105- ● ●
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-249-4 01 1 0105- ●
9 MOLDING; DRIP,CAB SIDE
(C) 		1-61281-281-5 01 1 9604- ● ● ●
9 MOLDING; DRIP,CAB SIDE
(C) 		1-61281-280-5 01 1 9604- ● ● ●
9 MOLDING; DRIP,CAB SIDE
(B) 		1-61281-334-4 01 1 9604-0004 ● ●
9 MOLDING; DRIP,CAB SIDE
(A) 		1-61281-340-6 01 1 9604-0004 ● ●
9 MOLDING; DRIP,CAB SIDE
(B) 		1-61281-333-4 01 1 9604-0004 ● ●
9 MOLDING; DRIP,CAB SIDE
(A) 		1-61281-339-6 01 1 9604-0004 ● ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-178-8 01 1 9604-0004 ● ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-178-8 01 1 0005- ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-177-8 01 1 9604-0004 ● ●
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-177-8 01 1 0005- ●
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-254-5 01 1 9604-0104 ● ●
15 PANEL; CANT RAIL SIDE 1-61281-254-5 01 1 9604-0104 ●
15 PANEL; CANT RAIL SIDE 1-61281-254-5 01 1 0105- ● ●
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-254-5 01 1 0105- ●
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-253-5 01 1 9604-0104 ● ●
15 PANEL; CANT RAIL SIDE 1-61281-253-5 01 1 9604-0104 ●
15 PANEL; CANT RAIL SIDE 1-61281-253-5 01 1 0105- ● ●
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-253-5 01 1 0105- ●
15 PANEL; CANT RAIL SIDE 1-61281-358-8 01 1 9604-0004 ● ●
15 PANEL; CANT RAIL SIDE 1-61281-357-8 01 1 9604-0004 ● ●
30 CLOSING; SIDE STEP 1-71996-143-0 01 1 9604-0004 ● ● ● ● ●
30 CLOSING; SIDE STEP 1-71996-143-0 01 1 0005- ● ● ●
30 CLOSING; SIDE STEP 1-71996-142-0 01 1 9604-0004 ● ● ● ● ●
30 CLOSING; SIDE STEP 1-71996-142-0 01 1 0005- ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 9604- ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 9604- ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61280-862-3 01 1 9604-0004 ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61280-861-3 01 1 9604-0004 ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-7 01 1 9604-0004 ● ● ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0005- ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-8 01 1 9604-0004 ● ● ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0005- ● ● ●
103 PLATE; STEP
(B) 		1-71998-312-2 02 1 9604-9604 ● ● ● ● ●
103 PLATE; STEP
(B) 		1-71996-100-1 02 1 9605-0004 ● ● ● ● ●
103 PLATE; STEP
(B) 		1-71996-100-1 02 1 0005- ● ● ●
103 PLATE; STEP
(A) 		1-71996-050-0 01 1 9604-9607 ● ● ● ● ●
103 PLATE; STEP
(A) 		1-71996-176-0 01 1 9608-0004 ● ● ● ● ●
103 PLATE; STEP
(A) 		1-71996-176-0 01 1 0005- ● ● ●
103 PLATE; STEP
(A) 		1-71996-049-0 01 1 9604-9607 ● ● ● ● ●
103 PLATE; STEP
(A) 		1-71996-175-0 01 1 9608-0004 ● ● ● ● ●
103 PLATE; STEP
(A) 		1-71996-175-0 01 1 0005- ● ● ●
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		1-09980-496-0 10 1 9604-0004 ● ● ● ● ●
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		1-09980-496-0 10 1 0005- ● ● ●
111 COVER; 1ST STEP 1-71998-153-0 10 1 9604-0004 ● ● ● ● ●
111 COVER; 1ST STEP 1-71998-153-0 10 1 0005- ● ● ●
116 STAY; 1ST STEP,FRT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-71996-252-1 01 1 0301-0604 ●
116 STAY; 1ST STEP,FRT
LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ> 		1-71996-252-1 01 1 0605- ●
116 STAY; 1ST STEP,FRT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-71996-252-1 01 1 0605- ●
116 STAY; 1ST STEP,FRT 1-71998-887-3 01 1 9604-0004 ● ● ● ● ●
116 STAY; 1ST STEP,FRT 1-71998-887-3 01 1 0005- ● ● ●
116 STAY; 1ST STEP,FRT 1-71998-886-3 01 1 9604-0004 ● ● ● ● ●
116 STAY; 1ST STEP,FRT 1-71998-886-3 01 1 0005-0212 ● ● ●
116 STAY; 1ST STEP,FRT 1-71998-886-3 01 1 0301-0604 ● ●
116 STAY; 1ST STEP,FRT
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-71998-886-3 01 1 0301-0604 ●
116 STAY; 1ST STEP,FRT 1-71998-886-3 01 1 0605- ● ●
116 STAY; 1ST STEP,FRT
EXC. LIGHTING SYSTEM-JAPANESE STANDARDS<JBZ>, HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-71998-886-3 01 1 0605- ●
139 CLOSING; 1ST STEP 1-71996-141-0 01 1 9604-0004 ● ● ● ● ●
139 CLOSING; 1ST STEP 1-71996-141-1 01 1 0005- ● ● ●
139 CLOSING; 1ST STEP 1-71996-140-0 01 1 9604-0004 ● ● ● ● ●
139 CLOSING; 1ST STEP 1-71996-140-0 01 1 0005- ● ● ●
168 BOLT; BODY SIDE PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9604-9702 ● ● ● ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9604-9702 ● ●
168 BOLT; BODY SIDE PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9604-9702 ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9703-0004 ● ● ● ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28080-610-0 04 1 9703-0004 ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9703-0004 ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0005-0104 ● ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28080-610-0 04 1 0005-0104 ● ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0105-0512 ● ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0105-0512 ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28080-610-0 04 1 0105-0512 ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ●
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28050-610-0 04 1 0601- ●
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 9604- ● ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-155-0 02 1 9604-9709 ● ● ● ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 9710-0004 ● ● ● ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0005- ● ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 9604-0004 ● ● ● ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0005- ● ● ●
288 NUT; STEP
M8 FLANGE 		0-91150-108-0 02 1 9604-0004 ● ● ● ● ●
288 NUT; STEP
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ●
288 NUT; STEP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
424 SEAL; CLOSING
25X25 		8-94272-533-0 08 1 9604-0004 ● ● ● ● ●
424 SEAL; CLOSING
25X25 		8-94272-533-0 08 1 0005- ● ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 9604-0004 ● ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 0005- ● ● ●
444 BOLT; CLOSING
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 08 1 9604-0004 ● ● ● ● ●
444 BOLT; CLOSING
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 14 1 0005-0009 ● ● ●
444 BOLT; CLOSING
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0010-0904 ● ● ●
444 BOLT; CLOSING
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ● ● ●
444 BOLT; CLOSING
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9604-0004 ● ● ● ● ●
444 BOLT; CLOSING
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010- ● ● ●
445 NUT; CLOSING 8-94279-723-0 04 1 0405-0405 ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0405-0609 ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0610- ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 9604-0004 ● ● ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0005-0404 ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0405-0405 ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9604-0004 ● ● ● ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0005- ● ● ●
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 9604- ● ● ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 9604- ● ● ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 9604- ● ● ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 9604- ● ● ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9604- ● ● ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 9604- ● ● ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 9604- ● ● ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 9604- ● ● ●
467 PANEL; OUTER,BACK CORNER
AUSTRALIA EQUIPMENT(RR3) HIGH ROOF<S2F> 		1-61281-476-1 01 1 9604-0004 ● ●
467 PANEL; OUTER,BACK CORNER
AUSTRALIA EQUIPMENT(RR3) HIGH ROOF<S2F> 		1-61281-477-1 01 1 9604-0004 ● ●
467 PANEL; OUTER,BACK CORNER
LOW ROOF<6XQ> 		1-61281-204-2 01 1 9604-0004 ● ●
467 PANEL; OUTER,BACK CORNER
HIGH ROOF<S2F> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61281-204-2 01 1 9604-0004 ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-204-2 01 1 9604-0004 ●
467 PANEL; OUTER,BACK CORNER 1-61281-204-4 01 1 0005- ● ● ●
467 PANEL; OUTER,BACK CORNER
LOW ROOF<6XQ> 		1-61281-203-2 01 1 9604-0004 ● ●
467 PANEL; OUTER,BACK CORNER
HIGH ROOF<S2F> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61281-203-2 01 1 9604-0004 ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-2 01 1 9604-0004 ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-4 01 1 0005- ● ● ●
467 PANEL; OUTER,BACK CORNER 1-61280-509-5 01 1 9604-0004 ● ●
467 PANEL; OUTER,BACK CORNER 1-61280-508-4 01 1 9604-0004 ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR
HIGH ROOF<S2F> 		1-61281-418-2 01 1 9604-0004 ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR
HIGH ROOF<S2F> 		1-61281-418-2 01 1 0005- ●
468 REINFORCEMENT; SEAT BELT ANCHOR
HIGH ROOF<S2F> 		1-61281-417-2 01 1 9604-0004 ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR
HIGH ROOF<S2F> 		1-61281-417-2 01 1 0005- ●
468 REINFORCEMENT; SEAT BELT ANCHOR
LOW ROOF<6XQ> 		1-61281-435-2 01 1 9604-0104 ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-435-2 01 1 9604-0104 ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-435-2 01 1 0105- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR
LOW ROOF<6XQ> 		1-61281-435-2 01 1 0105- ●
468 REINFORCEMENT; SEAT BELT ANCHOR
LOW ROOF<6XQ> 		1-61281-434-2 01 1 9604-0104 ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-434-2 01 1 9604-0104 ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-434-2 01 1 0105- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR
LOW ROOF<6XQ> 		1-61281-434-2 01 1 0105- ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-199-5 01 1 9604-0004 ● ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-199-8 01 1 0005- ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-198-5 01 1 9604-0004 ● ●
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-198-8 01 1 0005- ●
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-268-6 01 1 9604-0104 ● ●
469 ROOF; SIDE 1-61281-268-6 01 1 9604-0104 ●
469 ROOF; SIDE 1-61281-268-6 01 1 0105- ● ●
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-268-6 01 1 0105- ●
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-267-6 01 1 9604-0104 ● ●
469 ROOF; SIDE 1-61281-267-6 01 1 9604-0104 ●
469 ROOF; SIDE 1-61281-267-6 01 1 0105- ● ●
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-267-6 01 1 0105- ●
469 ROOF; SIDE 1-61281-338-3 01 1 9604-0004 ● ●
469 ROOF; SIDE 1-61281-337-3 01 1 9604-0004 ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (A) 		1-61281-202-3 02 1 9604-0004 ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (A) 		1-61281-202-3 02 1 0005- ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-201-3 01 1 9604-0004 ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 9604-0004 ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-201-3 01 1 0005- ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (E) 		1-61281-233-3 01 1 9604-0004 ● ●
471 PATCH; AIR DEFLECTOR
(E) 		1-61281-233-3 01 1 9604-0004 ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (E) 		1-61281-233-4 01 1 0005-0812 ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (E) 		8-98132-463-0 01 1 0901- ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-200-3 01 1 9604-0004 ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 9604-0004 ● ●
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-200-3 01 1 0005- ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (D) 		1-61281-273-3 02 1 9604-0104 ● ●
471 PATCH; AIR DEFLECTOR
(D) 		1-61281-273-3 02 1 9604-0104 ●
471 PATCH; AIR DEFLECTOR
(D) 		1-61281-273-3 02 1 0105- ● ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (D) 		1-61281-273-3 02 1 0105- ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (C) 		1-61281-270-3 01 1 9604-0104 ● ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-270-3 01 1 9604-0104 ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-270-3 01 1 0105- ● ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (C) 		1-61281-270-3 01 1 0105- ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (C) 		1-61281-269-3 01 1 9604-0104 ● ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-269-3 01 1 9604-0104 ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-269-3 01 1 0105- ● ●
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (C) 		1-61281-269-3 01 1 0105- ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61281-232-3 01 1 9604-9907 ● ●
472 PATCH; STAY,ROOF 1-61281-232-3 01 1 9604-9907 ● ●
472 PATCH; STAY,ROOF
AUSTRALIA EQUIPMENT(RR3) HIGH ROOF<S2F> 		1-61281-232-3 01 1 9908-9910 ● ●
472 PATCH; STAY,ROOF 1-61281-232-3 01 1 9908-9910 ● ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61270-943-0 01 1 9908-9910 ● ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61270-943-0 01 1 9911-0004 ● ●
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61270-943-1 01 1 0005- ●
480 REINFORCEMENT ASM; STAY ROOF
LOW ROOF<6XQ> 		1-61180-997-3 01 1 9604-0104 ● ●
480 REINFORCEMENT ASM; STAY ROOF 1-61180-997-3 01 1 9604-0104 ●
480 REINFORCEMENT ASM; STAY ROOF 1-61180-997-3 01 1 0105- ● ●
480 REINFORCEMENT ASM; STAY ROOF
LOW ROOF<6XQ> 		1-61180-997-3 01 1 0105- ●
480 REINFORCEMENT ASM; STAY ROOF
LOW ROOF<6XQ> 		1-61180-996-3 01 1 9604-0104 ● ●
480 REINFORCEMENT ASM; STAY ROOF 1-61180-996-3 01 1 9604-0104 ●
480 REINFORCEMENT ASM; STAY ROOF 1-61180-996-3 01 1 0105- ● ●
480 REINFORCEMENT ASM; STAY ROOF
LOW ROOF<6XQ> 		1-61180-996-3 01 1 0105- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
