6-05 — FRONT PANEL (#34443) — 431 parça

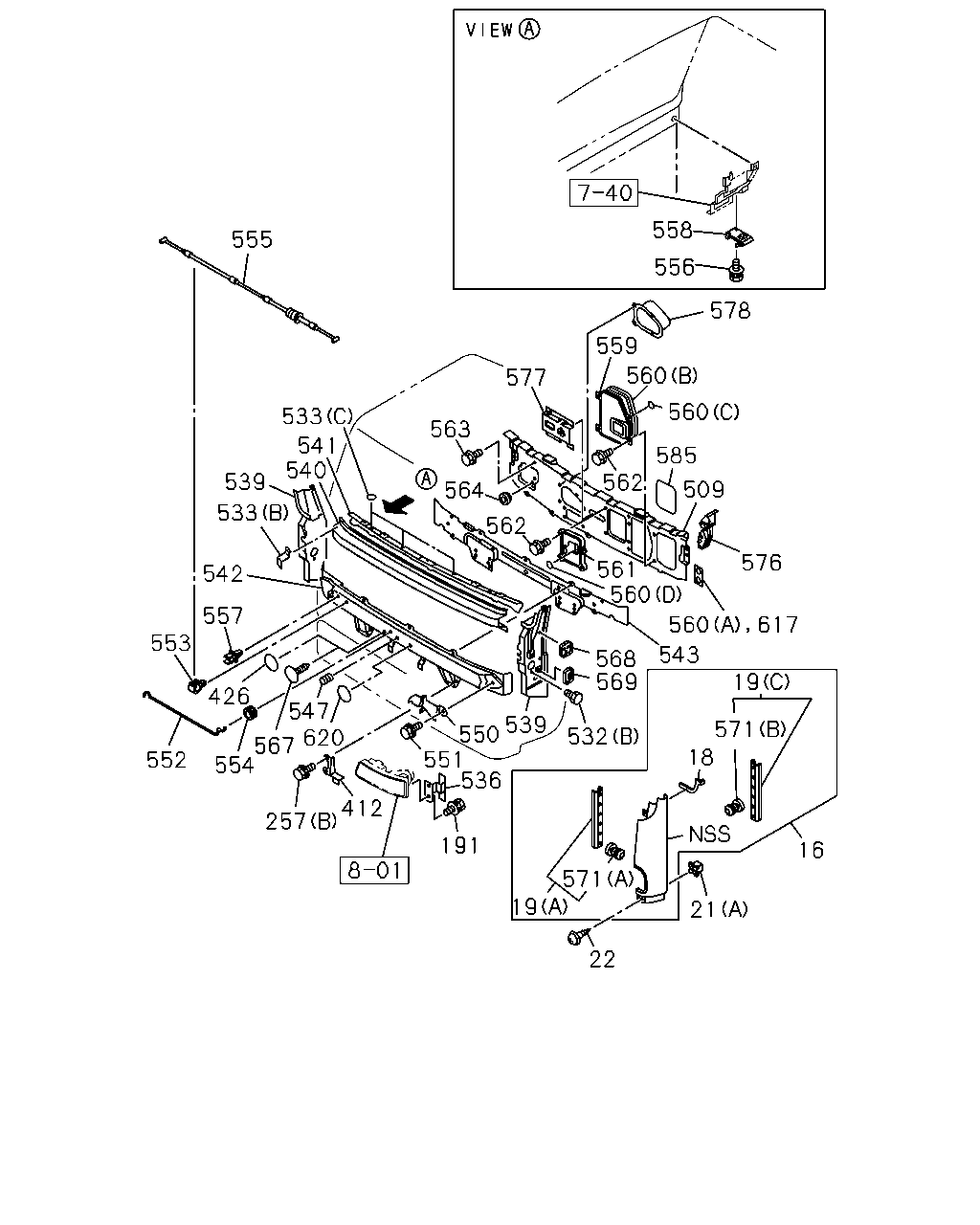

çizim 152906
558 555 556 578 559 560 560 577 533 541 540 563 562 585 562 564 539 533 509 561 560 560 543 576 542 557 553 617 426 547 620 567 554 568 569 19 539 550 551 536 571 18 532 552 412 257 191 16 571 19 21 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-1 01 1 9604-9801 ● ● ● ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-1 01 1 9802-9803 ● ● ●
16 PANEL; FRONT,SIDE
EXC. KENYA EQUIPMENT(PQ2) WHITE 		1-65481-590-1 01 1 9802-9803 ● ●
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW LONG ARM(DH2) WHITE 		1-65481-590-1 01 1 9804-0004 ● ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-1 01 1 9804-0004 ● ●
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW LONG ARM(DH2) WHITE 		1-65481-590-2 01 1 0005- ● ● ●
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW WIDE(WU4) WHITE 		1-65481-563-2 01 1 9604-9803 ● ● ●
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW LONG ARM(DH2),MIR O/S RR VIEW WIDE(WU4) WHITE 		1-65481-563-3 01 1 9804- ● ● ●
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW WIDE(WU4) WHITE 		1-65481-591-1 01 1 9604-9803 ● ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65481-591-1 01 1 9604-9803 ● ●
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW LONG ARM(DH2),MIR O/S RR VIEW WIDE(WU4) WHITE 		1-65481-591-1 01 1 9804-0004 ● ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65481-591-1 01 1 9804-0004 ● ●
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW LONG ARM(DH2),MIR O/S RR VIEW WIDE(WU4) WHITE 		1-65481-591-2 01 1 0005- ● ● ●
16 PANEL; FRONT,SIDE
KENYA EQUIPMENT(PQ2) WHITE 		1-65481-562-2 01 1 9802-9803 ● ●
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW LONG ARM(DH2) WHITE 		1-65481-562-3 01 1 9804- ● ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 9604-0004 ● ● ● ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0005- ● ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9604-9803 ● ● ● ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9805-0004 ● ● ● ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0005- ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9604-0004 ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0005- ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-3 01 1 9604-0004 ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0005- ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9604-0004 ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0005- ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-3 01 1 9604-9803 ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-3 01 1 9805-0004 ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0005- ● ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704-0004 ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0005- ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9604-0004 ● ● ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0005- ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9604-0004 ● ● ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0005- ● ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 9604-0003 ● ● ● ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0004-0004 ● ● ● ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0005-0810 ● ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 0811-1010 ● ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011- ● ● ●
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE<TEA> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9604-0004 ● ● ●
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9604-0004 ●
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0005-0708 ● ● ●
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> M6X16 FLANGE 		0-28650-616-0 04 1 0709- ● ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9604-0004 ● ● ● ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0005-0411 ● ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0412- ● ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9604-0004 ● ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9604-0004 ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0904 ● ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ● ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-044-3 01 1 9604-0004 ● ● ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-044-3 01 1 9604-0004 ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-044-3 01 1 0005- ● ● ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-043-3 01 1 9604-0004 ● ● ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-043-3 01 1 9604-0004 ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-043-3 01 1 0005- ● ● ●
426 GASKET
AIR CONDITIONER MANUAL CONTROL<C60> OD=25 BLACK 		1-76798-019-0 01 1 0311- ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 9805-0004 ● ● ● ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 0005-0112 ● ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 0201-0310 ● ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 0311-0602 ● ● ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL<C60> OD=25 BLACK 		1-76798-019-0 03 1 0311-0602 ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 0603- ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL<C60> OD=25 BLACK 		1-76798-019-0 03 1 0603- ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 9805-0004 ● ● ● ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 04 1 0005-0112 ● ● ●
509 PANEL; DASH
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		1-62280-213-1 01 1 9604-0004 ● ● ●
509 PANEL; DASH 1-62280-213-1 01 1 9604-0004 ● ●
509 PANEL; DASH
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		1-62280-213-1 01 1 0005-0310 ● ● ●
509 PANEL; DASH
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		1-62280-213-1 01 1 0311-0604 ●
509 PANEL; DASH
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		1-62280-213-1 01 1 0311-0604 ● ●
509 PANEL; DASH
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		1-62280-215-1 01 1 9604-0310 ● ● ●
509 PANEL; DASH
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		1-62280-215-1 01 1 0311-0604 ●
509 PANEL; DASH
EXC. HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		1-62280-215-1 01 1 0311-0604 ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9604-0004 ● ● ● ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0005- ● ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9604-0004 ● ● ● ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0005- ● ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0005- ● ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 9604-0004 ● ● ● ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0005- ● ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9604-0004 ● ● ● ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0005- ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 13 1 9604-9806 ● ● ●
533 SEAL; FRT PANEL
(C) 		5-76777-035-0 13 1 9807- ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 12 1 9604-9806 ● ●
533 SEAL; FRT PANEL
(C) 		5-76777-035-0 12 1 9807-0004 ● ●
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-004-5 01 1 9604-0004 ● ● ●
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-004-5 01 1 9604-0004 ●
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-004-5 01 1 0005- ● ● ●
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-003-5 01 1 9604-0004 ● ● ●
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-003-5 01 1 9604-0004 ●
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-86830-003-5 01 1 0005- ● ● ●
539 CLOSING; PILLAR 1-61480-674-6 01 1 9604-0004 ● ● ● ● ●
539 CLOSING; PILLAR 1-61480-674-6 01 1 0005- ● ● ●
539 CLOSING; PILLAR 1-61480-673-6 01 1 9604-0004 ● ● ● ● ●
539 CLOSING; PILLAR 1-61480-673-6 01 1 0005- ● ● ●
540 PANEL; FRONT,OUTER 1-61480-785-1 01 1 9604-0004 ● ● ● ● ●
540 PANEL; FRONT,OUTER 1-61480-785-1 01 1 0005- ● ● ●
541 PANEL; FRONT,INNER 1-61480-679-0 01 1 9604-0004 ● ● ● ● ●
541 PANEL; FRONT,INNER 1-61480-679-0 01 1 0005- ● ● ●
542 RAIL; FRT MOUNTING 1-61480-773-6 01 1 9604-0004 ● ● ● ● ●
542 RAIL; FRT MOUNTING 1-61480-773-9 01 1 0005- ● ● ●
543 CLOSING; FRT MTG RAIL 1-61480-687-2 01 1 9604-0004 ● ● ● ● ●
543 CLOSING; FRT MTG RAIL 1-61480-687-4 01 1 0005- ● ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 9604-0004 ● ● ● ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 0005- ● ● ●
550 LOCK ASM; FRT LID 1-79318-010-1 01 1 9604-0004 ● ● ● ● ●
550 LOCK ASM; FRT LID 1-79318-010-2 01 1 0005- ● ● ●
550 LOCK ASM; FRT LID 1-79318-009-3 01 1 9604-0004 ● ● ● ● ●
550 LOCK ASM; FRT LID 1-79318-009-4 01 1 0005- ● ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9604-0004 ● ● ● ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0005- ● ● ●
552 STAY; FRT LID 1-71998-810-2 01 1 9604-0004 ● ● ● ● ●
552 STAY; FRT LID 1-71998-810-2 01 1 0005-0205 ● ● ●
552 STAY; FRT LID 1-71996-310-0 01 1 0206-0706 ● ● ●
552 STAY; FRT LID 1-71996-352-0 01 1 0707- ● ● ●
553 CLIP; STAY 8-97031-428-0 01 1 9604-0004 ● ● ● ● ●
553 CLIP; STAY 8-97031-428-0 01 1 0005- ● ● ●
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 9604-0004 ● ● ● ● ●
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 0005- ● ● ●
555 CABLE; FRT LID
L=2142 		1-79348-001-4 01 1 9604-0004 ● ● ● ● ●
555 CABLE; FRT LID
L=2142 		1-79348-001-4 01 1 0005- ● ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9604-9611 ● ● ● ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9612-0004 ● ● ● ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0005- ● ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 9604-0004 ● ● ● ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 0005- ● ● ●
558 LEVER; FRT LID 1-79338-003-1 01 1 9604-0004 ● ● ● ● ●
558 LEVER; FRT LID 1-79338-003-1 01 1 0005-0212 ● ● ●
558 LEVER; FRT LID 1-79338-007-1 01 1 0301- ● ● ●
559 COVER; EVAPOLATOR 1-71996-162-0 01 1 9604-9608 ● ● ● ● ●
559 COVER; EVAPOLATOR 1-71996-194-0 01 1 9609-0004 ● ● ● ● ●
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0005- ● ● ●
560 SEAL; COVER
(A) 		1-61281-497-0 02 1 9604-9805 ● ● ● ● ●
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9604-0004 ● ● ● ● ●
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 0005- ● ● ●
560 SEAL; COVER
(C) OD=36 BLACK 		1-76798-018-0 01 1 9604-9806 ● ● ● ● ●
560 SEAL; COVER
(C) 		5-76777-035-0 01 1 9807-0004 ● ● ● ● ●
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0005- ● ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER<C41> (D) OD=36 BLACK 		1-76798-018-0 02 1 9604-9806 ● ● ● ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER<C41> (D) 		5-76777-035-0 02 1 9807-0004 ● ● ● ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER<C41> (D) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0005-0310 ● ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER<C41> (D) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0311- ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (D) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0311- ● ●
561 COVER; HEATER CORE 1-71998-829-1 01 1 9604-0004 ● ● ● ● ●
561 COVER; HEATER CORE 1-71998-829-1 01 1 0005- ● ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9604-0004 ● ● ● ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0005- ● ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203- ● ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 9604-9707 ● ● ● ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 10 1 9708-9807 ● ● ● ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 14 1 9808-0004 ● ● ● ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 14 1 0005-0202 ● ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0203- ● ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 9604-9707 ● ● ● ● ●
563 BOLT; DASH PANEL
M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 9708-9807 ● ● ● ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9604-0004 ● ● ● ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0005- ● ● ●
567 PLUG; FRT MTG RAIL
OD=15 BLACK 		8-94279-804-0 01 1 9604-9803 ● ● ● ● ●
567 PLUG; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 9804-9804 ● ● ● ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 9604-0004 ● ● ● ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 0005- ● ● ●
569 PATCH; LWR GRIP 1-61480-736-2 01 1 9604-0004 ● ● ● ● ●
569 PATCH; LWR GRIP 1-61480-736-2 01 1 0005- ● ● ●
569 PATCH; LWR GRIP 1-61480-689-2 01 1 9604-0004 ● ● ● ● ●
569 PATCH; LWR GRIP 1-61480-689-2 01 1 0005- ● ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 9604-9803 ● ● ● ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 9804-0004 ● ● ● ● ●
571 CLIP; SEAL
EXC. MIR O/S RR VIEW LONG ARM(DH2) (A) 		1-09987-228-0 06 1 9804-0004 ●
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 9804-0004 ● ● ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0005- ● ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0005- ● ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 9604-0004 ● ● ● ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0005- ● ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 9604-0004 ● ● ● ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0005- ● ● ●
576 FRAME; INST SIDE 1-62280-177-7 01 1 9604-0004 ● ● ● ● ●
576 FRAME; INST SIDE 1-62280-177-7 01 1 0005-0604 ● ● ●
576 FRAME; INST SIDE 1-62280-176-6 01 1 9604-0004 ● ● ● ● ●
576 FRAME; INST SIDE 1-62280-176-6 01 1 0005-0604 ● ● ●
577 BRACKET; IDLER 1-62280-195-0 01 1 9604-0004 ● ● ● ● ●
577 BRACKET; IDLER 1-62280-195-0 01 1 0005-0604 ● ● ●
578 COVER; WIPER MOTOR 1-62280-173-3 01 1 9604-0004 ● ● ● ● ●
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 0005-0604 ● ● ●
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		1-71996-084-1 01 1 9604-0310 ● ● ●
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		1-71996-084-1 01 1 0311- ●
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		1-71996-084-1 01 1 0311- ● ●
617 SEAL; DASH 1-61281-497-0 02 1 9806-0004 ● ● ● ● ●
617 SEAL; DASH 1-61281-497-0 02 1 0005-0604 ● ● ●
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 02 1 9804-0004 ● ● ● ● ●
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 02 1 0005- ● ● ●

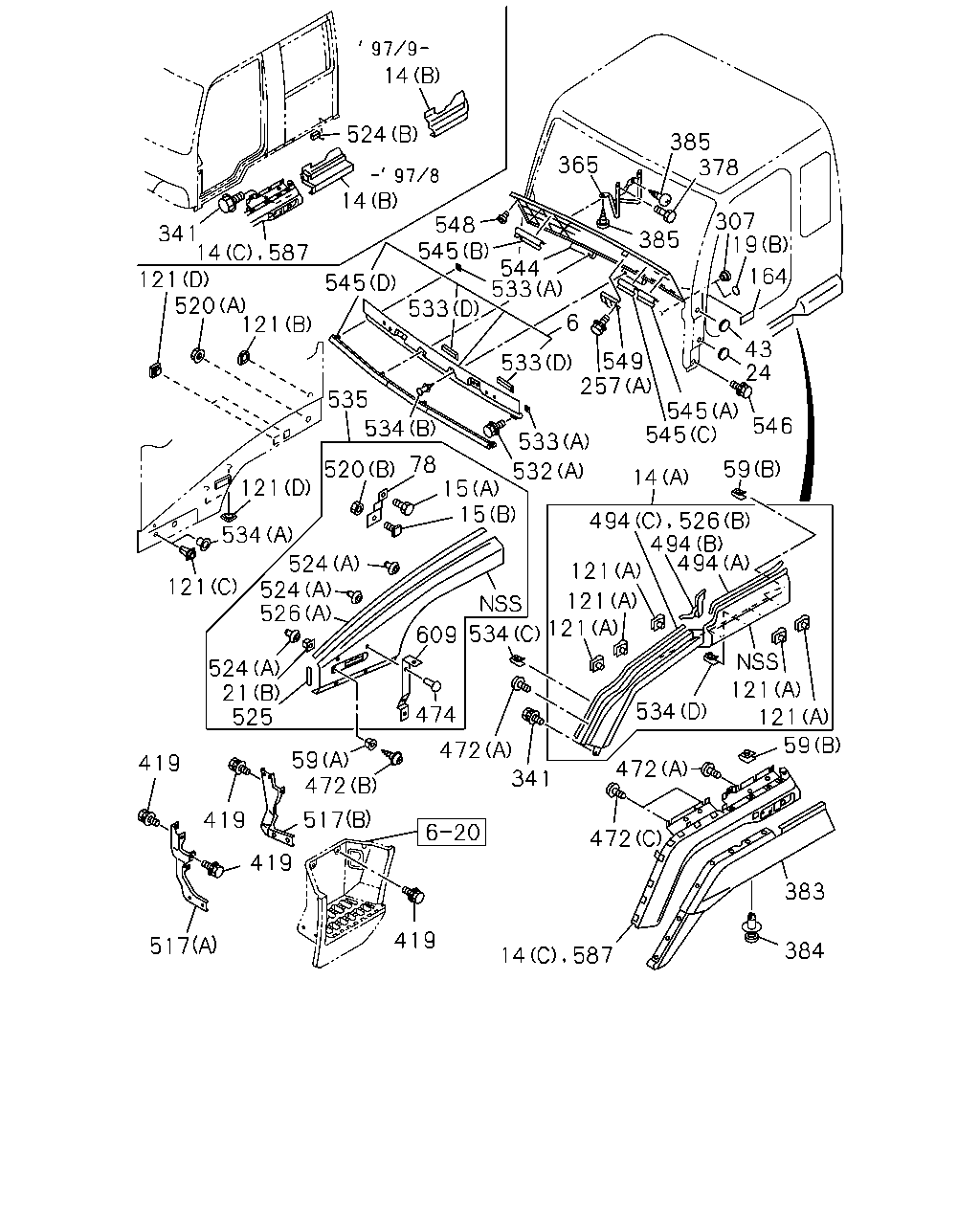

çizim 152908
14 524 385 378 365 78 14 307 19 548 545 341 121 520 385 544 533 164 545 6 533 121 43 24 533 549 257 535 545 545 546 533 534 78 15 15 59 520 532 121 14 494 494 534 524 524 526 121 121 121 121 534 609 121 121 524 21 525 474 534 59 472 59 472 419 472 341 419 517 472 419 383 419 517 384 14 587 14 587 494 526
BalonParca AdiParca NoAdetTipApplied Date A B C D E
6 PANEL; FRONT 1-65481-556-2 01 1 9604-9803 ● ● ● ● ●
6 PANEL; FRONT 1-65481-744-1 01 1 9804-0004 ● ● ● ● ●
6 PANEL; FRONT 1-65481-744-2 01 1 0005- ● ● ●
14 FENDER; FRT
(A) WHITE 		1-65481-447-1 01 1 9604-0209 ●
14 FENDER; FRT
(A) WHITE 		1-65482-023-1 01 1 0210- ●
14 FENDER; FRT
(A) WHITE 		1-65481-446-1 01 1 9604-0209 ●
14 FENDER; FRT
(A) WHITE 		1-65482-022-1 01 1 0210- ●
14 FENDER; FRT
(A) WHITE 		1-65481-457-0 01 1 9604-0004 ●
14 FENDER; FRT
(B) 		1-65481-618-2 01 1 9604-9708 ●
14 FENDER; FRT
(B) 		1-65481-790-0 01 1 9709-0004 ●
14 FENDER; FRT
(A) WHITE 		1-65481-456-0 01 1 9604-0004 ●
14 FENDER; FRT
(B) 		1-65481-617-2 01 1 9604-9708 ●
14 FENDER; FRT
(B) 		1-65481-789-0 01 1 9709-0004 ●
14 FENDER; FRT
(A) 		1-65481-638-1 01 1 9604-0209 ● ●
14 FENDER; FRT
(A) WHITE 		1-65482-045-1 01 1 0210- ● ●
14 FENDER; FRT
(A) 		1-65481-637-1 01 1 9604-0209 ● ●
14 FENDER; FRT
(A) WHITE 		1-65482-044-1 01 1 0210- ● ●
14 FENDER; FRT
(C) GRAY 		1-71996-178-1 01 1 0005- ● ●
14 FENDER; FRT
(C) GRAY 		1-71996-177-1 01 1 0005- ● ●
14 FENDER; FRT
(B) 		1-65481-547-2 01 1 9604-9708 ●
14 FENDER; FRT
(B) 		1-65481-782-0 01 1 9709-0004 ●
14 FENDER; FRT
(A) 		1-65481-668-0 01 1 9604-0004 ●
14 FENDER; FRT
(B) 		1-65481-546-2 01 1 9604-9708 ●
14 FENDER; FRT
(B) 		1-65481-781-0 01 1 9709-0004 ●
14 FENDER; FRT
(A) 		1-65481-667-0 01 1 9604-0004 ●
14 FENDER; FRT
(C) 		1-71996-164-0 01 1 9607-9703 ●
14 FENDER; FRT
(C) 		1-71996-182-1 01 1 9704-0004 ●
14 FENDER; FRT
(C) 		1-71996-163-0 01 1 9607-9703 ●
14 FENDER; FRT
(C) 		1-71996-181-1 01 1 9704-0004 ●
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 9604-0004 ● ● ● ● ●
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 0005- ● ● ●
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 9604-0004 ● ● ● ● ●
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 0005- ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9604-0004 ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0005- ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-3 01 1 9604-0004 ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0005- ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9604-0004 ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0005- ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-3 01 1 9604-9803 ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-3 01 1 9805-0004 ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0005- ● ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704-0004 ● ● ● ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0005- ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9604-0004 ● ● ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0005- ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9604-0004 ● ● ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0005- ● ● ●
24 SEAL; FRT PANEL LWR
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 04 1 9604-9811 ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 04 1 9604-9811 ● ●
24 SEAL; FRT PANEL LWR
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 08 1 9812-0004 ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 08 1 9812-0004 ● ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 08 1 0005- ● ●
24 SEAL; FRT PANEL LWR
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 08 1 0005- ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 02 1 9604-9903 ● ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 04 1 9904-0004 ● ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 04 1 0005- ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 06 1 9604-9811 ●
24 SEAL; FRT PANEL LWR
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 06 1 9604-9811 ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9604-9807 ● ● ● ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9808-9811 ● ● ● ● ●
43 GROMMET; LOCATION HOLE,A-POST
EXC. POWER WINDOW<A30> OD=45 BLACK 		1-76798-017-0 02 1 9808-9811 ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9808-9811 ● ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9812-0004 ● ● ● ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0005- ● ● ●
59 GROMMET; SCREW
(B) 		8-94279-723-0 03 1 9604-9705 ● ●
59 GROMMET; SCREW
(B) 		8-94279-723-0 02 1 9706- ● ●
59 GROMMET; SCREW
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9604-9604 ●
59 GROMMET; SCREW
(A) D=8.6X7.7 L=7.5 		1-09983-177-0 04 1 9605-0004 ●
78 BRACKET; FENDER 1-71268-323-0 01 1 9604-0004 ● ● ● ● ●
78 BRACKET; FENDER 1-71268-323-0 01 1 0005- ● ● ●
78 BRACKET; FENDER 1-71268-322-0 01 1 9604-0004 ● ● ● ● ●
78 BRACKET; FENDER 1-71268-322-0 01 1 0005- ● ● ●
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 9604-0004 ● ● ● ● ●
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 0005-1009 ● ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 9604-9604 ● ● ● ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9604-0004 ● ● ● ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0005-0304 ● ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0305- ● ● ●
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 9604-0004 ● ● ● ● ●
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 0005-0304 ● ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 9604- ● ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 06 1 9604-0004 ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9604-0004 ● ● ● ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0005- ● ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9604-0004 ● ● ● ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0005-0411 ● ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0412- ● ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9604-0004 ● ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9604-0004 ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0904 ● ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ● ●
307 GROMMET; FRT PANEL
OD=44 		8-94279-727-0 03 1 9604-9703 ● ● ● ● ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 9604-9708 ● ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		8-94279-203-0 10 1 9709-0004 ● ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 9607-0004 ●
365 SUPPORT; FENDER 1-71996-147-1 01 1 9604- ● ●
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 9604- ● ●
383 GUARD; MUD,FENDER LWR 1-71996-062-2 01 1 9604-0004 ● ●
383 GUARD; MUD,FENDER LWR 1-71996-062-3 01 1 0005- ●
383 GUARD; MUD,FENDER LWR 1-71996-061-2 01 1 9604-0004 ● ●
383 GUARD; MUD,FENDER LWR 1-71996-061-3 01 1 0005- ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 06 1 9604- ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 04 1 9604-0004 ●
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 04 1 9604- ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 18 1 9604-0004 ● ● ● ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 18 1 0005-0009 ● ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0010-0904 ● ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905- ● ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010-0204 ● ● ●
419 BOLT; STEP
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0301 ● ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0302- ● ● ●
472 SCREW; FENDER TO CAB
(B) M5X20 		5-09981-102-0 02 1 9604-9706 ● ● ● ● ●
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9707-0004 ● ● ● ● ●
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0005- ● ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 11 1 9604-9606 ● ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 17 1 9607-9607 ● ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 17 1 9607- ●
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 03 1 9604-9803 ● ● ●
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 03 1 9804-0602 ● ●
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 0603- ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 9604-9606 ● ●
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 9607-0004 ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 06 1 9604-9606 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 16 1 9604-9606 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 33 1 9607-9802 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 28 1 9803-9804 ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 26 1 9805- ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 02 1 9607-9802 ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 07 1 9803-9804 ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 9805- ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 12 1 9604-9606 ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 12 1 9607-0004 ●
474 RIVET; FENDER
WEST MALAYSIA EQUIPMENT(SEQ) 		1-72448-570-0 08 1 9804-9911 ●
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 9604-0004 ● ● ● ● ●
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 0005-0610 ● ● ●
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611- ● ● ●
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 9604-0004 ● ● ● ● ●
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 0005- ● ● ●
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 9604-0004 ● ● ● ● ●
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 0005- ● ● ●
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 9604-0004 ● ● ●
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 0005- ● ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71996-057-1 01 1 9604-0004 ● ● ● ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71996-057-1 01 1 0005- ● ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-3 01 1 9604-0004 ● ● ● ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 0005- ● ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71996-056-1 01 1 9604-0004 ● ● ● ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71996-056-1 01 1 0005- ● ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-1 01 1 9604-0004 ● ● ● ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 0005- ● ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9604-0004 ● ● ● ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0005- ● ● ●
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 9604-0004 ● ● ● ● ●
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 0005- ● ● ●
524 CLIP; FENDER COVER
(A) D5.4X8 		1-09983-174-0 08 1 9604-9803 ● ● ● ● ●
524 CLIP; FENDER COVER
(A) D5.4X8 		1-09983-154-0 08 1 9804-0004 ● ● ● ● ●
524 CLIP; FENDER COVER
(A) D5.4X8 		1-09983-154-0 08 1 0005- ● ● ●
524 CLIP; FENDER COVER
(B) 		1-71997-509-2 02 1 9604-9809 ●
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 9604-0004 ● ● ● ● ●
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 0005-0209 ● ● ●
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 0406-0409 ● ● ●
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410- ● ● ●
526 FINISHER; FENDER
(A) 		1-71268-275-1 02 1 9604-0004 ● ● ● ● ●
526 FINISHER; FENDER
(A) 		1-71268-275-1 02 1 0005- ● ● ●
526 FINISHER; FENDER
(B) 		1-71998-900-3 04 1 9804-0004 ● ● ● ● ●
526 FINISHER; FENDER
(B) 		1-71998-900-3 04 1 0005-0209 ● ● ●
526 FINISHER; FENDER
(B) 		1-71998-900-3 02 1 0210-0610 ● ● ●
526 FINISHER; FENDER
(B) 		1-71907-641-0 02 1 0611- ● ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9604-0004 ● ● ● ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0005- ● ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9604-0004 ● ● ● ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0005- ● ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0005- ● ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 9604-0004 ● ● ● ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0005- ● ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9604-0004 ● ● ● ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0005- ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 13 1 9604-9806 ● ● ●
533 SEAL; FRT PANEL
(C) 		5-76777-035-0 13 1 9807- ● ● ●
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 12 1 9604-9806 ● ●
533 SEAL; FRT PANEL
(C) 		5-76777-035-0 12 1 9807-0004 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9604-9803 ● ● ● ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9804-0001 ● ● ● ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-0004 ● ● ● ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0005-1302 ● ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303- ● ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9604-0004 ● ● ● ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0005- ● ● ●
534 FASTENER
(D) 		1-71996-035-1 20 1 9604- ● ●
534 FASTENER
(C) 		1-71996-035-1 02 1 9604-9605 ● ● ●
534 FASTENER
(C) 		1-71996-035-1 04 1 9606-0004 ● ● ●
534 FASTENER
(C) 		1-71996-035-1 04 1 0005-0404 ● ●
534 FASTENER
(C) 		1-71996-035-1 06 1 0405- ● ●
534 FASTENER
(D) 		1-71996-035-1 10 1 9604-0004 ●
535 FENDER; BLISTER
WEST MALAYSIA EQUIPMENT(SEQ) 		1-71268-385-1 01 1 9804-9911 ●
535 FENDER; BLISTER
WEST MALAYSIA EQUIPMENT(SEQ) 		1-71268-384-1 01 1 9804-9911 ●
535 FENDER; BLISTER
WHITE 		1-71268-361-1 01 1 9604-9803 ● ● ● ● ●
535 FENDER; BLISTER
EXC. WEST MALAYSIA EQUIPMENT(SEQ) WHITE 		1-71268-361-2 01 1 9804-0004 ●
535 FENDER; BLISTER
WHITE 		1-71268-361-2 01 1 9804-0004 ● ● ● ●
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 0005-0209 ● ● ●
535 FENDER; BLISTER
WHITE 		1-71268-429-1 01 1 0210- ● ● ●
535 FENDER; BLISTER
WHITE 		1-71268-360-1 01 1 9604-9803 ● ● ● ● ●
535 FENDER; BLISTER
EXC. WEST MALAYSIA EQUIPMENT(SEQ) WHITE 		1-71268-360-2 01 1 9804-0004 ●
535 FENDER; BLISTER
WHITE 		1-71268-360-2 01 1 9804-0004 ● ● ● ●
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 0005-0209 ● ● ●
535 FENDER; BLISTER
WHITE 		1-71268-428-2 01 1 0210- ● ● ●
544 LID; FRT 1-71108-073-3 01 1 9604-9703 ● ● ● ● ●
544 LID; FRT
WHITE 		1-71108-118-1 01 1 9704-9803 ● ● ● ● ●
544 LID; FRT
HITACHI CHEMICAL 		1-71108-152-0 01 1 9804-0004 ● ● ● ● ●
544 LID; FRT
HEADLAMPS RECTANGULAR<TR4> HITACHI CHEMICAL 		1-71108-152-0 01 1 0005-0407 ● ● ●
544 LID; FRT
HEADLAMPS RECTANGULAR<TR4> MITRAS 		1-71108-116-0 01 1 0007-0407 ● ● ●
544 LID; FRT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-71108-235-3 01 1 0005- ● ● ●
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0005- ● ● ●
545 SEAL; FRT LID
(D) 		1-71998-814-3 01 1 9604-0004 ● ● ● ● ●
545 SEAL; FRT LID
(B) 		1-71998-871-2 01 1 9604-9908 ● ● ● ● ●
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 9909-0004 ● ● ● ● ●
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 0005-0411 ● ● ●
545 SEAL; FRT LID
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (B) 		1-71996-253-1 01 1 0412- ● ● ●
545 SEAL; FRT LID
(C) 		1-71998-873-2 01 1 9604-9908 ● ● ● ● ●
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 9909-0004 ● ● ● ● ●
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 0005-0411 ● ● ●
545 SEAL; FRT LID
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (C) 		1-71996-255-0 01 1 0412- ● ● ●
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 9604-0004 ● ● ● ● ●
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0005-0411 ● ● ●
545 SEAL; FRT LID
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> (A) L=63 		1-71998-963-2 01 1 0412- ● ● ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 9604-0004 ● ● ● ● ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0005- ● ● ●
548 STRIKER; FRT LID PANEL 1-79318-008-0 02 1 9604-0004 ● ● ● ● ●
548 STRIKER; FRT LID PANEL 1-79318-008-0 02 1 0005-0411 ● ● ●
548 STRIKER; FRT LID PANEL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-79318-008-1 02 1 0412- ● ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-033-4 01 1 9604-0004 ● ● ● ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-033-4 01 1 0005-0301 ● ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0302-0411 ● ● ●
549 BRACKET; STOPPER,FRT LID
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANTSQUARE W/FOG LAMP<TEB> 		1-71108-358-0 01 1 0412- ● ● ●
587 FENDER; WIDE 1-71996-098-1 01 1 9604-9606 ●
587 FENDER; WIDE 1-71996-097-1 01 1 9604-9606 ●
609 BRACKET; PROTECTOR,SIDE TURN LAMP
WEST MALAYSIA EQUIPMENT(SEQ) 		1-71268-375-0 04 1 9804-9911 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
