7-45 — CONSOLE BOX (#3444) — 114 parça

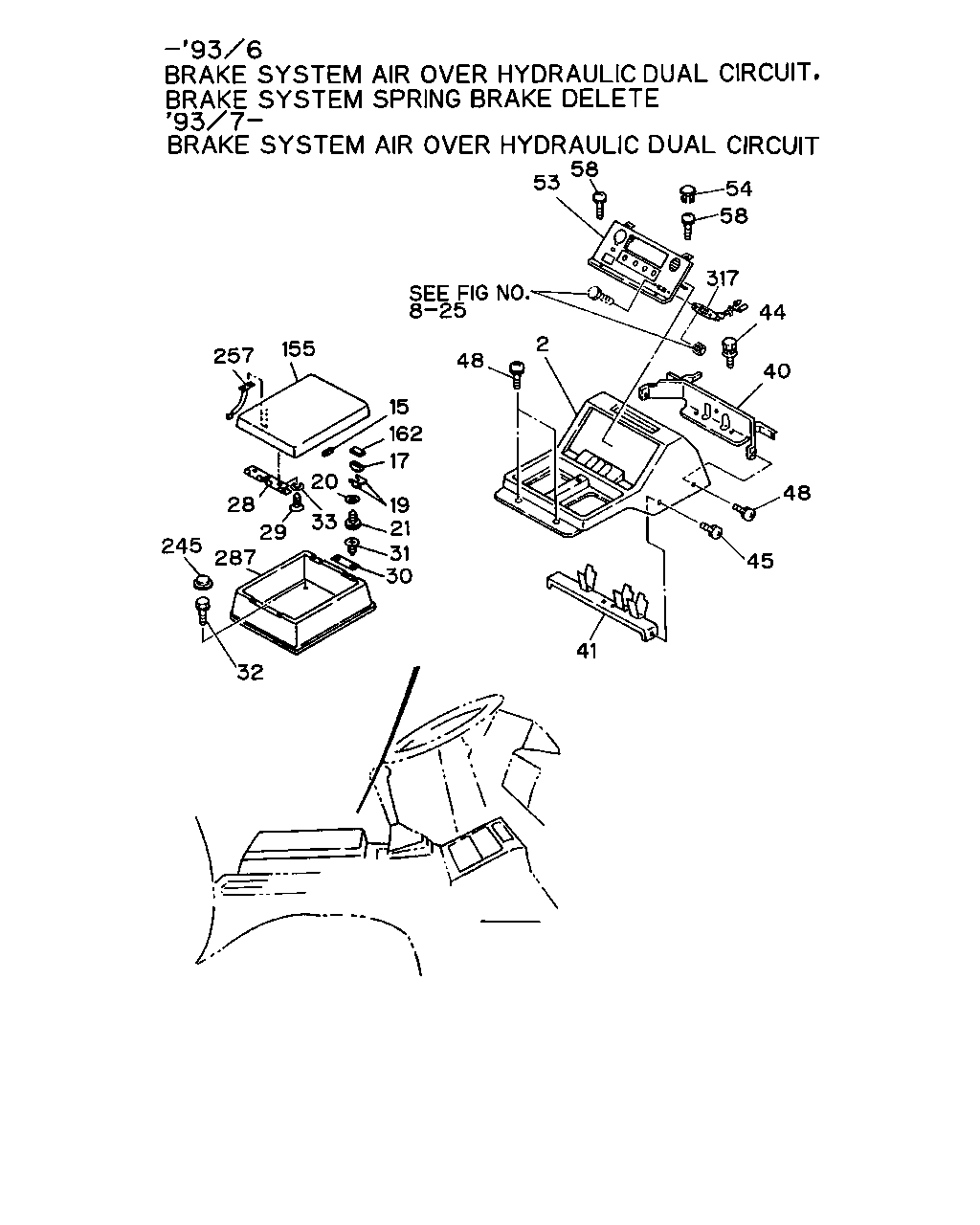

53 58 54 58 44 317 40 48 45 41 2 15 48 155 257 162 17 21 19 20 29 28 31 30 33 287 245 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	CONSOLE; CENTER	1-72447-417-1	01	1	9002-9306	●	●	●
2	CONSOLE; CENTER	1-72447-538-1	01	1	9307-	●	●	●
15	FINISHER; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=190	1-71998-300-0	04	1	9002-9306	●	●	●
15	FINISHER; PARCEL BOX BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=190	1-71998-300-0	04	1	9002-9306		●	●
15	FINISHER; PARCEL BOX L=190	1-71998-300-0	04	1	9307-	●
15	FINISHER; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=190	1-71998-300-0	04	1	9307-		●	●
17	MAGNET; LID BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-94286-017-2	02	1	9002-9306	●	●	●
17	MAGNET; LID BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	8-94286-017-2	02	1	9002-9306		●	●
17	MAGNET; LID	8-94286-017-2	02	1	9307-	●
17	MAGNET; LID BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-94286-017-2	02	1	9307-		●	●
19	PLATE; MAGNET GUIDE,PARCEL BOX LID BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-94286-457-0	04	1	9002-9306	●	●	●
19	PLATE; MAGNET GUIDE,PARCEL BOX LID BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	8-94286-457-0	04	1	9002-9306		●	●
19	PLATE; MAGNET GUIDE,PARCEL BOX LID	8-94286-457-0	04	1	9307-	●
19	PLATE; MAGNET GUIDE,PARCEL BOX LID BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-94286-457-0	04	1	9307-		●	●
20	WASHER; PL,MAGNET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=4.3 OD=10	9-09160-604-0	04	1	9002-9306	●	●	●
20	WASHER; PL,MAGNET BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=4.3 OD=10	9-09160-604-0	04	1	9002-9306		●	●
20	WASHER; PL,MAGNET ID=4.3 OD=10	9-09160-604-0	04	1	9307-	●
20	WASHER; PL,MAGNET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=4.3 OD=10	9-09160-604-0	04	1	9307-		●	●
21	SCREW; MAGNET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M3X10 TAPPING	9-07066-310-0	04	1	9002-9306	●	●	●
21	SCREW; MAGNET BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M3X10 TAPPING	9-07066-310-0	04	1	9002-9306		●	●
21	SCREW; MAGNET M3X10 TAPPING	9-07066-310-0	04	1	9307-	●
21	SCREW; MAGNET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M3X10 TAPPING	9-07066-310-0	04	1	9307-		●	●
28	HINGE; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72447-391-1	01	1	9002-9306	●	●	●
28	HINGE; PARCEL BOX BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-72447-391-1	01	1	9002-9306		●	●
28	HINGE; PARCEL BOX	1-72447-391-1	01	1	9307-	●
28	HINGE; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72447-391-1	01	1	9307-		●	●
29	SCREW; HINGE M4X16	0-70080-416-0	06	1	9307-	●
29	SCREW; HINGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M4X16	0-70080-416-0	06	1	9307-		●	●
29	SCREW; HINGE M3X10 TAPPING	9-07066-310-0	02	1	9307-	●
29	SCREW; HINGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M3X10 TAPPING	9-07066-310-0	02	1	9307-		●	●
29	SCREW; HINGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M4X16	0-70080-416-0	06	1	9002-9306	●	●	●
29	SCREW; HINGE BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M4X16	0-70080-416-0	06	1	9002-9306		●	●
30	PLATE; MAGNET,PARCEL BOX LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-94286-018-0	02	1	9002-9306	●	●	●
30	PLATE; MAGNET,PARCEL BOX LOCK BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	8-94286-018-0	02	1	9002-9306		●	●
30	PLATE; MAGNET,PARCEL BOX LOCK	8-94286-018-0	02	1	9307-	●
30	PLATE; MAGNET,PARCEL BOX LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-94286-018-0	02	1	9307-		●	●
31	SCREW; MAGNET PLATE,PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9002-9306	●	●	●
31	SCREW; MAGNET PLATE,PARCEL BOX BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9002-9306		●	●
31	SCREW; MAGNET PLATE,PARCEL BOX M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9307-	●
31	SCREW; MAGNET PLATE,PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9307-		●	●
32	SCREW; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X20 W/PL WASHER	5-09981-023-0	04	1	9002-9306	●	●	●
32	SCREW; PARCEL BOX BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X20 W/PL WASHER	5-09981-023-0	04	1	9002-9306		●	●
32	SCREW; PARCEL BOX M6X20 W/PL WASHER	5-09981-023-0	04	1	9307-	●
32	SCREW; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X20 W/PL WASHER	5-09981-023-0	04	1	9307-		●	●
32	SCREW; PARCEL BOX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X30 W/PL WASHER	1-09981-448-0	01	1	9307-		●	●
32	SCREW; PARCEL BOX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X20 W/PL WASHER	5-09981-023-0	03	1	9307-		●	●
32	SCREW; PARCEL BOX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X30 W/PL WASHER	1-09981-448-0	01	1	9002-9306		●	●
32	SCREW; PARCEL BOX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X20 W/PL WASHER	5-09981-023-0	03	1	9002-9306		●	●
33	WASHER; PL,CONSOLE BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=3.9	8-94279-622-0	04	1	9002-9302	●	●	●
33	WASHER; PL,CONSOLE BOX BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=3.9	8-94279-622-0	04	1	9002-9302		●	●
40	BRACKET; SUPPORT,CENTER CONSOLE	1-65670-689-2	01	1	9002-9008	●	●	●
40	BRACKET; SUPPORT,CENTER CONSOLE POWER WINDOW<A30>	1-65671-481-0	01	1	9009-9505	●	●	●
40	BRACKET; SUPPORT,CENTER CONSOLE	1-65671-481-0	01	1	9506-	●	●	●
40	BRACKET; SUPPORT,CENTER CONSOLE EXC. POWER WINDOW<A30>	1-65670-689-2	01	1	9009-9505	●	●	●
41	STRUT ASM; CENTER CONSOLE	1-65670-599-2	01	1	9002-	●	●	●
44	BOLT; SUPPORT,CTR CONSOLE M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9301	●	●	●
44	BOLT; SUPPORT,CTR CONSOLE M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-	●	●	●
45	SCREW; STRUT,CENTER CONSOLE M6X16 W/LK&PL WASHER	1-09981-367-0	02	1	9002-	●	●	●
48	SCREW; BRKT,CENTER CONSOLE M6X16 W/LK&PL WASHER	1-09981-367-0	04	1	9002-	●	●	●
53	PANEL; SW,CENTER CONSOLE	1-65670-883-3	01	1	9002-	●	●	●
54	BUTTON; CLIP,CTR CONSOLE MARKER LAMP THREE AMBER<WD9> EXC. POWER BRAKE LOCK SYSTEM(J50)	1-72447-390-0	01	1	9503-	●	●	●
54	BUTTON; CLIP,CTR CONSOLE POWER BRAKE LOCK SYSTEM(J50) EXC. MARKER LAMP THREE AMBER<WD9>	1-72447-390-0	01	1	9503-		●
54	BUTTON; CLIP,CTR CONSOLE GOVERNOR CONTROL<W69>	1-72447-390-0	01	1	9503-			●
54	BUTTON; CLIP,CTR CONSOLE EXC. POWER BRAKE LOCK SYSTEM(J50),MARKER LAMP THREE AMBER<WD9>,GOVERNOR CONTROL<W69>	1-72447-390-0	02	1	9503-	●	●	●
58	SCREW; SW PNL M5X14 W/PL WASHER	5-09981-050-0	04	1	9002-	●	●	●
155	LID; PARCEL BOX	1-72447-510-0	01	1	9307-	●
155	LID; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72447-510-0	01	1	9307-		●	●
155	LID; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72447-423-2	01	1	9002-9306	●	●	●
155	LID; PARCEL BOX BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-72447-423-2	01	1	9002-9306		●	●
162	CUSHION; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72447-485-1	02	1	9002-9306	●	●	●
162	CUSHION; PARCEL BOX BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-72447-485-1	02	1	9002-9306		●	●
162	CUSHION; PARCEL BOX	1-72447-485-1	02	1	9307-	●
162	CUSHION; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72447-485-1	02	1	9307-		●	●
245	CAP; CTR,CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72447-467-1	01	1	9002-9306	●	●	●
245	CAP; CTR,CONSOLE BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-72447-467-1	01	1	9002-9306		●	●
257	CONSOLE; BEAR	1-72447-468-1	01	1	9307-	●
257	CONSOLE; BEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72447-468-1	01	1	9307-		●	●
287	BOX; PARCEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72447-493-0	01	1	9002-9306	●	●	●
287	BOX; PARCEL BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-72447-493-0	01	1	9002-9306		●	●
287	BOX; PARCEL	1-72447-508-0	01	1	9307-	●
287	BOX; PARCEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72447-508-0	01	1	9307-		●	●
317	CONSENT	1-82523-010-2	01	1	9002-	●	●	●

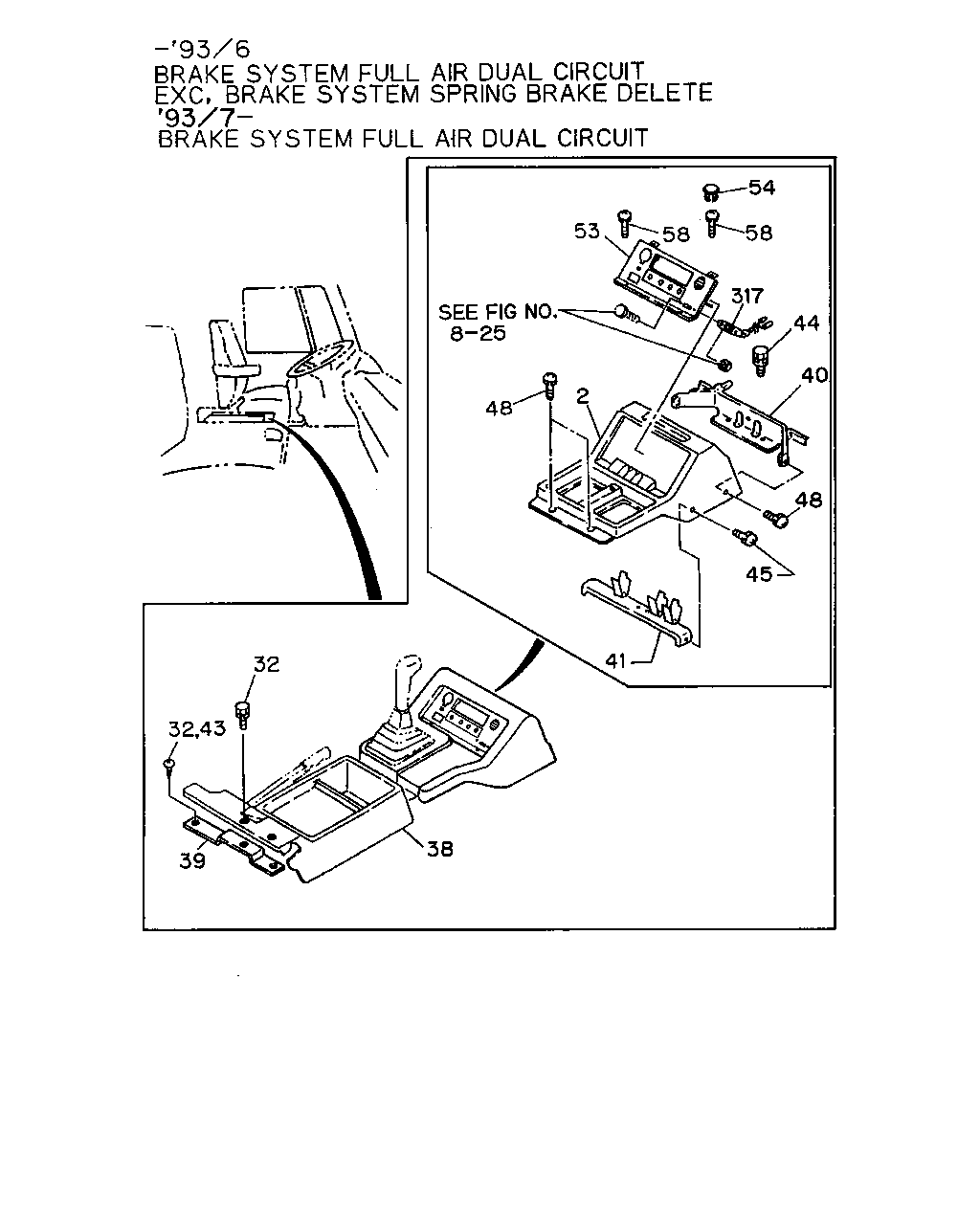

53 58 54 58 44 317 40 48 45 2 48 41 38 32 43 32 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	CONSOLE; CENTER	1-72447-417-1	01	1	9002-9306	●	●	●
2	CONSOLE; CENTER	1-72447-538-1	01	1	9307-	●	●	●
32	SCREW; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X20 W/PL WASHER	5-09981-023-0	04	1	9002-9306	●	●	●
32	SCREW; PARCEL BOX BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X20 W/PL WASHER	5-09981-023-0	04	1	9002-9306		●	●
32	SCREW; PARCEL BOX M6X20 W/PL WASHER	5-09981-023-0	04	1	9307-	●
32	SCREW; PARCEL BOX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X20 W/PL WASHER	5-09981-023-0	04	1	9307-		●	●
32	SCREW; PARCEL BOX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X30 W/PL WASHER	1-09981-448-0	01	1	9307-		●	●
32	SCREW; PARCEL BOX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X20 W/PL WASHER	5-09981-023-0	03	1	9307-		●	●
32	SCREW; PARCEL BOX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X30 W/PL WASHER	1-09981-448-0	01	1	9002-9306		●	●
32	SCREW; PARCEL BOX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X20 W/PL WASHER	5-09981-023-0	03	1	9002-9306		●	●
38	TRAY; PARCEL,PIPING COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-72497-037-2	01	1	9002-9306		●	●
38	TRAY; PARCEL,PIPING COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-72497-056-0	01	1	9307-		●	●
39	BRACKET; TRAY,PIPE COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-72497-016-1	01	1	9002-9306		●	●
39	BRACKET; TRAY,PIPE COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-72497-016-1	01	1	9307-		●	●
40	BRACKET; SUPPORT,CENTER CONSOLE	1-65670-689-2	01	1	9002-9008	●	●	●
40	BRACKET; SUPPORT,CENTER CONSOLE POWER WINDOW<A30>	1-65671-481-0	01	1	9009-9505	●	●	●
40	BRACKET; SUPPORT,CENTER CONSOLE	1-65671-481-0	01	1	9506-	●	●	●
40	BRACKET; SUPPORT,CENTER CONSOLE EXC. POWER WINDOW<A30>	1-65670-689-2	01	1	9009-9505	●	●	●
41	STRUT ASM; CENTER CONSOLE	1-65670-599-2	01	1	9002-	●	●	●
43	SCREW; BRKT,PARCEL BOX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X20 W/PL WASHER	5-09981-023-0	01	1	9002-9306		●	●
43	SCREW; BRKT,PARCEL BOX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X20 W/PL WASHER	5-09981-023-0	01	1	9307-		●	●
44	BOLT; SUPPORT,CTR CONSOLE M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9301	●	●	●
44	BOLT; SUPPORT,CTR CONSOLE M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-	●	●	●
45	SCREW; STRUT,CENTER CONSOLE M6X16 W/LK&PL WASHER	1-09981-367-0	02	1	9002-	●	●	●
48	SCREW; BRKT,CENTER CONSOLE M6X16 W/LK&PL WASHER	1-09981-367-0	04	1	9002-	●	●	●
53	PANEL; SW,CENTER CONSOLE	1-65670-883-3	01	1	9002-	●	●	●
54	BUTTON; CLIP,CTR CONSOLE MARKER LAMP THREE AMBER<WD9> EXC. POWER BRAKE LOCK SYSTEM(J50)	1-72447-390-0	01	1	9503-	●	●	●
54	BUTTON; CLIP,CTR CONSOLE POWER BRAKE LOCK SYSTEM(J50) EXC. MARKER LAMP THREE AMBER<WD9>	1-72447-390-0	01	1	9503-		●
54	BUTTON; CLIP,CTR CONSOLE GOVERNOR CONTROL<W69>	1-72447-390-0	01	1	9503-			●
54	BUTTON; CLIP,CTR CONSOLE EXC. POWER BRAKE LOCK SYSTEM(J50),MARKER LAMP THREE AMBER<WD9>,GOVERNOR CONTROL<W69>	1-72447-390-0	02	1	9503-	●	●	●
58	SCREW; SW PNL M5X14 W/PL WASHER	5-09981-050-0	04	1	9002-	●	●	●
317	CONSENT	1-82523-010-2	01	1	9002-	●	●	●
