◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#34436) — 850 parça

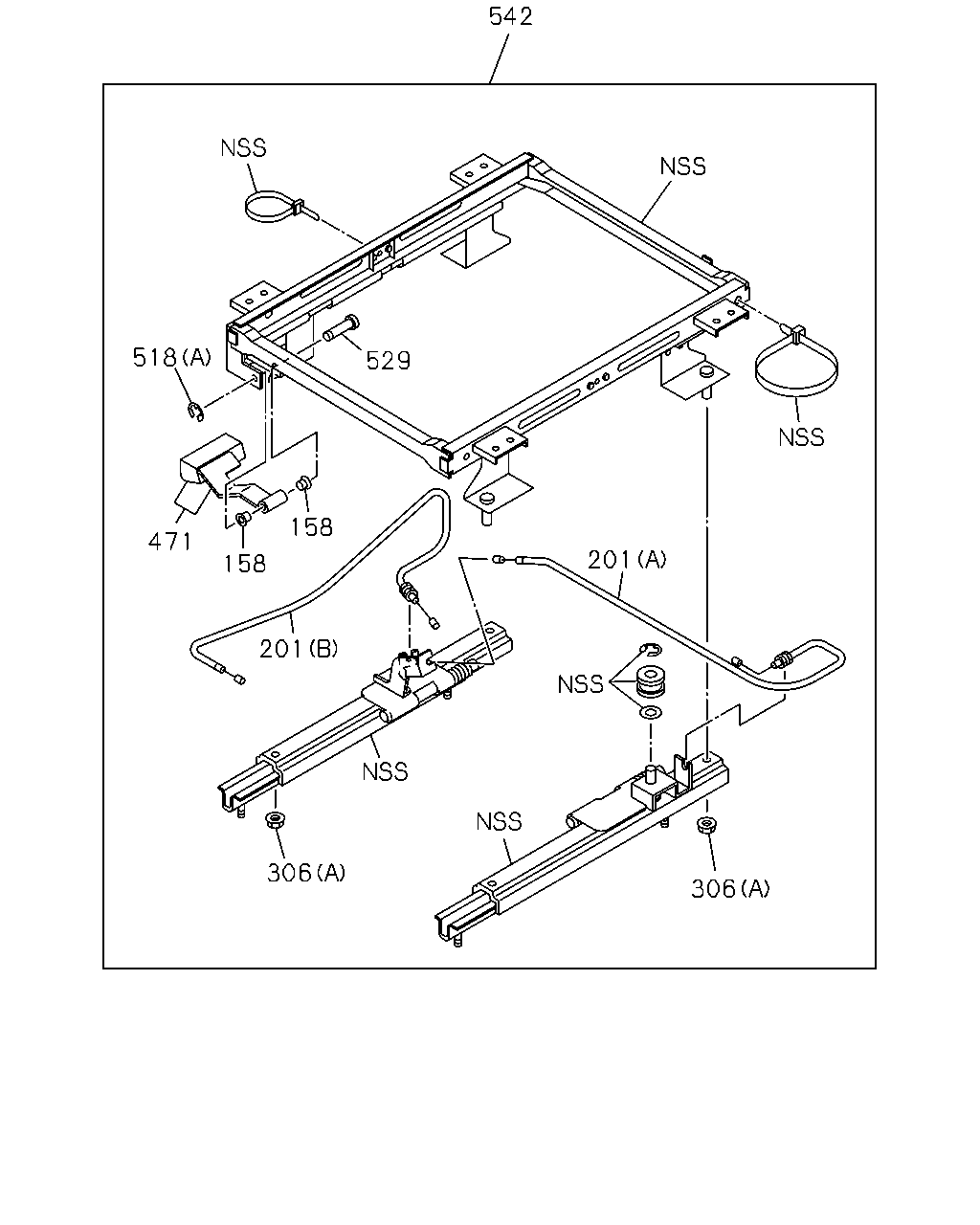

çizim 179060
542 518 529 158 158 471 201 201 306 306
BalonParca AdiParca NoAdetTipApplied Date A B
158 BUSHING; LINK ARM
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 0809-0912 ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 0809-0912 ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1001- ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 1001- ●
201 CABLE; ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 0809-0912 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 0809-0912 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1001- ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 1001- ●
201 CABLE; ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 0809-0912 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 0809-0912 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1001- ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 1001- ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 0809- ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 0809- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		8-98107-869-0 01 1 0809-0912 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98107-869-0 01 1 0809-0912 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98107-869-0 01 1 1001- ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		8-98107-869-0 01 1 1001- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 0809- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 0809- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 0809- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 0809- ●
518 NUT; TILT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 0809-0912 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 0809-0912 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1001- ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1001- ●
529 PIN; LINK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 0809-0912 ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 0809-0912 ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1001- ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 1001- ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98093-310-0 01 1 0809-1502 ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-653-0 01 1 1503- ●

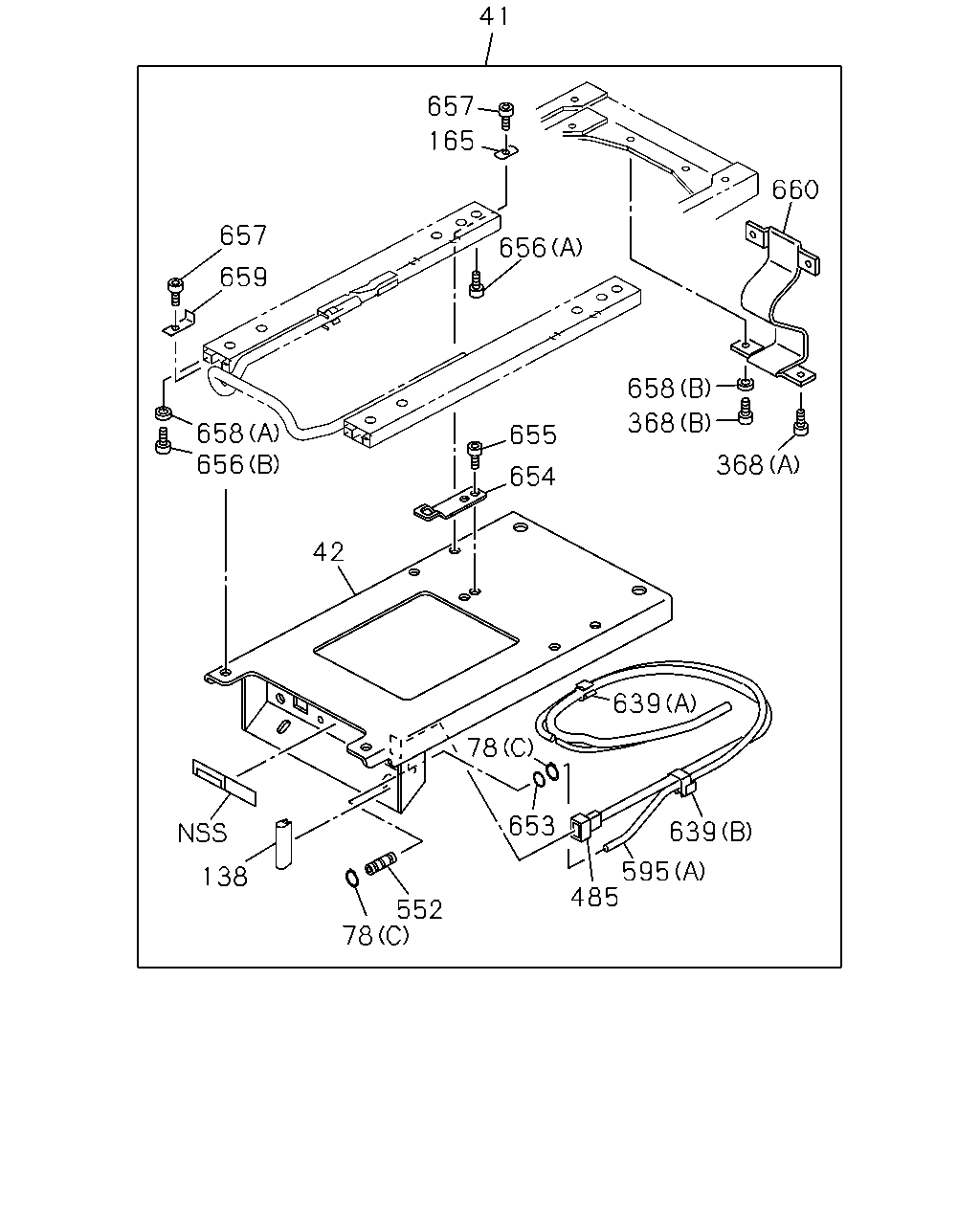

çizim 179066
41 165 657 656 660 368 658 368 654 655 659 657 656 658 42 138 78 78 552 653 639 639 595 485
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0710-0808 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0809-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0809-1212 ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301- ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301- ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0710-0808 ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0809-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0809-1212 ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301- ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301- ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 0710-0808 ● ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 0809- ●
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-346-0 01 1 0809- ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 0809- ●
78 RING; SNAP
(C) 		8-98101-900-0 02 1 0710-0808 ● ●
78 RING; SNAP
(C) 		8-98101-900-0 02 1 0809- ●
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98101-900-0 02 1 0809- ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 0809-0905 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 0912- ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 0809-0905 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 0912- ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 0710-0808 ● ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 0809- ●
138 PROTECTOR; SEAT STAND
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-351-0 01 1 0809- ●
165 WASHER; PL 1-75590-086-0 04 1 0710-0808 ● ●
165 WASHER; PL 1-75590-086-0 04 1 0809- ●
165 WASHER; PL
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		1-75590-086-0 04 1 0809- ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 0710-0808 ● ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 0809- ●
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98106-353-0 03 1 0809- ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 0710-0808 ● ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 0809- ●
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98106-358-0 01 1 0809- ●
485 HARNESS; FRT SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-360-0 01 1 0710-0808 ● ●
485 HARNESS; FRT SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-360-0 01 1 0809- ●
485 HARNESS; FRT SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-360-0 01 1 0809- ●
485 HARNESS; FRT SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-361-0 01 1 0710-0808 ● ●
485 HARNESS; FRT SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-361-0 01 1 0809- ●
485 HARNESS; FRT SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-361-0 01 1 0809- ●
552 CONNECTOR 8-98101-902-0 01 1 0710-0808 ● ●
552 CONNECTOR 8-98101-902-0 01 1 0809- ●
552 CONNECTOR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98101-902-0 01 1 0809- ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0710-0808 ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0809- ●
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98106-348-0 01 1 0809- ●
595 TUBE; NYLON
(B) 		8-98041-300-0 01 1 0710-0808 ● ●
595 TUBE; NYLON
(B) 		8-98041-300-0 01 1 0809- ●
595 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEATTYPE 6800<SJA> (B) 		8-98041-300-0 01 1 0809- ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 0710-0808 ● ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 0809- ●
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98106-349-0 01 1 0809- ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 0710-0808 ● ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 0809- ●
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98106-350-0 01 1 0809- ●
653 GASKET 8-98101-901-0 01 1 0710-0808 ● ●
653 GASKET 8-98101-901-0 01 1 0809- ●
653 GASKET
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98101-901-0 01 1 0809- ●
654 HOOK; STOPPER 8-98106-352-0 01 1 0710-0808 ● ●
654 HOOK; STOPPER 8-98106-352-0 01 1 0809- ●
654 HOOK; STOPPER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-352-0 01 1 0809- ●
655 BOLT; HOOK 8-98106-353-0 02 1 0710-0808 ● ●
655 BOLT; HOOK 8-98106-353-0 02 1 0809- ●
655 BOLT; HOOK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-353-0 02 1 0809- ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 0710-0808 ● ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 0809- ●
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		1-75590-085-0 04 1 0809- ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 0710-0808 ● ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 0809- ●
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98106-354-0 02 1 0809- ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 0710-0808 ● ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 0809- ●
657 BOLT; SLIDER TO STAND
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		1-75590-085-0 06 1 0809- ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 0710-0808 ● ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 0809- ●
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98106-355-0 02 1 0809- ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 0710-0808 ● ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 0809- ●
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98106-359-0 01 1 0809- ●
659 STOPPER 8-98106-356-0 02 1 0710-0808 ● ●
659 STOPPER 8-98106-356-0 02 1 0809- ●
659 STOPPER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-356-0 02 1 0809- ●
660 BELT; TETHER 8-98106-357-0 01 1 0710-0808 ● ●
660 BELT; TETHER 8-98106-357-0 01 1 0809- ●
660 BELT; TETHER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-357-0 01 1 0809- ●

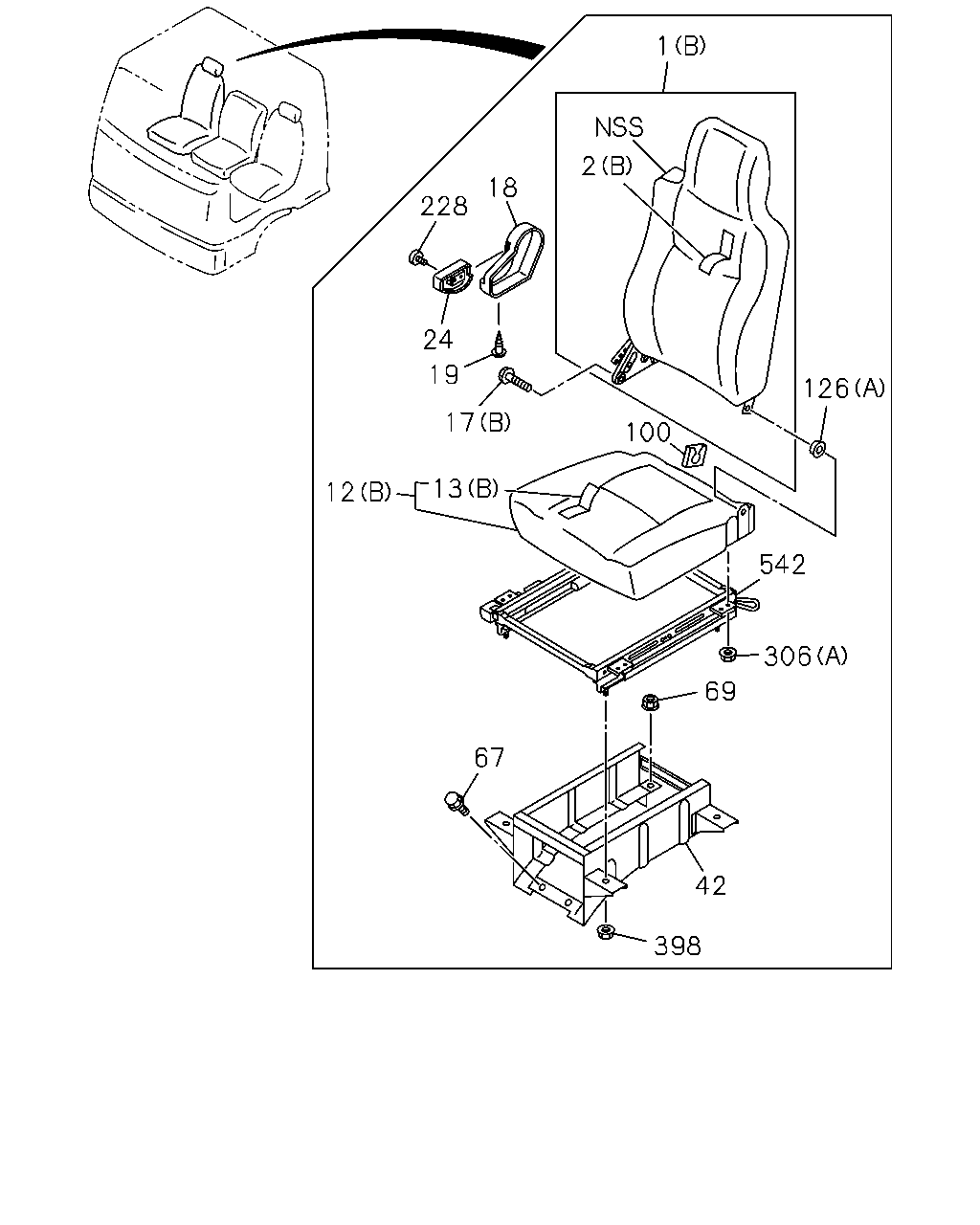

çizim 179076
1 2 18 228 24 17 12 13 100 542 306 69 67 398 42 126 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-201-0 01 1 1001-1009 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-406-1 01 1 1010- ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97414-112-2 01 1 0809-0902 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97416-202-0 01 1 0903-1009 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-407-1 01 1 1010- ●
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97409-955-5 01 1 0809- ●
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0710-0808 ● ●
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0809- ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0809- ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0710-0808 ● ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0809- ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0809- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-206-0 01 1 1001-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-411-0 01 1 1010- ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97414-113-1 01 1 0809-0902 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97416-207-0 01 1 0903-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-412-0 01 1 1010- ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-910-2 01 1 0809- ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 0710-0808 ● ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 0809-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-966-0 01 1 0809-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98232-353-0 01 1 1301- ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98232-353-0 01 1 1301- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-120-0 01 1 0809-0902 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-212-1 01 1 0903-0912 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-212-1 01 1 1001-1009 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-398-2 01 1 1010- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-958-0 01 1 0809-0902 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-211-1 01 1 0903-0912 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-211-1 01 1 1001-1009 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-397-2 01 1 1010- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97414-123-2 01 1 0809- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-954-2 01 1 0809- ●
12 CUSHION; SEAT,FRT
(A) 		8-98098-006-0 01 1 0710-0808 ● ●
12 CUSHION; SEAT,FRT
(A) 		8-98098-006-0 01 1 0809- ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-006-0 01 1 0809- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-121-0 01 1 0809-0902 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-216-0 01 1 0903-0912 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-216-0 01 1 1001-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-402-2 01 1 1010- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97414-111-0 01 1 0809-0902 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-215-0 01 1 0903-0912 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-215-0 01 1 1001-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-401-2 01 1 1010- ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-909-1 01 1 0809- ●
13 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-98098-007-0 01 1 0710-0808 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-98098-007-0 01 1 0809- ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-007-0 01 1 0809- ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0710-0808 ● ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0809- ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-974-0 02 1 0809- ●
17 BOLT; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 0809-0912 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 0809-0912 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1001-1203 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1001-1203 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1204- ●
17 BOLT; RECLINING
SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 0710-0808 ● ●
17 BOLT; RECLINING
SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 0809-0912 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 0809-0912 ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1001- ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 1001- ●
18 COVER; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-332-0 01 1 0809-0912 ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 0809-0912 ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1001- ●
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-332-0 01 1 1001- ●
19 SCREW; COVER
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 0809-0912 ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 0809-0912 ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1001- ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 1001- ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-333-0 01 1 0809-0912 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 0809-0912 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1001- ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-333-0 01 1 1001- ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 0710-0808 ● ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 0809- ●
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-346-0 01 1 0809- ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 0809- ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0710- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1110- ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 0809-0912 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 0809-0912 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1001- ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1001- ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 0710-1104 ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1110- ● ●
228 SCREW; KNOB
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 0809-0912 ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 0809-0912 ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1001- ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 1001- ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 0809- ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 0809- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
398 NUT; STAND
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 0809- ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98093-310-0 01 1 0809-1502 ●
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-653-0 01 1 1503- ●

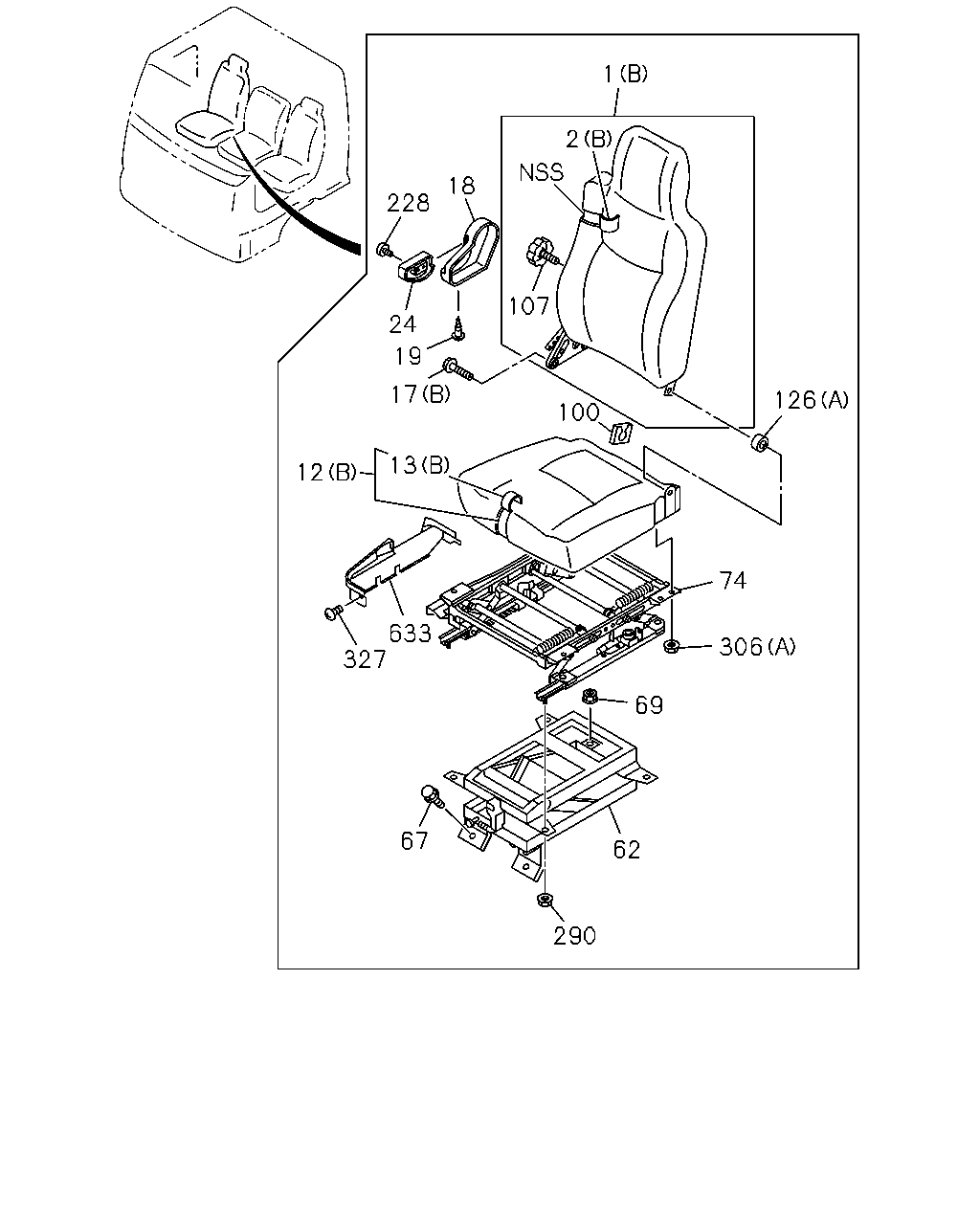

çizim 179093
126 1 2 107 18 228 24 17 13 12 100 74 306 69 62 290 67 327 633 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-201-0 01 1 1001-1009 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-406-1 01 1 1010- ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97414-112-2 01 1 0809-0902 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97416-202-0 01 1 0903-1009 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-407-1 01 1 1010- ●
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97409-955-5 01 1 0809- ●
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0710-0808 ● ●
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0809- ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0809- ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0710-0808 ● ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0809- ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0809- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-206-0 01 1 1001-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-411-0 01 1 1010- ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97414-113-1 01 1 0809-0902 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97416-207-0 01 1 0903-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-412-0 01 1 1010- ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-910-2 01 1 0809- ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 0710-0808 ● ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 0809-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-966-0 01 1 0809-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98232-353-0 01 1 1301- ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98232-353-0 01 1 1301- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-120-0 01 1 0809-0902 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-212-1 01 1 0903-0912 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-212-1 01 1 1001-1009 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-398-2 01 1 1010- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-958-0 01 1 0809-0902 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-211-1 01 1 0903-0912 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-211-1 01 1 1001-1009 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-397-2 01 1 1010- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97414-123-2 01 1 0809- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-954-2 01 1 0809- ●
12 CUSHION; SEAT,FRT
(A) 		8-98098-006-0 01 1 0710-0808 ● ●
12 CUSHION; SEAT,FRT
(A) 		8-98098-006-0 01 1 0809- ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-006-0 01 1 0809- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-121-0 01 1 0809-0902 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-216-0 01 1 0903-0912 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-216-0 01 1 1001-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-402-2 01 1 1010- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97414-111-0 01 1 0809-0902 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-215-0 01 1 0903-0912 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-215-0 01 1 1001-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-401-2 01 1 1010- ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-909-1 01 1 0809- ●
13 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-98098-007-0 01 1 0710-0808 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-98098-007-0 01 1 0809- ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-007-0 01 1 0809- ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0710-0808 ● ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0809- ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-974-0 02 1 0809- ●
17 BOLT; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 0809-0912 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 0809-0912 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1001-1203 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1001-1203 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1204- ●
17 BOLT; RECLINING
SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 0710-0808 ● ●
17 BOLT; RECLINING
SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 0809-0912 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 0809-0912 ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1001- ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 1001- ●
18 COVER; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-332-0 01 1 0809-0912 ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 0809-0912 ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1001- ●
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-332-0 01 1 1001- ●
19 SCREW; COVER
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 0809-0912 ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 0809-0912 ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1001- ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 1001- ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-333-0 01 1 0809-0912 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 0809-0912 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1001- ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-333-0 01 1 1001- ●

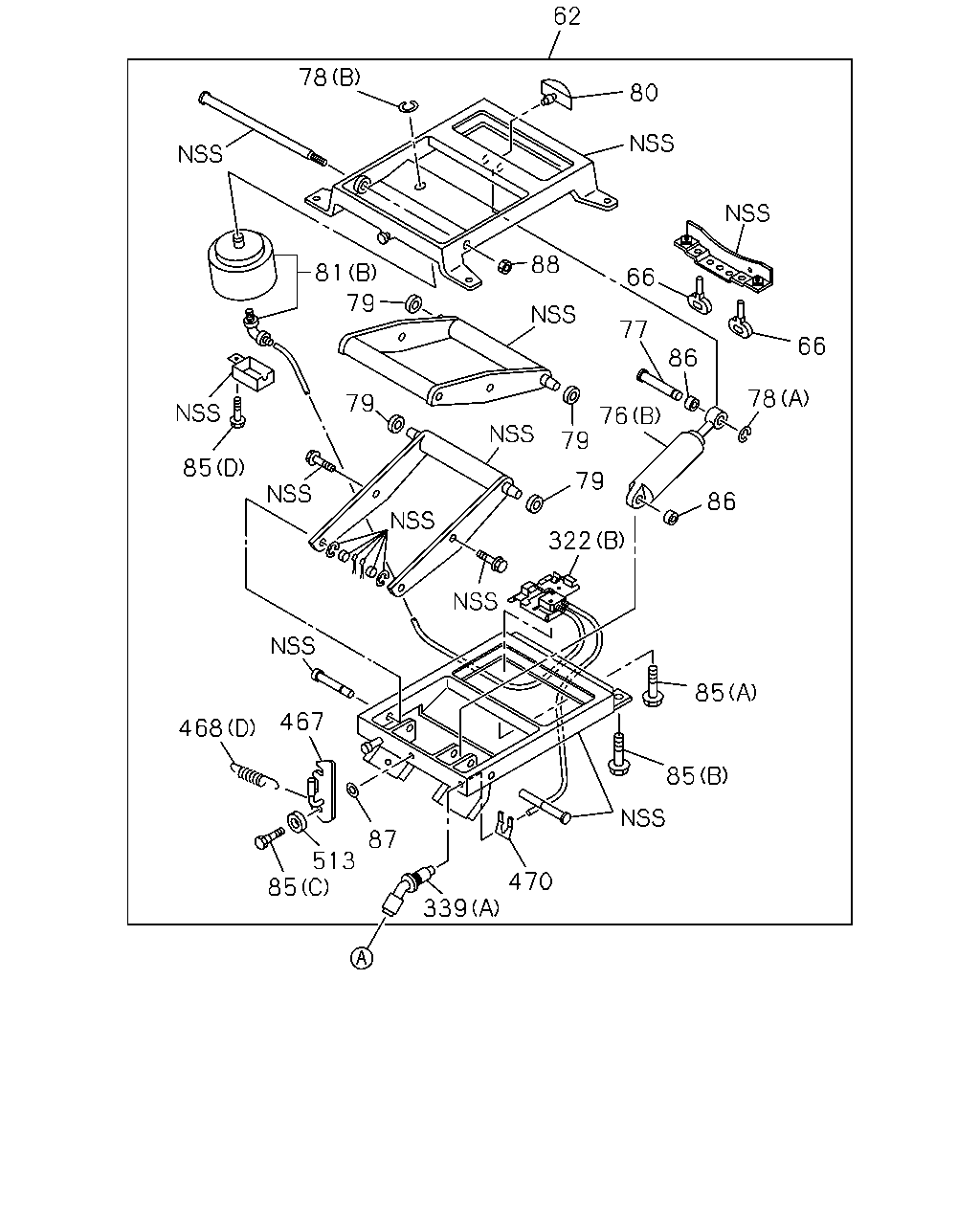

62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-183-8 01 1 0912-1403 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-448-0 01 1 1404- ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-183-7 01 1 0809-0905 ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0710- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●

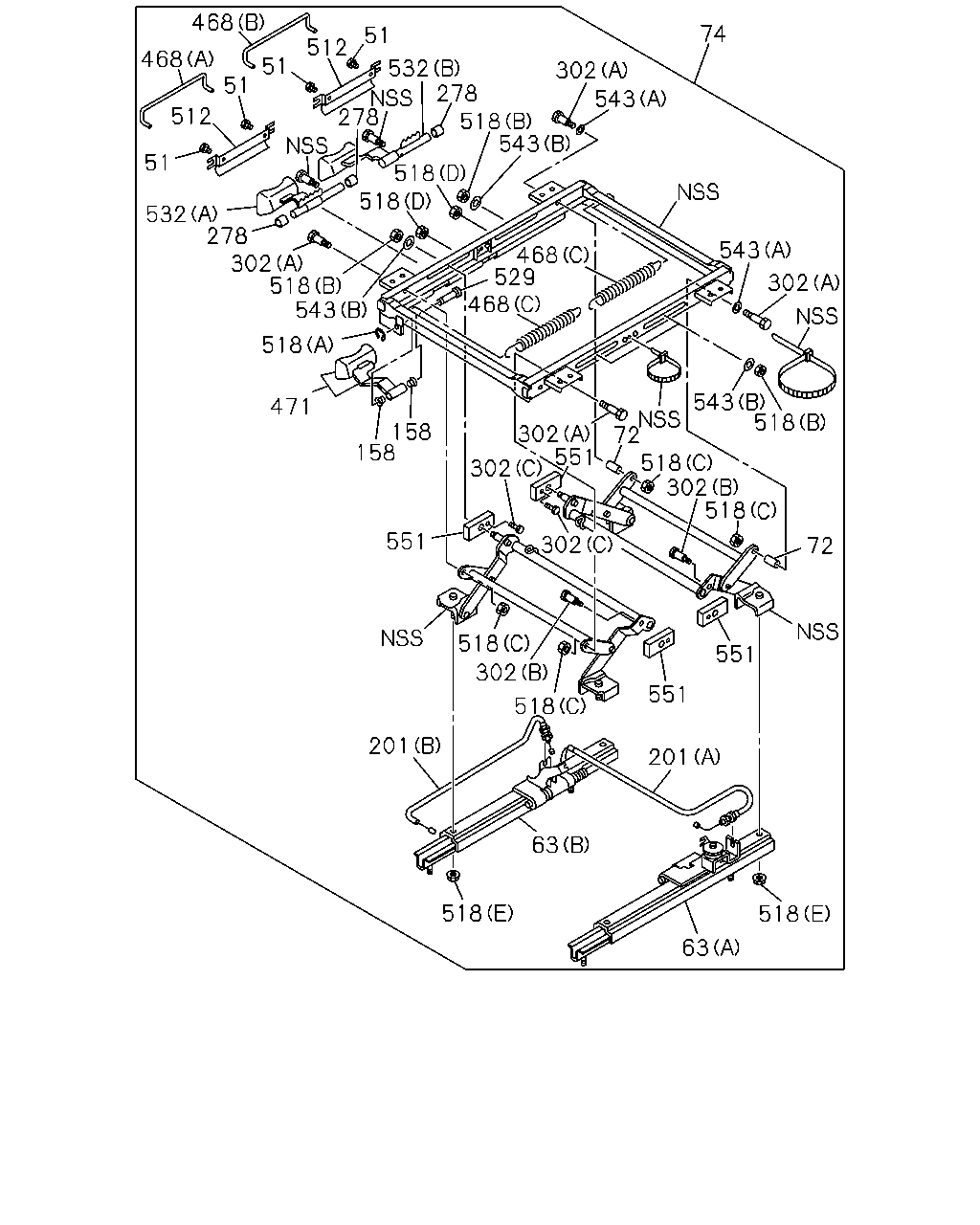

74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98003-678-0 01 1 0809-1502 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98291-640-0 01 1 1503- ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1110- ●
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> 		8-98063-174-0 01 1 0809- ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 0809-0912 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 0809-0912 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1001- ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1001- ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 0710-1104 ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1110- ● ●
228 SCREW; KNOB
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 0809-0912 ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 0809-0912 ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1001- ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 1001- ●
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> M8 FLANGE 		1-75538-207-0 04 1 0809- ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 0809- ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 0809- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
327 CLIP; COVER 8-98098-004-0 01 1 0710-0808 ● ●
327 CLIP; COVER 8-98098-004-0 01 1 0809- ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98098-004-0 01 1 0809- ●
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> GRAY 		8-97409-956-0 01 1 0809- ●

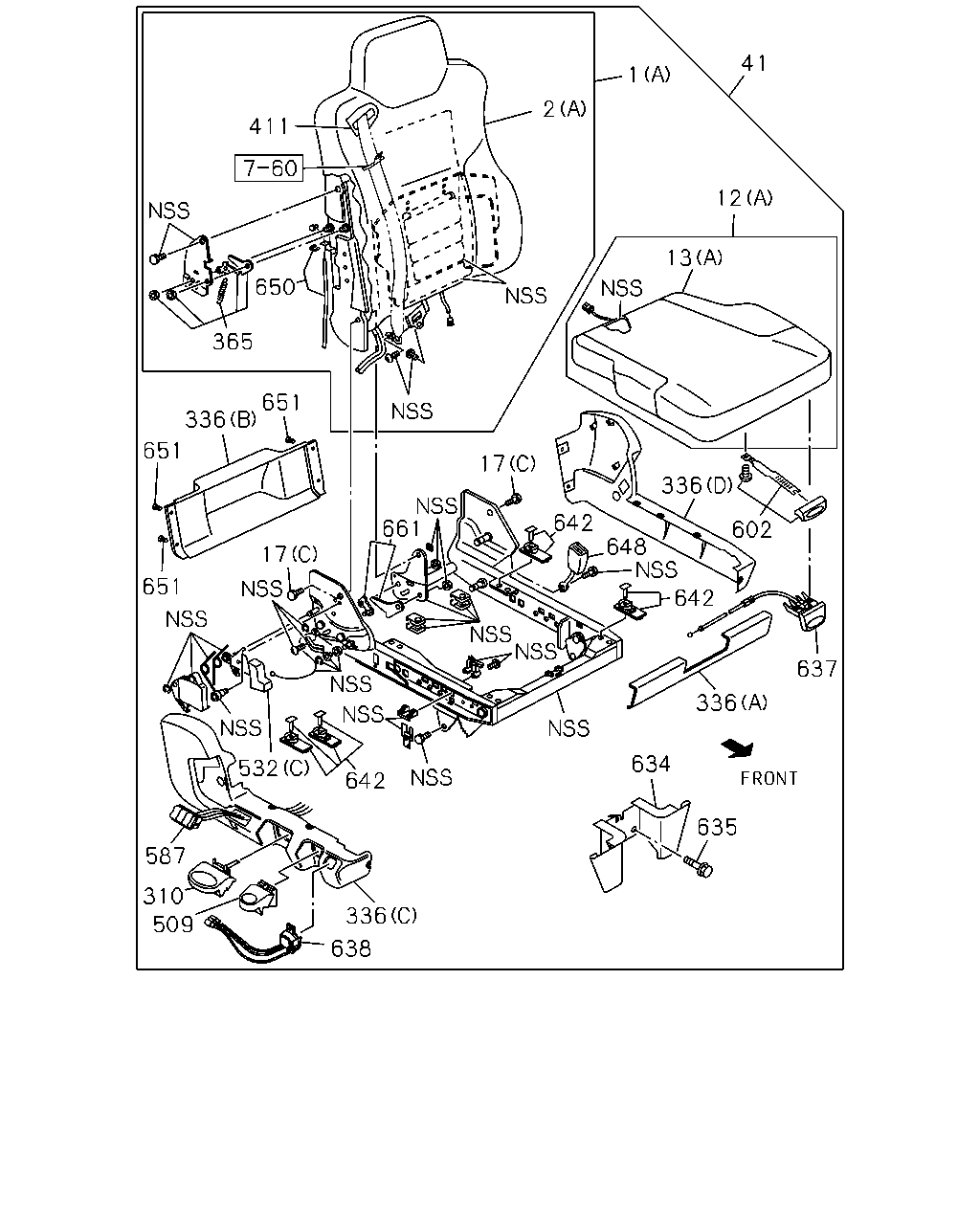

çizim 179160
41 1 2 411 650 651 336 651 651 17 661 17 642 648 642 336 637 634 635 642 532 336 638 509 587 310 12 13 336 602 365
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-201-0 01 1 1001-1009 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-406-1 01 1 1010- ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97414-112-2 01 1 0809-0902 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97416-202-0 01 1 0903-1009 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-407-1 01 1 1010- ●
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97409-955-5 01 1 0809- ●
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0710-0808 ● ●
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0809- ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0809- ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0710-0808 ● ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0809- ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0809- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-206-0 01 1 1001-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-411-0 01 1 1010- ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97414-113-1 01 1 0809-0902 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97416-207-0 01 1 0903-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-412-0 01 1 1010- ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-910-2 01 1 0809- ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 0710-0808 ● ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 0809-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-966-0 01 1 0809-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98232-353-0 01 1 1301- ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98232-353-0 01 1 1301- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-120-0 01 1 0809-0902 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-212-1 01 1 0903-0912 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-212-1 01 1 1001-1009 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-398-2 01 1 1010- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-958-0 01 1 0809-0902 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-211-1 01 1 0903-0912 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-211-1 01 1 1001-1009 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-397-2 01 1 1010- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97414-123-2 01 1 0809- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-954-2 01 1 0809- ●
12 CUSHION; SEAT,FRT
(A) 		8-98098-006-0 01 1 0710-0808 ● ●
12 CUSHION; SEAT,FRT
(A) 		8-98098-006-0 01 1 0809- ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-006-0 01 1 0809- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-121-0 01 1 0809-0902 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-216-0 01 1 0903-0912 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-216-0 01 1 1001-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-402-2 01 1 1010- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97414-111-0 01 1 0809-0902 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-215-0 01 1 0903-0912 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-215-0 01 1 1001-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-401-2 01 1 1010- ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-909-1 01 1 0809- ●
13 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-98098-007-0 01 1 0710-0808 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-98098-007-0 01 1 0809- ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-007-0 01 1 0809- ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0710-0808 ● ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0809- ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-974-0 02 1 0809- ●
17 BOLT; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 0809-0912 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 0809-0912 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1001-1203 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1001-1203 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1204- ●
17 BOLT; RECLINING
SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 0710-0808 ● ●
17 BOLT; RECLINING
SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 0809-0912 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 0809-0912 ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1001- ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 1001- ●

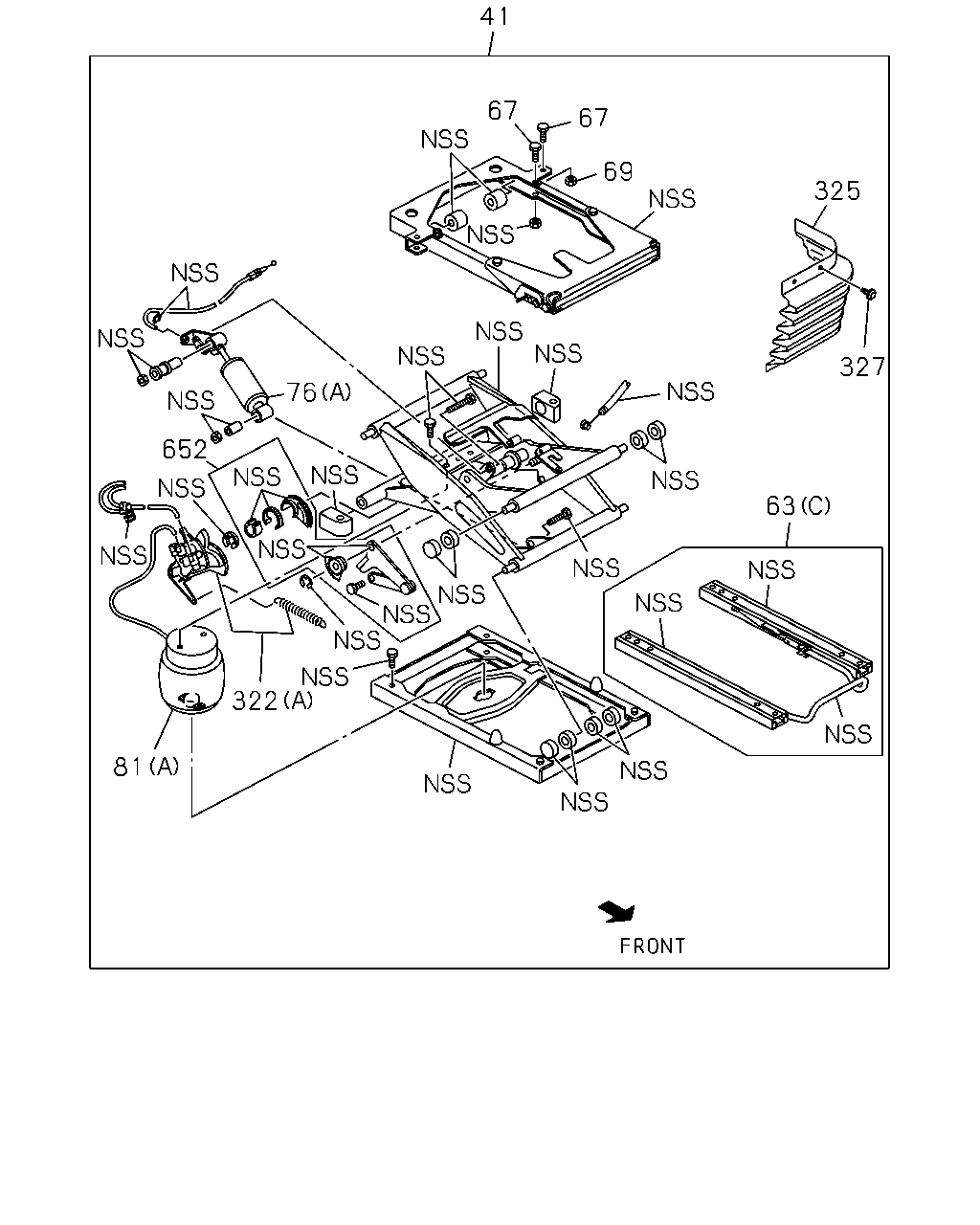

41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0710-0808 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0809-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0809-1212 ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301- ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301- ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0710-0808 ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0809-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0809-1212 ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301- ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301- ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 0710-0808 ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 0809- ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-992-0 01 1 0809- ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 0710-0808 ● ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 0809- ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (D) 		8-98097-978-0 01 1 0809- ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 0710-0808 ● ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 0809- ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-984-0 01 1 0809- ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 0710-0808 ● ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 0809- ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-995-0 01 1 0809- ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 0710-0808 ● ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 0809- ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98097-996-0 01 1 0809- ●
365 LOCK ASM; SEAT 8-98097-972-0 01 1 0710-0808 ● ●
365 LOCK ASM; SEAT 8-98097-972-0 01 1 0809- ●
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-972-0 01 1 0809- ●
365 LOCK ASM; SEAT

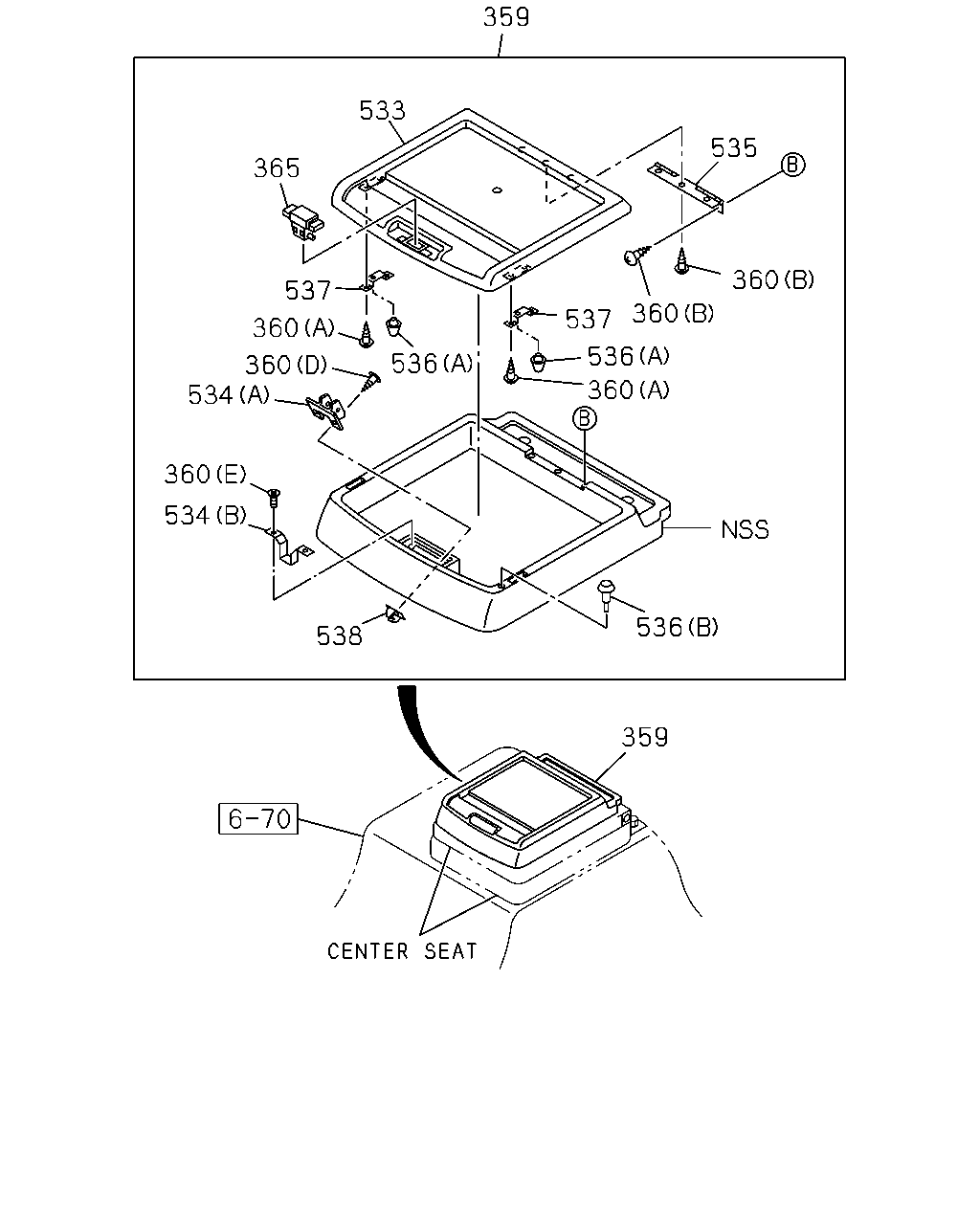

VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 1105-1109 ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 0710-1104 ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 1105-1109 ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-72538-312-0 01 1 1105-1109 ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 1110- ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 0710-0808 ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 0809- ●
411 GUIDE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-967-0 01 1 0809- ●
509 LEVER; DAMPER 8-98097-988-0 01 1 0710-0808 ● ●
509 LEVER; DAMPER 8-98097-988-0 01 1 0809- ●
509 LEVER; DAMPER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-988-0 01 1 0809- ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-203-0 01 1 0809- ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-204-1 01 1 0809- ●
532 LEVER ASM; TILT
(C) 		8-98097-982-0 01 1 0710-0808 ● ●
532 LEVER ASM; TILT
(C) 		8-98097-982-0 01 1 0809- ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-982-0 01 1 0809- ●
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 0710-0808 ● ●
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 0809- ●
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-986-0 01 1 0809- ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 0710-0808 ● ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 0809- ●
602 KNOB; ADJ,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98098-008-0 01 1 0809- ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 0710-0808 ● ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 0809- ●
634 COVER; CONNECTOR,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98088-279-0 01 1 0809- ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 0710-0808 ● ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 0809- ●
635 BOLT; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M6X16 		0-52000-616-0 02 1 0809- ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 0710-0808 ● ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 0809- ●
637 LEVER; SLOPE ADJ
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-989-0 01 1 0809- ●
638 VALVE; LOWERING 8-98097-994-0 01 1 0710-0808 ● ●
638 VALVE; LOWERING 8-98097-994-0 01 1 0809- ●
638 VALVE; LOWERING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-994-0 01 1 0809- ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 0710-0808 ● ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 0809- ●
642 SLIDER; CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98192-932-0 04 1 0809- ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 0710-0808 ● ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 0809- ●
648 BUCKLE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-976-0 01 1 0809- ●
650 CABLE 8-98097-973-0 01 1 0710-0808 ● ●
650 CABLE 8-98097-973-0 01 1 0809-1212 ●
650 CABLE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-973-0 01 1 0809-1212 ●
650 CABLE 8-98232-354-0 01 1 1301- ●
650 CABLE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98232-354-0 01 1 1301- ●
651 RIVET 8-98194-075-0 04 1 0710-0808 ● ●
651 RIVET 8-98194-075-0 04 1 0809- ●
651 RIVET
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98194-075-0 04 1 0809- ●
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 0710-0808 ● ●
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 0809- ●
661 LOCK ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-980-0 01 1 0809- ●
çizim 179434
322 81 63 327 325 69 67 67 41 76 652
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0710-0808 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0809-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0809-1212 ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301- ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301- ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0710-0808 ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0809-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0809-1212 ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301- ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301- ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-199-1 01 1 0809- ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-323-0 01 1 0809- ●
63 ADJUSTER; SEAT SLIDE
(C) 		8-98098-005-0 01 1 0710-0808 ● ●
63 ADJUSTER; SEAT SLIDE
(C) 		8-98098-005-0 01 1 0809- ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98098-005-0 01 1 0809- ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0710- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 0809-0905 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 0912- ●
76 DAMPER; AIR SUSP
(A) 		8-98097-999-0 01 1 0710-0808 ● ●
76 DAMPER; AIR SUSP
(A) 		8-98097-999-0 01 1 0809- ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-999-0 01 1 0809- ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-151-2 01 1 0809-0905 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-151-2 01 1 0912-1312 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> (B) 		8-98242-816-0 01 1 1401- ●
81 SPRING; AIR
(A) 		8-98098-000-0 01 1 0710-0808 ● ●
81 SPRING; AIR
(A) 		8-98098-000-0 01 1 0809- ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-000-0 01 1 0809- ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-186-2 01 1 0809-0905 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-186-3 01 1 0912- ●
322 VALVE; AIR SPRING
(A) 		8-98098-001-0 01 1 0710-0808 ● ●
322 VALVE; AIR SPRING
(A) 		8-98098-001-0 01 1 0809- ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-001-0 01 1 0809- ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 0710-0808 ● ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 0809- ●
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98098-003-0 01 1 0809- ●
327 CLIP; COVER 8-98098-004-0 01 1 0710-0808 ● ●
327 CLIP; COVER 8-98098-004-0 01 1 0809- ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98098-004-0 01 1 0809- ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 0710-0808 ● ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 0809- ●
652 LOCK ASM; HEIGHT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98098-002-0 01 1 0809- ●

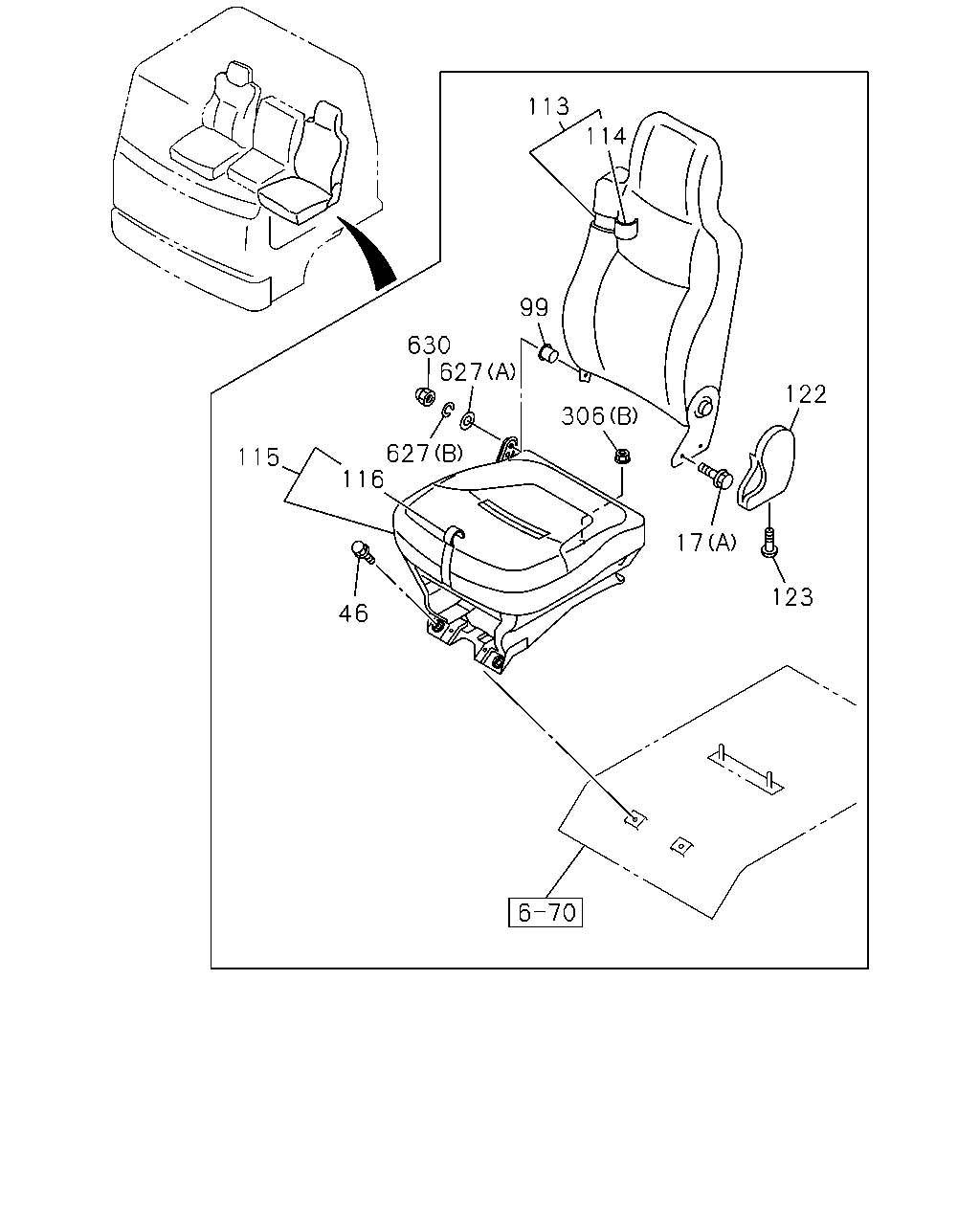

çizim 179447
46 115 116 627 627 630 306 99 113 114 122 17 123
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0710-0808 ● ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0809- ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-974-0 02 1 0809- ●
17 BOLT; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 0809-0912 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 0809-0912 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1001-1203 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1001-1203 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1204- ●
17 BOLT; RECLINING
SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 0710-0808 ● ●
17 BOLT; RECLINING
SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 0809-0912 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 0809-0912 ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1001- ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) M8X20 		8-98092-334-0 02 1 1001- ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0710- ● ●
99 BUSHING; SEAT BACK
SEAT CLOTH<7FL> 		8-98063-219-0 01 1 0710-0808 ● ●
99 BUSHING; SEAT BACK
SEAT CLOTH<7FL> 		8-98063-219-0 01 1 0809-0912 ●
99 BUSHING; SEAT BACK
VINYL SEAT<A83>,SEAT CLOTH<7FL> 		8-98063-219-0 01 1 0809-0912 ●
99 BUSHING; SEAT BACK 8-98063-219-0 01 1 1001-1009 ●
99 BUSHING; SEAT BACK
VINYL SEAT<A83>,SEAT CLOTH<7FL> 		8-98063-219-0 01 1 1001-1009 ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1010- ●
99 BUSHING; SEAT BACK
VINYL SEAT<A83>,SEAT CLOTH<7FL> 		8-98112-751-0 01 1 1010- ●
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97409-969-0 01 1 0710-0902 ● ●
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97416-221-0 01 1 0903-0912 ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97416-221-0 01 1 1001-1009 ●
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97416-221-0 01 1 1001-1009 ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1010- ●
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-422-0 01 1 1010- ●
113 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-966-1 01 1 0809- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97411-916-0 01 1 0809- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97411-914-0 01 1 0710-0902 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97416-223-0 01 1 0903-0912 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97416-223-0 01 1 1001-1009 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97416-223-0 01 1 1001-1009 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1010- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-424-0 01 1 1010- ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97409-968-0 01 1 0710-0902 ● ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97416-225-0 01 1 0903-0912 ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-225-0 01 1 1001-1009 ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97416-225-0 01 1 1001-1009 ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-1 01 1 1010- ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-418-1 01 1 1010- ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-965-1 01 1 0809- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97411-915-0 01 1 0809- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97411-913-0 01 1 0710-0902 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97416-227-0 01 1 0903-0912 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97416-227-0 01 1 1001-1009 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97416-227-0 01 1 1001-1009 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-0 01 1 1010- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-420-0 01 1 1010- ●
122 COVER; ADJ,RECLINING
SEAT CLOTH<7FL> GRAY 		8-97409-967-0 01 1 0710-0902 ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 0903-0912 ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1001- ●
122 COVER; ADJ,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> GRAY 		8-97409-967-0 01 1 1001- ●
122 COVER; ADJ,RECLINING
VINYL SEAT<A83> GRAY 		8-97409-967-0 01 1 0809-0902 ●
123 SCREW; COVER,RECLINING
SEAT CLOTH<7FL> 		8-98070-026-0 01 1 0710-0808 ● ●
123 SCREW; COVER,RECLINING
SEAT CLOTH<7FL> 		8-98070-026-0 01 1 0809-0912 ●
123 SCREW; COVER,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> 		8-98070-026-0 01 1 0809-0912 ●
123 SCREW; COVER,RECLINING 8-98070-026-0 01 1 1001- ●
123 SCREW; COVER,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> 		8-98070-026-0 01 1 1001- ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 0809- ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 0809- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
627 WASHER; FRT SEAT
SEAT CLOTH<7FL> (A) 		8-98063-223-0 01 1 0710-0808 ● ●
627 WASHER; FRT SEAT
SEAT CLOTH<7FL> (A) 		8-98063-223-0 01 1 0809-0912 ●
627 WASHER; FRT SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) 		8-98063-223-0 01 1 0809-0912 ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1001- ●
627 WASHER; FRT SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) 		8-98063-223-0 01 1 1001- ●
627 WASHER; FRT SEAT
SEAT CLOTH<7FL> (B) 		8-98063-224-0 01 1 0710-0808 ● ●
627 WASHER; FRT SEAT
SEAT CLOTH<7FL> (B) 		8-98063-224-0 01 1 0809-0912 ●
627 WASHER; FRT SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> (B) 		8-98063-224-0 01 1 0809-0912 ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1001- ●
627 WASHER; FRT SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> (B) 		8-98063-224-0 01 1 1001- ●
630 NUT; CAP
SEAT CLOTH<7FL> M8 		8-98063-225-0 01 1 0710-0808 ● ●
630 NUT; CAP
SEAT CLOTH<7FL> M8 		8-98063-225-0 01 1 0809-0912 ●
630 NUT; CAP
VINYL SEAT<A83>,SEAT CLOTH<7FL> M8 		8-98063-225-0 01 1 0809-0912 ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1001- ●
630 NUT; CAP
VINYL SEAT<A83>,SEAT CLOTH<7FL> M8 		8-98063-225-0 01 1 1001- ●
çizim 179452
359 536 538 534 534 360 360 360 537 365 533 359 535 360 360 537 360 536 536
BalonParca AdiParca NoAdetTipApplied Date A B
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-977-2 01 1 0710-1006 ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1007- ●
359 BOX; PARCEL
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1007- ●
360 SCREW; PARCEL
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1105-1109 ●
360 SCREW; PARCEL
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0710-1009 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-1104 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1110- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 0710-1104 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1105-1109 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16 		0-70040-416-0 06 1 1105-1109 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1110- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0710-0912 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1001-1110 ●
360 SCREW; PARCEL
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1001-1110 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 0710-1009 ● ●
365 LOCK ASM; SEAT 8-98097-972-0 01 1 0710-0808 ● ●
365 LOCK ASM; SEAT 8-98097-972-0 01 1 0809- ●
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-972-0 01 1 0809- ●
365 LOCK ASM; SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 1105-1109 ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 0710-1104 ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 1105-1109 ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-72538-312-0 01 1 1105-1109 ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 1110- ● ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-979-1 01 1 0710-1006 ● ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1007- ●
533 LID; PARCEL BOX
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1007- ●
534 STRIKER; PARCEL BOX
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-190-0 01 1 1105-1109 ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		1-72538-181-0 01 1 0710-1009 ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-190-0 01 1 1010-1104 ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-190-0 01 1 1105-1109 ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		1-72538-190-0 01 1 1105-1109 ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-190-0 01 1 1110- ● ●
535 HINGE; PARCEL BOX
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1105-1109 ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 0710-1104 ● ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1105-1109 ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-72447-391-1 01 1 1105-1109 ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1110- ● ●
536 RUBBER; CUSHION
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-187-0 02 1 1105-1109 ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		5-09983-002-1 02 1 0710-1009 ● ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-187-0 02 1 1010-1104 ● ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-187-0 02 1 1105-1109 ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		1-72538-187-0 02 1 1105-1109 ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		1-72538-187-0 02 1 1110- ● ●
537 BRACKET; RUBBER
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72548-057-1 02 1 0710-1009 ● ●
538 GROMMET; SCREW
SEAT ASM - WITH CENTER SEAT<7BC> 		1-09983-165-0 02 1 0710-1009 ● ●
çizim 179467
63 518 63 518 201 201 518 551 02 518 551 72 302 551 518 302 518 551 302 158 158 471 518 543 518 302 278 532 51 512 468 468 51 51 512 51 278 518 518 532 518 278 302 543 543 74 468 529 468 302 72 543 518 302 543
BalonParca AdiParca NoAdetTipApplied Date A B
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-325-1 04 1 0809- ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-199-1 01 1 0809- ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-323-0 01 1 0809- ●
63 ADJUSTER; SEAT SLIDE
(C) 		8-98098-005-0 01 1 0710-0808 ● ●
63 ADJUSTER; SEAT SLIDE
(C) 		8-98098-005-0 01 1 0809- ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98098-005-0 01 1 0809- ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> 		1-75518-334-1 02 1 0809-1502 ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> 		8-98291-668-0 02 1 1503- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98003-678-0 01 1 0809-1502 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98291-640-0 01 1 1503- ●
158 BUSHING; LINK ARM
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 0809-0912 ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 0809-0912 ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1001- ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 1001- ●
201 CABLE; ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 0809-0912 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 0809-0912 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1001- ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 1001- ●
201 CABLE; ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 0809-0912 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 0809-0912 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1001- ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 1001- ●
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> 		1-75518-244-0 03 1 0809- ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-266-2 02 1 0809- ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-270-1 04 1 0809-1502 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (A) 		8-98291-667-0 04 1 1503- ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-336-1 02 1 0809- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 0809- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 0809- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 0809- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 0809-0905 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 0912- ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		8-98107-869-0 01 1 0809-0912 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98107-869-0 01 1 0809-0912 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98107-869-0 01 1 1001- ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		8-98107-869-0 01 1 1001- ●
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-243-1 02 1 0809- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 0809- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 0809- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 0809- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 0809- ●
518 NUT; TILT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 0809-0912 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 0809-0912 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1001- ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1001- ●
529 PIN; LINK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 0809-0912 ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 0809-0912 ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1001- ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 1001- ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-203-0 01 1 0809- ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-204-1 01 1 0809- ●
532 LEVER ASM; TILT
(C) 		8-98097-982-0 01 1 0710-0808 ● ●
532 LEVER ASM; TILT
(C) 		8-98097-982-0 01 1 0809- ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-982-0 01 1 0809- ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-335-0 02 1 0809-1502 ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19 		8-98291-669-0 02 1 1503- ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (B) ID=8.4 		9-09160-508-0 04 1 0809- ●
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> 		1-75518-265-0 04 1 0809- ●
çizim 179481
403 182 403 179 126 359 360 506 175 176 188 16 188
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1105-1109 ●
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 0710-1104 ● ●
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1105-1109 ●
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-75418-062-1 01 1 1105-1109 ●
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1110- ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 0809-0912 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 0809-0912 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1001- ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1001- ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 0710-1104 ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1110- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-975-1 01 1 0908- ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-984-0 01 1 0710-0902 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-233-0 01 1 0903-0912 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-233-0 01 1 1001-1009 ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-233-0 01 1 1001-1009 ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-434-1 01 1 1010- ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-434-1 01 1 1010- ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-975-0 01 1 0809-0905 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-976-1 01 1 0908- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-985-0 01 1 0710-0902 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-234-0 01 1 0903-0912 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-234-0 01 1 1001-1009 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-234-0 01 1 1001-1009 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-435-1 01 1 1010- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-435-1 01 1 1010- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-976-0 01 1 0809-0905 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-974-1 01 1 1007- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-983-0 01 1 0710-0902 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-237-0 01 1 0903-0912 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-237-0 01 1 1001-1009 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-237-0 01 1 1001-1009 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-432-1 01 1 1010- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-432-1 01 1 1010- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-974-0 01 1 0809-0905 ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-982-0 01 1 0710-0902 ● ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-235-0 01 1 0903-0912 ● ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-235-0 01 1 1001-1009 ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-235-0 01 1 1001-1009 ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-430-3 01 1 1010- ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-430-3 01 1 1010- ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-973-3 01 1 0809- ●
188 BOLT; BACK TO CUSHION
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1105-1109 ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 0710-1104 ● ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1105-1109 ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> M10X16 FLANGE 		1-75198-053-0 04 1 1105-1109 ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1110- ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-977-2 01 1 0710-1006 ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1007- ●
359 BOX; PARCEL
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1007- ●
360 SCREW; PARCEL
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1105-1109 ●
360 SCREW; PARCEL
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0710-1009 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-1104 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1110- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 0710-1104 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1105-1109 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16 		0-70040-416-0 06 1 1105-1109 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1110- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0710-0912 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1001-1110 ●
360 SCREW; PARCEL
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1001-1110 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 0710-1009 ● ●
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 04 1 0710-1006 ● ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1007- ●
506 CAP; PARCEL BOX
VINYL SEAT<A83>,SEAT CLOTH<7FL> SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1007- ●
çizim 179485
322 86 78 66 66 88 80 62 78 81 79 85 85 513 467 468 79 79 77 76 86 85 85 470 339 87 79
BalonParca AdiParca NoAdetTipApplied Date A B
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-183-8 01 1 0912-1403 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-448-0 01 1 1404- ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-183-7 01 1 0809-0905 ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-145-0 02 1 0809-0905 ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-145-0 02 1 0912- ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 0809-0905 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 0912- ●
76 DAMPER; AIR SUSP
(A) 		8-98097-999-0 01 1 0710-0808 ● ●
76 DAMPER; AIR SUSP
(A) 		8-98097-999-0 01 1 0809- ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-999-0 01 1 0809- ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-138-2 01 1 0912- ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-138-2 01 1 0809-0905 ●
78 RING; SNAP
(C) 		8-98101-900-0 02 1 0710-0808 ● ●
78 RING; SNAP
(C) 		8-98101-900-0 02 1 0809- ●
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98101-900-0 02 1 0809- ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 0809-0905 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 0912- ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 0809-0905 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 0912- ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-159-0 04 1 0912-1403 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-489-0 04 1 1404- ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		1-75538-159-0 04 1 0809-0905 ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-09987-123-0 01 1 0912- ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-09987-123-0 01 1 0809-0905 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-151-2 01 1 0809-0905 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-151-2 01 1 0912-1312 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> (B) 		8-98242-816-0 01 1 1401- ●
81 SPRING; AIR
(A) 		8-98098-000-0 01 1 0710-0808 ● ●
81 SPRING; AIR
(A) 		8-98098-000-0 01 1 0809- ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-000-0 01 1 0809- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) 		1-09980-577-0 01 1 0809-0905 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) 		1-09980-577-1 01 1 0912- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (A) M6X12 		1-75538-208-0 02 1 0809-0905 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (A) M6X12 		1-75538-208-1 02 1 0912- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0809-0905 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0912-1312 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401- ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0912- ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0809-0905 ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> ID=8.2 		0-91510-508-0 01 1 0912- ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> ID=8.2 		0-91510-508-0 01 1 0809-0905 ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> M10 		1-75537-273-1 01 1 0912- ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> M10 		1-75537-273-1 01 1 0809-0905 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-186-2 01 1 0809-0905 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-186-3 01 1 0912- ●
322 VALVE; AIR SPRING
(A) 		8-98098-001-0 01 1 0710-0808 ● ●
322 VALVE; AIR SPRING
(A) 		8-98098-001-0 01 1 0809- ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-001-0 01 1 0809- ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 0809-0905 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 0912- ●
339 UNION; DRIVER SEAT
(B) 		8-98014-971-0 01 1 0710-0808 ● ●
339 UNION; DRIVER SEAT
(B) 		8-98014-971-0 01 1 0809- ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEATTYPE 6800<SJA> (B) 		8-98014-971-0 01 1 0809- ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> 		1-75538-134-0 01 1 0912- ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> 		1-75538-134-0 01 1 0809-0905 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 0809- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 0809- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 0809- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 0809-0905 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 0912- ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 0912- ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 0809-0905 ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75538-133-0 01 1 0809-0905 ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75538-133-0 01 1 0912- ●
çizim 320078
581 400 400 641 401 632 339 595
BalonParca AdiParca NoAdetTipApplied Date A B
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 0809-0905 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 0912- ●
339 UNION; DRIVER SEAT
(B) 		8-98014-971-0 01 1 0710-0808 ● ●
339 UNION; DRIVER SEAT
(B) 		8-98014-971-0 01 1 0809- ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEATTYPE 6800<SJA> (B) 		8-98014-971-0 01 1 0809- ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 0710-0808 ● ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 0809- ●
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98098-996-0 02 1 0809- ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0808 ● ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0809- ●
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0809- ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 0710-0808 ● ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 0809- ●
401 NUT; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE 		0-91180-110-0 02 1 0809- ●
581 PIPE; SEAT 8-97589-693-3 01 1 0710-0808 ● ●
581 PIPE; SEAT 8-97589-693-3 01 1 0809- ●
581 PIPE; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-97589-693-3 01 1 0809- ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0710-0808 ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0809- ●
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98106-348-0 01 1 0809- ●
595 TUBE; NYLON
(B) 		8-98041-300-0 01 1 0710-0808 ● ●
595 TUBE; NYLON
(B) 		8-98041-300-0 01 1 0809- ●
595 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEATTYPE 6800<SJA> (B) 		8-98041-300-0 01 1 0809- ●
632 GROMMET
RIGID SEAT WO/ARM REST<TAZ> OD=24 		8-94119-796-0 01 1 0809- ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 0710-0808 ● ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 0809- ●
641 WASHER; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98099-007-0 02 1 0809- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
