◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#34431) — 39 parça
çizim 179071
1 20 20 1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> IMMOBILIZER SYSTEM<7KC> (A) 		8-98088-949-0 01 1 0809-0911 ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> IMMOBILIZER SYSTEM<7KC> (A) 		8-98145-977-0 01 1 0912-1203 ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> IMMOBILIZER SYSTEM<7KC> (A) 		8-98201-214-0 01 1 1204- ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> EXC. IMMOBILIZER SYSTEM<7KC> (A) 		8-98088-954-0 01 1 0809-0911 ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> EXC. IMMOBILIZER SYSTEM<7KC> (A) 		8-98145-979-0 01 1 0912-1203 ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> EXC. IMMOBILIZER SYSTEM<7KC> (A) 		8-98201-216-0 01 1 1204- ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> EXC. IMMOBILIZER SYSTEM<7KC> (B) 		8-98056-003-0 01 1 0809-1203 ●
1 CYLINDER SET; CAR LOCK
FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> EXC. FUEL TANK CAP KEY LOCK<N05>,IMMOBILIZER SYSTEM<7KC> (B) 		8-98056-003-0 01 1 0809-1203 ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> EXC. IMMOBILIZER SYSTEM<7KC> (B) 		8-98201-161-0 01 1 1204- ●
1 CYLINDER SET; CAR LOCK
FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> EXC. FUEL TANK CAP KEY LOCK<N05>,IMMOBILIZER SYSTEM<7KC> (B) 		8-98201-161-0 01 1 1204- ●
1 CYLINDER SET; CAR LOCK
(A) 		8-98029-406-1 01 1 0710-0710 ● ●
1 CYLINDER SET; CAR LOCK
(B) 		8-98041-686-1 01 1 0710-0808 ● ●
1 CYLINDER SET; CAR LOCK
(B) 		8-98041-686-1 01 1 0809-1203 ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> IMMOBILIZER SYSTEM<7KC> (B) 		8-98041-686-1 01 1 0809-1203 ●
1 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM<7KC> EXC. FUEL TANK CAP KEY LOCK<N05> (B) 		8-98041-686-1 01 1 0809-1203 ●
1 CYLINDER SET; CAR LOCK
(B) 		8-98201-160-0 01 1 1204- ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> IMMOBILIZER SYSTEM<7KC> (B) 		8-98201-160-0 01 1 1204- ●
1 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM<7KC> EXC. FUEL TANK CAP KEY LOCK<N05> (B) 		8-98201-160-0 01 1 1204- ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0710- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0710- ● ●

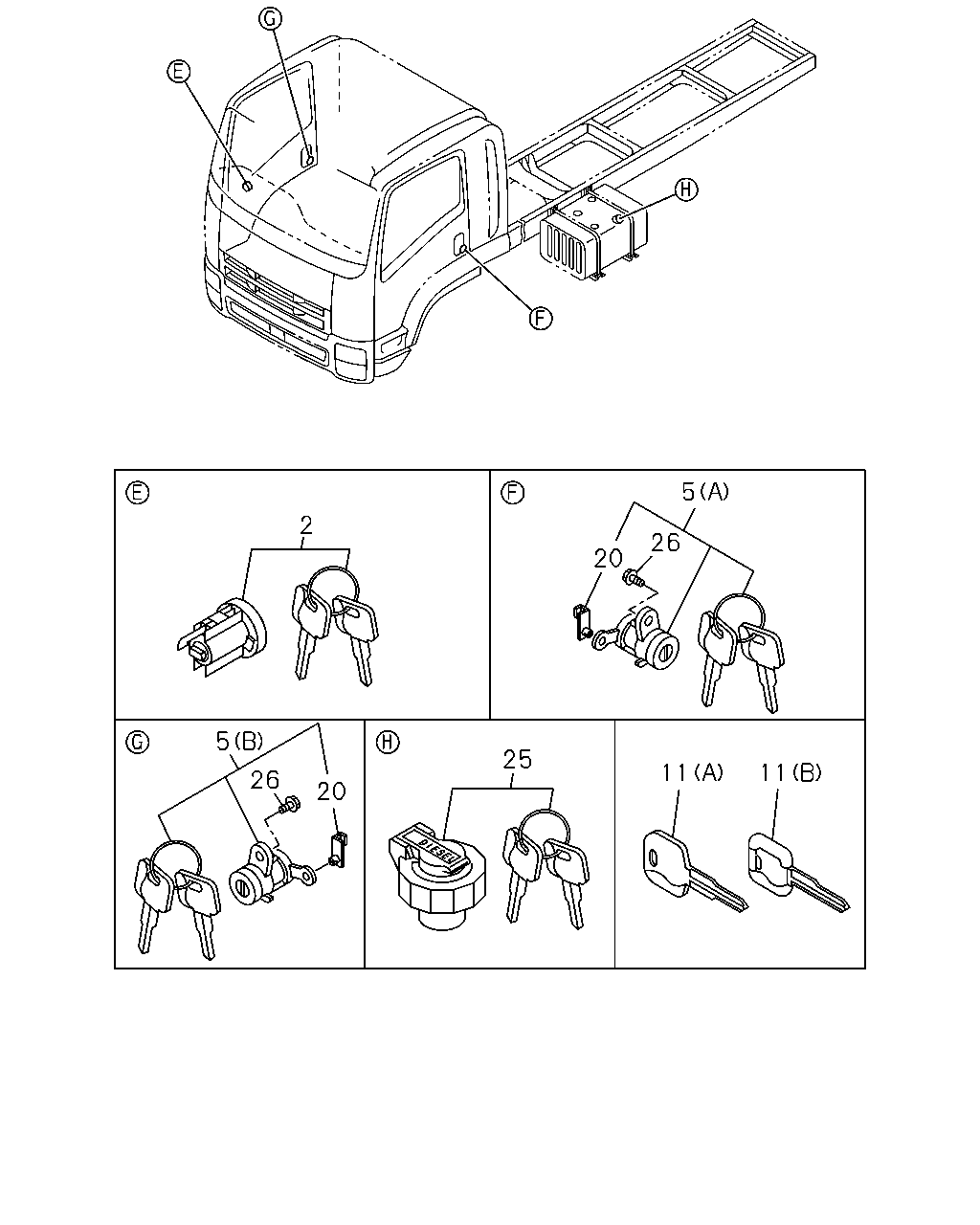

çizim 179446
5 2 26 20 5 25 11 11 26 20
BalonParca AdiParca NoAdetTipApplied Date A B
2 BARREL ASM; W/KEY,STRG LOCK
EXC. IMMOBILIZER SYSTEM<7KC> 		8-98055-148-0 01 1 0809-1203 ●
2 BARREL ASM; W/KEY,STRG LOCK
EXC. IMMOBILIZER SYSTEM<7KC> 		8-98201-342-0 01 1 1204- ●
2 BARREL ASM; W/KEY,STRG LOCK 8-98055-147-0 01 1 0710-0808 ● ●
2 BARREL ASM; W/KEY,STRG LOCK 8-98055-147-0 01 1 0809-1203 ●
2 BARREL ASM; W/KEY,STRG LOCK
IMMOBILIZER SYSTEM<7KC> 		8-98055-147-0 01 1 0809-1203 ●
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-341-0 01 1 1204- ●
2 BARREL ASM; W/KEY,STRG LOCK
IMMOBILIZER SYSTEM<7KC> 		8-98201-341-0 01 1 1204- ●
5 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0710- ● ●
5 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0710- ● ●
11 KEY; BLANK
(B) IMMOBILIZER 		8-98055-168-0 AR 1 0710-0808 ● ●
11 KEY; BLANK
(B) IMMOBILIZER 		8-98055-168-0 AR 1 0809- ●
11 KEY; BLANK
IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER 		8-98055-168-0 AR 1 0809- ●
11 KEY; BLANK
(A) 		8-98055-170-0 AR 1 0710- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0710- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0710- ● ●
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> 		8-98088-982-0 01 1 0809-0911 ●
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> 		8-98146-010-0 01 1 0912- ●
25 CAP; FUEL TANK,W/KEY 8-98033-157-0 01 1 0710-0710 ● ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 0710- ● ●
