7-43 — SUN VISOR AND ASSIST GRIP (#3443) — 82 parça

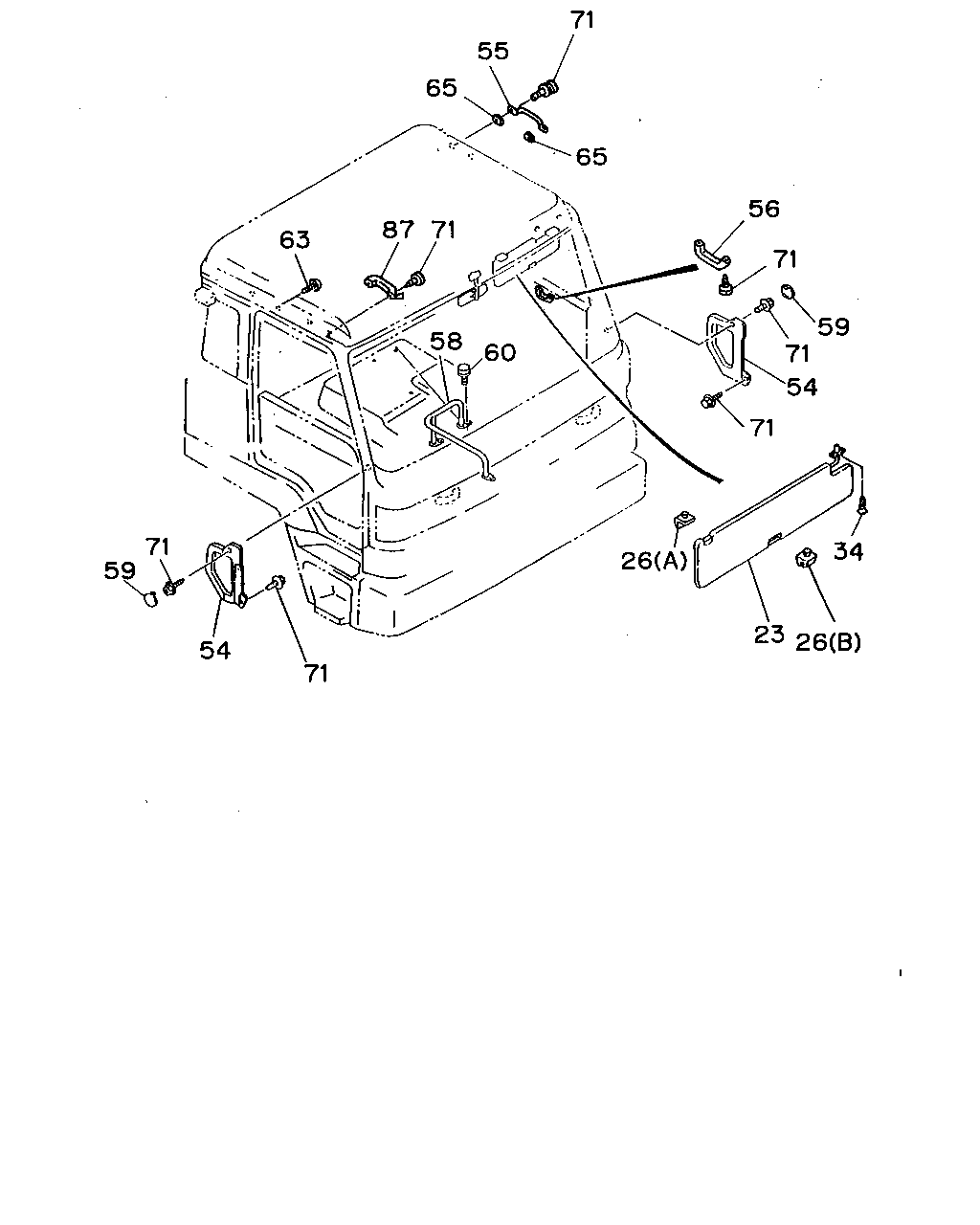

55 71 65 65 56 71 59 54 71 71 34 23 26 26 60 58 71 87 63 71 59 54 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	SUN VISOR	1-73137-151-0	01	1	9002-9209	●
23	SUN VISOR EXC. CHEAPER CAB(SAX)	1-73137-151-0	01	1	9002-9209		●	●
23	SUN VISOR	1-73137-151-0	01	1	9210-9306	●	●	●
23	SUN VISOR	1-73137-149-0	01	1	9002-9209	●
23	SUN VISOR EXC. CHEAPER CAB(SAX)	1-73137-149-0	01	1	9002-9209		●	●
23	SUN VISOR	1-73137-149-0	01	1	9210-9306	●	●	●
23	SUN VISOR	1-73137-169-0	01	1	9307-	●	●	●
23	SUN VISOR	1-73137-155-0	01	1	9307-	●	●	●
23	SUN VISOR CHEAPER CAB(SAX)	1-73137-152-0	01	1	9002-9209		●	●
26	HOLDER; SUN VISOR (A)	1-73137-141-0	02	1	9002-9209	●
26	HOLDER; SUN VISOR EXC. CHEAPER CAB(SAX) (A)	1-73137-141-0	02	1	9002-9209		●	●
26	HOLDER; SUN VISOR (A)	1-73137-141-0	02	1	9210-9306	●	●	●
26	HOLDER; SUN VISOR (B)	1-73137-150-0	02	1	9002-9209	●
26	HOLDER; SUN VISOR EXC. CHEAPER CAB(SAX) (B)	1-73137-150-0	02	1	9002-9209		●	●
26	HOLDER; SUN VISOR (B)	1-73137-150-0	02	1	9210-9306	●	●	●
26	HOLDER; SUN VISOR (A)	1-73137-156-0	02	1	9307-	●	●	●
26	HOLDER; SUN VISOR (B)	1-73137-157-0	02	1	9307-	●	●	●
26	HOLDER; SUN VISOR CHEAPER CAB(SAX) (A)	1-73137-141-0	01	1	9002-9209		●	●
26	HOLDER; SUN VISOR CHEAPER CAB(SAX) (B)	1-73137-150-0	01	1	9002-9209		●	●
34	SCREW; SUN VISOR M6X20	1-09981-310-0	02	1	9002-9209	●
34	SCREW; SUN VISOR EXC. CHEAPER CAB(SAX) M6X20	1-09981-310-0	02	1	9002-9209		●	●
34	SCREW; SUN VISOR M6X20	1-09981-310-0	02	1	9210-	●	●	●
34	SCREW; SUN VISOR M6X20	1-09981-365-0	02	1	9002-	●	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-055-1	01	1	9002-9306	●	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-054-1	01	1	9002-9306	●	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73907-187-0	01	1	9307-	●	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73907-186-0	01	1	9307-	●	●	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-71997-477-0	02	1	9002-	●	●	●
56	GRIP; ASSIST,SIDE SILL WHITE	1-71998-131-0	02	1	9002-	●
56	GRIP; ASSIST,SIDE SILL EXC. CHEAPER CAB(SAX) WHITE	1-71998-131-0	02	1	9002-		●	●
58	GRIP; ASSIST,ENG HOOD	1-75147-588-0	01	1	9002-9306	●
58	GRIP; ASSIST,ENG HOOD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-75147-588-0	01	1	9002-9306		●	●
58	GRIP; ASSIST,ENG HOOD	1-75147-588-0	01	1	9307-	●
58	GRIP; ASSIST,ENG HOOD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-75147-588-0	01	1	9307-		●	●
58	GRIP; ASSIST,ENG HOOD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-75147-583-0	01	1	9307-		●	●
58	GRIP; ASSIST,ENG HOOD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-75147-583-0	01	1	9002-9306		●	●
59	COVER; ASSIST GRIP	1-73617-056-0	02	1	9002-9306	●	●	●
59	COVER; ASSIST GRIP	1-73617-060-0	02	1	9307-	●	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9002-9112	●	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M6X25	1-09980-544-0	02	1	9201-	●	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M8X20 W/LK&PL WASHER	1-09980-496-0	01	1	9002-9112	●	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M8X25	1-09980-491-0	01	1	9201-	●	●	●
63	PLUG; ASSIST GRIP,HOLE OD=15 L=14.5	1-76378-157-0	01	1	9002-	●	●	●
63	PLUG; ASSIST GRIP,HOLE CENTER SEAT DELETE(SP9) OD=15 L=14.5	1-76378-157-0	02	1	9002-9306		●	●
65	SHEET; ASSIST GRIP,CAB SIDE UPR GRIP OUT SIDE<W52>	1-71997-478-1	04	1	9002-	●	●	●
71	SCREW M6X37 W/PL WASHER	1-09981-460-0	04	1	9002-	●
71	SCREW EXC. CHEAPER CAB(SAX) M6X37 W/PL WASHER	1-09981-460-0	04	1	9002-		●	●
71	SCREW M6X16 W/LK&PL WASHER	1-09981-172-0	04	1	9002-	●	●	●
71	SCREW M6X35 W/PL WASHER	1-09981-422-0	02	1	9002-	●	●	●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-156-0	01	1	9002-9306	●	●	●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-161-0	01	1	9307-	●	●	●

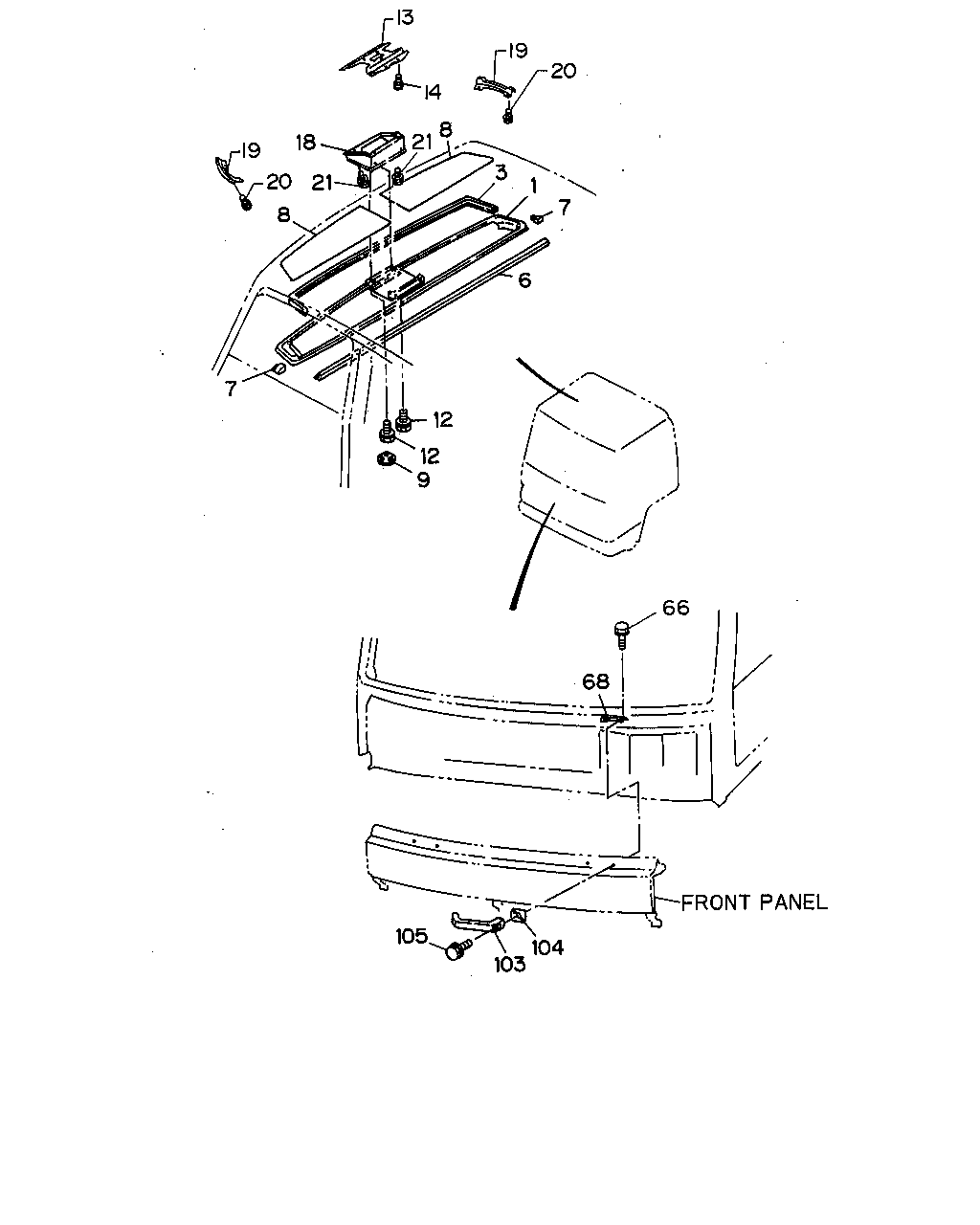

19 18 14 13 19 8 21 21 20 3 1 20 8 7 6 12 12 7 9 66 68 104 103 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BOARD; HEADER SHELF	1-73317-262-0	01	1	9002-9209	●
1	BOARD; HEADER SHELF EXC. CHEAPER CAB(SAX)	1-73317-262-0	01	1	9002-9209		●	●
1	BOARD; HEADER SHELF	1-73317-262-0	01	1	9210-9306	●	●	●
1	BOARD; HEADER SHELF	1-73317-304-0	01	1	9307-	●	●	●
1	BOARD; HEADER SHELF CHEAPER CAB(SAX)	1-73317-264-0	01	1	9002-9209		●	●
3	FINISHER; HEADER SHELF,FRT	1-73317-146-1	01	1	9002-	●	●	●
6	FINISHER; HEADER SHELF,REAR	1-73317-147-2	01	1	9002-	●	●	●
7	FINISHER; HEADER SHELF,CORNER	1-73317-165-2	01	1	9002-	●	●	●
7	FINISHER; HEADER SHELF,CORNER	1-73317-164-2	01	1	9002-	●	●	●
8	MAT; HD SHELF	1-73317-144-1	02	1	9002-9306	●
8	MAT; HD SHELF EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-73317-144-1	02	1	9002-9306		●	●
8	MAT; HD SHELF	1-73317-144-1	02	1	9307-	●	●	●
8	MAT; HD SHELF SAUDI ARABIA EQUIPMENT(WH1)	1-73317-226-0	02	1	9002-9306		●	●
9	COVER; HOLE,HEADER SHELF CENTER	1-73317-231-0	06	1	9002-9306	●	●	●
9	COVER; HOLE,HEADER SHELF CENTER	1-73317-271-0	06	1	9307-	●	●	●
12	SCREW; HEADER SHELF M6X20 W/LK&PL WASHER	1-09981-312-0	08	1	9002-	●	●	●
13	BRACKET ASM; ROOF CTR FRT	1-73317-149-2	01	1	9002-	●	●	●
14	SCREW; BRKT M6X16 W/LK WASHER	9-03910-616-0	05	1	9002-	●	●	●
18	SUPPORT; HEADER SHELF CENTER	1-73317-232-2	01	1	9002-9306	●	●	●
18	SUPPORT; HEADER SHELF CENTER	1-73317-267-0	01	1	9307-	●	●	●
19	SUPPORT ASM; HEADER SHELF	1-73317-155-3	01	1	9002-	●	●	●
19	SUPPORT ASM; HEADER SHELF	1-73317-154-3	01	1	9002-	●	●	●
20	SCREW; SUPPORT,HEADER SHELF M6X16 W/LK WASHER	9-03910-616-0	04	1	9002-	●	●	●
21	SCREW; SUPPORT,HEADER SHELF CENTER M6X20 W/LK&PL WASHER	1-09981-312-0	04	1	9002-	●	●	●
66	BOLT; ASSIST GRIP BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9203-	●	●	●
66	BOLT; ASSIST GRIP BRKT DOOR MIRROR<D32> M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9002-9202	●	●	●
66	BOLT; ASSIST GRIP BRKT EXC. DOOR MIRROR<D32> M6X20 W/LK&PL WASHER	1-09980-493-0	05	1	9002-9202	●	●	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-192-0	02	1	9002-	●	●	●
103	GRIP; ASSIST,FRT PNL WHITE	1-71998-131-0	02	1	9002-	●	●	●
104	SPACER; ASSIST GRIP	1-71997-529-2	04	1	9002-	●	●	●
105	SCREW; ASSIST GRIP M6X30 W/PL WASHER M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9002-	●	●	●
