◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶

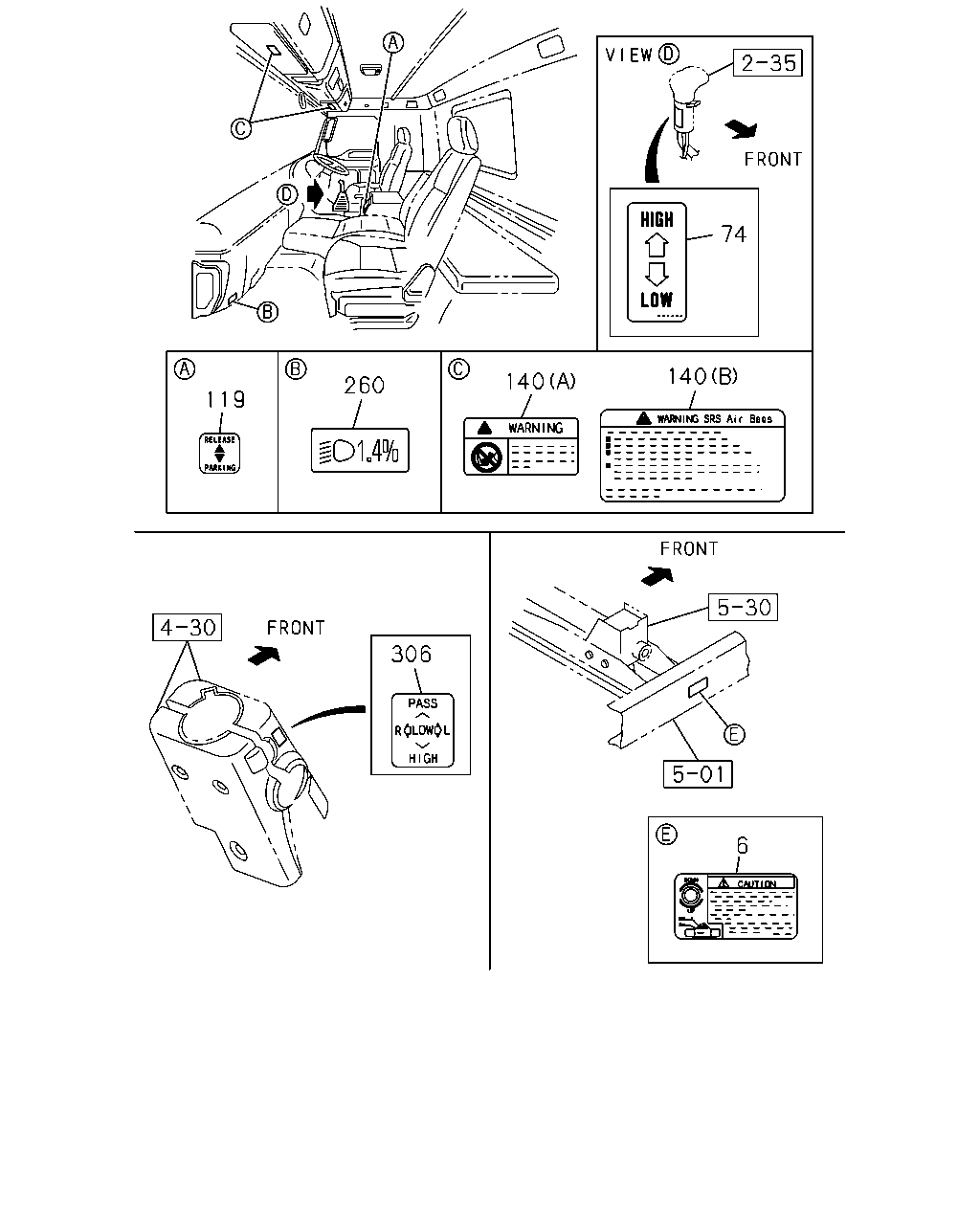

7-10 — CAUTION PLATE AND LABEL (#34429) — 24 parça
çizim 179089
74 140 140 260 119 306 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 0710-0808 ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 0809- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 0809- ●
74 PLATE; CAUTION,CHANGE LEV 1-85881-736-1 01 1 0710-0805 ● ●
74 PLATE; CAUTION,CHANGE LEV 8-98118-493-0 01 1 0806-0808 ● ●
74 PLATE; CAUTION,CHANGE LEV 8-98118-493-0 01 1 0809- ●
74 PLATE; CAUTION,CHANGE LEV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98118-493-0 01 1 0809- ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0710- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. EURO4 SPECIFICATION<NT4> (B) 		8-98139-964-0 01 1 0812- ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98080-839-0 01 1 0710-0712 ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98080-839-0 02 1 0801- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 0710- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0710- ● ●

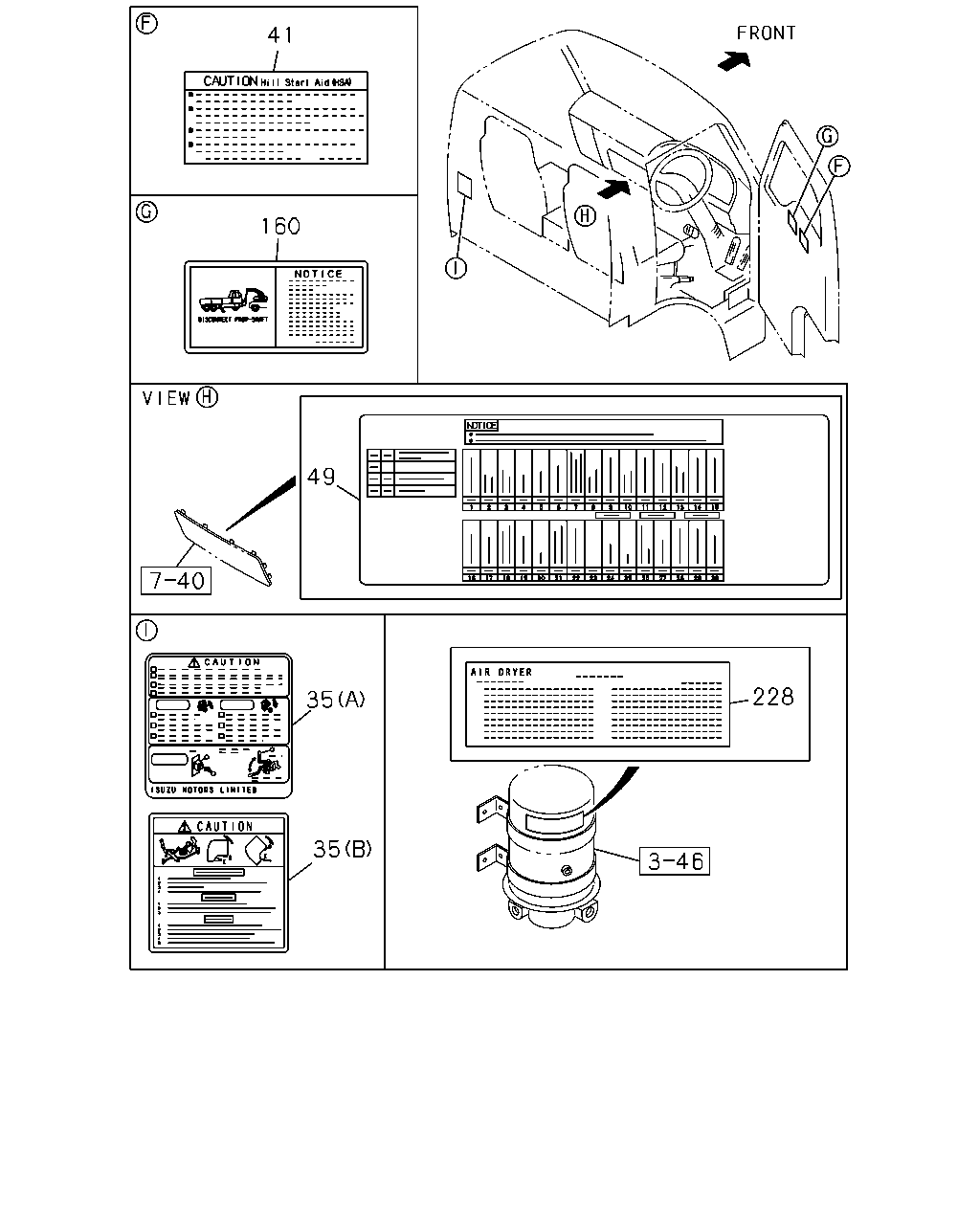

çizim 179111
41 160 49 228 35 35
BalonParca AdiParca NoAdetTipApplied Date A B
35 PLATE; CAUTION,CAB
EXC. AUTO CAB TILT<WV2> (B) 		8-98065-363-0 01 1 0809- ●
35 PLATE; CAUTION,CAB
(A) 		8-98017-667-1 01 1 0710-0808 ● ●
35 PLATE; CAUTION,CAB
(A) 		8-98017-667-1 01 1 0809- ●
35 PLATE; CAUTION,CAB
AUTO CAB TILT<WV2> (A) 		8-98017-667-1 01 1 0809- ●
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> 		8-98141-836-0 01 1 0907- ●
49 PLATE; CAUTION,FUSE BOX 8-98060-853-0 01 1 0710-0805 ● ●
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 0806- ● ●
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T(Y5E) 		1-85888-737-1 01 1 0710- ● ●
228 PLATE; CAUTION,AIR DRYER 1-85887-935-0 01 1 0710-0808 ● ●
228 PLATE; CAUTION,AIR DRYER 1-85887-935-0 01 1 0809-1001 ●
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> 		1-85887-935-0 01 1 0809-1001 ●
