Isuzu WW
▶
TRUCKS
▶
FVM
▶
11105 - FVM(RHD)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

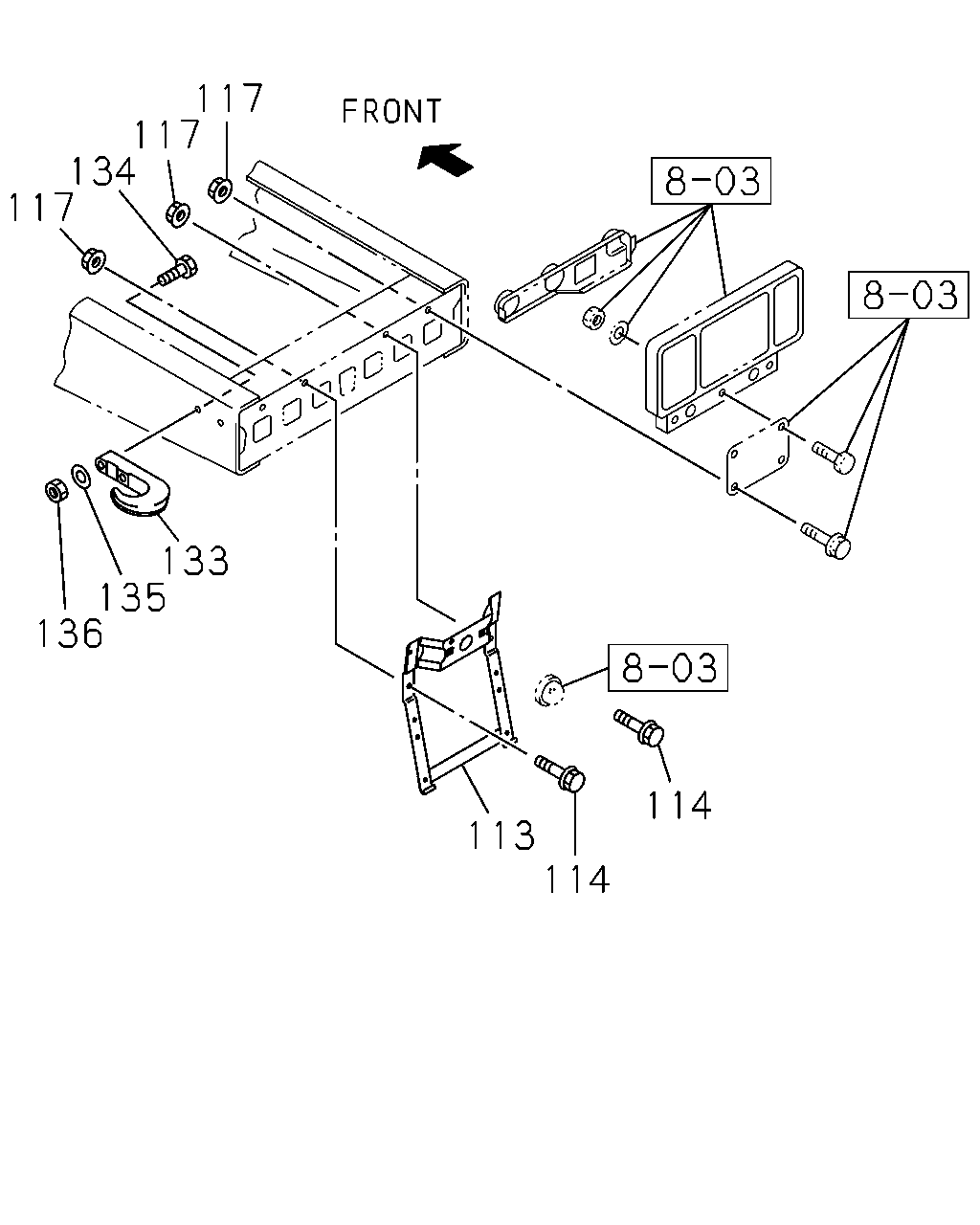

6-90 - REAR BUMPER
▶
6-90 — REAR BUMPER
(#34427) — 40 parça
Tümü
A - FGL5MV
B - FGM5MV
117
117
134
117
133
135
136
114
113
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
113
BRACKET; LICENSE PLATE
1-53485-074-0
01
1
0710-1205
●
●
113
BRACKET; LICENSE PLATE
COUNTRY NEW ZEALAND(CX6)
1-53485-074-0
01
1
1206-
●
113
BRACKET; LICENSE PLATE
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6)
1-53485-074-0
01
1
1206-
●
113
BRACKET; LICENSE PLATE
EXC. AUSTRALIA EQUIPMENT(B13)
1-53485-074-0
01
1
1206-
●
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28650-825-0
02
1
0710-1205
●
●
114
BOLT; BRKT,LICENSE PLATE
COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE
0-28650-825-0
02
1
1206-
●
114
BOLT; BRKT,LICENSE PLATE
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE
0-28650-825-0
02
1
1206-
●
114
BOLT; BRKT,LICENSE PLATE
EXC. AUSTRALIA EQUIPMENT(B13) M8X25 FLANGE
0-28650-825-0
02
1
1206-
●
117
NUT; BRKT
WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<NT2> M8 FLANGE
0-91180-108-0
04
1
1204-1205
●
117
NUT; BRKT
WHEEL BASE 5000MM(50W) EXC. AUSTRALIA EQUIPMENT(B13),COUNTRY NEW ZEALAND(CX6) M8 FLANGE
0-91180-108-0
04
1
1206-
●
117
NUT; BRKT
WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<NT2> M8 FLANGE
0-91180-108-0
04
1
1102-1107
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0710-0710
●
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0711-1101
●
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0711-1101
●
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1102-1107
●
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1102-1107
●
117
NUT; BRKT
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) EURO2 SPECIFICATION<NT2> M8 FLANGE
0-91180-108-0
02
1
1102-1107
●
117
NUT; BRKT
EURO4 SPECIFICATION<NT4> M8 FLANGE
0-91180-108-0
02
1
1102-1107
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1108-1203
●
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1108-1203
●
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1204-1205
●
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1204-1205
●
117
NUT; BRKT
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) EURO2 SPECIFICATION<NT2> M8 FLANGE
0-91180-108-0
02
1
1204-1205
●
117
NUT; BRKT
EURO4 SPECIFICATION<NT4> M8 FLANGE
0-91180-108-0
02
1
1204-1205
●
117
NUT; BRKT
COUNTRY NEW ZEALAND(CX6) M8 FLANGE
0-91180-108-0
02
1
1206-
●
117
NUT; BRKT
WHEEL BASE 7100MM(71W) M8 FLANGE
0-91180-108-0
02
1
1206-
●
117
NUT; BRKT
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6) M8 FLANGE
0-91180-108-0
02
1
1206-
●
117
NUT; BRKT
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) EXC. AUSTRALIA EQUIPMENT(B13),COUNTRY NEW ZEALAND(CX6) M8 FLANGE
0-91180-108-0
02
1
1206-
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1206-
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0710-0710
●
●
133
HOOK
1-57181-027-1
01
1
0710-1003
●
●
133
HOOK
TOW HOOK<V76>
1-57181-027-1
01
1
1004-
●
●
134
BOLT; HOOK
M16X50
0-20851-650-0
01
1
0710-1003
●
●
134
BOLT; HOOK
TOW HOOK<V76> M16X50
0-20851-650-0
01
1
1004-
●
●
134
BOLT; HOOK
M16X60
0-20851-660-0
01
1
0710-1003
●
●
134
BOLT; HOOK
TOW HOOK<V76> M16X60
0-20851-660-0
01
1
1004-
●
●
135
WASHER; LK,HOOK
ID=16.2
0-91510-816-0
02
1
0710-1003
●
●
135
WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2
0-91510-816-0
02
1
1004-
●
●
136
NUT; HOOK
M16
0-91110-516-0
02
1
0710-1003
●
●
136
NUT; HOOK
TOW HOOK<V76> M16
0-91110-516-0
02
1
1004-
●
●
