◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#34421) — 34 parça

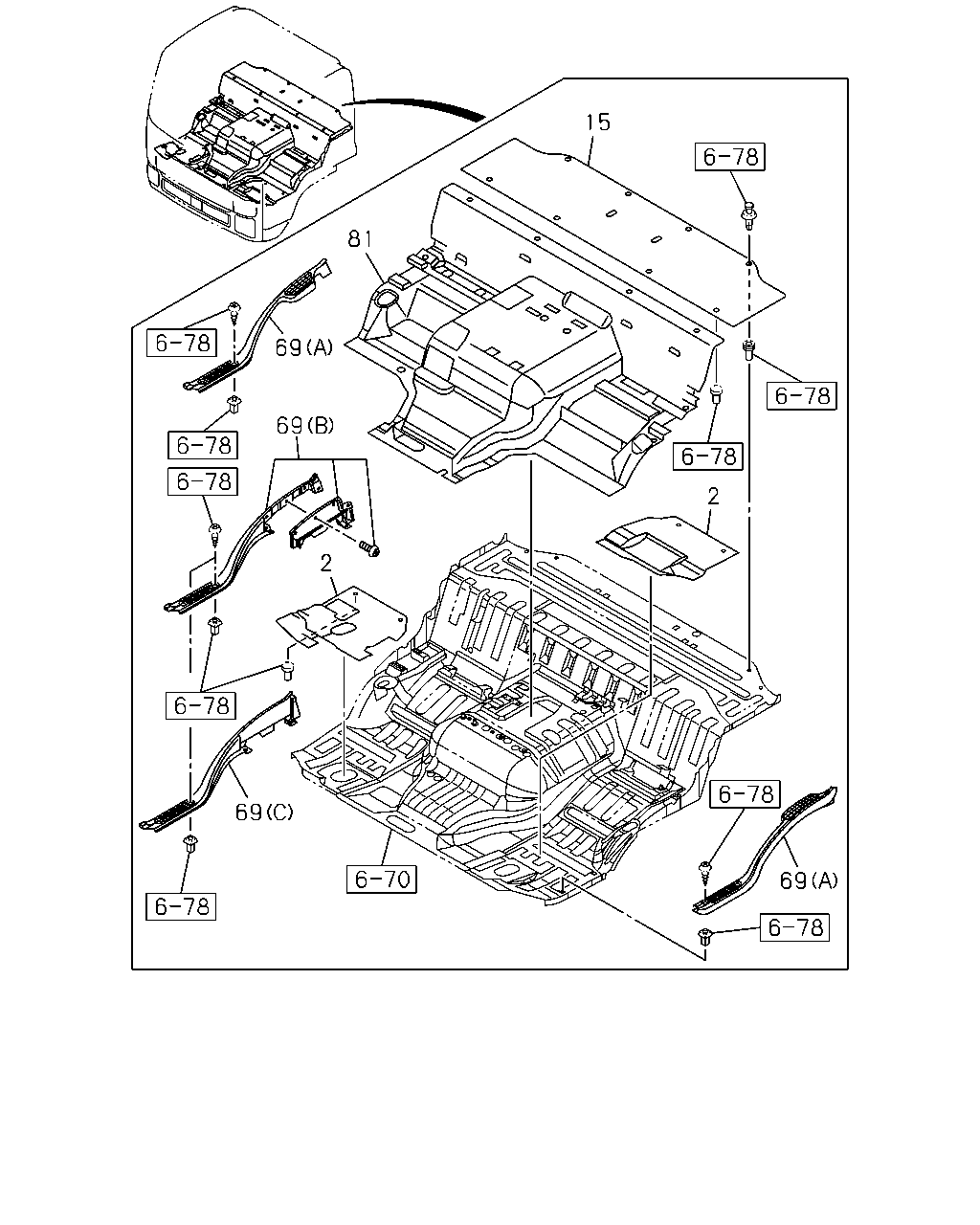

çizim 179131
69 69 2 2 69 15 81 69
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
FLOOR COVER<6WX> GRAY 		8-97407-746-5 01 1 0907-1003 ● ●
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-746-5 01 1 1004- ● ●
2 MAT; FLOOR
FLOOR COVER<6WX> GRAY 		8-97407-747-2 01 1 0907-1003 ● ●
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-747-2 01 1 1004- ● ●
2 MAT; FLOOR
FLOOR COVER<6WX> GRAY 		8-97407-746-3 01 1 0710-0905 ● ●
2 MAT; FLOOR
FLOOR COVER<6WX> GRAY 		8-97407-747-1 01 1 0710-0905 ● ●
2 MAT; FLOOR
EXC. FLOOR COVER<6WX> GRAY 		8-97407-750-4 01 1 0710-1003 ● ●
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-750-4 01 1 1004-1005 ● ●
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY 		8-97418-947-0 01 1 1006- ● ●
2 MAT; FLOOR
EXC. FLOOR COVER<6WX> GRAY 		8-97407-751-1 01 1 0710-1003 ● ●
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-751-1 01 1 1004-1005 ● ●
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY 		8-97418-949-0 01 1 1006- ● ●
15 MAT; FLOOR REAR
FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97418-951-0 01 1 1004-1005 ● ●
15 MAT; FLOOR REAR
FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97418-951-0 01 1 1006- ●
15 MAT; FLOOR REAR
VINYL CARPET<B30>,FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97418-951-0 01 1 1006- ●
15 MAT; FLOOR REAR
FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-404-1 01 1 0710- ● ●
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> GRAY 		8-97407-397-0 01 1 0710-1003 ● ●
15 MAT; FLOOR REAR
EXC. FLOOR COVER VAR.2<EFK>,MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> GRAY 		8-97407-397-0 01 1 1004-1005 ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (B) GRAY 		8-97407-414-3 01 1 0710-1503 ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97465-138-0 01 1 1504- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(A) GRAY 		8-97407-413-1 01 1 0710- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97407-412-1 01 1 0710- ● ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> GRAY 		8-97407-391-6 01 1 0809-1005 ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> DARK GRAY 		8-97418-941-0 01 1 1006- ●
81 MAT; FLOOR,CENTER
FLOOR COVER<6WX> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97407-410-3 01 1 0809-1003 ●
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97407-410-3 01 1 1004-1104 ●
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> MANUAL TRANSMISSION<X9C> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97407-410-3 01 1 1105- ●
81 MAT; FLOOR,CENTER
FLOOR COVER<6WX> GRAY 		8-97411-647-2 01 1 0710-0808 ● ●
81 MAT; FLOOR,CENTER
FLOOR COVER<6WX> GRAY 		8-97411-647-3 01 1 0809-1003 ●
81 MAT; FLOOR,CENTER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> FLOOR COVER<6WX> GRAY 		8-97411-647-3 01 1 0809-1003 ●
81 MAT; FLOOR,CENTER
ZF9S1110 M/T(Y5E) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97411-647-3 01 1 1004-1005 ●
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97411-647-3 01 1 1004-1005 ●
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97411-647-3 01 1 1006- ●
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> MANUAL TRANSMISSION<X9C> GRAY 		8-97411-647-3 01 1 1006- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
