◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#34420) — 104 parça

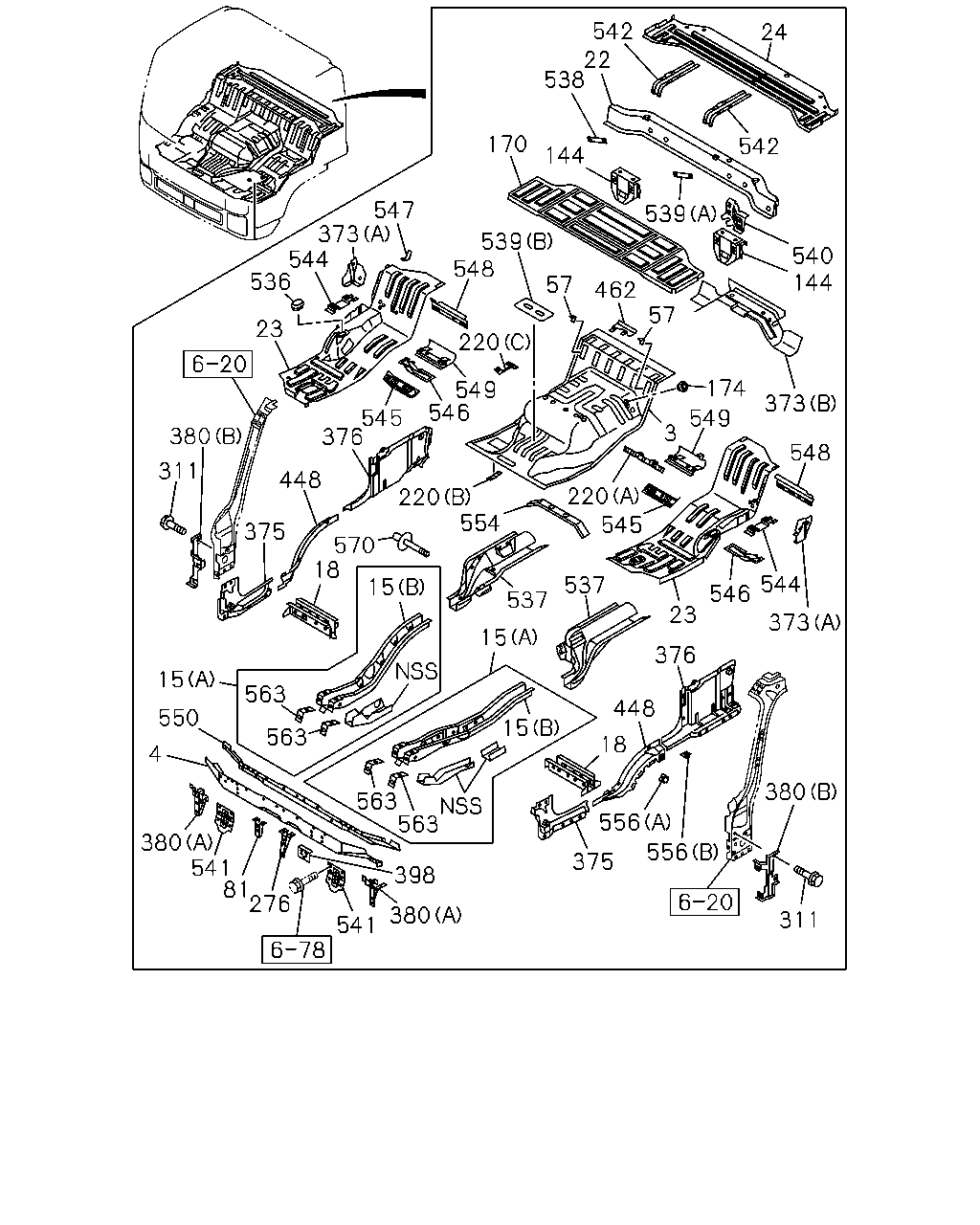

çizim 179443
542 24 22 538 170 542 144 547 373 544 536 539 539 548 540 144 57 462 57 23 220 174 549 546 373 545 376 549 3 380 548 311 448 220 220 554 545 375 570 18 544 537 15 546 537 23 373 15 376 15 563 448 550 563 15 18 4 563 563 380 380 541 81 276 556 556 375 398 380 311 541
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG 8-98081-360-3 01 1 0710-0808 ● ●
3 HOOD ASM; ENG 8-98081-360-4 01 1 0809- ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> 		8-98081-360-4 01 1 0809- ●
3 HOOD ASM; ENG
ZF6S1000 M/T(Y5D) AUSTRALIA EQUIPMENT(B13) 		8-98081-357-4 01 1 0809-1009 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98081-357-4 01 1 0809-1009 ●
3 HOOD ASM; ENG
AUSTRALIA EQUIPMENT(B13) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98081-357-4 01 1 1010- ●
3 HOOD ASM; ENG
ZF6S1000 M/T(Y5D) AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> 		8-98081-357-4 01 1 1010- ●
3 HOOD ASM; ENG
ZF6S1000 M/T(Y5D) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98032-904-9 01 1 0809-1004 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) EXC. AUSTRALIA EQUIPMENT(B13),ASSISTOR SHIFT CONTROL<WX8> 		8-98032-904-9 01 1 0809-1004 ●
3 HOOD ASM; ENG
ZF6S1000 M/T(Y5D) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98167-036-0 01 1 1005-1009 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) EXC. AUSTRALIA EQUIPMENT(B13),ASSISTOR SHIFT CONTROL<WX8> 		8-98167-036-0 01 1 1005-1009 ●
3 HOOD ASM; ENG
EXC. AUSTRALIA EQUIPMENT(B13),ASSISTOR SHIFT CONTROL<WX8> 		8-98167-036-0 01 1 1010- ●
3 HOOD ASM; ENG
ZF6S1000 M/T(Y5D) ASSISTOR SHIFT CONTROL<WX8> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98167-036-0 01 1 1010- ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98053-677-9 01 1 0809- ●
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 0710- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0710- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 0710- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0710- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0710- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 0710- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 0710- ● ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 0710- ● ●
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 0710- ● ●
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 0710- ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 0710- ● ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0710- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0710- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0710- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0710- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 0710- ● ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0710- ● ●
220 PATCH
(A) 		8-97588-840-4 01 1 0710- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 0710- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 0710- ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0710- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0710- ● ●
373 REINFORCEMENT; SEAT BELT
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-97584-345-9 01 1 0809- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98081-349-3 01 1 0710-0808 ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98081-349-3 01 1 0809- ●
373 REINFORCEMENT; SEAT BELT
AUSTRALIA EQUIPMENT(B13) (B) 		8-98081-349-3 01 1 0809- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0710- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0710- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 0710- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 0710- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 0710-1403 ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 0710- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0710- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0710- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0710- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0710- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0710- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 0710- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 0710- ● ●
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 0710-1002 ● ●
462 BRACKET; EXTINGUISHER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97585-688-1 01 1 1003-1108 ●
462 BRACKET; EXTINGUISHER
ZF9S1110 M/T(Y5E) AUTO CAB TILT<WV2> ASSISTOR SHIFT CONTROL<WX8> EXC. AUSTRALIA EQUIPMENT(B13) 		8-97585-688-1 01 1 1109- ●
462 BRACKET; EXTINGUISHER
EXC. AUSTRALIA EQUIPMENT(B13),ASSISTOR SHIFT CONTROL<WX8> 		8-97585-688-1 01 1 1109- ●
462 BRACKET; EXTINGUISHER
ZF6S1000 M/T(Y5D) ASSISTOR SHIFT CONTROL<WX8> EXC. AUSTRALIA EQUIPMENT(B13) 		8-97585-688-1 01 1 1109- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0710- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 0710- ● ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 0710- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 0710- ● ●
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 0809- ●
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 0710- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0710- ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0710- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 0710- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0710- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0710- ● ●
545 BRACKET; SEAT FRT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97584-361-1 01 1 0809- ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0710- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0710-0808 ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0809- ●
545 BRACKET; SEAT FRT
AUSTRALIA EQUIPMENT(B13) 		8-98050-186-0 01 1 0809- ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 0710- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0710- ● ●
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 0710- ● ●
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 0710- ● ●
549 BRACKET; SEAT RR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97589-557-4 01 1 0809- ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 0710- ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 0710-0808 ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 0809- ●
549 BRACKET; SEAT RR
AUSTRALIA EQUIPMENT(B13) 		8-98050-187-1 01 1 0809- ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 0710- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 0710- ● ●
556 BRACKET; TILT HANDLE
ZF6S1000 M/T(Y5D) (A) 		8-98077-605-1 01 1 0812-1009 ●
556 BRACKET; TILT HANDLE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98077-605-1 01 1 0812-1009 ●
556 BRACKET; TILT HANDLE
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98077-605-1 01 1 1010-1108 ●
556 BRACKET; TILT HANDLE
ZF6S1000 M/T(Y5D) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98077-605-1 01 1 1010-1108 ●
556 BRACKET; TILT HANDLE
EXC. AUTO CAB TILT<WV2>,ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98077-605-1 01 1 1109-1404 ●
556 BRACKET; TILT HANDLE
ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO CAB TILT<WV2> (A) 		8-98077-605-1 01 1 1109-1404 ●
556 BRACKET; TILT HANDLE
EXC. AUSTRALIA EQUIPMENT(B13),AUTO CAB TILT<WV2>, ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98077-605-1 01 1 1405- ●
556 BRACKET; TILT HANDLE
ASSISTOR SHIFT CONTROL<WX8> EXC. AUSTRALIA EQUIPMENT(B13),AUTO CAB TILT<WV2> (A) 		8-98077-605-1 01 1 1405- ●
556 BRACKET; TILT HANDLE
ZF6S1000 M/T(Y5D) (B) 		8-98077-606-1 01 1 0812-1009 ●
556 BRACKET; TILT HANDLE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98077-606-1 01 1 0812-1009 ●
556 BRACKET; TILT HANDLE
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98077-606-1 01 1 1010-1108 ●
556 BRACKET; TILT HANDLE
ZF6S1000 M/T(Y5D) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98077-606-1 01 1 1010-1108 ●
556 BRACKET; TILT HANDLE
EXC. AUTO CAB TILT<WV2>,ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98077-606-1 01 1 1109-1404 ●
556 BRACKET; TILT HANDLE
ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO CAB TILT<WV2> (B) 		8-98077-606-1 01 1 1109-1404 ●
556 BRACKET; TILT HANDLE
EXC. AUSTRALIA EQUIPMENT(B13),AUTO CAB TILT<WV2>, ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98077-606-1 01 1 1405- ●
556 BRACKET; TILT HANDLE
ASSISTOR SHIFT CONTROL<WX8> EXC. AUSTRALIA EQUIPMENT(B13),AUTO CAB TILT<WV2> (B) 		8-98077-606-1 01 1 1405- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0710- ● ●
570 FASTENER; POP RIVET 8-97319-308-0 02 1 0710-0711 ● ●
