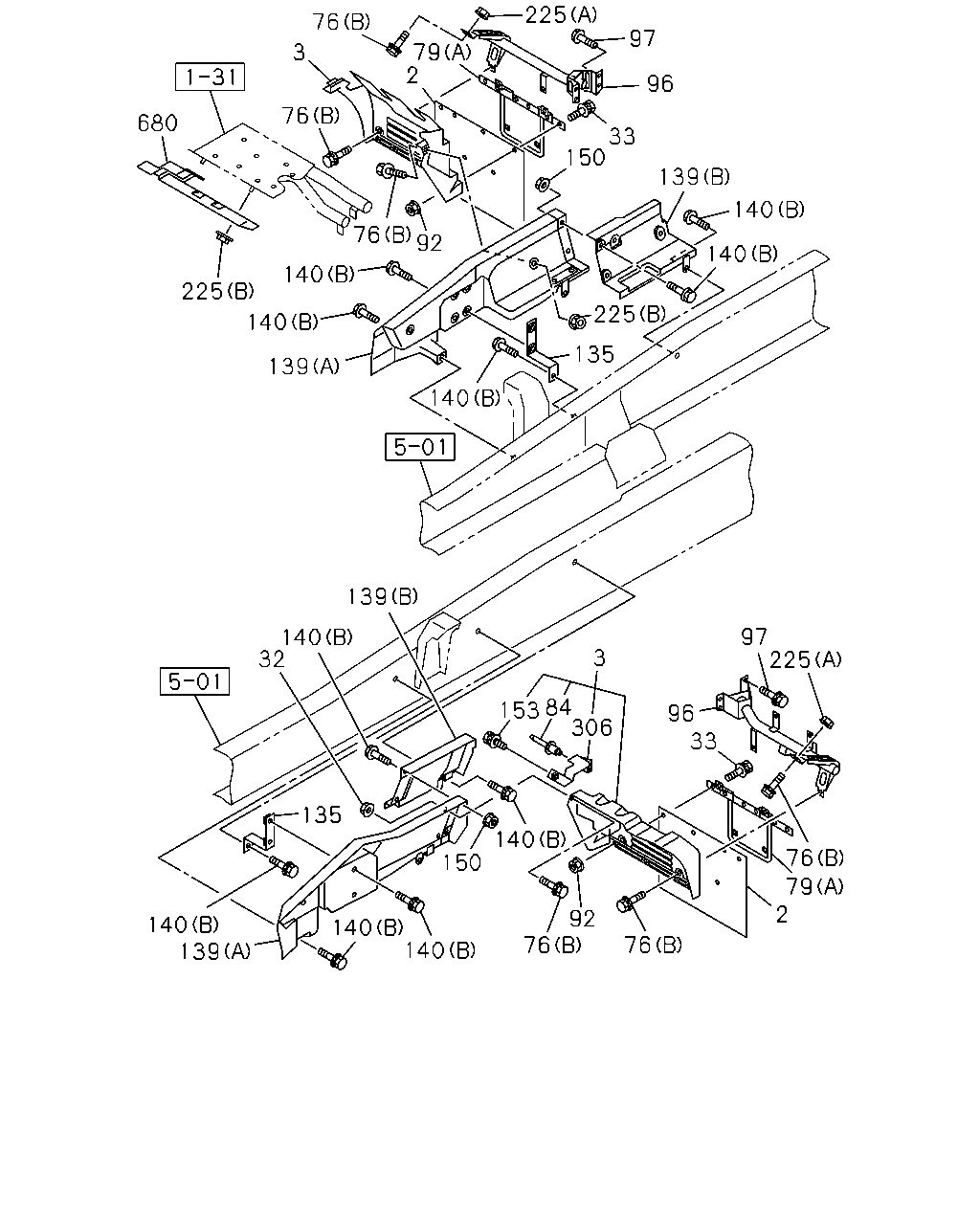

6-47 — MUD GUARD AND INSULATOR (#34417) — 161 parça

140 76 76 2 76 225 97 96 33 92 140 306 153 3 84 150 140 135 140 139 140 32 140 135 225 140 140 139 150 33 96 97 225 79 2 76 3 76 76 140 92 140 225 139 680 139 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; MUD,TIRE RR	1-79931-512-1	02	1	0710-	●	●
3	GUARD; MUD,RR	1-79931-473-1	01	1	0710-1211	●	●
3	GUARD; MUD,RR	8-98196-109-0	01	1	1212-	●	●
3	GUARD; MUD,RR	8-98076-257-0	01	1	0710-1302	●	●
3	GUARD; MUD,RR	8-98219-767-0	01	1	1303-	●	●
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	0710-	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	0710-0711	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	0712-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0710-0805	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0806-1211	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-	●	●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0710-0908	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-	●	●
79	RETAINER; MUD COVER (A)	8-98094-500-0	01	1	0710-0710	●	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	0710-	●	●
79	RETAINER; MUD COVER (A)	8-98094-501-0	01	1	0710-0710	●	●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	0710-	●	●
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	0710-	●	●
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1212-	●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	08	1	0710-	●	●
96	STAY; MUD GUARD	1-79931-519-4	01	1	0710-	●	●
96	STAY; MUD GUARD	1-79931-540-3	01	1	0710-	●	●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	0710-	●	●
135	BRACKET; SIDE PANEL	1-53457-191-0	02	1	0710-	●	●
139	PANEL; SIDE (B)	1-53194-590-0	01	1	0710-	●	●
139	PANEL; SIDE (B)	1-53194-591-0	01	1	0710-	●	●
139	PANEL; SIDE (A)	1-53194-619-4	01	1	0710-	●	●
139	PANEL; SIDE (A)	1-53194-620-5	01	1	0710-	●	●
140	BOLT; SIDE PANEL (D) M8X12 FLANGE	0-28050-812-0	02	1	0809-	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X12 FLANGE	0-28050-812-0	02	1	0809-		●
140	BOLT; SIDE PANEL (C) M8X25 FLANGE	0-28050-825-0	01	1	0809-0906	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X25 FLANGE	0-28050-825-0	01	1	0809-0906		●
140	BOLT; SIDE PANEL (C) M8X25 FLANGE	0-28050-825-0	02	1	0907-	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X25 FLANGE	0-28050-825-0	02	1	0907-		●
140	BOLT; SIDE PANEL (C) M8X25 FLANGE	0-28050-825-0	04	1	0809-	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X25 FLANGE	0-28050-825-0	04	1	0809-		●
140	BOLT; SIDE PANEL (C) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0809-	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0809-		●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	03	1	0710-0710	●	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A) M8X40 FLANGE	0-28050-840-0	03	1	0710-0808	●	●
140	BOLT; SIDE PANEL (A) M8X40 FLANGE	0-28050-840-0	03	1	0809-	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X40 FLANGE	0-28050-840-0	03	1	0809-		●
140	BOLT; SIDE PANEL (A) M8X30 FLANGE	0-28050-830-0	07	1	0710-0711	●	●
140	BOLT; SIDE PANEL (A) M8X30 FLANGE	0-28050-830-0	08	1	0712-0808	●	●
140	BOLT; SIDE PANEL (A) M8X30 FLANGE	0-28050-830-0	08	1	0809-	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	08	1	0809-		●
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	0710-	●	●
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	0710-	●	●
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1212-	●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	0710-	●	●
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1212-	●	●
680	GUARD; MUD,UPPER	1-79931-494-1	01	1	0710-0808	●	●
680	GUARD; MUD,UPPER	8-98123-402-0	01	1	0809-	●	●

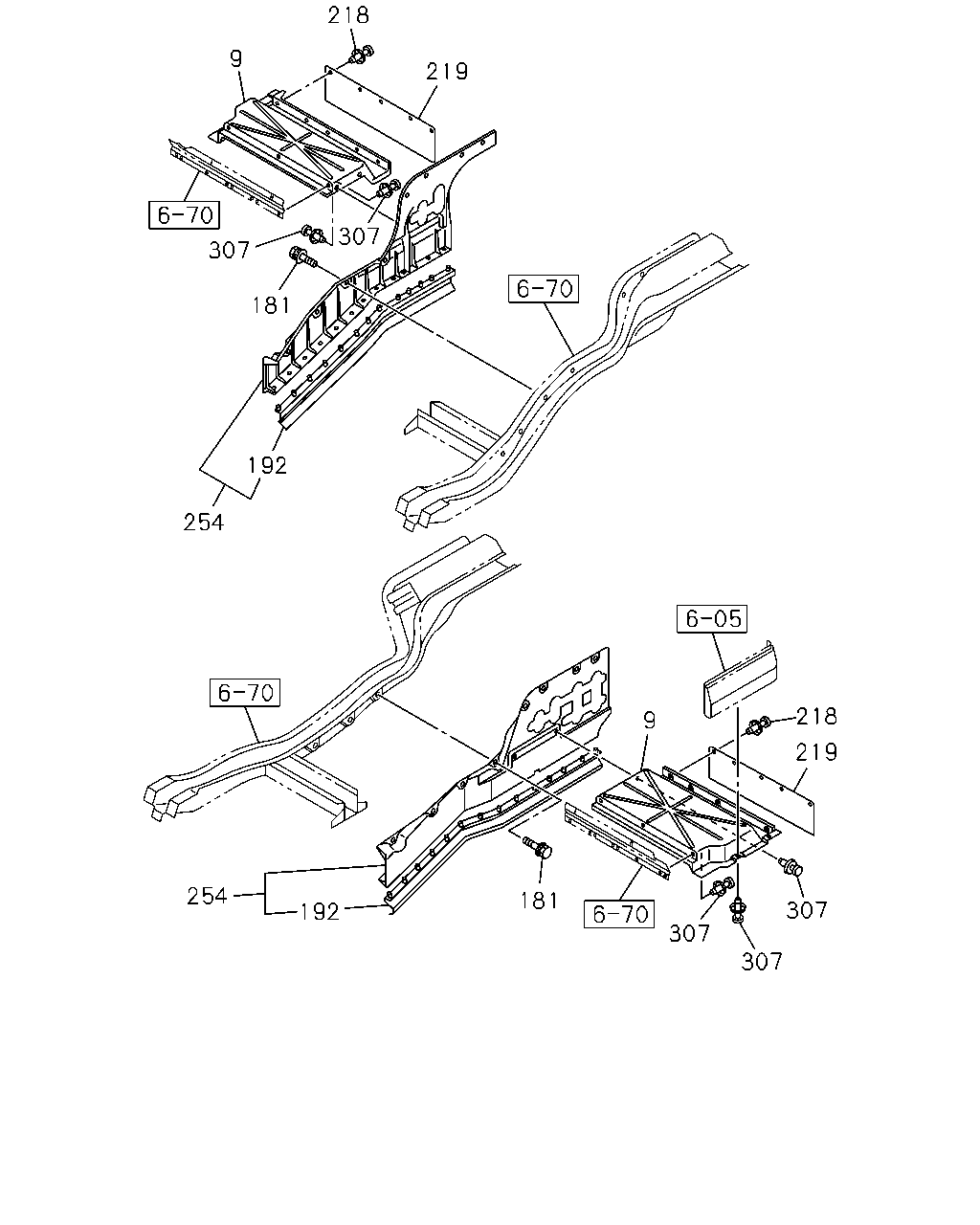

218 9 219 307 307 181 192 254 218 9 219 254 181 307 192 307 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	GUARD; SPLASH,WHEEL HOUSE	8-98040-119-2	01	1	0710-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	8-98040-120-2	01	1	0710-	●	●
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	16	1	0710-	●	●
192	SEAL; MUD COVER EXC. CAB SUSPENSION FULL FLOATING<W16>	8-98041-158-1	01	1	0809-		●
192	SEAL; MUD COVER EXC. CAB SUSPENSION FULL FLOATING<W16>	8-98041-159-2	01	1	0809-		●
192	SEAL; MUD COVER	8-98069-360-0	01	1	0710-0808	●	●
192	SEAL; MUD COVER	8-98069-360-0	01	1	0809-	●
192	SEAL; MUD COVER CAB SUSPENSION FULL FLOATING<W16>	8-98069-360-0	01	1	0809-		●
192	SEAL; MUD COVER	8-98069-361-0	01	1	0710-0808	●	●
192	SEAL; MUD COVER	8-98069-361-0	01	1	0809-	●
192	SEAL; MUD COVER CAB SUSPENSION FULL FLOATING<W16>	8-98069-361-0	01	1	0809-		●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	10	1	0710-	●	●
219	FLAP; MUD GUARD EXC. CAB SUSPENSION FULL FLOATING<W16>	8-98041-149-1	02	1	0809-		●
219	FLAP; MUD GUARD	8-98041-151-1	02	1	0710-0808	●	●
219	FLAP; MUD GUARD	8-98041-151-1	02	1	0809-	●
219	FLAP; MUD GUARD CAB SUSPENSION FULL FLOATING<W16>	8-98041-151-1	02	1	0809-		●
254	COVER; MUD,VALANCE EXC. CAB SUSPENSION FULL FLOATING<W16>	8-98039-925-2	01	1	0809-		●
254	COVER; MUD,VALANCE EXC. CAB SUSPENSION FULL FLOATING<W16>	8-98039-926-1	01	1	0809-		●
254	COVER; MUD,VALANCE	8-98039-927-2	01	1	0710-0808	●	●
254	COVER; MUD,VALANCE	8-98039-927-3	01	1	0809-	●
254	COVER; MUD,VALANCE CAB SUSPENSION FULL FLOATING<W16>	8-98039-927-3	01	1	0809-		●
254	COVER; MUD,VALANCE	8-98039-928-1	01	1	0710-0808	●	●
254	COVER; MUD,VALANCE	8-98039-928-1	01	1	0809-	●
254	COVER; MUD,VALANCE CAB SUSPENSION FULL FLOATING<W16>	8-98039-928-1	01	1	0809-		●
307	RETAINER D8X13.5	1-09987-248-1	14	1	0710-	●	●

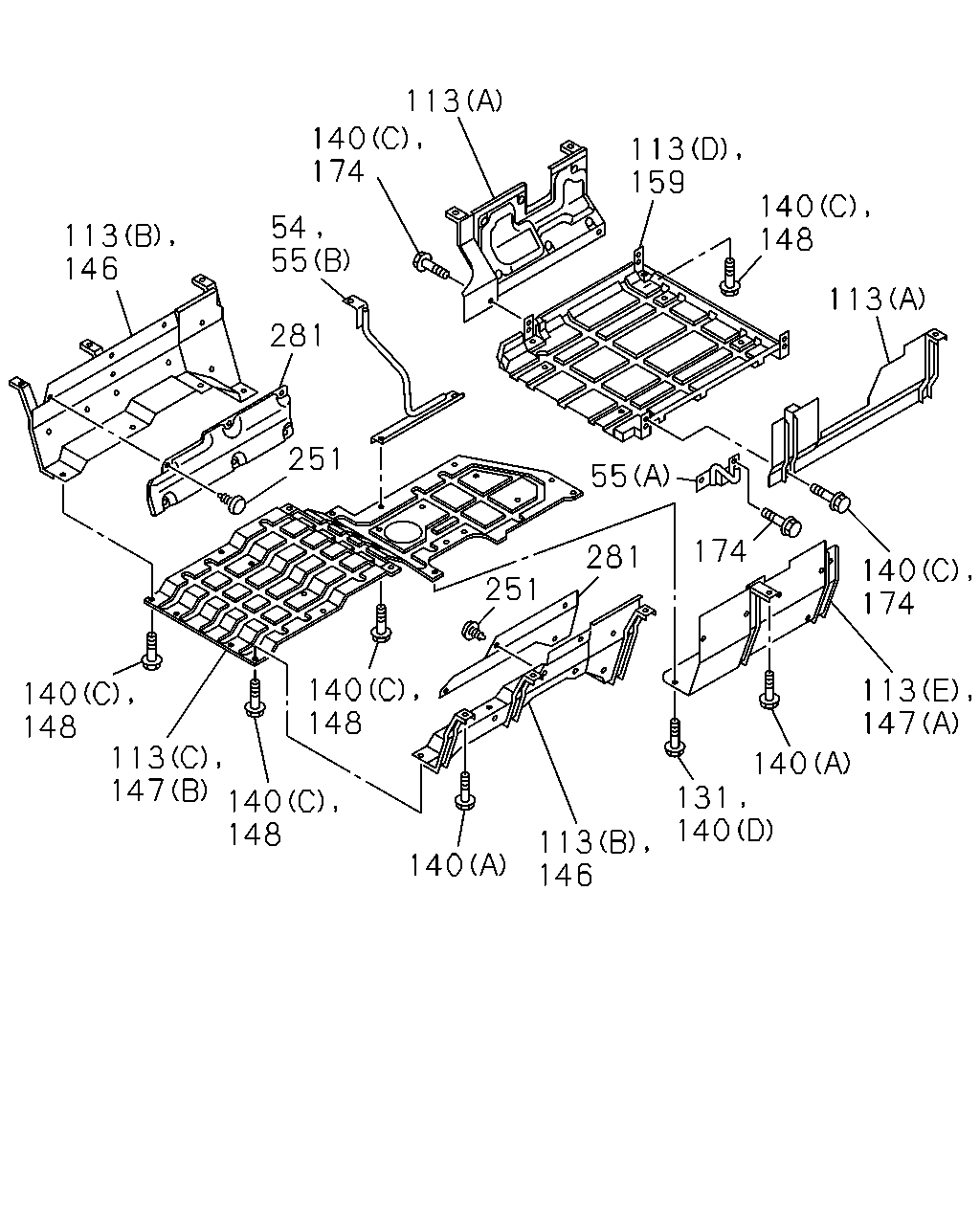

113 140 174 113 159 140 148 54 55 113 146 113 281 251 55 174 281 140 174 251 140 148 113 147 140 148 113 147 140 131 140 140 148 113 146 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	STAY; UNDER COVER,FRT	8-98064-086-2	01	1	0710-0808	●	●
55	STAY; UNDER COVER,RR (B)	8-98064-086-2	01	1	0809-	●
55	STAY; UNDER COVER,RR ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98064-086-2	01	1	0809-		●
55	STAY; UNDER COVER,RR 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A)	8-98078-177-2	01	1	0710-0808	●	●
55	STAY; UNDER COVER,RR (A)	8-98078-177-2	01	1	0809-	●
55	STAY; UNDER COVER,RR ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-177-2	01	1	0809-		●
113	PANEL; SIDE (B)	8-98017-756-2	01	1	0809-	●
113	PANEL; SIDE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98017-756-2	01	1	0809-		●
113	PANEL; SIDE (C)	8-98017-762-1	01	1	0809-	●
113	PANEL; SIDE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-98017-762-1	01	1	0809-		●
113	PANEL; SIDE (D)	8-98017-772-1	01	1	0809-	●
113	PANEL; SIDE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D)	8-98017-772-1	01	1	0809-		●
113	PANEL; SIDE (E)	8-98078-182-0	01	1	0809-	●
113	PANEL; SIDE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E)	8-98078-182-0	01	1	0809-		●
113	PANEL; SIDE (B)	8-98114-851-0	01	1	0809-	●
113	PANEL; SIDE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98114-851-0	01	1	0809-		●
113	PANEL; SIDE 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A)	8-98078-185-3	01	1	0710-0808	●	●
113	PANEL; SIDE (A)	8-98078-185-3	01	1	0809-	●
113	PANEL; SIDE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-185-3	01	1	0809-		●
113	PANEL; SIDE 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A)	8-98078-188-3	01	1	0710-0808	●	●
113	PANEL; SIDE (A)	8-98078-188-3	01	1	0809-	●
113	PANEL; SIDE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-188-3	01	1	0809-		●
131	BOLT; PANEL M8X12 FLANGE	0-28050-812-0	02	1	0710-0808	●	●
140	BOLT; SIDE PANEL (D) M8X12 FLANGE	0-28050-812-0	02	1	0809-	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X12 FLANGE	0-28050-812-0	02	1	0809-		●
140	BOLT; SIDE PANEL (C) M8X25 FLANGE	0-28050-825-0	01	1	0809-0906	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X25 FLANGE	0-28050-825-0	01	1	0809-0906		●
140	BOLT; SIDE PANEL (C) M8X25 FLANGE	0-28050-825-0	02	1	0907-	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X25 FLANGE	0-28050-825-0	02	1	0907-		●
140	BOLT; SIDE PANEL (C) M8X25 FLANGE	0-28050-825-0	04	1	0809-	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X25 FLANGE	0-28050-825-0	04	1	0809-		●
140	BOLT; SIDE PANEL (C) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0809-	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0809-		●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	03	1	0710-0710	●	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A) M8X40 FLANGE	0-28050-840-0	03	1	0710-0808	●	●
140	BOLT; SIDE PANEL (A) M8X40 FLANGE	0-28050-840-0	03	1	0809-	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X40 FLANGE	0-28050-840-0	03	1	0809-		●
140	BOLT; SIDE PANEL (A) M8X30 FLANGE	0-28050-830-0	07	1	0710-0711	●	●
140	BOLT; SIDE PANEL (A) M8X30 FLANGE	0-28050-830-0	08	1	0712-0808	●	●
140	BOLT; SIDE PANEL (A) M8X30 FLANGE	0-28050-830-0	08	1	0809-	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	08	1	0809-		●
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	0710-	●	●
146	PANEL; SIDE,UNDER,FRT	8-98017-756-2	01	1	0710-0808	●	●
146	PANEL; SIDE,UNDER,FRT	8-98017-759-4	01	1	0710-0802	●	●
146	PANEL; SIDE,UNDER,FRT	8-98114-851-0	01	1	0803-0808	●	●
147	PANEL; SIDE,UNDER,RR (A)	8-98078-182-0	01	1	0710-0808	●	●
147	PANEL; SIDE,UNDER,RR (B)	8-98017-762-0	01	1	0710-0808	●	●
148	BOLT; PANEL TO PANEL M8X25 W/LK&PL WASHER	1-09030-093-0	10	1	0710-0711	●	●
148	BOLT; PANEL TO PANEL M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0712-0808	●	●
148	BOLT; PANEL TO PANEL M8X20 FLANGE	0-28050-820-0	04	1	0710-0711	●	●
148	BOLT; PANEL TO PANEL M8X25 FLANGE	0-28050-825-0	04	1	0712-0808	●	●
159	PANEL; SIDE,TRANS,CTR	8-98017-772-1	01	1	0710-0808	●	●
174	BOLT; STAY FIX 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28050-820-0	01	1	0710-0711	●	●
174	BOLT; STAY FIX M8X25 FLANGE	0-28050-825-0	01	1	0712-0808	●	●
174	BOLT; STAY FIX M8X20 FLANGE	0-28050-820-0	02	1	0710-0711	●	●
174	BOLT; STAY FIX M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0710-0711	●	●
174	BOLT; STAY FIX M8X30 FLANGE	0-28050-830-0	02	1	0710-0711	●	●
174	BOLT; STAY FIX 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28050-830-0	01	1	0712-0808	●	●
174	BOLT; STAY FIX M8X30 FLANGE	0-28050-830-0	01	1	0809-	●
174	BOLT; STAY FIX ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X30 FLANGE	0-28050-830-0	01	1	0809-		●
251	CLIP; NOISE INSULATOR	8-94165-394-0	10	1	0710-0808	●	●
281	INSULATOR; NOISE	8-98064-148-0	01	1	0710-0808	●	●
281	INSULATOR; NOISE	8-98064-149-1	01	1	0710-0808	●	●

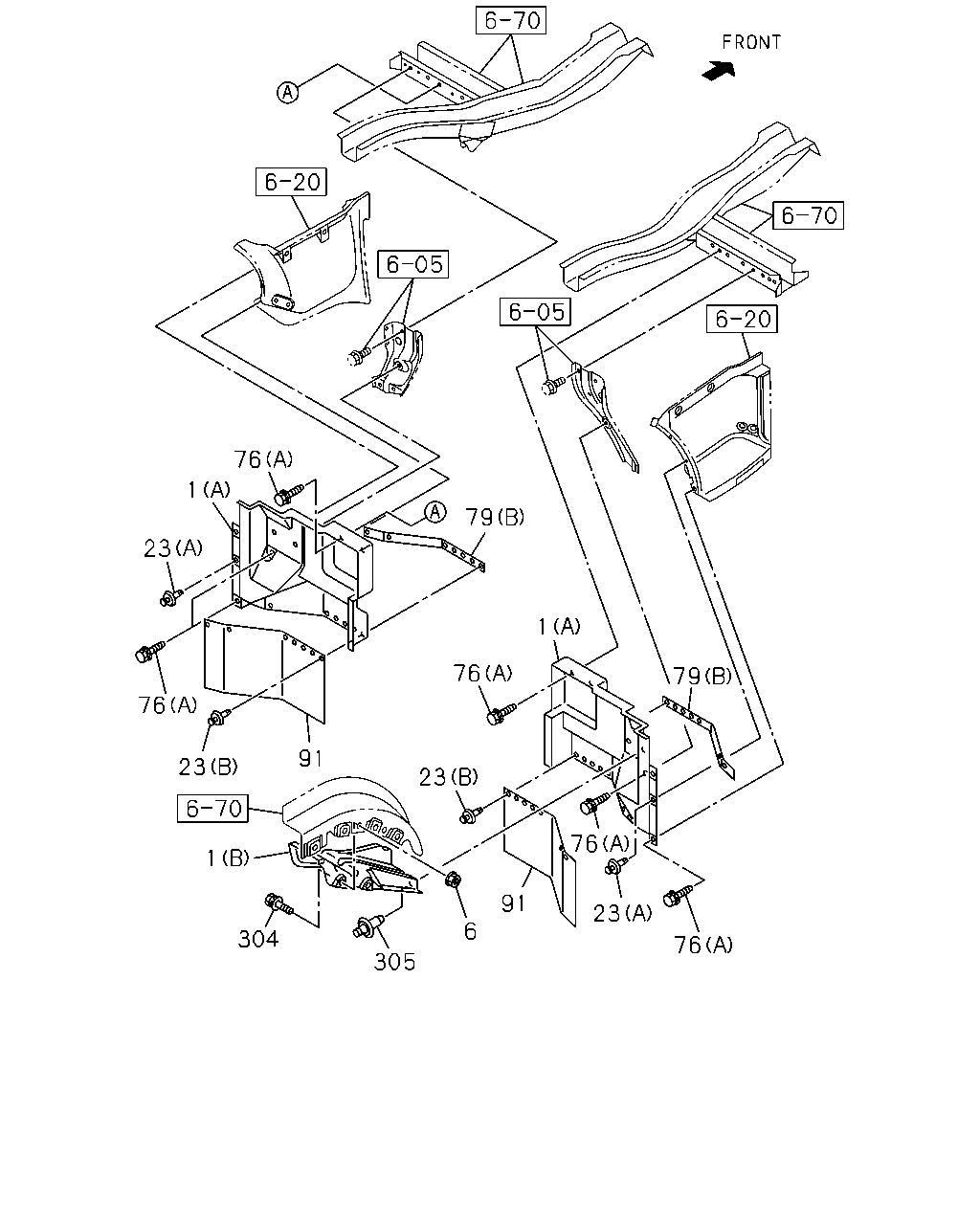

76 1 79 23 1 76 79 76 91 23 23 1 91 23 6 304 76 305 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98076-271-0	01	1	0710-	●	●
1	GUARD; MUD,FRT (A)	8-98039-850-1	01	1	0710-	●	●
1	GUARD; MUD,FRT (A)	8-98039-851-1	01	1	0710-	●	●
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	0710-	●	●
23	FASTENER; MUD COVER (B)	1-09470-001-0	10	1	0710-	●	●
23	FASTENER; MUD COVER (A) D8X13.5	1-09987-248-1	04	1	0710-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0710-0805	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0806-1211	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-	●	●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0710-0908	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-	●	●
79	RETAINER; MUD COVER (A)	8-98094-500-0	01	1	0710-0710	●	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	0710-	●	●
79	RETAINER; MUD COVER (A)	8-98094-501-0	01	1	0710-0710	●	●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	0710-	●	●
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	0710-	●	●
91	COVER; MUD,FRT	8-98060-067-1	02	1	0710-	●	●
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	0710-	●	●
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	0710-	●	●
