◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#34415) — 36 parça

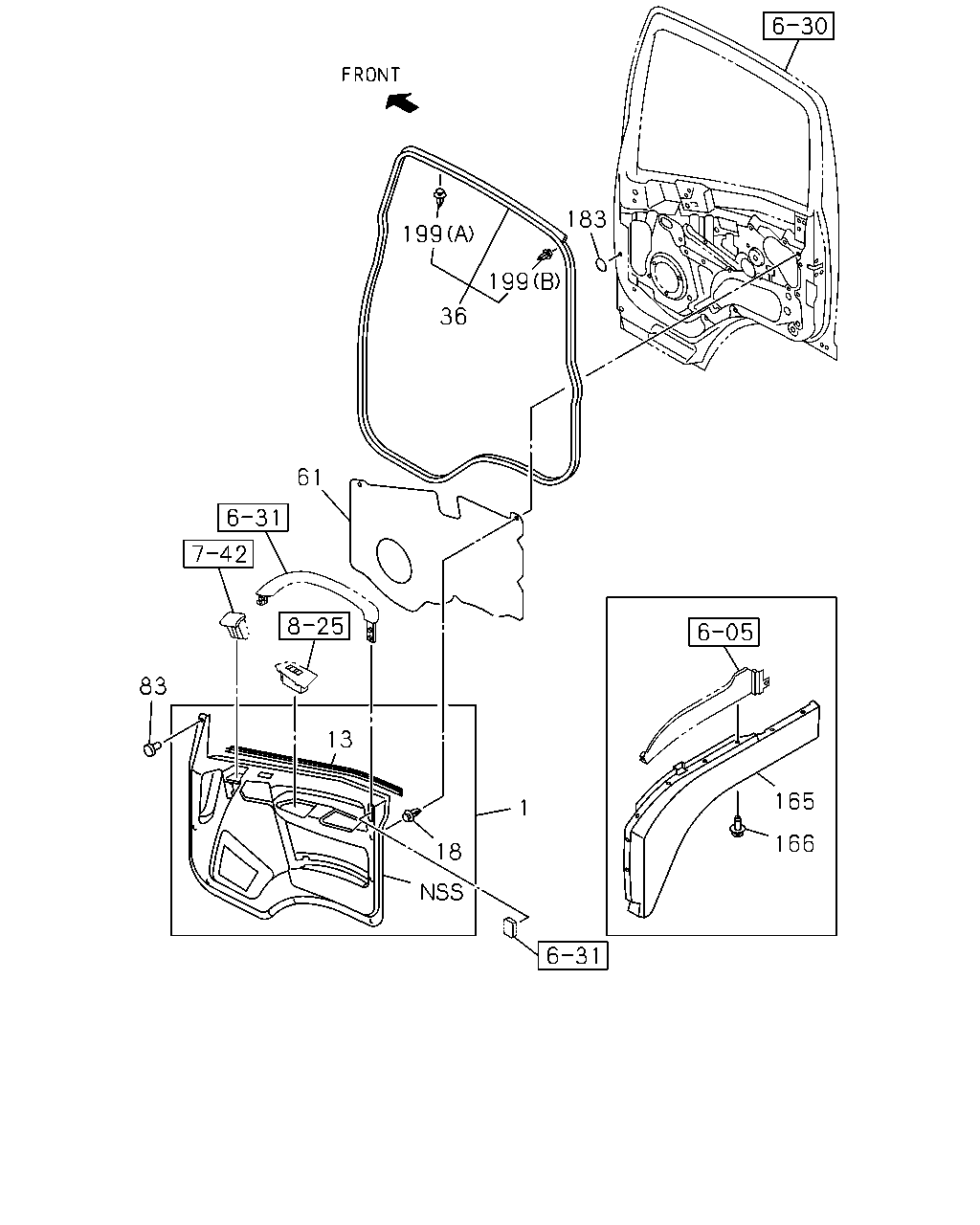

çizim 179389
183 199 199 36 61 83 13 165 1 166 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-305-6 01 1 0809- ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-307-6 01 1 0809- ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-304-6 01 1 0710-0808 ● ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-304-6 01 1 0809- ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-304-6 01 1 0809- ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-306-6 01 1 0710-0808 ● ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-306-6 01 1 0809- ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-306-6 01 1 0809- ●
13 SEAL; DOOR TRIM 8-98029-201-1 01 1 0710- ● ●
13 SEAL; DOOR TRIM 8-98029-202-1 01 1 0710- ● ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 0710-0808 ● ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 0710-0808 ● ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 0809-1005 ● ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 0809-1005 ●
18 CLIP; DOOR PAD 8-98004-025-0 14 1 1006- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98077-429-0 01 1 0809-0912 ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-198-3 01 1 0710-0808 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-198-3 01 1 0809-0912 ●
36 SEAL; DOOR,MAIN,CAB SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98029-198-3 01 1 0809-0912 ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-198-3 01 1 1001-1009 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98077-429-0 01 1 1010- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-199-3 01 1 0710- ● ●
61 SEAL; WATER,DOOR PAD
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> 		8-98029-394-2 01 1 0710- ● ●
61 SEAL; WATER,DOOR PAD
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> 		8-98029-395-2 01 1 0710- ● ●
61 SEAL; WATER,DOOR PAD
EXC. 3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> 		8-98029-396-0 02 1 0710- ● ●
83 CLIP; DOOR TRIM
GRAY 		8-97405-308-0 02 1 0710- ● ●
165 LINER; DOOR LWR 8-98038-288-1 01 1 0710- ● ●
165 LINER; DOOR LWR 8-98038-289-1 01 1 0710- ● ●
166 PLUG; HOLE
D8X13.5 		1-09987-248-1 09 1 0710- ● ●
183 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0710- ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 40 1 0710-1009 ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 40 1 0710-1009 ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 80 1 1010- ● ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 01 1 0710-1009 ● ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 01 1 0710-1009 ● ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 02 1 1010- ● ●
