7-41 — UNDER COVER; INSTRUMENT (#3441) — 12 parça

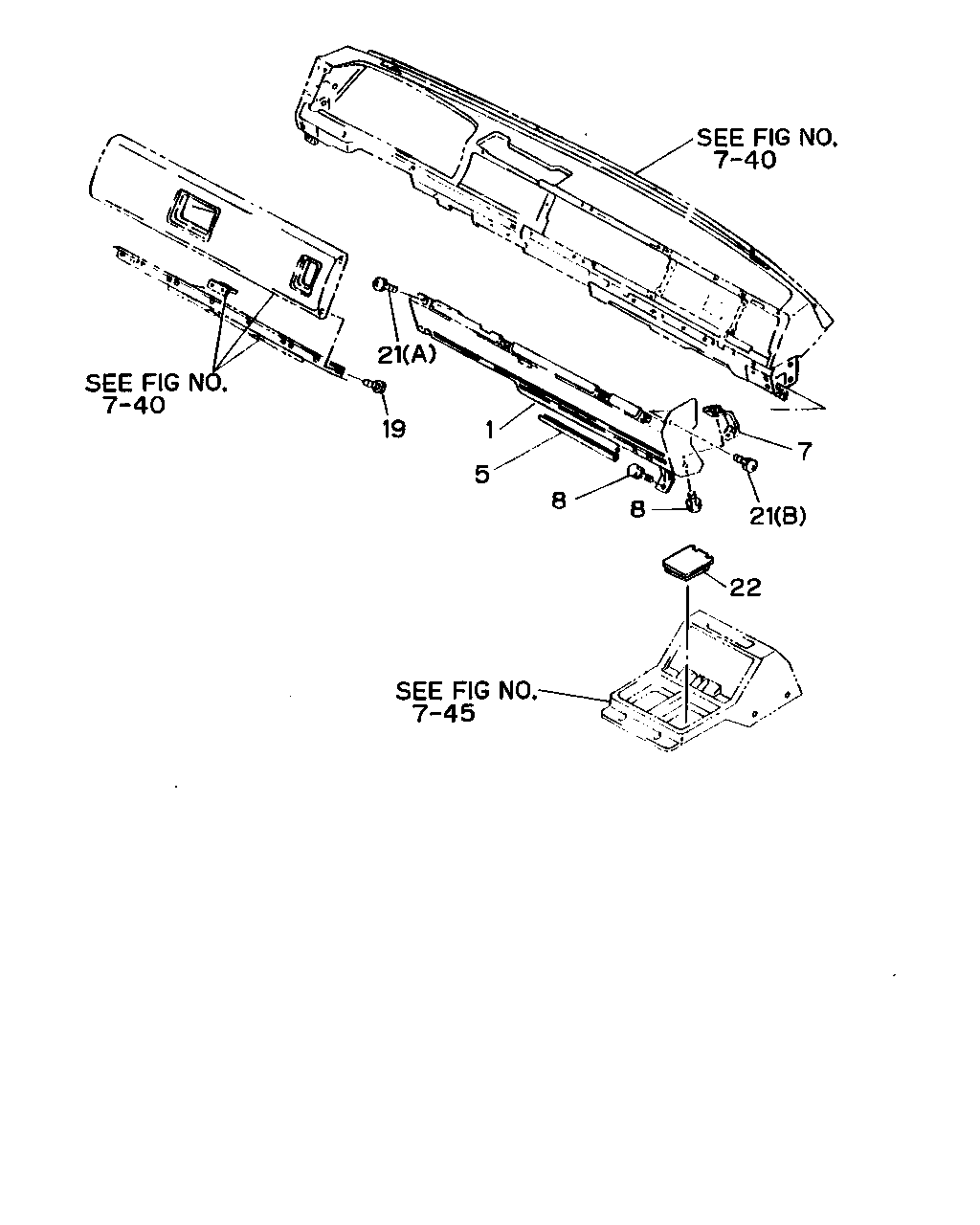

çizim 3837
19 21 1 5 8 8 7 21 22
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; COMPARTMENT,A/C UNIT 1-65671-329-0 01 1 9002-9306 ● ● ●
1 PANEL; COMPARTMENT,A/C UNIT 1-65671-534-0 01 1 9307- ● ● ●
5 FINISHER; COMPARTMENT PANEL,A/C UNIT
L=550 		1-73948-003-0 01 1 9002- ● ● ●
7 STAY ASM; BLIND PANEL A/C 1-65670-589-2 01 1 9002- ● ● ●
8 BOLT; STAY,BLIND PANEL
M6X16 W/LK&PL WASHER 		1-09980-458-0 01 1 9002-9307 ● ● ●
8 BOLT; STAY,BLIND PANEL
M6X16 W/LK&PL WASHER 		1-09980-586-0 01 1 9308- ● ● ●
8 BOLT; STAY,BLIND PANEL
M6X14 W/LK&PL WASHER 		1-09980-549-0 01 1 9002- ● ● ●
19 SCREW; FASTENER,SIDE CLUSTER BEZEL
M5X14 TAPPING 		1-72548-072-0 19 1 9002- ● ● ●
21 BOLT; BLIND PANEL,A/C
(A) M6X14 W/LK&PL WASHER 		1-09980-549-0 05 1 9002- ● ● ●
21 BOLT; BLIND PANEL,A/C
(B) M6X20 		1-09980-550-0 01 1 9002- ● ● ●
22 COVER; TRANS CONT 1-72447-472-0 01 1 9002-9306 ● ● ●
22 COVER; TRANS CONT 1-72447-540-0 01 1 9307- ● ● ●
