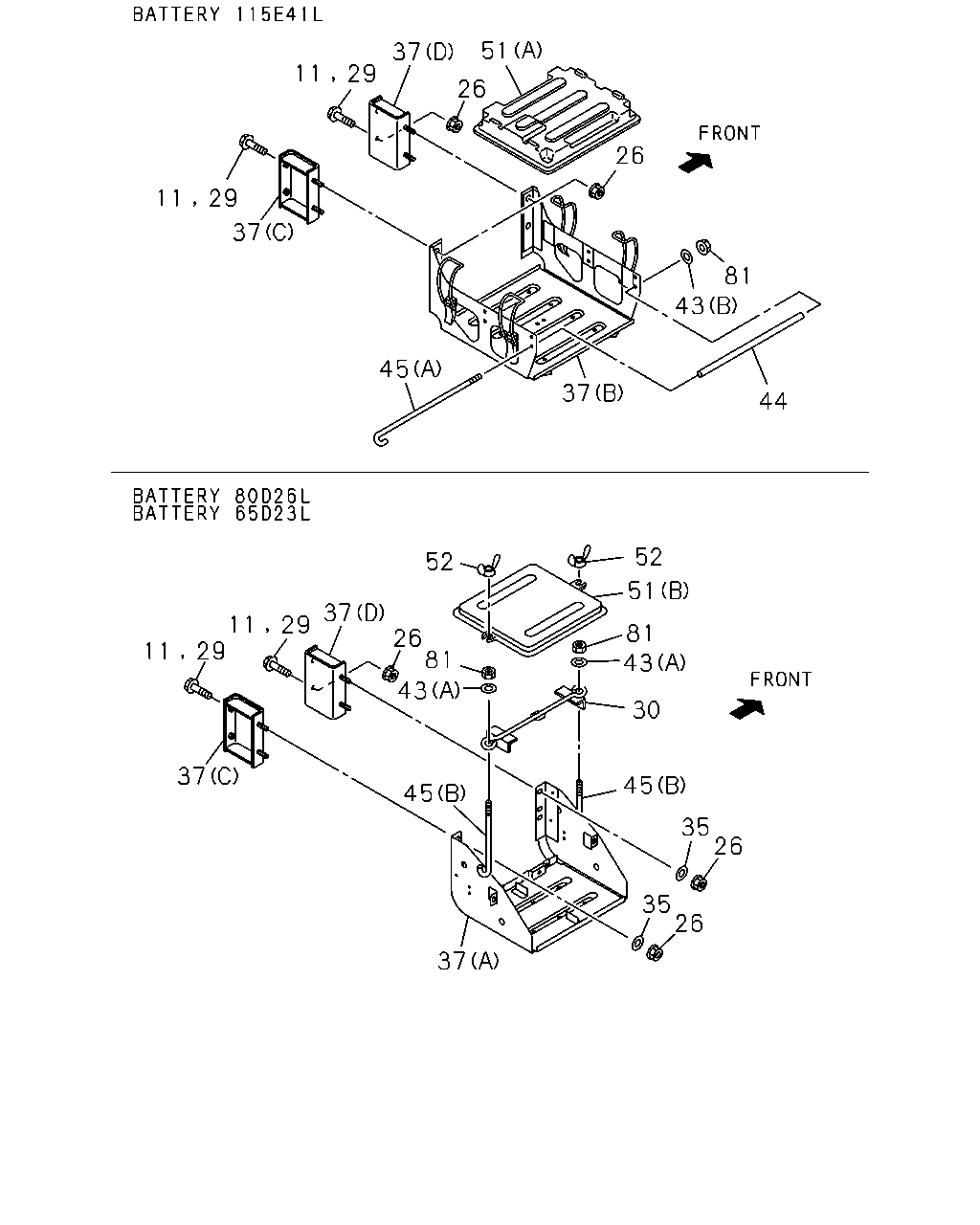

5-20 — BATTERY CARRIER (#34404) — 38 parça

11 29 11 29 37 51 26 26 81 43 44 37 45 37 52 52 51 81 43 30 45 35 26 26 35 37 45 43 26 37 29 11 11 29 37 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	04	1	1008-	●	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0711-0809	●	●
26	NUT; BRKT EXC. AUSTRALIA EQUIPMENT(B13) M10 FLANGE	0-91180-210-0	04	1	0810-0902		●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0903-	●	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0710-0710	●	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0710-0710	●	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0711-	●	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	0710-1007	●	●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	0710-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0710-0711	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	0712-	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	0809-1405		●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98261-636-0	01	1	1406-		●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0710-	●	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0710-	●	●
37	BRACKET; BATTERY (C)	8-98070-047-0	01	1	0710-0905	●	●
37	BRACKET; BATTERY (C)	8-98144-194-0	01	1	0906-	●	●
37	BRACKET; BATTERY (D)	8-98088-828-0	01	1	0710-	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	0710-0712	●	●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	02	1	0809-		●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	0710-	●	●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	02	1	0710-0712	●	●
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-		●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A)	8-97134-740-0	02	1	0809-		●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	9-53616-615-0	02	1	0710-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A)	8-97134-740-0	02	1	0710-0712	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	0809-		●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	0710-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	0710-0712	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	0710-	●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	0710-0805	●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	0806-0808	●	●
81	NUT; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE	0-91180-108-0	02	1	0806-0808	●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	0809-0810	●	●
81	NUT; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE	0-91180-108-0	02	1	0809-0810	●
81	NUT; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	02	1	0809-0810		●
81	NUT; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE	0-91180-108-0	02	1	0811-	●
81	NUT; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	02	1	0811-		●
