7-40 — INSTRUMENT PANEL AND BOX (#3440) — 69 parça

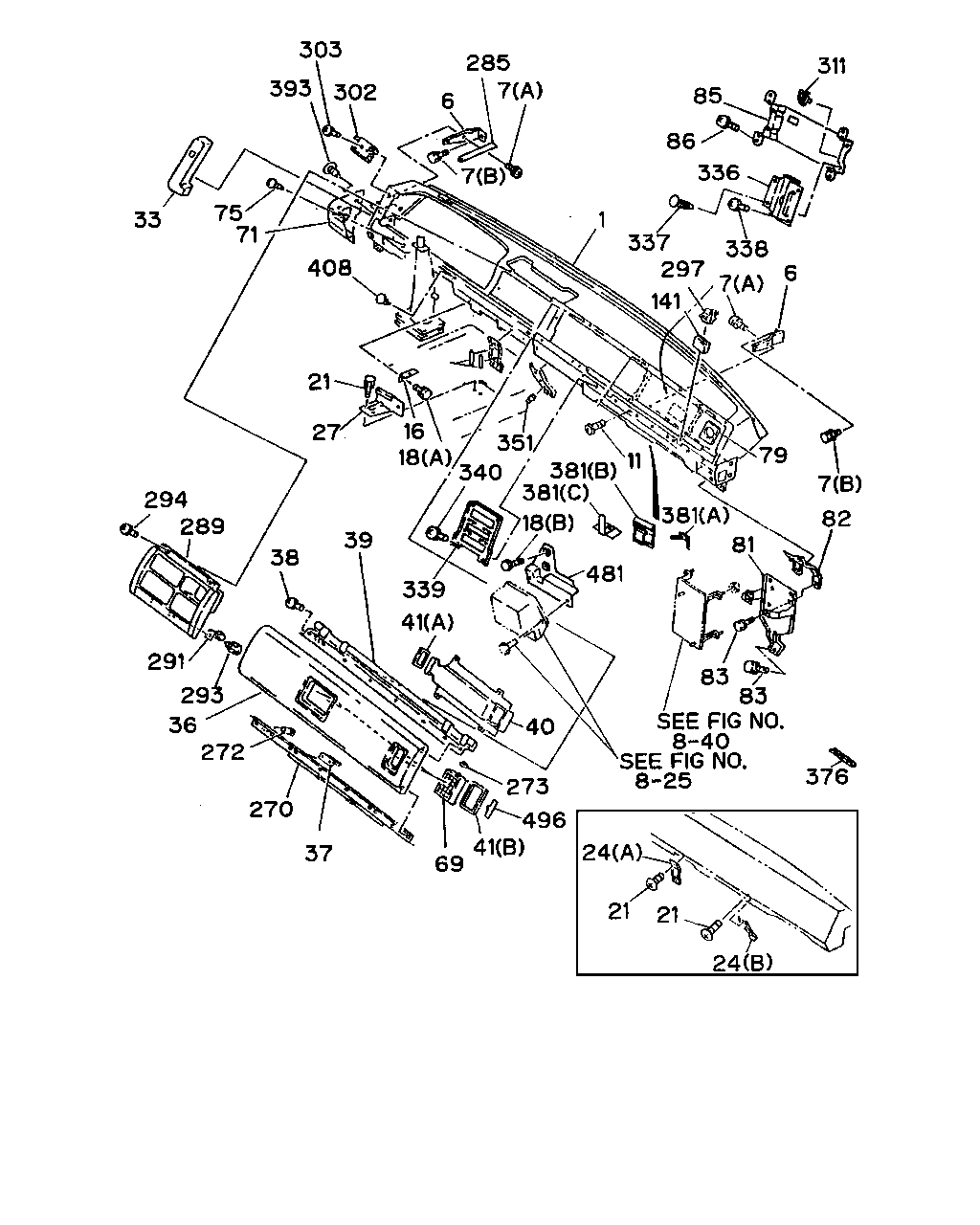

çizim 3644
303 393 302 6 285 7 7 1 337 336 86 85 311 338 6 297 7 79 7 141 351 16 21 408 71 75 33 27 340 18 381 11 381 81 82 83 83 376 481 18 381 39 38 339 41 40 273 496 41 69 37 270 272 36 291 293 289 294 24 21 21 24
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; INST 1-65671-336-0 01 1 9002-9306 ● ● ●
1 PANEL; INST 1-65671-532-0 01 1 9307- ● ● ●
6 SUPPORT; INST PANEL 1-65670-592-2 01 1 9002- ● ● ●
6 SUPPORT; INST PANEL 1-65670-591-2 01 1 9002- ● ● ●
7 BOLT; SUPPORT,INST PNL
(A) 		1-09980-440-0 04 1 9002- ● ● ●
7 BOLT; SUPPORT,INST PNL
(B) 		1-09980-497-0 02 1 9002- ● ● ●
11 BOLT; INST PNL
M8X20 W/PL WASHER 		1-09981-479-0 09 1 9002- ● ● ●
16 BRACKET; INST PNL 1-65670-595-1 01 1 9002- ●
16 BRACKET; INST PNL
EXC. STEERING COLUMN WO/TILT<WV6> 		1-65670-595-1 01 1 9002- ● ●
16 BRACKET; INST PNL
STEERING COLUMN WO/TILT<WV6> 		1-65670-829-0 01 1 9002- ● ●
18 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-527-0 02 1 9002-9008 ● ● ●
18 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9009- ● ● ●
18 BOLT; BRKT
POWER WINDOW<A30> (B) M6X14 W/LK&PL WASHER 		8-94279-142-0 02 1 9307- ● ● ●
21 SCREW; STAY,INST
M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9002- ● ● ●
24 STAY; INST CLUSTER
(A) 		1-65670-609-3 01 1 9002- ● ● ●
24 STAY; INST CLUSTER
(B) 		1-65670-695-2 01 1 9002- ● ● ●
27 SUPPORT ASM; STAY "B" 1-65670-679-2 01 1 9002- ● ● ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-068-0 01 1 9002-9306 ● ● ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-073-0 01 1 9307- ● ● ●
36 BEZEL; INST SIDE CLUSTER 1-72547-094-0 01 1 9002-9306 ● ● ●
36 BEZEL; INST SIDE CLUSTER 1-72547-110-0 01 1 9307- ● ● ●
37 FASTENER; MALE,SIDE CLUSTER BEZEL 1-72557-051-1 02 1 9002- ● ● ●
38 SCREW; BEZEL,INST CLUSTER SIDE
M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9002- ● ● ●
39 HINGE; BEZEL,INST SIDE CLUSTER 1-72557-047-3 01 1 9002- ● ● ●
40 DUCT; VENT,SIDE CLUSTER BEZEL 1-76377-089-1 01 1 9002- ● ● ●
41 SEAL; SIDE CLUSTER BEZEL
(A) 		1-76377-090-0 01 1 9002- ● ● ●
41 SEAL; SIDE CLUSTER BEZEL
(B) 		1-76377-091-0 01 1 9002- ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-050-1 03 1 9002- ● ● ●
71 GARNISH; INST CLUSTER SIDE 1-72437-039-0 01 1 9002-9306 ● ● ●
71 GARNISH; INST CLUSTER SIDE 1-72437-079-0 01 1 9307- ● ● ●
75 SCREW; GARNISH,INST CLUSTER
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002- ● ● ●
79 SEAL; SIDE DEFROSTER 1-76377-092-0 01 1 9002- ● ● ●
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> 		1-73997-786-6 01 1 9002- ● ● ●
82 BRACKET; CONT UNIT,ELEC
INTAKE HEATER<SL2> 		1-73997-802-0 01 1 9002- ● ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		9-01960-616-0 04 1 9002-9204 ● ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9205- ● ● ●
85 PANEL; ELEC 1-73997-523-7 01 1 9002- ● ● ●
86 BOLT; ELEC PNL
M6X14 W/LK&PL WASHER 		1-09980-549-0 04 1 9002- ● ● ●
141 PROTECTOR; EDGE
L=35 		1-73997-910-0 02 1 9002- ● ● ●
270 REINFORCEMENT; SIDE CLUSTER BEZEL 1-72557-053-2 01 1 9002- ● ● ●
272 CUSHION; SIDE CLUSTER BEZEL 1-72547-054-0 02 1 9002- ● ● ●
273 BUSHING; SIDE CLUSTER BEZEL 1-72547-048-1 03 1 9002- ● ● ●
285 FINISHER; INST PANEL
L=2040 		1-71997-513-1 02 1 9002- ● ● ●
289 BEZEL; CENTER,INST CLUSTER 1-72437-037-0 01 1 9002-9306 ● ● ●
289 BEZEL; CENTER,INST CLUSTER 1-72438-075-0 01 1 9307- ● ● ●
291 FASTENER; INST CLUSTER 1-72437-005-3 02 1 9002- ● ● ●
293 SCREW; FASTENER,BEZEL
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ● ●
294 SCREW; BEZEL
M6X16 W/PL WASHER 		1-09981-176-0 02 1 9002- ● ● ●
297 FASTENER; FEMALE,SIDE CLUSTER BEZEL 1-72557-052-3 02 1 9002- ● ● ●
302 CATCH; CHECK HOLE LID,CLU FLUID 1-73927-069-0 01 1 9002-9306 ● ● ●
302 CATCH; CHECK HOLE LID,CLU FLUID 1-73928-356-0 01 1 9307- ● ● ●
303 SCREW; CATCH,CHECK HOLE LID,CLU FLUID
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ● ●
311 CLIP; DASH HARNESS,ELEC PANEL
MIXER TRUCK<RA2> ID=6.5 		8-94206-730-0 01 1 9002- ●
336 COVER; INST PANEL SIDE 1-73997-745-0 01 1 9002- ● ● ●
337 FASTENER; COVER
BLACK 		8-94104-935-0 02 1 9407- ● ● ●
338 SCREW; COVER
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002- ● ● ●
339 PANEL; FUSE BOX 1-73997-877-1 01 1 9002- ● ● ●
340 BOLT; FUSE BOX PANEL
M6X14 W/LK&PL WASHER 		1-09980-549-0 04 1 9002- ● ● ●
351 STOPPER; CTR CONSOLE 1-09983-052-0 01 1 9002- ● ● ●
376 FINISHER; QOS
INTAKE HEATER<SL2> L=2040 		1-71997-513-1 01 1 9002- ● ● ●
381 CLIP; HARNESS
(A) 		5-09700-088-0 02 1 9002- ● ● ●
381 CLIP; HARNESS
POWER WINDOW<A30> (B) 1 SET=5 PIECE 		1-09987-214-0 03 1 9307- ● ● ●
381 CLIP; HARNESS
POWER WINDOW<A30> (C) 		8-94138-987-0 02 1 9307- ● ● ●
381 CLIP; HARNESS
EXC. POWER WINDOW<A30> (B) 1 SET=5 PIECE 		1-09987-214-0 01 1 9307- ● ● ●
393 FASTENER; GARNISH PANEL 1-09987-195-0 02 1 9002-9306 ● ● ●
393 FASTENER; GARNISH PANEL 1-09987-213-0 02 1 9307- ● ● ●
408 PLUG; DUMMY HOLE,INST PANEL 1-09987-112-0 01 1 9002- ● ● ●
481 BRACKET; POWER WINDOW,COMPARTMENT PANE
POWER WINDOW<A30> 		1-65671-397-1 01 1 9307- ● ● ●
496 PANEL; SHUTTER,SIDE SLUSTER BEZEL 1-72547-049-0 01 1 9002- ● ● ●
