5-01 — FRAME AND OTHER PARTS (#34399) — 220 parça

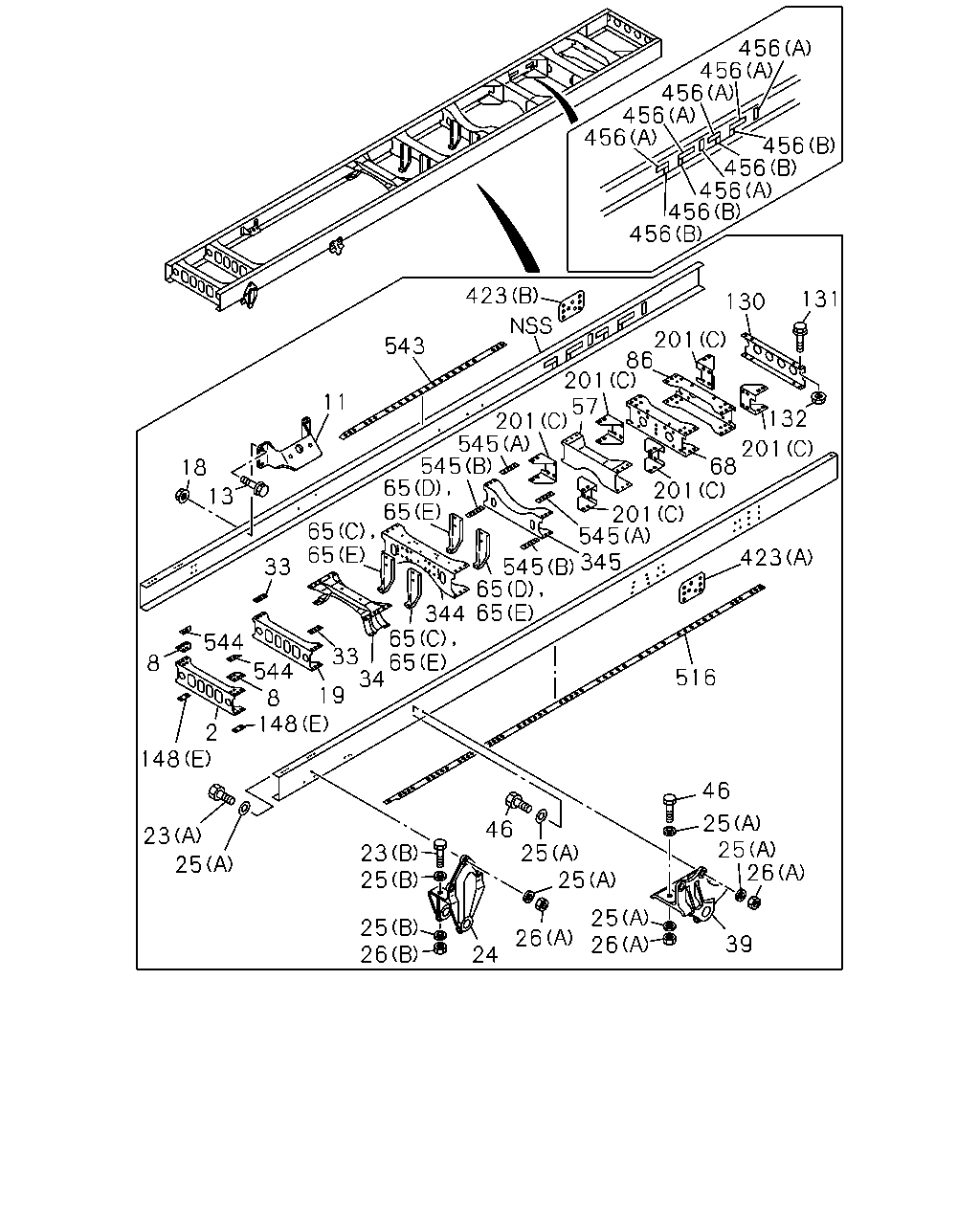

24 26 25 25 23 25 23 148 2 148 8 8 544 544 19 46 25 65 65 34 33 33 65 65 344 65 65 148 148 65 65 545 345 545 545 545 148 148 148 57 81 84 148 80 26 25 26 25 39 26 25 25 46 201 148 70 72 80 72 201 132 72 82 84 79 201 86 72 201 148 70 130 131 148 148 11 18 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-5	01	1	0710-0808	●
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	0809-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	0710-0808	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	0809-	●	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	0710-0808	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	0809-	●	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0710-0808	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0809-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0710-0808	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0809-	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-3	01	1	0710-0808	●
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	0809-	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	0710-0808	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	0809-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	0710-0808	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	0809-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	0710-0808	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	0809-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	0710-0808	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	0809-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	0710-0808	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	0809-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-0	28	1	0710-0808	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	0809-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	0710-0808	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	0809-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0710-0808	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0809-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	0710-0808	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	0809-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	0710-0808	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	0809-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	0710-0808	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	0809-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	0710-0808	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	0809-	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	0710-0808	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	0809-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	0710-0808	●
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	0809-	●	●	●
65	BRACKET; CENTER BRG AIR SUS(FGL***) (E)	8-97614-132-0	04	1	0911-	●
65	BRACKET; CENTER BRG ZF9S1110 M/T(Y5E) (D)	8-97614-126-0	02	1	0809-			●
65	BRACKET; CENTER BRG (A)	8-97622-644-0	02	1	0809-		●
65	BRACKET; CENTER BRG ZF6S1000 M/T(Y5D) (C)	8-97621-881-0	02	1	0809-			●
65	BRACKET; CENTER BRG LEAF SUS(FGM***) (A)	8-97614-134-0	02	1	0710-	●
65	BRACKET; CENTER BRG LEAF SUS(FGM***) (B)	8-97623-393-0	02	1	0710-	●
65	BRACKET; CENTER BRG AIR SUS(FGL***) (C)	8-97612-486-0	02	1	0710-0808	●
65	BRACKET; CENTER BRG AIR SUS(FGL***) (C)	8-97612-486-0	02	1	0809-0910	●
65	BRACKET; CENTER BRG ZF9S1110 M/T(Y5E) (C)	8-97612-486-0	02	1	0809-0910			●
65	BRACKET; CENTER BRG ZF9S1110 M/T(Y5E) (C)	8-97612-486-0	02	1	0911-			●
65	BRACKET; CENTER BRG AIR SUS(FGL***) (D)	8-97614-125-0	02	1	0710-0808	●
65	BRACKET; CENTER BRG AIR SUS(FGL***) (D)	8-97614-125-0	02	1	0809-0910	●
65	BRACKET; CENTER BRG ZF6S1000 M/T(Y5D) (D)	8-97614-125-0	02	1	0809-0910			●
65	BRACKET; CENTER BRG ZF6S1000 M/T(Y5D) (D)	8-97614-125-0	02	1	0911-			●
70	GUSSET; TRUNNION,UPR LEAF SUS(FGM***)	8-97612-106-0	02	1	0710-0808	●
70	GUSSET; TRUNNION,UPR LEAF SUS(FGM***)	8-97612-106-0	02	1	0809-	●
70	GUSSET; TRUNNION,UPR	8-97612-106-0	02	1	0809-		●	●
72	SPACER; TRUNNION LEAF SUS(FGM***)	8-97612-110-0	04	1	0710-0808	●
72	SPACER; TRUNNION LEAF SUS(FGM***)	8-97612-110-0	04	1	0809-	●
72	SPACER; TRUNNION	8-97612-110-0	04	1	0809-		●	●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGM***)	8-97612-484-1	01	1	0710-0808	●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGM***)	8-97612-484-1	01	1	0809-	●
79	MEMBER; CROSS,TRUNNION ASM	8-97612-484-1	01	1	0809-		●	●
80	BRACKET; C/MBR LEAF SUS(FGM***)	1-53363-068-0	02	1	0710-0808	●
80	BRACKET; C/MBR LEAF SUS(FGM***)	1-53363-068-0	02	1	0809-	●
80	BRACKET; C/MBR	1-53363-068-0	02	1	0809-		●	●
81	BOLT; BRKT LEAF SUS(FGM***) M14X50	0-10956-450-0	02	1	0710-0808	●
81	BOLT; BRKT LEAF SUS(FGM***) M14X50	0-10956-450-0	02	1	0809-	●
81	BOLT; BRKT M14X50	0-10956-450-0	02	1	0809-		●	●
82	NUT; BRKT LEAF SUS(FGM***) M14	0-91110-514-0	02	1	0710-0808	●
82	NUT; BRKT LEAF SUS(FGM***) M14	0-91110-514-0	02	1	0809-	●
82	NUT; BRKT M14	0-91110-514-0	02	1	0809-		●	●
84	WASHER; PL,BRKT LEAF SUS(FGM***) ID=15	8-98010-627-0	04	1	0710-0808	●
84	WASHER; PL,BRKT LEAF SUS(FGM***) ID=15	8-98010-627-1	04	1	0809-	●
84	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	0809-		●	●
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	0710-0808	●
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	0809-	●	●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	0710-0808	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	0809-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	0710-0808	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	0809-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	0710-0808	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	0809-	●	●	●
148	SPACER; C/MBR (D)	8-97612-109-0	02	1	0809-		●	●
148	SPACER; C/MBR LEAF SUS(FGM***) (D)	8-97612-109-0	04	1	0710-	●
148	SPACER; C/MBR LEAF SUS(FGM***) (F)	8-97612-111-0	04	1	0710-0808	●
148	SPACER; C/MBR LEAF SUS(FGM***) (F)	8-97612-111-0	04	1	0809-	●
148	SPACER; C/MBR (F)	8-97612-111-0	04	1	0809-		●	●
148	SPACER; C/MBR LEAF SUS(FGM***) (A)	8-97612-112-0	02	1	0710-0808	●
148	SPACER; C/MBR LEAF SUS(FGM***) (A)	8-97612-112-0	02	1	0809-	●
148	SPACER; C/MBR (A)	8-97612-112-0	02	1	0809-		●	●
148	SPACER; C/MBR LEAF SUS(FGM***) (B)	8-97612-113-0	02	1	0710-0808	●
148	SPACER; C/MBR LEAF SUS(FGM***) (B)	8-97612-113-0	02	1	0809-	●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	0809-		●	●
148	SPACER; C/MBR LEAF SUS(FGM***) (C)	8-97612-115-0	02	1	0710-0808	●
148	SPACER; C/MBR LEAF SUS(FGM***) (C)	8-97612-115-0	02	1	0809-	●
148	SPACER; C/MBR (C)	8-97612-115-0	02	1	0809-		●	●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	0710-0808	●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	0809-	●	●	●
201	GUSSET; C/MBR (A)	8-97620-294-2	02	1	0809-1010		●
201	GUSSET; C/MBR (A)	8-98147-357-1	02	1	1011-		●
201	GUSSET; C/MBR (A)	8-97612-107-3	02	1	0809-			●
201	GUSSET; C/MBR LEAF SUS(FGM***) (B)	8-97612-108-2	02	1	0710-0808	●
201	GUSSET; C/MBR LEAF SUS(FGM***) (B)	8-97612-108-2	02	1	0809-	●
201	GUSSET; C/MBR (B)	8-97612-108-2	02	1	0809-		●	●
201	GUSSET; C/MBR LEAF SUS(FGM***) (A)	8-97620-295-2	02	1	0710-	●
201	GUSSET; C/MBR AIR SUS(FGL***) (C)	8-97619-807-3	06	1	0710-	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	0710-0808	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	0809-	●	●	●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	0710-0808	●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	0809-	●		●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	0710-0808	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	0809-	●	●	●
545	SPACER; 5TH C/MBR LEAF SUS(FGM***) (B) 0.25KG	8-97611-244-0	02	1	0710-0910	●
545	SPACER; 5TH C/MBR (B) 0.25KG	8-97611-244-0	02	1	0911-	●
545	SPACER; 5TH C/MBR (A) 0.24KG	8-97611-245-0	02	1	0710-	●

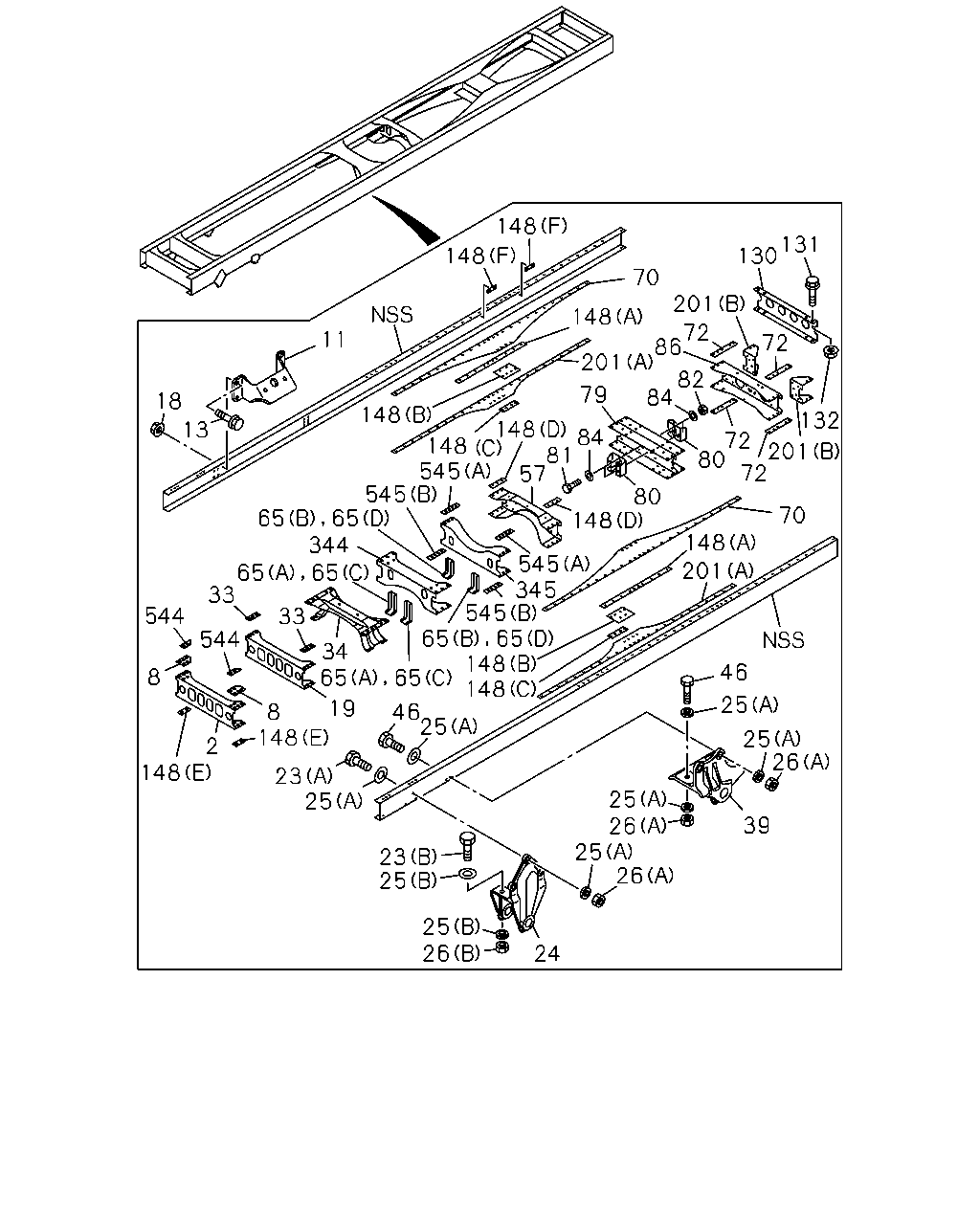

39 26 25 25 46 26 25 25 25 46 26 24 26 25 25 23 25 23 148 148 8 2 8 544 544 34 19 33 33 65 65 65 344 65 65 65 65 545 545 345 545 65 545 201 201 68 201 132 131 130 201 86 201 57 201 13 18 11 543 423 456 456 456 456 456 456 456 456 456 456 423 516

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-5	01	1	0710-0808	●
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	0809-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	0710-0808	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	0809-	●	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	0710-0808	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	0809-	●	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0710-0808	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0809-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0710-0808	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0809-	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-3	01	1	0710-0808	●
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	0809-	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	0710-0808	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	0809-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	0710-0808	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	0809-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	0710-0808	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	0809-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	0710-0808	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	0809-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	0710-0808	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	0809-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-0	28	1	0710-0808	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	0809-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	0710-0808	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	0809-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0710-0808	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0809-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	0710-0808	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	0809-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	0710-0808	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	0809-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	0710-0808	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	0809-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	0710-0808	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	0809-	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	0710-0808	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	0809-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	0710-0808	●
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	0809-	●	●	●
65	BRACKET; CENTER BRG AIR SUS(FGL***) (E)	8-97614-132-0	04	1	0911-	●
65	BRACKET; CENTER BRG ZF9S1110 M/T(Y5E) (D)	8-97614-126-0	02	1	0809-			●
65	BRACKET; CENTER BRG (A)	8-97622-644-0	02	1	0809-		●
65	BRACKET; CENTER BRG ZF6S1000 M/T(Y5D) (C)	8-97621-881-0	02	1	0809-			●
65	BRACKET; CENTER BRG LEAF SUS(FGM***) (A)	8-97614-134-0	02	1	0710-	●
65	BRACKET; CENTER BRG LEAF SUS(FGM***) (B)	8-97623-393-0	02	1	0710-	●
65	BRACKET; CENTER BRG AIR SUS(FGL***) (C)	8-97612-486-0	02	1	0710-0808	●
65	BRACKET; CENTER BRG AIR SUS(FGL***) (C)	8-97612-486-0	02	1	0809-0910	●
65	BRACKET; CENTER BRG ZF9S1110 M/T(Y5E) (C)	8-97612-486-0	02	1	0809-0910			●
65	BRACKET; CENTER BRG ZF9S1110 M/T(Y5E) (C)	8-97612-486-0	02	1	0911-			●
65	BRACKET; CENTER BRG AIR SUS(FGL***) (D)	8-97614-125-0	02	1	0710-0808	●
65	BRACKET; CENTER BRG AIR SUS(FGL***) (D)	8-97614-125-0	02	1	0809-0910	●
65	BRACKET; CENTER BRG ZF6S1000 M/T(Y5D) (D)	8-97614-125-0	02	1	0809-0910			●
65	BRACKET; CENTER BRG ZF6S1000 M/T(Y5D) (D)	8-97614-125-0	02	1	0911-			●
68	MEMBER; CROSS,RR SUSP CTR AIR SUS(FGL***)	8-97612-105-4	01	1	0710-	●
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	0710-0808	●
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	0809-	●	●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	0710-0808	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	0809-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	0710-0808	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	0809-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	0710-0808	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	0809-	●	●	●
148	SPACER; C/MBR (D)	8-97612-109-0	02	1	0809-		●	●
148	SPACER; C/MBR LEAF SUS(FGM***) (D)	8-97612-109-0	04	1	0710-	●
148	SPACER; C/MBR LEAF SUS(FGM***) (F)	8-97612-111-0	04	1	0710-0808	●
148	SPACER; C/MBR LEAF SUS(FGM***) (F)	8-97612-111-0	04	1	0809-	●
148	SPACER; C/MBR (F)	8-97612-111-0	04	1	0809-		●	●
148	SPACER; C/MBR LEAF SUS(FGM***) (A)	8-97612-112-0	02	1	0710-0808	●
148	SPACER; C/MBR LEAF SUS(FGM***) (A)	8-97612-112-0	02	1	0809-	●
148	SPACER; C/MBR (A)	8-97612-112-0	02	1	0809-		●	●
148	SPACER; C/MBR LEAF SUS(FGM***) (B)	8-97612-113-0	02	1	0710-0808	●
148	SPACER; C/MBR LEAF SUS(FGM***) (B)	8-97612-113-0	02	1	0809-	●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	0809-		●	●
148	SPACER; C/MBR LEAF SUS(FGM***) (C)	8-97612-115-0	02	1	0710-0808	●
148	SPACER; C/MBR LEAF SUS(FGM***) (C)	8-97612-115-0	02	1	0809-	●
148	SPACER; C/MBR (C)	8-97612-115-0	02	1	0809-		●	●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	0710-0808	●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	0809-	●	●	●
201	GUSSET; C/MBR (A)	8-97620-294-2	02	1	0809-1010		●
201	GUSSET; C/MBR (A)	8-98147-357-1	02	1	1011-		●
201	GUSSET; C/MBR (A)	8-97612-107-3	02	1	0809-			●
201	GUSSET; C/MBR LEAF SUS(FGM***) (B)	8-97612-108-2	02	1	0710-0808	●
201	GUSSET; C/MBR LEAF SUS(FGM***) (B)	8-97612-108-2	02	1	0809-	●
201	GUSSET; C/MBR (B)	8-97612-108-2	02	1	0809-		●	●
201	GUSSET; C/MBR LEAF SUS(FGM***) (A)	8-97620-295-2	02	1	0710-	●
201	GUSSET; C/MBR AIR SUS(FGL***) (C)	8-97619-807-3	06	1	0710-	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	0710-0808	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	0809-	●	●	●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	0710-0808	●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	0809-	●		●
423	PATCH AIR SUS(FGL***) (A)	8-97619-809-0	01	1	0710-	●
423	PATCH AIR SUS(FGL***) (B)	8-97619-810-0	01	1	0710-	●
456	PATCH; STOPPER AIR SUS(FGL***) (A)	8-97611-248-0	12	1	0710-1201	●
456	PATCH; STOPPER AIR SUS(FGL***) (A)	8-97642-212-0	12	1	1202-	●
456	PATCH; STOPPER AIR SUS(FGL***) (B)	8-97611-249-0	08	1	0710-1201	●
456	PATCH; STOPPER AIR SUS(FGL***) (B)	8-97642-213-0	08	1	1202-	●
516	GUSSET; LWR AIR SUS(FGL***)	8-97620-293-3	02	1	0710-	●
543	GUSSET; UPR AIR SUS(FGL***)	8-97620-007-0	02	1	0710-	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	0710-0808	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	0809-	●	●	●
545	SPACER; 5TH C/MBR LEAF SUS(FGM***) (B) 0.25KG	8-97611-244-0	02	1	0710-0910	●
545	SPACER; 5TH C/MBR (B) 0.25KG	8-97611-244-0	02	1	0911-	●
545	SPACER; 5TH C/MBR (A) 0.24KG	8-97611-245-0	02	1	0710-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
