Isuzu WW
▶
TRUCKS
▶
FVM
▶
11105 - FVM(RHD)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-71 - AIR SUSPENSION PIPING
▶

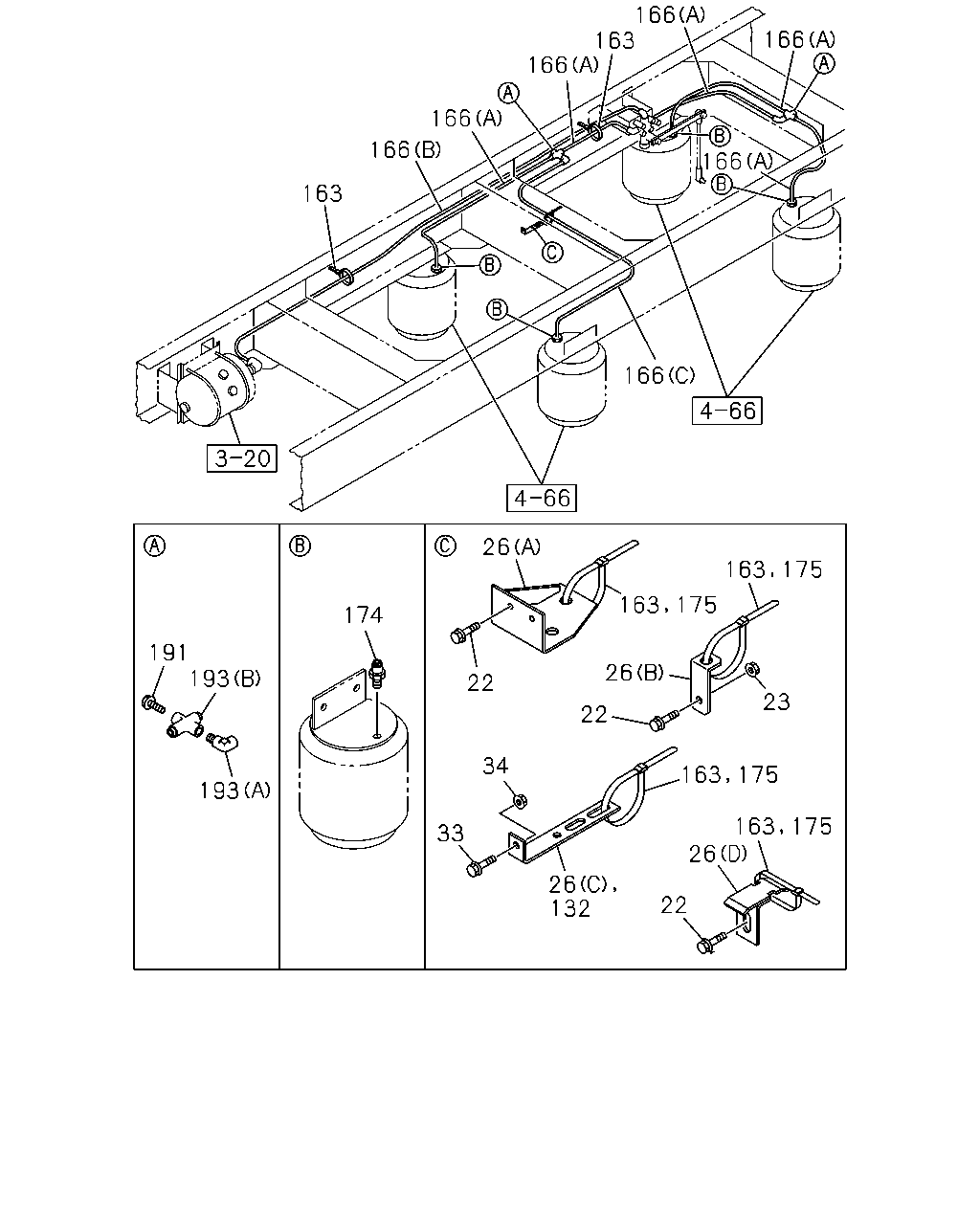

4-71 — AIR SUSPENSION PIPING
(#34397) — 25 parça
163
166
166
166
163
166
166
166
166
26
174
191
193
193
22
34
33
26
132
22
26
163
175
175
163
22
26
163
175
163
175
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
01
1
0908-
22
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
04
1
0710-0712
22
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
03
1
0801-0907
22
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0908-
23
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0710-0712
23
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
0801-
26
BRACKET; CLIP
(A) L=60 H=30
1-47477-716-1
02
1
0710-0712
26
BRACKET; CLIP
(C) L=100 H=30
1-47477-645-2
01
1
0801-
26
BRACKET; CLIP
(B)
1-82699-527-1
02
1
0710-0711
26
BRACKET; CLIP
(D)
1-47479-693-0
02
1
0712-
33
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
0710-0907
33
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
01
1
0908-
34
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0710-
132
BRACKET; CLIP
L=150 H=30
1-47477-629-2
01
1
0710-
163
CLIP; BAND
L=350
1-09707-183-0
20
1
0710-0907
163
CLIP; BAND
L=350
1-09707-183-0
13
1
0908-
166
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0710-
166
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0710-
166
TUBE; NYLON
(C) SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0710-
174
UNION; AIR SPRING
DIN12 & R1/4 STRAIGHT
1-09661-214-0
04
1
0710-
175
CLIP
L=350
1-09707-183-0
03
1
0908-
191
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
01
1
0710-
191
BOLT; UNION
M8X25 FLANGE
0-28650-825-0
01
1
0710-
193
UNION
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
0710-
193
UNION
(B) DIN12X2 & R3/8 3WAY
1-09661-131-0
02
1
0710-
