◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10669 - CXM/CXZ LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#3439) — 13 parça

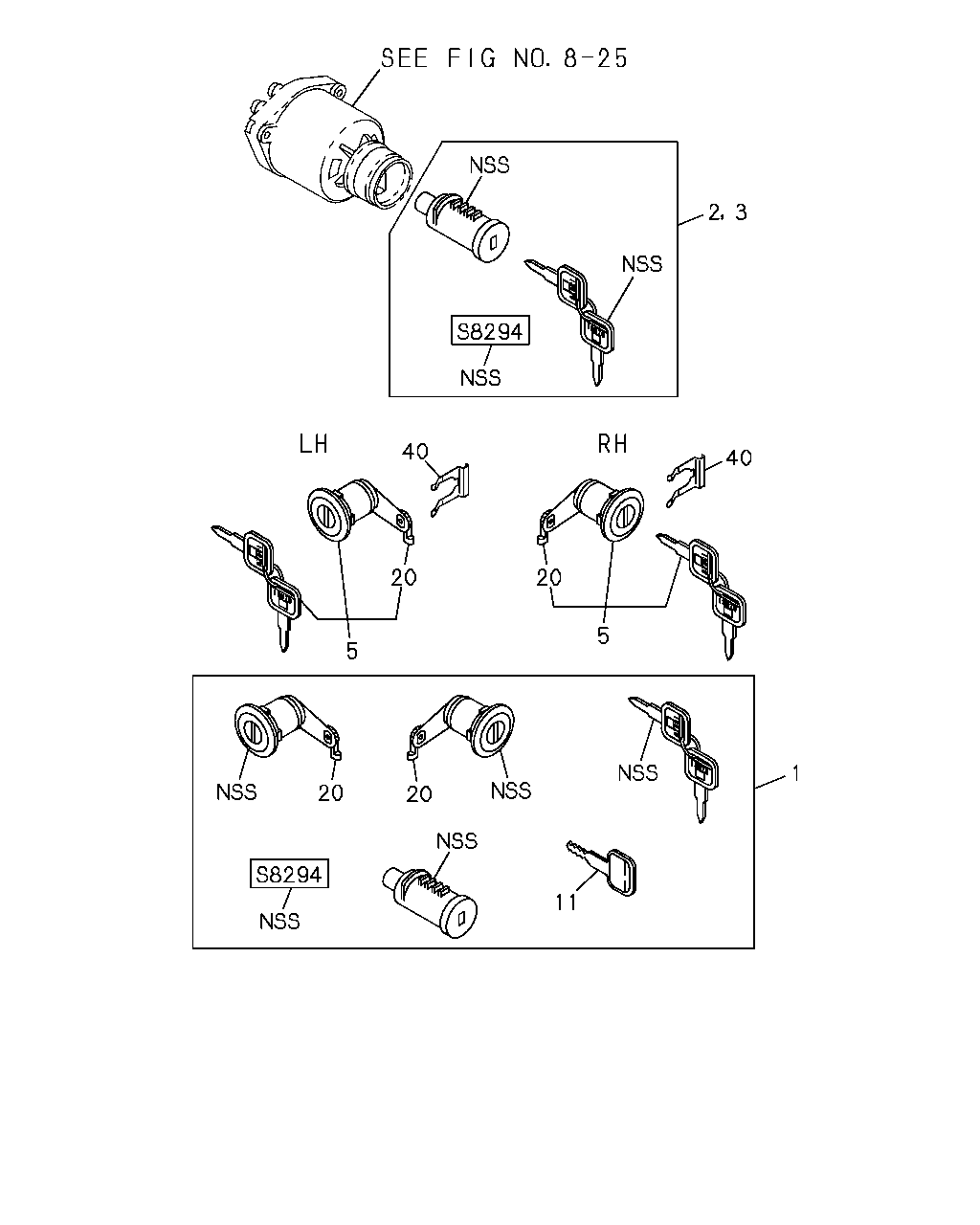

çizim 36256
2 3 40 5 20 1 11 20 20 5 20 40
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER SET; CAR LOCK 1-79137-037-4 01 1 9002-9409 ● ● ●
1 CYLINDER SET; CAR LOCK 1-79137-076-2 01 1 9410- ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK 1-79137-118-2 01 1 9410- ● ● ●
3 BARREL ASM; W/KEY 1-79137-034-2 01 1 9002-9409 ● ● ●
5 CYLINDER ASM; DOOR LOCK
W/KEY 		1-79138-101-2 01 1 9002-9409 ● ● ●
5 CYLINDER ASM; DOOR LOCK
W/KEY 		1-79137-094-1 01 1 9410- ● ● ●
5 CYLINDER ASM; DOOR LOCK
W/KEY 		1-79138-100-2 01 1 9002-9409 ● ● ●
5 CYLINDER ASM; DOOR LOCK
W/KEY 		1-79137-093-1 01 1 9410- ● ● ●
11 KEY; BLANK 1-79137-039-0 AR 1 9002-9409 ● ● ●
11 KEY; BLANK 1-79137-129-1 AR 1 9410- ● ● ●
20 SNAP; DOOR LOCK CYL
NATURAL FOR D=3.5 		1-79138-167-0 01 1 9210- ● ● ●
20 SNAP; DOOR LOCK CYL
YELLOW 		1-79138-166-0 01 1 9210- ● ● ●
40 CLIP; CYL LK 1-79137-033-1 02 1 9002- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
