51156 - NPR BUS(LHD)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

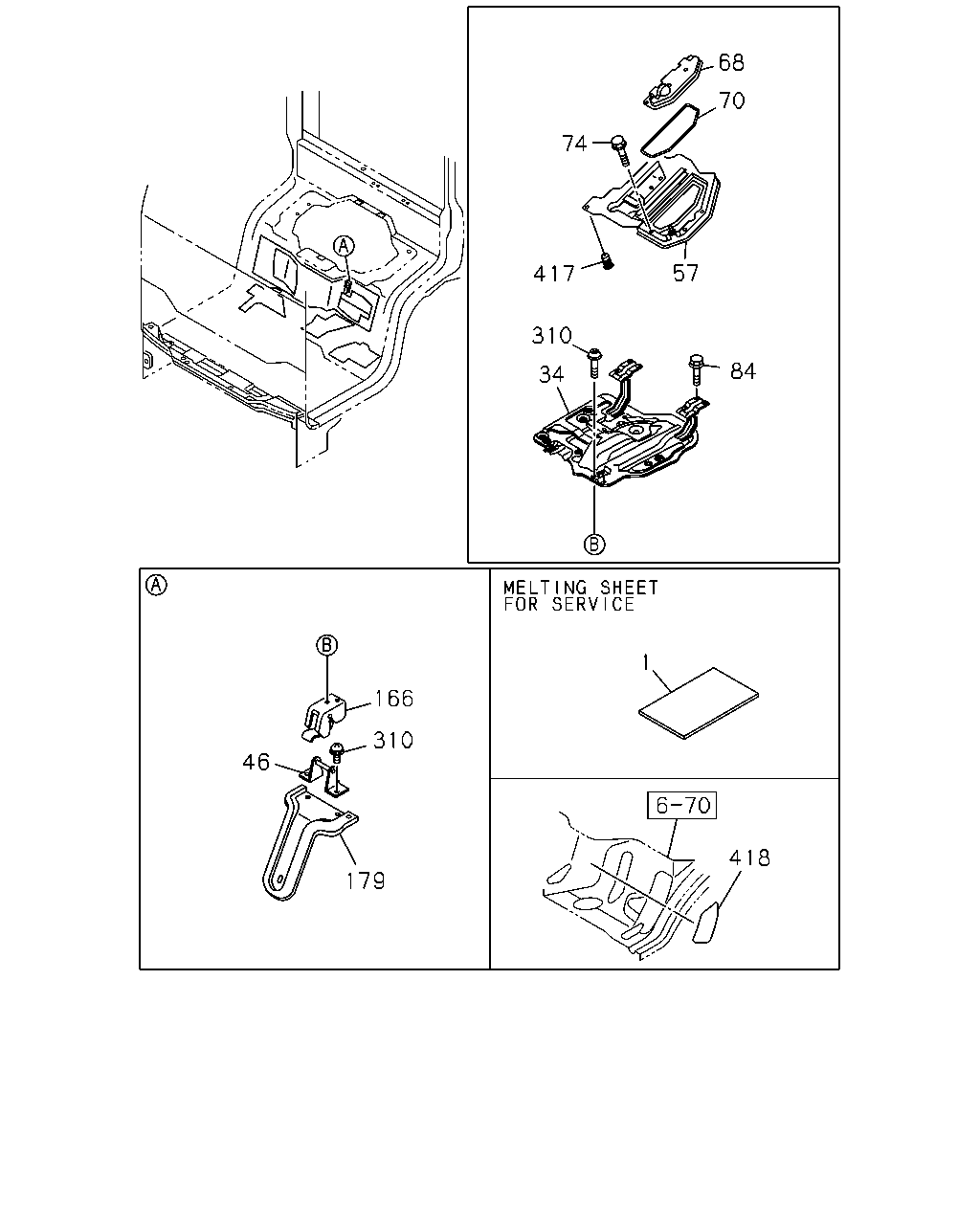

6-76 — FLOOR EQUIPMENT AND SEALING
(#34384) — 16 parça
68
70
74
57
417
310
84
34
1
166
310
46
418
179
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY
8-94262-093-0
AR
1
0803-
34
16.549 COVER ASM; ENG,CAB FLOOR
8-97589-391-2
01
1
0803-
46
16.549 HOOK ASM; ENG COVER
8-98040-145-0
02
1
0803-
57
16.549 COVER ASM; SUPPORT,CAB FLOOR
8-97589-396-4
01
1
0803-
68
16.549 COVER ASM; SUB,ENG COVER
8-98040-141-0
01
1
0803-
70
16.549 SEAL; ENG SUB COVER,CAB FLOOR
8-97853-050-1
01
1
0803-
74
16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE
0-28650-820-0
10
1
0803-
84
16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE
0-28650-820-0
04
1
0803-
166
16.549 LOCK; ENG COVER
8-98040-152-0
02
1
0803-
179
16.549 REINFORCEMENT; COVER
8-98048-301-1
01
1
0803-
310
16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE
0-28650-616-0
04
1
0811-
310
16.549 SCREW; ENG COVER HOOK
16.570 M6X16
0-38050-616-0
09
1
0803-0810
310
16.549 SCREW; ENG COVER HOOK
16.570 M6X16
0-38050-616-0
05
1
0811-
417
16.549 NUT; POP
09.786 M6 POP NUT
8-98013-752-0
01
1
0803-
418
16.549 SEAL; PROTECTOR
8-98090-192-1
01
1
0803-
418
16.549 SEAL; PROTECTOR
8-98090-191-1
01
1
0803-
