6-47 — MUD GUARD AND INSULATOR (#34381) — 51 parça

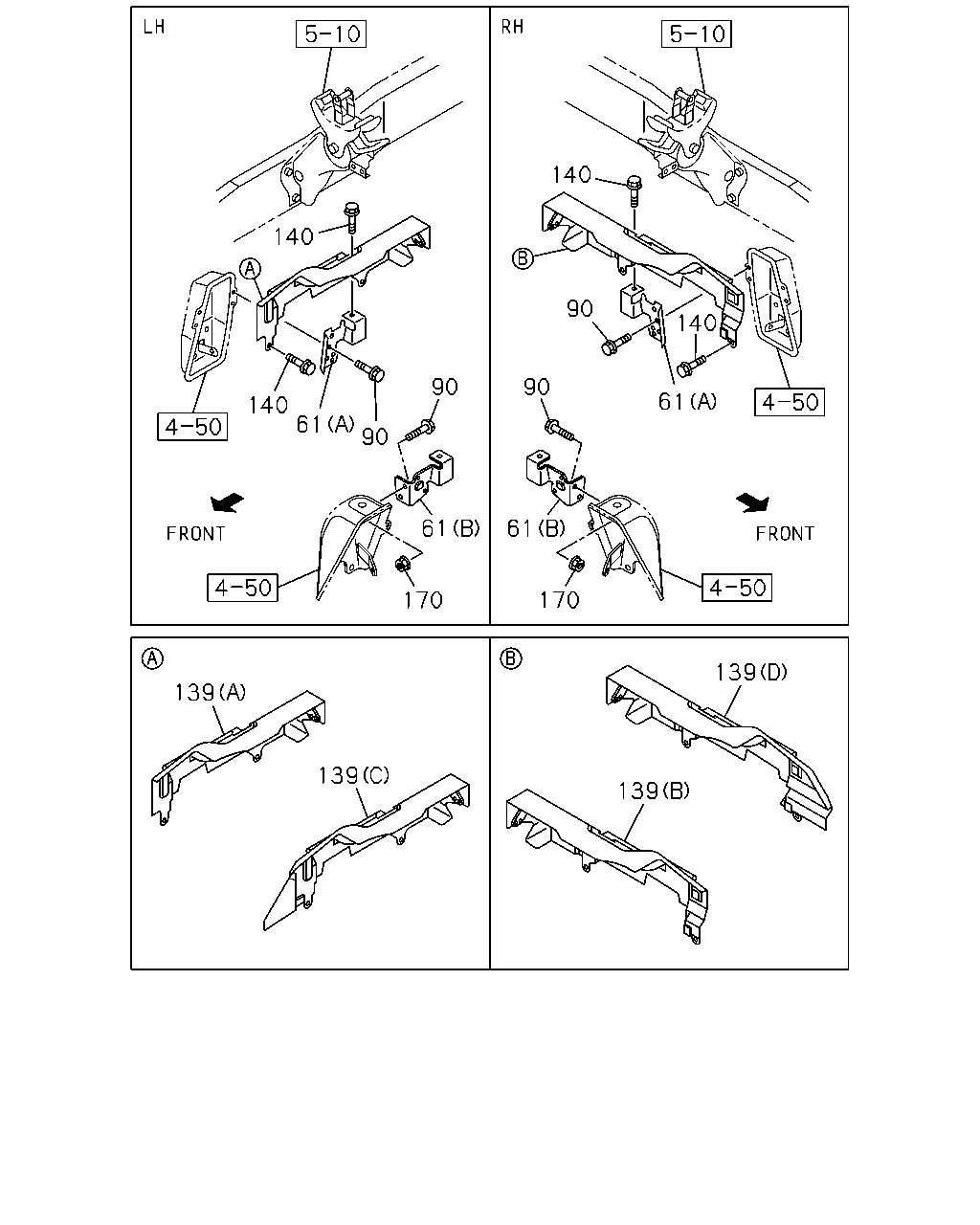

140 140 90 140 90 90 61 140 61 90 61 61 170 170 139 139 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	08.155 BRACKET; COVER FRONT WIDE TREAD<7GV> (B)	8-98135-993-0	01	1	0906-
61	08.155 BRACKET; COVER FRONT WIDE TREAD<7GV> (B)	8-98135-994-0	01	1	0906-
61	08.155 BRACKET; COVER (A)	8-98040-466-1	01	1	0803-0905
61	08.155 BRACKET; COVER EXC. FRONT WIDE TREAD<7GV> (A)	8-98040-466-1	01	1	0906-
61	08.155 BRACKET; COVER (A)	8-98040-465-1	01	1	0803-0905
61	08.155 BRACKET; COVER EXC. FRONT WIDE TREAD<7GV> (A)	8-98040-465-1	01	1	0906-
90	08.153 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0803-
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-595-0	01	1	0803-0806
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (A)	8-98115-458-0	01	1	0807-
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-98043-920-2	01	1	0803-
139	08.153 PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-728-7	01	1	0803-
139	08.153 PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97387-727-4	01	1	0803-
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	0803-
170	08.155 NUT; COVER FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE	0-91180-108-0	04	1	0906-
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER	8-97329-625-0	08	1	0803-

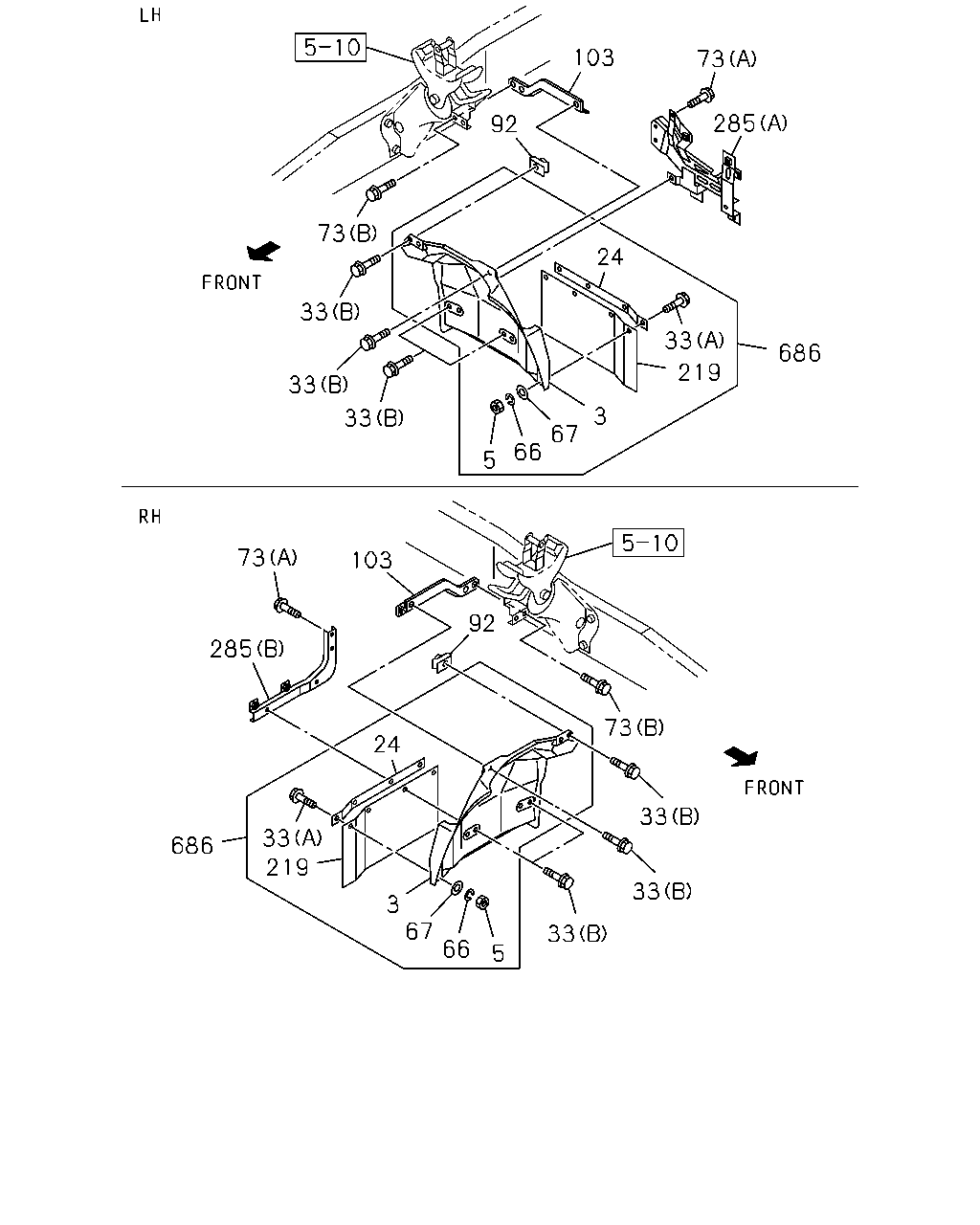

103 73 285 92 73 24 33 33 686 219 33 3 33 67 66 5 73 103 92 285 73 24 33 33 219 686 33 3 67 66 33 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	08.153 GUARD; MUD,RR	8-98004-030-4	01	1	0803-
3	08.153 GUARD; MUD,RR	8-98004-029-5	01	1	0803-
5	08.155 NUT; FLAP RUBBER 03.330 M6	0-91110-506-0	08	1	0803-1209
5	08.155 NUT; FLAP RUBBER M6	8-98227-380-0	08	1	1210-
24	08.155 PLATE; MUD COVER	8-98004-031-1	02	1	0803-
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	0803-1209
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0803-
66	08.155 WASHER; LK ID=6.1	0-91510-606-0	08	1	0803-1209
67	08.155 WASHER; PL 00.413 ID=6.4	0-91610-606-0	08	1	0803-1209
73	08.155 BOLT; MUD COVER BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	0803-
73	08.155 BOLT; MUD COVER BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0803-
92	08.155 NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	0803-
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-319-2	01	1	0803-
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-315-2	01	1	0803-
219	08.155 FLAP; MUD GUARD	8-98004-033-1	02	1	0803-
285	08.155 BRACKET; MUD COVER (A)	8-98001-320-3	01	1	0803-
285	08.155 BRACKET; MUD COVER (B)	8-98001-314-2	01	1	0803-
686	08.155 FLAP ASM; MUD	8-97387-750-7	01	1	0803-
686	08.155 FLAP ASM; MUD	8-97387-751-6	01	1	0803-

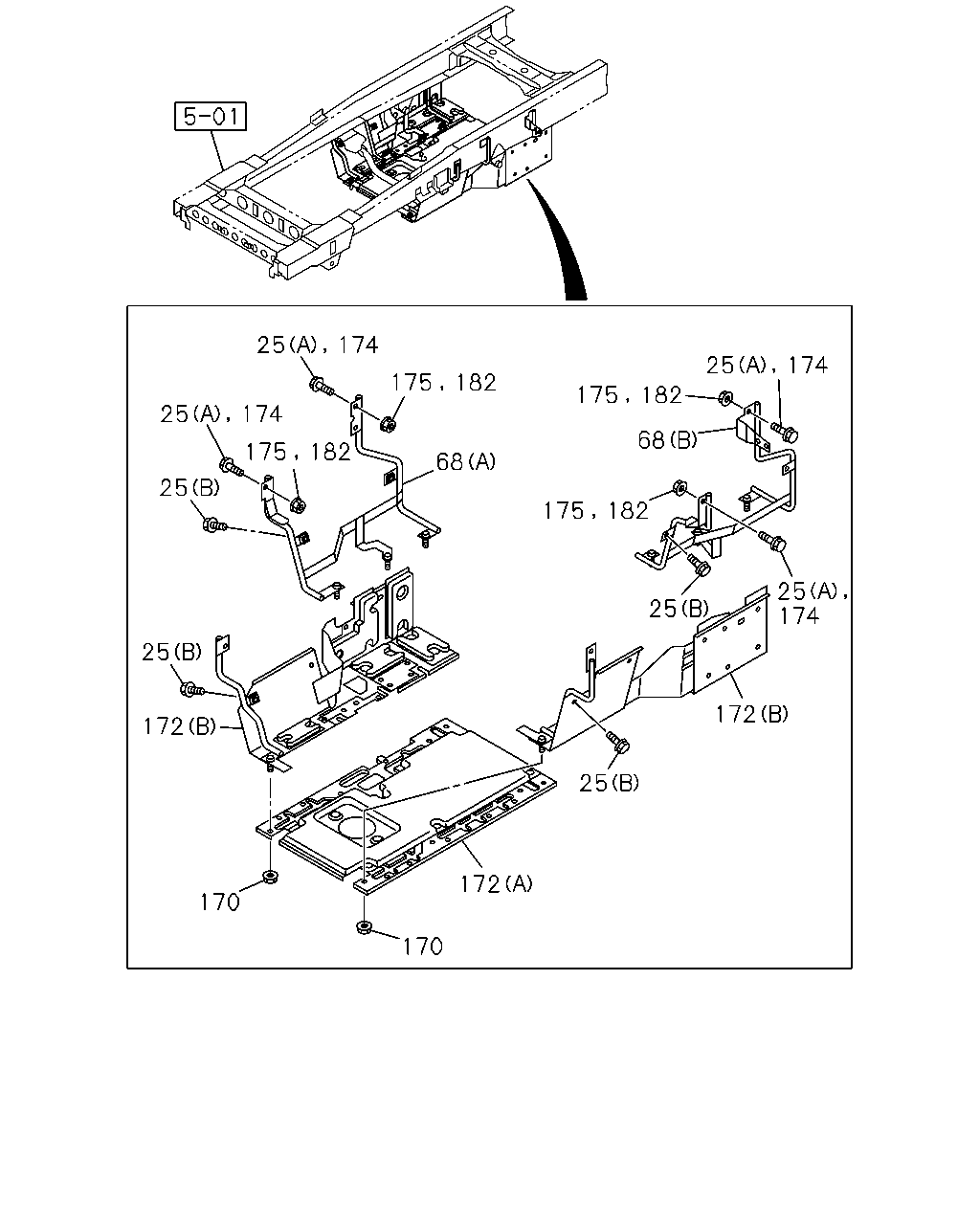

174 25 182 175 68 175 182 25 25 174 172 25 172 170 170 172 25 25 25 25 174 175 182 175 174 182 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (A) M10X30 FLANGE	0-28651-030-0	06	1	0803-1312
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	0803-
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98150-453-0	01	1	0912-
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98080-387-2	01	1	0803-0911
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. POOR QUALITY DIESEL FUEL(KF0),MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-SMOOTH ER(8GF) (B)	8-98080-387-2	01	1	0912-1112
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. POOR QUALITY DIESEL FUEL(KF0),MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-SMOOTH ER(8GF) (B)	8-98201-755-0	01	1	1201-
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98080-386-2	01	1	0803-
170	08.155 NUT; COVER FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE	0-91180-108-0	04	1	0906-
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER	8-97329-625-0	08	1	0803-
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98024-942-1	01	1	0803-
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98079-016-3	01	1	0803-1312
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98225-680-0	01	1	1401-
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98079-017-4	01	1	0803-
174	08.155 BOLT; STAY FIX 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X30 FLANGE	0-28651-030-0	06	1	1401-
175	08.155 NUT; STAY FIX 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	04	1	1401-
182	08.155 NUT; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	04	1	0803-1312

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
