Isuzu WW
▶
TRUCKS
▶
NPR
▶
51156 - NPR BUS(LHD)
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

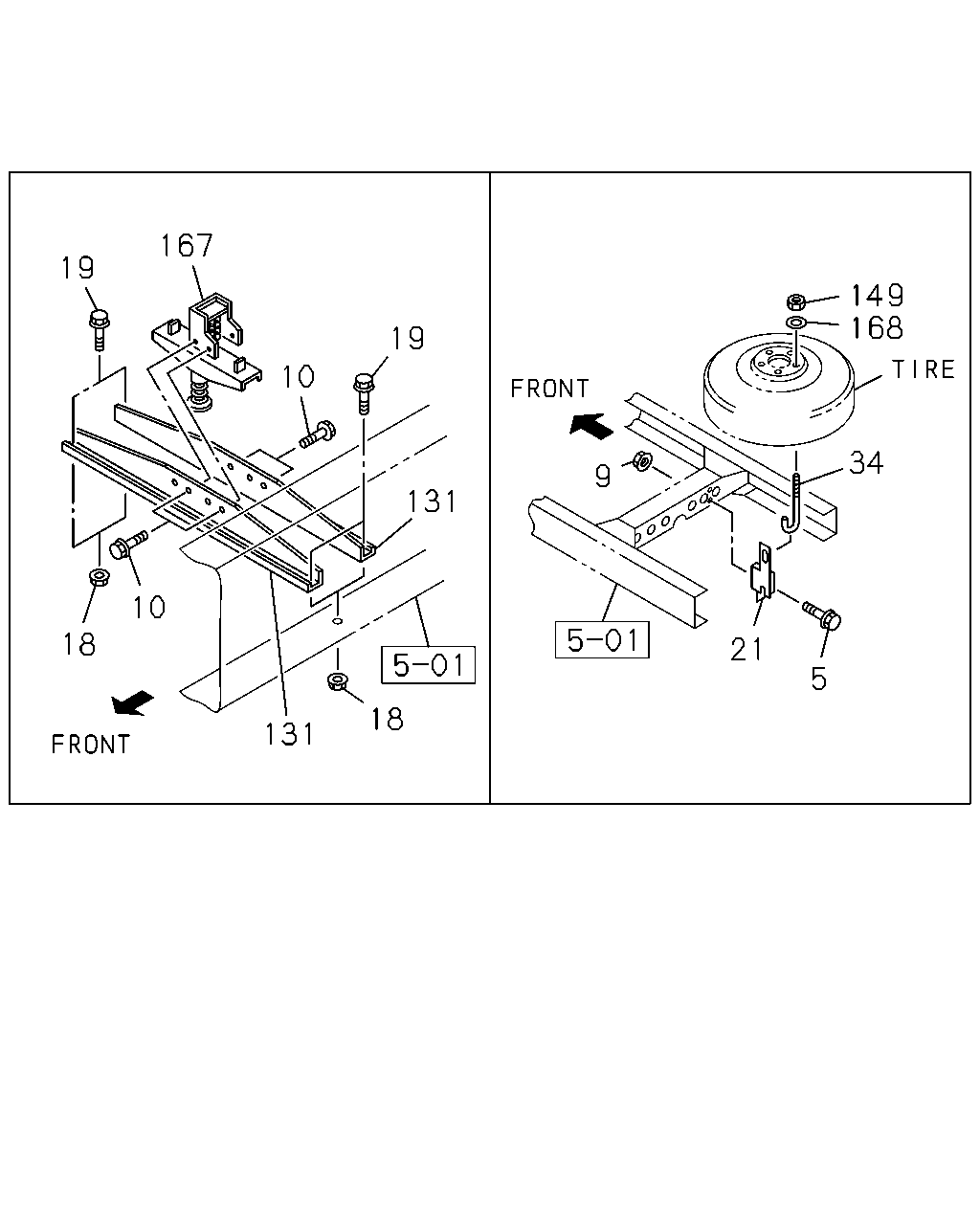

5-30 — SPARE TIRE CARRIER AND COVER
(#34375) — 14 parça
167
19
149
168
19
10
34
9
131
10
18
21
5
18
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
07.632 BOLT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE
0-28650-825-0
04
1
0803-
9
07.633 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE
0-91180-108-0
04
1
0803-
10
07.632 BOLT; TIRE HANGER
06.216 M8X25 FLANGE
0-28650-825-0
04
1
0803-
18
07.633 NUT; MEMBER
03.162 M10 FLANGE
0-91180-110-0
04
1
0803-
19
07.632 BOLT; C/MBR
00.029 M10X30 FLANGE
0-28651-030-0
04
1
0803-
21
07.629 BRACKET; SPARE TIRE HANGER
FRAME STRAIGHT TYPE<7KJ>
8-98019-889-0
02
1
0803-
34
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X305
8-94441-189-0
02
1
0803-1209
34
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X330
8-98226-501-0
02
1
1210-
131
07.629 CROSSMEMBER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
8-98035-827-1
02
1
0803-
131
07.629 CROSSMEMBER; SPARE TIRE
EXC. FRAME STRAIGHT TYPE<7KJ>
8-98024-842-2
02
1
0803-
149
07.629 NUT; CARRIER
FRAME STRAIGHT TYPE<7KJ> 05.002 M12
0-91110-512-0
02
1
0803-
167
07.629 HANGER; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL /NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6W HL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V)
8-98036-383-0
01
1
0803-0809
167
07.629 HANGER; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-1276-WHL/NUT(83V)
8-98036-383-0
01
1
0810-
168
07.633 WASHER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54
8-94466-483-0
02
1
0803-
