Isuzu WW
▶
TRUCKS
▶
NPR
▶
51156 - NPR BUS(LHD)
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

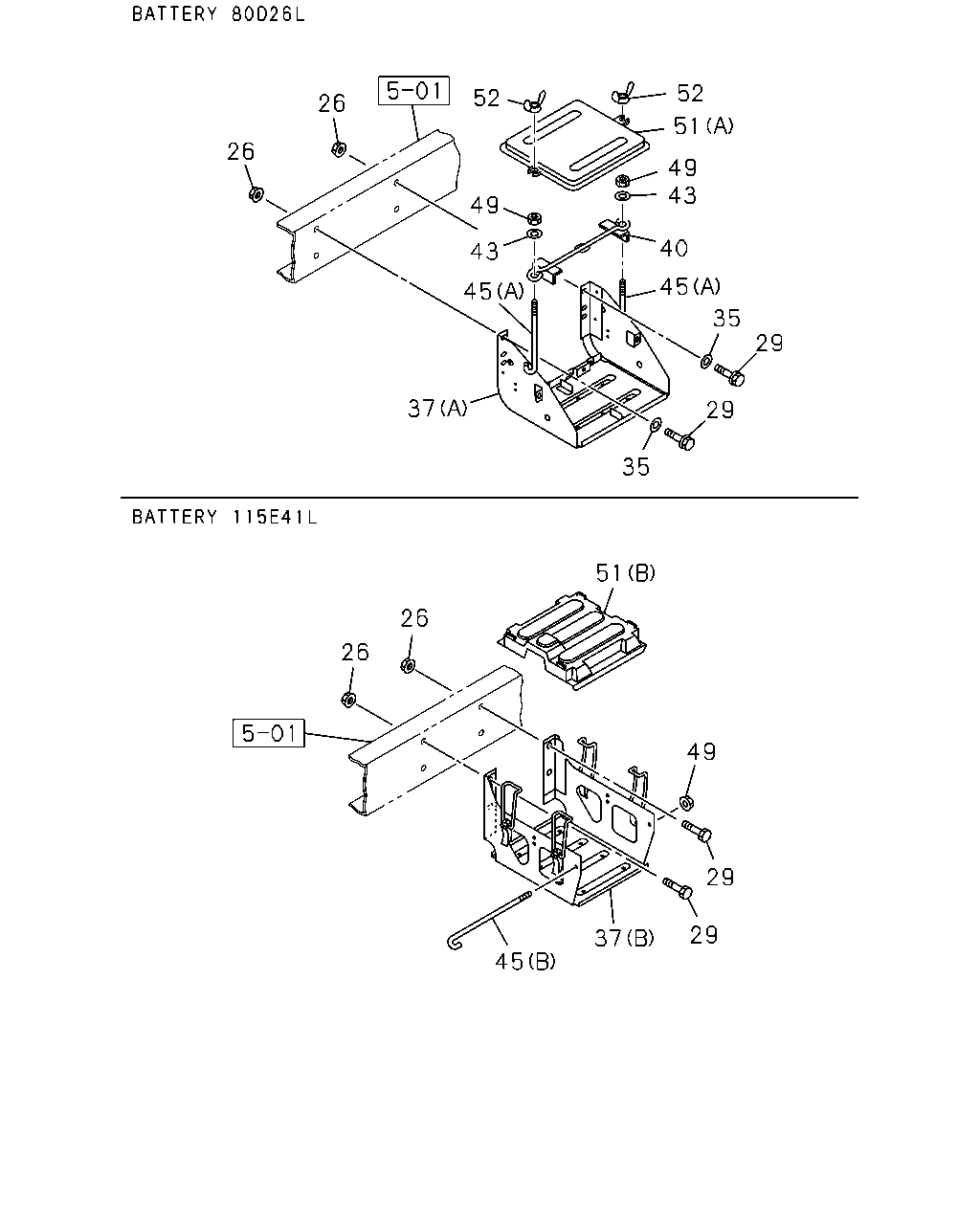

5-20 — BATTERY CARRIER
(#34374) — 13 parça
52
52
26
51
26
49
43
49
40
43
45
45
35
29
37
29
35
51
26
26
49
29
29
37
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
02.334 NUT; BRKT
04.085 M10 FLANGE
0-91180-210-0
04
1
0803-
29
02.334 BOLT; BRKT TO FRAME
03.023 M10X35 FLANGE
0-28661-035-0
04
1
0803-
35
02.334 WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1> 04.046 ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
0803-
37
02.333 BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98091-497-0
01
1
0803-
37
02.333 BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
0803-
40
02.335 CLAMP; BATTERY
BATTERY 80D26L<TM1>
5-53615-004-1
01
1
0803-
43
02.334 WASHER; PL,CLAMP
BATTERY 80D26L<TM1> 02.277 ID=8.4 OD=22
0-91614-708-0
02
1
0803-
45
02.334 ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (B)
8-97134-740-0
02
1
0803-
45
02.334 ROD; TENSION,BATTERY
BATTERY 80D26L<TM1> (A)
9-53616-615-0
02
1
0803-
49
02.334 NUT; ROD,BATTERY
BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> 01.062 M8 FLANGE
0-91180-108-0
02
1
0803-
51
02.335 COVER; BATTERY
BATTERY 115E41L<8MA> (B)
1-53612-029-1
01
1
0803-
51
02.335 COVER; BATTERY
BATTERY 80D26L<TM1> (A)
8-97120-747-0
01
1
0803-
52
02.335 NUT; WING,COVER FIX
BATTERY 80D26L<TM1> M8 WING NUT
0-91118-408-0
02
1
0803-
