◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51156 - NPR BUS(LHD) ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#34372) — 28 parça

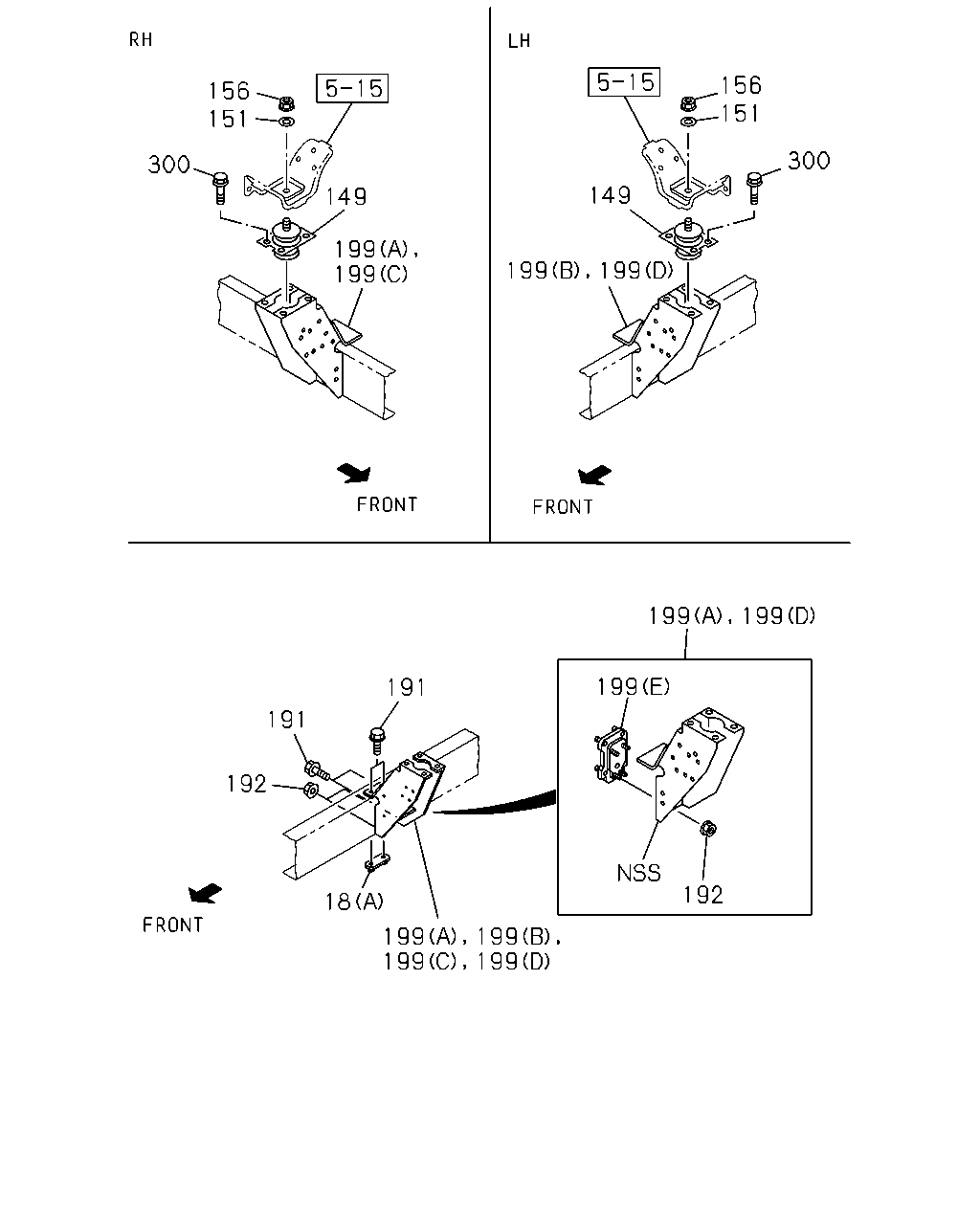

çizim 120645
156 151 156 151 300 300 149 149 199 199 199 199 199 199 199 191 191 192 192 18 199 199 199 199
BalonParca AdiParca NoAdetTipApplied Date
18 09.003 PLATE; MTG BRKT FIX
(A) 		8-97034-139-2 02 1 0803-
18 09.003 PLATE; MTG BRKT FIX
(B) 		8-98029-285-1 02 1 0803-
149 09.023 RUBBER; MTG,CAB,UPR RR 8-98038-868-0 02 1 0803-
151 09.011 WASHER; CAB MTG,RR UPR
ID=16.5 OD=58 		8-97359-040-1 02 1 0803-
156 07.529 NUT; CAB MTG RR
M14 FLANGE 		0-91180-114-0 02 1 0803-
191 09.003 BOLT; BRKT FIX
FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE 		0-28651-240-0 08 1 0803-
191 09.003 BOLT; BRKT FIX
EXC. FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE 		0-28651-240-0 04 1 0803-
192 09.003 NUT; BRKT FIX
02.042 M12 FLANGE 		0-91180-112-0 08 1 0803-
192 09.003 NUT; BRKT FIX
EXC. FRAME STRAIGHT TYPE<7KJ> 02.042 M12 FLANGE 		0-91180-112-0 04 1 0803-
192 09.003 NUT; BRKT FIX
EXC. FRAME STRAIGHT TYPE<7KJ> 02.042 M12 FLANGE 		0-91180-112-0 04 1 0803-
199 09.003 BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98024-778-1 01 1 0803-
199 09.003 BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98024-772-1 01 1 0803-1101
199 09.003 BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98099-144-1 01 1 1102-
199 09.003 BRACKET; CAB RR MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97092-102-5 01 1 0803-
199 09.003 BRACKET; CAB RR MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97092-102-5 01 1 0803-
199 09.003 BRACKET; CAB RR MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98024-771-1 01 1 0803-
199 09.003 BRACKET; CAB RR MTG
TAIWAN EQUIPMENT(B04) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98024-774-3 01 1 0803-
199 09.003 BRACKET; CAB RR MTG
EXC. TAIWAN EQUIPMENT(B04),FRAME STRAIGHT TYPE<7KJ> (A) 		8-98024-770-1 01 1 0803-
300 09.003 BOLT; MTG RUBBER
02.343 M10X20 FLANGE 		0-28651-020-0 08 1 0803-

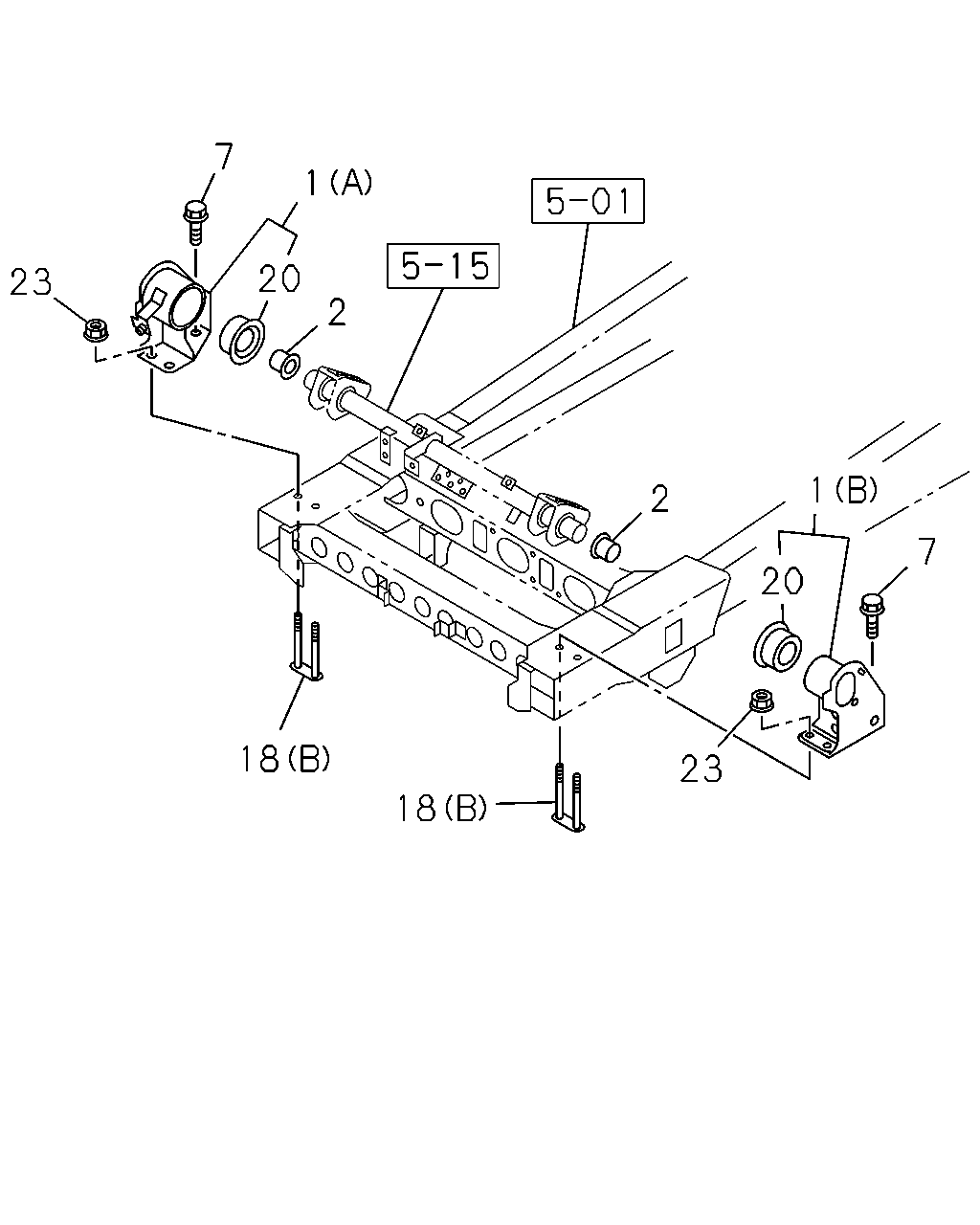

çizim 120670
7 1 20 23 2 1 2 7 20 18 23 18
BalonParca AdiParca NoAdetTipApplied Date
1 09.003 BRACKET; CAB MTG
16.545 (B) 		8-98074-800-0 01 1 0803-
1 09.003 BRACKET; CAB MTG
16.545 (A) 		8-98074-798-0 01 1 0803-
2 09.009 BUSHING; TORSION BAR 8-97061-514-0 02 1 0803-
7 09.003 BOLT; BRKT,CAB TILT
M14X40 FLANGE 		0-28661-440-0 02 1 0803-
18 09.003 PLATE; MTG BRKT FIX
(A) 		8-97034-139-2 02 1 0803-
18 09.003 PLATE; MTG BRKT FIX
(B) 		8-98029-285-1 02 1 0803-
20 09.003 RUBBER; MTG,CAB BRKT 8-98007-037-1 01 1 0803-
20 09.003 RUBBER; MTG,CAB BRKT 8-98007-037-1 01 1 0803-
23 09.003 NUT; MTG BRKT
M14 		8-98039-989-0 04 1 0803-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
