◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10669 - CXM/CXZ LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#3437) — 50 parça
çizim 3646
4 4 4 7
BalonParca AdiParca NoAdetTipApplied Date A B C
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) TAIWAN EQUIPMENT(WW5) (B) 		1-85886-640-0 01 1 9002-9306 ● ● ●
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) TAIWAN EQUIPMENT(WW5) (B) 		1-85886-726-0 01 1 9307- ● ● ●
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-85886-634-0 01 1 9002- ● ● ●
4 LABEL; ENG MAINTENANCE
12PD1 C ENG(43L) (A) 		1-85886-727-0 01 1 9307- ●
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) FIRE TRUCK<RA9> (C) 		1-85875-029-0 01 1 9002-9108 ●
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) FIRE TRUCK<RA9> (C) 		9-83973-102-0 01 1 9109- ●
7 LABEL; EMISSION
CAUTIONS ECE<WX4> 		8-97042-609-0 01 1 9102- ● ● ●

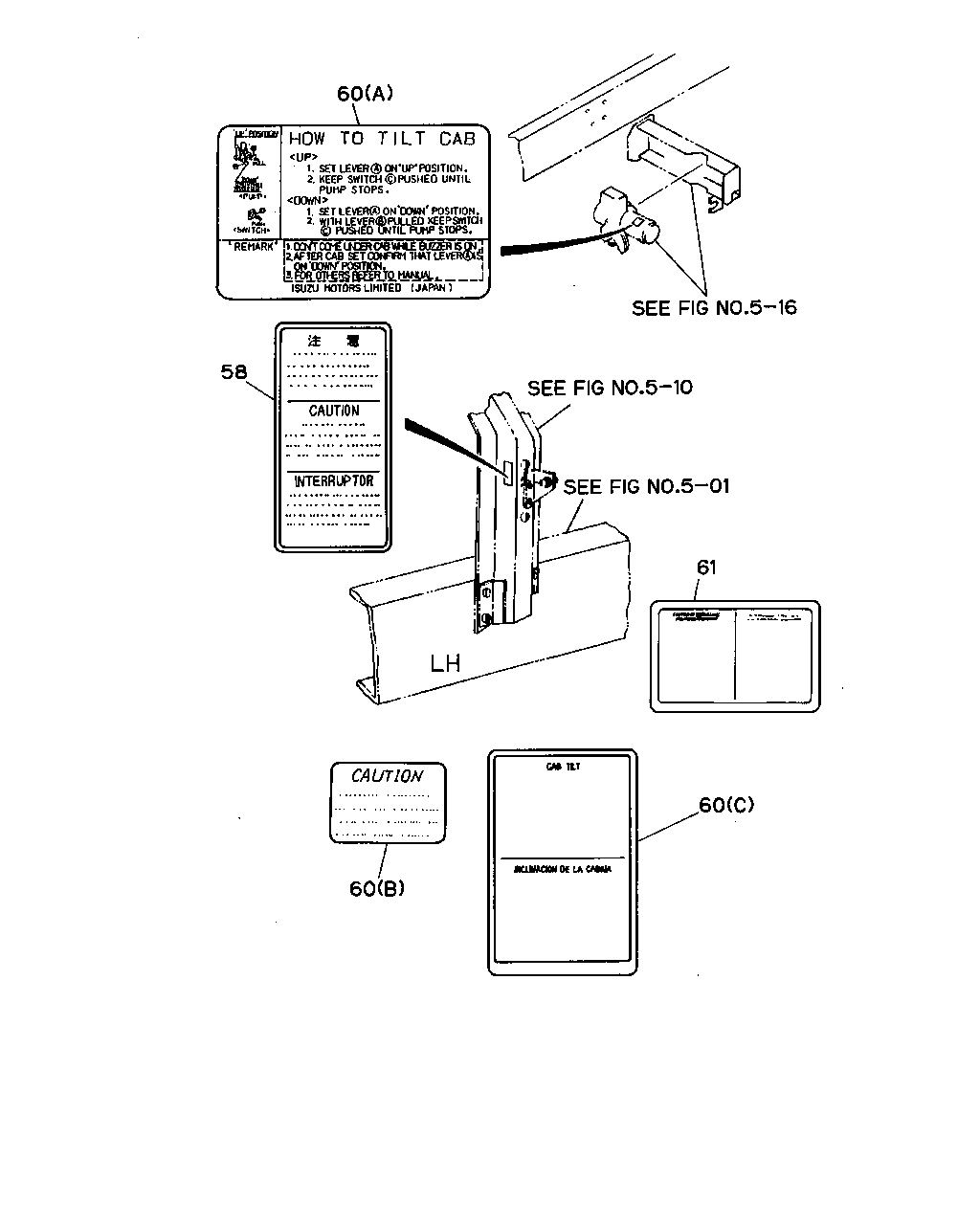

çizim 3958
60 58 61 60 60
BalonParca AdiParca NoAdetTipApplied Date A B C
58 PLATE; CAUTION,ENG START
CAUTIONS ARABIAN<WJ7> 		1-85887-537-0 01 1 9002- ● ● ●
58 PLATE; CAUTION,ENG START
CAUTIONS CHINESE<SL7> 		1-85887-536-0 01 1 9002- ● ● ●
58 PLATE; CAUTION,ENG START
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> 		1-85887-457-0 01 1 9002- ● ● ●
58 PLATE; CAUTION,ENG START
CAUTIONS FRENCH<WJ8> 		1-85887-535-0 01 1 9002- ● ● ●
60 PLATE; CAUTION,CAB TILT
AUTO CAB TILT<WV2> (B) 		1-85883-097-0 02 1 9307- ● ● ●
60 PLATE; CAUTION,CAB TILT
AUTO CAB TILT<WV2> (A) 		1-85883-162-0 01 1 9307- ● ● ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS ARABIAN<WJ7> (C) 		1-85881-529-0 01 1 9002- ● ● ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7> (C) 		1-85881-527-0 01 1 9002- ● ● ●
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (C) 		1-85881-511-0 01 1 9002- ● ● ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS FRENCH<WJ8> (C) 		1-85881-528-0 01 1 9002- ● ● ●
61 PLATE; CAUTION,BRAKE LOCK
POWER BRAKE LOCK SYSTEM(J50) 		1-85881-645-0 01 1 9002- ●

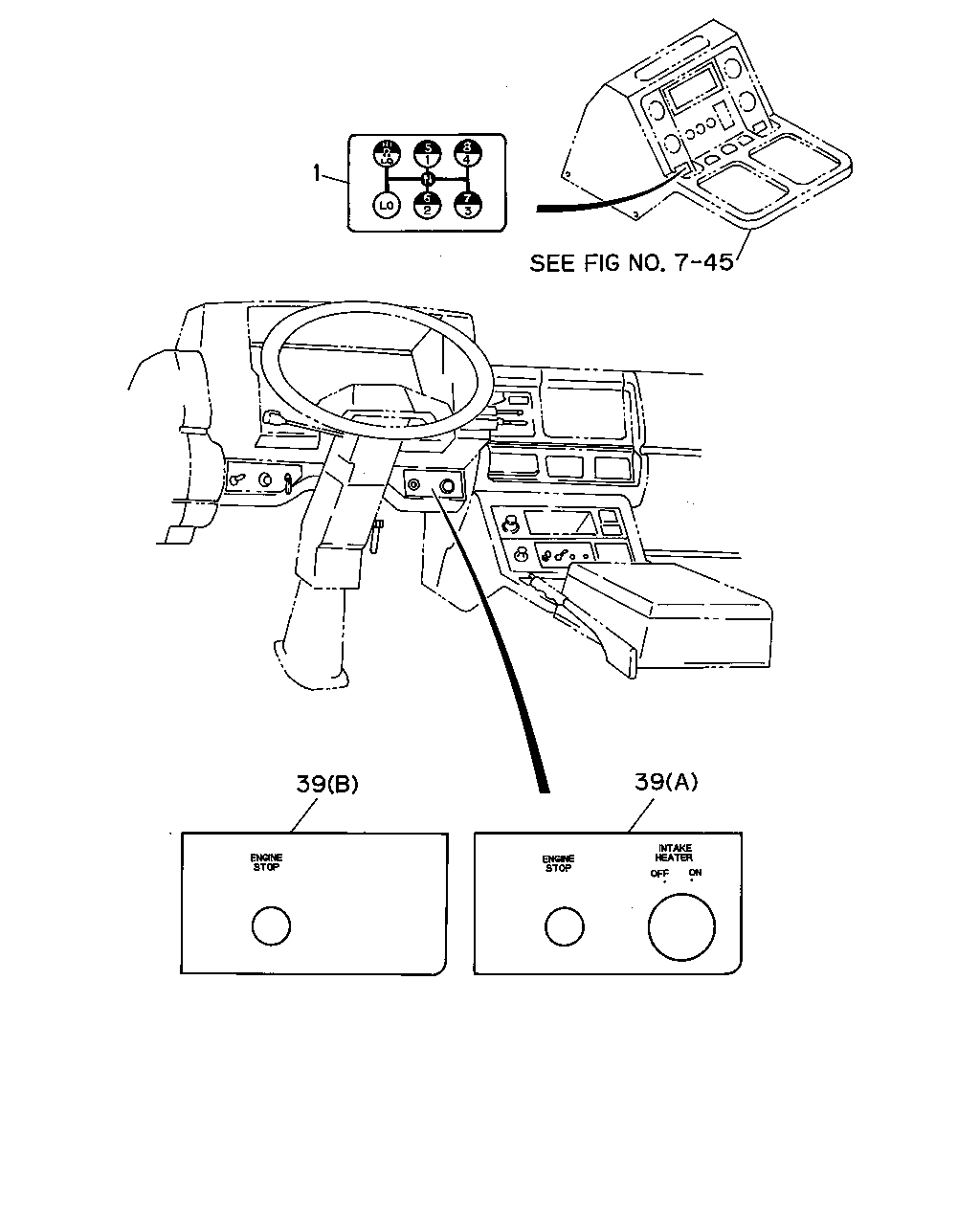

çizim 4924
1 39 39
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PLATE; CAUTION,SHIFT PATTERN
RTO11609B M/T FULLER(X4Z) 		1-85881-521-1 01 1 9002-9306 ● ●
1 PLATE; CAUTION,SHIFT PATTERN
RTO11613 M/T FULLER(MV6),RT11609A M/T FULLER(PQ4) ,RTX11609B M/T FULLER(X8W) 		1-85881-519-0 01 1 9002- ● ●
39 PLATE; CAUTION,ENG STOP
INTAKE HEATER<SL2> (A) 		1-85877-230-0 01 1 9002- ● ● ●
39 PLATE; CAUTION,ENG STOP
EXC. INTAKE HEATER<SL2> (B) 		1-85877-199-0 01 1 9002- ● ● ●
çizim 4925
186 173
BalonParca AdiParca NoAdetTipApplied Date A B C
173 PLATE; CAUTION,FUEL FILTER
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-85886-176-0 01 1 9307- ● ● ●
186 PLATE; CAUTION,PARTIAL OIL FILTER
6RB1 STD ENG(07L) CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> EXC. OIL FILTER CENTRIFUGAL<E6S> 		1-85886-180-0 01 1 9307- ● ●

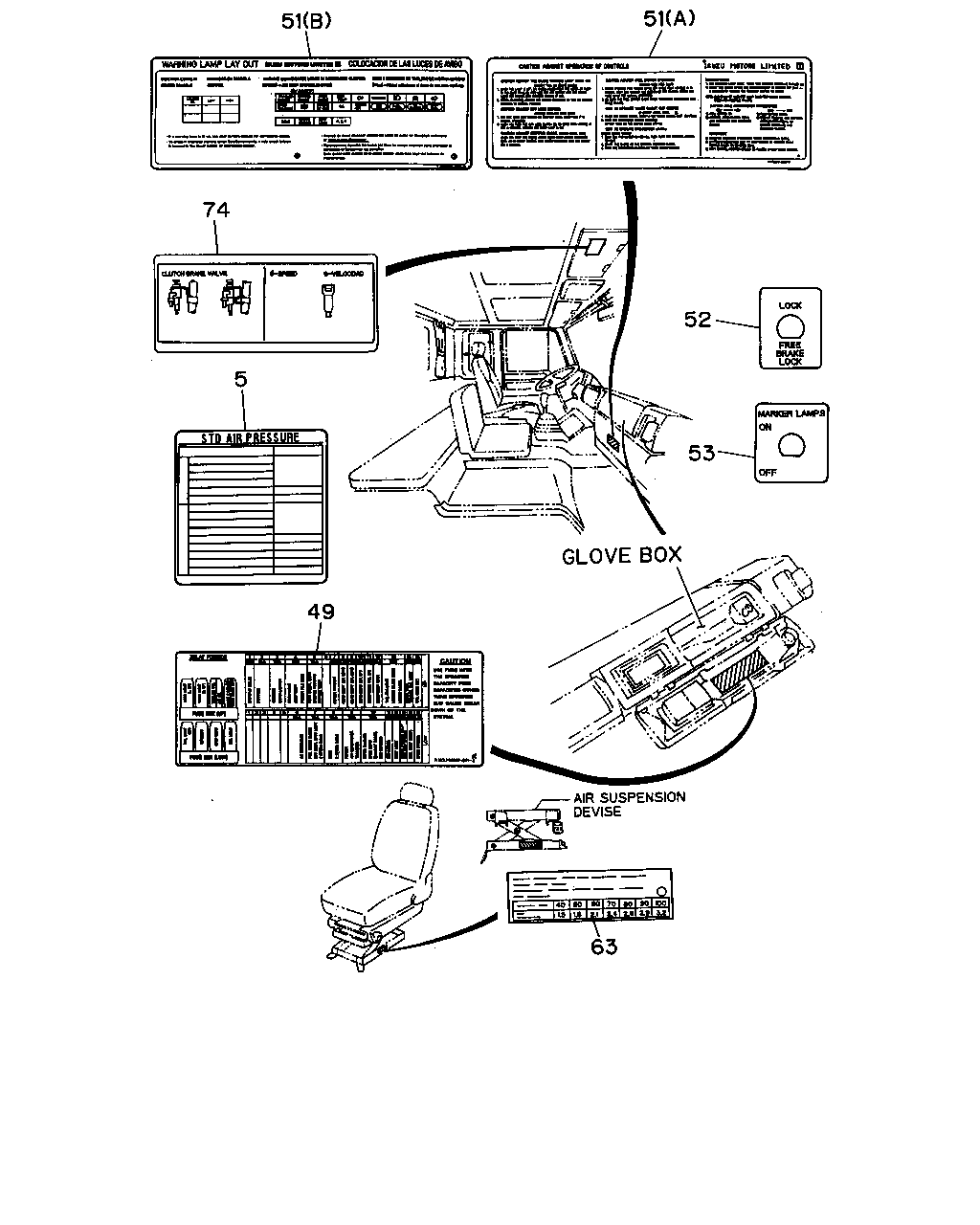

çizim 38767
51 51 74 5 49 63 53 52
BalonParca AdiParca NoAdetTipApplied Date A B C
5 LABEL; TIRE AIR PRESSURE 1-85881-387-0 01 1 9002-9003 ● ● ●
5 LABEL; TIRE AIR PRESSURE 1-85881-655-0 01 1 9004- ● ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		1-85887-795-1 01 1 9002- ● ● ●
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS CHINESE<SL7> 		1-85887-691-4 01 1 9002- ● ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85880-572-0 01 1 9002- ● ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (B) 		1-85887-514-1 01 1 9002- ● ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (A) 		1-85880-570-0 01 1 9002- ● ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (B) 		1-85887-512-1 01 1 9002- ● ● ●
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (A) 		1-85880-569-0 01 1 9002- ● ● ●
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (B) 		1-85887-454-1 01 1 9002- ● ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (A) 		1-85880-571-0 01 1 9002- ● ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (B) 		1-85887-513-2 01 1 9002- ● ● ●
52 PLATE; CAUTION,BRAKE LOCK
POWER BRAKE LOCK SYSTEM(J50) 		1-85877-314-0 01 1 9002- ●
53 PLATE; CAUTION,MARKER LAMP
MARKER LAMP THREE AMBER<WD9> 		1-85877-356-0 01 1 9002- ● ● ●
63 PLATE; CAUTION,SEAT AIR
CAUTIONS ARABIAN<WJ7> SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) EXC. TAIWAN EQUIPMENT(WW5) 		1-75537-202-0 01 1 9002- ● ● ●
63 PLATE; CAUTION,SEAT AIR
CAUTIONS CHINESE<SL7> SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) EXC. TAIWAN EQUIPMENT(WW5) 		1-75537-200-0 01 1 9002- ● ● ●
63 PLATE; CAUTION,SEAT AIR
CAUTIONS FRENCH<WJ8> SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) EXC. TAIWAN EQUIPMENT(WW5) 		1-75537-201-0 01 1 9002- ● ● ●
63 PLATE; CAUTION,SEAT AIR
SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT(WW5), CAUTIONS SPANISH<YN1> 		1-75537-199-0 01 1 9002- ● ● ●
63 PLATE; CAUTION,SEAT AIR
SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) TAIWAN EQUIPMENT(WW5) 		1-75537-199-0 01 1 9002- ● ● ●
63 PLATE; CAUTION,SEAT AIR
SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) CAUTIONS SPANISH<YN1> EXC. TAIWAN EQUIPMENT(WW5) 		1-75537-203-0 01 1 9002- ● ● ●
74 PLATE; CAUTION,CHANGE LEV
RTO11613 M/T FULLER(MV6) COUNTER SHAFT BRAKE<BAP> CAUTIONS ARABIAN<WJ7> 		1-85881-619-0 01 1 9307- ● ●
74 PLATE; CAUTION,CHANGE LEV
RTO11613 M/T FULLER(MV6) COUNTER SHAFT BRAKE<BAP> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-85881-617-0 01 1 9307- ● ●
74 PLATE; CAUTION,CHANGE LEV
RTO11613 M/T FULLER(MV6) COUNTER SHAFT BRAKE<BAP> CAUTIONS FRENCH<WJ8> 		1-85881-618-0 01 1 9307- ● ●
74 PLATE; CAUTION,CHANGE LEV
RTX11609B M/T FULLER(X8W) COUNTER SHAFT BRAKE<BAP> CAUTIONS ARABIAN<WJ7> 		1-85881-616-0 01 1 9307- ● ●
74 PLATE; CAUTION,CHANGE LEV
RTX11609B M/T FULLER(X8W) COUNTER SHAFT BRAKE<BAP> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-85881-614-0 01 1 9307- ● ●
74 PLATE; CAUTION,CHANGE LEV
RTX11609B M/T FULLER(X8W) COUNTER SHAFT BRAKE<BAP> CAUTIONS FRENCH<WJ8> 		1-85881-615-0 01 1 9307- ● ●
