Sayfa 4-50 - Isuzu EPC

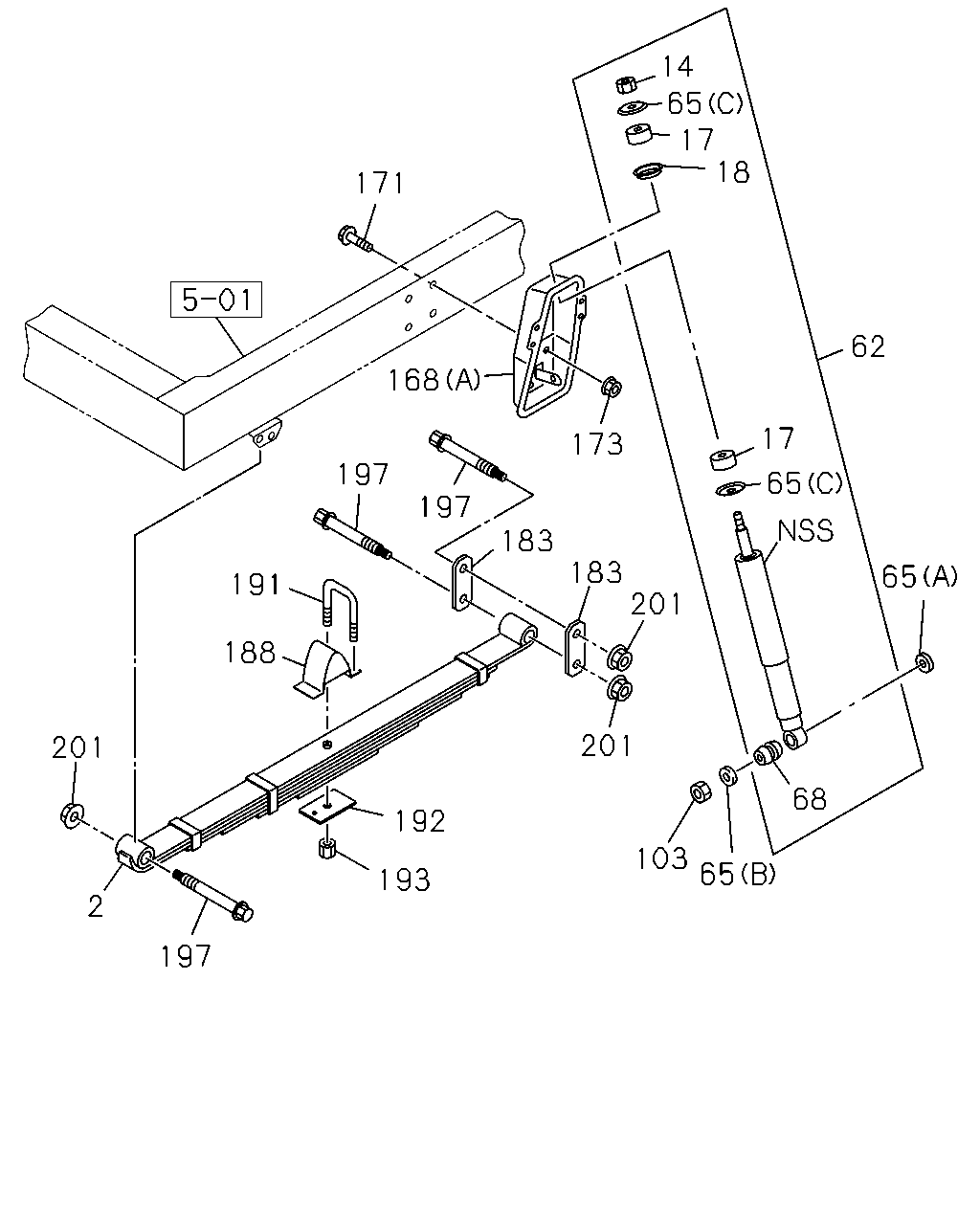

4-50 — FRONT SUSPENSION (#34362) — 144 parça

14 65 17 18 171 62 18 17 173 197 65 197 183 183 201 65 191 188 201 201 68 192 103 65 193 2 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98190-545-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98190-546-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-541-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-542-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-543-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-544-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-539-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-540-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98141-450-0	01	1	0906-0909
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98154-915-0	01	1	0910-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 6-LEAF	8-98154-915-0	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98141-451-0	01	1	0906-0909
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98154-916-0	01	1	0910-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 6-LEAF	8-98154-916-0	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-454-0	01	1	0906-0909
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-456-0	01	1	0910-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>,MINI BUS CHASSIS(V4B) 6-LEAF	8-98141-456-0	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-455-0	01	1	0906-0909
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-457-0	01	1	0910-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>,MINI BUS CHASSIS(V4B) 6-LEAF	8-98141-457-0	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	0803-0803
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	0803-0905
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-924-0	01	1	0906-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,MINI BUS CHASSIS(V4B),FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-924-0	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	0803-0803
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	0803-0905
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-923-0	01	1	0906-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,MINI BUS CHASSIS(V4B),FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-923-0	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98079-922-0	01	1	0803-0905
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-922-0	01	1	0906-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-922-0	01	1	1106-1404
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. MINI BUS CHASSIS(V4B),FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-922-0	01	1	1405-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98079-920-0	01	1	0803-0905
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-920-0	01	1	0906-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-920-0	01	1	1106-1404
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. MINI BUS CHASSIS(V4B),FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-920-0	01	1	1405-
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	0803-
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0803-
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	0803-
62	07.345 ABSORBER ASM; SHOCK,FRT FRONT WIDE TREAD<7GV>	8-98079-867-0	02	1	0906-0909
62	07.345 ABSORBER ASM; SHOCK,FRT FRONT WIDE TREAD<7GV>	8-98154-636-0	02	1	0910-
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98080-129-0	02	1	0803-0905
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>	8-98080-129-1	02	1	0906-
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV> BEST VALUE PARTS	5-87610-153-0	02	1	1304-
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	0803-
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0803-
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	0803-
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	0803-
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	0803-
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	0803-
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	0803-
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	0803-
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0803-0906
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR G.V.W. 7.5-8.0TON(RPY)	8-98033-516-0	02	1	0907-0907
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0908-
191	07.417 U-BOLT; FRT SPR FRAME STRAIGHT TYPE<7KJ> L=135	5-51171-015-3	04	1	0803-0803
191	07.417 U-BOLT; FRT SPR G.V.W. 7.0-7.5TON(RPX) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> L=135	5-51171-015-4	04	1	0803-1404
191	07.417 U-BOLT; FRT SPR FRAME STRAIGHT TYPE<7KJ> L=135	5-51171-015-4	04	1	0803-1404
191	07.417 U-BOLT; FRT SPR G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> L=135	5-51171-015-4	04	1	1405-
191	07.417 U-BOLT; FRT SPR FRAME STRAIGHT TYPE<7KJ> L=135	5-51171-015-4	04	1	1405-
191	07.417 U-BOLT; FRT SPR EXC. FRAME STRAIGHT TYPE<7KJ> L=115	8-94412-504-2	04	1	0803-0803
192	07.436 PIECE; DIST EXC. FRAME STRAIGHT TYPE<7KJ>	8-97093-554-1	02	1	0803-
193	07.417 NUT; U BOLT G.V.W. 7.0-7.5TON(RPX) 06.174 M14 FLANGE	8-97360-124-0	08	1	0803-
193	07.417 NUT; U BOLT G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 06.174 M14 FLANGE	8-97360-124-0	08	1	0803-
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	0803-
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	0803-
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16	0-91110-516-0	06	1	0803-
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	0803-

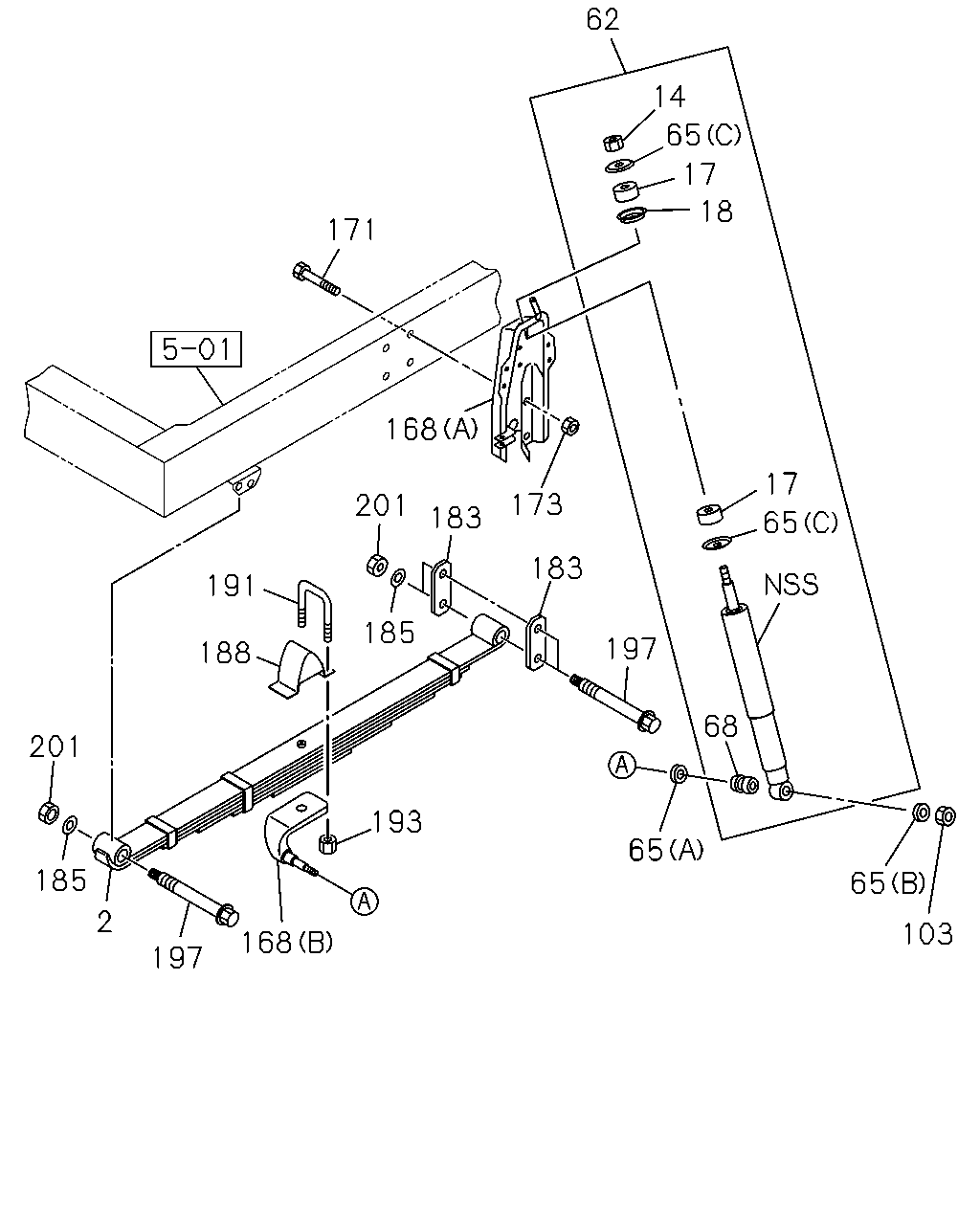

62 14 65 17 18 171 168 17 173 201 183 65 183 191 185 197 188 68 201 193 65 185 65 2 103 168 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98190-545-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98190-546-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-541-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-542-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-543-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-544-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-539-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-540-1	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98141-450-0	01	1	0906-0909
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98154-915-0	01	1	0910-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 6-LEAF	8-98154-915-0	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98141-451-0	01	1	0906-0909
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98154-916-0	01	1	0910-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 6-LEAF	8-98154-916-0	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-454-0	01	1	0906-0909
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-456-0	01	1	0910-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>,MINI BUS CHASSIS(V4B) 6-LEAF	8-98141-456-0	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-455-0	01	1	0906-0909
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-457-0	01	1	0910-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>,MINI BUS CHASSIS(V4B) 6-LEAF	8-98141-457-0	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	0803-0803
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	0803-0905
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-924-0	01	1	0906-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,MINI BUS CHASSIS(V4B),FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-924-0	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	0803-0803
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	0803-0905
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-923-0	01	1	0906-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,MINI BUS CHASSIS(V4B),FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-923-0	01	1	1106-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98079-922-0	01	1	0803-0905
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-922-0	01	1	0906-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-922-0	01	1	1106-1404
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. MINI BUS CHASSIS(V4B),FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-922-0	01	1	1405-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-98079-920-0	01	1	0803-0905
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-920-0	01	1	0906-1105
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-920-0	01	1	1106-1404
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. MINI BUS CHASSIS(V4B),FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-920-0	01	1	1405-
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	0803-
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0803-
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	0803-
62	07.345 ABSORBER ASM; SHOCK,FRT FRONT WIDE TREAD<7GV>	8-98079-867-0	02	1	0906-0909
62	07.345 ABSORBER ASM; SHOCK,FRT FRONT WIDE TREAD<7GV>	8-98154-636-0	02	1	0910-
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98080-129-0	02	1	0803-0905
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>	8-98080-129-1	02	1	0906-
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV> BEST VALUE PARTS	5-87610-153-0	02	1	1304-
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	0803-
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0803-
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	0803-
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	0803-
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	0803-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-556-0	01	1	0906-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-557-0	01	1	0906-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-406-1	01	1	0906-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-407-1	01	1	0906-
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-98015-001-0	01	1	0803-0905
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-001-0	01	1	0906-
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-98015-002-0	01	1	0803-0905
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-002-0	01	1	0906-
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	0803-
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	0803-
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	0803-
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> ID=16.5	8-98011-489-0	06	1	0803-
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0803-0906
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR G.V.W. 7.5-8.0TON(RPY)	8-98033-516-0	02	1	0907-0907
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0908-
191	07.417 U-BOLT; FRT SPR FRAME STRAIGHT TYPE<7KJ> L=135	5-51171-015-3	04	1	0803-0803
191	07.417 U-BOLT; FRT SPR G.V.W. 7.0-7.5TON(RPX) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> L=135	5-51171-015-4	04	1	0803-1404
191	07.417 U-BOLT; FRT SPR FRAME STRAIGHT TYPE<7KJ> L=135	5-51171-015-4	04	1	0803-1404
191	07.417 U-BOLT; FRT SPR G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> L=135	5-51171-015-4	04	1	1405-
191	07.417 U-BOLT; FRT SPR FRAME STRAIGHT TYPE<7KJ> L=135	5-51171-015-4	04	1	1405-
191	07.417 U-BOLT; FRT SPR EXC. FRAME STRAIGHT TYPE<7KJ> L=115	8-94412-504-2	04	1	0803-0803
193	07.417 NUT; U BOLT G.V.W. 7.0-7.5TON(RPX) 06.174 M14 FLANGE	8-97360-124-0	08	1	0803-
193	07.417 NUT; U BOLT G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 06.174 M14 FLANGE	8-97360-124-0	08	1	0803-
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	0803-
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	0803-
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16	0-91110-516-0	06	1	0803-
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	0803-
