Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#34358) — 205 parça

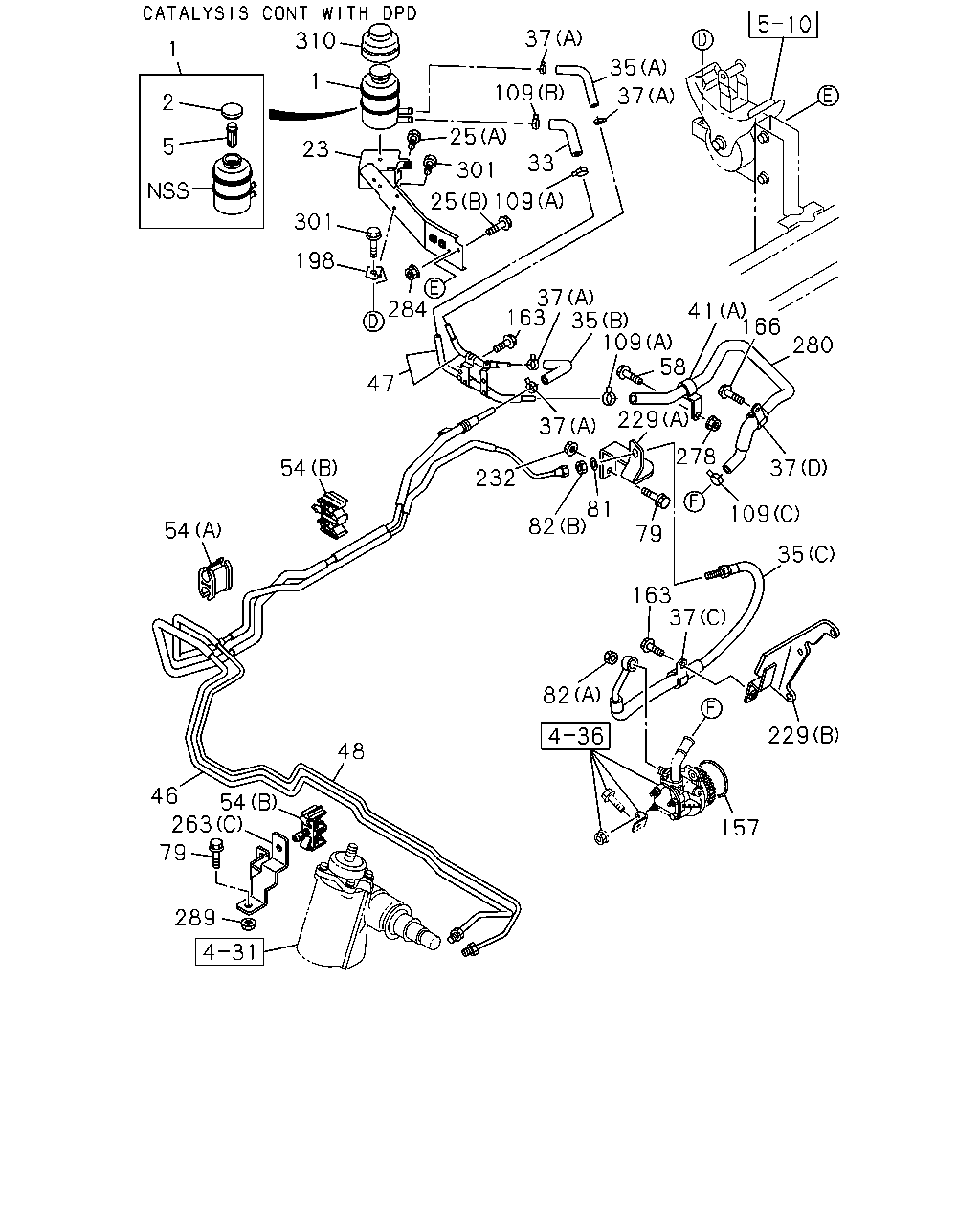

37 310 1 35 1 109 37 163 2 33 35 37 25 109 5 23 301 37 198 25 47 232 301 46 229 81 82 166 54 79 109 280 289 37 48 54 82 109 54 35 263 284 79 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0803-
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0803-
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0803-
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0803-
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0803-
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0803-
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	0803-
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	0803-
35	06.671 HOSE; RETURN,P/S TANK FRAME STRAIGHT TYPE<7KJ> (C)	8-97389-832-2	01	1	0803-
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	04	1	0803-0911
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	0912-
37	01.762 CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (C) ID=26 L=26	1-09701-236-0	01	1	0803-
37	01.762 CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=32 L=35	1-09701-244-0	01	1	0803-
37	01.762 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (B) ID=21	8-94242-034-0	02	1	0803-0906
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRONT WIDE TREAD<7GV> L=2610	8-98135-831-0	01	1	0906-0906
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=2610	8-98135-831-0	01	1	0907-
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRAME STRAIGHT TYPE<7KJ> L=2625	8-98095-543-1	01	1	0803-0808
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRAME STRAIGHT TYPE<7KJ> L=2651	8-98131-674-0	01	1	0809-0905
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> L=2651	8-98131-674-0	01	1	0906-
47	06.671 PIPE; RETURN FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM)	8-98033-896-4	01	1	0803-
47	06.671 PIPE; RETURN FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98083-166-1	01	1	0803-
47	06.671 PIPE; RETURN EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-933-2	01	1	0803-0906
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRONT WIDE TREAD<7GV> L=2809	8-98135-829-0	01	1	0906-0906
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=2809	8-98135-829-0	01	1	0907-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRAME STRAIGHT TYPE<7KJ> L=2830	8-98095-541-1	01	1	0803-0808
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRAME STRAIGHT TYPE<7KJ> L=2846	8-98131-673-0	01	1	0809-0905
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> L=2846	8-98131-673-0	01	1	0906-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRAME STRAIGHT TYPE<7KJ>	8-98068-080-1	01	1	0803-0906
54	06.672 CLIP; OIL PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=10X2 H=22	8-94252-455-2	01	1	0803-
54	06.672 CLIP; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	02	1	0803-
54	06.672 CLIP; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	02	1	0803-
79	06.672 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-
79	06.672 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0803-0906
81	06.672 WASHER; LK,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0803-
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0803-0906
82	06.672 NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0907-
82	06.672 NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> 06.897 (B) M16	8-94370-339-0	01	1	0803-
109	06.672 CLIP; RUBBER HOSE (C) ID=21	8-94242-034-0	01	1	0803-0911
109	06.672 CLIP; RUBBER HOSE 04.681 (C) ID=21	8-98150-355-0	01	1	0912-
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0803-1003
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-
109	06.672 CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=21	8-94242-034-0	02	1	0803-0911
109	06.672 CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> 04.681 (A) ID=21	8-98150-355-0	02	1	0912-
109	06.672 CLIP; RUBBER HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=10X2 H=22	8-94252-455-2	01	1	0803-0906
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	0803-
163	06.671 BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-
163	06.671 BOLT; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	07	1	0803-0906
166	06.672 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0803-
229	06.606 BRACKET; HOSE,POWER STRG FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-341-0	01	1	0803-
229	06.606 BRACKET; HOSE,POWER STRG FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98034-114-2	01	1	0803-1106
229	06.606 BRACKET; HOSE,POWER STRG FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B)	8-98011-639-1	01	1	1107-
232	06.672 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-
263	06.672 BRACKET; P/S PIPE EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (E)	8-98034-113-0	01	1	0803-
263	06.672 BRACKET; P/S PIPE EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (C)	8-98102-845-0	01	1	0803-
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98006-233-1	01	1	0803-0906
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98047-047-1	02	1	0803-0906
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98047-048-2	01	1	0803-0906
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98052-248-1	01	1	0803-
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98052-247-1	01	1	0803-
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98082-972-0	01	1	0803-
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ),CATALYSIS CONTROL WITH DPD(8JM)	8-98082-973-0	01	1	0803-
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRAME STRAIGHT TYPE<7KJ> L=260	0-09814-400-0	01	1	0803-0906
284	06.670 NUT; PIPE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-
289	06.673 NUT; BRKT,POWER STRG FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0803-

37 310 1 35 1 109 37 2 25 5 23 33 301 301 198 284 37 163 35 109 58 41 166 280 47 229 37 278 54 37 232 81 82 109 54 79 35 163 37 82 229 48 46 54 263 157 79 289 25 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0803-
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0803-
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0803-
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0803-
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0803-
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0803-
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	0803-
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	0803-
35	06.671 HOSE; RETURN,P/S TANK FRAME STRAIGHT TYPE<7KJ> (C)	8-97389-832-2	01	1	0803-
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	04	1	0803-0911
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	0912-
37	01.762 CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (C) ID=26 L=26	1-09701-236-0	01	1	0803-
37	01.762 CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=32 L=35	1-09701-244-0	01	1	0803-
37	01.762 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (B) ID=21	8-94242-034-0	02	1	0803-0906
41	06.672 CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98074-004-0	01	1	0803-
41	06.672 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=21	8-94242-034-0	01	1	0803-0906
41	06.672 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 08.846 (C) ID=21.7	8-97203-074-0	01	1	0803-0906
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRONT WIDE TREAD<7GV> L=2610	8-98135-831-0	01	1	0906-0906
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=2610	8-98135-831-0	01	1	0907-
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRAME STRAIGHT TYPE<7KJ> L=2625	8-98095-543-1	01	1	0803-0808
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRAME STRAIGHT TYPE<7KJ> L=2651	8-98131-674-0	01	1	0809-0905
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> L=2651	8-98131-674-0	01	1	0906-
47	06.671 PIPE; RETURN FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM)	8-98033-896-4	01	1	0803-
47	06.671 PIPE; RETURN FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98083-166-1	01	1	0803-
47	06.671 PIPE; RETURN EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-933-2	01	1	0803-0906
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRONT WIDE TREAD<7GV> L=2809	8-98135-829-0	01	1	0906-0906
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=2809	8-98135-829-0	01	1	0907-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRAME STRAIGHT TYPE<7KJ> L=2830	8-98095-541-1	01	1	0803-0808
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRAME STRAIGHT TYPE<7KJ> L=2846	8-98131-673-0	01	1	0809-0905
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> L=2846	8-98131-673-0	01	1	0906-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRAME STRAIGHT TYPE<7KJ>	8-98068-080-1	01	1	0803-0906
54	06.672 CLIP; OIL PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=10X2 H=22	8-94252-455-2	01	1	0803-
54	06.672 CLIP; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	02	1	0803-
54	06.672 CLIP; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	02	1	0803-
58	06.672 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-
79	06.672 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-
79	06.672 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0803-0906
81	06.672 WASHER; LK,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0803-
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0803-0906
82	06.672 NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0907-
82	06.672 NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> 06.897 (B) M16	8-94370-339-0	01	1	0803-
109	06.672 CLIP; RUBBER HOSE (C) ID=21	8-94242-034-0	01	1	0803-0911
109	06.672 CLIP; RUBBER HOSE 04.681 (C) ID=21	8-98150-355-0	01	1	0912-
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0803-1003
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-
109	06.672 CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=21	8-94242-034-0	02	1	0803-0911
109	06.672 CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> 04.681 (A) ID=21	8-98150-355-0	02	1	0912-
109	06.672 CLIP; RUBBER HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=10X2 H=22	8-94252-455-2	01	1	0803-0906
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	0803-
163	06.671 BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-
163	06.671 BOLT; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	07	1	0803-0906
166	06.672 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0803-
229	06.606 BRACKET; HOSE,POWER STRG FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-341-0	01	1	0803-
229	06.606 BRACKET; HOSE,POWER STRG FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98034-114-2	01	1	0803-1106
229	06.606 BRACKET; HOSE,POWER STRG FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B)	8-98011-639-1	01	1	1107-
232	06.672 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-
263	06.672 BRACKET; P/S PIPE EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (E)	8-98034-113-0	01	1	0803-
263	06.672 BRACKET; P/S PIPE EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (C)	8-98102-845-0	01	1	0803-
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98006-233-1	01	1	0803-0906
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98047-047-1	02	1	0803-0906
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98047-048-2	01	1	0803-0906
278	06.670 NUT; HOSE CLIP FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98052-248-1	01	1	0803-
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98052-247-1	01	1	0803-
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98082-972-0	01	1	0803-
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ),CATALYSIS CONTROL WITH DPD(8JM)	8-98082-973-0	01	1	0803-
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRAME STRAIGHT TYPE<7KJ> L=260	0-09814-400-0	01	1	0803-0906
284	06.670 NUT; PIPE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-
289	06.673 NUT; BRKT,POWER STRG FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0803-

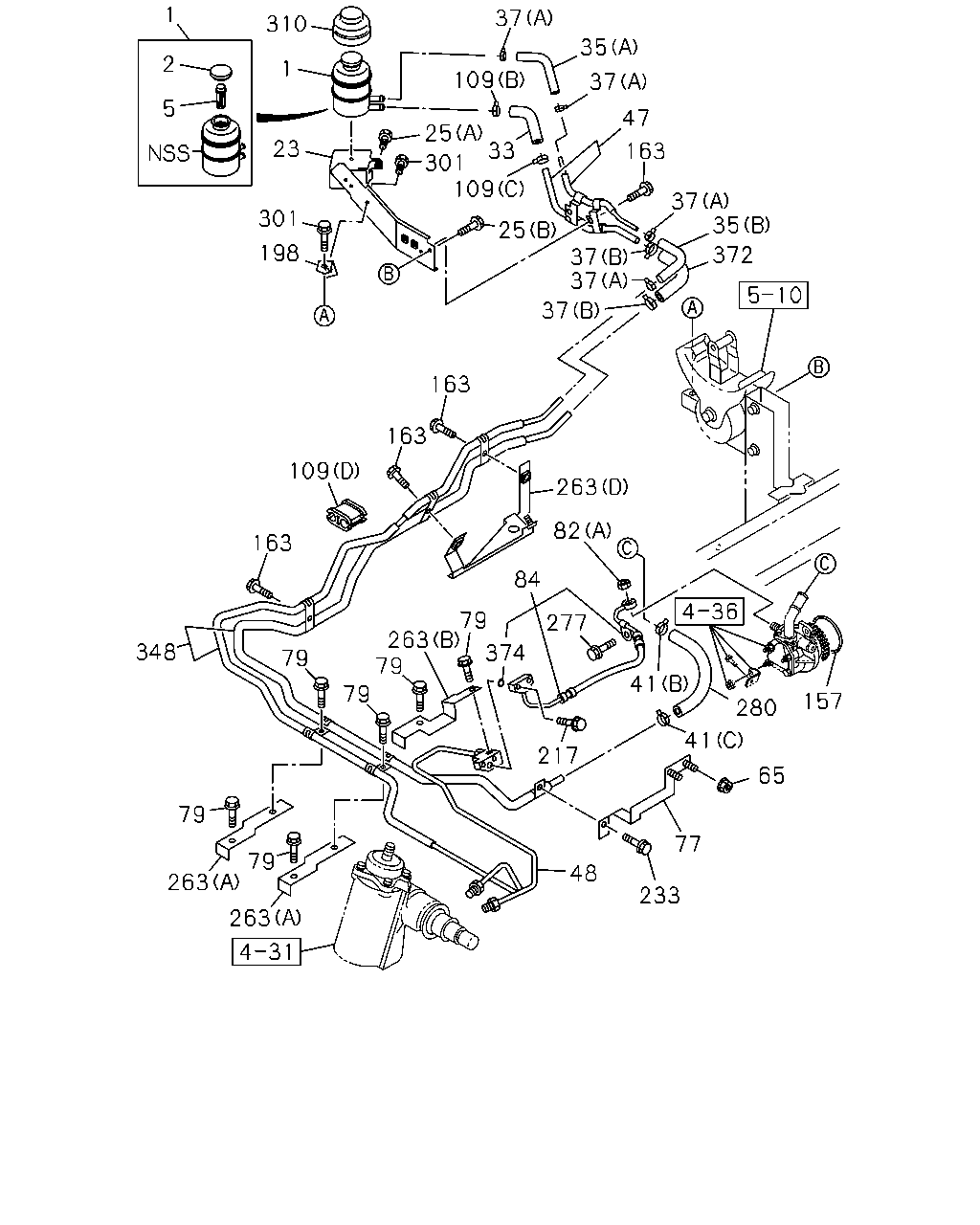

1 37 310 35 2 1 109 37 5 47 25 33 23 163 301 109 37 35 25 301 198 372 37 37 37 163 163 109 263 82 163 84 79 263 79 277 348 374 79 41 280 79 157 41 217 65 79 77 79 48 263 233 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0803-
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0803-
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0803-
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0803-
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0803-
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0803-
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	0803-
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	0803-
35	06.671 HOSE; RETURN,P/S TANK FRAME STRAIGHT TYPE<7KJ> (C)	8-97389-832-2	01	1	0803-
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	04	1	0803-0911
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	0912-
37	01.762 CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (C) ID=26 L=26	1-09701-236-0	01	1	0803-
37	01.762 CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=32 L=35	1-09701-244-0	01	1	0803-
37	01.762 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (B) ID=21	8-94242-034-0	02	1	0803-0906
41	06.672 CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98074-004-0	01	1	0803-
41	06.672 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=21	8-94242-034-0	01	1	0803-0906
41	06.672 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 08.846 (C) ID=21.7	8-97203-074-0	01	1	0803-0906
47	06.671 PIPE; RETURN FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM)	8-98033-896-4	01	1	0803-
47	06.671 PIPE; RETURN FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98083-166-1	01	1	0803-
47	06.671 PIPE; RETURN EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-933-2	01	1	0803-0906
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRONT WIDE TREAD<7GV> L=2809	8-98135-829-0	01	1	0906-0906
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=2809	8-98135-829-0	01	1	0907-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRAME STRAIGHT TYPE<7KJ> L=2830	8-98095-541-1	01	1	0803-0808
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRAME STRAIGHT TYPE<7KJ> L=2846	8-98131-673-0	01	1	0809-0905
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> L=2846	8-98131-673-0	01	1	0906-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRAME STRAIGHT TYPE<7KJ>	8-98068-080-1	01	1	0803-0906
65	06.672 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0906
77	06.672 BRACKET; POWER STEERING HOSE EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-049-2	01	1	0803-0906
79	06.672 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-
79	06.672 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0803-0906
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0803-0906
82	06.672 NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0907-
82	06.672 NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> 06.897 (B) M16	8-94370-339-0	01	1	0803-
84	06.670 HOSE; FLEX,P/S EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-698-3	01	1	0803-0906
109	06.672 CLIP; RUBBER HOSE (C) ID=21	8-94242-034-0	01	1	0803-0911
109	06.672 CLIP; RUBBER HOSE 04.681 (C) ID=21	8-98150-355-0	01	1	0912-
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0803-1003
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-
109	06.672 CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=21	8-94242-034-0	02	1	0803-0911
109	06.672 CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> 04.681 (A) ID=21	8-98150-355-0	02	1	0912-
109	06.672 CLIP; RUBBER HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=10X2 H=22	8-94252-455-2	01	1	0803-0906
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	0803-
163	06.671 BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-
163	06.671 BOLT; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	07	1	0803-0906
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0803-
217	06.672 BOLT; FLEX HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0803-0906
233	06.672 BOLT; PIPE CLIP,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0906
263	06.672 BRACKET; P/S PIPE EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (E)	8-98034-113-0	01	1	0803-
263	06.672 BRACKET; P/S PIPE EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (C)	8-98102-845-0	01	1	0803-
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98006-233-1	01	1	0803-0906
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98047-047-1	02	1	0803-0906
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98047-048-2	01	1	0803-0906
277	06.672 BOLT; HOSE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0803-0906
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98052-248-1	01	1	0803-
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98052-247-1	01	1	0803-
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98082-972-0	01	1	0803-
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ),CATALYSIS CONTROL WITH DPD(8JM)	8-98082-973-0	01	1	0803-
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRAME STRAIGHT TYPE<7KJ> L=260	0-09814-400-0	01	1	0803-0906
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0803-
348	06.671 PIPE; OIL,P/S PRESS EXC. FRAME STRAIGHT TYPE<7KJ>	8-98101-609-0	01	1	0803-0906
372	06.673 HOSE; RUBBER EXC. FRAME STRAIGHT TYPE<7KJ> 06.672	8-98000-700-0	01	1	0803-0906
374	06.673 GASKET; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ>	8-98139-036-0	01	1	0803-0906

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
