Isuzu WW
▶
TRUCKS
▶
NPR
▶
51156 - NPR BUS(LHD)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

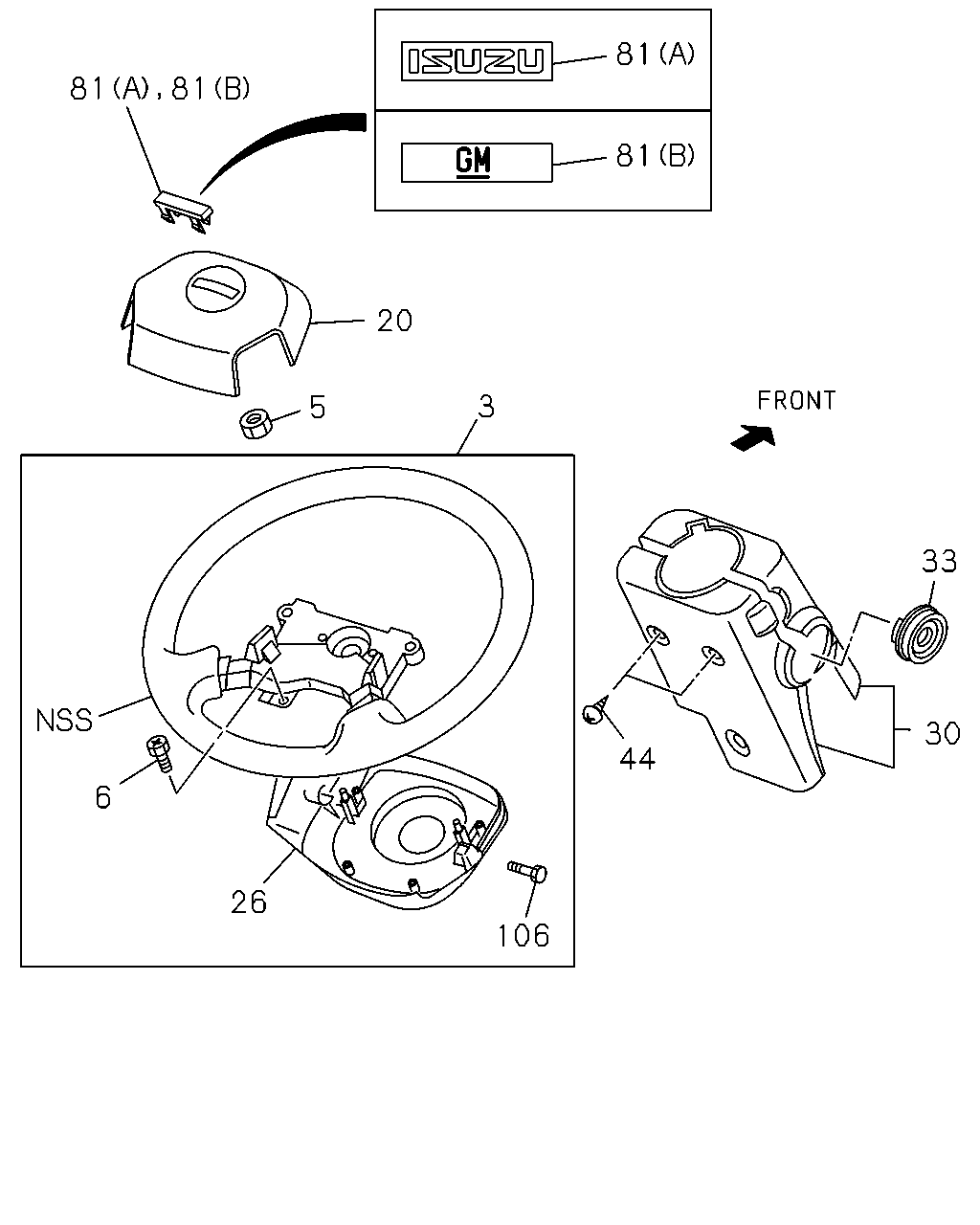

4-30 — STEERING WHEEL AND COWL
(#34355) — 13 parça
81
81
81
81
20
5
3
6
26
106
44
30
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
06.513 WHEEL; STRG
DARK GRAY
8-97412-556-1
01
1
0803-
5
06.515 NUT; STRG WHEEL TO SHAFT
M14
0-91111-514-0
01
1
0803-
6
02.820 SCREW; HORN SPR CONTACT
M4X12
8-97167-588-0
04
1
0803-
20
06.512 SHROUD; PAD,STRG WHEEL
DARK GRAY
8-97405-985-1
01
1
0803-
26
06.514 COVER; STRG WHEEL,LWR
DARK GRAY
8-97409-275-2
01
1
0803-
30
06.518 COWL; STEERING
DARK GRAY
8-97405-356-5
01
1
0803-1110
30
06.518 COWL; STEERING
DARK GRAY
8-97418-761-1
01
1
1111-
33
06.518 COVER; STRG COWL
DARK GRAY
8-97409-495-0
01
1
0803-
44
06.514 SCREW; STRG COWL
M5X12
0-38050-512-0
03
1
0803-
81
02.820 EMBLEM; STRG WHEEL
EXC. ISUZU BRAND<7WL> (B) DARK GRAY
8-97405-987-0
01
1
0804-
81
02.820 EMBLEM; STRG WHEEL
(A) DARK GRAY
8-97405-986-0
01
1
0803-0803
81
02.820 EMBLEM; STRG WHEEL
ISUZU BRAND<7WL> (A) DARK GRAY
8-97405-986-0
01
1
0804-
106
05.453 BOLT; TORX
8-98231-397-0
02
1
0803-
