Sayfa 3-60 - Isuzu EPC

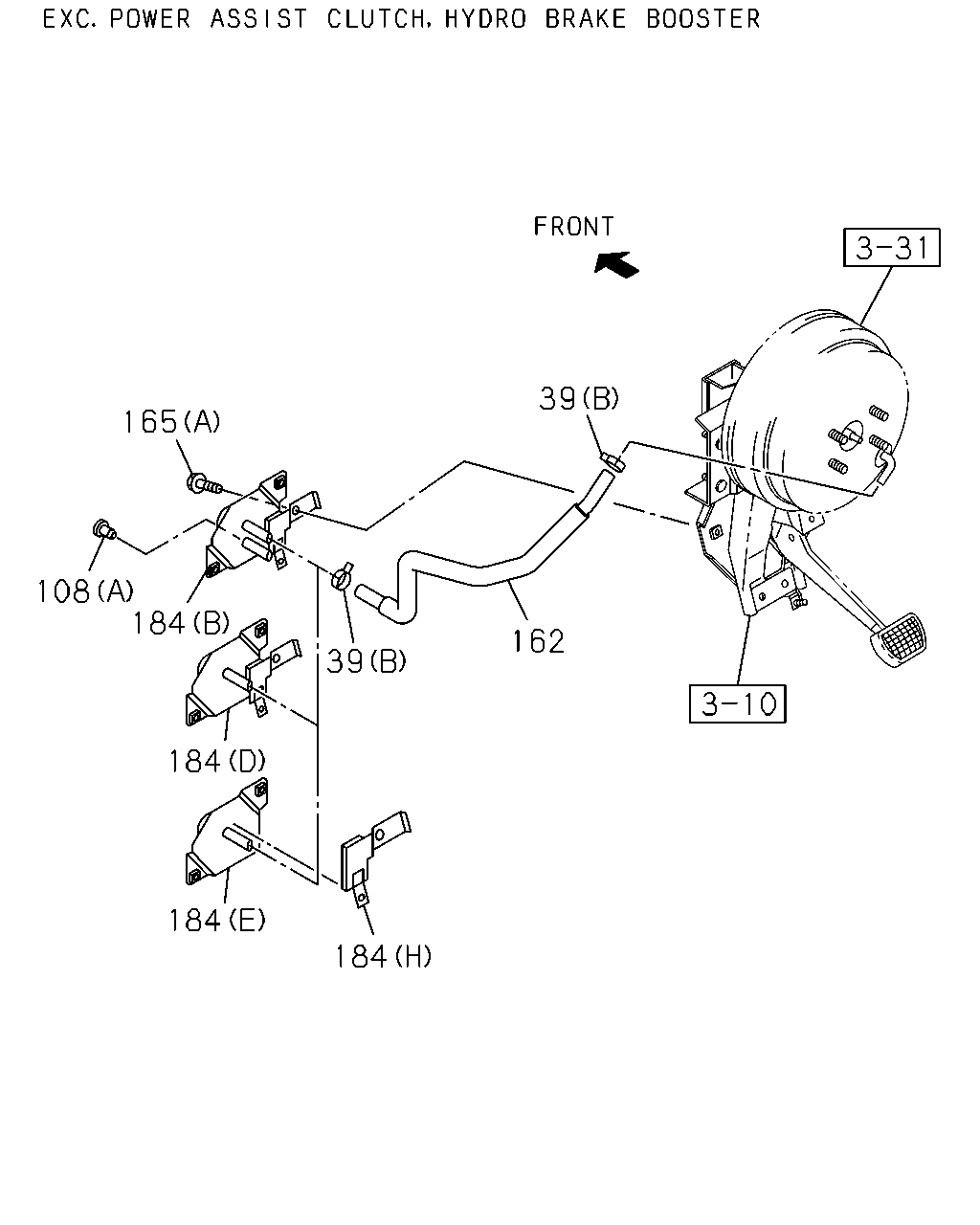

3-60 — BRAKE PIPING; VACUUM (#34349) — 448 parça

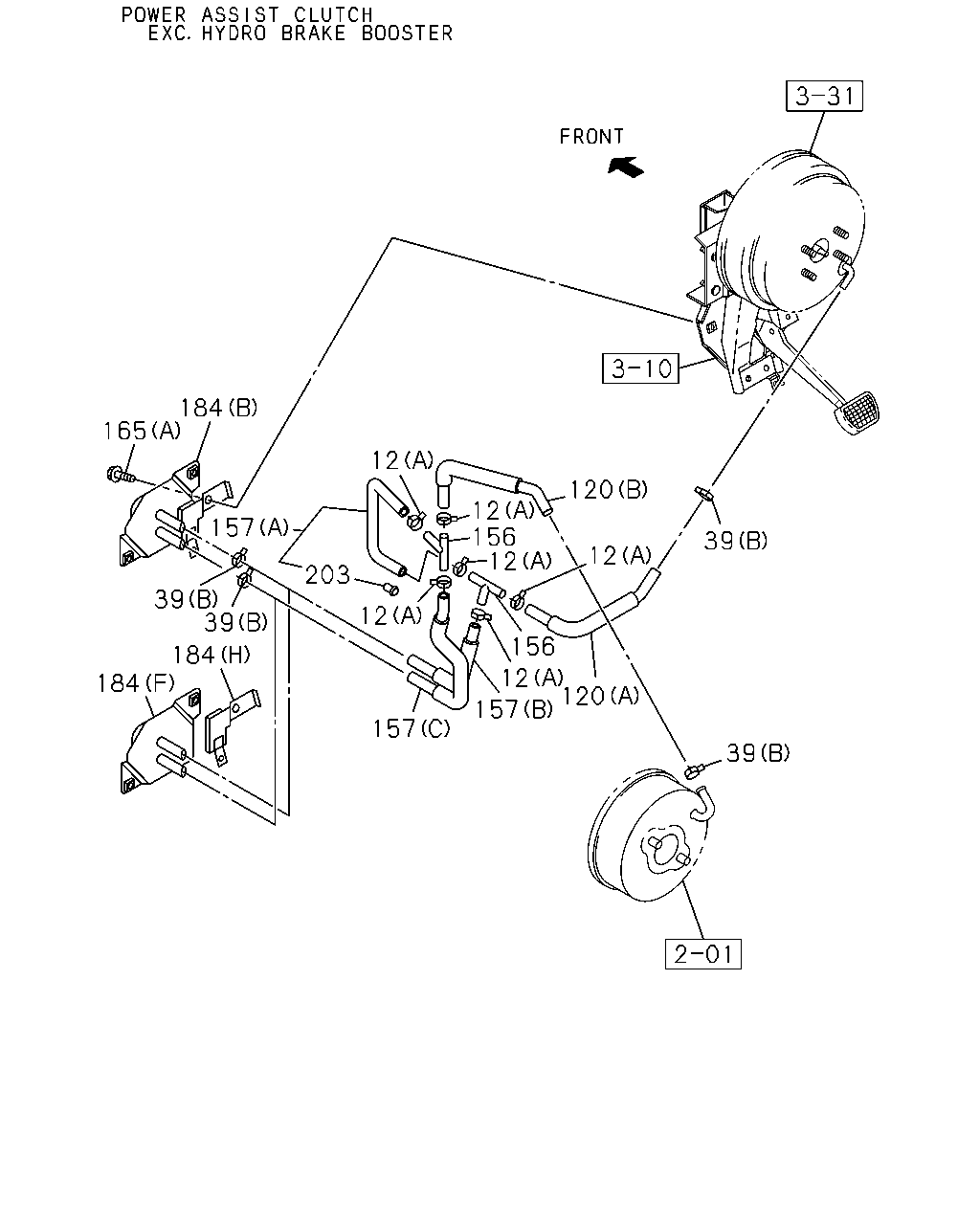

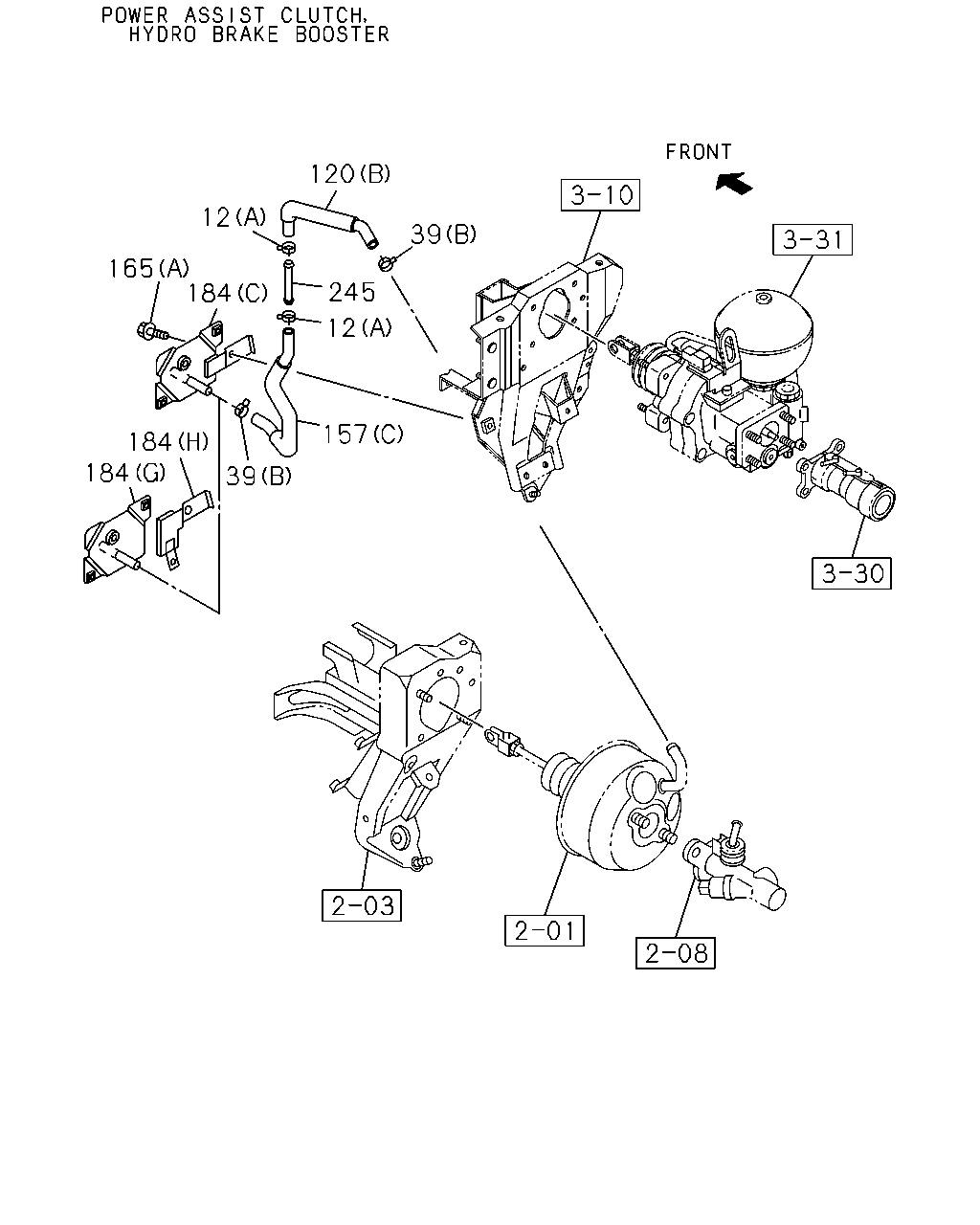

39 120 12 157 156 157 12 203 12 156 12 12 120 12 39 184 39 184 157 39 184 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-0911
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	06	1	0803-
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0803-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0803-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0803-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0803-0808
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	0809-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	0809-
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5	8-94426-597-0	06	1	0803-0906
39	04.681 CLIP; HOSE,VAC FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5	8-94426-597-0	06	1	0907-1005
39	04.681 CLIP; HOSE,VAC FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1006-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0906
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0906
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0906
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0906
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	0803-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-856-2	01	1	0803-
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681	8-98035-106-0	02	1	0803-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	0803-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-858-1	01	1	0803-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98060-859-2	01	1	0803-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0803-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0803-
184	04.685 BRACKET; UNION FIX (H)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98150-760-0	01	1	0909-1012
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-466-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98255-537-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	0803-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98089-764-0	01	1	0803-1012
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-471-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (G)	8-98255-538-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98089-763-0	01	1	0803-0908
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98089-763-0	01	1	0909-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98183-465-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98255-536-0	01	1	1312-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T)	8-94104-021-0	01	1	0803-
203	04.690 VALVE; CHECK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-94386-540-0	01	1	0803-0906
203	04.690 VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-94386-540-0	01	1	0907-

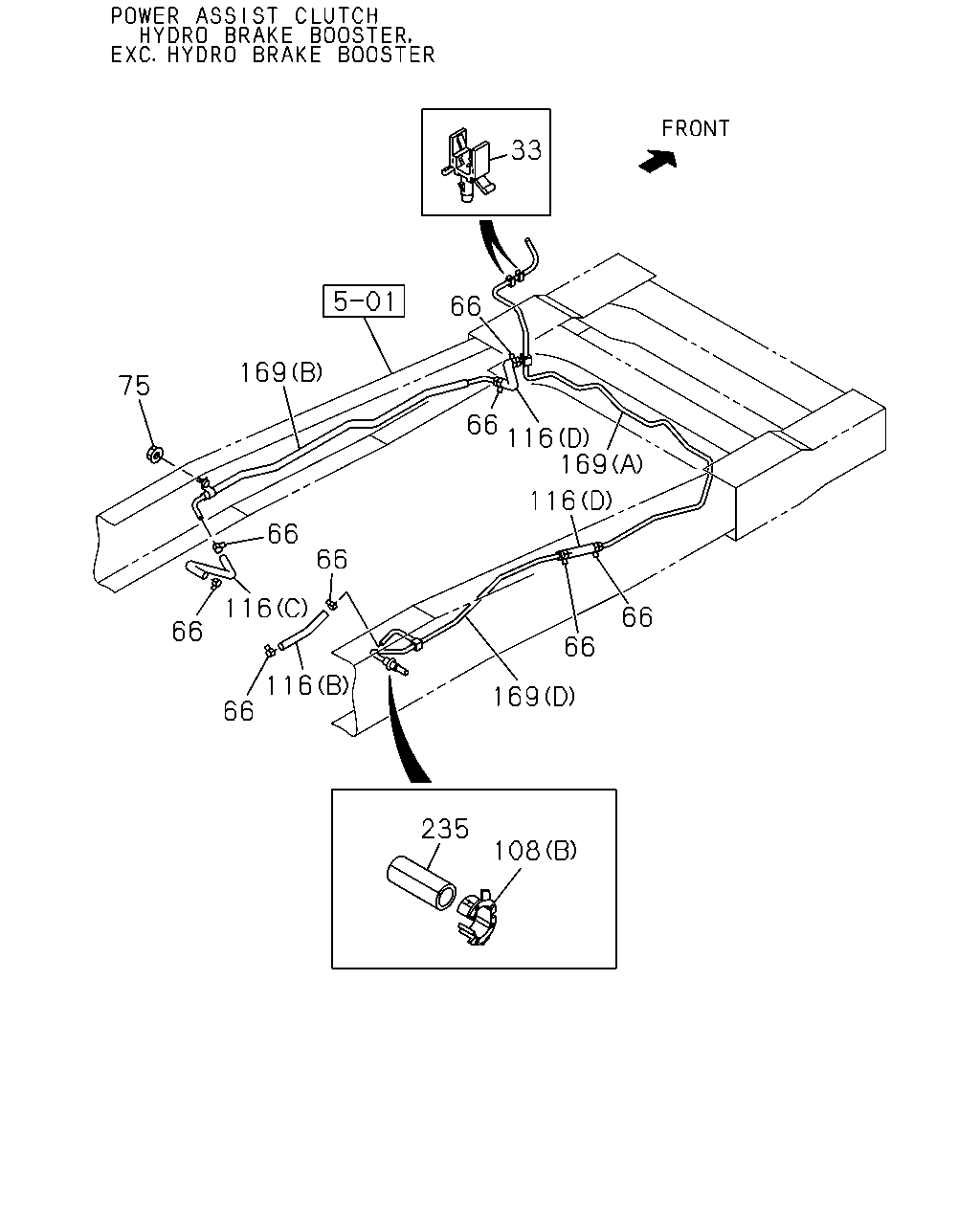

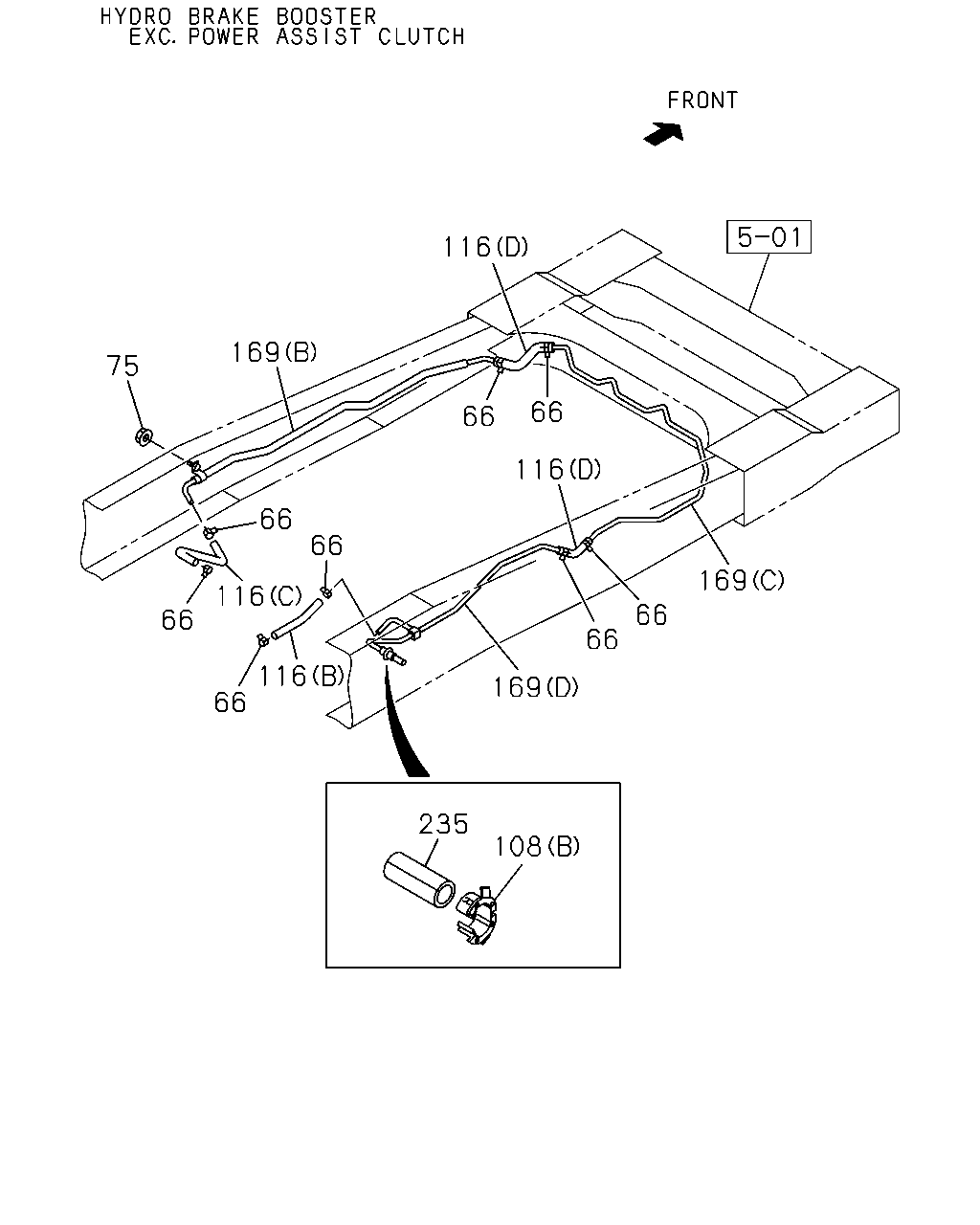

116 169 75 66 66 116 66 66 169 116 66 66 66 116 169 66 235 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
66	04.930 CLIP; VAC HOSE,M/VAC FRAME STRAIGHT TYPE<7KJ> ID=16	8-94238-568-0	06	1	0803-0911
66	04.930 CLIP; VAC HOSE,M/VAC FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	0912-
66	04.930 CLIP; VAC HOSE,M/VAC EXC. FRAME STRAIGHT TYPE<7KJ> ID=16	8-94238-568-0	02	1	0803-0906
66	04.930 CLIP; VAC HOSE,M/VAC FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) ID=16	8-94238-568-0	02	1	0803-0906
66	04.930 CLIP; VAC HOSE,M/VAC FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) ID=16	8-94238-568-0	02	1	0907-0911
66	04.930 CLIP; VAC HOSE,M/VAC FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	02	1	0912-
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-
108	04.931 GROMMET; PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 02.343 (B) ID=17	8-94128-319-2	01	1	0803-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17	8-94128-319-2	01	1	0803-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	0803-0908
108	04.931 GROMMET; PIPE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	0909-
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0803-
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (C)	8-98034-276-2	01	1	0803-0911
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (C)	8-98158-378-0	01	1	0912-
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (B) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0803-
116	04.931 HOSE; VAC,M/VAC EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000	0-08158-300-0	01	1	0803-0906
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98083-224-1	01	1	0803-0803
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	0803-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-680-1	01	1	0803-0803
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98113-001-0	01	1	0803-
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98040-479-3	01	1	0803-0906
169	04.930 PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98040-479-3	01	1	0803-0906
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98040-479-3	01	1	0907-
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ),CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98048-903-0	01	1	0803-0906
169	04.930 PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) EXC. CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98048-903-0	01	1	0803-0906
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98048-903-0	01	1	0907-
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-805-0	01	1	0803-
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-052-2	01	1	0803-
169	04.930 PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C)	8-98048-901-0	01	1	0803-0906
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C)	8-98048-901-0	01	1	0907-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98092-067-0	01	1	0803-0906
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98092-067-0	01	1	0803-0906
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98092-067-0	01	1	0907-
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98092-067-0	01	1	0907-
235	04.931 RUBBER; SUPPORT,PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	0803-
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	0803-

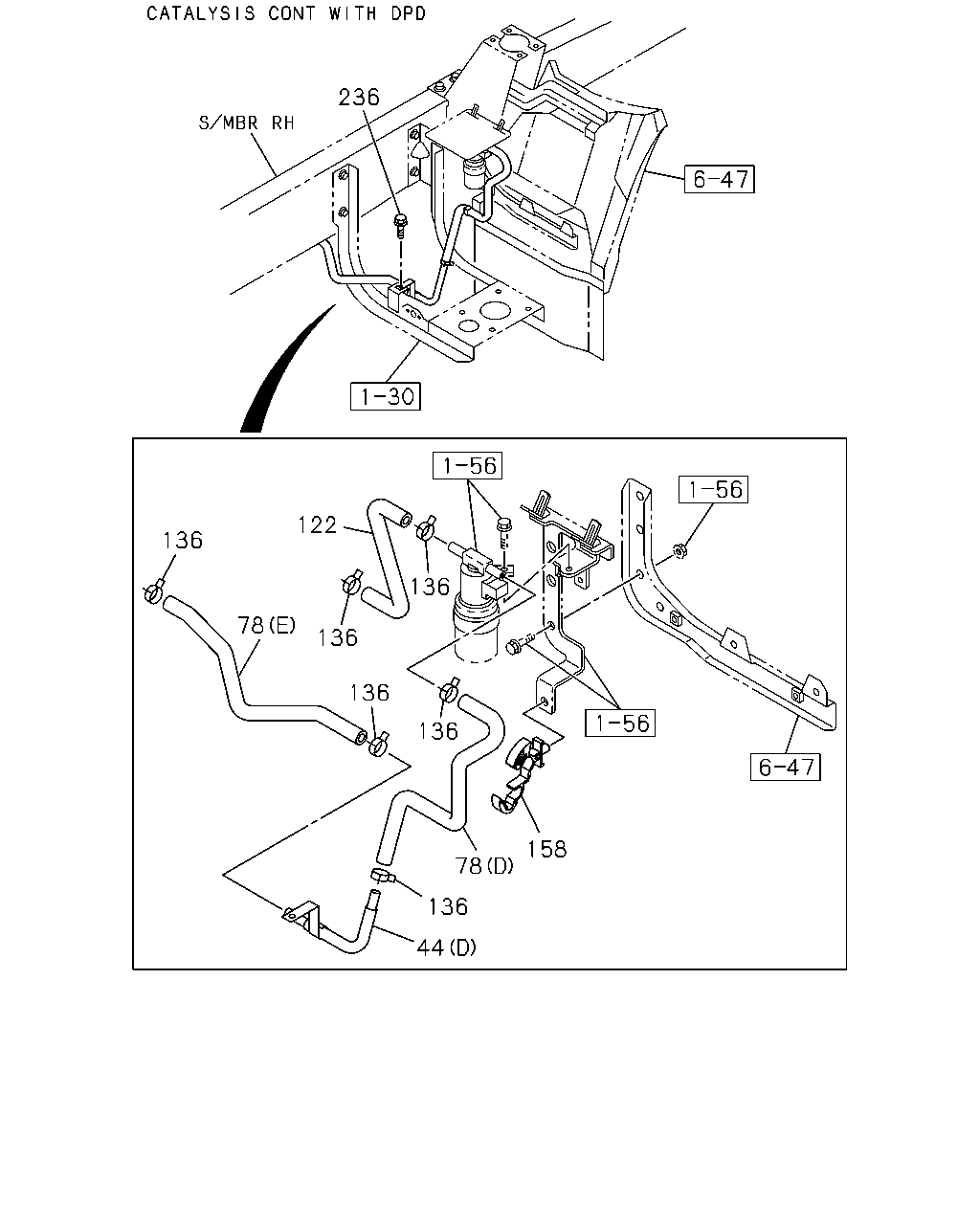

235 122 136 136 136 78 136 136 78 44 136 158 236 44 78 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98034-281-1	01	1	0803-
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98040-807-1	01	1	0803-
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98057-425-1	01	1	0803-
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98070-194-0	01	1	0803-
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-112-4	02	1	0803-0906
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-112-4	01	1	0907-0907
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-112-4	01	1	0907-0907
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-112-4	01	1	0908-0909
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	0908-0909
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	0910-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	0910-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98034-104-4	01	1	0803-1103
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98189-106-0	01	1	1104-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98082-309-1	01	1	0803-0903
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98133-654-1	01	1	0904-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98057-462-0	01	1	0803-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98063-819-2	01	1	0803-1008
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98171-287-0	01	1	1009-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98112-680-0	01	1	0803-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	0803-0906
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	0803-0906
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	0907-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	0907-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FRAME STRAIGHT TYPE<7KJ>	8-98034-103-2	01	1	0803-1103
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FRAME STRAIGHT TYPE<7KJ>	8-98189-104-0	01	1	1104-
136	04.681 CLIP; VAC HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16	8-94238-568-0	06	1	0803-0911
136	04.681 CLIP; VAC HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	0912-
136	04.681 CLIP; VAC HOSE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 04.930 ID=16	8-94238-568-0	02	1	0803-0906
136	04.681 CLIP; VAC HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16	8-94238-568-0	02	1	0803-0906
136	04.681 CLIP; VAC HOSE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 04.930 ID=16	8-94238-568-0	02	1	0907-0911
136	04.681 CLIP; VAC HOSE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	02	1	0912-
136	04.681 CLIP; VAC HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16	8-94238-568-0	04	1	0803-0906
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	0803-
235	04.931 RUBBER; SUPPORT,PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	0803-
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	0803-
236	04.930 BOLT; PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-

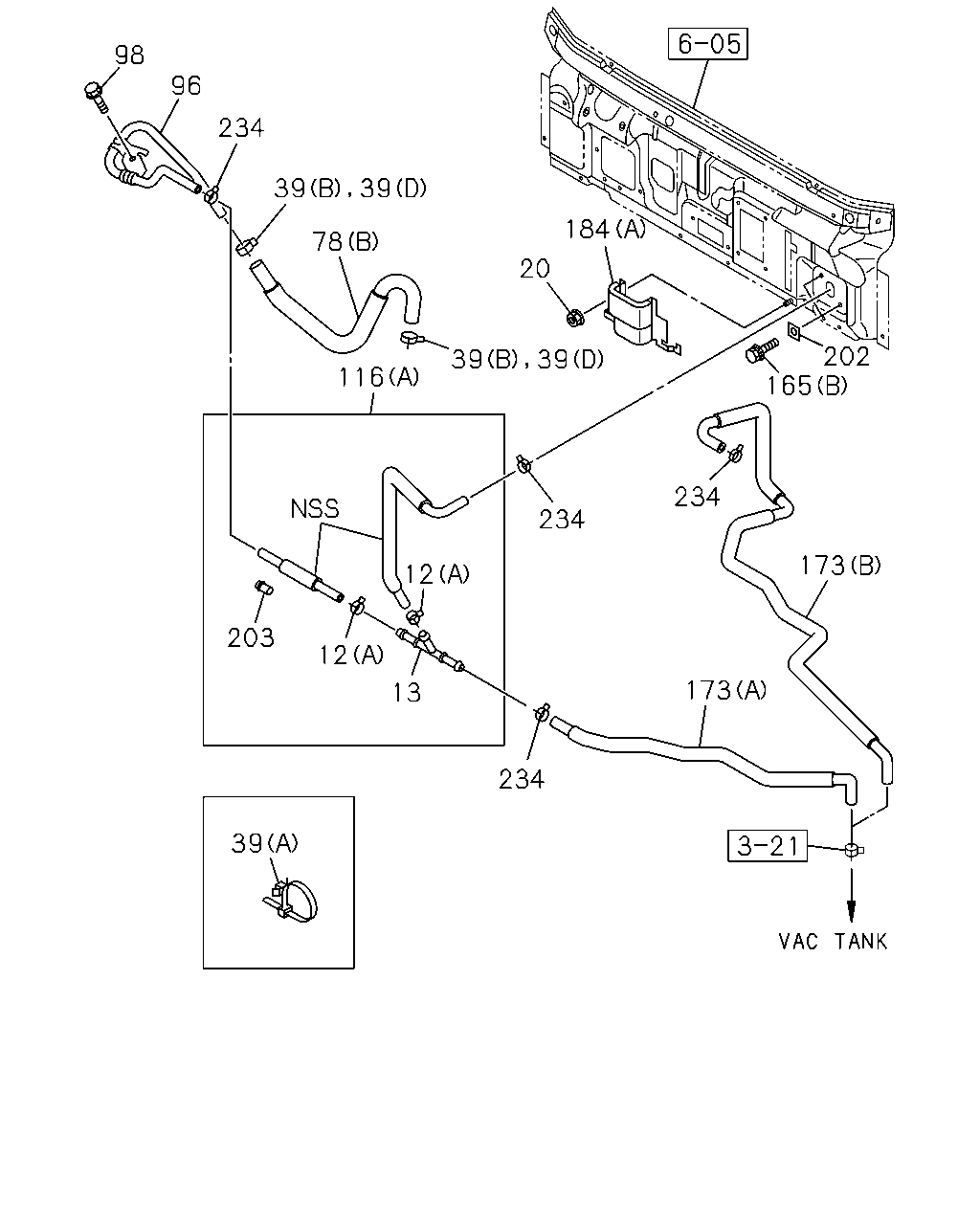

98 96 234 184 78 20 202 165 116 234 234 173 12 203 12 173 13 234 39 39 39 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-0911
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	06	1	0803-
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0803-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0803-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0803-
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	02	1	0803-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	02	1	0803-
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0803-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0803-0808
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	0809-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	0809-
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5	8-94426-597-0	06	1	0803-0906
39	04.681 CLIP; HOSE,VAC FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5	8-94426-597-0	06	1	0907-1005
39	04.681 CLIP; HOSE,VAC FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1006-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0906
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0906
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0906
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0906
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-

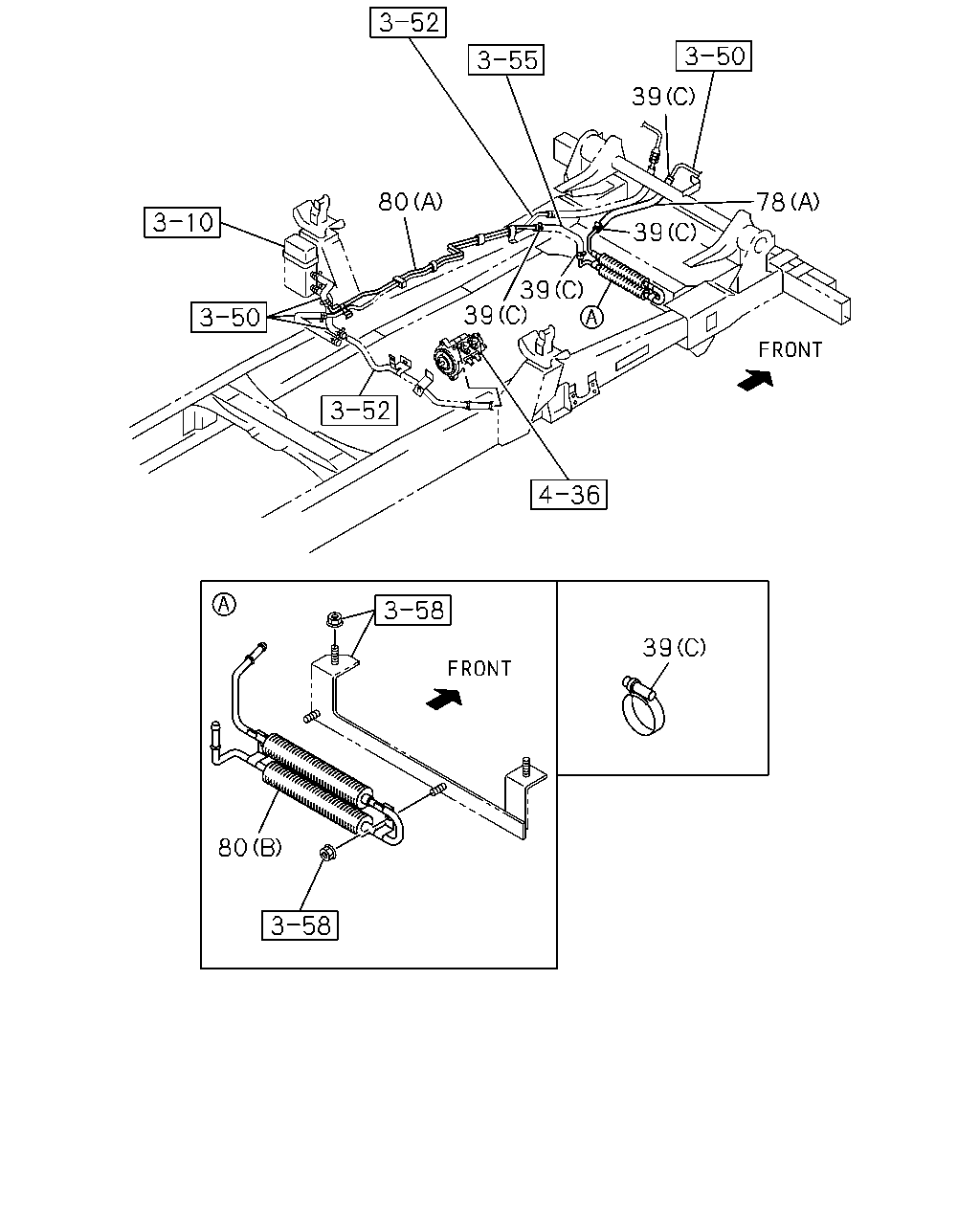

78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-112-4	02	1	0803-0906
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-112-4	01	1	0907-0907
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-112-4	01	1	0907-0907
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-112-4	01	1	0908-0909
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	0908-0909
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	0910-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	0910-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98034-104-4	01	1	0803-1103
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98189-106-0	01	1	1104-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98082-309-1	01	1	0803-0903
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98133-654-1	01	1	0904-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98057-462-0	01	1	0803-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98063-819-2	01	1	0803-1008
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98171-287-0	01	1	1009-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98112-680-0	01	1	0803-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	0803-0906
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	0803-0906
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	0907-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	0907-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98082-322-0	01	1	0803-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98082-321-0	01	1	0803-0906
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98082-321-0	01	1	0907-
98	04.931 BOLT; VAC PIPE FIX HYDRO BRAKE BOOSTER(7QQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0906
98	04.931 BOLT; VAC PIPE FIX FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-
98	04.931 BOLT; VAC PIPE FIX POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0803-0906
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0803-0906
98	04.931 BOLT; VAC PIPE FIX EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0907-
98	04.931 BOLT; VAC PIPE FIX POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0907-
98	04.931 BOLT; VAC PIPE FIX FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0907-

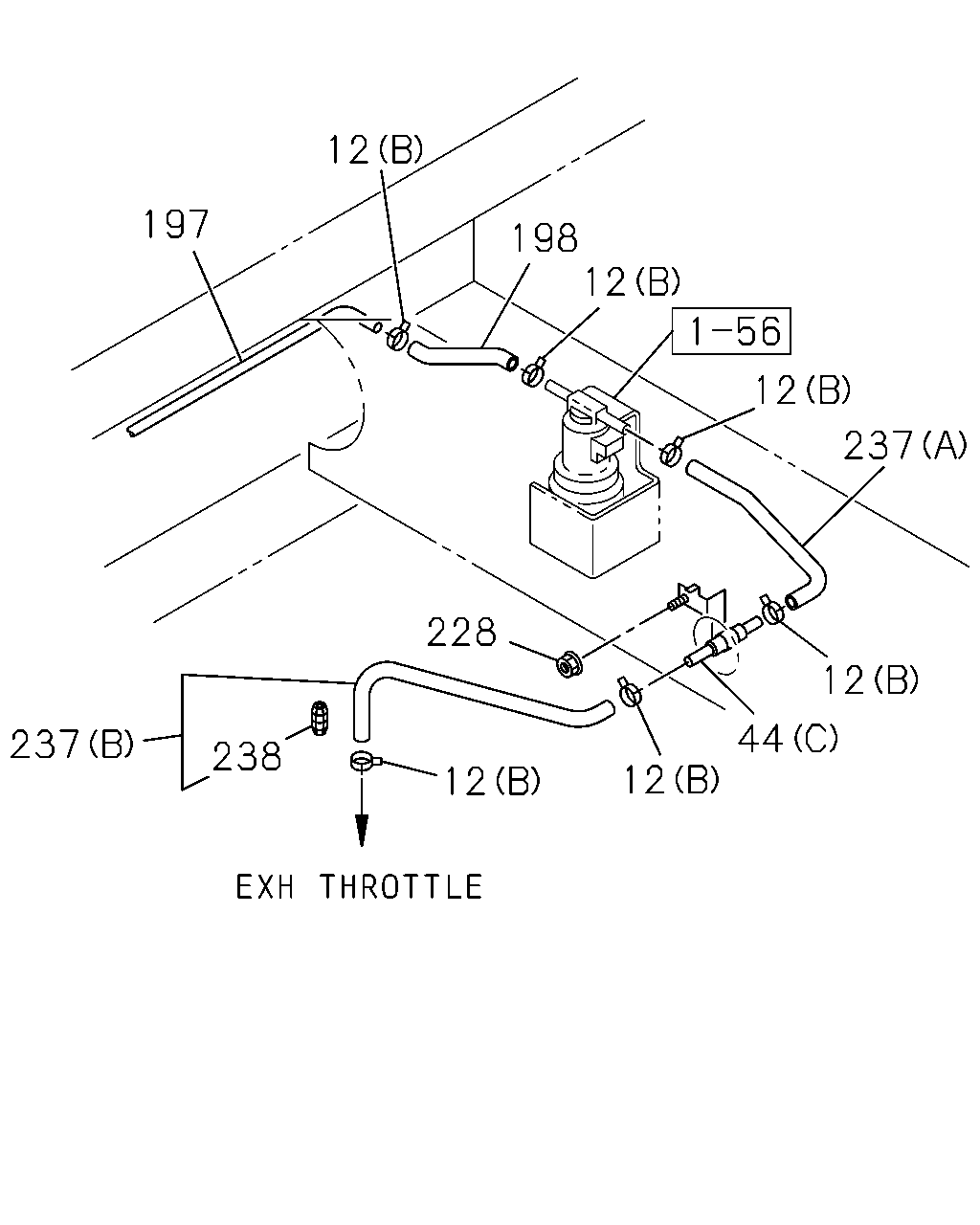

116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0803-
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (C)	8-98034-276-2	01	1	0803-0911
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (C)	8-98158-378-0	01	1	0912-
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (B) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0803-
116	04.931 HOSE; VAC,M/VAC EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000	0-08158-300-0	01	1	0803-0906
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98083-224-1	01	1	0803-0803
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	0803-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-680-1	01	1	0803-0803
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98113-001-0	01	1	0803-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0803-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0803-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98047-184-2	01	1	0803-
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98031-774-1	01	1	0803-
184	04.685 BRACKET; UNION FIX (H)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98150-760-0	01	1	0909-1012
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-466-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98255-537-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	0803-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98089-764-0	01	1	0803-1012
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-471-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (G)	8-98255-538-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98089-763-0	01	1	0803-0908
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98089-763-0	01	1	0909-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98183-465-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98255-536-0	01	1	1312-
202	04.686 SEAL 08.845	8-97856-616-0	02	1	0803-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T)	8-94104-021-0	01	1	0803-
203	04.690 VALVE; CHECK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-94386-540-0	01	1	0803-0906
203	04.690 VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-94386-540-0	01	1	0907-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	04	1	0803-
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	03	1	0803-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16	8-94238-568-0	03	1	0803-

39 245 12 157 39 184 184 184 165 12 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-0911
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	06	1	0803-
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0803-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0803-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0803-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0803-0808
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	0809-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	0809-
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5	8-94426-597-0	06	1	0803-0906
39	04.681 CLIP; HOSE,VAC FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5	8-94426-597-0	06	1	0907-1005
39	04.681 CLIP; HOSE,VAC FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1006-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0906
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0906
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0906
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0906
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	0803-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-856-2	01	1	0803-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	0803-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98060-858-1	01	1	0803-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98060-859-2	01	1	0803-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0803-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0803-
184	04.685 BRACKET; UNION FIX (H)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98150-760-0	01	1	0909-1012
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-466-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98255-537-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	0803-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98089-764-0	01	1	0803-1012
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-471-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (G)	8-98255-538-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98089-763-0	01	1	0803-0908
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98089-763-0	01	1	0909-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98183-465-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98255-536-0	01	1	1312-
245	04.931 JOINT; 2 WAY POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681	8-98048-075-0	01	1	0803-

39 162 39 184 184 184 184 108 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0803-0808
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	0809-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	0809-
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5	8-94426-597-0	06	1	0803-0906
39	04.681 CLIP; HOSE,VAC FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5	8-94426-597-0	06	1	0907-1005
39	04.681 CLIP; HOSE,VAC FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1006-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0906
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0906
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0906
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0906
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-
108	04.931 GROMMET; PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 02.343 (B) ID=17	8-94128-319-2	01	1	0803-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17	8-94128-319-2	01	1	0803-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	0803-0908
108	04.931 GROMMET; PIPE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	0909-
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98034-154-2	01	1	0803-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0803-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0803-
184	04.685 BRACKET; UNION FIX (H)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98150-760-0	01	1	0909-1012
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D)	8-98183-466-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98255-537-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	0803-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98089-764-0	01	1	0803-1012
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-471-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) (G)	8-98255-538-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98089-763-0	01	1	0803-0908
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98089-763-0	01	1	0909-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98183-465-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98255-536-0	01	1	1312-

33 66 169 75 66 116 169 116 66 66 116 66 66 66 116 169 66 235 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	0803-0906
33	04.930 CLIP; VAC PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	0803-0906
33	04.930 CLIP; VAC PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	0907-
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	0907-
66	04.930 CLIP; VAC HOSE,M/VAC FRAME STRAIGHT TYPE<7KJ> ID=16	8-94238-568-0	06	1	0803-0911
66	04.930 CLIP; VAC HOSE,M/VAC FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	0912-
66	04.930 CLIP; VAC HOSE,M/VAC EXC. FRAME STRAIGHT TYPE<7KJ> ID=16	8-94238-568-0	02	1	0803-0906
66	04.930 CLIP; VAC HOSE,M/VAC FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) ID=16	8-94238-568-0	02	1	0803-0906
66	04.930 CLIP; VAC HOSE,M/VAC FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) ID=16	8-94238-568-0	02	1	0907-0911
66	04.930 CLIP; VAC HOSE,M/VAC FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	02	1	0912-
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-
108	04.931 GROMMET; PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 02.343 (B) ID=17	8-94128-319-2	01	1	0803-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17	8-94128-319-2	01	1	0803-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	0803-0908
108	04.931 GROMMET; PIPE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	0909-
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0803-
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (C)	8-98034-276-2	01	1	0803-0911
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (C)	8-98158-378-0	01	1	0912-
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 (B) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0803-
116	04.931 HOSE; VAC,M/VAC EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=200 SERVICED BY L=3000	0-08158-300-0	01	1	0803-0906
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98083-224-1	01	1	0803-0803
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	0803-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98081-680-1	01	1	0803-0803
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98113-001-0	01	1	0803-
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98040-479-3	01	1	0803-0906
169	04.930 PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98040-479-3	01	1	0803-0906
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98040-479-3	01	1	0907-
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ),CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98048-903-0	01	1	0803-0906
169	04.930 PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) EXC. CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98048-903-0	01	1	0803-0906
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98048-903-0	01	1	0907-
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-805-0	01	1	0803-
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-052-2	01	1	0803-
169	04.930 PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C)	8-98048-901-0	01	1	0803-0906
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C)	8-98048-901-0	01	1	0907-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98092-067-0	01	1	0803-0906
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98092-067-0	01	1	0803-0906
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98092-067-0	01	1	0907-
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98092-067-0	01	1	0907-
235	04.931 RUBBER; SUPPORT,PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	0803-
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	0803-

12 197 198 12 12 237 228 12 44 12 237 238 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-0911
12	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	06	1	0803-
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0803-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0803-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0803-
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98034-281-1	01	1	0803-
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98040-807-1	01	1	0803-
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98057-425-1	01	1	0803-
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98070-194-0	01	1	0803-
197	04.930 PIPE; VAC,PIPE TO MAG VLV FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM)	8-98040-482-1	01	1	0803-0903
197	04.930 PIPE; VAC,PIPE TO MAG VLV FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM)	8-98133-641-0	01	1	0904-
198	04.931 HOSE; VAC,PIPE TO MAG VLV FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.630 L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0803-
228	04.930 NUT; PIPE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (B)	8-97378-771-0	01	1	0803-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98040-785-1	01	1	0803-
238	04.892 ORIFICE; VACUUM HOSE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM)	8-97377-521-0	01	1	0803-
238	04.892 ORIFICE; VACUUM HOSE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM)	8-97377-521-0	01	1	0803-

39 80 78 39 39 39 39 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0803-0808
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	0809-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3	1-09987-182-0	01	1	0809-
39	04.681 CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5	8-94426-597-0	06	1	0803-0906
39	04.681 CLIP; HOSE,VAC FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5	8-94426-597-0	06	1	0907-1005
39	04.681 CLIP; HOSE,VAC FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17	8-98173-762-1	06	1	1006-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0906
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0906
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0906
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0906
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-112-4	02	1	0803-0906
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-112-4	01	1	0907-0907
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-112-4	01	1	0907-0907
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-112-4	01	1	0908-0909
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	0908-0909
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	0910-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	0910-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98034-104-4	01	1	0803-1103
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98189-106-0	01	1	1104-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98082-309-1	01	1	0803-0903
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98133-654-1	01	1	0904-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98057-462-0	01	1	0803-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98063-819-2	01	1	0803-1008
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98171-287-0	01	1	1009-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98112-680-0	01	1	0803-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	0803-0906
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	0803-0906
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	0907-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	0907-
80	04.930 PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98039-753-0	01	1	0803-0906
80	04.930 PIPE; VAC,ENG SIDE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98039-753-0	01	1	0907-
80	04.930 PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-788-0	01	1	0803-0906
80	04.930 PIPE; VAC,ENG SIDE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98097-788-0	01	1	0907-

236 122 136 136 78 136 136 136 158 78 136 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98034-281-1	01	1	0803-
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98040-807-1	01	1	0803-
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98057-425-1	01	1	0803-
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98070-194-0	01	1	0803-
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-112-4	02	1	0803-0906
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-112-4	01	1	0907-0907
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-112-4	01	1	0907-0907
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-112-4	01	1	0908-0909
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	0908-0909
78	04.931 HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	0910-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98136-614-0	01	1	0910-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98034-104-4	01	1	0803-1103
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98189-106-0	01	1	1104-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98082-309-1	01	1	0803-0903
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98133-654-1	01	1	0904-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98057-462-0	01	1	0803-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98063-819-2	01	1	0803-1008
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98171-287-0	01	1	1009-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98112-680-0	01	1	0803-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	0803-0906
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	0803-0906
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	0907-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98081-681-2	01	1	0907-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FRAME STRAIGHT TYPE<7KJ>	8-98034-103-2	01	1	0803-1103
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE FRAME STRAIGHT TYPE<7KJ>	8-98189-104-0	01	1	1104-
136	04.681 CLIP; VAC HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16	8-94238-568-0	06	1	0803-0911
136	04.681 CLIP; VAC HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	0912-
136	04.681 CLIP; VAC HOSE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 04.930 ID=16	8-94238-568-0	02	1	0803-0906
136	04.681 CLIP; VAC HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16	8-94238-568-0	02	1	0803-0906
136	04.681 CLIP; VAC HOSE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 04.930 ID=16	8-94238-568-0	02	1	0907-0911
136	04.681 CLIP; VAC HOSE FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	02	1	0912-
136	04.681 CLIP; VAC HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16	8-94238-568-0	04	1	0803-0906
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	0803-
236	04.930 BOLT; PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
