◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51156 - NPR BUS(LHD) ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#34348) — 66 parça

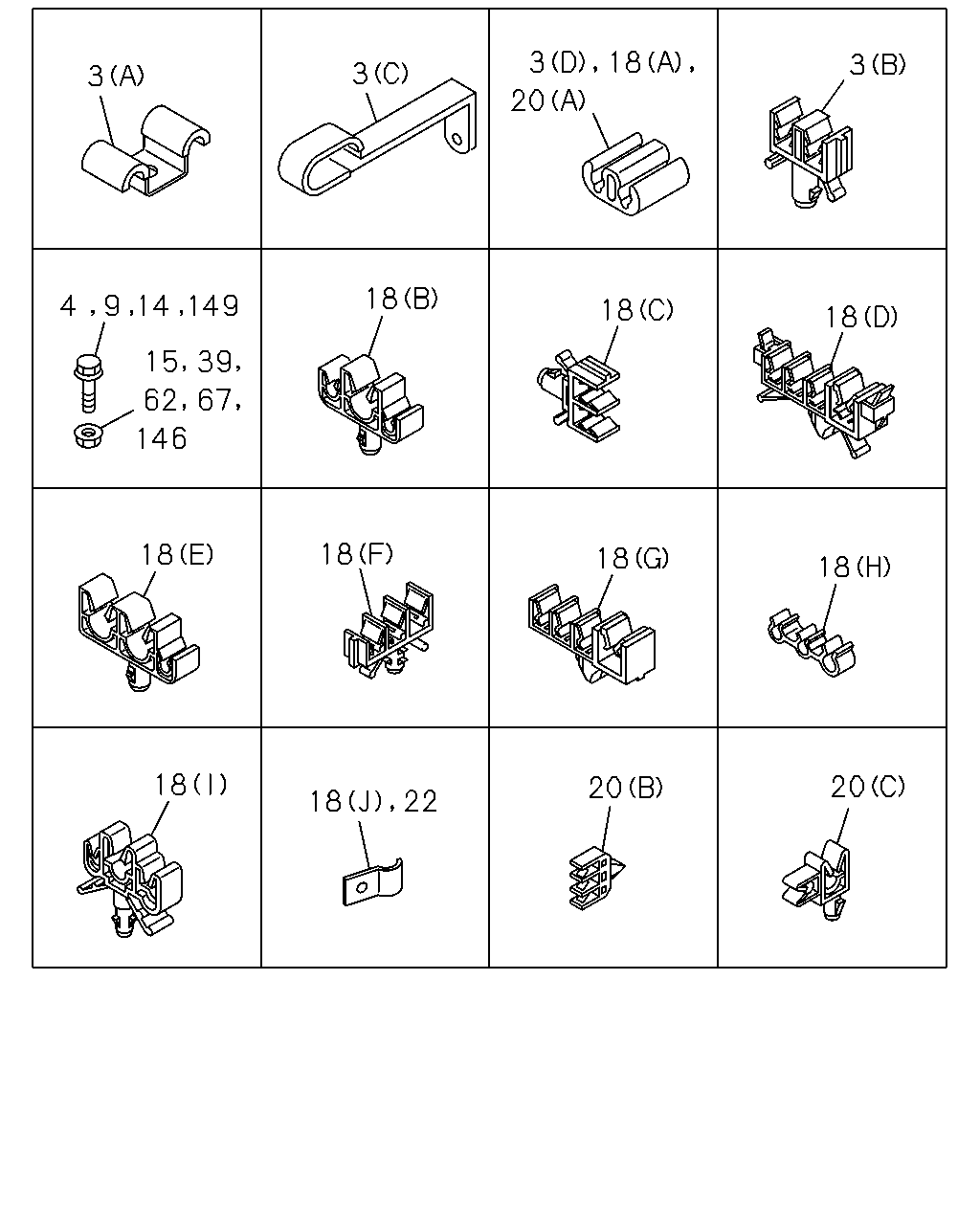

çizim 120610
3 18 3 3 3 20 18 4 18 18 146 18 18 18 18 18 20 20 9 14 149 15 39 62 67 18 22
BalonParca AdiParca NoAdetTipApplied Date
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.047 (A) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 0803-0906
3 04.685 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.047 (A) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 0907-
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.047 (C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0803-0906
3 04.685 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.047 (C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0907-
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=10X2 H=22 		8-94252-455-2 03 1 0803-0906
3 04.685 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=10X2 H=22 		8-94252-455-2 03 1 0907-
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=10X2 H=37.5 		8-97018-546-0 01 1 0803-0906
3 04.685 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=10X2 H=37.5 		8-97018-546-0 01 1 0907-
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0803-
4 04.686 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0803-0906
4 04.686 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907-
9 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803-0906
9 04.686 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907-
14 04.686 BOLT; CLIP,OIL PIPE
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0803-
14 04.686 BOLT; CLIP,OIL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803-0906
15 04.686 NUT; CLIP,OIL PIPE
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0803-
15 04.686 NUT; CLIP,OIL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-0906
18 04.686 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 01 1 0803-0906
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 0907-
18 04.686 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 02 1 0803-
18 04.686 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97326-158-1 05 1 0803-
18 04.686 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97326-158-1 07 1 0803-
18 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 		8-94389-060-0 01 1 0803-
18 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0803-
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0803-
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (J) B=18 L=20 		1-09700-372-0 02 1 0803-
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (H) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0803-
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0803-
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (I) ID=12 & 6.35 & 4.76 		8-97202-954-1 03 1 0803-
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 02 1 0803-0906
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 06 1 0803-0906
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) (B) ID=12 & 6.35 & 4.76 		8-97305-169-1 02 1 0803-0906
18 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.128 (E) ID=10 OR 12X2 & 4.76 		8-98058-323-0 02 1 0803-0906
20 04.686 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0803-
20 04.686 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 03 1 0803-
20 04.686 CLIP; BRK PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 01 1 0803-
20 04.686 CLIP; BRK PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 0803-
20 04.686 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 0803-
22 04.686 CLIP; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> B=18 L=20 		1-09700-372-0 01 1 0803-0906
39 04.686 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-0906
39 04.686 NUT; BRKT FIX
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907-
62 04.686 NUT
HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0803-0906
62 04.686 NUT
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907-
67 04.686 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0803-0906
67 04.686 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-0906
67 04.686 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 00.837 M10 		8-98034-487-0 01 1 0803-0906
67 04.686 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 06.515 M14 		0-91111-514-0 01 1 0803-0906
67 04.686 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.515 M14 		0-91111-514-0 01 1 0907-
67 04.686 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0803-0906
67 04.686 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907-
146 04.686 NUT; PIPE
HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-0906
146 04.686 NUT; PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907-
146 04.686 NUT; PIPE
HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0803-0906
146 04.686 NUT; PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907-
149 04.686 BOLT; HOSE
HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0803-0906
149 04.686 BOLT; HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0907-
çizim 120635
49 19 49 68 68 68 68
BalonParca AdiParca NoAdetTipApplied Date
19 04.686 BRACKET; OIL PIPE 8-97389-845-2 01 1 0803-
49 04.686 BRACKET; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98033-802-0 01 1 0803-0906
49 04.686 BRACKET; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98033-802-1 01 1 0907-
49 04.686 BRACKET; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98036-116-2 01 1 0803-0906
49 04.686 BRACKET; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98036-116-2 01 1 0907-1103
49 04.686 BRACKET; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98187-801-0 01 1 1104-
68 04.686 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98017-159-0 01 1 0803-0906
68 04.686 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98060-016-2 01 1 0803-0906
68 04.686 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-786-0 01 1 0803-0906
68 04.686 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98049-137-0 01 1 0803-0906
