3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#34345) — 106 parça

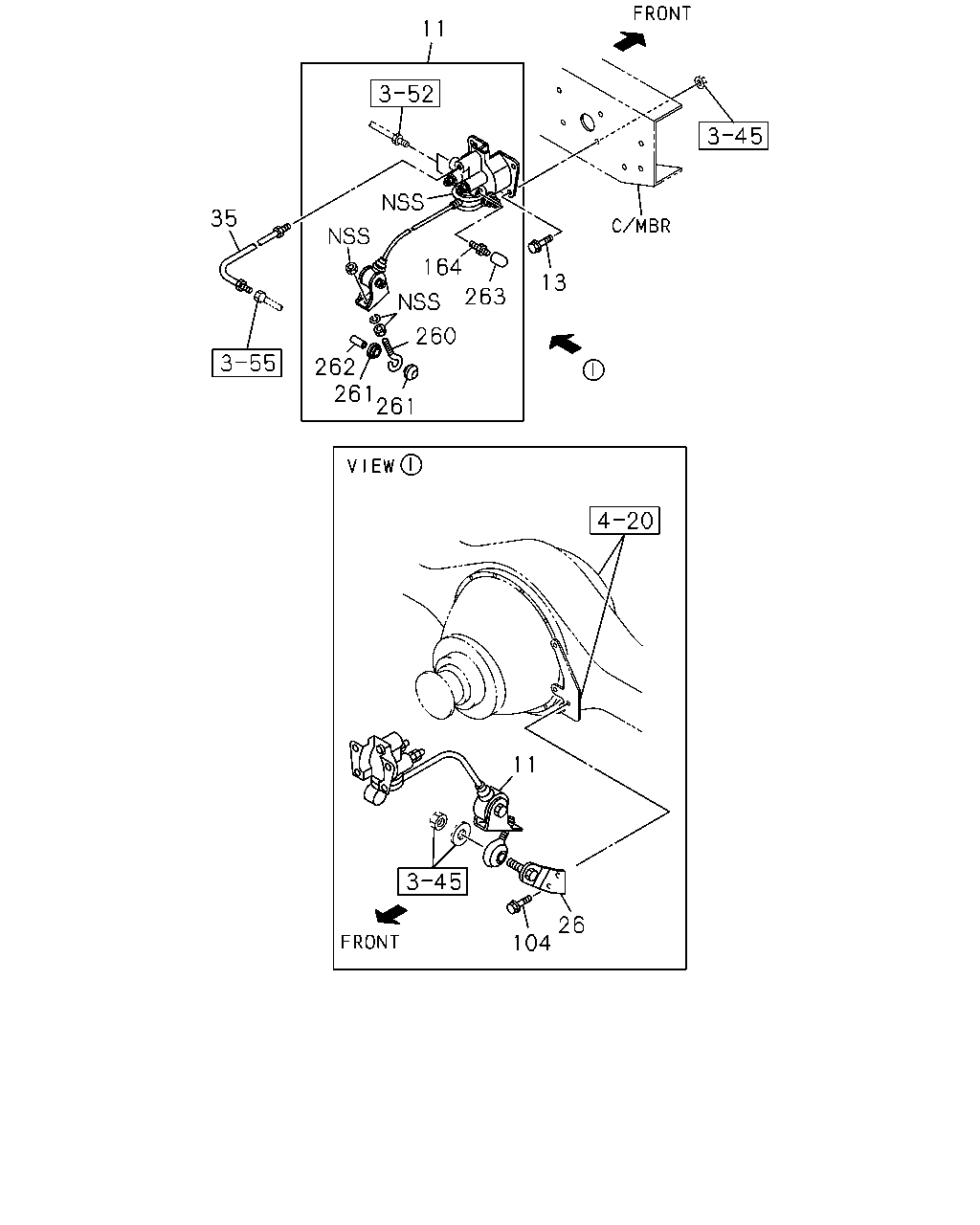

çizim 120588
11 35 164 13 263 260 262 261 261 11 26 104
BalonParca AdiParca NoAdetTipApplied Date
11 04.686 VALVE; BRK CONT
BRK WHL LK CONT LSPV<6PH> 04.730 		8-94427-224-2 01 1 0803-
13 04.686 BOLT; VLV TO BRKT
BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE 		0-28050-816-0 04 1 0803-
26 04.730 BRACKET; PROPORTIONING VLV
BRK WHL LK CONT LSPV<6PH> 		8-98029-821-0 01 1 0803-
35 04.685 PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-98057-271-0 01 1 0803-
35 04.685 PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-541-2 01 1 0803-0906
104 04.730 BOLT; BRKT TO BODY
BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0803-
164 04.730 SCREW; BLEEDER
BRK WHL LK CONT LSPV<6PH> 04.685 		8-97093-663-0 01 1 0803-
260 04.685 SHACKLE; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97173-366-0 01 1 0803-
261 04.685 BUSHING; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97145-631-0 02 1 0803-
262 04.685 COLLAR; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97139-186-0 01 1 0803-
263 04.685 CAP; BLEEDER
BRK WHL LK CONT LSPV<6PH> 		8-97093-662-0 01 1 0803-

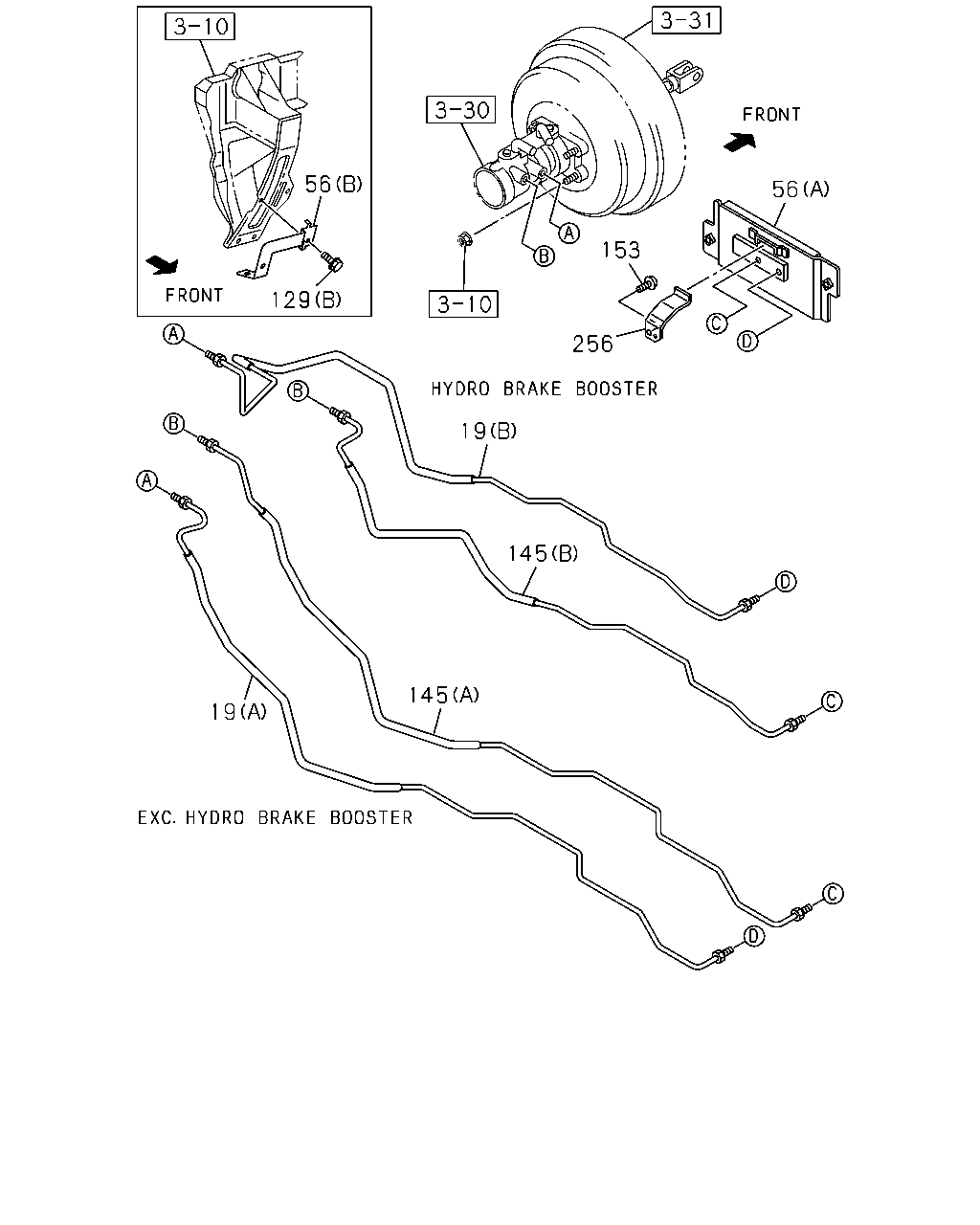

çizim 120589
56 56 153 129 256 19 145 145 19
BalonParca AdiParca NoAdetTipApplied Date
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98055-945-2 01 1 0803-
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98080-579-0 02 1 0803-0906
19 04.685 PIPE; BRK,M/CYL TO UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98080-579-1 02 1 0907-
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98056-155-1 02 1 0803-
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98076-015-0 01 1 0803-
56 04.686 BRACKET; UNION,BRK
(B) 		8-98034-299-3 01 1 0803-
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98046-181-3 01 1 0803-1005
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98154-271-1 01 1 1006-
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98034-288-4 01 1 0803-1005
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98154-270-1 01 1 1006-
56 04.686 BRACKET; UNION,BRK
EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSIONCONTROL-SMOOTHER(8GF) (A) 		8-98056-774-1 01 1 0803-1005
56 04.686 BRACKET; UNION,BRK
EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSIONCONTROL-SMOOTHER(8GF) (A) 		8-98154-268-1 01 1 1006-
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98056-309-2 01 1 0803-1005
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98154-269-1 01 1 1006-
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0803-
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0803-
129 04.710 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 0803-0906
129 04.710 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 0907-
145 04.685 PIPE; BRK,METERING VLV TO UNION
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98070-483-0 01 1 0803-
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98070-477-1 01 1 0803-
153 04.730 SCREW; BRKT FIX
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 0803-0808
256 04.840 BRACKET; BRK PIPE 8-98039-683-1 01 1 0803-0808

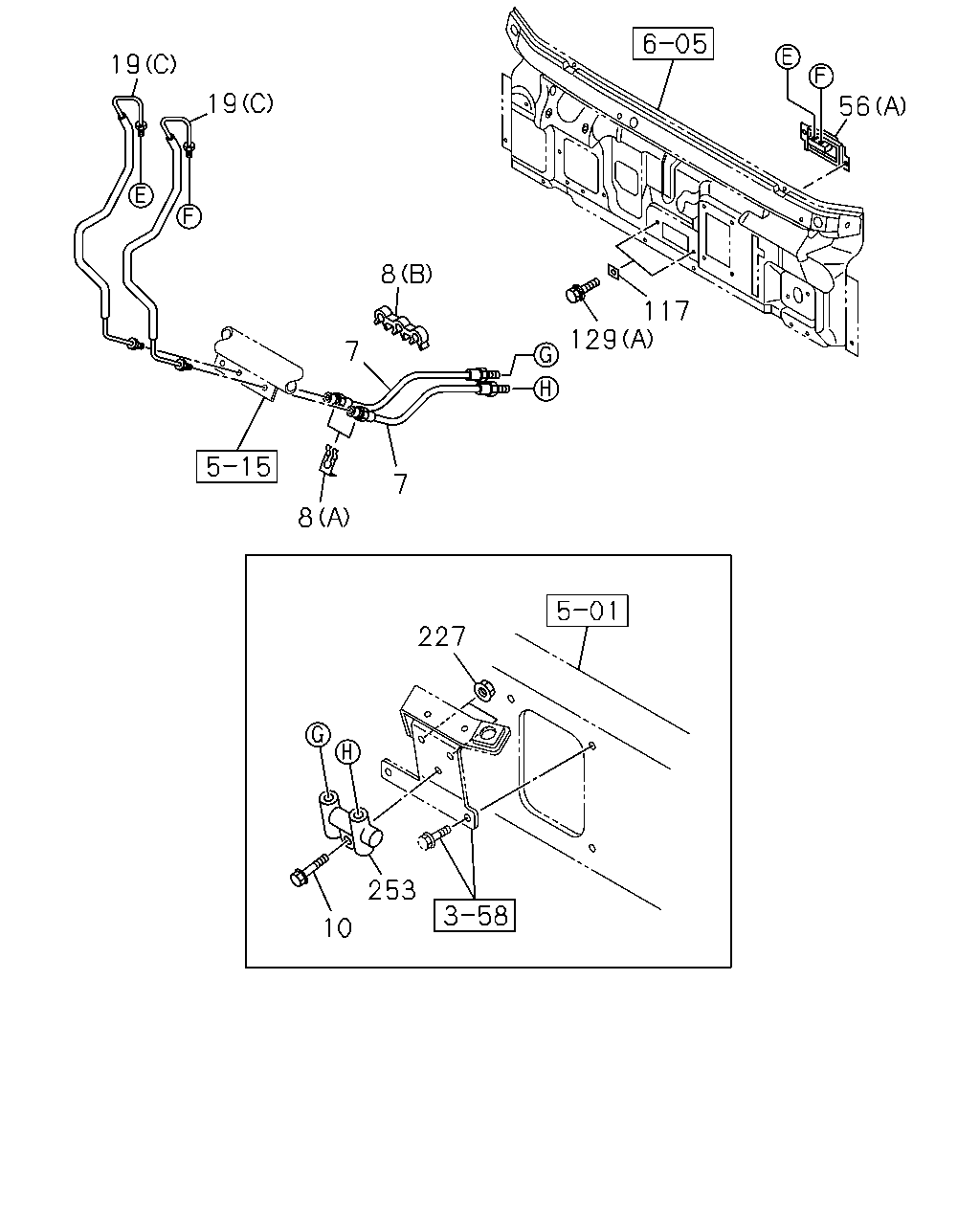

çizim 120590
19 19 56 8 117 129 7 7 8 227 253 10
BalonParca AdiParca NoAdetTipApplied Date
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98029-865-0 02 1 0803-
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B) 		8-97076-471-0 01 1 0803-
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 0803-
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 0803-
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98055-945-2 01 1 0803-
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98080-579-0 02 1 0803-0906
19 04.685 PIPE; BRK,M/CYL TO UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98080-579-1 02 1 0907-
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98056-155-1 02 1 0803-
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98076-015-0 01 1 0803-
56 04.686 BRACKET; UNION,BRK
(B) 		8-98034-299-3 01 1 0803-
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98046-181-3 01 1 0803-1005
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98154-271-1 01 1 1006-
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98034-288-4 01 1 0803-1005
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98154-270-1 01 1 1006-
56 04.686 BRACKET; UNION,BRK
EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSIONCONTROL-SMOOTHER(8GF) (A) 		8-98056-774-1 01 1 0803-1005
56 04.686 BRACKET; UNION,BRK
EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSIONCONTROL-SMOOTHER(8GF) (A) 		8-98154-268-1 01 1 1006-
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98056-309-2 01 1 0803-1005
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98154-269-1 01 1 1006-
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 0803-
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0803-
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0803-
129 04.710 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 0803-0906
129 04.710 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 0907-
227 04.685 NUT; JOINT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0803-0906
227 04.685 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907-
253 04.840 JOINT
BRK WHL LK CONT LSPV<6PH> 04.686 		8-97120-033-2 01 1 0803-
253 04.840 JOINT
EXC. BRK WHL LK CONT LSPV<6PH> 04.686 		5-47456-009-1 01 1 0803-

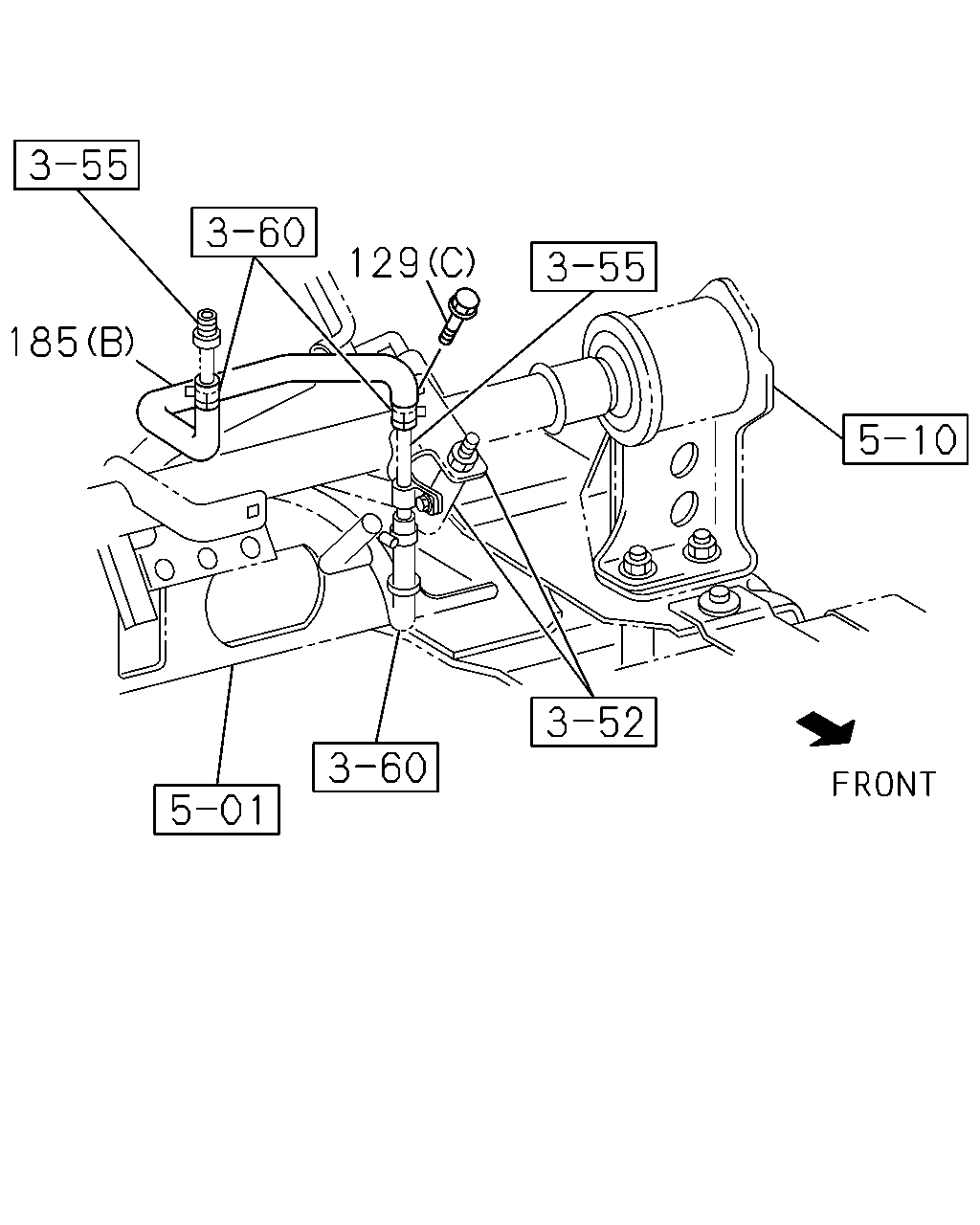

çizim 120593
129 185
BalonParca AdiParca NoAdetTipApplied Date
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0803-
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0803-
129 04.710 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 0803-0906
129 04.710 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 0907-
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97330-513-0 01 1 0803-
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98082-497-0 01 1 0803-0906
185 04.681 HOSE; RUBBER,SUCTION
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98082-497-0 01 1 0907-
çizim 120598
35
BalonParca AdiParca NoAdetTipApplied Date
35 04.685 PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-98057-271-0 01 1 0803-
35 04.685 PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-541-2 01 1 0803-0906

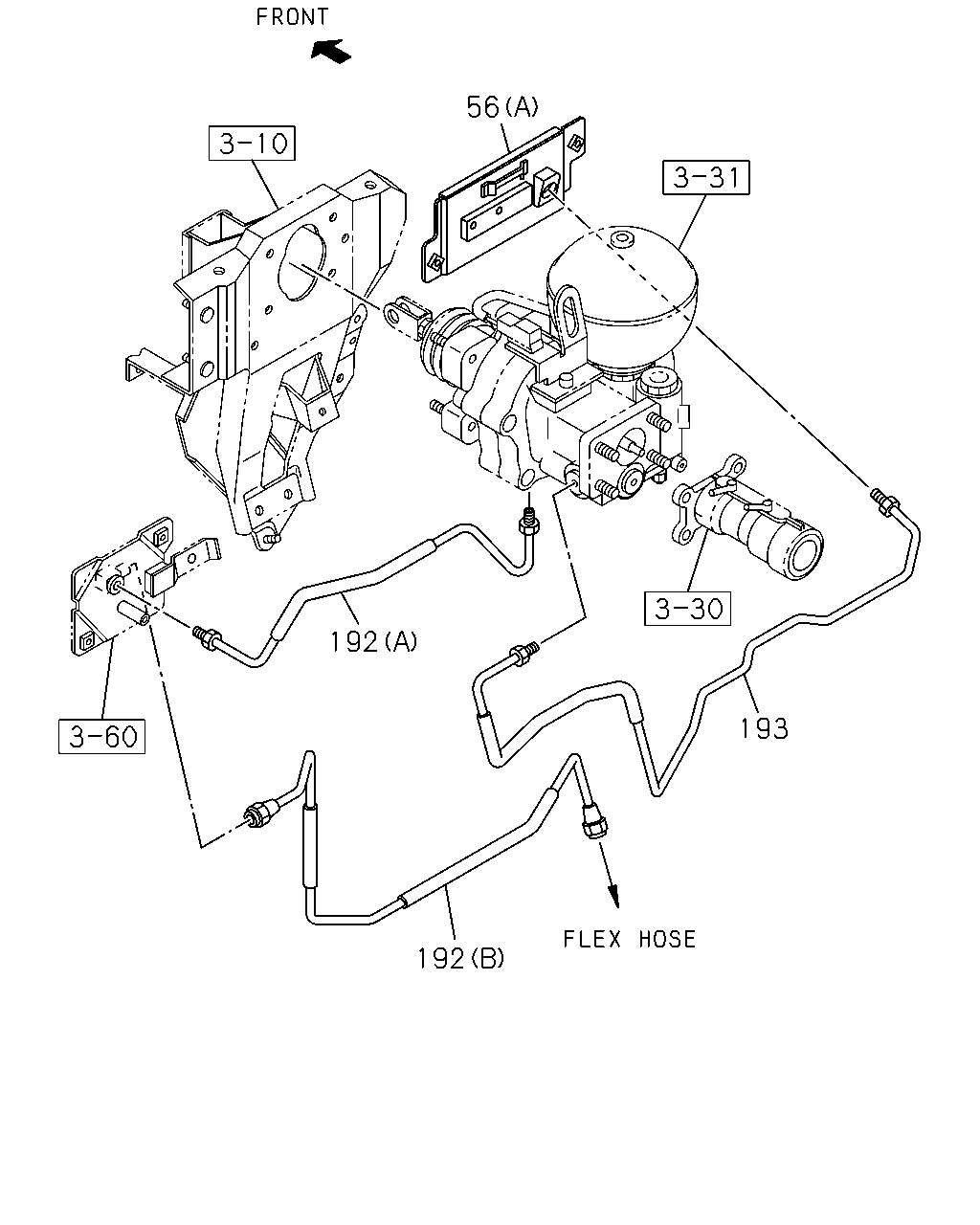

çizim 120600
56 192 193 192
BalonParca AdiParca NoAdetTipApplied Date
56 04.686 BRACKET; UNION,BRK
(B) 		8-98034-299-3 01 1 0803-
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98046-181-3 01 1 0803-1005
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98154-271-1 01 1 1006-
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98034-288-4 01 1 0803-1005
56 04.686 BRACKET; UNION,BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98154-270-1 01 1 1006-
56 04.686 BRACKET; UNION,BRK
EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSIONCONTROL-SMOOTHER(8GF) (A) 		8-98056-774-1 01 1 0803-1005
56 04.686 BRACKET; UNION,BRK
EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSIONCONTROL-SMOOTHER(8GF) (A) 		8-98154-268-1 01 1 1006-
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98056-309-2 01 1 0803-1005
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98154-269-1 01 1 1006-
192 04.685 PIPE; PRESSURE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98033-960-0 01 1 0803-
192 04.685 PIPE; PRESSURE
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98033-961-3 01 1 0803-
193 04.685 PIPE; RETURN
HYDRO BRAKE BOOSTER(7QQ) 		8-98090-257-0 01 1 0803-

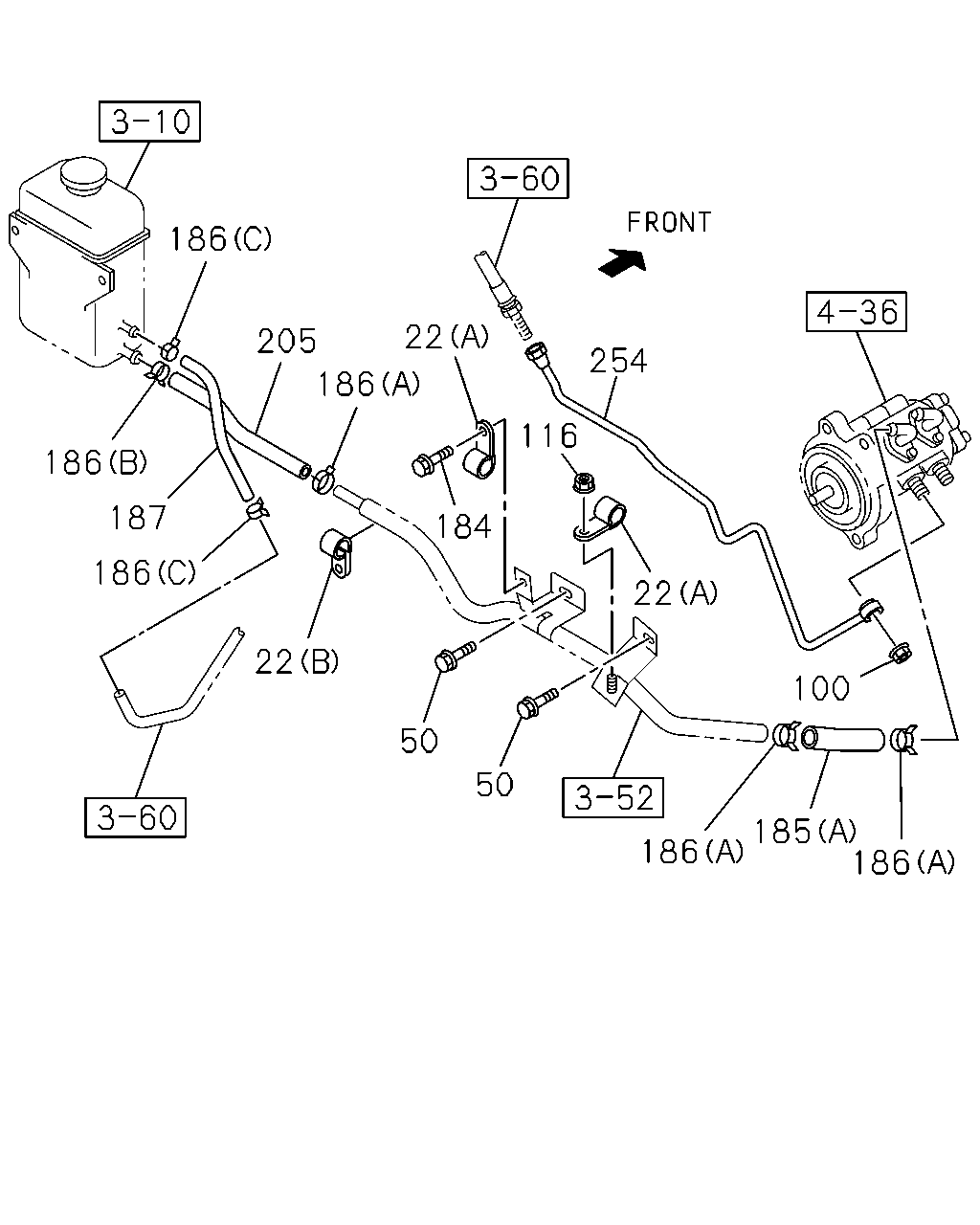

çizim 120648
186 22 205 254 186 116 186 187 184 186 22 22 100 50 50 185 186 186
BalonParca AdiParca NoAdetTipApplied Date
22 04.685 CLIP
HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5 		8-98082-034-0 02 1 0803-
22 04.685 CLIP
HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21 		8-98082-035-0 01 1 0803-
50 04.710 BOLT; PIPE
HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 03 1 0803-
100 04.730 NUT; HYDRAULIC UNIT
HYDRO BRAKE BOOSTER(7QQ) 		8-97358-958-0 01 1 0803-
116 04.686 NUT
HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0803-0808
116 04.686 NUT
HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0809-
184 04.681 BOLT; CLIP
HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0809-
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97330-513-0 01 1 0803-
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98082-497-0 01 1 0803-0906
185 04.681 HOSE; RUBBER,SUCTION
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98082-497-0 01 1 0907-
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 04.930 (C) ID=16 		8-94238-568-0 02 1 0803-0906
186 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 04.930 (C) ID=16 		8-94238-568-0 02 1 0907-0911
186 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) ID=16 		8-98008-098-0 02 1 0912-
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 06.672 (A) ID=21 		8-94242-034-0 01 1 0803-0906
186 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.672 (A) ID=21 		8-94242-034-0 01 1 0907-0911
186 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) ID=21 		8-98150-355-0 01 1 0912-
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 06.672 (A) ID=21 		8-94242-034-0 02 1 0803-
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER(7QQ) 08.846 (B) ID=22 		8-94382-401-0 01 1 0803-0906
186 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 08.846 (B) ID=22 		8-94382-401-0 01 1 0907-1003
186 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 03.278 (B) ID=22 		8-97359-141-0 01 1 1004-
187 04.681 HOSE; RUBBER,OIL TANK
HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000 		0-19809-300-0 01 1 0803-0906
187 04.681 HOSE; RUBBER,OIL TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000 		0-19809-300-0 01 1 0907-
205 04.681 HOSE; TANK TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300 		0-09814-300-0 01 1 0803-0906
205 04.681 HOSE; TANK TO PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300 		0-09814-300-0 01 1 0907-
254 04.685 PIPE; BRAKE,2WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98036-161-0 01 1 0803-
