Sayfa 3-31 - Isuzu EPC

1 17 16 24 15 12 11 23 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.901 MASTER VAC ASM; BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97162-800-1	01	1	0803-
3	04.906 RETAINER; FRT SHELL,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	9-83315-319-0	01	1	0803-
11	04.906 FILTER; M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97205-576-0	01	1	0803-
12	04.906 SILENCER; M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97205-577-0	01	1	0803-
15	04.906 RETAINER; GUARD,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-94375-083-0	01	1	0803-
16	04.662 NUT; VLV ROD,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ) M10	1-52139-008-0	01	1	0803-
17	04.662 CLEVIS; YOKE,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-610-0	01	1	0803-
23	04.910 SEAL; M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97079-350-0	01	1	0803-
24	04.906 GUARD; VLV BODY,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97205-578-0	01	1	0803-

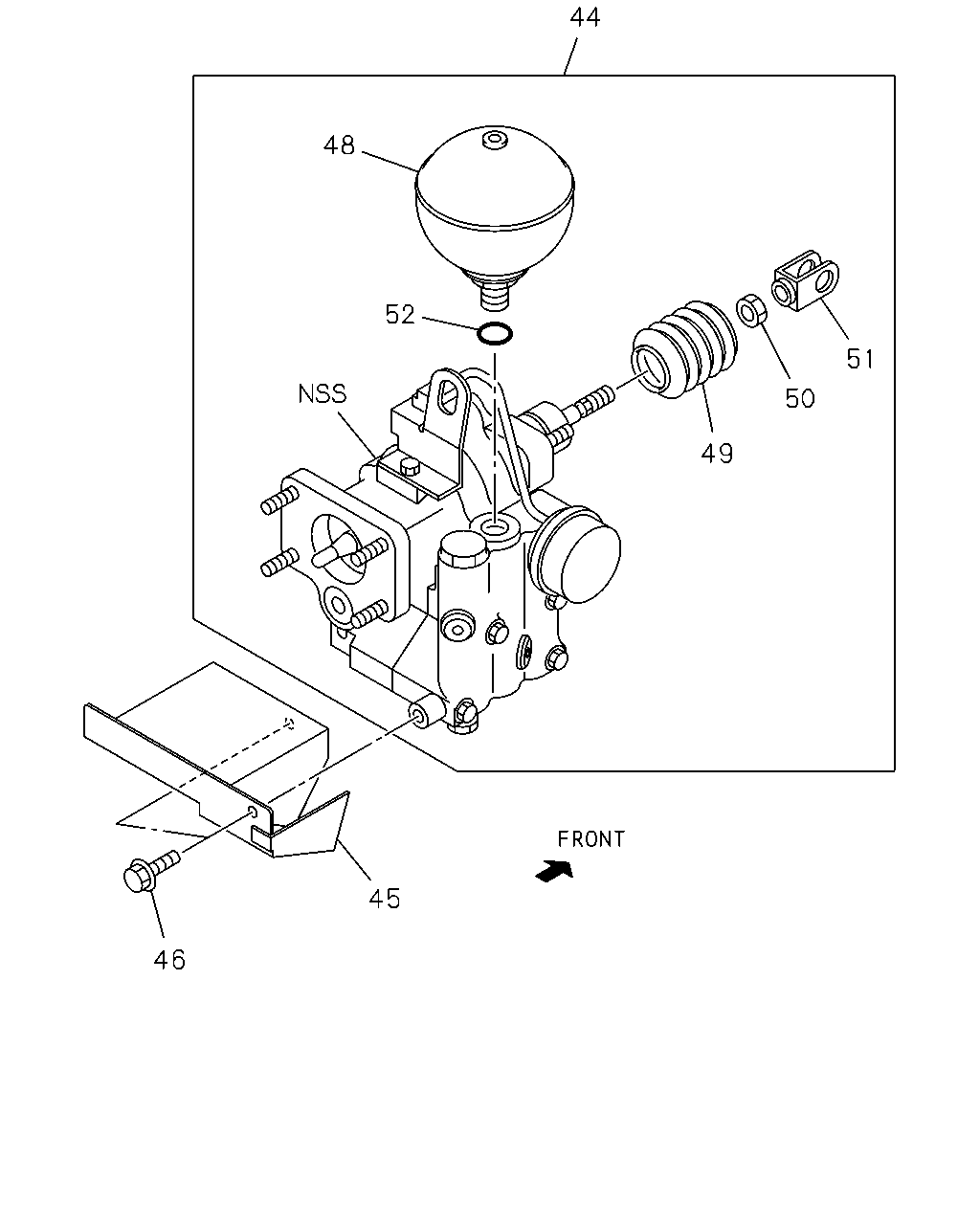

44 48 52 51 50 49 45 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	04.901 BOOSTER; HYDRAULIC BRK HYDRO BRAKE BOOSTER(7QQ)	8-98031-414-0	01	1	0803-
45	04.901 PROTECTOR; HEAT HYDRO BRAKE BOOSTER(7QQ)	8-98031-415-1	01	1	0803-
46	04.901 BOLT; HEAT PROTECTOR HYDRO BRAKE BOOSTER(7QQ) 03.671 M6X10 FLANGE	0-28050-610-0	02	1	0803-
48	04.906 ACCUMULATOR; HYDRO BOOSTER HYDRO BRAKE BOOSTER(7QQ)	8-98038-346-0	01	1	0803-
49	04.906 GUARD; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER(7QQ)	8-97191-043-0	01	1	0803-
50	04.906 NUT; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER(7QQ)	8-98038-349-0	01	1	0803-
51	04.906 CLEVIS; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER(7QQ)	8-98038-347-0	01	1	0803-
52	04.906 GASKET; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER(7QQ) 04.910	8-97191-038-0	01	1	0803-
