◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51156 - NPR BUS(LHD) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#34340) — 133 parça

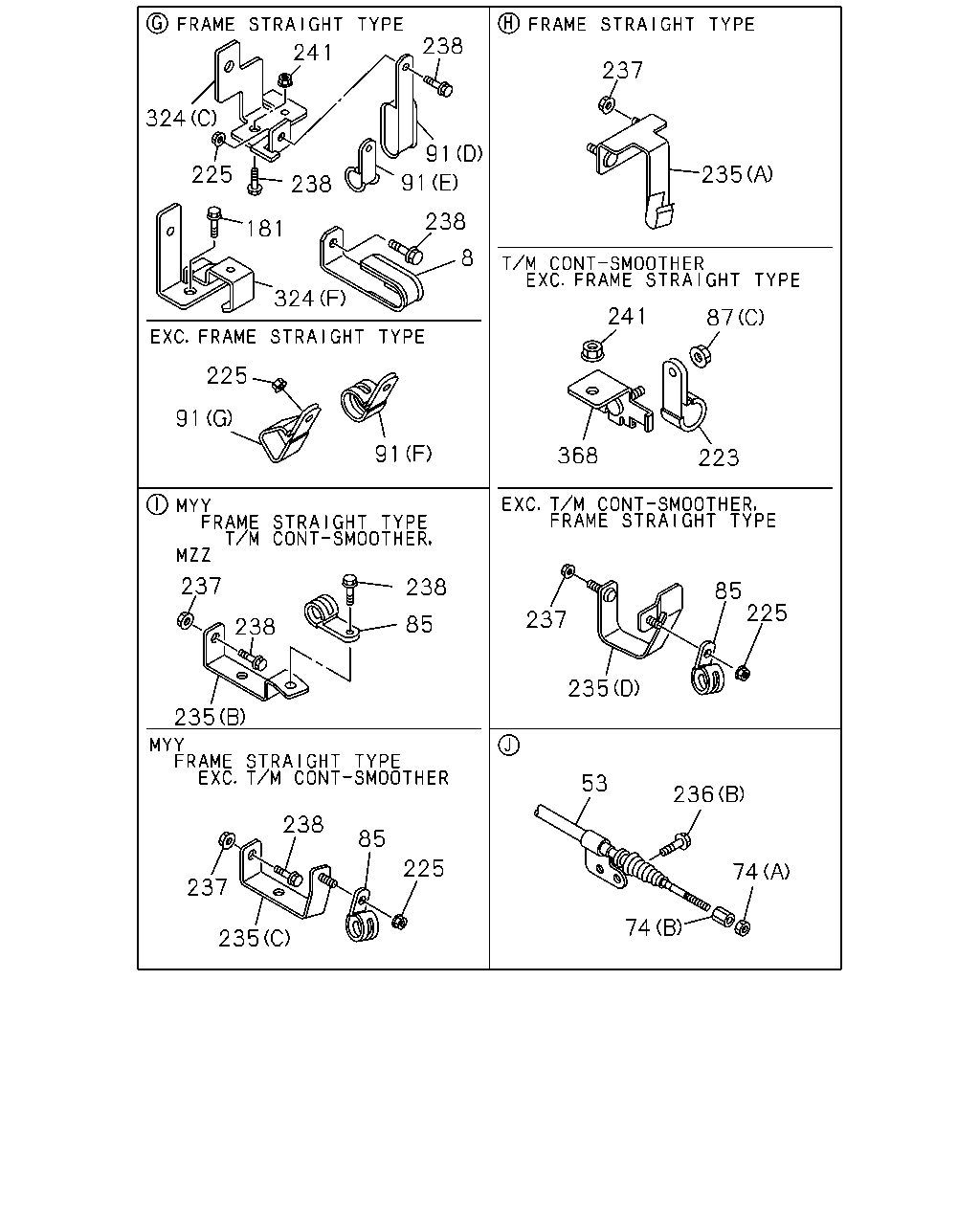

çizim 120592
238 241 237 324 91 235 225 91 238 238 181 8 324 241 87 225 91 91 368 223 237 238 85 225 237 85 238 235 235 53 236 238 85 225 74 237 74 235
BalonParca AdiParca NoAdetTipApplied Date
8 04.592 GUIDE; PARKING BRK
EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 		8-98110-964-0 01 1 0803-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-098-4 01 1 0803-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98060-996-3 01 1 0803-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98049-096-1 01 1 0803-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-121-3 01 1 0803-0906
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-097-4 01 1 0803-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-441-3 01 1 0803-
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 02.334 (A) M8 		0-91110-508-0 01 1 0803-
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE 		9-46259-016-0 01 1 0803-
85 04.785 CLIP; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) ID=14.5 L=20 		1-09701-012-0 01 1 0803-
85 04.785 CLIP; BRKT
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 0803-
85 04.785 CLIP; BRKT
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> ID=13 L=20 		0-95235-236-0 01 1 0803-
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0803-
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 0803-
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0803-
91 04.785 CLIP; PARKING BRK CABLE
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-98023-697-0 01 1 0803-
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98023-698-0 01 1 0803-0803
91 04.785 CLIP; PARKING BRK CABLE
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98023-698-0 01 1 0803-
91 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 04.047 (G) 		8-97036-332-1 01 1 0803-
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 0803-
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 0803-
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B) ID=16 L=28 		0-95235-556-0 01 1 0803-
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F) ID=24 L=40 		1-09701-139-0 01 1 0803-
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0803-
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0803-
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0803-
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803-
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0803-
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 ID=13 L=20 		1-09701-138-1 01 1 0803-
225 04.785 NUT; CABLE CLIP
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0803-
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-
225 04.785 NUT; CABLE CLIP
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-
225 04.785 NUT; CABLE CLIP
EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98074-995-0 01 1 0803-
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98105-435-0 01 1 0803-0909
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98106-986-1 01 1 0910-
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) (D) 		8-98034-410-3 01 1 0803-
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98087-322-0 01 1 0803-
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98033-907-0 01 1 0803-
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-907-0 01 1 0803-
236 04.785 BOLT; BRKT TO FRAME
00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 0803-
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0803-
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0803-
237 04.785 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0803-
237 04.785 NUT; BRKT TO FRAME
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0803-
237 04.785 NUT; BRKT TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0803-
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0803-
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0803-
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803-
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803-
238 04.785 BOLT; CLIP TO BRKT
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803-
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0803-
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-
324 04.785 BRACKET
04.047 (B) 		8-98061-626-1 01 1 0803-
324 04.785 BRACKET
(D) 		8-98094-197-0 01 1 0803-1110
324 04.785 BRACKET
04.010 (D) 		8-98189-804-0 01 1 1111-
324 04.785 BRACKET
EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98111-394-1 01 1 0803-
324 04.785 BRACKET
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98087-330-1 01 1 0803-
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (E) 		8-98034-185-1 01 1 0803-
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-516-0 01 1 0803-
368 04.785 BRACKET; T/M SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97372-863-1 01 1 0803-

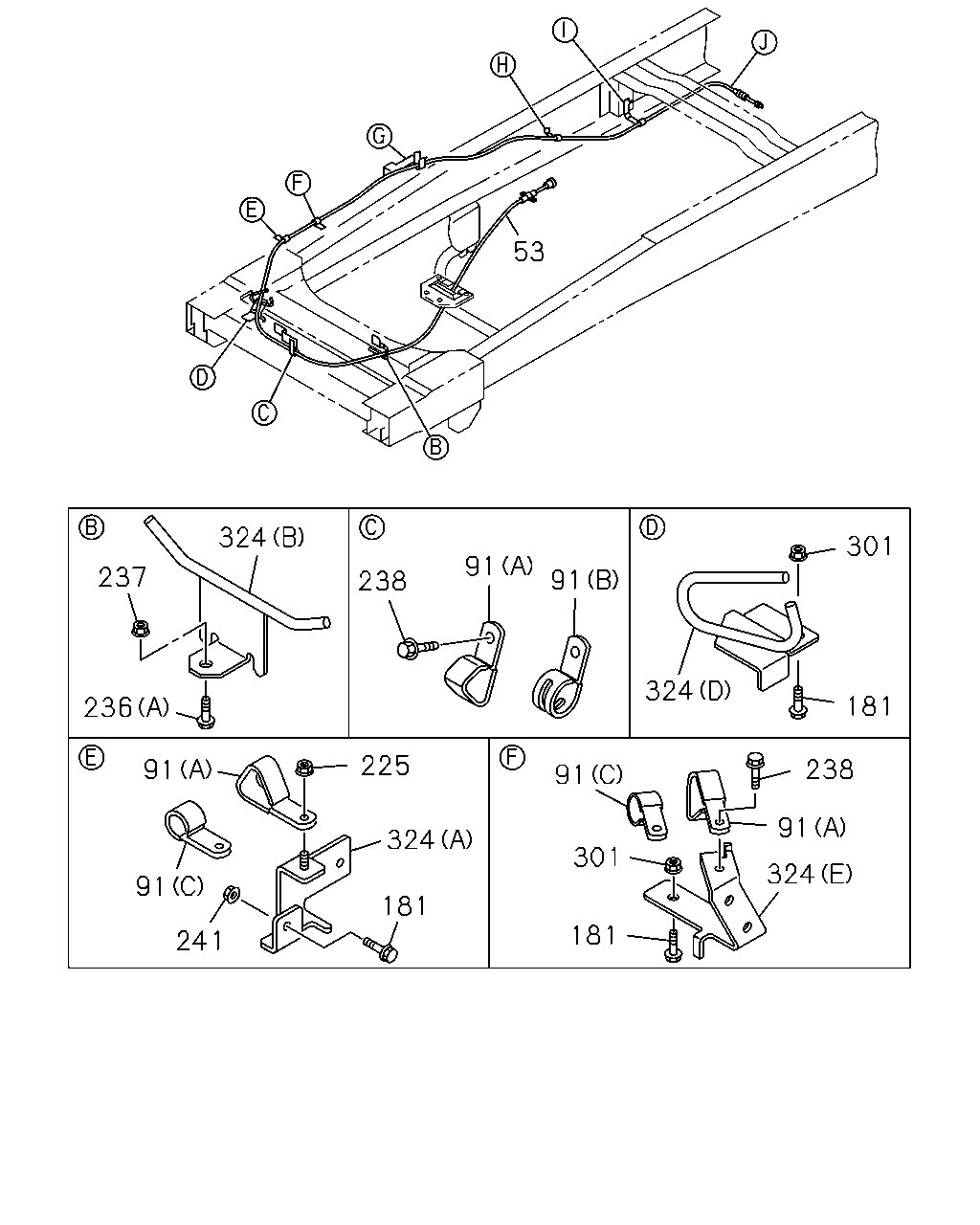

çizim 120595
53 324 301 91 237 91 238 324 181 236 225 91 238 91 91 324 301 324 91 181 181 241
BalonParca AdiParca NoAdetTipApplied Date
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-098-4 01 1 0803-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98060-996-3 01 1 0803-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98049-096-1 01 1 0803-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-121-3 01 1 0803-0906
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-097-4 01 1 0803-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-441-3 01 1 0803-
91 04.785 CLIP; PARKING BRK CABLE
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-98023-697-0 01 1 0803-
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98023-698-0 01 1 0803-0803
91 04.785 CLIP; PARKING BRK CABLE
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98023-698-0 01 1 0803-
91 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 04.047 (G) 		8-97036-332-1 01 1 0803-
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 0803-
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 0803-
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B) ID=16 L=28 		0-95235-556-0 01 1 0803-
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F) ID=24 L=40 		1-09701-139-0 01 1 0803-
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0803-
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0803-
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0803-
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803-
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0803-
225 04.785 NUT; CABLE CLIP
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0803-
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-
225 04.785 NUT; CABLE CLIP
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-
225 04.785 NUT; CABLE CLIP
EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-
236 04.785 BOLT; BRKT TO FRAME
00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 0803-
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0803-
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0803-
237 04.785 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0803-
237 04.785 NUT; BRKT TO FRAME
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0803-
237 04.785 NUT; BRKT TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0803-
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0803-
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0803-
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803-
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803-
238 04.785 BOLT; CLIP TO BRKT
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0803-
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0803-
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-
324 04.785 BRACKET
04.047 (B) 		8-98061-626-1 01 1 0803-
324 04.785 BRACKET
(D) 		8-98094-197-0 01 1 0803-1110
324 04.785 BRACKET
04.010 (D) 		8-98189-804-0 01 1 1111-
324 04.785 BRACKET
EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98111-394-1 01 1 0803-
324 04.785 BRACKET
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98087-330-1 01 1 0803-
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (E) 		8-98034-185-1 01 1 0803-
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-516-0 01 1 0803-

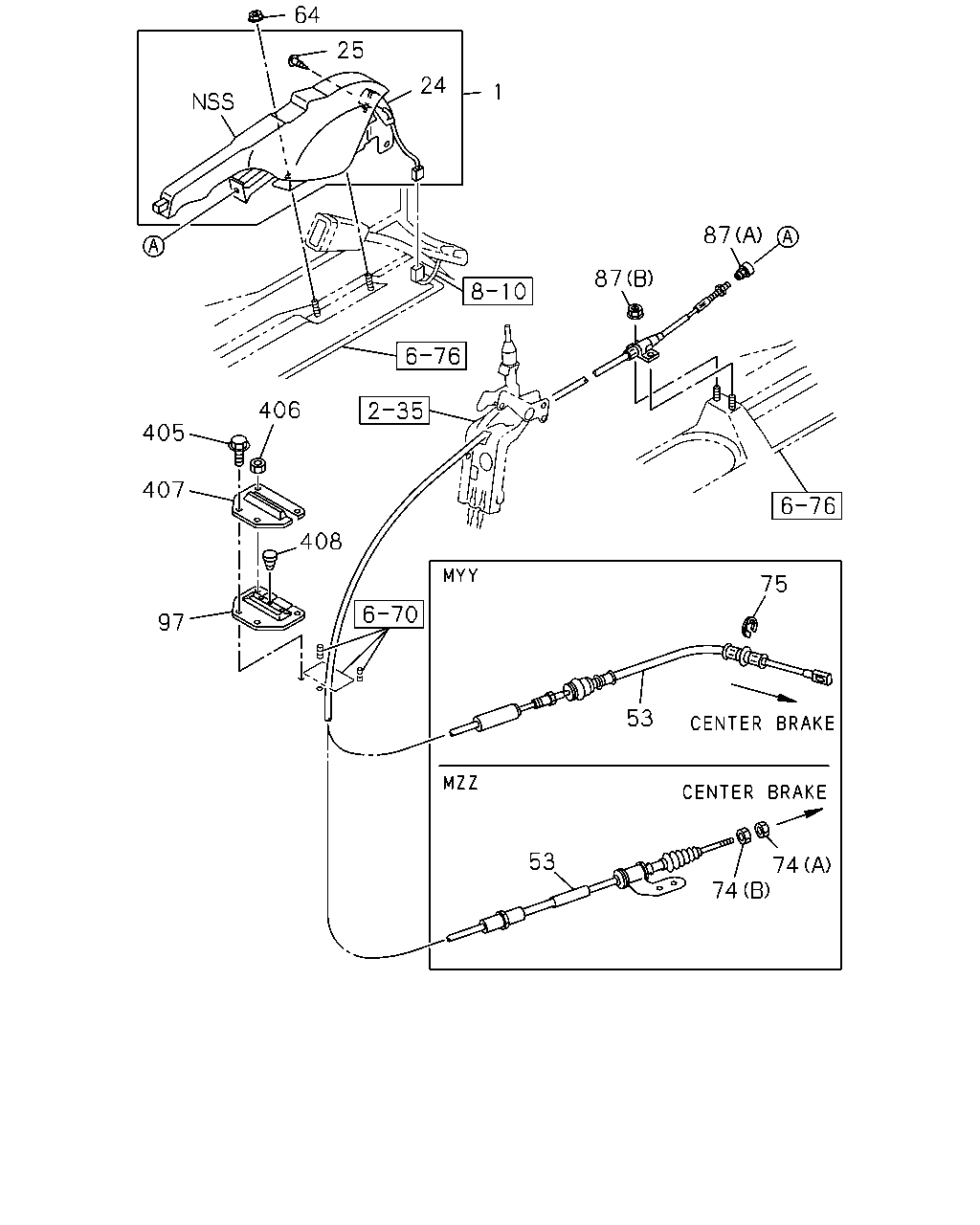

çizim 120596
64 25 24 1 87 87 406 405 407 408 75 97 53 53 74 74
BalonParca AdiParca NoAdetTipApplied Date
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97406-006-0 01 1 0803-1303
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-514-0 01 1 1304-
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0803-1303
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304-
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0803-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-098-4 01 1 0803-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98060-996-3 01 1 0803-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98049-096-1 01 1 0803-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-121-3 01 1 0803-0906
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-097-4 01 1 0803-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-441-3 01 1 0803-
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0803-
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 02.334 (A) M8 		0-91110-508-0 01 1 0803-
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE 		9-46259-016-0 01 1 0803-
75 04.790 RING; SNAP,HAND BRK CABLE
M/T MYY6S(RST) ID=12 		0-91805-512-0 01 1 0803-
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0803-
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 0803-
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0803-
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97091-890-0 01 1 0803-
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 0803-
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 0803-
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 0803-
408 04.785 CAP; GROMMET
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 		8-97371-108-0 02 1 0803-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
