◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51156 - NPR BUS(LHD) ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#34337) — 76 parça
çizim 120558
94 94 102 97 102 97 96 101 104 103 96 99 106 110 108 99 101 101 107 95 102
BalonParca AdiParca NoAdetTipApplied Date
94 04.665 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) (B) 		8-97358-878-0 02 1 0803-
94 04.665 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) (B) REAR 		8-97358-879-0 01 1 0803-
94 04.665 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) (B) FRONT 		8-97358-881-0 01 1 0803-
94 04.665 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.0-7.5TON(RPX) (A) 		8-97139-825-0 02 1 0803-
94 04.665 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.0-7.5TON(RPX) (A) FRONT 		8-97139-822-0 01 1 0803-
94 04.665 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.0-7.5TON(RPX) (A) REAR 		8-97139-824-0 01 1 0803-
94 04.665 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.5-8.0TON(RPY) (A) 		8-97332-224-0 02 1 0803-
94 04.665 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.5-8.0TON(RPY) (A) FRONT 		8-97332-222-0 01 1 0803-
94 04.665 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.5-8.0TON(RPY) (A) REAR 		8-97332-223-0 01 1 0803-
95 04.665 CUP SET; RR WHEEL CYL
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.5-8.0TON(RPY) 		5-87832-051-0 02 1 0803-
95 04.665 CUP SET; RR WHEEL CYL
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 		5-87832-051-0 02 1 0803-
95 04.665 CUP SET; RR WHEEL CYL
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.0-7.5TON(RPX) 		5-87831-598-0 02 1 0803-
96 04.666 SCREW; BLEEDER,RR BRK
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.0-7.5TON(RPX) 		8-98050-476-0 01 1 0803-
96 04.666 SCREW; BLEEDER,RR BRK
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.5-8.0TON(RPY) 		8-98050-477-0 01 1 0803-
96 04.666 SCREW; BLEEDER,RR BRK
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 		8-98050-477-0 01 1 0803-
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 0803-
99 04.668 PISTON; RR WHEEL CYL
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 		8-97349-731-0 02 1 0803-
99 04.668 PISTON; RR WHEEL CYL
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 		8-97349-732-0 02 1 0803-
99 04.668 PISTON; RR WHEEL CYL
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.0-7.5TON(RPX) 		8-94414-700-1 04 1 0803-
99 04.668 PISTON; RR WHEEL CYL
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.5-8.0TON(RPY) 		8-97332-229-0 03 1 0803-
101 04.666 SCREW; ADJ,RR WHEEL CYL
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) (B) 		8-97349-747-0 04 1 0803-
101 04.666 SCREW; ADJ,RR WHEEL CYL
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) (A) 		8-97349-741-0 02 1 0803-
101 04.666 SCREW; ADJ,RR WHEEL CYL
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) (A) 		8-97349-742-0 02 1 0803-
101 04.666 SCREW; ADJ,RR WHEEL CYL
FINAL GEAR RATIO 43/9(S2J) (A) 		8-94414-702-0 04 1 0803-
102 04.668 PISTON; REAR WHEEL CYL
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.0-7.5TON(RPX) (B) D=30.16 		8-94414-701-1 04 1 0803-0810
102 04.668 PISTON; REAR WHEEL CYL
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.0-7.5TON(RPX) (B) 		8-97078-045-0 04 1 0811-
102 04.668 PISTON; REAR WHEEL CYL
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.5-8.0TON(RPY) (B) 		8-97332-043-0 04 1 0803-
102 04.668 PISTON; REAR WHEEL CYL
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) (B) 		8-97332-043-0 04 1 0803-
102 04.668 PISTON; REAR WHEEL CYL
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.5-8.0TON(RPY) (A) 		8-97332-229-0 01 1 0803-
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.0-7.5TON(RPX) 		8-94128-486-0 04 1 0803-
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.5-8.0TON(RPY) 		8-97122-877-0 04 1 0803-
104 05.103 LEVER; ADJ
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 		8-97349-743-0 02 1 0803-
104 05.103 LEVER; ADJ
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 		8-97349-744-0 02 1 0803-
106 05.107 SPRING; ADJ LEVER
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 		8-97349-745-0 04 1 0803-
107 05.110 GEAR; ADJ,RR W/CYL
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 04.665 		8-97358-894-0 02 1 0803-
107 05.110 GEAR; ADJ,RR W/CYL
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 04.665 		8-97358-895-0 02 1 0803-
108 05.110 WASHER; THRUST,GEAR ADJ
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 		8-97349-736-0 04 1 0803-
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL
FINAL GEAR RATIO 43/9(S2J) 		8-94128-727-0 04 1 0803-

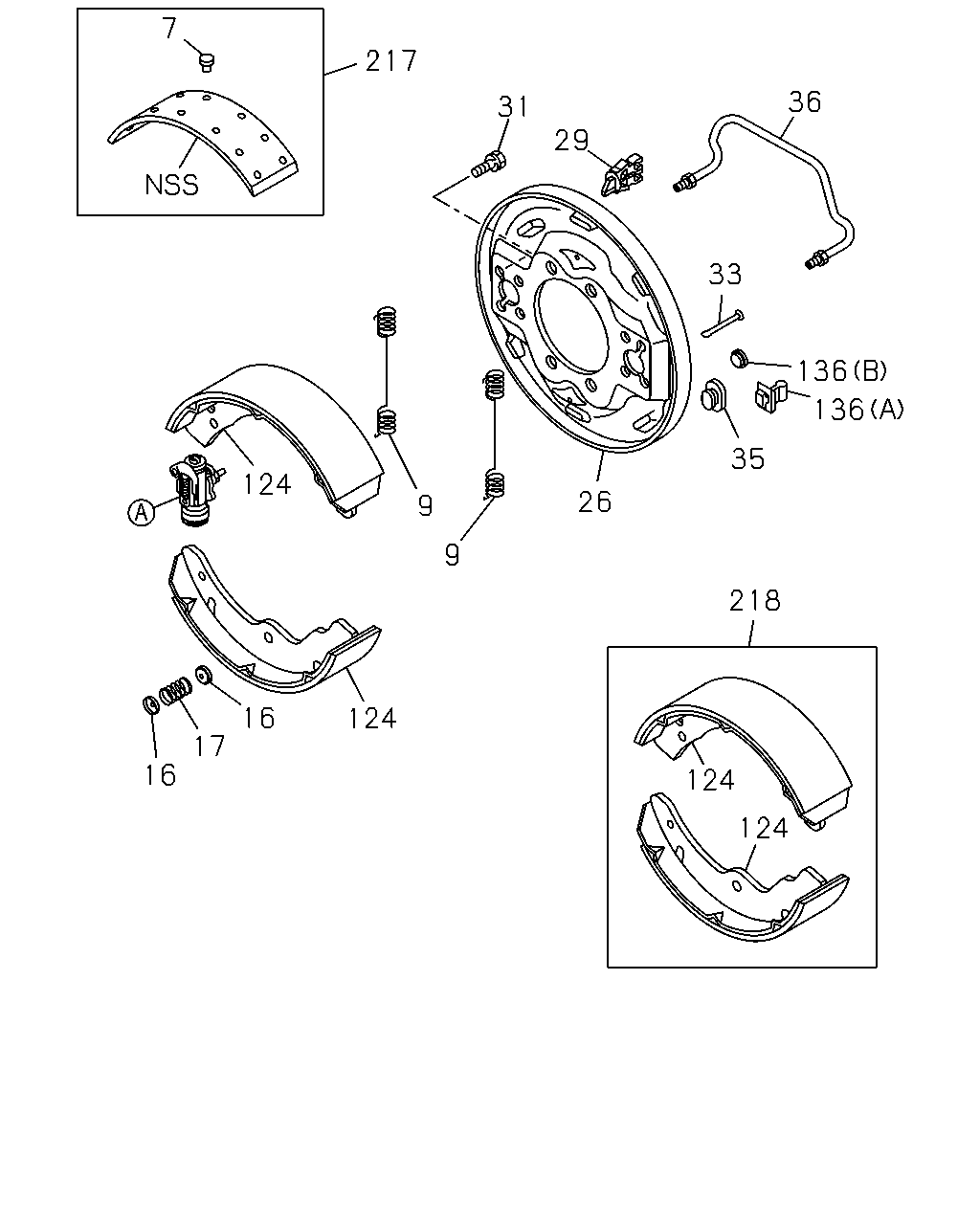

çizim 120563
7 217 36 31 29 33 136 136 35 124 26 9 9 218 16 124 17 16 124 124
BalonParca AdiParca NoAdetTipApplied Date
7 05.019 RIVET; LINING,RR BRK
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.0-7.5TON(RPX) 		1-09732-029-0 48 1 0803-
7 05.019 RIVET; LINING,RR BRK
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.5-8.0TON(RPY) 		1-09732-029-0 64 1 0803-
7 05.019 RIVET; LINING,RR BRK
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 		1-09732-029-0 64 1 0803-
9 05.026 SPRING; RETURN,BRK SHOE
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.0-7.5TON(RPX) 		8-97022-087-0 04 1 0803-
9 05.026 SPRING; RETURN,BRK SHOE
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.5-8.0TON(RPY) 		8-97122-869-0 04 1 0803-
9 05.026 SPRING; RETURN,BRK SHOE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 		8-97122-869-0 04 1 0803-
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0803-
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 0803-
26 05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 		8-97168-750-0 01 1 0803-
26 05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 		8-97168-748-0 01 1 0803-
26 05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.0-7.5TON(RPX) 		8-97223-574-0 01 1 0803-
26 05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.0-7.5TON(RPX) 		8-97223-573-0 01 1 0803-
26 05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.5-8.0TON(RPY) 		8-97134-732-0 01 1 0803-
26 05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.5-8.0TON(RPY) 		8-97134-731-0 01 1 0803-
29 04.685 CLIP; PIPE,BRK 8-97022-086-0 02 1 0803-
31 04.665 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 0803-
33 05.043 PIN; SHOE HOLD DOWN
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.0-7.5TON(RPX) 		8-97022-089-0 04 1 0803-
33 05.043 PIN; SHOE HOLD DOWN
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.5-8.0TON(RPY) 		8-97122-870-0 04 1 0803-
33 05.043 PIN; SHOE HOLD DOWN
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 		8-97122-870-0 04 1 0803-
35 05.002 GROMMET; CHECK HOLE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 		8-97017-507-0 06 1 0803-
35 05.002 GROMMET; CHECK HOLE
FINAL GEAR RATIO 43/9(S2J) 		8-97017-507-0 02 1 0803-
36 04.685 PIPE; OIL,RR BRK
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.0-7.5TON(RPX) 		8-97192-215-0 02 1 0803-
36 04.685 PIPE; OIL,RR BRK
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.5-8.0TON(RPY) 		8-97079-847-0 02 1 0803-
36 04.685 PIPE; OIL,RR BRK
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 		8-97079-847-0 02 1 0803-
124 05.017 SHOE ASM; BRK,RR
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.0-7.5TON(RPX) 		8-97201-061-0 04 1 0803-
124 05.017 SHOE ASM; BRK,RR
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.5-8.0TON(RPY) 		8-97188-455-0 04 1 0803-
124 05.017 SHOE ASM; BRK,RR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 		8-97188-455-0 04 1 0803-
136 05.002 GROMMET
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 04.670 (B) 		1-47154-008-0 04 1 0803-
136 05.002 GROMMET
FINAL GEAR RATIO 43/9(S2J) (A) 		8-97044-742-1 04 1 0803-
217 05.018 LINING KIT; RR BRK
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.0-7.5TON(RPX) 		5-87831-774-0 01 1 0803-
217 05.018 LINING KIT; RR BRK
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.5-8.0TON(RPY) 		5-87831-692-0 01 1 0803-
217 05.018 LINING KIT; RR BRK
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 		5-87831-692-0 01 1 0803-
217 05.018 LINING KIT; RR BRK
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.5-8.0TON(RPY) BEST VALUE PARTS 		5-87610-119-0 01 1 0803-
217 05.018 LINING KIT; RR BRK
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) BEST VALUE PARTS 		5-87610-119-0 01 1 0803-
217 05.018 LINING KIT; RR BRK
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.0-7.5TON(RPX) BEST VALUE PARTS 		5-87610-120-0 01 1 0803-
218 05.017 SHOE KIT; BRK,RR
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.0-7.5TON(RPX) 		5-87831-775-0 01 1 0803-
218 05.017 SHOE KIT; BRK,RR
FINAL GEAR RATIO 43/9(S2J) G.V.W. 7.5-8.0TON(RPY) 		5-87831-693-0 01 1 0803-
218 05.017 SHOE KIT; BRK,RR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) 		5-87831-693-0 01 1 0803-
