◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51397 - NPR/NQR(AUST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#34336) — 70 parça

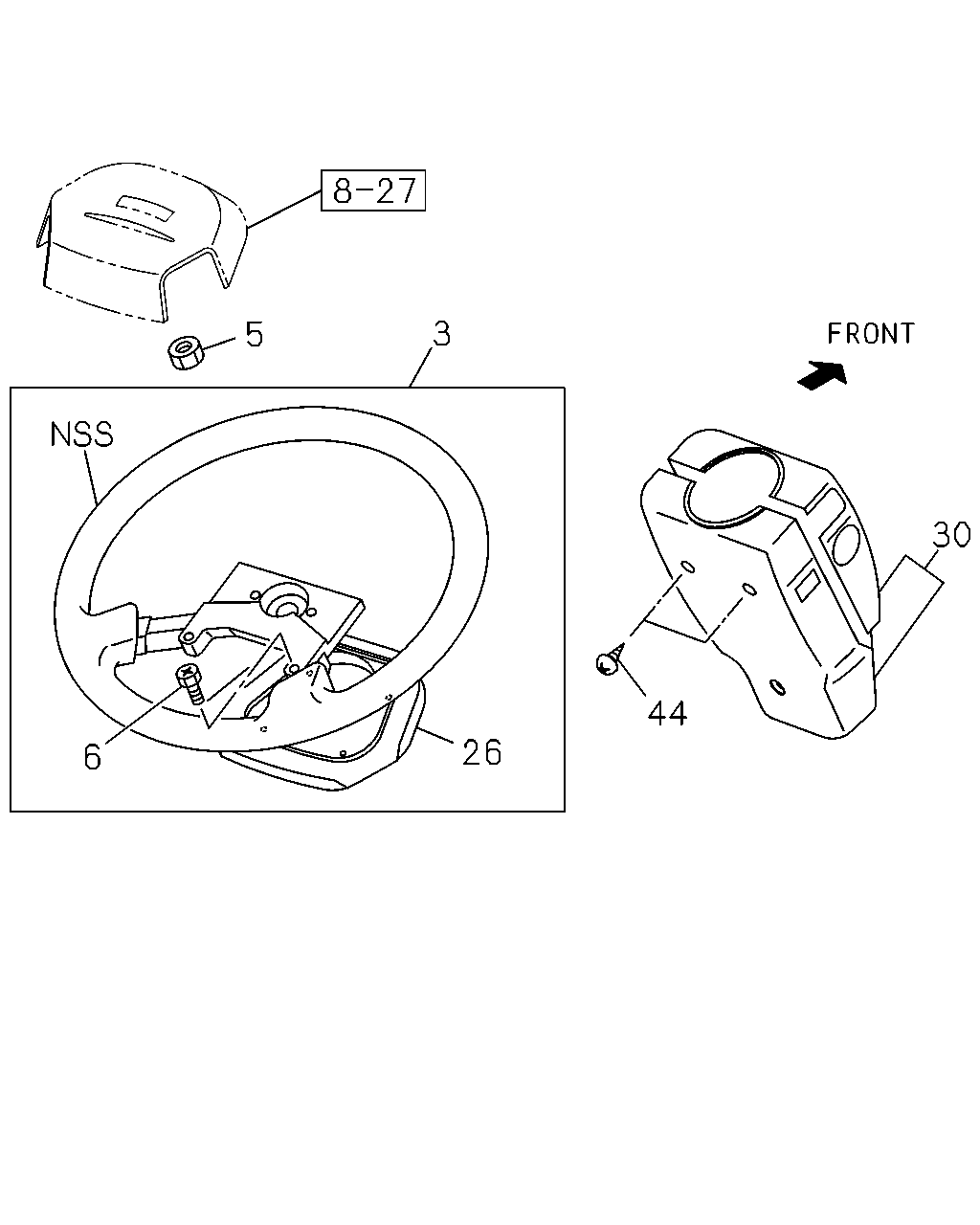

çizim 33929
3 5 30 44 26 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97399-483-1 01 1 0502-1006 ● ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97421-974-0 01 1 1007- ● ● ● ● ●
3 06.513 WHEEL; STRG
DARK GRAY 		8-97098-531-2 01 1 0211-0501 ● ● ● ● ●
3 06.513 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97400-081-2 01 1 0502- ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 0211-0512 ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0601- ● ● ● ● ●
6 02.820 SCREW; HORN SPR CONTACT
AIR BAG DRIVER<AJ3> M4X12 		8-97167-588-0 04 1 0502- ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97399-485-0 01 1 0502-1006 ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97421-970-0 01 1 1007- ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97098-534-1 01 1 0211-0501 ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97400-089-1 01 1 0502- ● ● ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> TILT STEERING<N33> DARK GRAY 		8-97582-336-3 01 1 0502-0502 ● ● ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> TILT STEERING<N33> DARK GRAY 		8-97404-018-0 01 1 0502-0504 ● ● ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33> DARK GRAY 		8-97582-335-3 01 1 0502-0502 ● ● ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33> DARK GRAY 		8-97404-017-0 01 1 0502-0504 ● ● ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97404-017-1 01 1 0505-0608 ● ● ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> EXC. PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97404-017-1 01 1 0609- ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97404-017-1 01 1 0609- ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97404-018-1 01 1 0609- ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97582-825-8 01 1 0609- ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33> DARK GRAY 		8-97588-867-7 01 1 0609- ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> BLACK 		8-97197-936-8 01 1 0211-0501 ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97582-824-8 01 1 0502-0608 ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. AIR BAG DRIVER<AJ3>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-824-8 01 1 0609- ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97582-824-8 01 1 0609- ● ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33> BLACK 		8-97997-903-7 01 1 0211-0501 ● ● ● ● ●
30 06.518 COWL; STEERING
EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33> DARK GRAY 		8-97587-492-7 01 1 0502-0608 ● ● ● ● ●
30 06.518 COWL; STEERING
EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97587-492-7 01 1 0609- ● ●
30 06.518 COWL; STEERING
EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33> DARK GRAY 		8-97587-492-7 01 1 0609- ● ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0211-0612 ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 02 1 0701- ● ● ● ● ●

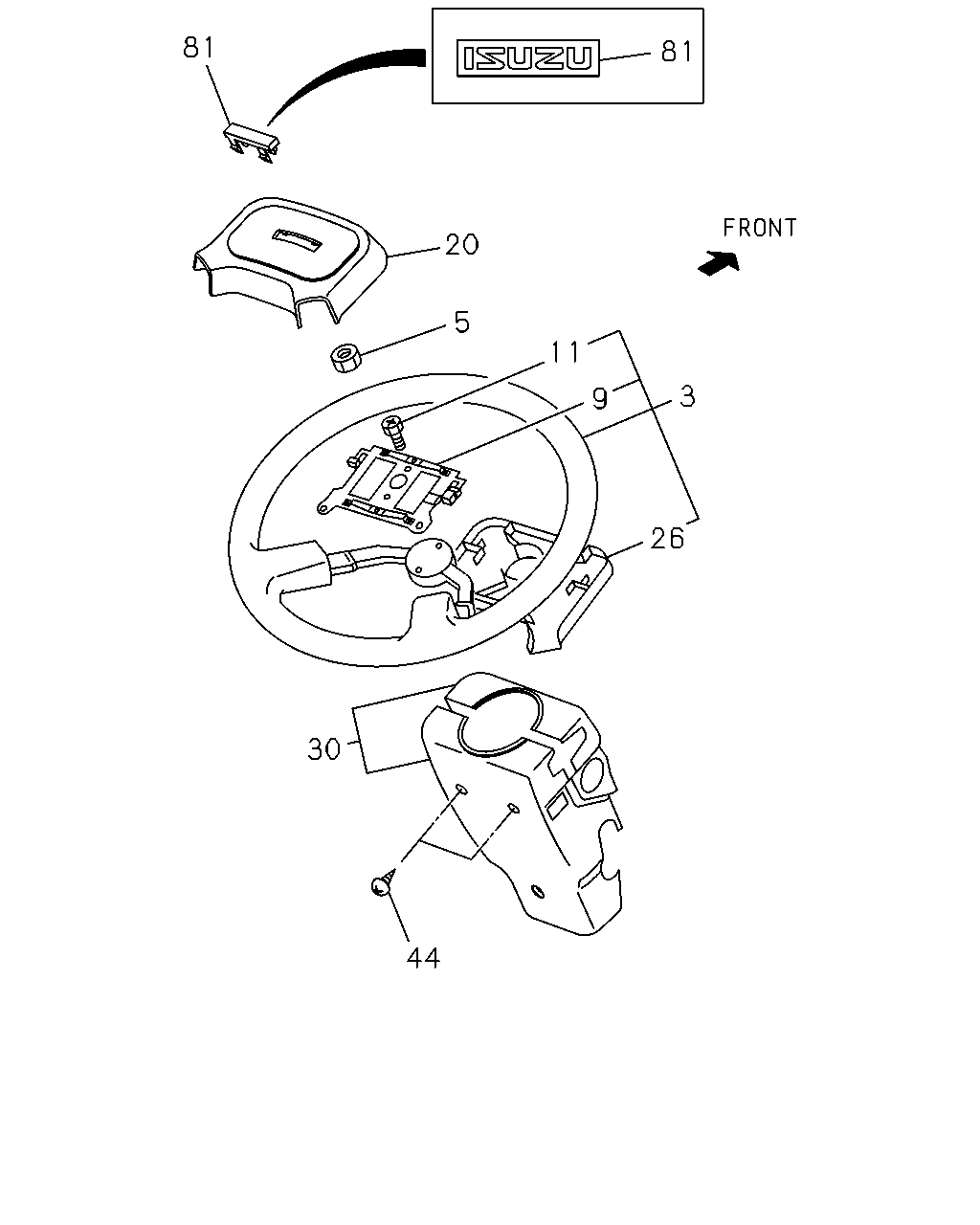

çizim 33955
81 81 20 5 11 3 9 26 30 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97399-483-1 01 1 0502-1006 ● ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97421-974-0 01 1 1007- ● ● ● ● ●
3 06.513 WHEEL; STRG
DARK GRAY 		8-97098-531-2 01 1 0211-0501 ● ● ● ● ●
3 06.513 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97400-081-2 01 1 0502- ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 0211-0512 ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0601- ● ● ● ● ●
9 02.819 PLATE; HORN CONTACT 8-97076-688-1 01 1 0211-0501 ● ● ● ● ●
9 02.819 PLATE; HORN CONTACT
EXC. AIR BAG DRIVER<AJ3> 		8-97076-688-1 01 1 0502- ● ● ● ● ●
11 06.514 SCREW; PLATE TO BUTTON 8-97076-690-1 02 1 0211-0309 ● ● ● ● ●
11 06.514 SCREW; PLATE TO BUTTON 8-97076-690-1 01 1 0310-0501 ● ● ● ● ●
11 06.514 SCREW; PLATE TO BUTTON
EXC. AIR BAG DRIVER<AJ3> 		8-97076-690-1 01 1 0502- ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97098-526-0 01 1 0211-0501 ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97400-049-0 01 1 0502- ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97399-485-0 01 1 0502-1006 ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97421-970-0 01 1 1007- ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97098-534-1 01 1 0211-0501 ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97400-089-1 01 1 0502- ● ● ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> TILT STEERING<N33> DARK GRAY 		8-97582-336-3 01 1 0502-0502 ● ● ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> TILT STEERING<N33> DARK GRAY 		8-97404-018-0 01 1 0502-0504 ● ● ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33> DARK GRAY 		8-97582-335-3 01 1 0502-0502 ● ● ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33> DARK GRAY 		8-97404-017-0 01 1 0502-0504 ● ● ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97404-017-1 01 1 0505-0608 ● ● ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> EXC. PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97404-017-1 01 1 0609- ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97404-017-1 01 1 0609- ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97404-018-1 01 1 0609- ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97582-825-8 01 1 0609- ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33> DARK GRAY 		8-97588-867-7 01 1 0609- ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> BLACK 		8-97197-936-8 01 1 0211-0501 ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97582-824-8 01 1 0502-0608 ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. AIR BAG DRIVER<AJ3>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-824-8 01 1 0609- ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97582-824-8 01 1 0609- ● ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33> BLACK 		8-97997-903-7 01 1 0211-0501 ● ● ● ● ●
30 06.518 COWL; STEERING
EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33> DARK GRAY 		8-97587-492-7 01 1 0502-0608 ● ● ● ● ●
30 06.518 COWL; STEERING
EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97587-492-7 01 1 0609- ● ●
30 06.518 COWL; STEERING
EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33> DARK GRAY 		8-97587-492-7 01 1 0609- ● ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0211-0612 ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 02 1 0701- ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
DARK GRAY 		8-97098-527-0 01 1 0211-0501 ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97400-060-0 01 1 0502- ● ● ● ● ●
