Sayfa 4-25 - Isuzu EPC

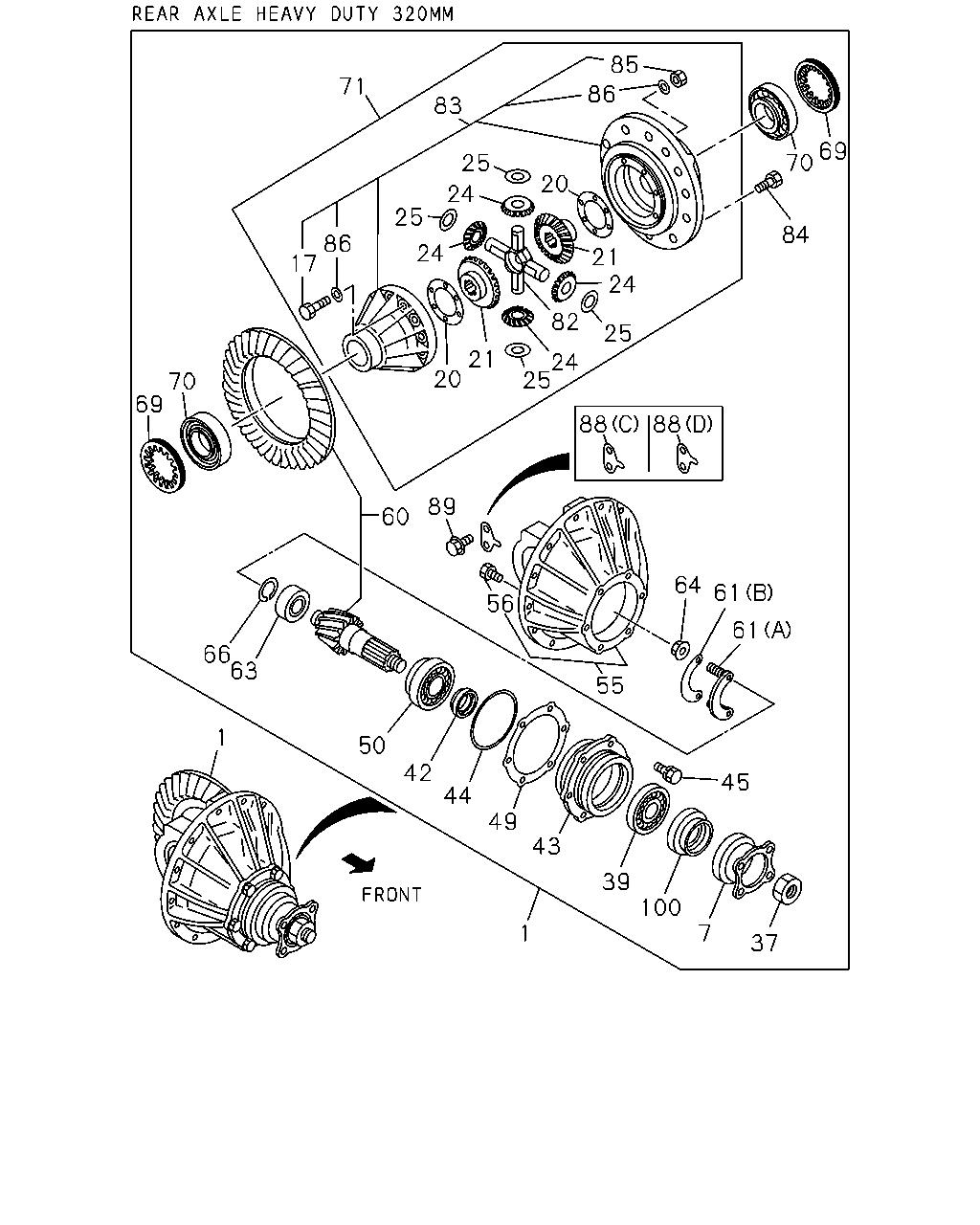

4-25 — REAR FINAL DRIVE (#34335) — 538 parça

85 71 83 69 70 20 24 84 17 24 21 24 82 21 20 24 70 69 88 89 60 89 88 64 61 56 61 66 63 55 50 1 42 45 100 44 49 43 46 50 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97094-681-0	01	1	0211-0501	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97094-679-0	01	1	0211-0501	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97094-679-0	01	1	0502-	●		●	●	●
1	05.505 DRIVE ASM; FINAL,RR 43/9	8-97319-241-0	01	1	0211-0303			●	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-241-0	01	1	0211-0303	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97356-423-0	01	1	0304-0304	●		●	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97363-096-0	01	1	0304-0501	●		●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97367-507-0	01	1	0502-	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-242-0	01	1	0211-0303	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97356-424-0	01	1	0304-0304	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97363-097-0	01	1	0304-0501	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97367-506-0	01	1	0502-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-97319-243-0	01	1	0211-0303	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-97356-425-0	01	1	0304-0304	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-97363-098-0	01	1	0304-0501	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) G.V.W. 8.0-8.5TON(RPZ) 41/8	8-97203-879-0	01	1	0211-0304	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) G.V.W. 8.0-8.5TON(RPZ) 41/8	8-97367-508-0	01	1	0305-0501	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0211-0501			●	●	●
7	05.545 FLANGE; FINAL G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-94477-723-4	01	1	0211-0501	●
7	05.545 FLANGE; FINAL G.V.W. 8.0-8.5TON(RPZ)	8-97047-095-2	01	1	0211-0501	●
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	0211-0501		●
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	0502-	●	●	●	●	●
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0211-0501			●	●	●
17	05.510 BOLT; DIFF CAGE SETTING G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M10X75 FLANGE	8-97232-161-0	12	1	0211-0501	●
17	05.510 BOLT; DIFF CAGE SETTING G.V.W. 8.0-8.5TON(RPZ)	8-97047-295-0	12	1	0211-0501	●
17	05.510 BOLT; DIFF CAGE SETTING	8-97047-295-0	12	1	0211-0501		●
17	05.510 BOLT; DIFF CAGE SETTING	8-97047-295-0	12	1	0502-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0211-0501			●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) T=1.40	9-41562-601-0	02	1	0211-0501	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 8.0-8.5TON(RPZ) T=2.80	1-41562-073-0	AR	1	0211-0501	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0211-0501		●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0502-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 8.0-8.5TON(RPZ) T=2.90	1-41562-074-0	AR	1	0211-0501	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0211-0501		●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0502-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 8.0-8.5TON(RPZ) T=3.00	1-41562-075-0	AR	1	0211-0501	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0211-0501		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0502-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 8.0-8.5TON(RPZ) T=3.10	1-41562-076-0	AR	1	0211-0501	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0211-0501		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0502-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 8.0-8.5TON(RPZ) T=3.20	1-41562-077-0	AR	1	0211-0501	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0211-0501		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0502-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 8.0-8.5TON(RPZ) T=3.30	1-41562-078-0	AR	1	0211-0501	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0211-0501		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0502-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 8.0-8.5TON(RPZ) T=3.40	1-41562-079-0	AR	1	0211-0501	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0211-0501		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0502-	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF Z=20	8-97300-266-0	02	1	0211-0303			●	●	●
21	05.528 GEAR; SIDE,DIFF G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) Z=20	8-97300-266-0	02	1	0211-0303	●
21	05.528 GEAR; SIDE,DIFF Z=20	8-97362-598-0	02	1	0304-0501			●	●	●
21	05.528 GEAR; SIDE,DIFF G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) Z=20	8-97362-598-0	02	1	0304-0501	●
21	05.528 GEAR; SIDE,DIFF G.V.W. 8.0-8.5TON(RPZ) Z=16	1-41561-093-0	02	1	0211-0501	●
21	05.528 GEAR; SIDE,DIFF Z=16	1-41561-093-0	02	1	0211-0501		●
21	05.528 GEAR; SIDE,DIFF Z=16	1-41561-093-0	02	1	0502-1004	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF Z=16	8-98165-935-0	02	1	1005-	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-97300-265-0	04	1	0211-0303			●	●	●
24	05.526 GEAR; PINION,DIFF G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) Z=10	8-97300-265-0	04	1	0211-0303	●
24	05.526 GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0304-0501			●	●	●
24	05.526 GEAR; PINION,DIFF G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) Z=10	8-97356-349-0	04	1	0304-0501	●
24	05.526 GEAR; PINION,DIFF G.V.W. 8.0-8.5TON(RPZ) Z=10	1-41551-024-0	04	1	0211-0501	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0211-0501		●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0502-1004	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-	●	●	●	●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0211-0501			●	●	●
37	05.595 NUT; DRIVING PINION G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M24 FLANGE	8-94329-526-1	01	1	0211-0501	●
37	05.595 NUT; DRIVING PINION G.V.W. 8.0-8.5TON(RPZ) M30 FLANGE	8-97047-146-0	01	1	0211-0501	●
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0211-0501		●
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0502-	●	●	●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0211-0501			●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) L=19.6	9-41219-603-1	01	1	0211-0501	●
42	05.453 COLLAR; DIST,COLLAPSIBLE G.V.W. 8.0-8.5TON(RPZ)	8-97047-097-0	01	1	0211-0501	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0211-0501		●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0502-	●	●	●	●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0211-0501			●	●	●
43	05.453 CAGE; FINAL PINION G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-94400-890-0	01	1	0211-0501	●
43	05.453 CAGE; FINAL PINION G.V.W. 8.0-8.5TON(RPZ)	8-97047-098-0	01	1	0211-0501	●
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	0211-0501		●
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	0502-	●	●	●	●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0211-0501			●	●	●
44	05.476 GASKET; PINION CAGE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 05.458	9-09720-505-0	01	1	0211-0501	●
44	05.476 GASKET; PINION CAGE G.V.W. 8.0-8.5TON(RPZ)	8-97048-053-0	01	1	0211-0501	●
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	0211-0501		●
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	0502-	●	●	●	●	●
45	05.453 BOLT; FINAL PINION CAGE G.V.W. 8.0-8.5TON(RPZ) M12X40 W/LK WASHER	0-50071-240-0	06	1	0211-0304	●
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0211-0304		●
45	05.453 BOLT; FINAL PINION CAGE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) G.V.W. 8.0-8.5TON(RPZ) M12X40 W/LK WASHER	0-50071-240-0	06	1	0305-0306	●
45	05.453 BOLT; FINAL PINION CAGE G.V.W. 8.0-8.5TON(RPZ) M12X40 W/LK WASHER	0-50071-240-0	06	1	0307-0501	●
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0307-0501		●
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0502-0909	●	●	●	●	●
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-	●	●	●	●	●
45	05.453 BOLT; FINAL PINION CAGE FINAL GEAR RATIO 43/10(S7C) G.V.W. 8.0-8.5TON(RPZ) 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0305-0306	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0211-0501			●	●	●
45	05.453 BOLT; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M12X38 W/LK WASHER	0-50051-238-0	05	1	0211-0501	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0211-0501			●	●	●
46	05.453 BOLT G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M14X35 W/LK WASHER	0-50051-435-0	01	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0211-0501			●	●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) ID=132 T=0.10	8-94401-335-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0211-0501			●	●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) ID=132 T=0.12	8-94401-336-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0211-0501			●	●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) ID=132 T=0.14	8-94401-337-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0211-0501			●	●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) ID=132 T=0.16	8-94401-338-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0211-0501			●	●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) ID=132 T=0.18	8-94401-339-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0211-0501			●	●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) ID=132 T=0.20	8-94401-340-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 8.0-8.5TON(RPZ) ID=142 T=0.12	8-97047-298-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0211-0501		●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0502-	●	●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 8.0-8.5TON(RPZ) ID=142 T=0.15	8-97047-299-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0211-0501		●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0502-	●	●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 8.0-8.5TON(RPZ) ID=142 T=0.20	8-97047-300-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0211-0501		●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0502-	●	●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 8.0-8.5TON(RPZ) ID=142 T=0.25	8-97048-418-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0211-0501		●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0502-	●	●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 8.0-8.5TON(RPZ) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0211-0501		●
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0502-	●	●	●	●	●
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0701-	●	●	●	●	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	0211-0501			●	●	●
50	05.447 BEARING; FINAL PINION G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 05.484 JTEKT	5-09812-062-1	02	1	0211-0501	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0211-0501			●	●	●
50	05.447 BEARING; FINAL PINION G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 05.484 NSK	5-09812-063-0	02	1	0211-0501	●
50	05.447 BEARING; FINAL PINION G.V.W. 8.0-8.5TON(RPZ) 05.484 NSK	1-09812-041-2	01	1	0211-0501	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	0211-0501		●
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	0502-	●	●	●	●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0211-0501			●	●	●
55	05.505 CARRIER; DIFF G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97307-760-0	01	1	0211-0501	●
55	05.505 CARRIER; DIFF G.V.W. 8.0-8.5TON(RPZ)	8-97094-637-0	01	1	0211-0501	●
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	0211-0501		●
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	0502-	●	●	●	●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0211-0501			●	●	●
56	05.506 BOLT; BRG CAP G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 05.387 M14X80	8-94365-377-3	04	1	0211-0501	●
56	05.506 BOLT; BRG CAP G.V.W. 8.0-8.5TON(RPZ) M14X95 FLANGE	1-09070-027-0	04	1	0211-0501	●
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0211-0501		●
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0502-	●	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/9	8-97319-157-0	01	1	0211-0501			●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-157-0	01	1	0211-0501	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97078-635-1	01	1	0502-	●	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	0211-0501	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97061-846-0	01	1	0502-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-97319-159-0	01	1	0211-0501	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) G.V.W. 8.0-8.5TON(RPZ) 41/8	8-97174-099-0	01	1	0211-0501	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97061-850-0	01	1	0211-0501	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97047-115-0	01	1	0211-0501	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97047-115-0	01	1	0502-	●		●	●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0211-0501			●	●	●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (A) W/STUD	5-41227-001-0	01	1	0211-0501	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0211-0501			●	●	●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (B)	9-41227-601-0	01	1	0211-0501	●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 8.0-8.5TON(RPZ) (A) W/STUD	8-97047-149-0	01	1	0211-0501	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0211-0501		●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0502-	●	●	●	●	●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 8.0-8.5TON(RPZ) (B)	8-97047-150-0	01	1	0211-0501	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0211-0501		●
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0502-	●	●	●	●	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0211-0501			●	●	●
63	05.447 BEARING; PINION PILOT G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) NSK	5-09810-008-1	01	1	0211-0501	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0211-0501			●	●	●
63	05.447 BEARING; PINION PILOT G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) JTEKT	8-97107-548-0	01	1	0211-0501	●
63	05.447 BEARING; PINION PILOT G.V.W. 8.0-8.5TON(RPZ) NSK	8-97047-296-0	01	1	0211-0501	●
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0211-0501		●
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0502-	●	●	●	●	●
63	05.447 BEARING; PINION PILOT G.V.W. 8.0-8.5TON(RPZ) JTEKT	8-97047-928-0	01	1	0211-0501	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0211-0501		●
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0502-	●	●	●	●	●
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	0211-0304	●	●	●	●	●
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	0305-0501			●	●	●
64	05.476 NUT; RET FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/9(S2J) 04.594 M6 FLANGE	0-91150-106-0	02	1	0305-0501	●
64	05.476 NUT; RET FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 41/9(HC6) 04.594 M6 FLANGE	0-91150-106-0	02	1	0502-0602	●	●	●	●	●
64	05.476 NUT; RET FINAL GEAR RATIO 43/10(S7C) 01.062 M6 FLANGE	0-91180-106-0	02	1	0305-0501	●	●
64	05.476 NUT; RET FINAL GEAR RATIO 43/10(S7C) 01.062 M6 FLANGE	0-91180-106-0	02	1	0502-0602	●		●	●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-	●	●	●	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0211-0501			●	●	●
66	05.476 RING; SNAP,PILOT BRG G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	9-09752-002-0	01	1	0211-0501	●
66	05.476 RING; SNAP,PILOT BRG G.V.W. 8.0-8.5TON(RPZ)	8-97047-297-0	01	1	0211-0501	●
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0211-0501		●
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0502-	●	●	●	●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0211-0501			●	●	●
69	05.506 NUT; ADJ,DIFF CAGE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M110 H=10	5-41121-001-0	02	1	0211-0501	●
69	05.506 NUT; ADJ,DIFF CAGE G.V.W. 8.0-8.5TON(RPZ) M115 H=20	1-41121-039-0	02	1	0211-0501	●
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0211-0501		●
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0502-	●	●	●	●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0211-0501			●	●	●
70	05.536 BEARING; DIFF CAGE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) NSK	9-00093-602-0	02	1	0211-0501	●
70	05.536 BEARING; DIFF CAGE G.V.W. 8.0-8.5TON(RPZ) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0211-0501	●
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0211-0501		●
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0502-	●	●	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) G.V.W. 8.0-8.5TON(RPZ)	8-97047-100-1	01	1	0211-0501	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) G.V.W. 8.0-8.5TON(RPZ)	8-97047-099-1	01	1	0211-0501	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97047-099-1	01	1	0211-0501		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97047-099-1	01	1	0502-	●	●	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97319-042-0	01	1	0211-0303			●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE G.V.W. 4.0-4.5TON(RPR)	8-97319-042-0	01	1	0211-0303	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97356-482-0	01	1	0304-0304			●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE G.V.W. 4.0-4.5TON(RPR)	8-97356-482-0	01	1	0304-0304	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J)	8-97363-155-0	01	1	0304-0501	●		●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97319-039-0	01	1	0211-0303	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97319-039-0	01	1	0211-0303				●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/9(S2J) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97356-483-0	01	1	0304-0304	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY)	8-97356-483-0	01	1	0304-0304				●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97363-156-0	01	1	0304-0304	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY)	8-97363-156-0	01	1	0304-0304				●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97363-156-0	01	1	0304-0501	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97363-156-0	01	1	0304-0501				●	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	0211-0501			●	●	●
82	05.517 SPIDER; DIFF PINION G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 05.520	5-41521-008-0	01	1	0211-0501	●
82	05.517 SPIDER; DIFF PINION G.V.W. 8.0-8.5TON(RPZ) 05.520	1-41521-035-2	01	1	0211-0501	●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	0211-0501		●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	0502-1004	●	●	●	●	●
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-	●	●	●	●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) G.V.W. 8.0-8.5TON(RPZ)	8-97047-117-1	01	1	0211-0501	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) G.V.W. 8.0-8.5TON(RPZ)	8-97047-101-1	01	1	0211-0501	●
83	05.510 CAGE ASM; DIFF	8-97047-101-1	01	1	0211-0501		●
83	05.510 CAGE ASM; DIFF	8-97047-101-1	01	1	0502-	●	●	●	●	●
83	05.510 CAGE ASM; DIFF	8-97319-398-1	01	1	0211-0303			●
83	05.510 CAGE ASM; DIFF G.V.W. 4.0-4.5TON(RPR)	8-97319-398-1	01	1	0211-0303	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J)	8-97319-398-1	01	1	0304-0501	●		●	●	●
83	05.510 CAGE ASM; DIFF G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97319-396-1	01	1	0211-0303	●
83	05.510 CAGE ASM; DIFF	8-97319-396-1	01	1	0211-0303				●	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97319-396-1	01	1	0304-0501	●
83	05.510 CAGE ASM; DIFF	8-97319-396-1	01	1	0304-0501				●	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0211-0501			●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M14X25	8-97318-938-1	12	1	0211-0501	●
84	05.531 BOLT; FINAL DRIVE GEAR G.V.W. 8.0-8.5TON(RPZ) M16X30	8-97047-147-0	12	1	0211-0501	●
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0211-0501		●
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0502-	●	●	●	●	●
85	05.510 NUT; DIFF CAGE SETTING G.V.W. 8.0-8.5TON(RPZ) M12	8-97065-214-0	12	1	0211-0501	●
85	05.510 NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	0211-0501		●
85	05.510 NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	0502-	●	●	●	●	●
85	05.510 NUT; DIFF CAGE SETTING 08.917 M10 FLANGE	0-91150-210-0	12	1	0211-0501			●	●	●
85	05.510 NUT; DIFF CAGE SETTING G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 08.917 M10 FLANGE	0-91150-210-0	12	1	0211-0501	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0211-0501			●	●	●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (A)	8-97027-281-0	AR	1	0211-0501	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0211-0501			●	●	●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (B)	8-97027-282-0	AR	1	0211-0501	●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 8.0-8.5TON(RPZ) (D)	8-97087-821-0	AR	1	0211-0501	●
88	05.506 PLATE; LK,ADJ NUT (D)	8-97087-821-0	AR	1	0211-0501		●
88	05.506 PLATE; LK,ADJ NUT (D)	8-97087-821-0	AR	1	0502-	●	●	●	●	●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 8.0-8.5TON(RPZ) (C) T=2.3	9-41124-015-0	AR	1	0211-0501	●
88	05.506 PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	AR	1	0211-0501		●
88	05.506 PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	AR	1	0502-	●	●	●	●	●
89	05.506 BOLT; LK PLATE G.V.W. 8.0-8.5TON(RPZ) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0211-0501	●
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0211-0501		●
89	05.506 BOLT; LK PLATE FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 41/9(HC6) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0502-0512	●	●	●	●	●
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0501			●	●	●
89	05.506 BOLT; LK PLATE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0501	●
89	05.506 BOLT; LK PLATE FINAL GEAR RATIO 43/10(S7C) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0305-0501	●	●
89	05.506 BOLT; LK PLATE FINAL GEAR RATIO 43/10(S7C) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0502-0512	●		●	●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0211-0501			●	●	●
100	05.469 SEAL; OIL,FINAL PINION G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) OD=103	8-94408-083-0	01	1	0211-0501	●
100	05.469 SEAL; OIL,FINAL PINION G.V.W. 8.0-8.5TON(RPZ) NOK	8-97047-609-0	01	1	0211-0406	●
100	05.469 SEAL; OIL,FINAL PINION NOK	8-97047-609-0	01	1	0211-0406		●
100	05.469 SEAL; OIL,FINAL PINION G.V.W. 8.0-8.5TON(RPZ) NOK	1-09625-484-1	01	1	0407-0501	●
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0407-0501		●
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0502-	●	●	●	●	●

85 71 86 83 69 70 25 20 24 25 84 86 17 24 21 24 82 25 21 20 24 25 70 69 88 88 89 60 64 61 56 61 66 63 55 1 50 42 45 44 49 43 39 100 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97094-681-0	01	1	0211-0501	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97094-679-0	01	1	0211-0501	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97094-679-0	01	1	0502-	●		●	●	●
1	05.505 DRIVE ASM; FINAL,RR 43/9	8-97319-241-0	01	1	0211-0303			●	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-241-0	01	1	0211-0303	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97356-423-0	01	1	0304-0304	●		●	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97363-096-0	01	1	0304-0501	●		●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97367-507-0	01	1	0502-	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-242-0	01	1	0211-0303	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97356-424-0	01	1	0304-0304	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97363-097-0	01	1	0304-0501	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97367-506-0	01	1	0502-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-97319-243-0	01	1	0211-0303	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-97356-425-0	01	1	0304-0304	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-97363-098-0	01	1	0304-0501	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) G.V.W. 8.0-8.5TON(RPZ) 41/8	8-97203-879-0	01	1	0211-0304	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) G.V.W. 8.0-8.5TON(RPZ) 41/8	8-97367-508-0	01	1	0305-0501	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0211-0501			●	●	●
7	05.545 FLANGE; FINAL G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-94477-723-4	01	1	0211-0501	●
7	05.545 FLANGE; FINAL G.V.W. 8.0-8.5TON(RPZ)	8-97047-095-2	01	1	0211-0501	●
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	0211-0501		●
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	0502-	●	●	●	●	●
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0211-0501			●	●	●
17	05.510 BOLT; DIFF CAGE SETTING G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M10X75 FLANGE	8-97232-161-0	12	1	0211-0501	●
17	05.510 BOLT; DIFF CAGE SETTING G.V.W. 8.0-8.5TON(RPZ)	8-97047-295-0	12	1	0211-0501	●
17	05.510 BOLT; DIFF CAGE SETTING	8-97047-295-0	12	1	0211-0501		●
17	05.510 BOLT; DIFF CAGE SETTING	8-97047-295-0	12	1	0502-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0211-0501			●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) T=1.40	9-41562-601-0	02	1	0211-0501	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 8.0-8.5TON(RPZ) T=2.80	1-41562-073-0	AR	1	0211-0501	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0211-0501		●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0502-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 8.0-8.5TON(RPZ) T=2.90	1-41562-074-0	AR	1	0211-0501	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0211-0501		●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0502-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 8.0-8.5TON(RPZ) T=3.00	1-41562-075-0	AR	1	0211-0501	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0211-0501		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0502-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 8.0-8.5TON(RPZ) T=3.10	1-41562-076-0	AR	1	0211-0501	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0211-0501		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0502-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 8.0-8.5TON(RPZ) T=3.20	1-41562-077-0	AR	1	0211-0501	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0211-0501		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0502-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 8.0-8.5TON(RPZ) T=3.30	1-41562-078-0	AR	1	0211-0501	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0211-0501		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0502-	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 8.0-8.5TON(RPZ) T=3.40	1-41562-079-0	AR	1	0211-0501	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0211-0501		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0502-	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF Z=20	8-97300-266-0	02	1	0211-0303			●	●	●
21	05.528 GEAR; SIDE,DIFF G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) Z=20	8-97300-266-0	02	1	0211-0303	●
21	05.528 GEAR; SIDE,DIFF Z=20	8-97362-598-0	02	1	0304-0501			●	●	●
21	05.528 GEAR; SIDE,DIFF G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) Z=20	8-97362-598-0	02	1	0304-0501	●
21	05.528 GEAR; SIDE,DIFF G.V.W. 8.0-8.5TON(RPZ) Z=16	1-41561-093-0	02	1	0211-0501	●
21	05.528 GEAR; SIDE,DIFF Z=16	1-41561-093-0	02	1	0211-0501		●
21	05.528 GEAR; SIDE,DIFF Z=16	1-41561-093-0	02	1	0502-1004	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF Z=16	8-98165-935-0	02	1	1005-	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-97300-265-0	04	1	0211-0303			●	●	●
24	05.526 GEAR; PINION,DIFF G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) Z=10	8-97300-265-0	04	1	0211-0303	●
24	05.526 GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0304-0501			●	●	●
24	05.526 GEAR; PINION,DIFF G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) Z=10	8-97356-349-0	04	1	0304-0501	●
24	05.526 GEAR; PINION,DIFF G.V.W. 8.0-8.5TON(RPZ) Z=10	1-41551-024-0	04	1	0211-0501	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0211-0501		●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0502-1004	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-	●	●	●	●	●
25	05.528 WASHER; THRUST,PINION G.V.W. 8.0-8.5TON(RPZ)	1-41552-020-0	04	1	0211-0501	●
25	05.528 WASHER; THRUST,PINION	1-41552-020-0	04	1	0211-0501		●
25	05.528 WASHER; THRUST,PINION	1-41552-020-0	04	1	0502-	●	●	●	●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0211-0501			●	●	●
37	05.595 NUT; DRIVING PINION G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M24 FLANGE	8-94329-526-1	01	1	0211-0501	●
37	05.595 NUT; DRIVING PINION G.V.W. 8.0-8.5TON(RPZ) M30 FLANGE	8-97047-146-0	01	1	0211-0501	●
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0211-0501		●
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0502-	●	●	●	●	●
39	05.484 BEARING; FINAL PINION G.V.W. 8.0-8.5TON(RPZ) JTEKT	5-09812-062-1	01	1	0211-0501	●
39	05.484 BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	0211-0501		●
39	05.484 BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	0502-	●	●	●	●	●
39	05.484 BEARING; FINAL PINION G.V.W. 8.0-8.5TON(RPZ) NSK	5-09812-063-0	01	1	0211-0501	●
39	05.484 BEARING; FINAL PINION NSK	5-09812-063-0	01	1	0211-0501		●
39	05.484 BEARING; FINAL PINION NSK	5-09812-063-0	01	1	0502-	●	●	●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0211-0501			●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) L=19.6	9-41219-603-1	01	1	0211-0501	●
42	05.453 COLLAR; DIST,COLLAPSIBLE G.V.W. 8.0-8.5TON(RPZ)	8-97047-097-0	01	1	0211-0501	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0211-0501		●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0502-	●	●	●	●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0211-0501			●	●	●
43	05.453 CAGE; FINAL PINION G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-94400-890-0	01	1	0211-0501	●
43	05.453 CAGE; FINAL PINION G.V.W. 8.0-8.5TON(RPZ)	8-97047-098-0	01	1	0211-0501	●
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	0211-0501		●
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	0502-	●	●	●	●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0211-0501			●	●	●
44	05.476 GASKET; PINION CAGE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 05.458	9-09720-505-0	01	1	0211-0501	●
44	05.476 GASKET; PINION CAGE G.V.W. 8.0-8.5TON(RPZ)	8-97048-053-0	01	1	0211-0501	●
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	0211-0501		●
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	0502-	●	●	●	●	●
45	05.453 BOLT; FINAL PINION CAGE G.V.W. 8.0-8.5TON(RPZ) M12X40 W/LK WASHER	0-50071-240-0	06	1	0211-0304	●
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0211-0304		●
45	05.453 BOLT; FINAL PINION CAGE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) G.V.W. 8.0-8.5TON(RPZ) M12X40 W/LK WASHER	0-50071-240-0	06	1	0305-0306	●
45	05.453 BOLT; FINAL PINION CAGE G.V.W. 8.0-8.5TON(RPZ) M12X40 W/LK WASHER	0-50071-240-0	06	1	0307-0501	●
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0307-0501		●
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0502-0909	●	●	●	●	●
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-	●	●	●	●	●
45	05.453 BOLT; FINAL PINION CAGE FINAL GEAR RATIO 43/10(S7C) G.V.W. 8.0-8.5TON(RPZ) 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0305-0306	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0211-0501			●	●	●
45	05.453 BOLT; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M12X38 W/LK WASHER	0-50051-238-0	05	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0211-0501			●	●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) ID=132 T=0.10	8-94401-335-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0211-0501			●	●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) ID=132 T=0.12	8-94401-336-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0211-0501			●	●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) ID=132 T=0.14	8-94401-337-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0211-0501			●	●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) ID=132 T=0.16	8-94401-338-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0211-0501			●	●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) ID=132 T=0.18	8-94401-339-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0211-0501			●	●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) ID=132 T=0.20	8-94401-340-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 8.0-8.5TON(RPZ) ID=142 T=0.12	8-97047-298-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0211-0501		●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0502-	●	●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 8.0-8.5TON(RPZ) ID=142 T=0.15	8-97047-299-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0211-0501		●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0502-	●	●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 8.0-8.5TON(RPZ) ID=142 T=0.20	8-97047-300-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0211-0501		●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0502-	●	●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 8.0-8.5TON(RPZ) ID=142 T=0.25	8-97048-418-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0211-0501		●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0502-	●	●	●	●	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 8.0-8.5TON(RPZ) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0211-0501	●
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0211-0501		●
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0502-	●	●	●	●	●
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0701-	●	●	●	●	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	0211-0501			●	●	●
50	05.447 BEARING; FINAL PINION G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 05.484 JTEKT	5-09812-062-1	02	1	0211-0501	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0211-0501			●	●	●
50	05.447 BEARING; FINAL PINION G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 05.484 NSK	5-09812-063-0	02	1	0211-0501	●
50	05.447 BEARING; FINAL PINION G.V.W. 8.0-8.5TON(RPZ) 05.484 NSK	1-09812-041-2	01	1	0211-0501	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	0211-0501		●
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	0502-	●	●	●	●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0211-0501			●	●	●
55	05.505 CARRIER; DIFF G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97307-760-0	01	1	0211-0501	●
55	05.505 CARRIER; DIFF G.V.W. 8.0-8.5TON(RPZ)	8-97094-637-0	01	1	0211-0501	●
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	0211-0501		●
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	0502-	●	●	●	●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0211-0501			●	●	●
56	05.506 BOLT; BRG CAP G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 05.387 M14X80	8-94365-377-3	04	1	0211-0501	●
56	05.506 BOLT; BRG CAP G.V.W. 8.0-8.5TON(RPZ) M14X95 FLANGE	1-09070-027-0	04	1	0211-0501	●
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0211-0501		●
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0502-	●	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/9	8-97319-157-0	01	1	0211-0501			●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-157-0	01	1	0211-0501	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97078-635-1	01	1	0502-	●	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	0211-0501	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97061-846-0	01	1	0502-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-97319-159-0	01	1	0211-0501	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) G.V.W. 8.0-8.5TON(RPZ) 41/8	8-97174-099-0	01	1	0211-0501	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97061-850-0	01	1	0211-0501	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97047-115-0	01	1	0211-0501	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97047-115-0	01	1	0502-	●		●	●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0211-0501			●	●	●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (A) W/STUD	5-41227-001-0	01	1	0211-0501	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0211-0501			●	●	●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (B)	9-41227-601-0	01	1	0211-0501	●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 8.0-8.5TON(RPZ) (A) W/STUD	8-97047-149-0	01	1	0211-0501	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0211-0501		●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0502-	●	●	●	●	●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 8.0-8.5TON(RPZ) (B)	8-97047-150-0	01	1	0211-0501	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0211-0501		●
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0502-	●	●	●	●	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0211-0501			●	●	●
63	05.447 BEARING; PINION PILOT G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) NSK	5-09810-008-1	01	1	0211-0501	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0211-0501			●	●	●
63	05.447 BEARING; PINION PILOT G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) JTEKT	8-97107-548-0	01	1	0211-0501	●
63	05.447 BEARING; PINION PILOT G.V.W. 8.0-8.5TON(RPZ) NSK	8-97047-296-0	01	1	0211-0501	●
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0211-0501		●
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0502-	●	●	●	●	●
63	05.447 BEARING; PINION PILOT G.V.W. 8.0-8.5TON(RPZ) JTEKT	8-97047-928-0	01	1	0211-0501	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0211-0501		●
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0502-	●	●	●	●	●
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	0211-0304	●	●	●	●	●
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	0305-0501			●	●	●
64	05.476 NUT; RET FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/9(S2J) 04.594 M6 FLANGE	0-91150-106-0	02	1	0305-0501	●
64	05.476 NUT; RET FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 41/9(HC6) 04.594 M6 FLANGE	0-91150-106-0	02	1	0502-0602	●	●	●	●	●
64	05.476 NUT; RET FINAL GEAR RATIO 43/10(S7C) 01.062 M6 FLANGE	0-91180-106-0	02	1	0305-0501	●	●
64	05.476 NUT; RET FINAL GEAR RATIO 43/10(S7C) 01.062 M6 FLANGE	0-91180-106-0	02	1	0502-0602	●		●	●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-	●	●	●	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0211-0501			●	●	●
66	05.476 RING; SNAP,PILOT BRG G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	9-09752-002-0	01	1	0211-0501	●
66	05.476 RING; SNAP,PILOT BRG G.V.W. 8.0-8.5TON(RPZ)	8-97047-297-0	01	1	0211-0501	●
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0211-0501		●
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0502-	●	●	●	●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0211-0501			●	●	●
69	05.506 NUT; ADJ,DIFF CAGE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M110 H=10	5-41121-001-0	02	1	0211-0501	●
69	05.506 NUT; ADJ,DIFF CAGE G.V.W. 8.0-8.5TON(RPZ) M115 H=20	1-41121-039-0	02	1	0211-0501	●
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0211-0501		●
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0502-	●	●	●	●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0211-0501			●	●	●
70	05.536 BEARING; DIFF CAGE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) NSK	9-00093-602-0	02	1	0211-0501	●
70	05.536 BEARING; DIFF CAGE G.V.W. 8.0-8.5TON(RPZ) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0211-0501	●
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0211-0501		●
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0502-	●	●	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) G.V.W. 8.0-8.5TON(RPZ)	8-97047-100-1	01	1	0211-0501	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) G.V.W. 8.0-8.5TON(RPZ)	8-97047-099-1	01	1	0211-0501	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97047-099-1	01	1	0211-0501		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97047-099-1	01	1	0502-	●	●	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97319-042-0	01	1	0211-0303			●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE G.V.W. 4.0-4.5TON(RPR)	8-97319-042-0	01	1	0211-0303	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97356-482-0	01	1	0304-0304			●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE G.V.W. 4.0-4.5TON(RPR)	8-97356-482-0	01	1	0304-0304	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J)	8-97363-155-0	01	1	0304-0501	●		●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97319-039-0	01	1	0211-0303	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97319-039-0	01	1	0211-0303				●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/9(S2J) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97356-483-0	01	1	0304-0304	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY)	8-97356-483-0	01	1	0304-0304				●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97363-156-0	01	1	0304-0304	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY)	8-97363-156-0	01	1	0304-0304				●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97363-156-0	01	1	0304-0501	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97363-156-0	01	1	0304-0501				●	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	0211-0501			●	●	●
82	05.517 SPIDER; DIFF PINION G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 05.520	5-41521-008-0	01	1	0211-0501	●
82	05.517 SPIDER; DIFF PINION G.V.W. 8.0-8.5TON(RPZ) 05.520	1-41521-035-2	01	1	0211-0501	●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	0211-0501		●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	0502-1004	●	●	●	●	●
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-	●	●	●	●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) G.V.W. 8.0-8.5TON(RPZ)	8-97047-117-1	01	1	0211-0501	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) G.V.W. 8.0-8.5TON(RPZ)	8-97047-101-1	01	1	0211-0501	●
83	05.510 CAGE ASM; DIFF	8-97047-101-1	01	1	0211-0501		●
83	05.510 CAGE ASM; DIFF	8-97047-101-1	01	1	0502-	●	●	●	●	●
83	05.510 CAGE ASM; DIFF	8-97319-398-1	01	1	0211-0303			●
83	05.510 CAGE ASM; DIFF G.V.W. 4.0-4.5TON(RPR)	8-97319-398-1	01	1	0211-0303	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J)	8-97319-398-1	01	1	0304-0501	●		●	●	●
83	05.510 CAGE ASM; DIFF G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97319-396-1	01	1	0211-0303	●
83	05.510 CAGE ASM; DIFF	8-97319-396-1	01	1	0211-0303				●	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97319-396-1	01	1	0304-0501	●
83	05.510 CAGE ASM; DIFF	8-97319-396-1	01	1	0304-0501				●	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0211-0501			●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M14X25	8-97318-938-1	12	1	0211-0501	●
84	05.531 BOLT; FINAL DRIVE GEAR G.V.W. 8.0-8.5TON(RPZ) M16X30	8-97047-147-0	12	1	0211-0501	●
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0211-0501		●
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0502-	●	●	●	●	●
85	05.510 NUT; DIFF CAGE SETTING G.V.W. 8.0-8.5TON(RPZ) M12	8-97065-214-0	12	1	0211-0501	●
85	05.510 NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	0211-0501		●
85	05.510 NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	0502-	●	●	●	●	●
85	05.510 NUT; DIFF CAGE SETTING 08.917 M10 FLANGE	0-91150-210-0	12	1	0211-0501			●	●	●
85	05.510 NUT; DIFF CAGE SETTING G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 08.917 M10 FLANGE	0-91150-210-0	12	1	0211-0501	●
86	05.510 WASHER; PL,DIFF CAGE SETTING G.V.W. 8.0-8.5TON(RPZ) ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0211-0501	●
86	05.510 WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0211-0501		●
86	05.510 WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0502-	●	●	●	●	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0211-0501			●	●	●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (A)	8-97027-281-0	AR	1	0211-0501	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0211-0501			●	●	●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (B)	8-97027-282-0	AR	1	0211-0501	●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 8.0-8.5TON(RPZ) (D)	8-97087-821-0	AR	1	0211-0501	●
88	05.506 PLATE; LK,ADJ NUT (D)	8-97087-821-0	AR	1	0211-0501		●
88	05.506 PLATE; LK,ADJ NUT (D)	8-97087-821-0	AR	1	0502-	●	●	●	●	●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 8.0-8.5TON(RPZ) (C) T=2.3	9-41124-015-0	AR	1	0211-0501	●
88	05.506 PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	AR	1	0211-0501		●
88	05.506 PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	AR	1	0502-	●	●	●	●	●
89	05.506 BOLT; LK PLATE G.V.W. 8.0-8.5TON(RPZ) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0211-0501	●
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0211-0501		●
89	05.506 BOLT; LK PLATE FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 41/9(HC6) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0502-0512	●	●	●	●	●
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0501			●	●	●
89	05.506 BOLT; LK PLATE G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0501	●
89	05.506 BOLT; LK PLATE FINAL GEAR RATIO 43/10(S7C) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0305-0501	●	●
89	05.506 BOLT; LK PLATE FINAL GEAR RATIO 43/10(S7C) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0502-0512	●		●	●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0211-0501			●	●	●
100	05.469 SEAL; OIL,FINAL PINION G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) OD=103	8-94408-083-0	01	1	0211-0501	●
100	05.469 SEAL; OIL,FINAL PINION G.V.W. 8.0-8.5TON(RPZ) NOK	8-97047-609-0	01	1	0211-0406	●
100	05.469 SEAL; OIL,FINAL PINION NOK	8-97047-609-0	01	1	0211-0406		●
100	05.469 SEAL; OIL,FINAL PINION G.V.W. 8.0-8.5TON(RPZ) NOK	1-09625-484-1	01	1	0407-0501	●
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0407-0501		●
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0502-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
