4-11 — FRONT HUB AND DRUM OR ROTOR (#34333) — 135 parça

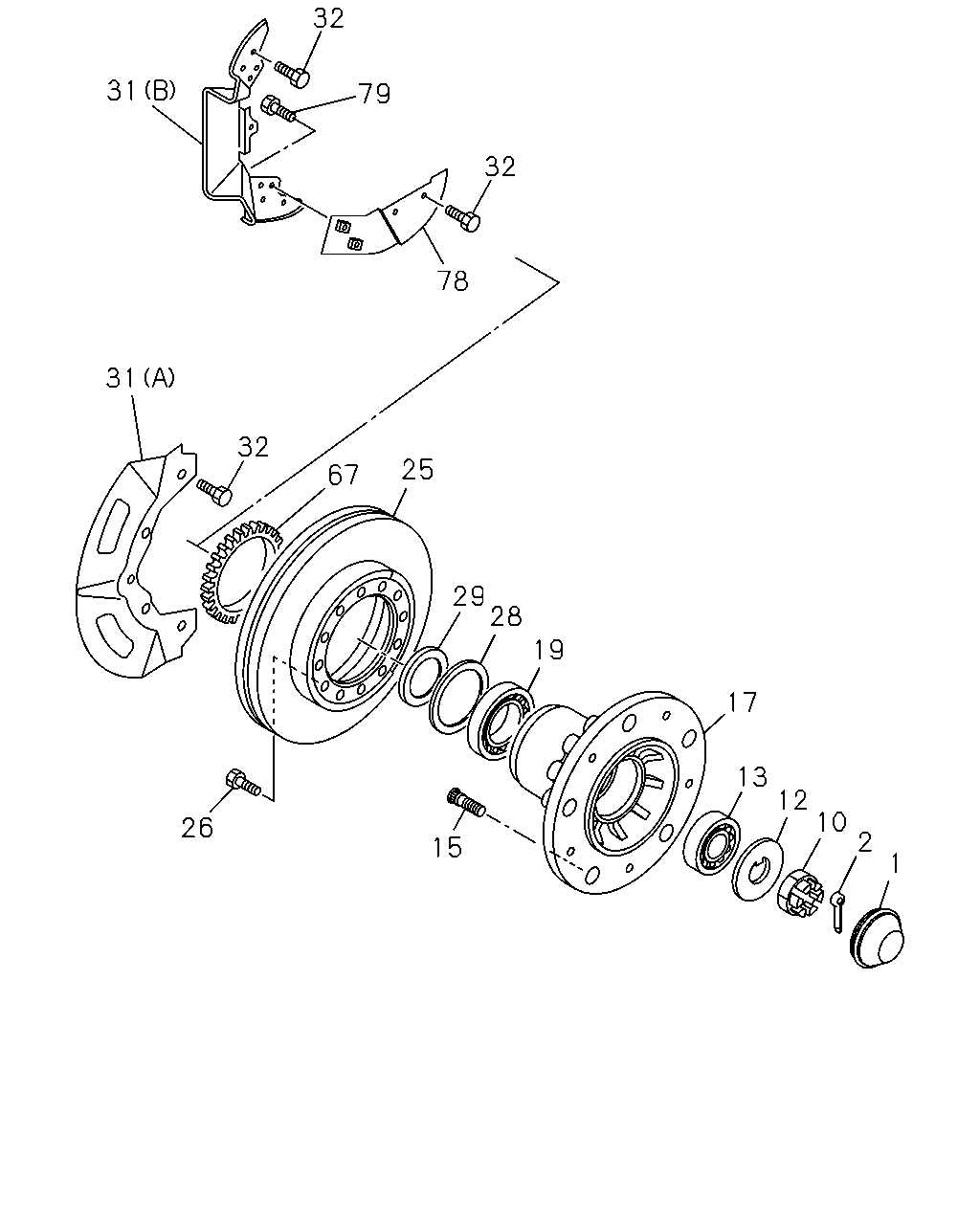

çizim 33535
32 31 79 32 78 31 32 25 67 29 28 19 17 13 12 10 2 26 15 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0211-0611 ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0612- ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0211-0606 ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0607- ● ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0211- ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0211- ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0211- ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-97017-041-0 05 1 0502-0605 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18X46 RH THREAD 		8-97017-041-0 05 1 0502-0605 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-98028-532-1 05 1 0606- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18X46 RH THREAD 		8-98028-532-1 05 1 0606- ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-97017-042-0 05 1 0502-0605 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18X46 LH THREAD 		8-97017-042-0 05 1 0502-0605 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-98028-533-1 05 1 0606- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18X46 LH THREAD 		8-98028-533-1 05 1 0606- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 0211-0501 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) M20X53 RH THREAD 		8-97168-456-1 06 1 0502- ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 RH THREAD 		8-97168-456-1 06 1 0502- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 0211-0501 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) M20X53 LH THREAD 		8-97168-457-1 06 1 0502- ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 LH THREAD 		8-97168-457-1 06 1 0502- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) M20X28,M22X50 RH THREAD 		8-97131-283-0 06 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X28,M22X50 RH THREAD 		8-97131-283-0 06 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-0 06 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-0 06 1 0211-0501 ●
17 06.307 HUB; FRT AXLE 8-94365-459-0 02 1 0211-0501 ●
17 06.307 HUB; FRT AXLE
G.V.W. 4.0-4.5TON(RPR) 		8-94365-459-0 02 1 0211-0501 ●
17 06.307 HUB; FRT AXLE 8-97035-160-0 02 1 0502- ●
17 06.307 HUB; FRT AXLE
G.V.W. 4.0-4.5TON(RPR) 		8-97035-160-0 02 1 0502- ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97081-322-0 02 1 0211-0501 ●
17 06.307 HUB; FRT AXLE 8-97081-322-0 02 1 0211-0501 ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97168-460-0 02 1 0502- ●
17 06.307 HUB; FRT AXLE 8-97168-460-0 02 1 0502- ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) 		8-97131-236-0 02 1 0211-0501 ●
17 06.307 HUB; FRT AXLE 8-97131-236-0 02 1 0211-0501 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0211-1009 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0211-1009 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97371-876-0 02 1 0502-0612 ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-97371-876-0 02 1 0502-0612 ●
25 05.809 ROTOR; DISC BRK,FRT 8-97387-229-0 02 1 0701- ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-97387-229-0 02 1 0701- ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 8.0-8.5TON(RPZ) 		8-97182-771-0 02 1 0502-0612 ●
25 05.809 ROTOR; DISC BRK,FRT 8-97182-771-0 02 1 0502-0612 ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 8.0-8.5TON(RPZ) 		8-98006-395-0 02 1 0701- ●
25 05.809 ROTOR; DISC BRK,FRT 8-98006-395-0 02 1 0701- ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97371-877-0 02 1 0502-0612 ●
25 05.809 ROTOR; DISC BRK,FRT 8-97371-877-0 02 1 0502-0612 ● ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97387-228-0 02 1 0701- ●
25 05.809 ROTOR; DISC BRK,FRT 8-97387-228-0 02 1 0701- ● ●
26 05.812 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 0502- ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0211- ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0211- ● ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
(A) 		8-97332-209-1 02 1 0502-0703 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) (A) 		8-97332-209-1 02 1 0502-0703 ●
31 04.665 COVER; DUST,FRT BRAKE
(A) 		8-98037-377-0 02 1 0704- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) (A) 		8-98037-377-0 02 1 0704- ●
31 04.665 COVER; DUST,FRT BRAKE
G.V.W. 8.0-8.5TON(RPZ) (B) 		8-97333-375-0 01 1 0502- ●
31 04.665 COVER; DUST,FRT BRAKE
(B) 		8-97333-375-0 01 1 0502- ●
31 04.665 COVER; DUST,FRT BRAKE
G.V.W. 8.0-8.5TON(RPZ) (B) 		8-97333-376-0 01 1 0502- ●
31 04.665 COVER; DUST,FRT BRAKE
(B) 		8-97333-376-0 01 1 0502- ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
08.900 M8X12 FLANGE 		0-28080-812-0 08 1 0502-0512 ● ● ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
02.343 M8X12 FLANGE 		0-28050-812-0 08 1 0601- ● ● ● ● ●
67 05.811 ROTOR; SENSOR 8-97206-773-0 02 1 0502- ● ● ● ● ●
78 04.665 BRACKET; DUST COVER
G.V.W. 8.0-8.5TON(RPZ) 		8-97207-172-1 01 1 0502- ●
78 04.665 BRACKET; DUST COVER 8-97207-172-1 01 1 0502- ●
78 04.665 BRACKET; DUST COVER
G.V.W. 8.0-8.5TON(RPZ) 		8-97207-173-1 01 1 0502- ●
78 04.665 BRACKET; DUST COVER 8-97207-173-1 01 1 0502- ●
79 04.665 BOLT; BRKT
G.V.W. 8.0-8.5TON(RPZ) 08.900 M8X12 FLANGE 		0-28080-812-0 04 1 0502-0512 ●
79 04.665 BOLT; BRKT
08.900 M8X12 FLANGE 		0-28080-812-0 04 1 0502-0512 ●
79 04.665 BOLT; BRKT
G.V.W. 8.0-8.5TON(RPZ) 02.343 M8X12 FLANGE 		0-28050-812-0 04 1 0601- ●
79 04.665 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 04 1 0601- ●

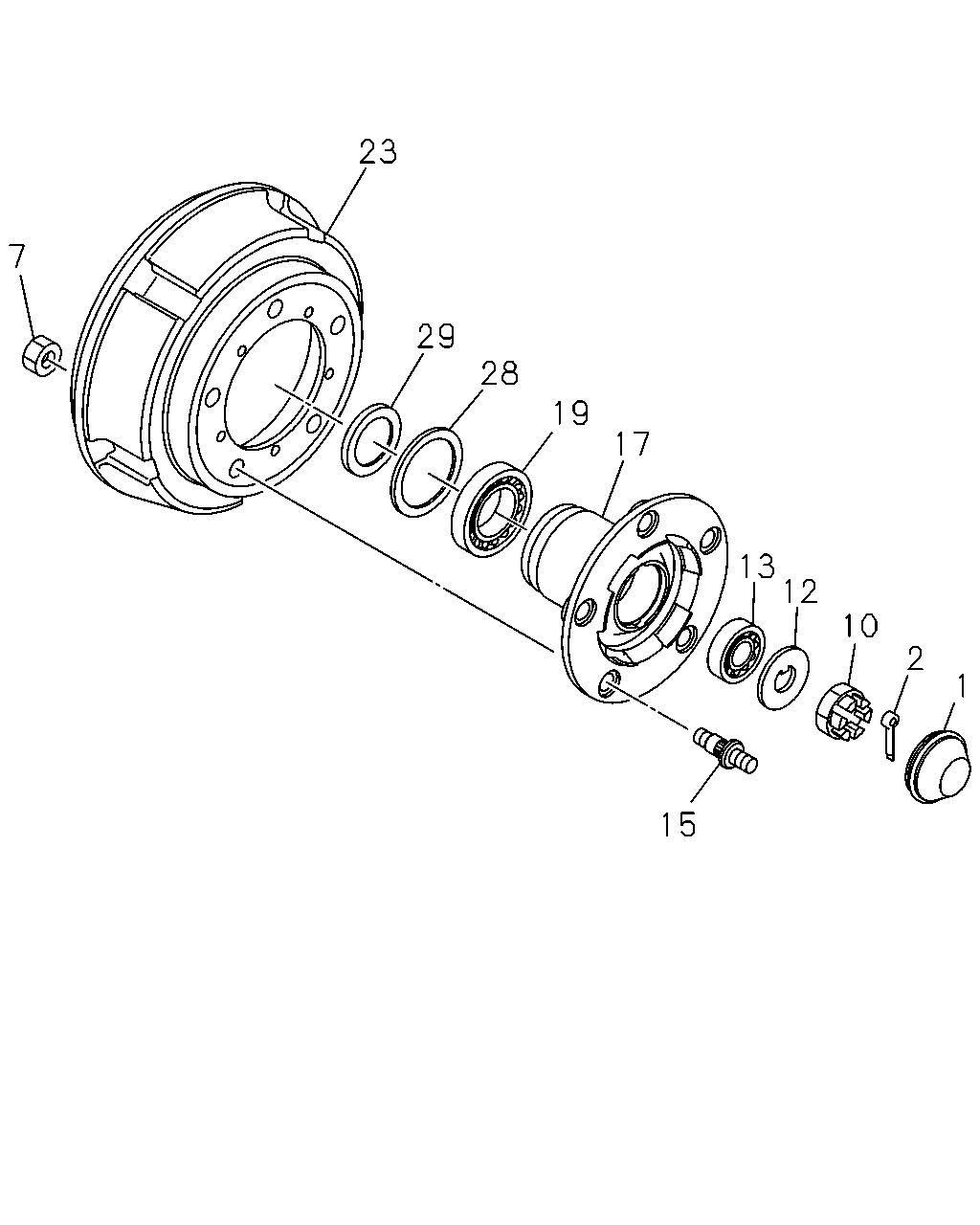

çizim 33954
23 7 29 28 19 17 13 12 10 2 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0211-0611 ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0612- ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0211-0606 ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0607- ● ● ● ● ●
7 05.812 NUT; FRT HUB
00.050 M20 		9-99110-520-0 10 1 0211-0501 ●
7 05.812 NUT; FRT HUB
G.V.W. 4.0-4.5TON(RPR) 00.050 M20 		9-99110-520-0 10 1 0211-0501 ●
7 05.812 NUT; FRT HUB
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 05.813 M22 		9-09110-522-0 12 1 0211-0501 ●
7 05.812 NUT; FRT HUB
05.813 M22 		9-09110-522-0 12 1 0211-0501 ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0211- ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0211- ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0211- ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-97017-041-0 05 1 0502-0605 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18X46 RH THREAD 		8-97017-041-0 05 1 0502-0605 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-98028-532-1 05 1 0606- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18X46 RH THREAD 		8-98028-532-1 05 1 0606- ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-97017-042-0 05 1 0502-0605 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18X46 LH THREAD 		8-97017-042-0 05 1 0502-0605 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-98028-533-1 05 1 0606- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18X46 LH THREAD 		8-98028-533-1 05 1 0606- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 0211-0501 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) M20X53 RH THREAD 		8-97168-456-1 06 1 0502- ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 RH THREAD 		8-97168-456-1 06 1 0502- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 0211-0501 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) M20X53 LH THREAD 		8-97168-457-1 06 1 0502- ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 LH THREAD 		8-97168-457-1 06 1 0502- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) M20X28,M22X50 RH THREAD 		8-97131-283-0 06 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X28,M22X50 RH THREAD 		8-97131-283-0 06 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-0 06 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-0 06 1 0211-0501 ●
17 06.307 HUB; FRT AXLE 8-94365-459-0 02 1 0211-0501 ●
17 06.307 HUB; FRT AXLE
G.V.W. 4.0-4.5TON(RPR) 		8-94365-459-0 02 1 0211-0501 ●
17 06.307 HUB; FRT AXLE 8-97035-160-0 02 1 0502- ●
17 06.307 HUB; FRT AXLE
G.V.W. 4.0-4.5TON(RPR) 		8-97035-160-0 02 1 0502- ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97081-322-0 02 1 0211-0501 ●
17 06.307 HUB; FRT AXLE 8-97081-322-0 02 1 0211-0501 ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97168-460-0 02 1 0502- ●
17 06.307 HUB; FRT AXLE 8-97168-460-0 02 1 0502- ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) 		8-97131-236-0 02 1 0211-0501 ●
17 06.307 HUB; FRT AXLE 8-97131-236-0 02 1 0211-0501 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0211-1009 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0211-1009 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ● ● ●
23 05.809 DRUM; BRK,FRT 8-94385-650-3 02 1 0211-0501 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 4.0-4.5TON(RPR) 		8-94385-650-3 02 1 0211-0501 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97081-218-2 02 1 0211-0501 ●
23 05.809 DRUM; BRK,FRT 8-97081-218-2 02 1 0211-0501 ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97188-016-0 02 1 0211-0501 ●
23 05.809 DRUM; BRK,FRT 8-97188-016-0 02 1 0211-0501 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97188-115-0 02 1 0211-0501 ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0211- ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0211- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
