Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#34331) — 190 parça

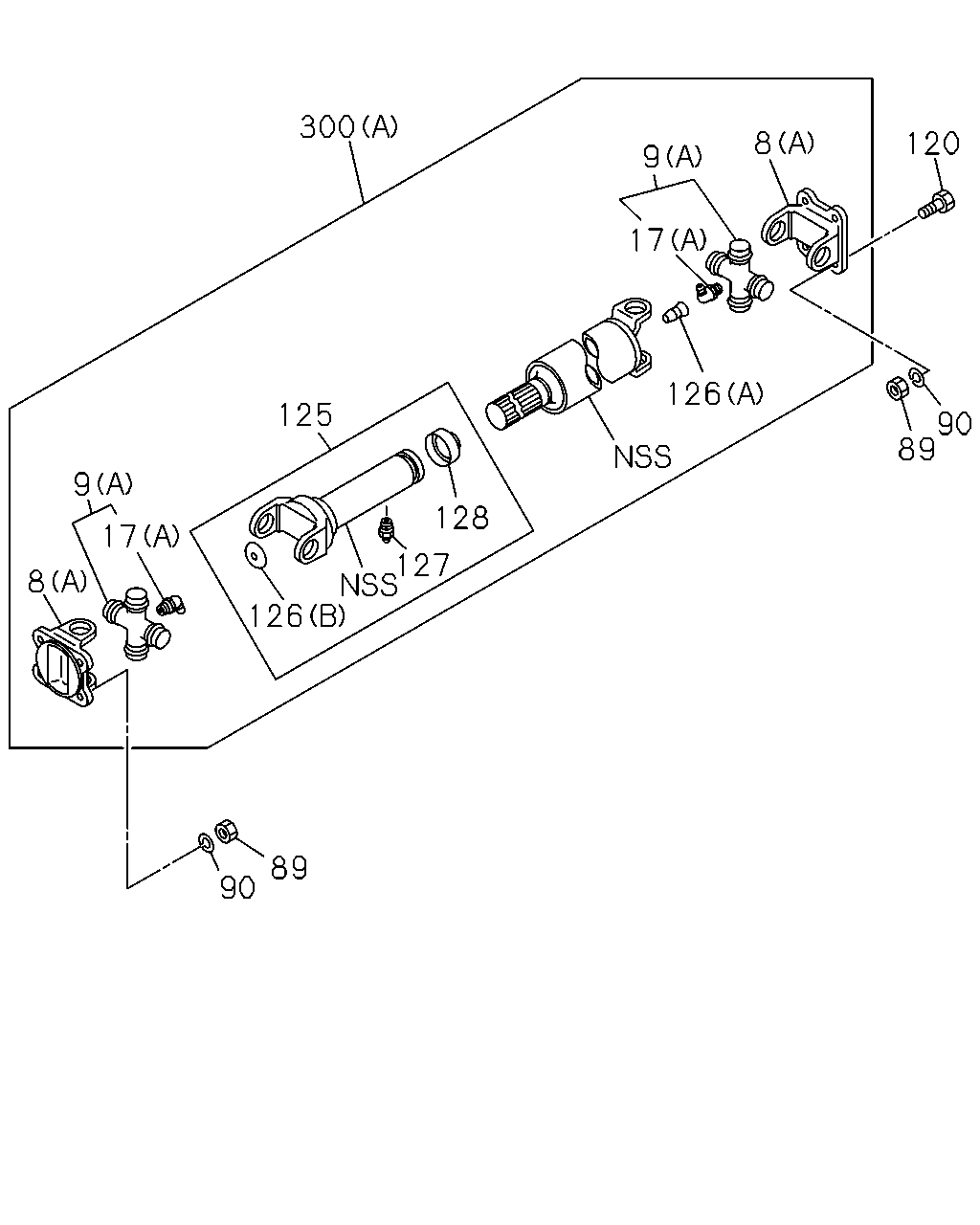

300 8 120 9 17 126 125 90 89 9 128 17 127 126 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
8	05.544 YOKE; FLANGE,PROP SHAFT A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) (A)	8-97322-663-0	02	1	0211-0501	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) (B)	8-97322-663-0	01	1	0211-0501		●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MZZ6U(RSF) (B) D=80	1-37211-037-4	01	1	0211-0501		●			●
8	05.544 YOKE; FLANGE,PROP SHAFT (A) D=80	1-37211-037-4	02	1	0502-	●	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MZZ6U(RSF) (A) D=80	1-37211-037-4	02	1	0211-0501		●			●
8	05.544 YOKE; FLANGE,PROP SHAFT (B) D=80	1-37211-037-4	01	1	0502-		●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MZZ6U(RSF) (A)	1-37300-089-0	02	1	0211-0305		●			●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MZZ6U(RSF) (A)	1-37300-103-0	02	1	0306-0501		●			●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	1-37300-103-0	01	1	0502-1106		●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-98020-789-1	01	1	1107-		●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) (A)	8-97322-749-0	02	1	0211-0501	●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) (B)	8-97322-749-0	01	1	0211-0501		●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MZZ6U(RSF) (B)	1-37300-103-0	01	1	0211-0501		●			●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	1-37300-103-0	02	1	0502-1106	●	●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-98020-789-1	02	1	1107-	●	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MZZ6U(RSF) (B) PT1/16 ELBOW 40 DEGREES	8-97240-194-0	01	1	0211-0501		●			●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) PT1/16 ELBOW 40 DEGREES	8-97240-194-0	01	1	0502-		●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0211-0512	●	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0211-0512		●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-		●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0211-0501		●	●	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-94477-841-0	08	1	0211-0610	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-0	08	1	0611-	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	0211-0610		●	●	●	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-0	12	1	0611-		●	●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=12.2	9-09150-812-0	08	1	0211-0603	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	0604-	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=12.2	9-09150-812-0	12	1	0211-0603		●	●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	12	1	0604-		●	●	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	04	1	0211-0610	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	04	1	0611-	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	0211-0610		●	●	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	08	1	0611-		●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=183	8-98040-513-0	01	1	0502-	●	●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) L=183	8-97327-979-1	01	1	0211-0501	●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MZZ6U(RSF) L=183	8-98040-513-0	01	1	0211-0501		●			●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0211-	●	●	●	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0211-		●	●	●	●
126	05.556 PLUG; SPLINED YOKE A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0211-0501	●	●	●	●
126	05.556 PLUG; SPLINED YOKE (B)	1-09600-014-0	01	1	0502-1106		●	●	●
126	05.556 PLUG; SPLINED YOKE M/T MZZ6U(RSF) (B)	1-09600-014-0	01	1	0211-0501		●			●
126	05.556 PLUG; SPLINED YOKE (B)	1-09600-014-0	01	1	0502-1106	●				●
126	05.556 PLUG; SPLINED YOKE (B)	1-09600-014-0	01	1	1107-	●	●	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-1106		●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE M/T MZZ6U(RSF) 08.984 PT1/8 STRAIGHT	9-09031-010-0	01	1	0211-0501		●			●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 PT1/8 STRAIGHT	9-09031-010-0	01	1	0502-0512	●	●	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-1106	●				●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 PT1/8 STRAIGHT	0-90301-410-0	01	1	1107-	●	●	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-0501	●	●	●	●
128	05.586 SEAL; SLEEVE A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM)	8-97145-746-0	01	1	0211-0501	●	●	●	●
128	05.586 SEAL; SLEEVE 05.560	1-37247-001-1	02	1	0502-1106		●	●	●
128	05.586 SEAL; SLEEVE M/T MZZ6U(RSF) 05.560	1-37247-001-1	01	1	0211-0501		●			●
128	05.586 SEAL; SLEEVE 05.560	1-37247-001-1	01	1	0502-1106	●				●
128	05.586 SEAL; SLEEVE 05.560	1-37247-001-1	01	1	1107-	●	●	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4HE1 ENG(RLY) M/T MYY5T(RSM) (A) L=1172	8-97350-369-2	01	1	0211-0501	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1073	8-97376-949-1	01	1	0502-	●
300	05.544 SHAFT ASM; PROP,RR 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) L=607	8-97350-370-3	01	1	0211-0501		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6P(RSJ),M/T MYY5T(RSM) (C) L=1080	8-97214-108-1	01	1	0502-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) (C) L=1080	8-97214-108-1	01	1	0502-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6P(RSJ) (C) L=1080	8-97214-108-1	01	1	0502-			●	●
300	05.544 SHAFT ASM; PROP,RR A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) (C) L=1075	8-97350-389-2	01	1	0211-0501		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY6P(RSJ) (C) L=1075	8-97350-389-2	01	1	0211-0501			●	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6P(RSJ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=608	8-97360-238-1	01	1	0502-		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=608	8-97360-238-1	01	1	0502-		●
300	05.544 SHAFT ASM; PROP,RR A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) (C) L=1062	8-97350-388-2	01	1	0211-0501		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) (C) L=1424	8-97214-110-1	01	1	0502-					●
300	05.544 SHAFT ASM; PROP,RR M/T MZZ6U(RSF) (C) L=1043	8-97096-775-0	01	1	0211-0501		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=668	8-97376-943-1	01	1	0502-		●
300	05.544 SHAFT ASM; PROP,RR 4HE1 ENG(RLY) M/T MZZ6U(RSF) (B) L=608	8-97307-898-1	01	1	0211-0501		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1138	8-97214-109-1	01	1	0502-	●
300	05.544 SHAFT ASM; PROP,RR 4HE1 ENG(RLY) M/T MYY6P(RSJ) (B) L=637	8-97350-372-3	01	1	0211-0501		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6P(RSJ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=538	8-97376-941-1	01	1	0502-		●		●
300	05.544 SHAFT ASM; PROP,RR 4HE1 ENG(RLY) M/T MYY5T(RSM) (B) L=693	8-97350-381-3	01	1	0211-0501		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=591	8-97329-080-1	01	1	0502-		●
300	05.544 SHAFT ASM; PROP,RR 4HE1 ENG(RLY) M/T MYY6P(RSJ) (B) L=1087	8-97350-374-3	01	1	0211-0501			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6P(RSJ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=988	8-97376-944-1	01	1	0502-			●
300	05.544 SHAFT ASM; PROP,RR M/T MZZ6U(RSF) (C) L=1384	8-97129-514-0	01	1	0211-0501					●
300	05.544 SHAFT ASM; PROP,RR 4HE1 ENG(RLY) M/T MZZ6U(RSF) (B) L=1058	8-97307-899-1	01	1	0211-0501					●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6P(RSJ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1058	8-97360-239-1	01	1	0502-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) (B) L=1058	8-97360-239-1	01	1	0502-					●

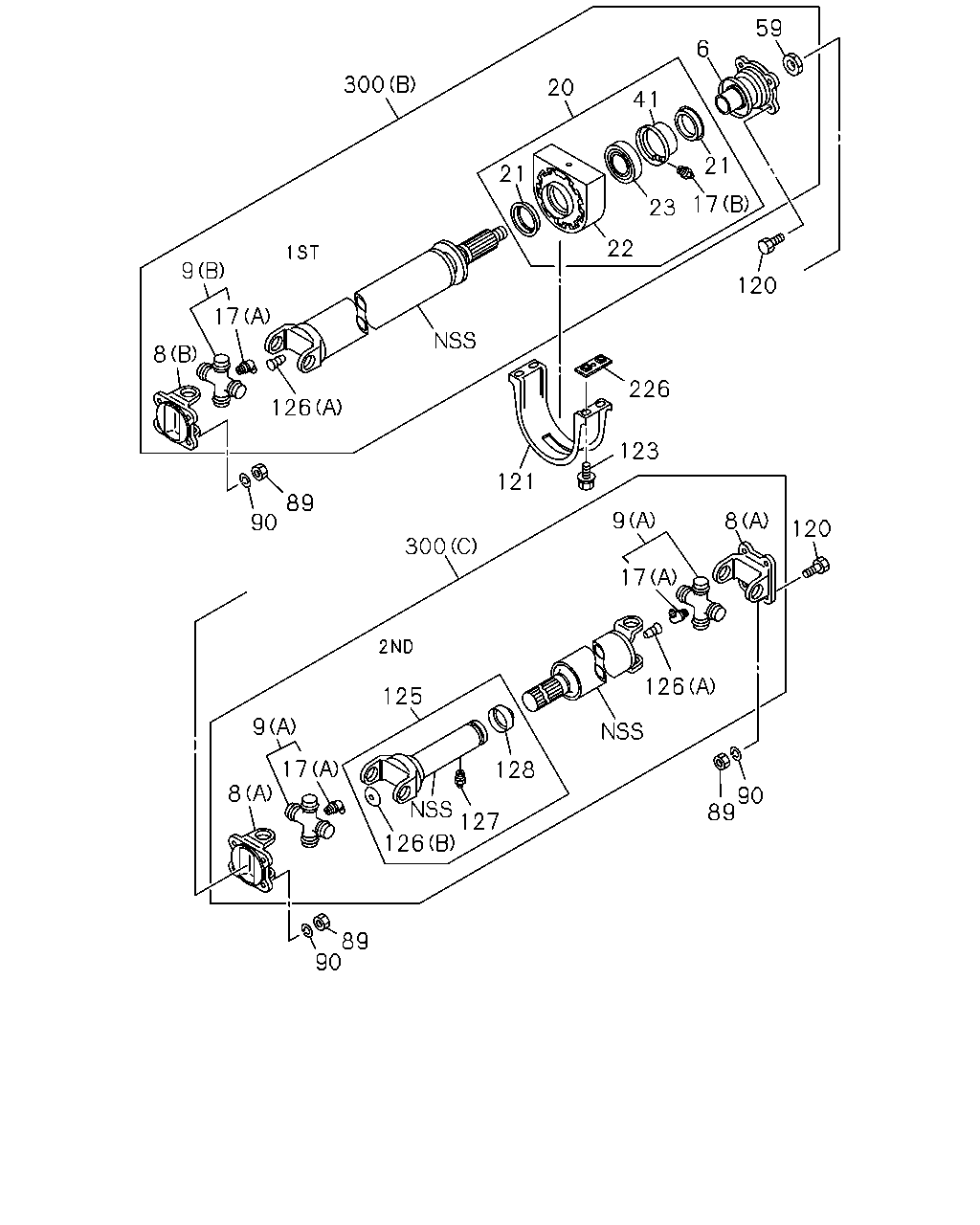

59 6 300 20 41 21 21 17 23 22 9 120 17 8 226 126 123 121 89 90 9 8 120 300 17 126 125 9 17 128 8 127 126 90 89 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM)	8-97036-123-0	01	1	0211-0501		●	●	●
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT M/T MZZ6U(RSF) 05.556	1-37245-115-0	01	1	0211-0501		●			●
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT 05.556	1-37245-115-1	01	1	0502-		●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) (A)	8-97322-663-0	02	1	0211-0501	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) (B)	8-97322-663-0	01	1	0211-0501		●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MZZ6U(RSF) (B) D=80	1-37211-037-4	01	1	0211-0501		●			●
8	05.544 YOKE; FLANGE,PROP SHAFT (A) D=80	1-37211-037-4	02	1	0502-	●	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MZZ6U(RSF) (A) D=80	1-37211-037-4	02	1	0211-0501		●			●
8	05.544 YOKE; FLANGE,PROP SHAFT (B) D=80	1-37211-037-4	01	1	0502-		●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MZZ6U(RSF) (A)	1-37300-089-0	02	1	0211-0305		●			●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MZZ6U(RSF) (A)	1-37300-103-0	02	1	0306-0501		●			●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	1-37300-103-0	01	1	0502-1106		●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-98020-789-1	01	1	1107-		●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) (A)	8-97322-749-0	02	1	0211-0501	●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) (B)	8-97322-749-0	01	1	0211-0501		●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MZZ6U(RSF) (B)	1-37300-103-0	01	1	0211-0501		●			●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	1-37300-103-0	02	1	0502-1106	●	●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-98020-789-1	02	1	1107-	●	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MZZ6U(RSF) (B) PT1/16 ELBOW 40 DEGREES	8-97240-194-0	01	1	0211-0501		●			●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) PT1/16 ELBOW 40 DEGREES	8-97240-194-0	01	1	0502-		●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0211-0512	●	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0211-0512		●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-		●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0211-0501		●	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT M/T MZZ6U(RSF)	8-97131-143-1	01	1	0211-0501		●			●
20	05.600 BEARING ASM; CTR,PROP SHAFT	8-97131-143-1	01	1	0502-		●	●	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-0	01	1	0211-0501		●	●	●
21	05.590 SEAL; OIL,CENTER BRG A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) 05.601 ID=49	5-09625-067-1	02	1	0211-0501		●	●	●
21	05.590 SEAL; OIL,CENTER BRG M/T MZZ6U(RSF) ID=54	1-09625-161-0	02	1	0211-0501		●			●
21	05.590 SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0502-		●	●	●	●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST M/T MZZ6U(RSF)	8-97131-125-0	01	1	0211-0501		●			●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST	8-97131-125-0	01	1	0502-		●	●	●	●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM)	5-37516-005-1	01	1	0211-0501		●	●	●
23	05.600 BEARING; CENTER,PROP SHAFT A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) OD=80	5-09800-068-0	01	1	0211-0501		●	●	●
23	05.600 BEARING; CENTER,PROP SHAFT M/T MZZ6U(RSF)	9-00090-071-0	01	1	0211-0501		●			●
23	05.600 BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0502-		●	●	●	●
41	05.601 COVER; CENTER BRG,PROP SHAFT A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM)	5-37512-004-0	01	1	0211-0501		●	●	●
41	05.601 COVER; CENTER BRG,PROP SHAFT M/T MZZ6U(RSF) 05.600	1-37529-068-0	01	1	0211-0501		●			●
41	05.601 COVER; CENTER BRG,PROP SHAFT 05.600	1-37529-068-0	01	1	0502-1106		●	●	●	●
41	05.601 COVER; CENTER BRG,PROP SHAFT	8-98020-882-0	01	1	1107-		●	●	●	●
59	05.586 NUT; RET TO SUPPORT M30	8-97160-857-0	01	1	0211-0303		●	●	●	●
59	05.586 NUT; RET TO SUPPORT M/T MZZ6U(RSF) M30	8-97160-857-0	01	1	0304-0501		●			●
59	05.586 NUT; RET TO SUPPORT M30	8-97160-857-0	01	1	0502-		●	●	●	●
59	05.586 NUT; RET TO SUPPORT A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) 04.412 M27 H=25	8-97253-126-0	01	1	0304-0501		●	●	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-94477-841-0	08	1	0211-0610	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-0	08	1	0611-	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	0211-0610		●	●	●	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-0	12	1	0611-		●	●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=12.2	9-09150-812-0	08	1	0211-0603	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	0604-	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=12.2	9-09150-812-0	12	1	0211-0603		●	●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	12	1	0604-		●	●	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	04	1	0211-0610	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	04	1	0611-	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	0211-0610		●	●	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	08	1	0611-		●	●	●	●
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0211-		●	●	●	●
123	05.601 BOLT; RET 01.252 M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	0211-0512		●	●	●	●
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0601-		●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=183	8-98040-513-0	01	1	0502-	●	●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) L=183	8-97327-979-1	01	1	0211-0501	●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MZZ6U(RSF) L=183	8-98040-513-0	01	1	0211-0501		●			●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0211-	●	●	●	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0211-		●	●	●	●
126	05.556 PLUG; SPLINED YOKE A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0211-0501	●	●	●	●
126	05.556 PLUG; SPLINED YOKE (B)	1-09600-014-0	01	1	0502-1106		●	●	●
126	05.556 PLUG; SPLINED YOKE M/T MZZ6U(RSF) (B)	1-09600-014-0	01	1	0211-0501		●			●
126	05.556 PLUG; SPLINED YOKE (B)	1-09600-014-0	01	1	0502-1106	●				●
126	05.556 PLUG; SPLINED YOKE (B)	1-09600-014-0	01	1	1107-	●	●	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-1106		●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE M/T MZZ6U(RSF) 08.984 PT1/8 STRAIGHT	9-09031-010-0	01	1	0211-0501		●			●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 PT1/8 STRAIGHT	9-09031-010-0	01	1	0502-0512	●	●	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-1106	●				●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 PT1/8 STRAIGHT	0-90301-410-0	01	1	1107-	●	●	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-0501	●	●	●	●
128	05.586 SEAL; SLEEVE A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM)	8-97145-746-0	01	1	0211-0501	●	●	●	●
128	05.586 SEAL; SLEEVE 05.560	1-37247-001-1	02	1	0502-1106		●	●	●
128	05.586 SEAL; SLEEVE M/T MZZ6U(RSF) 05.560	1-37247-001-1	01	1	0211-0501		●			●
128	05.586 SEAL; SLEEVE 05.560	1-37247-001-1	01	1	0502-1106	●				●
128	05.586 SEAL; SLEEVE 05.560	1-37247-001-1	01	1	1107-	●	●	●	●	●
226	05.586 PLATE; LK,CENTER BRG	8-97101-161-0	02	1	0211-0306		●	●	●	●
226	05.586 PLATE; LK,CENTER BRG	8-97371-572-0	02	1	0307-		●	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4HE1 ENG(RLY) M/T MYY5T(RSM) (A) L=1172	8-97350-369-2	01	1	0211-0501	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1073	8-97376-949-1	01	1	0502-	●
300	05.544 SHAFT ASM; PROP,RR 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) L=607	8-97350-370-3	01	1	0211-0501		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6P(RSJ),M/T MYY5T(RSM) (C) L=1080	8-97214-108-1	01	1	0502-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) (C) L=1080	8-97214-108-1	01	1	0502-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6P(RSJ) (C) L=1080	8-97214-108-1	01	1	0502-			●	●
300	05.544 SHAFT ASM; PROP,RR A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) (C) L=1075	8-97350-389-2	01	1	0211-0501		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY6P(RSJ) (C) L=1075	8-97350-389-2	01	1	0211-0501			●	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6P(RSJ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=608	8-97360-238-1	01	1	0502-		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=608	8-97360-238-1	01	1	0502-		●
300	05.544 SHAFT ASM; PROP,RR A/T 4 SPEED-AISIN(RNJ),M/T MYY6P(RSJ), M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) (C) L=1062	8-97350-388-2	01	1	0211-0501		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) (C) L=1424	8-97214-110-1	01	1	0502-					●
300	05.544 SHAFT ASM; PROP,RR M/T MZZ6U(RSF) (C) L=1043	8-97096-775-0	01	1	0211-0501		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=668	8-97376-943-1	01	1	0502-		●
300	05.544 SHAFT ASM; PROP,RR 4HE1 ENG(RLY) M/T MZZ6U(RSF) (B) L=608	8-97307-898-1	01	1	0211-0501		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1138	8-97214-109-1	01	1	0502-	●
300	05.544 SHAFT ASM; PROP,RR 4HE1 ENG(RLY) M/T MYY6P(RSJ) (B) L=637	8-97350-372-3	01	1	0211-0501		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6P(RSJ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=538	8-97376-941-1	01	1	0502-		●		●
300	05.544 SHAFT ASM; PROP,RR 4HE1 ENG(RLY) M/T MYY5T(RSM) (B) L=693	8-97350-381-3	01	1	0211-0501		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=591	8-97329-080-1	01	1	0502-		●
300	05.544 SHAFT ASM; PROP,RR 4HE1 ENG(RLY) M/T MYY6P(RSJ) (B) L=1087	8-97350-374-3	01	1	0211-0501			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6P(RSJ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=988	8-97376-944-1	01	1	0502-			●
300	05.544 SHAFT ASM; PROP,RR M/T MZZ6U(RSF) (C) L=1384	8-97129-514-0	01	1	0211-0501					●
300	05.544 SHAFT ASM; PROP,RR 4HE1 ENG(RLY) M/T MZZ6U(RSF) (B) L=1058	8-97307-899-1	01	1	0211-0501					●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6P(RSJ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1058	8-97360-239-1	01	1	0502-			●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) (B) L=1058	8-97360-239-1	01	1	0502-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
