Sayfa 3-58 - Isuzu EPC

3-58 — FIXING PARTS; OIL PIPING (#34329) — 364 parça

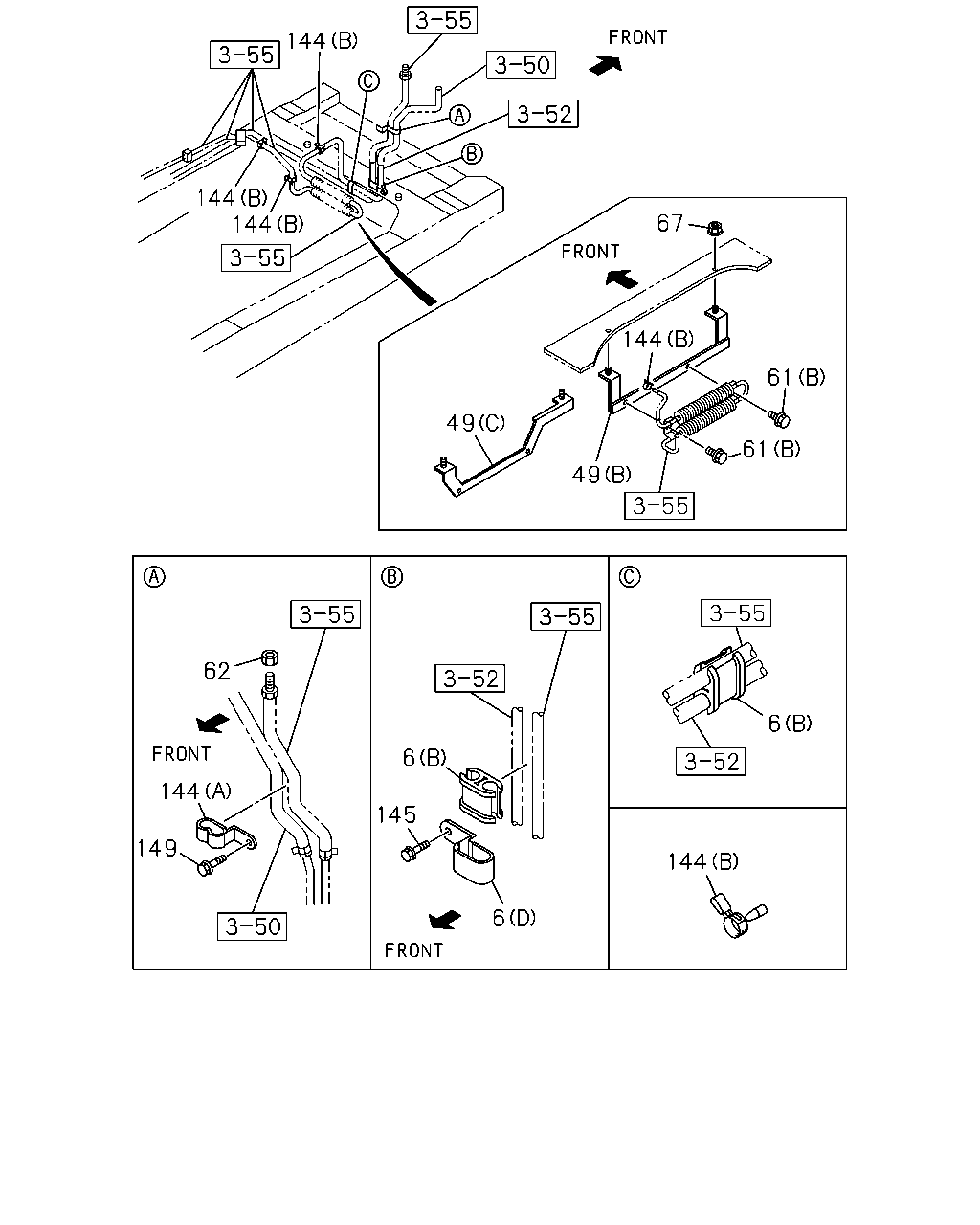

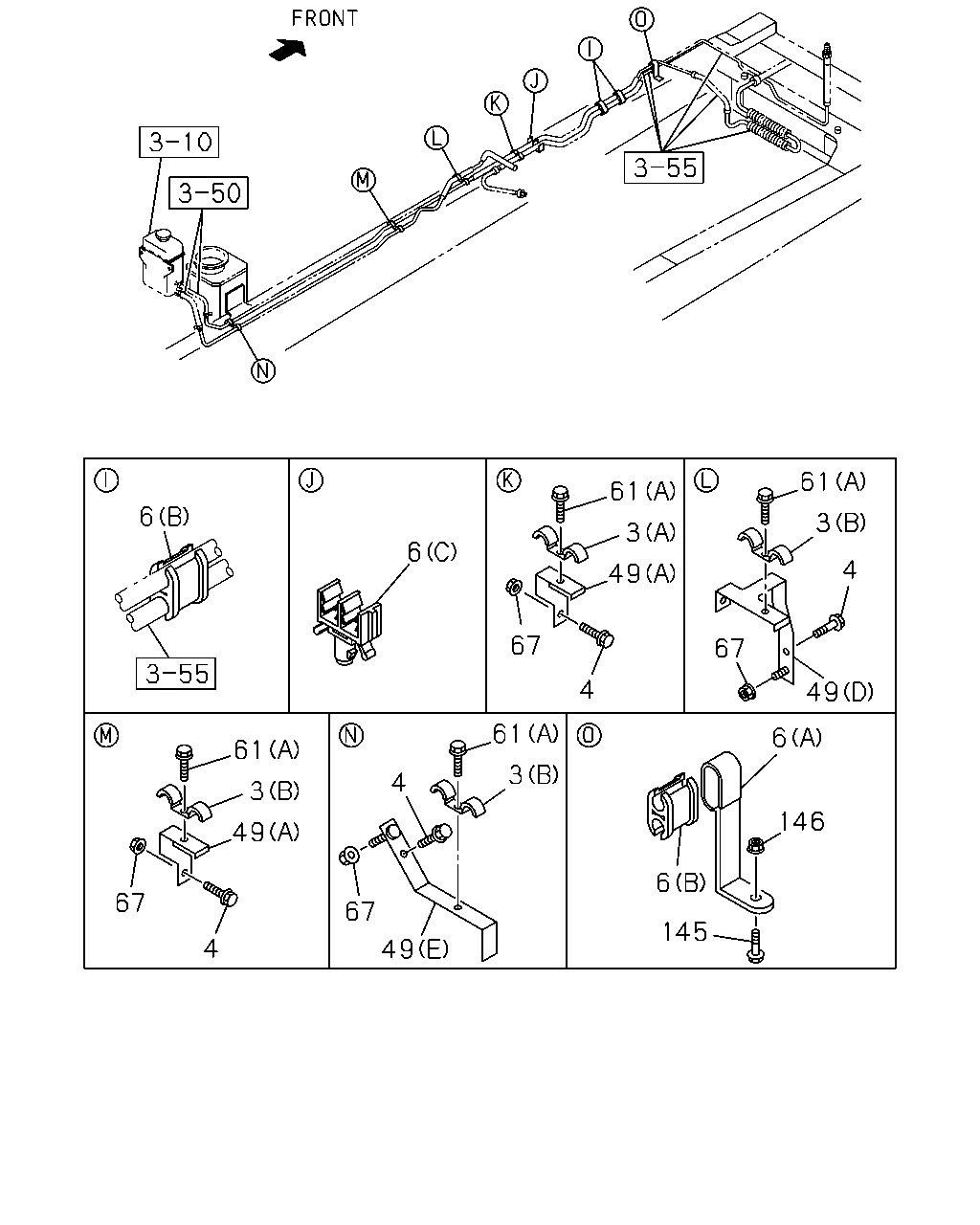

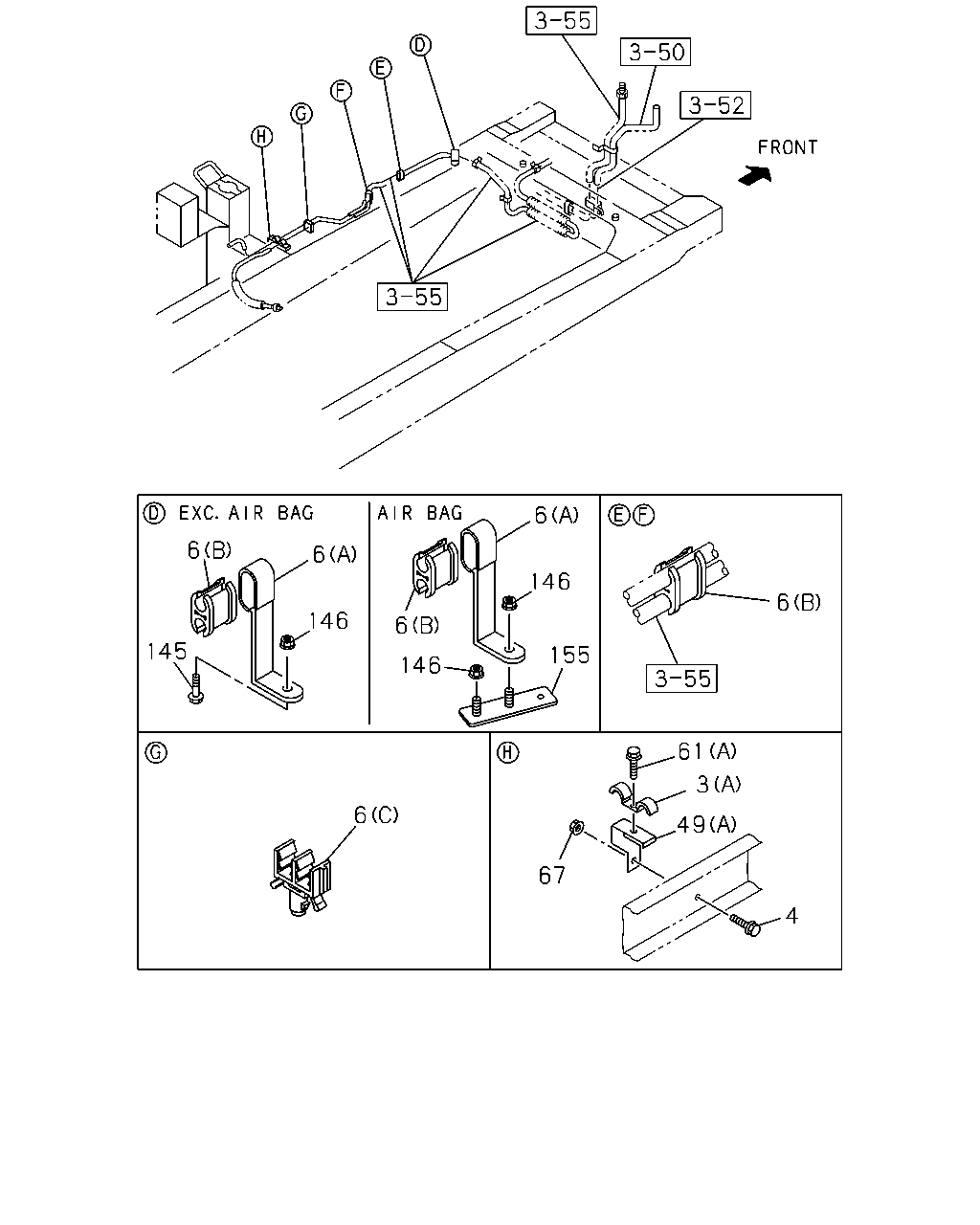

6 6 6 146 6 146 6 145 155 146 61 3 6 49 67 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	04.685 CLIP; BRK PIPE 04.686 (B) ID=16 & 11 L=18 & 17	1-09700-657-0	03	1	0502-	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0211-0501		●
3	04.685 CLIP; BRK PIPE 04.047 (A) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0211-0501			●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0502-		●
3	04.685 CLIP; BRK PIPE 04.047 (A) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0502-	●		●	●
4	04.686 BOLT; BRKT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●
4	04.686 BOLT; BRKT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
4	04.686 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0211-0501		●
4	04.686 BOLT; BRKT 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0211-0501			●
4	04.686 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0502-0512		●
4	04.686 BOLT; BRKT 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0502-0512	●		●	●
4	04.686 BOLT; BRKT 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0502-0512	●
4	04.686 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0601-		●
4	04.686 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0601-	●		●	●
4	04.686 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0601-	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0211-0501		●
6	04.686 CLIP; PIPE 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0211-0501			●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0502-		●
6	04.686 CLIP; PIPE 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0502-	●		●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0211-0501		●
6	04.686 CLIP; PIPE 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0211-0501			●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0502-		●
6	04.686 CLIP; PIPE 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0502-	●		●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	0211-0501		●
6	04.686 CLIP; PIPE 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	0211-0501			●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	0502-		●
6	04.686 CLIP; PIPE 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	0502-	●		●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0211-0501		●
6	04.686 CLIP; PIPE 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0211-0501			●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0502-		●
6	04.686 CLIP; PIPE 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0502-	●		●	●
49	04.686 BRACKET; BRK PIPE (D)	8-97251-896-1	01	1	0502-	●
49	04.686 BRACKET; BRK PIPE (E)	8-97255-806-1	01	1	0502-	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0211-0501		●
49	04.686 BRACKET; BRK PIPE (A)	8-97174-638-0	01	1	0211-0501			●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0502-		●
49	04.686 BRACKET; BRK PIPE (A)	8-97174-638-0	01	1	0502-	●		●	●
49	04.686 BRACKET; BRK PIPE (A)	8-97174-638-0	01	1	0502-	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-1	01	1	0211-0501		●
49	04.686 BRACKET; BRK PIPE (B)	8-97180-993-1	01	1	0211-0501			●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (C)	8-97378-054-0	01	1	0502-		●
49	04.686 BRACKET; BRK PIPE (C)	8-97378-054-0	01	1	0502-	●		●	●
61	04.686 BOLT; BRK PIPE 01.428 (A) M6X12 FLANGE	0-28080-612-0	03	1	0502-0512	●
61	04.686 BOLT; BRK PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0601-	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501		●
61	04.686 BOLT; BRK PIPE 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501			●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512		●
61	04.686 BOLT; BRK PIPE 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●		●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0601-		●
61	04.686 BOLT; BRK PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0601-	●		●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0211-0501		●
61	04.686 BOLT; BRK PIPE 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0211-0501			●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0502-0512		●
61	04.686 BOLT; BRK PIPE 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0502-0512	●		●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-		●
61	04.686 BOLT; BRK PIPE 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●		●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501		●
67	04.686 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501			●
67	04.686 NUT; BRKT 4HK1-TCN ENG(RDQ) 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0602	●
67	04.686 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501		●
67	04.686 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501			●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 M10 FLANGE	0-91150-110-0	03	1	0502-0602		●
67	04.686 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	03	1	0502-0602	●		●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 03.162 M10 FLANGE	0-91180-110-0	03	1	0603-		●
67	04.686 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	03	1	0603-	●		●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0212		●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0212		●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0212			●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0212			●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0301-0501		●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0301-0501			●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●		●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
145	04.686 BOLT; PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●		●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0301-0501		●
145	04.686 BOLT; PIPE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0301-0501			●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> EXC. AIR BAG DRIVER<AJ3> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512		●
145	04.686 BOLT; PIPE EXC. AIR BAG DRIVER<AJ3> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512	●		●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> EXC. AIR BAG DRIVER<AJ3> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
145	04.686 BOLT; PIPE EXC. AIR BAG DRIVER<AJ3> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-	●		●	●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501		●
146	04.686 NUT; PIPE 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501			●
146	04.686 NUT; PIPE AIR BAG DRIVER<AJ3> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
146	04.686 NUT; PIPE AIR BAG DRIVER<AJ3> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●		●	●
146	04.686 NUT; PIPE 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●		●	●
146	04.686 NUT; PIPE AIR BAG DRIVER<AJ3> HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●
146	04.686 NUT; PIPE AIR BAG DRIVER<AJ3> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●		●	●
146	04.686 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●		●	●
155	06.672 PLATE; PIPE AIR BAG DRIVER<AJ3> HYDRO BRAKE BOOSTER<7QQ>	8-97387-196-0	01	1	0502-		●
155	06.672 PLATE; PIPE AIR BAG DRIVER<AJ3>	8-97387-196-0	01	1	0502-	●		●	●

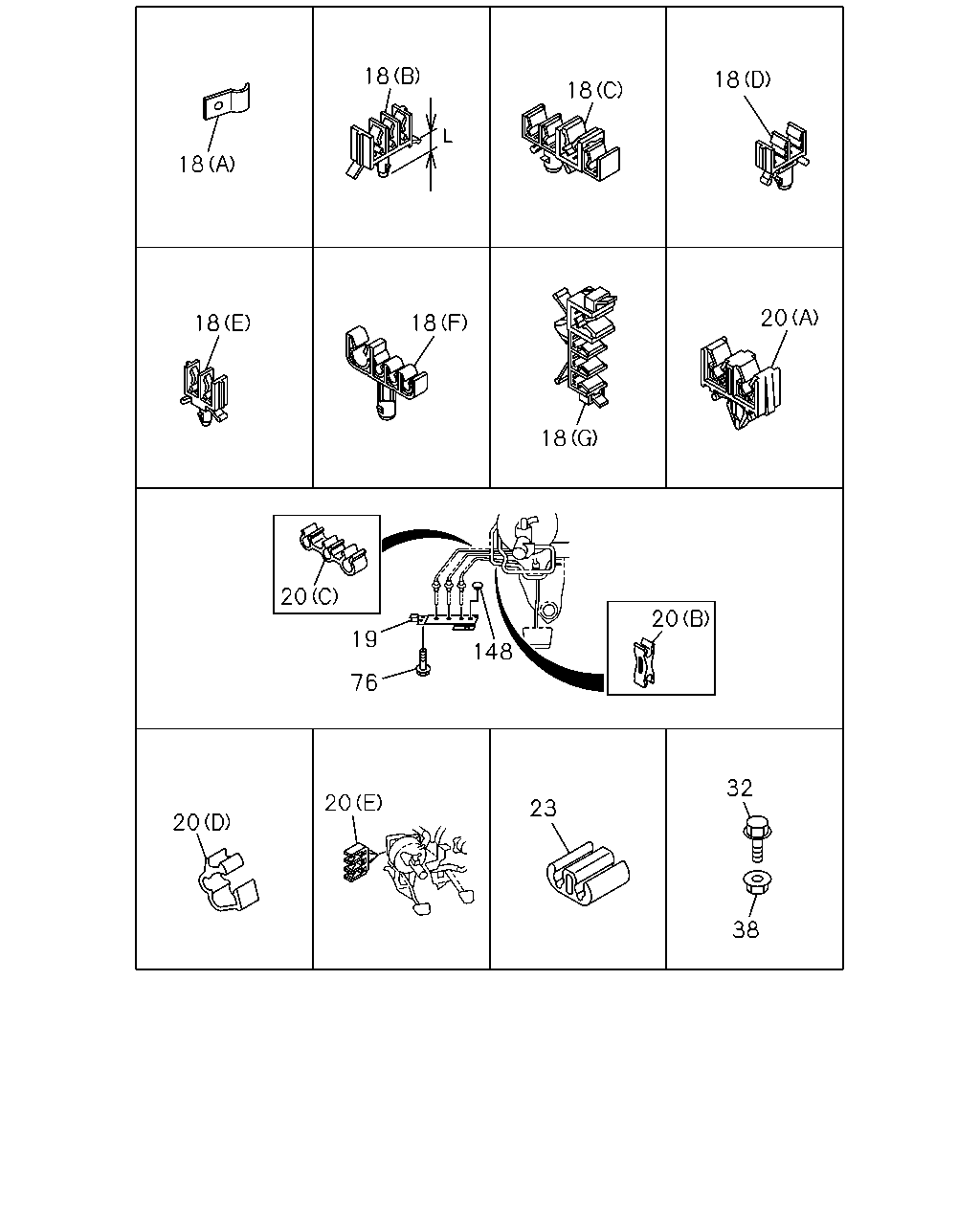

18 18 18 18 20 18 18 18 20 20 148 19 76 32 20 23 20 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	05	1	0502-			●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0502-0502	●	●	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0502-0502	●	●	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0502-0502	●	●	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0502-0502	●	●	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0502-0502					●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0502-0506	●	●	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0502-0506	●	●	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0502-0506	●	●	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0502-0506	●	●	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0502-0506	●	●			●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0507-0611	●	●	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0507-0611	●	●	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0507-0611	●	●	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0507-0611	●	●	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0507-0611					●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	02	1	0612-	●	●	●	●	●
18	04.686 CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97168-819-0	02	1	0502-	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	04	1	0502-0506				●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	04	1	0507-	●	●		●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0612-	●	●	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0612-	●	●	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0612-	●	●	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0612-					●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	08	1	1006-	●	●	●	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	02	1	0211-					●
18	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0211-0501	●	●	●	●	●
18	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0502-	●	●	●	●	●
18	04.686 CLIP; BRK PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0502-	●	●		●	●
18	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0502-			●
18	04.686 CLIP; BRK PIPE (D) ID=4.8X2	8-94316-410-0	01	1	0211-0501	●	●	●	●	●
18	04.686 CLIP; BRK PIPE (D) ID=4.8X2	8-94316-410-0	02	1	0502-0611	●	●	●	●	●
18	04.686 CLIP; BRK PIPE (D) ID=4.8X2	8-94316-410-0	03	1	0612-	●	●	●	●	●
18	04.686 CLIP; BRK PIPE (E) ID=4.8X2	8-94455-816-0	01	1	0211-0501	●	●	●	●	●
18	04.686 CLIP; BRK PIPE (E) ID=4.8X2	8-94455-816-0	01	1	0502-	●	●	●	●	●
18	04.686 CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97168-819-0	02	1	0211-0501	●	●	●	●	●
18	04.686 CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97168-819-0	01	1	0502-	●	●	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0211-0501	●	●	●	●	●
18	04.686 CLIP; BRK PIPE (A) B=18 L=20	1-09700-372-0	02	1	0502-	●	●	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	02	1	0211-0501	●	●	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	03	1	0502-0506	●	●	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	03	1	0502-0506	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	03	1	0507-	●	●	●	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	08	1	0211-0501	●	●	●	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	09	1	0502-1005	●	●	●	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	01	1	1006-	●	●	●	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	04	1	0211-	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	05	1	0211-				●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	06	1	0211-			●
18	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0211-0501	●	●	●	●	●
18	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0211-0501	●		●	●	●
18	04.686 CLIP; BRK PIPE FLOOR REMOTE SHIFT<M11> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0211-0501		●
18	04.686 CLIP; BRK PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0502-	●	●		●	●
18	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0502-			●
19	04.686 BRACKET; OIL PIPE	8-97149-718-2	01	1	0211-	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (A) ID=4.8X2	8-94113-470-0	01	1	0211-0501	●		●	●	●
20	04.686 CLIP; BRK PIPE FLOOR REMOTE SHIFT<M11> (A) ID=4.8X2	8-94113-470-0	01	1	0211-0501		●
20	04.686 CLIP; BRK PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=4.8X2	8-94113-470-0	01	1	0502-	●	●		●	●
20	04.686 CLIP; BRK PIPE (A) ID=4.8X2	8-94113-470-0	01	1	0502-			●
20	04.686 CLIP; BRK PIPE 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	0211-0501	●		●	●	●
20	04.686 CLIP; BRK PIPE FLOOR REMOTE SHIFT<M11> 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	0211-0501		●
20	04.686 CLIP; BRK PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	0502-	●	●		●	●
20	04.686 CLIP; BRK PIPE 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	0502-			●
20	04.686 CLIP; BRK PIPE (D) ID=6.35 & 4.76X2	8-94107-732-1	01	1	0211-0501	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (C) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0211-	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (E) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0211-	●	●	●	●	●
20	04.686 CLIP; BRK PIPE A/T 4 SPEED-AISIN(RNJ) 04.868 (B) ID=4.6X2	8-94241-454-0	02	1	0211-0501		●
20	04.686 CLIP; BRK PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 04.868 (B) ID=4.6X2	8-94241-454-0	02	1	0502-	●	●		●	●
23	04.686 CLAMP; PIPE ID=4.8X2	8-94389-060-0	01	1	0211-	●	●	●	●	●
23	04.686 CLAMP; PIPE ID=4.8X2	8-94389-060-0	02	1	0502-	●	●
23	04.686 CLAMP; PIPE ID=4.8X2	8-94389-060-0	04	1	0502-0502	●	●	●	●	●
23	04.686 CLAMP; PIPE ID=4.8X2	8-94389-060-0	04	1	0502-			●	●	●
32	04.686 BOLT; CLIP,OIL PIPE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●	●	●	●	●
32	04.686 BOLT; CLIP,OIL PIPE 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0612	●	●	●	●	●
32	04.686 BOLT; CLIP,OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0701-	●	●	●	●	●
38	04.686 NUT; CLIP FIX 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●	●	●	●	●
38	04.686 NUT; CLIP FIX 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●
76	04.686 BOLT; BRKT,OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●	●	●	●
76	04.686 BOLT; BRKT,OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●	●
148	04.686 GROMMET 03.483	8-94294-358-0	01	1	0211-0501	●			●	●
148	04.686 GROMMET A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	01	1	0211-0501		●
148	04.686 GROMMET FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	01	1	0211-0501		●
148	04.686 GROMMET TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483	8-94294-358-0	02	1	0502-					●
148	04.686 GROMMET TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	02	1	0502-		●
148	04.686 GROMMET A/T 4 SPEED-AISIN(RNJ) EXC. HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	02	1	0211-0501		●
148	04.686 GROMMET EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483	8-94294-358-0	01	1	0502-					●
148	04.686 GROMMET EXC. HYDRO BRAKE BOOSTER<7QQ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483	8-94294-358-0	01	1	0502-		●
148	04.686 GROMMET HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483	8-94294-358-0	01	1	0502-		●
148	04.686 GROMMET TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483	8-94294-358-0	01	1	0502-	●			●

61 61 6 3 3 6 4 49 67 67 4 49 61 6 61 3 4 3 146 49 6 67 67 145 4 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	04.685 CLIP; BRK PIPE 04.686 (B) ID=16 & 11 L=18 & 17	1-09700-657-0	03	1	0502-	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0211-0501		●
3	04.685 CLIP; BRK PIPE 04.047 (A) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0211-0501			●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0502-		●
3	04.685 CLIP; BRK PIPE 04.047 (A) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0502-	●		●	●
4	04.686 BOLT; BRKT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●
4	04.686 BOLT; BRKT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
4	04.686 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0211-0501		●
4	04.686 BOLT; BRKT 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0211-0501			●
4	04.686 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0502-0512		●
4	04.686 BOLT; BRKT 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0502-0512	●		●	●
4	04.686 BOLT; BRKT 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0502-0512	●
4	04.686 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0601-		●
4	04.686 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0601-	●		●	●
4	04.686 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0601-	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0211-0501		●
6	04.686 CLIP; PIPE 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0211-0501			●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0502-		●
6	04.686 CLIP; PIPE 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0502-	●		●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0211-0501		●
6	04.686 CLIP; PIPE 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0211-0501			●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0502-		●
6	04.686 CLIP; PIPE 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0502-	●		●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	0211-0501		●
6	04.686 CLIP; PIPE 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	0211-0501			●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	0502-		●
6	04.686 CLIP; PIPE 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	0502-	●		●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0211-0501		●
6	04.686 CLIP; PIPE 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0211-0501			●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0502-		●
6	04.686 CLIP; PIPE 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0502-	●		●	●
49	04.686 BRACKET; BRK PIPE (D)	8-97251-896-1	01	1	0502-	●
49	04.686 BRACKET; BRK PIPE (E)	8-97255-806-1	01	1	0502-	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0211-0501		●
49	04.686 BRACKET; BRK PIPE (A)	8-97174-638-0	01	1	0211-0501			●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0502-		●
49	04.686 BRACKET; BRK PIPE (A)	8-97174-638-0	01	1	0502-	●		●	●
49	04.686 BRACKET; BRK PIPE (A)	8-97174-638-0	01	1	0502-	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-1	01	1	0211-0501		●
49	04.686 BRACKET; BRK PIPE (B)	8-97180-993-1	01	1	0211-0501			●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (C)	8-97378-054-0	01	1	0502-		●
49	04.686 BRACKET; BRK PIPE (C)	8-97378-054-0	01	1	0502-	●		●	●
61	04.686 BOLT; BRK PIPE 01.428 (A) M6X12 FLANGE	0-28080-612-0	03	1	0502-0512	●
61	04.686 BOLT; BRK PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0601-	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501		●
61	04.686 BOLT; BRK PIPE 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501			●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512		●
61	04.686 BOLT; BRK PIPE 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●		●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0601-		●
61	04.686 BOLT; BRK PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0601-	●		●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0211-0501		●
61	04.686 BOLT; BRK PIPE 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0211-0501			●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0502-0512		●
61	04.686 BOLT; BRK PIPE 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0502-0512	●		●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-		●
61	04.686 BOLT; BRK PIPE 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●		●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501		●
67	04.686 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501			●
67	04.686 NUT; BRKT 4HK1-TCN ENG(RDQ) 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0602	●
67	04.686 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501		●
67	04.686 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501			●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 M10 FLANGE	0-91150-110-0	03	1	0502-0602		●
67	04.686 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	03	1	0502-0602	●		●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 03.162 M10 FLANGE	0-91180-110-0	03	1	0603-		●
67	04.686 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	03	1	0603-	●		●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0212		●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0212		●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0212			●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0212			●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0301-0501		●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0301-0501			●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●		●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
145	04.686 BOLT; PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●		●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0301-0501		●
145	04.686 BOLT; PIPE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0301-0501			●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> EXC. AIR BAG DRIVER<AJ3> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512		●
145	04.686 BOLT; PIPE EXC. AIR BAG DRIVER<AJ3> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512	●		●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> EXC. AIR BAG DRIVER<AJ3> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
145	04.686 BOLT; PIPE EXC. AIR BAG DRIVER<AJ3> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-	●		●	●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501		●
146	04.686 NUT; PIPE 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501			●
146	04.686 NUT; PIPE AIR BAG DRIVER<AJ3> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
146	04.686 NUT; PIPE AIR BAG DRIVER<AJ3> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●		●	●
146	04.686 NUT; PIPE 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●		●	●
146	04.686 NUT; PIPE AIR BAG DRIVER<AJ3> HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●
146	04.686 NUT; PIPE AIR BAG DRIVER<AJ3> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●		●	●
146	04.686 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●		●	●

144 144 144 67 144 61 49 61 49 62 6 6 144 145 149 144 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0211-0501		●
6	04.686 CLIP; PIPE 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0211-0501			●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0502-		●
6	04.686 CLIP; PIPE 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0502-	●		●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0211-0501		●
6	04.686 CLIP; PIPE 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0211-0501			●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0502-		●
6	04.686 CLIP; PIPE 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0502-	●		●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	0211-0501		●
6	04.686 CLIP; PIPE 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	0211-0501			●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	0502-		●
6	04.686 CLIP; PIPE 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	0502-	●		●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0211-0501		●
6	04.686 CLIP; PIPE 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0211-0501			●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0502-		●
6	04.686 CLIP; PIPE 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0502-	●		●	●
49	04.686 BRACKET; BRK PIPE (D)	8-97251-896-1	01	1	0502-	●
49	04.686 BRACKET; BRK PIPE (E)	8-97255-806-1	01	1	0502-	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0211-0501		●
49	04.686 BRACKET; BRK PIPE (A)	8-97174-638-0	01	1	0211-0501			●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0502-		●
49	04.686 BRACKET; BRK PIPE (A)	8-97174-638-0	01	1	0502-	●		●	●
49	04.686 BRACKET; BRK PIPE (A)	8-97174-638-0	01	1	0502-	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-1	01	1	0211-0501		●
49	04.686 BRACKET; BRK PIPE (B)	8-97180-993-1	01	1	0211-0501			●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (C)	8-97378-054-0	01	1	0502-		●
49	04.686 BRACKET; BRK PIPE (C)	8-97378-054-0	01	1	0502-	●		●	●
61	04.686 BOLT; BRK PIPE 01.428 (A) M6X12 FLANGE	0-28080-612-0	03	1	0502-0512	●
61	04.686 BOLT; BRK PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0601-	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501		●
61	04.686 BOLT; BRK PIPE 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501			●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512		●
61	04.686 BOLT; BRK PIPE 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●		●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0601-		●
61	04.686 BOLT; BRK PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0601-	●		●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0211-0501		●
61	04.686 BOLT; BRK PIPE 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0211-0501			●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0502-0512		●
61	04.686 BOLT; BRK PIPE 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0502-0512	●		●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-		●
61	04.686 BOLT; BRK PIPE 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●		●	●
62	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 06.172 M14	9-99111-414-0	01	1	0211-0501		●
62	04.686 NUT 06.172 M14	9-99111-414-0	01	1	0211-0501			●
62	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 06.172 M14	9-99111-414-0	01	1	0502-0512		●
62	04.686 NUT 06.172 M14	9-99111-414-0	01	1	0502-0512	●		●	●
62	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 06.515 M14	0-91111-514-0	01	1	0601-		●
62	04.686 NUT 06.515 M14	0-91111-514-0	01	1	0601-	●		●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501		●
67	04.686 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501			●
67	04.686 NUT; BRKT 4HK1-TCN ENG(RDQ) 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0602	●
67	04.686 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501		●
67	04.686 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501			●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 M10 FLANGE	0-91150-110-0	03	1	0502-0602		●
67	04.686 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	03	1	0502-0602	●		●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 03.162 M10 FLANGE	0-91180-110-0	03	1	0603-		●
67	04.686 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	03	1	0603-	●		●	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0211-0501		●
144	04.686 CLIP; HOSE (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0211-0501			●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0502-		●
144	04.686 CLIP; HOSE (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0502-	●		●	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5	8-94426-597-0	05	1	0211-0501		●
144	04.686 CLIP; HOSE (B) ID=11-19.5	8-94426-597-0	05	1	0211-0501			●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5	8-94426-597-0	05	1	0502-1005		●
144	04.686 CLIP; HOSE (B) ID=11-19.5	8-94426-597-0	05	1	0502-1005	●		●	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.681 (B) ID=11-17	8-98173-762-1	05	1	1006-		●
144	04.686 CLIP; HOSE 04.681 (B) ID=11-17	8-98173-762-1	05	1	1006-	●		●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0212		●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0212		●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0212			●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0212			●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0301-0501		●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0301-0501			●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●		●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
145	04.686 BOLT; PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●		●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0301-0501		●
145	04.686 BOLT; PIPE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0301-0501			●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> EXC. AIR BAG DRIVER<AJ3> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512		●
145	04.686 BOLT; PIPE EXC. AIR BAG DRIVER<AJ3> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512	●		●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> EXC. AIR BAG DRIVER<AJ3> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
145	04.686 BOLT; PIPE EXC. AIR BAG DRIVER<AJ3> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-	●		●	●
149	04.686 BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501		●
149	04.686 BOLT; HOSE 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501			●
149	04.686 BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0512		●
149	04.686 BOLT; HOSE 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●		●	●
149	04.686 BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-		●
149	04.686 BOLT; HOSE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
