3-55 — BRAKE PIPING; OIL,REAR (#34328) — 159 parça

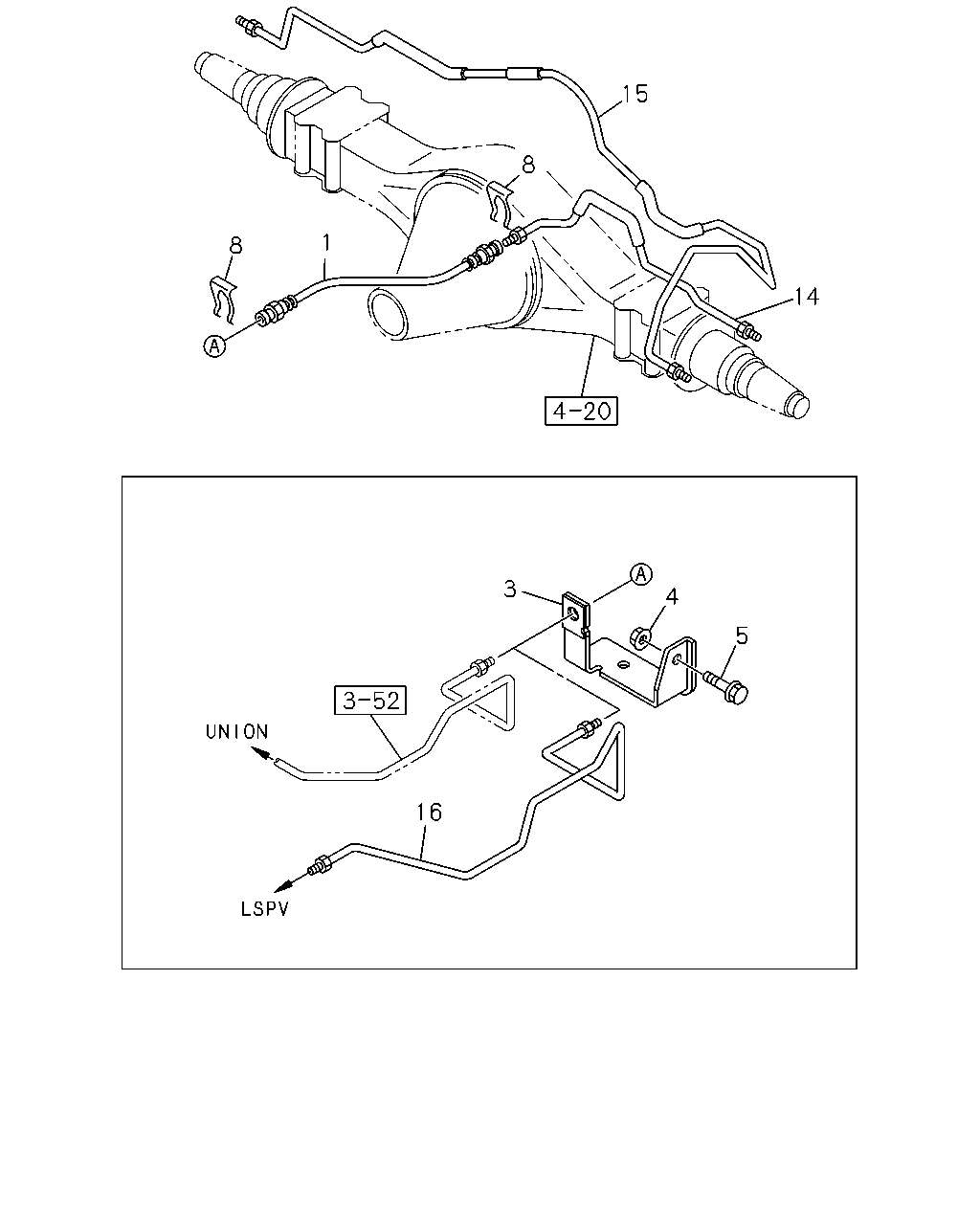

çizim 34825
15 8 1 8 14 3 4 5 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.680 HOSE; FLEX,RR BRK 8-97253-570-0 01 1 0502- ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
L=405 		8-97089-061-0 01 1 0211-0501 ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK 8-97253-569-0 01 1 0502- ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 0211-0501 ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 0502- ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 0502- ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 03 1 0502-0602 ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 03 1 0603- ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ● ●
8 04.686 CLIP; RR BRK
04.681 		8-94137-662-0 02 1 0211-0501 ● ● ● ● ●
8 04.686 CLIP; RR BRK
04.681 		8-94137-662-0 04 1 0502-0610 ● ● ● ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 0611- ● ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-792-1 01 1 0502-0507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		8-97212-792-1 01 1 0502-0507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-793-1 01 1 0502-0507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		8-97212-793-1 01 1 0502-0507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97212-796-2 01 1 0502-0502 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-796-2 01 1 0502-0502 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97212-796-2 01 1 0502-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-796-2 01 1 0502-0701 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-749-0 01 1 0702- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97206-531-1 01 1 0502-0507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97206-531-1 01 1 0508-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-97206-531-1 01 1 0508-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-747-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-97359-747-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-97330-544-1 01 1 0502-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97330-544-1 01 1 0502-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-98006-755-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98006-755-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-97330-545-1 01 1 0502-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97330-545-1 01 1 0502-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-98006-757-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98006-757-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97206-086-1 01 1 0211-0501 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-086-1 01 1 0211-0501 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97206-086-1 01 1 0502-0507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97206-086-1 01 1 0508-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-97206-086-1 01 1 0508-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-746-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
VEHICLE CATEGORY NQR<7NQ> 		8-97212-795-2 01 1 0211-0501 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-795-2 01 1 0211-0501 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97212-795-2 01 1 0502-0502 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-795-2 01 1 0502-0502 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97212-795-2 01 1 0502-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-795-2 01 1 0502-0701 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 0702- ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97116-543-2 01 1 0211-0501 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) 		8-97116-543-2 01 1 0211-0501 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97129-745-1 01 1 0211-0501 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97129-745-1 01 1 0211-0501 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97122-715-1 01 1 0211-0501 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97122-715-1 01 1 0211-0501 ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE 8-97183-535-1 01 1 0211-0501 ● ● ● ● ●
çizim 34892
135 1 5 8 135 8 4 3 4 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.680 HOSE; FLEX,RR BRK 8-97253-570-0 01 1 0502- ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
L=405 		8-97089-061-0 01 1 0211-0501 ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK 8-97253-569-0 01 1 0502- ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 0211-0501 ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 0502- ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 0502- ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 03 1 0502-0602 ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 03 1 0603- ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ● ●
8 04.686 CLIP; RR BRK
04.681 		8-94137-662-0 02 1 0211-0501 ● ● ● ● ●
8 04.686 CLIP; RR BRK
04.681 		8-94137-662-0 04 1 0502-0610 ● ● ● ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 0611- ● ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-792-1 01 1 0502-0507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		8-97212-792-1 01 1 0502-0507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-793-1 01 1 0502-0507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		8-97212-793-1 01 1 0502-0507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97212-796-2 01 1 0502-0502 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-796-2 01 1 0502-0502 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97212-796-2 01 1 0502-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-796-2 01 1 0502-0701 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-749-0 01 1 0702- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97206-531-1 01 1 0502-0507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97206-531-1 01 1 0508-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-97206-531-1 01 1 0508-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-747-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-97359-747-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-97330-544-1 01 1 0502-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97330-544-1 01 1 0502-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-98006-755-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98006-755-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-97330-545-1 01 1 0502-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97330-545-1 01 1 0502-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-98006-757-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98006-757-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97206-086-1 01 1 0211-0501 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-086-1 01 1 0211-0501 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97206-086-1 01 1 0502-0507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97206-086-1 01 1 0508-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-97206-086-1 01 1 0508-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-746-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
VEHICLE CATEGORY NQR<7NQ> 		8-97212-795-2 01 1 0211-0501 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-795-2 01 1 0211-0501 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97212-795-2 01 1 0502-0502 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-795-2 01 1 0502-0502 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97212-795-2 01 1 0502-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-795-2 01 1 0502-0701 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 0702- ● ●
135 04.686 CLIP; FLEX HOSE 8-97207-699-0 04 1 0502- ● ● ● ● ●

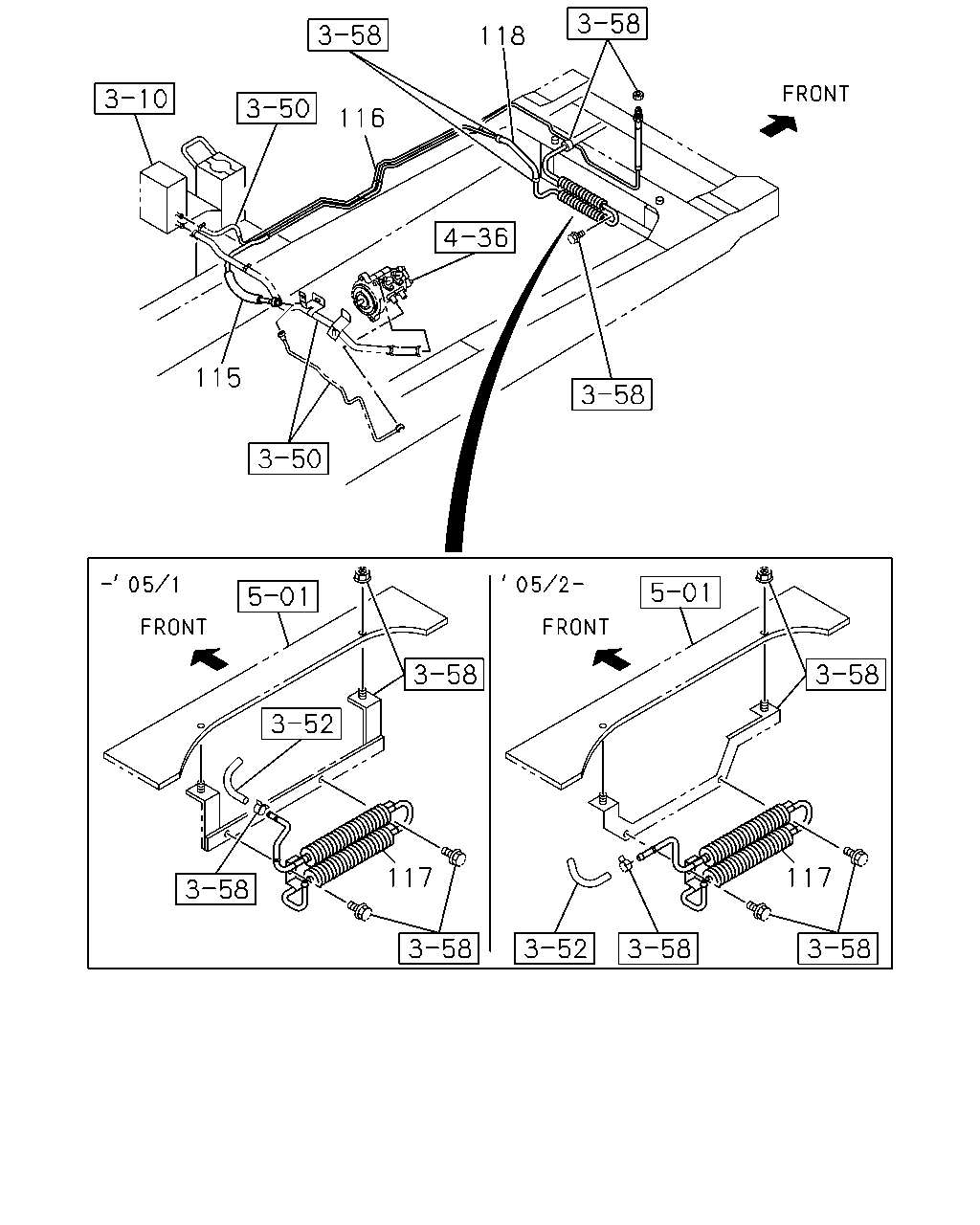

çizim 99203
118 116 115 117 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-967-2 01 1 0211-0501 ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE 8-97201-967-2 01 1 0211-0501 ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97385-597-0 01 1 0502- ● ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 		8-97258-064-3 01 1 0211-0501 ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97385-598-0 01 1 0502- ● ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE 8-97385-598-0 01 1 0502- ●
116 04.685 PIPE; BRK,PIPE TO TANK 8-97330-453-2 01 1 0502- ●
116 04.685 PIPE; BRK,PIPE TO TANK
HYDRO BRAKE BOOSTER<7QQ> 		8-97201-970-0 01 1 0211-0501 ●
116 04.685 PIPE; BRK,PIPE TO TANK 8-97201-970-0 01 1 0211-0501 ●
116 04.685 PIPE; BRK,PIPE TO TANK
HYDRO BRAKE BOOSTER<7QQ> 		8-97330-452-3 01 1 0502- ●
116 04.685 PIPE; BRK,PIPE TO TANK 8-97330-452-3 01 1 0502- ● ●
117 04.685 PIPE; BRK,RETURN
HYDRO BRAKE BOOSTER<7QQ> 		8-97180-991-2 01 1 0211-0501 ●
117 04.685 PIPE; BRK,RETURN 8-97180-991-2 01 1 0211-0501 ●
117 04.685 PIPE; BRK,RETURN
HYDRO BRAKE BOOSTER<7QQ> 		8-97386-605-0 01 1 0502- ●
117 04.685 PIPE; BRK,RETURN 8-97386-605-0 01 1 0502- ● ● ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-217-2 01 1 0211-0501 ●
118 04.680 HOSE; PIPE TO PIPE 8-97181-217-2 01 1 0211-0501 ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-217-2 01 1 0502- ●
118 04.680 HOSE; PIPE TO PIPE 8-97181-217-2 01 1 0502- ● ● ●

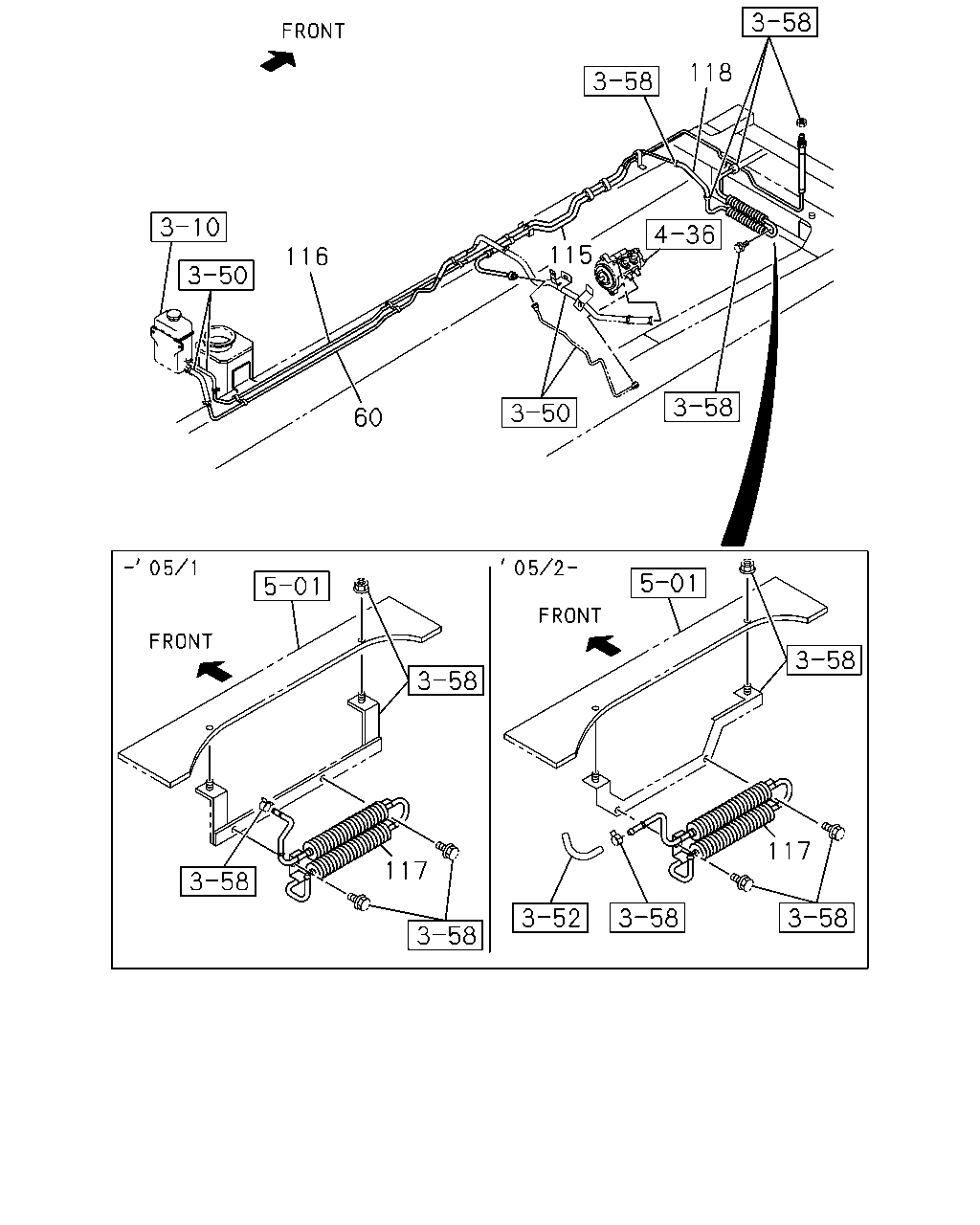

çizim 100168
118 115 116 60 117 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E
60 04.685 PIPE ASM; BRK 8-97255-809-0 01 1 0502- ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-967-2 01 1 0211-0501 ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE 8-97201-967-2 01 1 0211-0501 ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97385-597-0 01 1 0502- ● ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 		8-97258-064-3 01 1 0211-0501 ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97385-598-0 01 1 0502- ● ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE 8-97385-598-0 01 1 0502- ●
116 04.685 PIPE; BRK,PIPE TO TANK 8-97330-453-2 01 1 0502- ●
116 04.685 PIPE; BRK,PIPE TO TANK
HYDRO BRAKE BOOSTER<7QQ> 		8-97201-970-0 01 1 0211-0501 ●
116 04.685 PIPE; BRK,PIPE TO TANK 8-97201-970-0 01 1 0211-0501 ●
116 04.685 PIPE; BRK,PIPE TO TANK
HYDRO BRAKE BOOSTER<7QQ> 		8-97330-452-3 01 1 0502- ●
116 04.685 PIPE; BRK,PIPE TO TANK 8-97330-452-3 01 1 0502- ● ●
117 04.685 PIPE; BRK,RETURN
HYDRO BRAKE BOOSTER<7QQ> 		8-97180-991-2 01 1 0211-0501 ●
117 04.685 PIPE; BRK,RETURN 8-97180-991-2 01 1 0211-0501 ●
117 04.685 PIPE; BRK,RETURN
HYDRO BRAKE BOOSTER<7QQ> 		8-97386-605-0 01 1 0502- ●
117 04.685 PIPE; BRK,RETURN 8-97386-605-0 01 1 0502- ● ● ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-217-2 01 1 0211-0501 ●
118 04.680 HOSE; PIPE TO PIPE 8-97181-217-2 01 1 0211-0501 ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-217-2 01 1 0502- ●
118 04.680 HOSE; PIPE TO PIPE 8-97181-217-2 01 1 0502- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
