3-52 — BRAKE PIPING; OIL,FRONT (#34327) — 231 parça
çizim 34698
1 96 9 9 3 1 2 5 9 26 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.00 -127(CPH),FRT&RR 225/70R19.5 19.5X6.00-127(CRR) G.V.W. 8.0-8.5TON(RPZ) VEHICLE CATEGORY NQR<7NQ> HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-482-0 02 1 0502-0502 ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97365-482-0 02 1 0502-0502 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.00 -127(CPH),FRT&RR 225/70R19.5 19.5X6.00-127(CRR) G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-482-0 02 1 0502-0508 ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97365-482-0 02 1 0502-0508 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR), F&R TIRE 205/75R17.5(MICHELIN)17.5X6.0 0-127(CSM) G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-482-0 02 1 0509-0701 ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97365-482-0 02 1 0509-0701 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR), F&R TIRE 205/75R17.5(MICHELIN)17.5X6.0 0-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-482-0 02 1 0702- ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97365-482-0 02 1 0702- ●
1 04.680 HOSE; FLEX,FRT BRK
(A) 		8-97039-543-1 02 1 0211-0501 ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97365-481-0 02 1 0502-0502 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG) G.V.W. 4.0-4.5TON(RPR) EXC. VEHICLE CATEGORY NQR<7NQ>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0502-0502 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.00 -127(CPH),FRT&RR 225/70R19.5 19.5X6.00-127(CRR) G.V.W. 6.5-7.0TON(RPW) EXC. VEHICLE CATEGORY NQR<7NQ>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0502-0502 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.00 -127(CPH),FRT&RR 225/70R19.5 19.5X6.00-127(CRR) G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0502-0502 ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97365-481-0 02 1 0502-0508 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.00 -127(CPH),FRT&RR 225/70R19.5 19.5X6.00-127(CRR) G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0502-0508 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.00 -127(CPH),FRT&RR 225/70R19.5 19.5X6.00-127(CRR) G.V.W. 6.5-7.0TON(RPW) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0502-0508 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG) G.V.W. 4.0-4.5TON(RPR) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0502-0508 ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97365-481-0 02 1 0509-0701 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5- WHL/NUT(CSK) G.V.W. 4.0-4.5TON(RPR) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0509-0701 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR), F&R TIRE 205/75R17.5(MICHELIN)17.5X6.0 0-127(CSM) G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0509-0701 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR), F&R TIRE 205/75R17.5(MICHELIN)17.5X6.0 0-127(CSM) G.V.W. 6.5-7.0TON(RPW) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0509-0701 ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97365-481-0 02 1 0702-0910 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5- WHL/NUT(CSK) G.V.W. 4.0-4.5TON(RPR) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0702-0910 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR), F&R TIRE 205/75R17.5(MICHELIN)17.5X6.0 0-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0702-0910 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR), F&R TIRE 205/75R17.5(MICHELIN)17.5X6.0 0-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) G.V.W. 6.5-7.0TON(RPW) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0702-0910 ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97365-481-0 02 1 0911- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
F&R195/85R16(MICHELIN)16X5.5J-116.5 5- WHL/NUT(CVS) G.V.W. 4.0-4.5TON(RPR) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0911- ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR), F&R TIRE 205/75R17.5(MICHELIN)17.5X6.0 0-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) G.V.W. 6.5-7.0TON(RPW) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0911- ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR), F&R TIRE 205/75R17.5(MICHELIN)17.5X6.0 0-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0911- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-97365-778-3 01 1 0502- ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97365-778-3 01 1 0502- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-97365-776-3 01 1 0502- ● ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97365-776-3 01 1 0502- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
VEHICLE CATEGORY NQR<7NQ> 		8-97365-777-3 01 1 0502- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-97365-777-3 01 1 0502- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
VEHICLE CATEGORY NQR<7NQ> 		8-97365-779-3 01 1 0502- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-97365-779-3 01 1 0502- ●
3 04.686 BOLT; BRKT,FLEX HOSE,FRT BRK
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0502-0512 ● ● ● ● ●
3 04.686 BOLT; BRKT,FLEX HOSE,FRT BRK
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-97381-454-0 02 1 0502-0610 ● ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 0611- ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0502- ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0501 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0501 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0502-0610 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-97376-068-0 01 1 0502- ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-97376-070-0 01 1 0502-0502 ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-995-2 01 1 0502- ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-994-2 01 1 0502-0505 ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-98010-994-2 01 1 0502-0505 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98022-145-0 01 1 0506- ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-98022-145-0 01 1 0506- ●
96 04.686 PIPE ASM; 6 WAY 8-97096-950-0 01 1 0211-0501 ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY 8-97096-954-1 01 1 0211-0501 ● ● ● ● ●

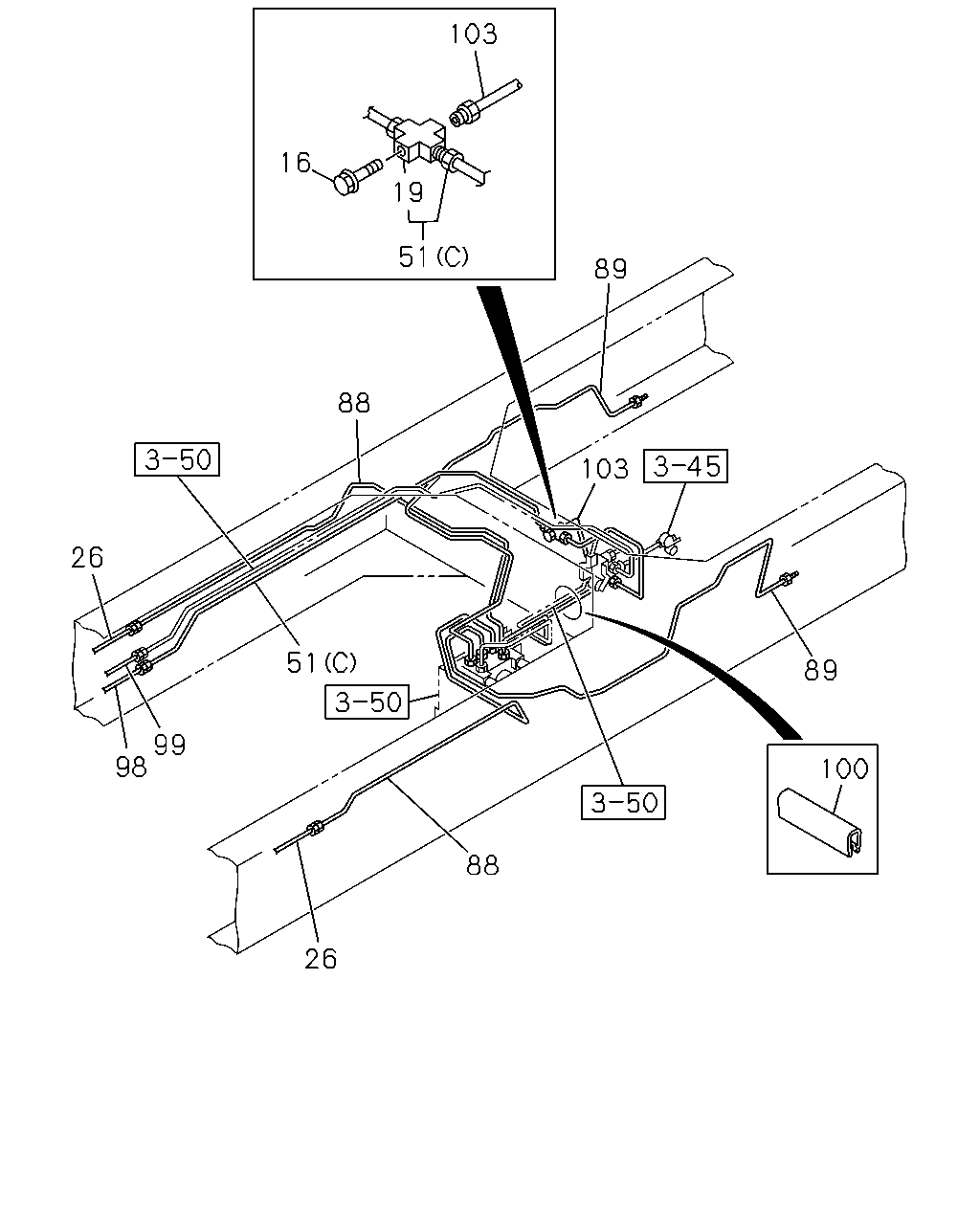

çizim 34823
103 16 19 1 89 88 103 26 51 89 99 98 100 88 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.00 -127(CPH),FRT&RR 225/70R19.5 19.5X6.00-127(CRR) G.V.W. 8.0-8.5TON(RPZ) VEHICLE CATEGORY NQR<7NQ> HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-482-0 02 1 0502-0502 ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97365-482-0 02 1 0502-0502 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.00 -127(CPH),FRT&RR 225/70R19.5 19.5X6.00-127(CRR) G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-482-0 02 1 0502-0508 ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97365-482-0 02 1 0502-0508 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR), F&R TIRE 205/75R17.5(MICHELIN)17.5X6.0 0-127(CSM) G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-482-0 02 1 0509-0701 ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97365-482-0 02 1 0509-0701 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR), F&R TIRE 205/75R17.5(MICHELIN)17.5X6.0 0-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-482-0 02 1 0702- ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97365-482-0 02 1 0702- ●
1 04.680 HOSE; FLEX,FRT BRK
(A) 		8-97039-543-1 02 1 0211-0501 ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97365-481-0 02 1 0502-0502 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG) G.V.W. 4.0-4.5TON(RPR) EXC. VEHICLE CATEGORY NQR<7NQ>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0502-0502 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.00 -127(CPH),FRT&RR 225/70R19.5 19.5X6.00-127(CRR) G.V.W. 6.5-7.0TON(RPW) EXC. VEHICLE CATEGORY NQR<7NQ>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0502-0502 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.00 -127(CPH),FRT&RR 225/70R19.5 19.5X6.00-127(CRR) G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0502-0502 ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97365-481-0 02 1 0502-0508 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.00 -127(CPH),FRT&RR 225/70R19.5 19.5X6.00-127(CRR) G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0502-0508 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.00 -127(CPH),FRT&RR 225/70R19.5 19.5X6.00-127(CRR) G.V.W. 6.5-7.0TON(RPW) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0502-0508 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG) G.V.W. 4.0-4.5TON(RPR) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0502-0508 ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97365-481-0 02 1 0509-0701 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5- WHL/NUT(CSK) G.V.W. 4.0-4.5TON(RPR) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0509-0701 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR), F&R TIRE 205/75R17.5(MICHELIN)17.5X6.0 0-127(CSM) G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0509-0701 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR), F&R TIRE 205/75R17.5(MICHELIN)17.5X6.0 0-127(CSM) G.V.W. 6.5-7.0TON(RPW) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0509-0701 ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97365-481-0 02 1 0702-0910 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5- WHL/NUT(CSK) G.V.W. 4.0-4.5TON(RPR) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0702-0910 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR), F&R TIRE 205/75R17.5(MICHELIN)17.5X6.0 0-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0702-0910 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR), F&R TIRE 205/75R17.5(MICHELIN)17.5X6.0 0-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) G.V.W. 6.5-7.0TON(RPW) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0702-0910 ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97365-481-0 02 1 0911- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
F&R195/85R16(MICHELIN)16X5.5J-116.5 5- WHL/NUT(CVS) G.V.W. 4.0-4.5TON(RPR) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0911- ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR), F&R TIRE 205/75R17.5(MICHELIN)17.5X6.0 0-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) G.V.W. 6.5-7.0TON(RPW) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0911- ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR), F&R TIRE 205/75R17.5(MICHELIN)17.5X6.0 0-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97365-481-0 02 1 0911- ●
16 04.686 BOLT; 3 WAY CONNECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0502-0512 ● ● ● ● ●
16 04.686 BOLT; 3 WAY CONNECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ● ● ● ●
19 04.686 UNION; OIL PIPE
08.963 M10 3WAY 		9-09227-325-0 01 1 0502-0502 ● ● ● ● ●
19 04.686 UNION; OIL PIPE
08.963 M10 3WAY 		9-09227-325-0 01 1 0502- ● ● ●
19 04.686 UNION; OIL PIPE 8-97314-636-0 01 1 0512- ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-97376-068-0 01 1 0502- ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-97376-070-0 01 1 0502-0502 ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-995-2 01 1 0502- ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-994-2 01 1 0502-0505 ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-98010-994-2 01 1 0502-0505 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98022-145-0 01 1 0506- ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-98022-145-0 01 1 0506- ●
51 04.685 PIPE; BRK
(C) 		8-97185-059-1 01 1 0502- ●
51 04.685 PIPE; BRK
(C) 		8-97206-804-1 01 1 0502- ●
51 04.685 PIPE; BRK
(C) 		8-97247-893-0 01 1 0502- ●
51 04.685 PIPE; BRK
(C) 		8-97206-803-1 01 1 0502-0502 ● ●
51 04.685 PIPE; BRK
(C) 		8-98005-305-0 01 1 0502-0612 ● ●
51 04.685 PIPE; BRK
(C) 		8-98042-892-1 01 1 0701- ● ●
51 04.685 PIPE; BRK
(A) FRONT 		8-97209-514-0 01 1 0211- ● ● ● ● ●
51 04.685 PIPE; BRK
(B) REAR 		8-97209-515-0 01 1 0211- ● ● ● ● ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97247-876-0 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97247-885-0 01 1 0502- ● ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97247-886-0 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97247-887-0 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97376-063-0 01 1 0502-0502 ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-98010-948-0 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97376-064-0 01 1 0502-0502 ● ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-98010-949-0 01 1 0502- ● ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4HK1-TCN ENG(RDQ) 		8-97376-065-0 01 1 0502-0502 ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4HK1-TCN ENG(RDQ) 		8-98010-950-0 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97376-066-0 01 1 0502-0502 ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-98010-951-0 01 1 0502-0611 ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4HK1-TCS ENG(RJS) 		8-98010-951-0 01 1 0612- ●
89 04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 8-97247-878-2 01 1 0502- ● ● ● ● ●
89 04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 8-97375-586-0 01 1 0502-0502 ● ● ● ● ●
89 04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 8-97375-586-0 01 1 0502- ● ● ●
89 04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 8-98005-306-1 01 1 0502- ● ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCN ENG(RDQ) EXC. H.S.A SYSTEM<6EP> 		8-97376-060-0 01 1 0502- ● ● ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. H.S.A SYSTEM<6EP> 		8-97376-060-0 01 1 0502- ●
98 04.686 PIPE ASM; 4/6 WAY 8-97142-710-0 01 1 0211-0501 ● ● ● ● ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCN ENG(RDQ) H.S.A SYSTEM<6EP> 		8-97377-966-0 01 1 0502-0502 ● ● ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> 		8-97377-966-0 01 1 0502-0502 ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCS ENG(RJS) 		8-97377-966-0 01 1 0502-0502 ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCN ENG(RDQ) H.S.A SYSTEM<6EP> 		8-98011-411-0 01 1 0502- ● ● ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> 		8-98011-411-0 01 1 0502- ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCS ENG(RJS) 		8-98011-411-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. H.S.A SYSTEM<6EP> 		8-97376-062-0 01 1 0502- ● ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-97142-709-0 01 1 0211-0501 ● ● ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
H.S.A SYSTEM<6EP> 		8-97377-969-0 01 1 0502-0502 ● ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-97377-969-0 01 1 0502-0502 ●
99 04.686 PIPE ASM; 4/5/6 WAY
H.S.A SYSTEM<6EP> 		8-98011-412-0 01 1 0502- ● ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-98011-412-0 01 1 0502- ●
100 04.931 PROTECTOR; EDGE
03.008 L=80 		5-22439-006-0 01 1 0502-0502 ● ● ● ● ●
100 04.931 PROTECTOR; EDGE
03.008 L=80 		5-22439-006-0 01 1 0502- ● ● ●
103 04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 8-97247-874-0 01 1 0502-0502 ● ● ● ● ●
103 04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 8-97247-874-0 01 1 0502- ● ● ●
103 04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 8-98005-303-0 01 1 0502- ● ●

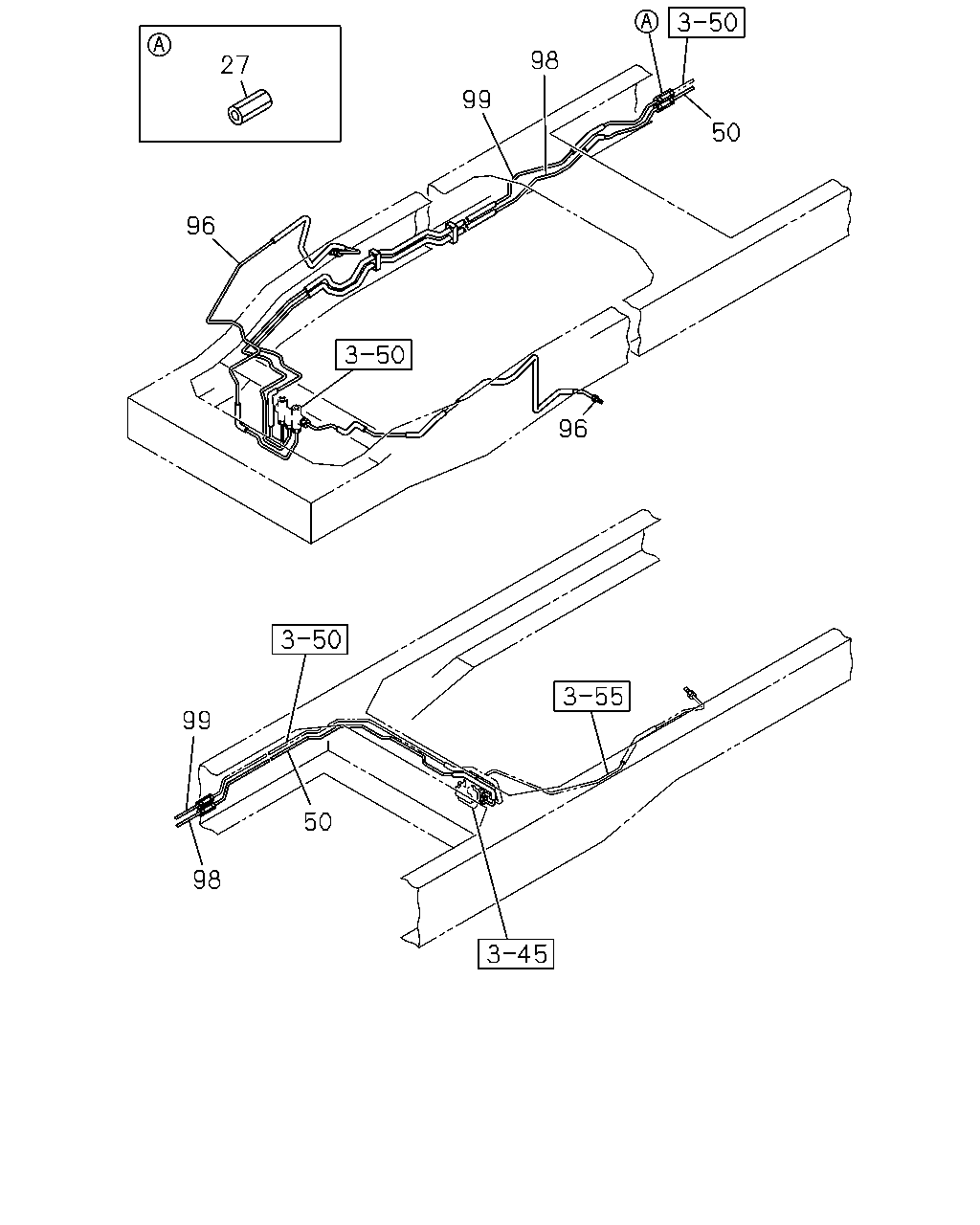

çizim 34874
98 27 99 50 96 96 99 50 98
BalonParca AdiParca NoAdetTipApplied Date A B C D E
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 02 1 0211-0501 ● ● ● ● ●
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 02 1 0502-0607 ● ● ● ● ●
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 02 1 0502-0607 ● ● ● ● ●
27 04.686 UNION; BRK PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0608- ● ● ● ● ●
27 04.686 UNION; BRK PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0608- ● ● ● ● ●
50 04.685 PIPE; BRK,UNION TO VLV
SERVICED BY L=1600 		5-47411-780-0 01 1 0211-0501 ●
50 04.685 PIPE; BRK,UNION TO VLV
04.686 SERVICED BY L=2300 		5-47411-785-0 01 1 0211-0501 ● ●
50 04.685 PIPE; BRK,UNION TO VLV
05.476 SERVICED BY L=2720 		5-47411-788-0 01 1 0211-0501 ●
50 04.685 PIPE; BRK,UNION TO VLV
04.686 SERVICED BY L=3035 		5-47411-789-0 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY 8-97096-950-0 01 1 0211-0501 ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY 8-97096-954-1 01 1 0211-0501 ● ● ● ● ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCN ENG(RDQ) EXC. H.S.A SYSTEM<6EP> 		8-97376-060-0 01 1 0502- ● ● ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. H.S.A SYSTEM<6EP> 		8-97376-060-0 01 1 0502- ●
98 04.686 PIPE ASM; 4/6 WAY 8-97142-710-0 01 1 0211-0501 ● ● ● ● ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCN ENG(RDQ) H.S.A SYSTEM<6EP> 		8-97377-966-0 01 1 0502-0502 ● ● ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> 		8-97377-966-0 01 1 0502-0502 ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCS ENG(RJS) 		8-97377-966-0 01 1 0502-0502 ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCN ENG(RDQ) H.S.A SYSTEM<6EP> 		8-98011-411-0 01 1 0502- ● ● ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> 		8-98011-411-0 01 1 0502- ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCS ENG(RJS) 		8-98011-411-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. H.S.A SYSTEM<6EP> 		8-97376-062-0 01 1 0502- ● ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-97142-709-0 01 1 0211-0501 ● ● ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
H.S.A SYSTEM<6EP> 		8-97377-969-0 01 1 0502-0502 ● ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-97377-969-0 01 1 0502-0502 ●
99 04.686 PIPE ASM; 4/5/6 WAY
H.S.A SYSTEM<6EP> 		8-98011-412-0 01 1 0502- ● ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-98011-412-0 01 1 0502- ●

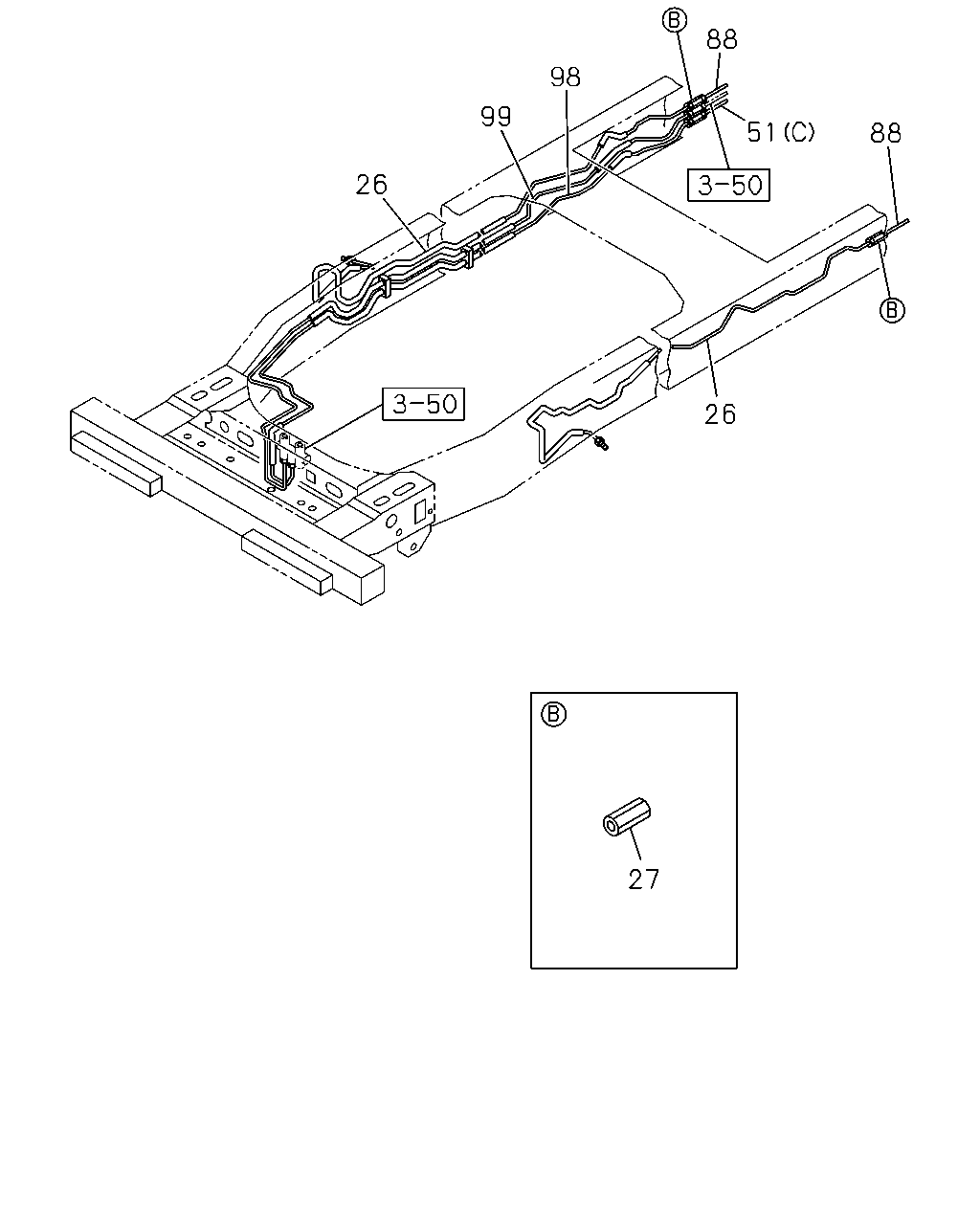

çizim 100165
88 98 99 51 88 26 26 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-97376-068-0 01 1 0502- ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-97376-070-0 01 1 0502-0502 ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-995-2 01 1 0502- ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-994-2 01 1 0502-0505 ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-98010-994-2 01 1 0502-0505 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98022-145-0 01 1 0506- ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-98022-145-0 01 1 0506- ●
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 02 1 0211-0501 ● ● ● ● ●
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 02 1 0502-0607 ● ● ● ● ●
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 02 1 0502-0607 ● ● ● ● ●
27 04.686 UNION; BRK PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0608- ● ● ● ● ●
27 04.686 UNION; BRK PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0608- ● ● ● ● ●
51 04.685 PIPE; BRK
(C) 		8-97185-059-1 01 1 0502- ●
51 04.685 PIPE; BRK
(C) 		8-97206-804-1 01 1 0502- ●
51 04.685 PIPE; BRK
(C) 		8-97247-893-0 01 1 0502- ●
51 04.685 PIPE; BRK
(C) 		8-97206-803-1 01 1 0502-0502 ● ●
51 04.685 PIPE; BRK
(C) 		8-98005-305-0 01 1 0502-0612 ● ●
51 04.685 PIPE; BRK
(C) 		8-98042-892-1 01 1 0701- ● ●
51 04.685 PIPE; BRK
(A) FRONT 		8-97209-514-0 01 1 0211- ● ● ● ● ●
51 04.685 PIPE; BRK
(B) REAR 		8-97209-515-0 01 1 0211- ● ● ● ● ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97247-876-0 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97247-885-0 01 1 0502- ● ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97247-886-0 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97247-887-0 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97376-063-0 01 1 0502-0502 ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-98010-948-0 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97376-064-0 01 1 0502-0502 ● ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-98010-949-0 01 1 0502- ● ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4HK1-TCN ENG(RDQ) 		8-97376-065-0 01 1 0502-0502 ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4HK1-TCN ENG(RDQ) 		8-98010-950-0 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97376-066-0 01 1 0502-0502 ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-98010-951-0 01 1 0502-0611 ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4HK1-TCS ENG(RJS) 		8-98010-951-0 01 1 0612- ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCN ENG(RDQ) EXC. H.S.A SYSTEM<6EP> 		8-97376-060-0 01 1 0502- ● ● ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. H.S.A SYSTEM<6EP> 		8-97376-060-0 01 1 0502- ●
98 04.686 PIPE ASM; 4/6 WAY 8-97142-710-0 01 1 0211-0501 ● ● ● ● ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCN ENG(RDQ) H.S.A SYSTEM<6EP> 		8-97377-966-0 01 1 0502-0502 ● ● ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> 		8-97377-966-0 01 1 0502-0502 ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCS ENG(RJS) 		8-97377-966-0 01 1 0502-0502 ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCN ENG(RDQ) H.S.A SYSTEM<6EP> 		8-98011-411-0 01 1 0502- ● ● ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> 		8-98011-411-0 01 1 0502- ●
98 04.686 PIPE ASM; 4/6 WAY
4HK1-TCS ENG(RJS) 		8-98011-411-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. H.S.A SYSTEM<6EP> 		8-97376-062-0 01 1 0502- ● ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-97142-709-0 01 1 0211-0501 ● ● ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
H.S.A SYSTEM<6EP> 		8-97377-969-0 01 1 0502-0502 ● ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-97377-969-0 01 1 0502-0502 ●
99 04.686 PIPE ASM; 4/5/6 WAY
H.S.A SYSTEM<6EP> 		8-98011-412-0 01 1 0502- ● ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-98011-412-0 01 1 0502- ●

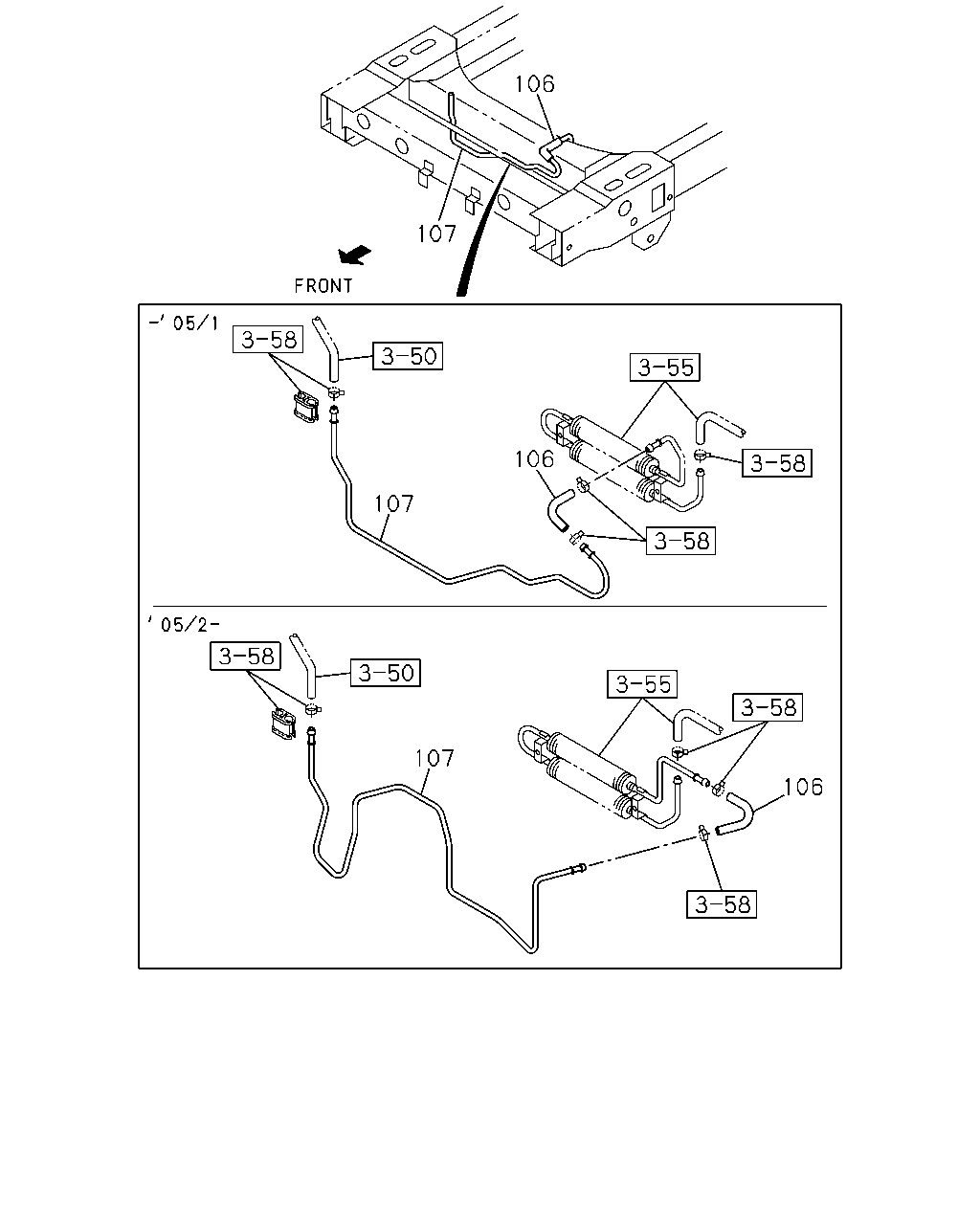

çizim 100166
106 107 106 107 107 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E
106 04.686 HOSE; FIN PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-219-2 01 1 0211-0501 ●
106 04.686 HOSE; FIN PIPE TO PIPE 8-97181-219-2 01 1 0211-0501 ●
106 04.686 HOSE; FIN PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97386-589-0 01 1 0502- ●
106 04.686 HOSE; FIN PIPE TO PIPE 8-97386-589-0 01 1 0502- ● ● ●
107 04.686 PIPE; RETURN TO FIN PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97180-989-2 01 1 0211-0501 ●
107 04.686 PIPE; RETURN TO FIN PIPE 8-97180-989-2 01 1 0211-0501 ●
107 04.686 PIPE; RETURN TO FIN PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97385-601-0 01 1 0502- ●
107 04.686 PIPE; RETURN TO FIN PIPE 8-97385-601-0 01 1 0502- ● ● ●

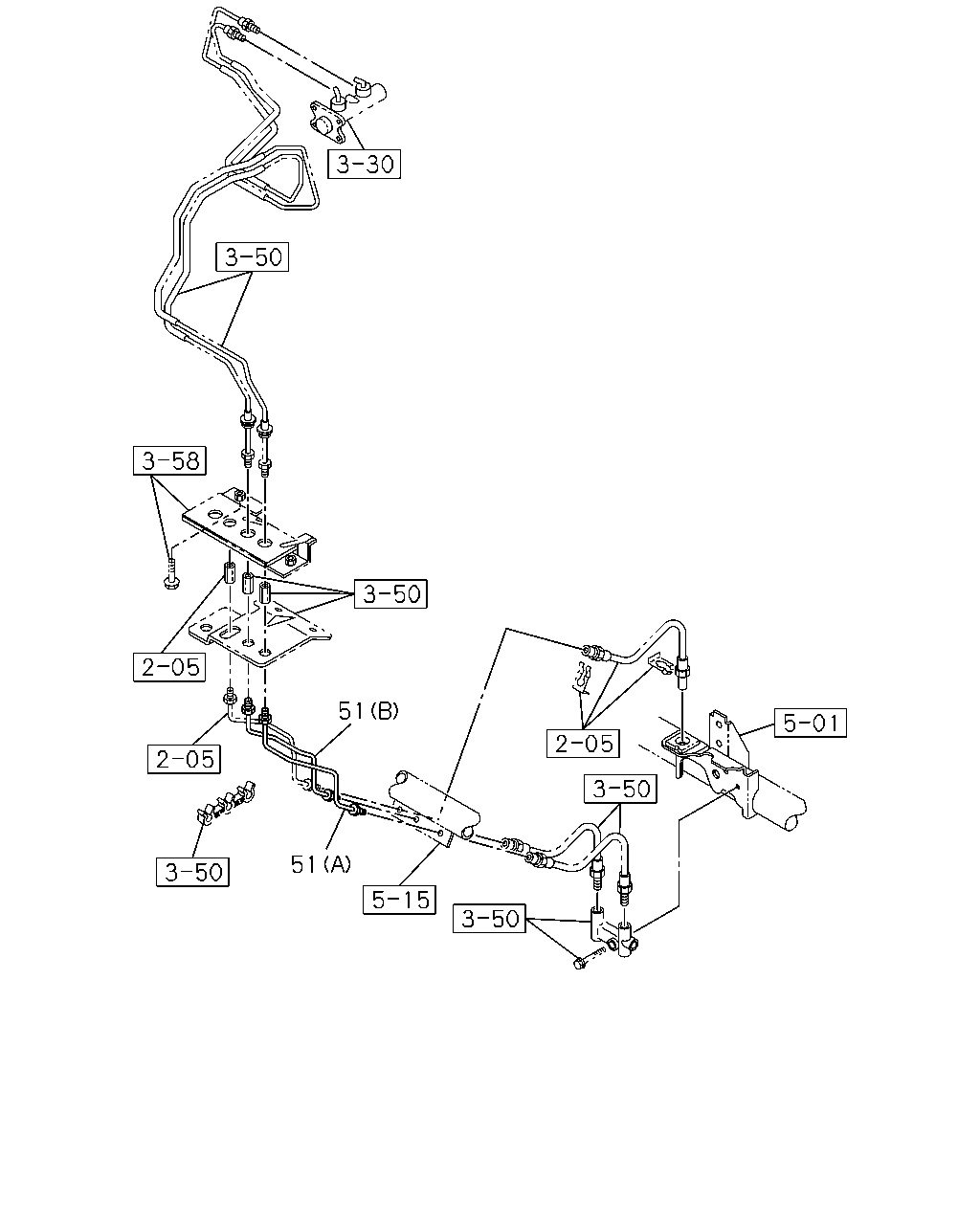

çizim 100167
51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E
51 04.685 PIPE; BRK
(C) 		8-97185-059-1 01 1 0502- ●
51 04.685 PIPE; BRK
(C) 		8-97206-804-1 01 1 0502- ●
51 04.685 PIPE; BRK
(C) 		8-97247-893-0 01 1 0502- ●
51 04.685 PIPE; BRK
(C) 		8-97206-803-1 01 1 0502-0502 ● ●
51 04.685 PIPE; BRK
(C) 		8-98005-305-0 01 1 0502-0612 ● ●
51 04.685 PIPE; BRK
(C) 		8-98042-892-1 01 1 0701- ● ●
51 04.685 PIPE; BRK
(A) FRONT 		8-97209-514-0 01 1 0211- ● ● ● ● ●
51 04.685 PIPE; BRK
(B) REAR 		8-97209-515-0 01 1 0211- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
