3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#34326) — 364 parça

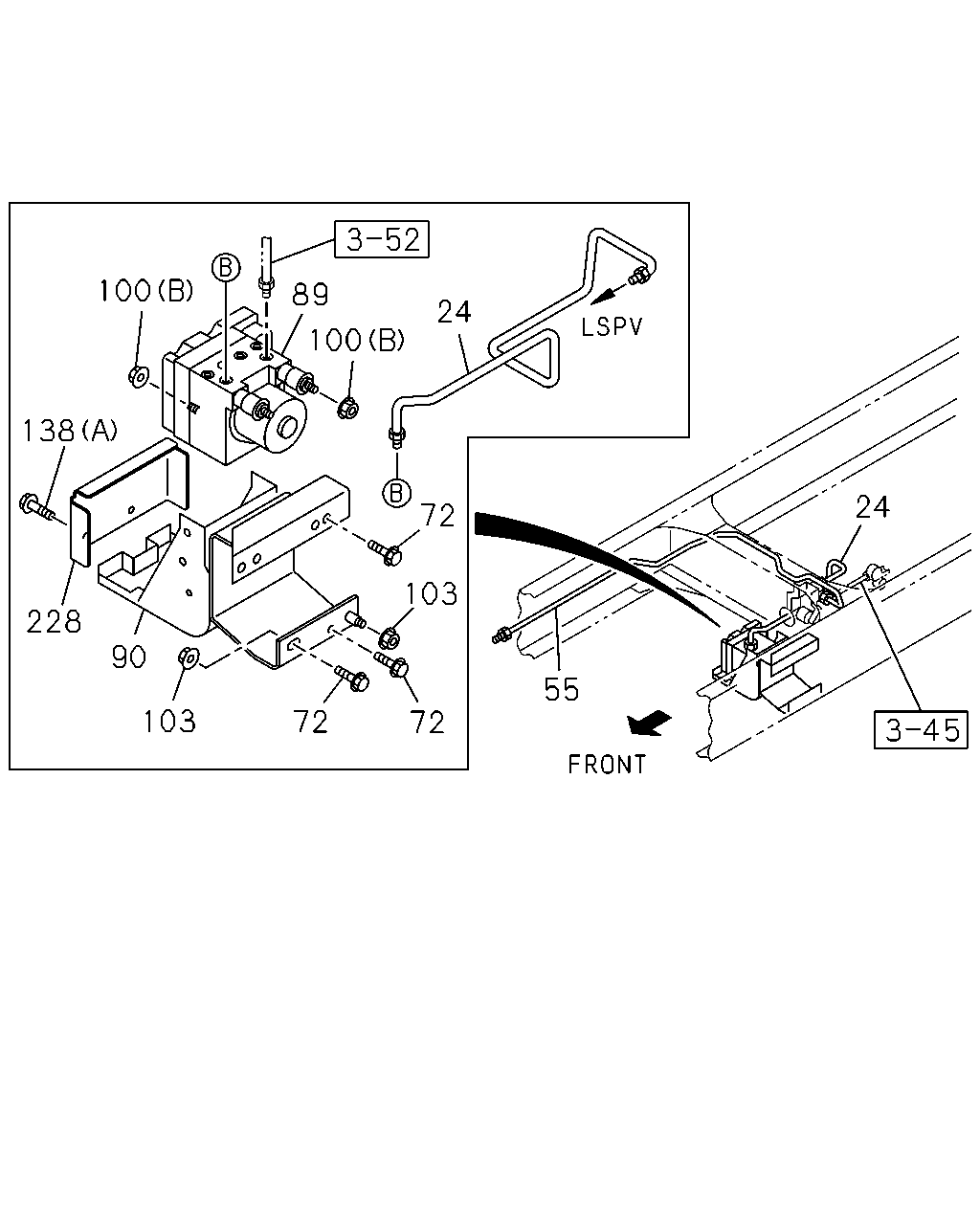

100 89 24 100 138 24 72 103 228 90 55 103 72 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
24	04.685 PIPE; BRK,PROPORTIONING VLV	8-97247-875-1	01	1	0502-0502	●	●	●	●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV	8-97247-875-1	01	1	0502-	●		●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV	8-98005-304-0	01	1	0502-		●			●
55	04.686 PIPE; BRK,VLV TO UNION 04.685	5-47411-777-0	01	1	0211-	●
55	04.686 PIPE; BRK,VLV TO UNION	5-47411-784-0	01	1	0211-0501		●			●
55	04.686 PIPE; BRK,VLV TO UNION	8-98005-302-0	01	1	0502-0612		●			●
55	04.686 PIPE; BRK,VLV TO UNION	8-98042-891-1	01	1	0701-		●			●
55	04.686 PIPE; BRK,VLV TO UNION 04.685	5-47411-786-0	01	1	0211-			●
55	04.686 PIPE; BRK,VLV TO UNION SERVICED BY L=3035	5-47411-789-0	01	1	0211-0501				●
55	04.686 PIPE; BRK,VLV TO UNION	8-97247-894-0	01	1	0502-				●
72	04.686 BOLT; BRKT TO BODY 03.405 M10X25 FLANGE	0-28681-025-0	03	1	0502-0512	●	●	●	●	●
72	04.686 BOLT; BRKT TO BODY 00.029 M10X25 FLANGE	0-28651-025-0	03	1	0601-	●	●	●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-97366-481-0	01	1	0502-0502	●		●		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. VEHICLE CATEGORY NQR<7NQ>	8-97366-481-0	01	1	0502-0502		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98002-691-1	01	1	0502-0504	●		●		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. VEHICLE CATEGORY NQR<7NQ>	8-98002-691-1	01	1	0502-0504		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98002-691-3	01	1	0505-1006	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98002-691-3	01	1	0505-1006		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98157-971-0	01	1	1007-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98157-971-0	01	1	1007-		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK VEHICLE CATEGORY NQR<7NQ>	8-98000-571-3	01	1	0502-1006		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98000-571-3	01	1	0502-1006				●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK VEHICLE CATEGORY NQR<7NQ>	8-98157-974-0	01	1	1007-		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98157-974-0	01	1	1007-				●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK HYDRO BRAKE BOOSTER<7QQ> EXC. VEHICLE CATEGORY NQR<7NQ>	8-97376-873-3	01	1	0505-1006		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-97376-873-3	01	1	0505-1006			●		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK HYDRO BRAKE BOOSTER<7QQ> EXC. VEHICLE CATEGORY NQR<7NQ>	8-98157-973-0	01	1	1007-		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98157-973-0	01	1	1007-			●		●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97245-500-4	01	1	0502-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97245-497-4	01	1	0502-		●	●	●	●
100	04.730 NUT; HYDRAULIC UNIT 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0502-0602	●	●	●	●	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (B) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0211-0501		●
100	04.730 NUT; HYDRAULIC UNIT 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0211-0501				●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0502-		●
100	04.730 NUT; HYDRAULIC UNIT 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0502-			●	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0602	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●	●	●	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602		●	●	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-		●	●	●	●
138	04.720 BOLT; COVER 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0512	●	●	●	●	●
138	04.720 BOLT; COVER 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●	●	●	●
138	04.720 BOLT; COVER 04.640 (B) M10X12 FLANGE	0-28081-012-0	02	1	0502-0512	●	●	●	●	●
138	04.720 BOLT; COVER 06.225 (B) M10X12 FLANGE	0-28051-012-0	02	1	0601-	●	●	●	●	●
228	04.730 COVER; ABS	8-97233-083-0	01	1	0502-0611	●	●	●	●	●
228	04.730 COVER; ABS	8-97359-760-0	01	1	0612-	●	●	●	●	●

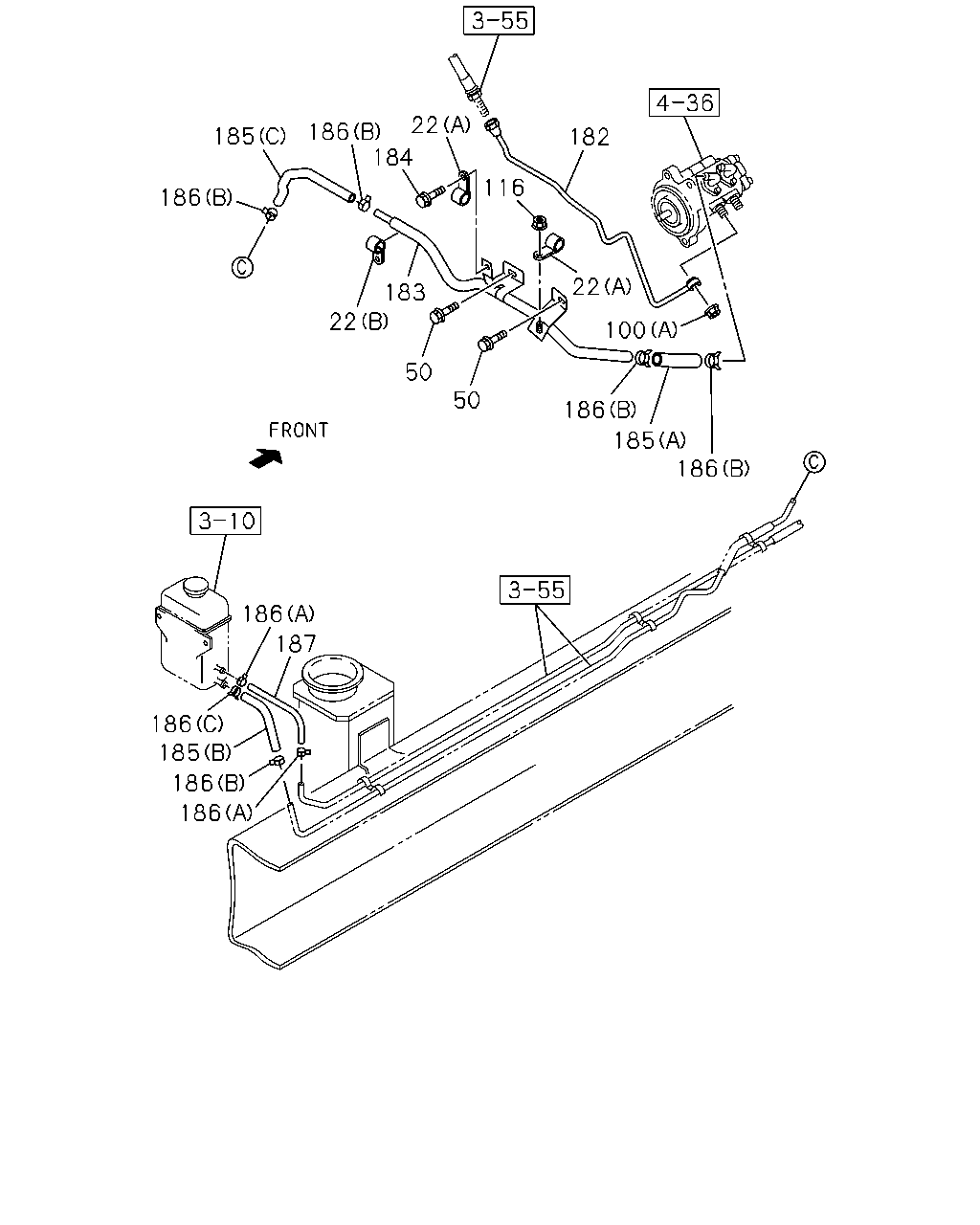

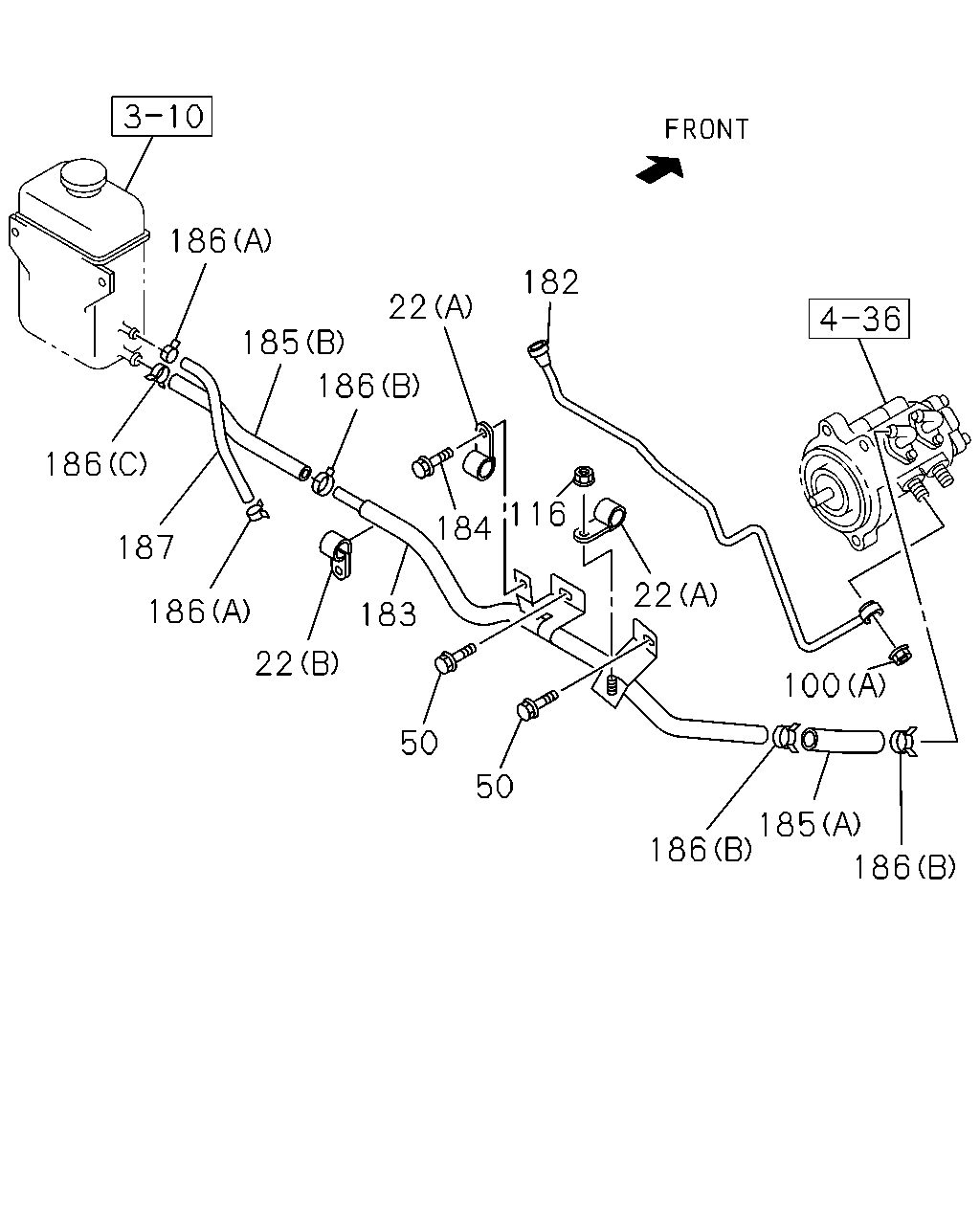

186 182 22 185 186 186 116 184 187 22 186 183 22 100 50 50 185 186 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0211-0212		●
22	04.685 CLIP 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0211-0212				●
22	04.685 CLIP 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0301-0501		●
22	04.685 CLIP 4HE1 ENG(RLY) 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0301-0501				●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0502-0606		●
22	04.685 CLIP 4HK1-TCN ENG(RDQ) 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0502-0606			●		●
22	04.685 CLIP 4HK1-TCS ENG(RJS) 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0502-0606				●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> (A) ID=11 L=16	0-95235-025-0	02	1	0607-		●
22	04.685 CLIP 4HK1-TCN ENG(RDQ) (A) ID=11 L=16	0-95235-025-0	02	1	0607-			●		●
22	04.685 CLIP 4HK1-TCS ENG(RJS) (A) ID=11 L=16	0-95235-025-0	02	1	0607-				●
22	04.685 CLIP 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0211-0501		●
22	04.685 CLIP 4HE1 ENG(RLY) 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0211-0501				●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0502-0606		●
22	04.685 CLIP 4HK1-TCN ENG(RDQ) 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0502-0606			●		●
22	04.685 CLIP 4HK1-TCS ENG(RJS) 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0502-0606				●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20	0-95235-836-0	01	1	0607-		●
22	04.685 CLIP 4HK1-TCN ENG(RDQ) (B) ID=19 L=20	0-95235-836-0	01	1	0607-			●		●
22	04.685 CLIP 4HK1-TCS ENG(RJS) (B) ID=19 L=20	0-95235-836-0	01	1	0607-				●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0501		●
50	04.710 BOLT; PIPE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0501				●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512		●
50	04.710 BOLT; PIPE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512			●	●	●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
50	04.710 BOLT; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-			●	●	●
100	04.730 NUT; HYDRAULIC UNIT 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0502-0602	●	●	●	●	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (B) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0211-0501		●
100	04.730 NUT; HYDRAULIC UNIT 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0211-0501				●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0502-		●
100	04.730 NUT; HYDRAULIC UNIT 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0502-			●	●	●
116	04.686 NUT FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●
116	04.686 NUT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501				●
116	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●	●		●
116	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●	●		●
116	04.686 NUT A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501		●
116	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●	●		●
116	04.686 NUT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602				●
116	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●	●		●
116	04.686 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-				●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97328-692-0	01	1	0211-0501		●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER 4HE1 ENG(RLY)	8-97328-692-0	01	1	0211-0501				●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97328-692-0	01	1	0502-		●	●		●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER	8-97328-692-0	01	1	0502-				●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ>	8-97311-386-2	01	1	0211-0501		●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97311-386-2	01	1	0502-		●	●		●
183	04.685 PIPE; SUCTION 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97328-693-0	01	1	0211-0501		●
183	04.685 PIPE; SUCTION 4HE1 ENG(RLY)	8-97328-693-0	01	1	0211-0501				●
183	04.685 PIPE; SUCTION HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97328-693-0	01	1	0502-		●	●		●
183	04.685 PIPE; SUCTION	8-97328-693-0	01	1	0502-				●
183	04.685 PIPE; SUCTION 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ>	8-97311-387-1	01	1	0211-0501		●
183	04.685 PIPE; SUCTION HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97311-387-1	01	1	0502-		●	●		●
184	04.681 BOLT; CLIP A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0501		●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0502-0512		●	●		●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-		●	●		●
185	04.681 HOSE; RUBBER,SUCTION (C)	8-97256-681-0	01	1	0502-					●
185	04.681 HOSE; RUBBER,SUCTION 06.670 (B) L=200 SERVICED BY L=300	0-09814-300-0	01	1	0502-					●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0211-0501		●
185	04.681 HOSE; RUBBER,SUCTION 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0211-0501				●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0502-		●
185	04.681 HOSE; RUBBER,SUCTION 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0502-			●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> (A)	8-97330-513-0	01	1	0211-0501		●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	0211-0501				●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> (A)	8-97330-513-0	01	1	0502-		●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	0502-			●	●	●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	01	1	0502-0911					●
186	04.681 CLIP; HOSE (B) ID=21	8-98150-355-0	01	1	0912-					●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	02	1	0211-0501		●
186	04.681 CLIP; HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0211-0501				●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	02	1	0502-0911		●
186	04.681 CLIP; HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0502-0911			●	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-		●
186	04.681 CLIP; HOSE 03.162 (A) ID=16	8-98008-098-0	02	1	0912-			●	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21	8-94242-034-0	03	1	0211-0501		●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	03	1	0211-0501				●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21	8-94242-034-0	03	1	0502-0911		●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	03	1	0502-0911			●	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=21	8-98150-355-0	03	1	0912-		●
186	04.681 CLIP; HOSE (B) ID=21	8-98150-355-0	03	1	0912-			●	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22	8-94382-401-0	01	1	0211-0501		●
186	04.681 CLIP; HOSE 08.846 (C) ID=22	8-94382-401-0	01	1	0211-0501				●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22	8-94382-401-0	01	1	0502-1003		●
186	04.681 CLIP; HOSE 08.846 (C) ID=22	8-94382-401-0	01	1	0502-1003			●	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 03.278 (C) ID=22	8-97359-141-0	01	1	1004-		●
186	04.681 CLIP; HOSE 03.278 (C) ID=22	8-97359-141-0	01	1	1004-			●	●	●
187	04.681 HOSE; RUBBER,OIL TANK 06.671 L=200 SERVICED BY L=3000	0-19809-300-0	01	1	0502-					●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000	0-19809-300-0	01	1	0211-0501		●
187	04.681 HOSE; RUBBER,OIL TANK 06.671 L=270 SERVICED BY L=3000	0-19809-300-0	01	1	0211-0501				●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000	0-19809-300-0	01	1	0502-		●
187	04.681 HOSE; RUBBER,OIL TANK 06.671 L=270 SERVICED BY L=3000	0-19809-300-0	01	1	0502-			●	●

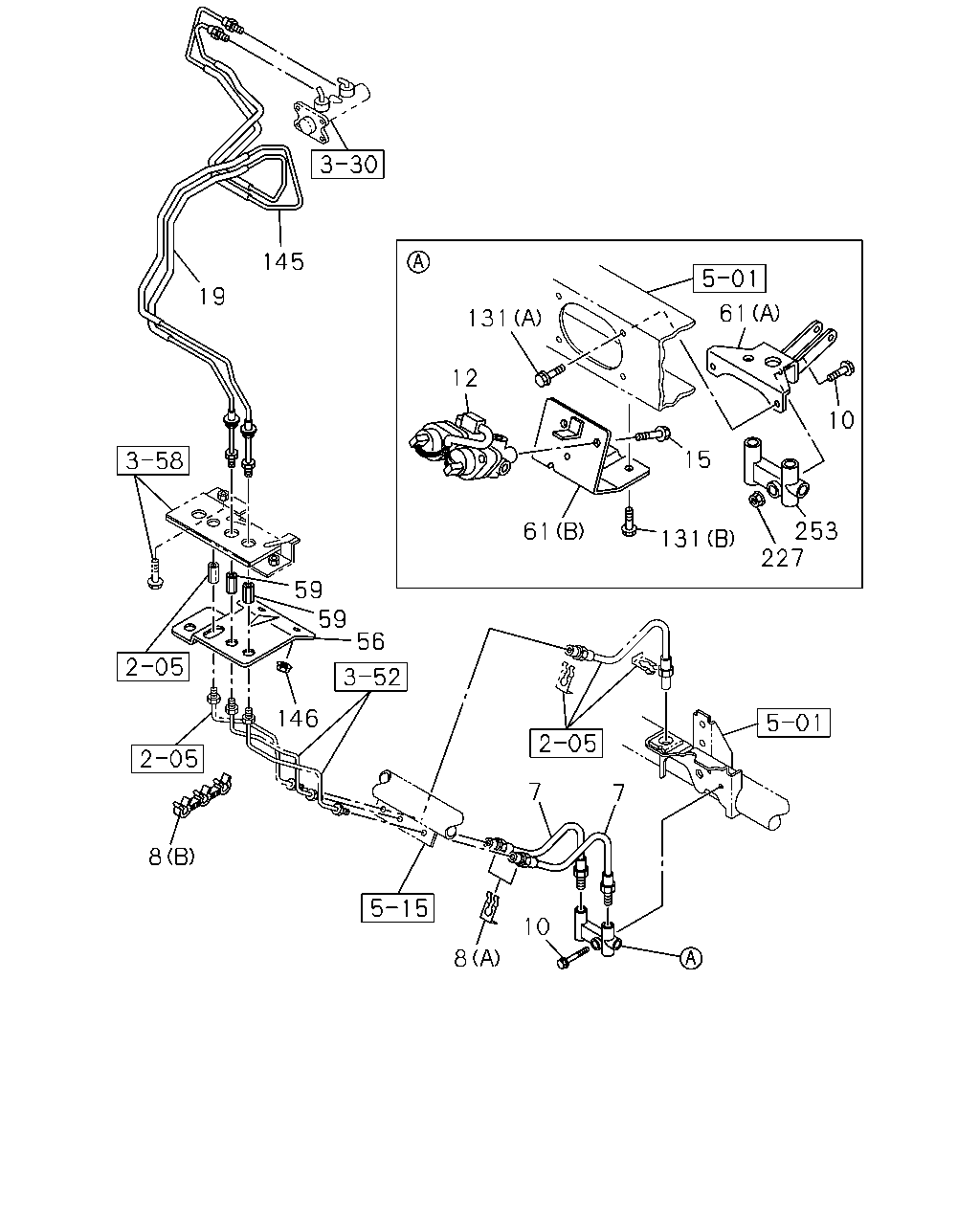

145 19 61 131 12 10 15 253 227 61 131 59 59 56 146 7 7 8 10 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	0211-	●	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	0211-	●	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 00.785 (A)	8-94167-006-0	02	1	0211-0610	●	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	0611-	●	●	●	●	●
10	04.686 BOLT; JOINT 03.163 M6X40 FLANGE	0-28680-640-0	01	1	0211-0501	●	●	●	●	●
10	04.686 BOLT; JOINT EXC. H.S.A SYSTEM<6EP> 03.163 M6X40 FLANGE	0-28680-640-0	01	1	0502-0512	●	●	●		●
10	04.686 BOLT; JOINT EXC. H.S.A SYSTEM<6EP> 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0601-	●	●	●		●
12	04.690 VALVE ASM; HSA H.S.A SYSTEM<6EP>	8-97331-329-2	01	1	0502-1107	●	●	●		●
12	04.690 VALVE ASM; HSA	8-97331-329-2	01	1	0502-1107				●
12	04.690 VALVE ASM; HSA H.S.A SYSTEM<6EP>	8-98173-766-0	01	1	1108-	●	●	●		●
12	04.690 VALVE ASM; HSA	8-98173-766-0	01	1	1108-				●
15	04.730 BOLT; HSA VALVE H.S.A SYSTEM<6EP> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512	●	●	●		●
15	04.730 BOLT; HSA VALVE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512				●
15	04.730 BOLT; HSA VALVE H.S.A SYSTEM<6EP> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●		●
15	04.730 BOLT; HSA VALVE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
19	04.685 PIPE; BRK,M/CYL TO UNION REAR	8-97314-592-0	01	1	0211-0501	●		●		●
19	04.685 PIPE; BRK,M/CYL TO UNION FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ> REAR	8-97314-592-0	01	1	0211-0501		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER<7QQ>, TRANSMISSION CONTROL-SMOOTHER(8GF) REAR	8-97314-592-0	01	1	0502-0502	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER<7QQ>, TRANSMISSION CONTROL-SMOOTHER(8GF) REAR	8-97287-278-0	01	1	0502-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> REAR	8-97149-834-1	01	1	0211-0501		●
19	04.685 PIPE; BRK,M/CYL TO UNION REAR	8-97149-834-1	01	1	0211-0501				●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) REAR	8-97149-834-1	01	1	0502-0502		●	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION REAR	8-97149-834-1	01	1	0502-0502				●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) REAR	8-98011-701-0	01	1	0502-		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) REAR	8-98011-701-0	01	1	0502-			●		●
19	04.685 PIPE; BRK,M/CYL TO UNION REAR	8-98011-701-0	01	1	0502-				●
19	04.685 PIPE; BRK,M/CYL TO UNION A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> REAR	8-97219-127-0	01	1	0211-0501		●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) REAR	8-97219-127-0	01	1	0502-0502		●	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) REAR	8-98011-702-0	01	1	0502-		●
19	04.685 PIPE; BRK,M/CYL TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) REAR	8-98011-702-0	01	1	0502-			●		●
19	04.685 PIPE; BRK,M/CYL TO UNION A/T 4 SPEED-AISIN(RNJ) EXC. HYDRO BRAKE BOOSTER<7QQ> REAR	8-97314-594-0	01	1	0211-0501		●
19	04.685 PIPE; BRK,M/CYL TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER<7QQ> REAR	8-97314-594-0	01	1	0502-0502	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER<7QQ> REAR	8-97183-578-3	01	1	0502-	●	●
56	04.686 BRACKET; UNION,BRK	8-97149-604-1	01	1	0211-	●	●	●	●	●
59	04.686 UNION; BRK PIPE 08.963 M10 STRAIGHT	9-09227-005-0	02	1	0211-0607	●	●	●	●	●
59	04.686 UNION; BRK PIPE M10 STRAIGHT	0-92107-005-0	02	1	0608-	●	●	●	●	●
61	04.686 BRACKET; 5 WAY JOINT H.S.A SYSTEM<6EP> (B)	8-97211-153-0	01	1	0502-	●	●	●		●
61	04.686 BRACKET; 5 WAY JOINT (B)	8-97211-153-0	01	1	0502-				●
61	04.686 BRACKET; 5 WAY JOINT (A)	8-97170-632-0	01	1	0211-	●	●	●	●	●
131	04.710 BOLT; BRKT H.S.A SYSTEM<6EP> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●	●	●		●
131	04.710 BOLT; BRKT 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512				●
131	04.710 BOLT; BRKT H.S.A SYSTEM<6EP> 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●		●
131	04.710 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
131	04.710 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●	●	●	●
131	04.710 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION FRONT	8-97314-585-0	01	1	0211-0501	●		●		●
145	04.685 PIPE; BRK,METERING VLV TO UNION FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ> FRONT	8-97314-585-0	01	1	0211-0501		●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER<7QQ>, TRANSMISSION CONTROL-SMOOTHER(8GF) FRONT	8-97314-585-0	01	1	0502-0502	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER<7QQ>, TRANSMISSION CONTROL-SMOOTHER(8GF) FRONT	8-97168-506-1	01	1	0502-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> FRONT	8-97149-833-1	01	1	0211-0501		●
145	04.685 PIPE; BRK,METERING VLV TO UNION FRONT	8-97149-833-1	01	1	0211-0501				●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) FRONT	8-97149-833-1	01	1	0502-0502		●	●		●
145	04.685 PIPE; BRK,METERING VLV TO UNION FRONT	8-97149-833-1	01	1	0502-0502				●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) FRONT	8-98011-699-0	01	1	0502-0504		●	●		●
145	04.685 PIPE; BRK,METERING VLV TO UNION FRONT	8-98011-699-0	01	1	0502-0504				●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) FRONT	8-98019-833-0	01	1	0505-		●	●		●
145	04.685 PIPE; BRK,METERING VLV TO UNION FRONT	8-98019-833-0	01	1	0505-				●
145	04.685 PIPE; BRK,METERING VLV TO UNION A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> FRONT	8-97219-126-0	01	1	0211-0501		●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) FRONT	8-97219-126-0	01	1	0502-0502		●	●		●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) FRONT	8-98011-700-0	01	1	0502-0504		●	●		●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) FRONT	8-98019-834-0	01	1	0505-		●	●		●
145	04.685 PIPE; BRK,METERING VLV TO UNION A/T 4 SPEED-AISIN(RNJ) EXC. HYDRO BRAKE BOOSTER<7QQ> FRONT	8-97314-587-0	01	1	0211-0501		●
145	04.685 PIPE; BRK,METERING VLV TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER<7QQ> FRONT	8-97314-587-0	01	1	0502-0502	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER<7QQ> FRONT	8-97183-577-3	01	1	0502-	●	●
146	04.685 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0506	●	●	●	●	●
146	04.685 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●	●	●
146	04.685 NUT; BRKT H.S.A SYSTEM<6EP> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●		●
146	04.685 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602				●
146	04.685 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●
146	04.685 NUT; BRKT H.S.A SYSTEM<6EP> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●		●
146	04.685 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-				●
227	04.685 NUT; JOINT 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0501	●	●	●	●	●
227	04.685 NUT; JOINT EXC. H.S.A SYSTEM<6EP> 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●	●	●		●
227	04.685 NUT; JOINT EXC. H.S.A SYSTEM<6EP> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●		●
253	04.840 JOINT 04.686	8-97120-033-2	01	1	0211-0501	●	●	●	●	●
253	04.840 JOINT EXC. H.S.A SYSTEM<6EP> 04.686	8-97139-922-1	01	1	0502-	●	●	●		●

22 186 184 185 182 116 186 22 183 22 100 50 50 186 185 186 186 187 186 185 186 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0211-0212		●
22	04.685 CLIP 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0211-0212				●
22	04.685 CLIP 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0301-0501		●
22	04.685 CLIP 4HE1 ENG(RLY) 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0301-0501				●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0502-0606		●
22	04.685 CLIP 4HK1-TCN ENG(RDQ) 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0502-0606			●		●
22	04.685 CLIP 4HK1-TCS ENG(RJS) 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0502-0606				●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> (A) ID=11 L=16	0-95235-025-0	02	1	0607-		●
22	04.685 CLIP 4HK1-TCN ENG(RDQ) (A) ID=11 L=16	0-95235-025-0	02	1	0607-			●		●
22	04.685 CLIP 4HK1-TCS ENG(RJS) (A) ID=11 L=16	0-95235-025-0	02	1	0607-				●
22	04.685 CLIP 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0211-0501		●
22	04.685 CLIP 4HE1 ENG(RLY) 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0211-0501				●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0502-0606		●
22	04.685 CLIP 4HK1-TCN ENG(RDQ) 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0502-0606			●		●
22	04.685 CLIP 4HK1-TCS ENG(RJS) 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0502-0606				●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20	0-95235-836-0	01	1	0607-		●
22	04.685 CLIP 4HK1-TCN ENG(RDQ) (B) ID=19 L=20	0-95235-836-0	01	1	0607-			●		●
22	04.685 CLIP 4HK1-TCS ENG(RJS) (B) ID=19 L=20	0-95235-836-0	01	1	0607-				●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0501		●
50	04.710 BOLT; PIPE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0501				●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512		●
50	04.710 BOLT; PIPE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512			●	●	●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
50	04.710 BOLT; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-			●	●	●
100	04.730 NUT; HYDRAULIC UNIT 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0502-0602	●	●	●	●	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (B) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0211-0501		●
100	04.730 NUT; HYDRAULIC UNIT 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0211-0501				●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0502-		●
100	04.730 NUT; HYDRAULIC UNIT 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0502-			●	●	●
116	04.686 NUT FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●
116	04.686 NUT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501				●
116	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●	●		●
116	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●	●		●
116	04.686 NUT A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501		●
116	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●	●		●
116	04.686 NUT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602				●
116	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●	●		●
116	04.686 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-				●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97328-692-0	01	1	0211-0501		●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER 4HE1 ENG(RLY)	8-97328-692-0	01	1	0211-0501				●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97328-692-0	01	1	0502-		●	●		●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER	8-97328-692-0	01	1	0502-				●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ>	8-97311-386-2	01	1	0211-0501		●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97311-386-2	01	1	0502-		●	●		●
183	04.685 PIPE; SUCTION 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97328-693-0	01	1	0211-0501		●
183	04.685 PIPE; SUCTION 4HE1 ENG(RLY)	8-97328-693-0	01	1	0211-0501				●
183	04.685 PIPE; SUCTION HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97328-693-0	01	1	0502-		●	●		●
183	04.685 PIPE; SUCTION	8-97328-693-0	01	1	0502-				●
183	04.685 PIPE; SUCTION 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ>	8-97311-387-1	01	1	0211-0501		●
183	04.685 PIPE; SUCTION HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97311-387-1	01	1	0502-		●	●		●
184	04.681 BOLT; CLIP A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0501		●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0502-0512		●	●		●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-		●	●		●
185	04.681 HOSE; RUBBER,SUCTION (C)	8-97256-681-0	01	1	0502-					●
185	04.681 HOSE; RUBBER,SUCTION 06.670 (B) L=200 SERVICED BY L=300	0-09814-300-0	01	1	0502-					●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0211-0501		●
185	04.681 HOSE; RUBBER,SUCTION 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0211-0501				●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0502-		●
185	04.681 HOSE; RUBBER,SUCTION 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0502-			●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> (A)	8-97330-513-0	01	1	0211-0501		●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	0211-0501				●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> (A)	8-97330-513-0	01	1	0502-		●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	0502-			●	●	●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	01	1	0502-0911					●
186	04.681 CLIP; HOSE (B) ID=21	8-98150-355-0	01	1	0912-					●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	02	1	0211-0501		●
186	04.681 CLIP; HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0211-0501				●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	02	1	0502-0911		●
186	04.681 CLIP; HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0502-0911			●	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-		●
186	04.681 CLIP; HOSE 03.162 (A) ID=16	8-98008-098-0	02	1	0912-			●	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21	8-94242-034-0	03	1	0211-0501		●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	03	1	0211-0501				●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21	8-94242-034-0	03	1	0502-0911		●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	03	1	0502-0911			●	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=21	8-98150-355-0	03	1	0912-		●
186	04.681 CLIP; HOSE (B) ID=21	8-98150-355-0	03	1	0912-			●	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22	8-94382-401-0	01	1	0211-0501		●
186	04.681 CLIP; HOSE 08.846 (C) ID=22	8-94382-401-0	01	1	0211-0501				●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22	8-94382-401-0	01	1	0502-1003		●
186	04.681 CLIP; HOSE 08.846 (C) ID=22	8-94382-401-0	01	1	0502-1003			●	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 03.278 (C) ID=22	8-97359-141-0	01	1	1004-		●
186	04.681 CLIP; HOSE 03.278 (C) ID=22	8-97359-141-0	01	1	1004-			●	●	●
187	04.681 HOSE; RUBBER,OIL TANK 06.671 L=200 SERVICED BY L=3000	0-19809-300-0	01	1	0502-					●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000	0-19809-300-0	01	1	0211-0501		●
187	04.681 HOSE; RUBBER,OIL TANK 06.671 L=270 SERVICED BY L=3000	0-19809-300-0	01	1	0211-0501				●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000	0-19809-300-0	01	1	0502-		●
187	04.681 HOSE; RUBBER,OIL TANK 06.671 L=270 SERVICED BY L=3000	0-19809-300-0	01	1	0502-			●	●

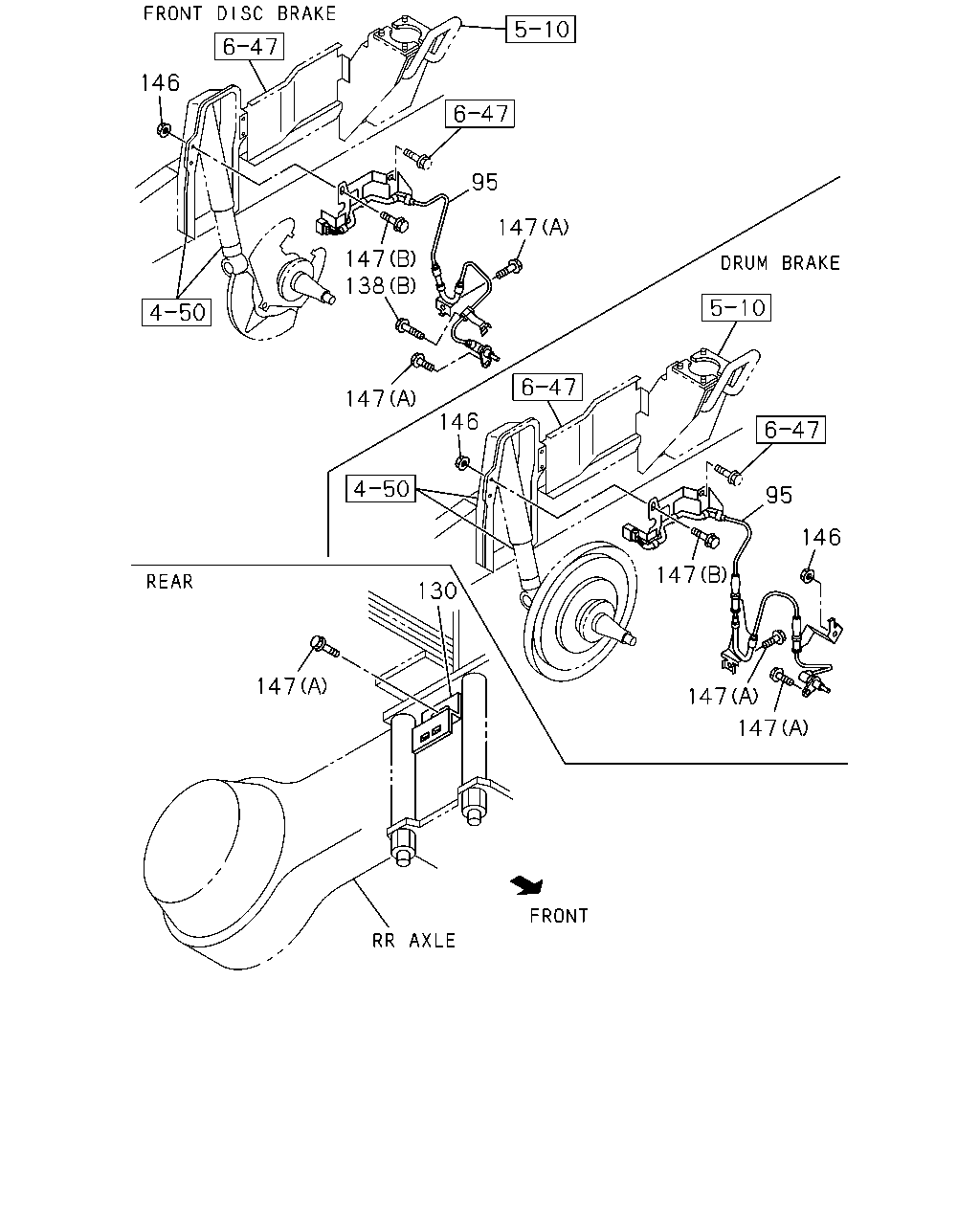

146 95 147 147 138 147 146 95 146 147 130 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
95	04.710 SENSOR; SPD,FRT WHEEL	8-97386-639-0	01	1	0502-	●	●	●	●	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-97386-640-0	01	1	0502-	●	●	●	●	●
130	04.686 BRACKET; SPEED SENSOR	8-97080-060-2	02	1	0502-	●	●	●	●	●
138	04.720 BOLT; COVER 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0512	●	●	●	●	●
138	04.720 BOLT; COVER 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●	●	●	●
138	04.720 BOLT; COVER 04.640 (B) M10X12 FLANGE	0-28081-012-0	02	1	0502-0512	●	●	●	●	●
138	04.720 BOLT; COVER 06.225 (B) M10X12 FLANGE	0-28051-012-0	02	1	0601-	●	●	●	●	●
146	04.685 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0506	●	●	●	●	●
146	04.685 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●	●	●
146	04.685 NUT; BRKT H.S.A SYSTEM<6EP> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●		●
146	04.685 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602				●
146	04.685 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●
146	04.685 NUT; BRKT H.S.A SYSTEM<6EP> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●		●
146	04.685 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-				●
147	04.710 BOLT; SPEED SENSOR 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0502-0512	●	●	●	●	●
147	04.710 BOLT; SPEED SENSOR 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●	●
147	04.710 BOLT; SPEED SENSOR 08.900 (A) M8X12 FLANGE	0-28080-812-0	06	1	0502-0512	●	●	●	●	●
147	04.710 BOLT; SPEED SENSOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	0601-	●	●	●	●	●

193 188 181 192 195 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
181	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0211-0501	●
181	04.686 BOLT; PIPE 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0211-0501			●
181	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0502-0512	●
181	04.686 BOLT; PIPE 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0502-0512		●	●	●
181	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0601-	●
181	04.686 BOLT; PIPE 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0601-		●	●	●
188	04.685 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0501	●
188	04.685 NUT; PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0501			●
188	04.685 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●
188	04.685 NUT; PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602		●	●	●
188	04.685 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●
188	04.685 NUT; PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-		●	●	●
192	04.685 PIPE; PRESSURE FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97160-076-2	01	1	0211-0403	●
192	04.685 PIPE; PRESSURE	8-97160-076-2	01	1	0211-0403			●
192	04.685 PIPE; PRESSURE FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97378-853-0	01	1	0404-0501	●
192	04.685 PIPE; PRESSURE	8-97378-853-0	01	1	0404-0501			●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97378-853-0	01	1	0502-0502	●	●		●
192	04.685 PIPE; PRESSURE	8-97378-853-0	01	1	0502-0502			●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98011-704-0	01	1	0502-0504	●	●		●
192	04.685 PIPE; PRESSURE	8-98011-704-0	01	1	0502-0504			●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98019-835-0	01	1	0505-	●	●		●
192	04.685 PIPE; PRESSURE	8-98019-835-0	01	1	0505-			●
192	04.685 PIPE; PRESSURE A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ>	8-97219-128-0	01	1	0211-0403	●
192	04.685 PIPE; PRESSURE A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ>	8-97378-854-0	01	1	0404-0501	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97378-854-0	01	1	0502-0502	●
192	04.685 PIPE; PRESSURE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97378-854-0	01	1	0502-0502		●		●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98011-705-0	01	1	0502-	●
192	04.685 PIPE; PRESSURE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98011-705-0	01	1	0502-		●		●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER<7QQ>	8-97177-033-3	01	1	0211-0501	●
193	04.685 PIPE; RETURN	8-97177-033-3	01	1	0211-0501			●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER<7QQ>	8-97177-033-3	01	1	0502-0502	●
193	04.685 PIPE; RETURN	8-97177-033-3	01	1	0502-0502		●	●	●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER<7QQ>	8-98011-706-0	01	1	0502-	●
193	04.685 PIPE; RETURN	8-98011-706-0	01	1	0502-		●	●	●
194	04.681 HOSE; CAB TO PIPE HYDRO BRAKE BOOSTER<7QQ>	8-97177-089-5	01	1	0211-0501	●
194	04.681 HOSE; CAB TO PIPE	8-97177-089-5	01	1	0211-0501			●
194	04.681 HOSE; CAB TO PIPE HYDRO BRAKE BOOSTER<7QQ>	8-97385-615-1	01	1	0502-	●
194	04.681 HOSE; CAB TO PIPE	8-97385-615-1	01	1	0502-		●	●	●
195	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.686 ID=11-19.5	8-94426-597-0	01	1	0211-0501	●
195	04.681 CLIP; HOSE 04.686 ID=11-19.5	8-94426-597-0	01	1	0211-0501			●
195	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.686 ID=11-19.5	8-94426-597-0	01	1	0502-1005	●
195	04.681 CLIP; HOSE 04.686 ID=11-19.5	8-94426-597-0	01	1	0502-1005		●	●	●
195	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> ID=11-17	8-98173-762-1	01	1	1006-	●
195	04.681 CLIP; HOSE ID=11-17	8-98173-762-1	01	1	1006-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
