Sayfa 3-10 - Isuzu EPC

3-10 — BRAKE PEDAL AND CONTROL (#34319) — 276 parça

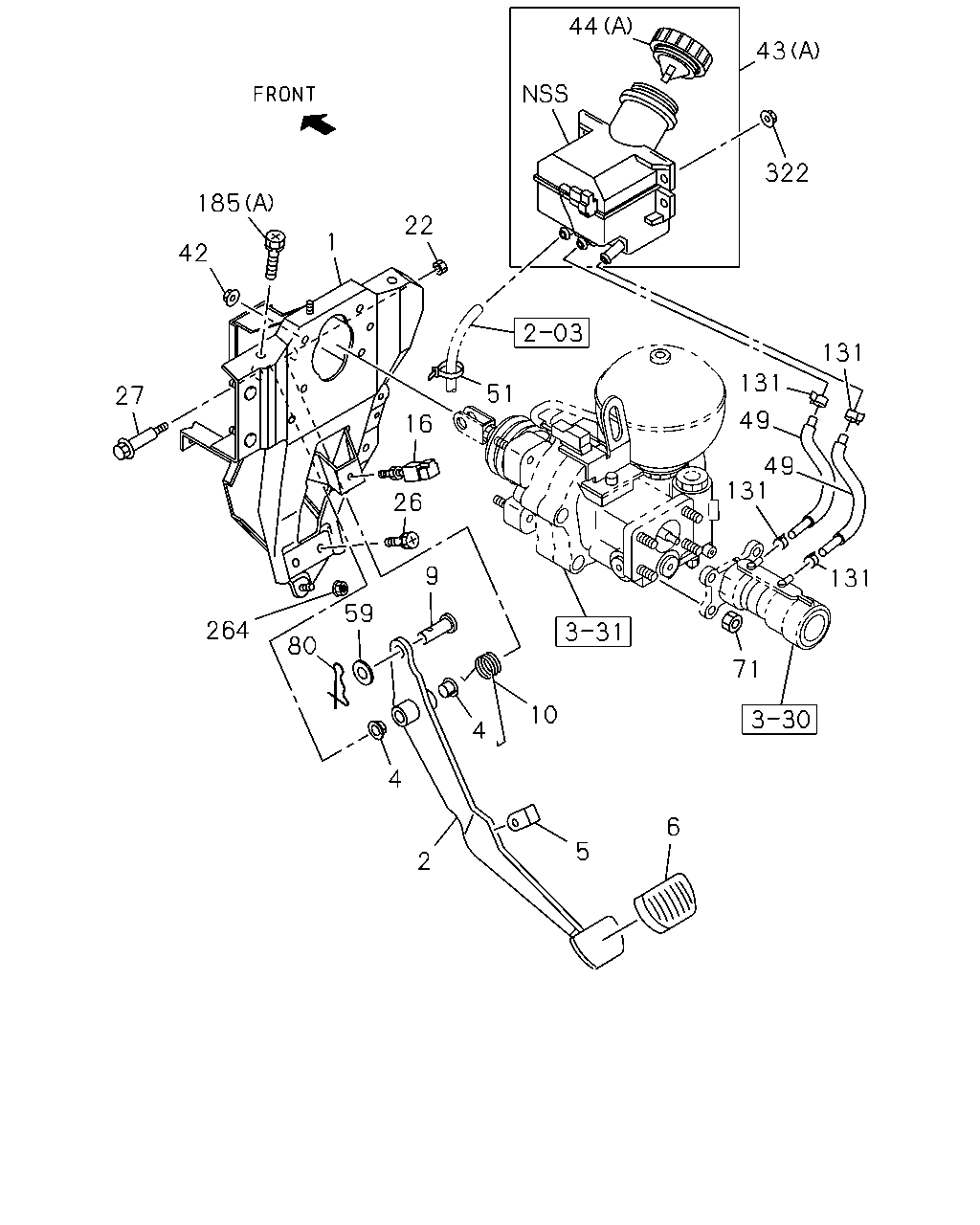

44 43 322 185 22 1 42 131 131 51 27 49 16 49 131 26 9 131 59 264 80 71 10 4 4 6 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.634 BRACKET ASM; PEDAL	8-97896-968-5	01	1	0211-	●	●	●	●	●
2	04.625 PEDAL; BRK	8-97853-210-3	02	1	0211-0501	●		●		●
2	04.625 PEDAL; BRK EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97853-210-3	02	1	0211-0501		●
2	04.625 PEDAL; BRK	8-97853-210-3	02	1	0502-	●
2	04.625 PEDAL; BRK EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97853-210-3	02	1	0502-		●
2	04.625 PEDAL; BRK EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97867-871-3	02	1	0211-0501		●
2	04.625 PEDAL; BRK	8-97867-871-3	02	1	0211-0501				●
2	04.625 PEDAL; BRK HYDRO BRAKE BOOSTER<7QQ>	8-97867-871-3	02	1	0502-		●
2	04.625 PEDAL; BRK	8-97867-871-3	02	1	0502-			●	●	●
4	04.634 BUSHING; BRK PEDAL 04.792	8-94238-596-0	02	1	0211-	●	●	●	●	●
5	04.634 STOPPER; BRK PEDAL	8-97853-602-1	01	1	0211-	●	●	●	●	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-2	01	1	0211-	●	●	●	●	●
9	04.634 PIN; JAW JOINT	8-94410-276-0	01	1	0211-	●	●	●	●	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	0211-	●	●	●	●	●
16	02.447 SWITCH; STOP LAMP	8-97855-187-0	01	1	0211-	●	●	●	●	●
22	04.634 NUT; SHAFT 00.833 M10 FLANGE	1-09440-022-0	01	1	0211-	●	●	●	●	●
26	04.634 BOLT; PEDAL 00.833 M10X22 W/PL WASHER	8-97313-188-0	02	1	0211-	●	●	●	●	●
27	04.634 SHAFT; BRK PEDAL	8-97866-667-0	01	1	0211-	●	●	●	●	●
42	04.898 NUT; BRK PEDAL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	0211-	●	●	●	●	●
43	04.651 TANK ASM; OIL (A)	8-97179-813-1	01	1	0211-0501	●		●	●	●
43	04.651 TANK ASM; OIL FLOOR REMOTE SHIFT<M11> (A)	8-97179-813-1	01	1	0211-0501		●
43	04.651 TANK ASM; OIL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97178-245-1	01	1	0502-	●	●	●		●
43	04.651 TANK ASM; OIL (A)	8-97178-245-1	01	1	0502-				●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (B)	8-97306-217-0	01	1	0211-0501		●
43	04.651 TANK ASM; OIL (B)	8-97306-217-0	01	1	0211-0501				●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (B)	8-97306-217-0	01	1	0502-		●
43	04.651 TANK ASM; OIL (B)	8-97306-217-0	01	1	0502-			●	●	●
43	04.651 TANK ASM; OIL EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97179-814-1	01	1	0211-0501		●
43	04.651 TANK ASM; OIL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97178-246-1	01	1	0502-	●	●	●		●
44	04.651 CAP; OIL TANK (A)	8-97178-291-1	01	1	0211-	●	●	●	●	●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.635 (B)	8-94146-153-2	01	1	0211-0501		●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	0211-0501				●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.635 (B)	8-94146-153-2	01	1	0502-		●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	0502-			●	●	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL	8-97129-583-0	02	1	0211-	●	●	●	●	●
51	04.681 CLIP; HOSE,OIL TANK 03.162 L=140	5-09707-031-1	01	1	0211-0501	●		●	●	●
51	04.681 CLIP; HOSE,OIL TANK FLOOR REMOTE SHIFT<M11> 03.162 L=140	5-09707-031-1	01	1	0211-0501		●
51	04.681 CLIP; HOSE,OIL TANK M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140	5-09707-031-1	01	1	0502-	●	●	●	●	●
59	04.634 WASHER; PL,JAW JOINT 02.575 ID=15	9-09160-514-0	01	1	0211-0605	●	●	●	●	●
59	04.634 WASHER; PL,JAW JOINT ID=15	0-91610-514-0	01	1	0606-	●	●	●	●	●
71	04.650 NUT; BRK M/CYL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	0211-	●	●	●	●	●
80	04.634 PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	0211-	●	●	●	●	●
131	04.681 CLIP; RUBBER HOSE,OIL TANK TO BR	8-97130-480-0	04	1	0211-	●	●	●	●	●
185	04.634 BOLT; BRKT 03.405 (B) M10X30 FLANGE	0-28681-030-0	03	1	0502-0512					●
185	04.634 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	03	1	0601-					●
185	04.634 BOLT; BRKT 09.003 (A) M10X25 FLANGE	0-28691-025-0	02	1	0211-0512	●	●	●	●	●
185	04.634 BOLT; BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	02	1	0601-	●	●	●	●	●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501		●
185	04.634 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501				●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
185	04.634 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0502-0512			●	●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
185	04.634 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●	●
264	04.634 NUT; BRKT,COLUMN SUPT TO B.PDL 04.010 M8 FLANGE	8-97046-127-0	01	1	0211-0610	●	●	●	●	●
264	04.634 NUT; BRKT,COLUMN SUPT TO B.PDL 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	0611-	●	●	●	●	●
322	04.651 NUT; OIL TANK 04.594 M6 FLANGE	0-91150-106-0	02	1	0211-0602	●	●	●	●	●
322	04.651 NUT; OIL TANK 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-	●	●	●	●	●

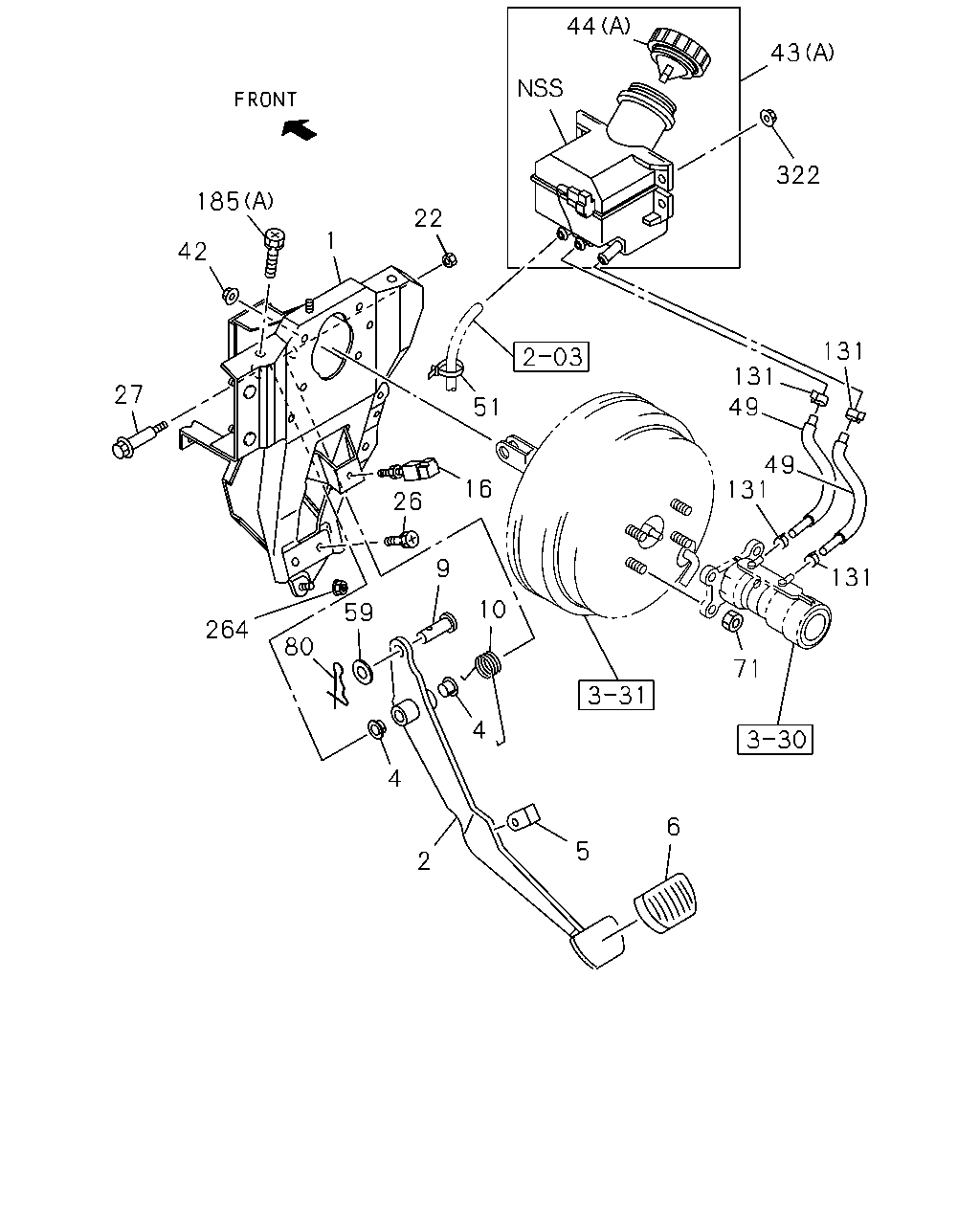

44 43 322 185 22 1 42 131 131 27 49 51 49 131 16 26 9 131 59 10 264 80 71 4 4 6 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.634 BRACKET ASM; PEDAL	8-97896-968-5	01	1	0211-	●	●	●	●	●
2	04.625 PEDAL; BRK	8-97853-210-3	02	1	0211-0501	●		●		●
2	04.625 PEDAL; BRK EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97853-210-3	02	1	0211-0501		●
2	04.625 PEDAL; BRK	8-97853-210-3	02	1	0502-	●
2	04.625 PEDAL; BRK EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97853-210-3	02	1	0502-		●
2	04.625 PEDAL; BRK EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97867-871-3	02	1	0211-0501		●
2	04.625 PEDAL; BRK	8-97867-871-3	02	1	0211-0501				●
2	04.625 PEDAL; BRK HYDRO BRAKE BOOSTER<7QQ>	8-97867-871-3	02	1	0502-		●
2	04.625 PEDAL; BRK	8-97867-871-3	02	1	0502-			●	●	●
4	04.634 BUSHING; BRK PEDAL 04.792	8-94238-596-0	02	1	0211-	●	●	●	●	●
5	04.634 STOPPER; BRK PEDAL	8-97853-602-1	01	1	0211-	●	●	●	●	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-2	01	1	0211-	●	●	●	●	●
9	04.634 PIN; JAW JOINT	8-94410-276-0	01	1	0211-	●	●	●	●	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	0211-	●	●	●	●	●
16	02.447 SWITCH; STOP LAMP	8-97855-187-0	01	1	0211-	●	●	●	●	●
22	04.634 NUT; SHAFT 00.833 M10 FLANGE	1-09440-022-0	01	1	0211-	●	●	●	●	●
26	04.634 BOLT; PEDAL 00.833 M10X22 W/PL WASHER	8-97313-188-0	02	1	0211-	●	●	●	●	●
27	04.634 SHAFT; BRK PEDAL	8-97866-667-0	01	1	0211-	●	●	●	●	●
42	04.898 NUT; BRK PEDAL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	0211-	●	●	●	●	●
43	04.651 TANK ASM; OIL (A)	8-97179-813-1	01	1	0211-0501	●		●	●	●
43	04.651 TANK ASM; OIL FLOOR REMOTE SHIFT<M11> (A)	8-97179-813-1	01	1	0211-0501		●
43	04.651 TANK ASM; OIL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97178-245-1	01	1	0502-	●	●	●		●
43	04.651 TANK ASM; OIL (A)	8-97178-245-1	01	1	0502-				●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (B)	8-97306-217-0	01	1	0211-0501		●
43	04.651 TANK ASM; OIL (B)	8-97306-217-0	01	1	0211-0501				●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (B)	8-97306-217-0	01	1	0502-		●
43	04.651 TANK ASM; OIL (B)	8-97306-217-0	01	1	0502-			●	●	●
43	04.651 TANK ASM; OIL EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97179-814-1	01	1	0211-0501		●
43	04.651 TANK ASM; OIL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97178-246-1	01	1	0502-	●	●	●		●
44	04.651 CAP; OIL TANK (A)	8-97178-291-1	01	1	0211-	●	●	●	●	●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.635 (B)	8-94146-153-2	01	1	0211-0501		●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	0211-0501				●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.635 (B)	8-94146-153-2	01	1	0502-		●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	0502-			●	●	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL	8-97129-583-0	02	1	0211-	●	●	●	●	●
51	04.681 CLIP; HOSE,OIL TANK 03.162 L=140	5-09707-031-1	01	1	0211-0501	●		●	●	●
51	04.681 CLIP; HOSE,OIL TANK FLOOR REMOTE SHIFT<M11> 03.162 L=140	5-09707-031-1	01	1	0211-0501		●
51	04.681 CLIP; HOSE,OIL TANK M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140	5-09707-031-1	01	1	0502-	●	●	●	●	●
59	04.634 WASHER; PL,JAW JOINT 02.575 ID=15	9-09160-514-0	01	1	0211-0605	●	●	●	●	●
59	04.634 WASHER; PL,JAW JOINT ID=15	0-91610-514-0	01	1	0606-	●	●	●	●	●
71	04.650 NUT; BRK M/CYL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	0211-	●	●	●	●	●
80	04.634 PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	0211-	●	●	●	●	●
131	04.681 CLIP; RUBBER HOSE,OIL TANK TO BR	8-97130-480-0	04	1	0211-	●	●	●	●	●
185	04.634 BOLT; BRKT 03.405 (B) M10X30 FLANGE	0-28681-030-0	03	1	0502-0512					●
185	04.634 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	03	1	0601-					●
185	04.634 BOLT; BRKT 09.003 (A) M10X25 FLANGE	0-28691-025-0	02	1	0211-0512	●	●	●	●	●
185	04.634 BOLT; BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	02	1	0601-	●	●	●	●	●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501		●
185	04.634 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501				●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
185	04.634 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0502-0512			●	●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
185	04.634 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●	●
264	04.634 NUT; BRKT,COLUMN SUPT TO B.PDL 04.010 M8 FLANGE	8-97046-127-0	01	1	0211-0610	●	●	●	●	●
264	04.634 NUT; BRKT,COLUMN SUPT TO B.PDL 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	0611-	●	●	●	●	●
322	04.651 NUT; OIL TANK 04.594 M6 FLANGE	0-91150-106-0	02	1	0211-0602	●	●	●	●	●
322	04.651 NUT; OIL TANK 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-	●	●	●	●	●

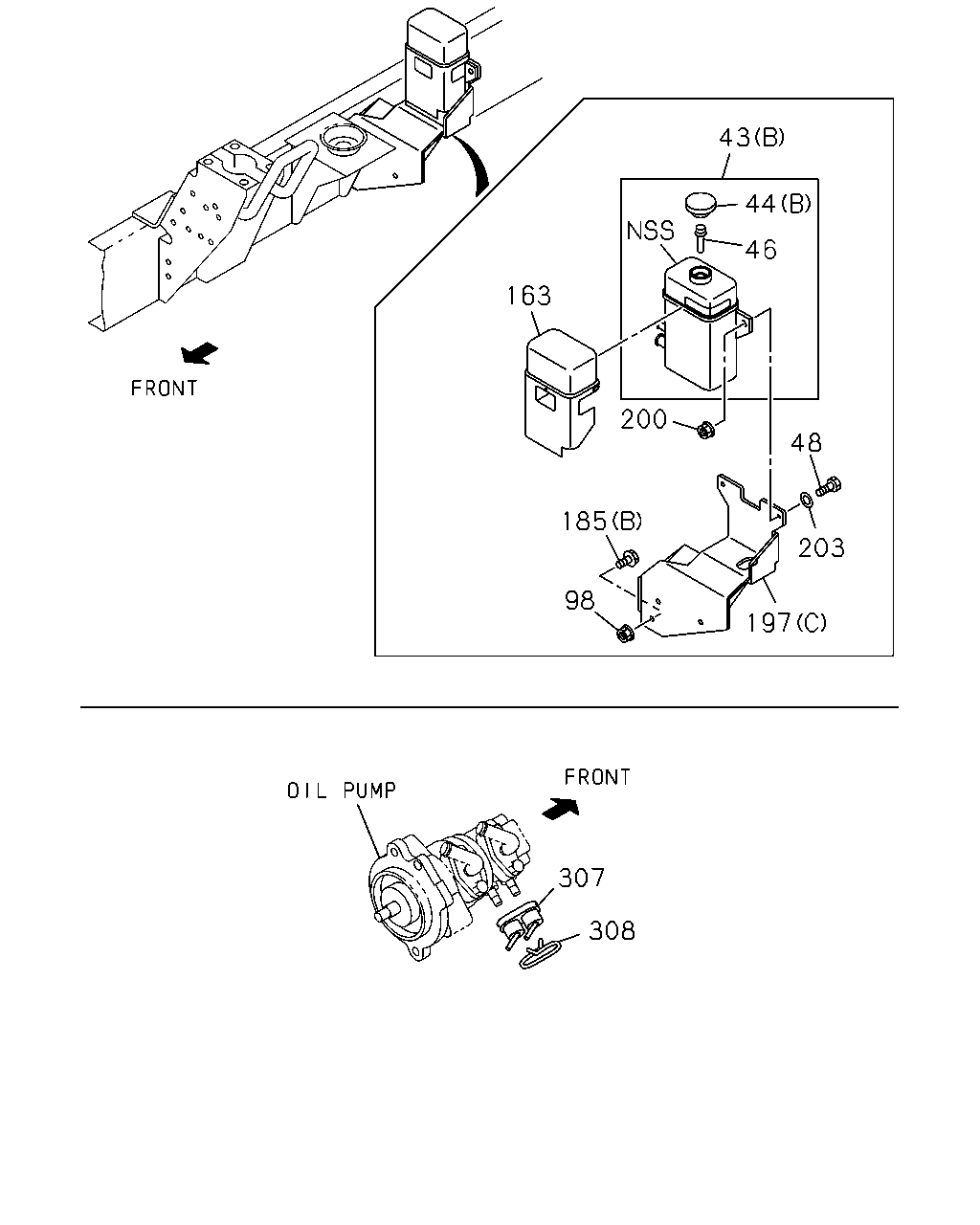

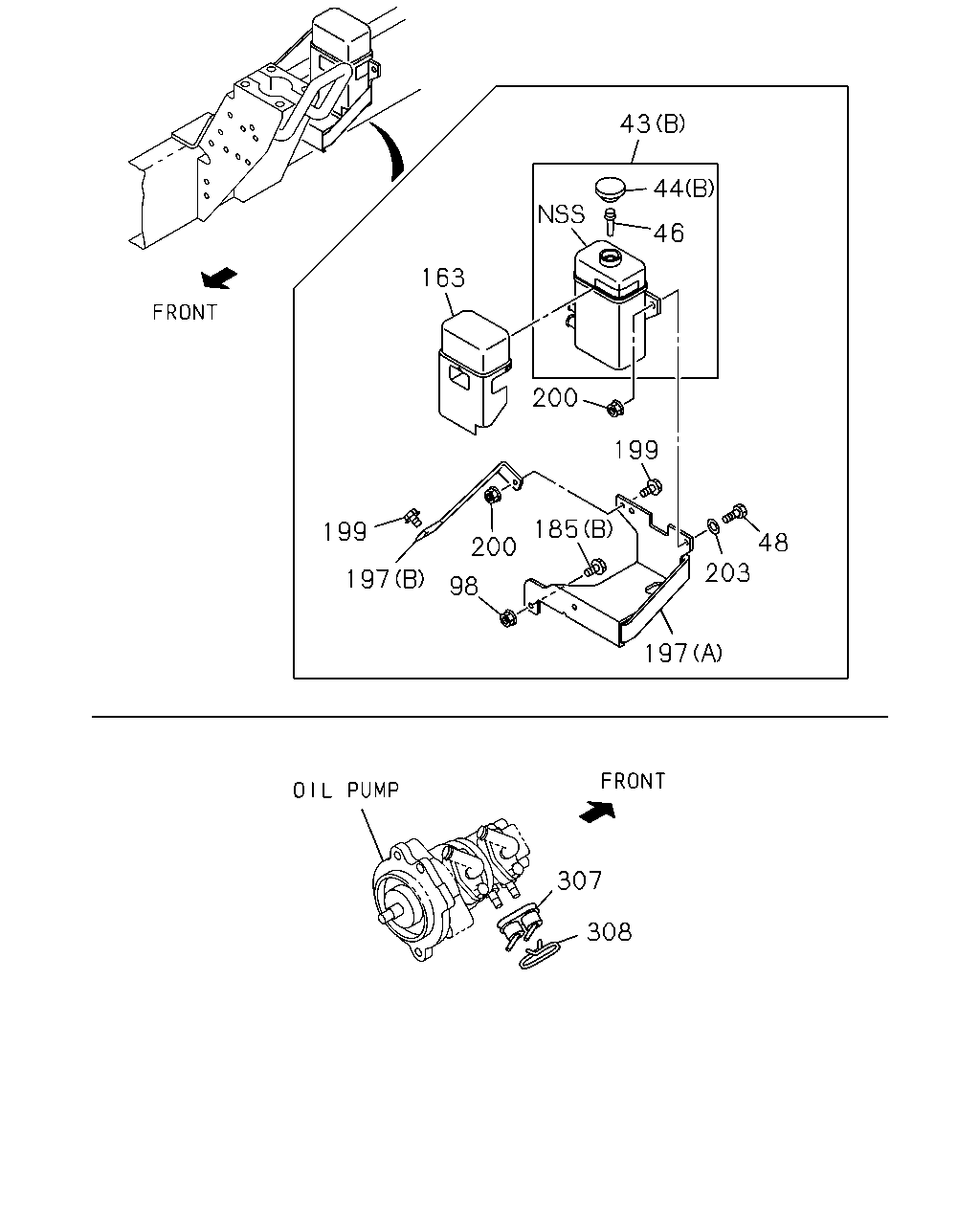

43 44 46 163 200 48 185 203 98 197 307 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
43	04.651 TANK ASM; OIL (A)	8-97179-813-1	01	1	0211-0501	●		●	●	●
43	04.651 TANK ASM; OIL FLOOR REMOTE SHIFT<M11> (A)	8-97179-813-1	01	1	0211-0501		●
43	04.651 TANK ASM; OIL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97178-245-1	01	1	0502-	●	●	●		●
43	04.651 TANK ASM; OIL (A)	8-97178-245-1	01	1	0502-				●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (B)	8-97306-217-0	01	1	0211-0501		●
43	04.651 TANK ASM; OIL (B)	8-97306-217-0	01	1	0211-0501				●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (B)	8-97306-217-0	01	1	0502-		●
43	04.651 TANK ASM; OIL (B)	8-97306-217-0	01	1	0502-			●	●	●
43	04.651 TANK ASM; OIL EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97179-814-1	01	1	0211-0501		●
43	04.651 TANK ASM; OIL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97178-246-1	01	1	0502-	●	●	●		●
44	04.651 CAP; OIL TANK (A)	8-97178-291-1	01	1	0211-	●	●	●	●	●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.635 (B)	8-94146-153-2	01	1	0211-0501		●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	0211-0501				●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.635 (B)	8-94146-153-2	01	1	0502-		●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	0502-			●	●	●
46	04.651 FILTER; RESERVOIR,BRK HYDRO BRAKE BOOSTER<7QQ> 06.600	8-97094-732-0	01	1	0211-0501		●
46	04.651 FILTER; RESERVOIR,BRK 06.600	8-97094-732-0	01	1	0211-0501				●
46	04.651 FILTER; RESERVOIR,BRK HYDRO BRAKE BOOSTER<7QQ> 06.600	8-97094-732-0	01	1	0502-		●
46	04.651 FILTER; RESERVOIR,BRK 06.600	8-97094-732-0	01	1	0502-			●	●	●
48	04.651 BOLT; OIL TANK TO BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501		●
48	04.651 BOLT; OIL TANK TO BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501				●
48	04.651 BOLT; OIL TANK TO BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
48	04.651 BOLT; OIL TANK TO BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512			●	●	●
48	04.651 BOLT; OIL TANK TO BRKT HYDRO BRAKE BOOSTER<7QQ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
48	04.651 BOLT; OIL TANK TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-			●	●	●
98	04.634 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0602					●
98	04.634 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-					●
98	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●
98	04.634 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501				●
98	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●
98	04.634 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602			●	●
98	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●
98	04.634 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-			●	●
163	04.651 COVER; OIL TANK HYDRO BRAKE BOOSTER<7QQ>	8-97164-749-1	01	1	0211-0501		●
163	04.651 COVER; OIL TANK	8-97164-749-1	01	1	0211-0501				●
163	04.651 COVER; OIL TANK HYDRO BRAKE BOOSTER<7QQ>	8-97164-749-1	01	1	0502-		●
163	04.651 COVER; OIL TANK	8-97164-749-1	01	1	0502-			●	●	●
185	04.634 BOLT; BRKT 03.405 (B) M10X30 FLANGE	0-28681-030-0	03	1	0502-0512					●
185	04.634 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	03	1	0601-					●
185	04.634 BOLT; BRKT 09.003 (A) M10X25 FLANGE	0-28691-025-0	02	1	0211-0512	●	●	●	●	●
185	04.634 BOLT; BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	02	1	0601-	●	●	●	●	●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501		●
185	04.634 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501				●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
185	04.634 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0502-0512			●	●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
185	04.634 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●	●
197	04.634 BRACKET; OIL TANK (C)	8-97305-565-0	01	1	0502-					●
197	04.634 BRACKET; OIL TANK HYDRO BRAKE BOOSTER<7QQ> (A)	8-97173-342-2	01	1	0211-0501		●
197	04.634 BRACKET; OIL TANK (A)	8-97173-342-2	01	1	0211-0501				●
197	04.634 BRACKET; OIL TANK HYDRO BRAKE BOOSTER<7QQ> (A)	8-97173-342-2	01	1	0502-		●
197	04.634 BRACKET; OIL TANK (A)	8-97173-342-2	01	1	0502-			●	●
197	04.634 BRACKET; OIL TANK HYDRO BRAKE BOOSTER<7QQ> (B)	8-97181-897-0	01	1	0211-0501		●
197	04.634 BRACKET; OIL TANK (B)	8-97181-897-0	01	1	0211-0501				●
197	04.634 BRACKET; OIL TANK HYDRO BRAKE BOOSTER<7QQ> (B)	8-97333-555-2	01	1	0502-		●
197	04.634 BRACKET; OIL TANK (B)	8-97333-555-2	01	1	0502-			●	●
200	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501		●
200	04.634 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501				●
200	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
200	04.634 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602			●	●
200	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●
200	04.634 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-			●	●
200	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●
200	04.634 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501				●
200	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●
200	04.634 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602			●	●	●
200	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●
200	04.634 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-			●	●	●
203	04.634 WASHER; PL,OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0211-0501		●
203	04.634 WASHER; PL,OIL TANK 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0211-0501				●
203	04.634 WASHER; PL,OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0502-0605		●
203	04.634 WASHER; PL,OIL TANK 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0502-0605			●	●	●
203	04.634 WASHER; PL,OIL TANK HYDRO BRAKE BOOSTER<7QQ> 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	0606-		●
203	04.634 WASHER; PL,OIL TANK 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	0606-			●	●	●
307	04.651 CAP; EYE JOINT HYDRO BRAKE BOOSTER<7QQ>	8-97166-154-1	01	1	0211-0307		●
307	04.651 CAP; EYE JOINT	8-97166-154-1	01	1	0211-0307				●
308	04.651 CLAMP; PUMP CAP HYDRO BRAKE BOOSTER<7QQ>	8-97166-181-1	01	1	0211-0307		●
308	04.651 CLAMP; PUMP CAP	8-97166-181-1	01	1	0211-0307				●

43 44 46 163 200 199 185 199 48 203 200 197 98 197 307 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
43	04.651 TANK ASM; OIL (A)	8-97179-813-1	01	1	0211-0501	●		●	●	●
43	04.651 TANK ASM; OIL FLOOR REMOTE SHIFT<M11> (A)	8-97179-813-1	01	1	0211-0501		●
43	04.651 TANK ASM; OIL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97178-245-1	01	1	0502-	●	●	●		●
43	04.651 TANK ASM; OIL (A)	8-97178-245-1	01	1	0502-				●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (B)	8-97306-217-0	01	1	0211-0501		●
43	04.651 TANK ASM; OIL (B)	8-97306-217-0	01	1	0211-0501				●
43	04.651 TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (B)	8-97306-217-0	01	1	0502-		●
43	04.651 TANK ASM; OIL (B)	8-97306-217-0	01	1	0502-			●	●	●
43	04.651 TANK ASM; OIL EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97179-814-1	01	1	0211-0501		●
43	04.651 TANK ASM; OIL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97178-246-1	01	1	0502-	●	●	●		●
44	04.651 CAP; OIL TANK (A)	8-97178-291-1	01	1	0211-	●	●	●	●	●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.635 (B)	8-94146-153-2	01	1	0211-0501		●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	0211-0501				●
44	04.651 CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.635 (B)	8-94146-153-2	01	1	0502-		●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	0502-			●	●	●
46	04.651 FILTER; RESERVOIR,BRK HYDRO BRAKE BOOSTER<7QQ> 06.600	8-97094-732-0	01	1	0211-0501		●
46	04.651 FILTER; RESERVOIR,BRK 06.600	8-97094-732-0	01	1	0211-0501				●
46	04.651 FILTER; RESERVOIR,BRK HYDRO BRAKE BOOSTER<7QQ> 06.600	8-97094-732-0	01	1	0502-		●
46	04.651 FILTER; RESERVOIR,BRK 06.600	8-97094-732-0	01	1	0502-			●	●	●
48	04.651 BOLT; OIL TANK TO BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501		●
48	04.651 BOLT; OIL TANK TO BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501				●
48	04.651 BOLT; OIL TANK TO BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
48	04.651 BOLT; OIL TANK TO BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512			●	●	●
48	04.651 BOLT; OIL TANK TO BRKT HYDRO BRAKE BOOSTER<7QQ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
48	04.651 BOLT; OIL TANK TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-			●	●	●
98	04.634 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0602					●
98	04.634 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-					●
98	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●
98	04.634 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501				●
98	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●
98	04.634 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602			●	●
98	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●
98	04.634 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-			●	●
163	04.651 COVER; OIL TANK HYDRO BRAKE BOOSTER<7QQ>	8-97164-749-1	01	1	0211-0501		●
163	04.651 COVER; OIL TANK	8-97164-749-1	01	1	0211-0501				●
163	04.651 COVER; OIL TANK HYDRO BRAKE BOOSTER<7QQ>	8-97164-749-1	01	1	0502-		●
163	04.651 COVER; OIL TANK	8-97164-749-1	01	1	0502-			●	●	●
185	04.634 BOLT; BRKT 03.405 (B) M10X30 FLANGE	0-28681-030-0	03	1	0502-0512					●
185	04.634 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	03	1	0601-					●
185	04.634 BOLT; BRKT 09.003 (A) M10X25 FLANGE	0-28691-025-0	02	1	0211-0512	●	●	●	●	●
185	04.634 BOLT; BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	02	1	0601-	●	●	●	●	●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501		●
185	04.634 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501				●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
185	04.634 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0502-0512			●	●
185	04.634 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
185	04.634 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●	●
197	04.634 BRACKET; OIL TANK (C)	8-97305-565-0	01	1	0502-					●
197	04.634 BRACKET; OIL TANK HYDRO BRAKE BOOSTER<7QQ> (A)	8-97173-342-2	01	1	0211-0501		●
197	04.634 BRACKET; OIL TANK (A)	8-97173-342-2	01	1	0211-0501				●
197	04.634 BRACKET; OIL TANK HYDRO BRAKE BOOSTER<7QQ> (A)	8-97173-342-2	01	1	0502-		●
197	04.634 BRACKET; OIL TANK (A)	8-97173-342-2	01	1	0502-			●	●
197	04.634 BRACKET; OIL TANK HYDRO BRAKE BOOSTER<7QQ> (B)	8-97181-897-0	01	1	0211-0501		●
197	04.634 BRACKET; OIL TANK (B)	8-97181-897-0	01	1	0211-0501				●
197	04.634 BRACKET; OIL TANK HYDRO BRAKE BOOSTER<7QQ> (B)	8-97333-555-2	01	1	0502-		●
197	04.634 BRACKET; OIL TANK (B)	8-97333-555-2	01	1	0502-			●	●
199	04.634 BOLT; OIL TANK BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501		●
199	04.634 BOLT; OIL TANK BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501				●
199	04.634 BOLT; OIL TANK BRKT HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
199	04.634 BOLT; OIL TANK BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512			●	●
199	04.634 BOLT; OIL TANK BRKT HYDRO BRAKE BOOSTER<7QQ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
199	04.634 BOLT; OIL TANK BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-			●	●
200	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501		●
200	04.634 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501				●
200	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
200	04.634 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602			●	●
200	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●
200	04.634 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-			●	●
200	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●
200	04.634 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501				●
200	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●
200	04.634 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602			●	●	●
200	04.634 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●
200	04.634 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-			●	●	●
203	04.634 WASHER; PL,OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0211-0501		●
203	04.634 WASHER; PL,OIL TANK 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0211-0501				●
203	04.634 WASHER; PL,OIL TANK HYDRO BRAKE BOOSTER<7QQ> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0502-0605		●
203	04.634 WASHER; PL,OIL TANK 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0502-0605			●	●	●
203	04.634 WASHER; PL,OIL TANK HYDRO BRAKE BOOSTER<7QQ> 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	0606-		●
203	04.634 WASHER; PL,OIL TANK 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	0606-			●	●	●
307	04.651 CAP; EYE JOINT HYDRO BRAKE BOOSTER<7QQ>	8-97166-154-1	01	1	0211-0307		●
307	04.651 CAP; EYE JOINT	8-97166-154-1	01	1	0211-0307				●
308	04.651 CLAMP; PUMP CAP HYDRO BRAKE BOOSTER<7QQ>	8-97166-181-1	01	1	0211-0307		●
308	04.651 CLAMP; PUMP CAP	8-97166-181-1	01	1	0211-0307				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
