3-05 — REAR WHEEL BRAKE (#34317) — 641 parça

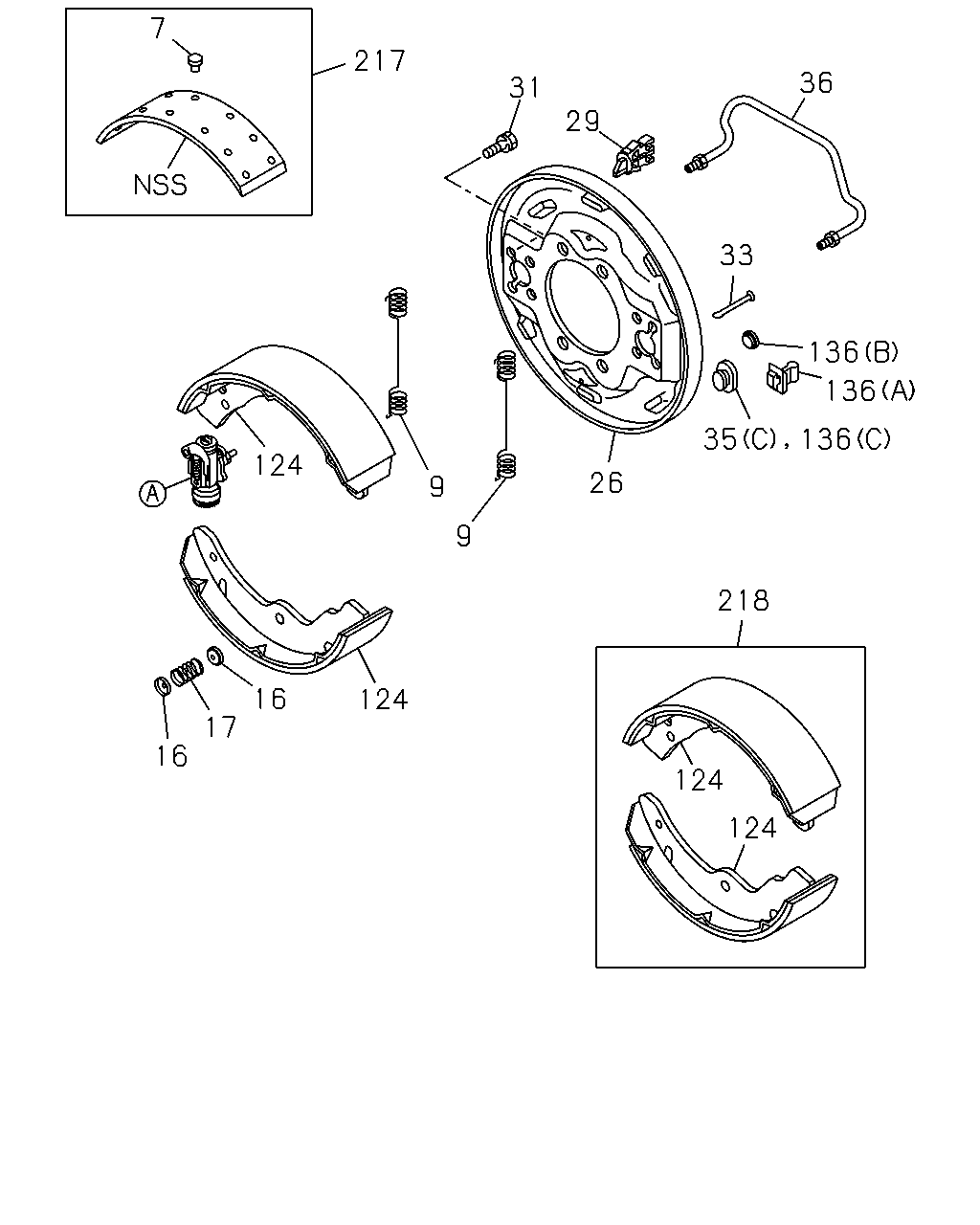

çizim 34738
7 217 36 31 29 33 136 136 35 136 124 26 9 9 218 16 124 17 16 124 124
BalonParca AdiParca NoAdetTipApplied Date A B C D E
7 05.019 RIVET; LINING,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		1-09732-029-0 96 1 0502- ●
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 96 1 0502- ●
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 40 1 0211- ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 4.0-4.5TON(RPR) 		1-09732-029-0 40 1 0211- ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		1-09732-029-0 48 1 0211-0501 ●
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 48 1 0211-0501 ● ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 7.5-8.0TON(RPY) 		1-09732-029-0 64 1 0502- ●
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 64 1 0502- ● ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		1-09732-029-0 64 1 0211-0501 ●
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 64 1 0211-0501 ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 6.5-7.0TON(RPW) 		1-09732-029-0 48 1 0502- ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 8.0-8.5TON(RPZ) 		1-09583-346-0 04 1 0502- ●
9 05.026 SPRING; RETURN,BRK SHOE 1-09583-346-0 04 1 0502- ●
9 05.026 SPRING; RETURN,BRK SHOE 5-09583-118-0 04 1 0211- ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 4.0-4.5TON(RPR) 		5-09583-118-0 04 1 0211- ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97022-087-0 04 1 0211-0501 ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97022-087-0 04 1 0211-0501 ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 6.5-7.0TON(RPW) 		8-97022-087-0 04 1 0502- ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 8.0-8.5TON(RPZ) 		8-97122-869-0 04 1 0211-0501 ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97122-869-0 04 1 0211-0501 ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 7.5-8.0TON(RPY) 		8-97122-869-0 04 1 0502- ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97122-869-0 04 1 0502- ● ●
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0211-0501 ● ● ● ● ●
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0502- ● ● ●
16 05.043 CUP; SHOE HOLDING
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		9-47165-096-0 08 1 0502- ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 0211-0501 ● ● ● ● ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 0502- ● ● ●
17 04.043 SPRING; SHOE HOLD DOWN
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 05.043 		5-09580-101-1 04 1 0502- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97372-818-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK 8-97372-818-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97372-819-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK 8-97372-819-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK 8-97078-605-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 4.0-4.5TON(RPR) 		8-97078-605-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK 8-97079-854-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 4.0-4.5TON(RPR) 		8-97079-854-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK 8-97078-606-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 4.0-4.5TON(RPR) 		8-97078-606-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK 8-97079-855-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 4.0-4.5TON(RPR) 		8-97079-855-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97223-573-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK 8-97223-573-0 01 1 0211-0501 ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97207-157-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK 8-97207-157-0 01 1 0502- ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97223-574-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK 8-97223-574-0 01 1 0211-0501 ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97207-158-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK 8-97207-158-0 01 1 0502- ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97134-731-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK 8-97134-731-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 6.5-7.0TON(RPW) 		8-97192-080-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97134-732-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK 8-97134-732-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 6.5-7.0TON(RPW) 		8-97192-081-0 01 1 0502- ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 8.0-8.5TON(RPZ) 		1-47143-008-0 02 1 0502- ●
29 04.685 CLIP; PIPE,BRK 1-47143-008-0 02 1 0502- ●
29 04.685 CLIP; PIPE,BRK 8-94128-306-0 02 1 0211- ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 4.0-4.5TON(RPR) 		8-94128-306-0 02 1 0211- ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97022-086-0 02 1 0211-0501 ●
29 04.685 CLIP; PIPE,BRK 8-97022-086-0 02 1 0211-0501 ● ● ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97022-086-0 02 1 0502- ●
29 04.685 CLIP; PIPE,BRK 8-97022-086-0 02 1 0502- ● ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97022-088-0 16 1 0502-0502 ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) M12 		1-47159-184-0 16 1 0502- ●
31 04.665 BOLT; RR WHEEL CYL
M12 		1-47159-184-0 16 1 0502- ●
31 04.665 BOLT; RR WHEEL CYL 5-09030-016-1 16 1 0211- ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		5-09030-016-1 16 1 0211- ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97081-305-0 16 1 0211-0501 ●
31 04.665 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 0211-0501 ● ● ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97081-305-0 16 1 0502-0502 ●
31 04.665 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 0502-0502 ● ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97081-305-0 16 1 0503- ●
31 04.665 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 0503- ● ●
33 05.043 PIN; SHOE HOLD DOWN 5-47162-001-0 04 1 0211- ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 4.0-4.5TON(RPR) 		5-47162-001-0 04 1 0211- ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97022-089-0 04 1 0211-0501 ●
33 05.043 PIN; SHOE HOLD DOWN 8-97022-089-0 04 1 0211-0501 ● ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 6.5-7.0TON(RPW) 		8-97022-089-0 04 1 0502- ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 8.0-8.5TON(RPZ) 		8-97122-870-0 04 1 0211-0501 ●
33 05.043 PIN; SHOE HOLD DOWN 8-97122-870-0 04 1 0211-0501 ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 7.5-8.0TON(RPY) 		8-97122-870-0 04 1 0502- ●
33 05.043 PIN; SHOE HOLD DOWN 8-97122-870-0 04 1 0502- ● ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 8.0-8.5TON(RPZ) (A) 		1-09333-033-0 04 1 0502- ●
35 05.002 GROMMET; CHECK HOLE
(A) 		1-09333-033-0 04 1 0502- ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 8.0-8.5TON(RPZ) (B) 		9-09956-640-0 04 1 0502- ●
35 05.002 GROMMET; CHECK HOLE
(B) 		9-09956-640-0 04 1 0502- ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 6.5-7.0TON(RPW) (C) 		8-97017-507-0 02 1 0502- ●
35 05.002 GROMMET; CHECK HOLE
(C) 		8-94171-287-0 02 1 0211- ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 4.0-4.5TON(RPR) (C) 		8-94171-287-0 02 1 0211- ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) (C) 		8-97017-507-0 02 1 0211-0501 ●
35 05.002 GROMMET; CHECK HOLE
(C) 		8-97017-507-0 02 1 0211-0501 ● ● ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY) (C) 		8-97017-507-0 06 1 0502- ●
35 05.002 GROMMET; CHECK HOLE
(C) 		8-97017-507-0 06 1 0502- ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97372-826-0 02 1 0502- ●
36 04.685 PIPE; OIL,RR BRK 8-97372-826-0 02 1 0502- ●
36 04.685 PIPE; OIL,RR BRK 8-94154-916-0 02 1 0211- ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 4.0-4.5TON(RPR) 		8-94154-916-0 02 1 0211- ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97192-215-0 02 1 0211-0501 ●
36 04.685 PIPE; OIL,RR BRK 8-97192-215-0 02 1 0211-0501 ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97192-215-0 02 1 0502- ●
36 04.685 PIPE; OIL,RR BRK 8-97192-215-0 02 1 0502- ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97079-847-0 02 1 0211-0501 ●
36 04.685 PIPE; OIL,RR BRK 8-97079-847-0 02 1 0211-0501 ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 8.0-8.5TON(RPZ) 		8-97373-425-0 04 1 0502- ●
124 05.017 SHOE ASM; BRK,RR 8-97373-425-0 04 1 0502- ●
124 05.017 SHOE ASM; BRK,RR 8-97287-778-0 04 1 0211- ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 4.0-4.5TON(RPR) 		8-97287-778-0 04 1 0211- ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97201-061-0 04 1 0211-0501 ●
124 05.017 SHOE ASM; BRK,RR 8-97201-061-0 04 1 0211-0501 ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 6.5-7.0TON(RPW) 		8-97201-061-0 04 1 0502- ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 8.0-8.5TON(RPZ) 		8-97188-455-0 04 1 0211-0501 ●
124 05.017 SHOE ASM; BRK,RR 8-97188-455-0 04 1 0211-0501 ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 7.5-8.0TON(RPY) 		8-97188-455-0 04 1 0502- ●
124 05.017 SHOE ASM; BRK,RR 8-97188-455-0 04 1 0502- ● ●
136 05.002 GROMMET
04.670 (B) 		1-47154-008-0 04 1 0502- ● ● ● ● ●
136 05.002 GROMMET
G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97044-742-1 04 1 0211-0302 ●
136 05.002 GROMMET
(A) 		8-97044-742-1 04 1 0211-0302 ●
136 05.002 GROMMET
(A) 		9-09756-034-0 02 1 0211-0302 ●
136 05.002 GROMMET
G.V.W. 4.0-4.5TON(RPR) (A) 		9-09756-034-0 02 1 0211-0302 ●
136 05.002 GROMMET
(A) 		9-09756-034-0 04 1 0303-0501 ●
136 05.002 GROMMET
G.V.W. 4.0-4.5TON(RPR) (A) 		9-09756-034-0 04 1 0303-0501 ●
136 05.002 GROMMET
(C) 		8-94171-287-0 04 1 0502- ●
136 05.002 GROMMET
G.V.W. 4.0-4.5TON(RPR) (C) 		8-94171-287-0 04 1 0502- ●
136 05.002 GROMMET
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (A) 		8-97044-742-1 02 1 0211-0302 ●
136 05.002 GROMMET
(A) 		8-97044-742-1 02 1 0211-0302 ● ●
136 05.002 GROMMET
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97044-742-1 04 1 0303-0501 ●
136 05.002 GROMMET
(A) 		8-97044-742-1 04 1 0303-0501 ● ● ●
136 05.002 GROMMET
G.V.W. 6.5-7.0TON(RPW) (C) 		8-97017-507-0 04 1 0502- ●
217 05.018 LINING KIT; RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		5-87832-134-0 01 1 0502- ●
217 05.018 LINING KIT; RR BRK 5-87832-134-0 01 1 0502- ●
217 05.018 LINING KIT; RR BRK 5-87831-801-0 01 1 0211- ●
217 05.018 LINING KIT; RR BRK
G.V.W. 4.0-4.5TON(RPR) 		5-87831-801-0 01 1 0211- ●
217 05.018 LINING KIT; RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		5-87831-774-0 01 1 0211-0501 ●
217 05.018 LINING KIT; RR BRK 5-87831-774-0 01 1 0211-0501 ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 6.5-7.0TON(RPW) 		5-87831-774-0 01 1 0502- ●
217 05.018 LINING KIT; RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		5-87831-692-0 01 1 0211-0501 ●
217 05.018 LINING KIT; RR BRK 5-87831-692-0 01 1 0211-0501 ●
217 05.018 LINING KIT; RR BRK
G.V.W. 7.5-8.0TON(RPY) 		5-87831-692-0 01 1 0502- ●
217 05.018 LINING KIT; RR BRK 5-87831-692-0 01 1 0502- ● ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 8.0-8.5TON(RPZ) 		5-87832-132-0 01 1 0502- ●
218 05.017 SHOE KIT; BRK,RR 5-87832-132-0 01 1 0502- ●
218 05.017 SHOE KIT; BRK,RR 5-87832-047-0 01 1 0211- ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 4.0-4.5TON(RPR) 		5-87832-047-0 01 1 0211- ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		5-87831-775-0 01 1 0211-0501 ●
218 05.017 SHOE KIT; BRK,RR 5-87831-775-0 01 1 0211-0501 ● ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 6.5-7.0TON(RPW) 		5-87831-775-0 01 1 0502- ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 8.0-8.5TON(RPZ) 		5-87831-693-0 01 1 0211-0501 ●
218 05.017 SHOE KIT; BRK,RR 5-87831-693-0 01 1 0211-0501 ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 7.5-8.0TON(RPY) 		5-87831-693-0 01 1 0502- ●
218 05.017 SHOE KIT; BRK,RR 5-87831-693-0 01 1 0502- ● ●

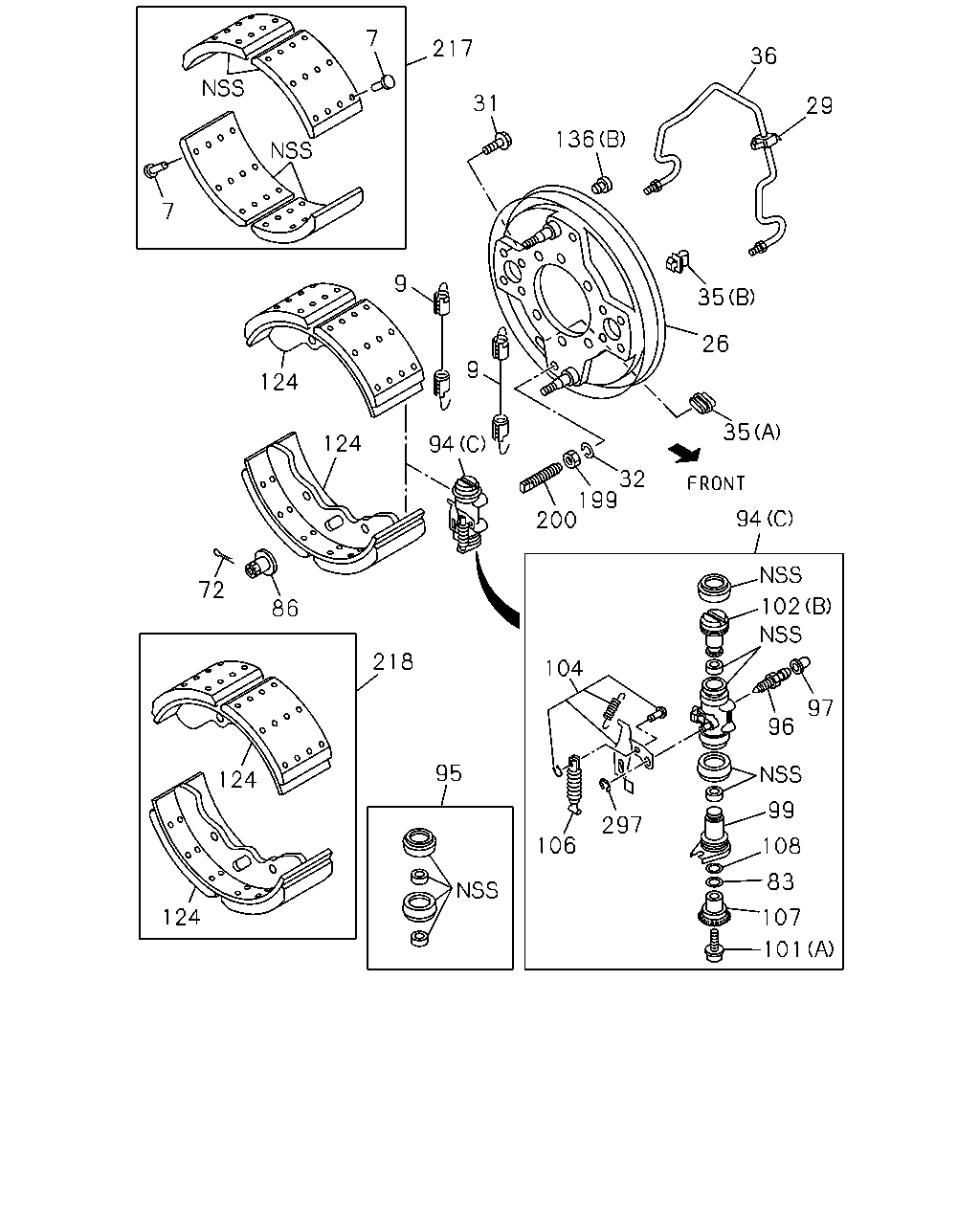

çizim 35042
94 94 102 102 97 97 96 101 104 103 96 110 99 106 108 101 101 107 95 99 102
BalonParca AdiParca NoAdetTipApplied Date A B C D E
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) (C) FRONT 		8-97372-820-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(C) FRONT 		8-97372-820-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) (C) FRONT 		8-97372-821-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(C) FRONT 		8-97372-821-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) (C) REAR 		8-97372-822-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(C) REAR 		8-97372-822-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) (C) REAR 		8-97372-823-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(C) REAR 		8-97372-823-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.5-7.0TON(RPW) (B) REAR 		8-97349-706-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.5-7.0TON(RPW) (B) FRONT 		8-97349-707-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.5-7.0TON(RPW) (B) FRONT 		8-97349-708-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) FRONT 		8-97179-350-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) (A) FRONT 		8-97179-350-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97349-689-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) (B) REAR 		8-97349-689-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) REAR 		8-97179-351-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) (A) REAR 		8-97179-351-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97349-690-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) (B) REAR 		8-97349-690-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) 		8-97179-352-0 02 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) (A) 		8-97179-352-0 02 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97349-691-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) (B) FRONT 		8-97349-691-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (A) FRONT 		8-97332-225-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) FRONT 		8-97332-225-0 01 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97349-692-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) (B) FRONT 		8-97349-692-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (A) REAR 		8-97332-226-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) REAR 		8-97332-226-0 01 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) (B) REAR 		8-97358-878-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97358-878-0 01 1 0502- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (A) 		8-97332-227-0 02 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) 		8-97332-227-0 02 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) (B) REAR 		8-97358-879-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97358-879-0 01 1 0502- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97353-570-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) 		8-97353-570-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) (B) FRONT 		8-97358-880-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97358-880-0 01 1 0502- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) (A) REAR 		8-97353-571-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) REAR 		8-97353-571-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) (B) FRONT 		8-97358-881-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97358-881-0 01 1 0502- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97353-572-0 02 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) 		8-97353-572-0 02 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.5-7.0TON(RPW) (B) REAR 		8-97349-705-0 01 1 0502- ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		5-87832-131-0 01 1 0502- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87832-131-0 01 1 0502- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-621-0 01 1 0211-0501 ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		5-87831-621-0 01 1 0211-0501 ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-622-0 01 1 0502- ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		5-87831-622-0 01 1 0502- ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		5-87832-051-0 02 1 0211-0501 ●
95 04.665 CUP SET; RR WHEEL CYL 5-87832-051-0 02 1 0211-0501 ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		5-87832-051-0 02 1 0502- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87832-051-0 02 1 0502- ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		5-87832-080-0 02 1 0211-0501 ●
95 04.665 CUP SET; RR WHEEL CYL 5-87832-080-0 02 1 0211-0501 ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW) 		5-87832-070-0 01 1 0502- ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97126-082-0 02 1 0502-0707 ●
96 04.666 SCREW; BLEEDER,RR BRK 8-97126-082-0 02 1 0502-0707 ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 7.5-8.0TON(RPY) 		8-98050-477-0 02 1 0708-0710 ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-477-0 02 1 0708-0710 ● ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-98050-477-0 02 1 0711- ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-477-0 02 1 0711- ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97126-082-0 02 1 0708-0710 ●
96 04.666 SCREW; BLEEDER,RR BRK 8-97126-082-0 02 1 0708-0710 ●
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 01 1 0211-0501 ● ● ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 02 1 0502-0707 ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		9-47615-027-0 02 1 0502-0707 ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-476-0 02 1 0708- ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-98050-476-0 02 1 0708- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 02 1 0708-0710 ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-98050-479-0 02 1 0708-0710 ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 02 1 0711- ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 0211-0304 ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 0305-0501 ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 02 1 0502-0707 ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		1-47619-009-0 02 1 0708-0710 ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 02 1 0708-0710 ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97349-732-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-732-0 02 1 0502- ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-97372-831-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL 8-97372-831-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-97372-832-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL 8-97372-832-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97349-729-0 01 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97349-730-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL 8-97078-622-0 03 1 0211-0501 ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		8-97078-622-0 03 1 0211-0501 ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-727-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		8-97349-727-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97332-229-0 03 1 0211-0501 ●
99 04.668 PISTON; RR WHEEL CYL 8-97332-229-0 03 1 0211-0501 ● ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-728-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		8-97349-728-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-97353-579-0 03 1 0211-0501 ●
99 04.668 PISTON; RR WHEEL CYL 8-97353-579-0 03 1 0211-0501 ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97349-731-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-731-0 02 1 0502- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(B) 		8-97349-747-0 04 1 0502- ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) (B) 		8-97349-747-0 04 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) (A) 		8-97349-741-0 02 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) 		8-97349-741-0 02 1 0502- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) (A) 		8-97349-742-0 02 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) 		8-97349-742-0 02 1 0502- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97372-837-0 02 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) 		8-97372-837-0 02 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97372-838-0 02 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) 		8-97372-838-0 02 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
05.110 (A) 		8-97078-623-0 04 1 0211-0501 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 05.110 (A) 		8-97078-623-0 04 1 0211-0501 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) (A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) (A) 		8-94414-702-0 04 1 0211-0501 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) 		8-94414-702-0 04 1 0211-0501 ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) (A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 0502- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) (B) 		8-97372-833-0 04 1 0502- ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97372-833-0 04 1 0502- ●
102 04.668 PISTON; REAR WHEEL CYL
(B) D=25.4 		8-94128-531-1 04 1 0211- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) (B) D=25.4 		8-94128-531-1 04 1 0211- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (B) 		8-97332-043-0 04 1 0211-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97332-043-0 04 1 0211-0501 ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) (B) 		8-97332-043-0 04 1 0502- ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97332-043-0 04 1 0502- ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) (B) 		8-97353-578-0 04 1 0211-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97353-578-0 04 1 0211-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
(A) 		8-97078-622-0 01 1 0211-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) (A) 		8-97078-622-0 01 1 0211-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW) (B) 		8-97078-045-0 04 1 0502- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (A) 		8-97332-229-0 01 1 0211-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
(A) 		8-97332-229-0 01 1 0211-0501 ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW) (A) 		8-97349-729-0 01 1 0502- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97353-579-0 01 1 0211-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
(A) 		8-97353-579-0 01 1 0211-0501 ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 0211-0501 ● ● ● ● ●
104 05.103 LEVER; ADJ 8-97349-743-0 02 1 0502- ● ● ●
104 05.103 LEVER; ADJ
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97349-743-0 02 1 0502- ●
104 05.103 LEVER; ADJ 8-97349-744-0 02 1 0502- ● ● ●
104 05.103 LEVER; ADJ
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97349-744-0 02 1 0502- ●
104 05.103 LEVER; ADJ
G.V.W. 8.0-8.5TON(RPZ) 		1-47619-133-0 02 1 0502- ●
104 05.103 LEVER; ADJ 1-47619-133-0 02 1 0502- ●
104 05.103 LEVER; ADJ
G.V.W. 8.0-8.5TON(RPZ) 		1-47619-134-0 02 1 0502- ●
104 05.103 LEVER; ADJ 1-47619-134-0 02 1 0502- ●
106 05.107 SPRING; ADJ LEVER 8-97349-745-0 04 1 0502- ● ● ●
106 05.107 SPRING; ADJ LEVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97349-745-0 04 1 0502- ●
106 05.107 SPRING; ADJ LEVER
G.V.W. 8.0-8.5TON(RPZ) 04.665 		1-09583-345-0 04 1 0502- ●
106 05.107 SPRING; ADJ LEVER
04.665 		1-09583-345-0 04 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97349-737-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 4.0-4.5TON(RPR) 		8-97349-737-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97349-739-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 4.0-4.5TON(RPR) 		8-97349-739-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 7.5-8.0TON(RPY) 04.665 		8-97358-894-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL
04.665 		8-97358-894-0 02 1 0502- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 7.5-8.0TON(RPY) 04.665 		8-97358-895-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL
04.665 		8-97358-895-0 02 1 0502- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-97372-835-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97372-835-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-97372-836-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97372-836-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97349-738-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97349-740-0 02 1 0502- ●
108 05.110 WASHER; THRUST,GEAR ADJ 8-97029-304-0 04 1 0502- ●
108 05.110 WASHER; THRUST,GEAR ADJ
G.V.W. 4.0-4.5TON(RPR) 		8-97029-304-0 04 1 0502- ●
108 05.110 WASHER; THRUST,GEAR ADJ
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97349-736-0 04 1 0502- ●
108 05.110 WASHER; THRUST,GEAR ADJ 8-97349-736-0 04 1 0502- ● ●
108 05.110 WASHER; THRUST,GEAR ADJ
G.V.W. 8.0-8.5TON(RPZ) 05.020 		1-47629-135-0 04 1 0502- ●
108 05.110 WASHER; THRUST,GEAR ADJ
05.020 		1-47629-135-0 04 1 0502- ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 0211-0501 ● ● ● ● ●
çizim 100052
7 217 36 31 29 136 7 9 35 26 9 124 35 124 94 32 199 200 94 72 102 86 218 104 97 96 95 124 99 297 106 108 83 124 107 101
BalonParca AdiParca NoAdetTipApplied Date A B C D E
7 05.019 RIVET; LINING,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		1-09732-029-0 96 1 0502- ●
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 96 1 0502- ●
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 40 1 0211- ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 4.0-4.5TON(RPR) 		1-09732-029-0 40 1 0211- ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		1-09732-029-0 48 1 0211-0501 ●
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 48 1 0211-0501 ● ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 7.5-8.0TON(RPY) 		1-09732-029-0 64 1 0502- ●
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 64 1 0502- ● ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		1-09732-029-0 64 1 0211-0501 ●
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 64 1 0211-0501 ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 6.5-7.0TON(RPW) 		1-09732-029-0 48 1 0502- ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 8.0-8.5TON(RPZ) 		1-09583-346-0 04 1 0502- ●
9 05.026 SPRING; RETURN,BRK SHOE 1-09583-346-0 04 1 0502- ●
9 05.026 SPRING; RETURN,BRK SHOE 5-09583-118-0 04 1 0211- ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 4.0-4.5TON(RPR) 		5-09583-118-0 04 1 0211- ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97022-087-0 04 1 0211-0501 ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97022-087-0 04 1 0211-0501 ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 6.5-7.0TON(RPW) 		8-97022-087-0 04 1 0502- ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 8.0-8.5TON(RPZ) 		8-97122-869-0 04 1 0211-0501 ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97122-869-0 04 1 0211-0501 ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 7.5-8.0TON(RPY) 		8-97122-869-0 04 1 0502- ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97122-869-0 04 1 0502- ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97372-818-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK 8-97372-818-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97372-819-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK 8-97372-819-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK 8-97078-605-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 4.0-4.5TON(RPR) 		8-97078-605-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK 8-97079-854-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 4.0-4.5TON(RPR) 		8-97079-854-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK 8-97078-606-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 4.0-4.5TON(RPR) 		8-97078-606-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK 8-97079-855-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 4.0-4.5TON(RPR) 		8-97079-855-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97223-573-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK 8-97223-573-0 01 1 0211-0501 ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97207-157-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK 8-97207-157-0 01 1 0502- ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97223-574-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK 8-97223-574-0 01 1 0211-0501 ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97207-158-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK 8-97207-158-0 01 1 0502- ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97134-731-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK 8-97134-731-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 6.5-7.0TON(RPW) 		8-97192-080-0 01 1 0502- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97134-732-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK 8-97134-732-0 01 1 0211-0501 ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 6.5-7.0TON(RPW) 		8-97192-081-0 01 1 0502- ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 8.0-8.5TON(RPZ) 		1-47143-008-0 02 1 0502- ●
29 04.685 CLIP; PIPE,BRK 1-47143-008-0 02 1 0502- ●
29 04.685 CLIP; PIPE,BRK 8-94128-306-0 02 1 0211- ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 4.0-4.5TON(RPR) 		8-94128-306-0 02 1 0211- ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97022-086-0 02 1 0211-0501 ●
29 04.685 CLIP; PIPE,BRK 8-97022-086-0 02 1 0211-0501 ● ● ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97022-086-0 02 1 0502- ●
29 04.685 CLIP; PIPE,BRK 8-97022-086-0 02 1 0502- ● ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97022-088-0 16 1 0502-0502 ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) M12 		1-47159-184-0 16 1 0502- ●
31 04.665 BOLT; RR WHEEL CYL
M12 		1-47159-184-0 16 1 0502- ●
31 04.665 BOLT; RR WHEEL CYL 5-09030-016-1 16 1 0211- ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		5-09030-016-1 16 1 0211- ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97081-305-0 16 1 0211-0501 ●
31 04.665 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 0211-0501 ● ● ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97081-305-0 16 1 0502-0502 ●
31 04.665 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 0502-0502 ● ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97081-305-0 16 1 0503- ●
31 04.665 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 0503- ● ●
32 05.056 WASHER; LK
G.V.W. 8.0-8.5TON(RPZ) 04.634 ID=12.2 		9-09150-512-0 04 1 0502-0603 ●
32 05.056 WASHER; LK
04.634 ID=12.2 		9-09150-512-0 04 1 0502-0603 ●
32 05.056 WASHER; LK
G.V.W. 8.0-8.5TON(RPZ) 03.634 ID=12.2 		0-91510-512-0 04 1 0604- ●
32 05.056 WASHER; LK
03.634 ID=12.2 		0-91510-512-0 04 1 0604- ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 8.0-8.5TON(RPZ) (A) 		1-09333-033-0 04 1 0502- ●
35 05.002 GROMMET; CHECK HOLE
(A) 		1-09333-033-0 04 1 0502- ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 8.0-8.5TON(RPZ) (B) 		9-09956-640-0 04 1 0502- ●
35 05.002 GROMMET; CHECK HOLE
(B) 		9-09956-640-0 04 1 0502- ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 6.5-7.0TON(RPW) (C) 		8-97017-507-0 02 1 0502- ●
35 05.002 GROMMET; CHECK HOLE
(C) 		8-94171-287-0 02 1 0211- ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 4.0-4.5TON(RPR) (C) 		8-94171-287-0 02 1 0211- ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) (C) 		8-97017-507-0 02 1 0211-0501 ●
35 05.002 GROMMET; CHECK HOLE
(C) 		8-97017-507-0 02 1 0211-0501 ● ● ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY) (C) 		8-97017-507-0 06 1 0502- ●
35 05.002 GROMMET; CHECK HOLE
(C) 		8-97017-507-0 06 1 0502- ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97372-826-0 02 1 0502- ●
36 04.685 PIPE; OIL,RR BRK 8-97372-826-0 02 1 0502- ●
36 04.685 PIPE; OIL,RR BRK 8-94154-916-0 02 1 0211- ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 4.0-4.5TON(RPR) 		8-94154-916-0 02 1 0211- ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97192-215-0 02 1 0211-0501 ●
36 04.685 PIPE; OIL,RR BRK 8-97192-215-0 02 1 0211-0501 ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97192-215-0 02 1 0502- ●
36 04.685 PIPE; OIL,RR BRK 8-97192-215-0 02 1 0502- ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97079-847-0 02 1 0211-0501 ●
36 04.685 PIPE; OIL,RR BRK 8-97079-847-0 02 1 0211-0501 ●
72 05.120 PIN; SPLIT
G.V.W. 8.0-8.5TON(RPZ) 05.020 		9-09874-040-0 04 1 0502- ●
72 05.120 PIN; SPLIT
05.020 		9-09874-040-0 04 1 0502- ●
83 05.130 WASHER; PL
G.V.W. 8.0-8.5TON(RPZ) 05.020 		1-47629-136-0 04 1 0502- ●
83 05.130 WASHER; PL
05.020 		1-47629-136-0 04 1 0502- ●
86 05.122 NUT; FLANGE
G.V.W. 8.0-8.5TON(RPZ) 05.056 		1-09440-003-0 04 1 0502- ●
86 05.122 NUT; FLANGE
05.056 		1-09440-003-0 04 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) (C) FRONT 		8-97372-820-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(C) FRONT 		8-97372-820-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) (C) FRONT 		8-97372-821-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(C) FRONT 		8-97372-821-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) (C) REAR 		8-97372-822-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(C) REAR 		8-97372-822-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) (C) REAR 		8-97372-823-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(C) REAR 		8-97372-823-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.5-7.0TON(RPW) (B) REAR 		8-97349-706-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.5-7.0TON(RPW) (B) FRONT 		8-97349-707-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.5-7.0TON(RPW) (B) FRONT 		8-97349-708-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) FRONT 		8-97179-350-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) (A) FRONT 		8-97179-350-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97349-689-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) (B) REAR 		8-97349-689-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) REAR 		8-97179-351-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) (A) REAR 		8-97179-351-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97349-690-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) (B) REAR 		8-97349-690-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) 		8-97179-352-0 02 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) (A) 		8-97179-352-0 02 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97349-691-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) (B) FRONT 		8-97349-691-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (A) FRONT 		8-97332-225-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) FRONT 		8-97332-225-0 01 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97349-692-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR) (B) FRONT 		8-97349-692-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (A) REAR 		8-97332-226-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) REAR 		8-97332-226-0 01 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) (B) REAR 		8-97358-878-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97358-878-0 01 1 0502- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (A) 		8-97332-227-0 02 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) 		8-97332-227-0 02 1 0211-0501 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) (B) REAR 		8-97358-879-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97358-879-0 01 1 0502- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97353-570-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) 		8-97353-570-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) (B) FRONT 		8-97358-880-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97358-880-0 01 1 0502- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) (A) REAR 		8-97353-571-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) REAR 		8-97353-571-0 01 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) (B) FRONT 		8-97358-881-0 01 1 0502- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97358-881-0 01 1 0502- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97353-572-0 02 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) 		8-97353-572-0 02 1 0211-0501 ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.5-7.0TON(RPW) (B) REAR 		8-97349-705-0 01 1 0502- ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		5-87832-131-0 01 1 0502- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87832-131-0 01 1 0502- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-621-0 01 1 0211-0501 ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		5-87831-621-0 01 1 0211-0501 ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-622-0 01 1 0502- ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		5-87831-622-0 01 1 0502- ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		5-87832-051-0 02 1 0211-0501 ●
95 04.665 CUP SET; RR WHEEL CYL 5-87832-051-0 02 1 0211-0501 ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		5-87832-051-0 02 1 0502- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87832-051-0 02 1 0502- ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		5-87832-080-0 02 1 0211-0501 ●
95 04.665 CUP SET; RR WHEEL CYL 5-87832-080-0 02 1 0211-0501 ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW) 		5-87832-070-0 01 1 0502- ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97126-082-0 02 1 0502-0707 ●
96 04.666 SCREW; BLEEDER,RR BRK 8-97126-082-0 02 1 0502-0707 ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 7.5-8.0TON(RPY) 		8-98050-477-0 02 1 0708-0710 ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-477-0 02 1 0708-0710 ● ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-98050-477-0 02 1 0711- ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-477-0 02 1 0711- ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97126-082-0 02 1 0708-0710 ●
96 04.666 SCREW; BLEEDER,RR BRK 8-97126-082-0 02 1 0708-0710 ●
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 01 1 0211-0501 ● ● ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 02 1 0502-0707 ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		9-47615-027-0 02 1 0502-0707 ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-476-0 02 1 0708- ●
96 04.666 SCREW; BLEEDER,RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-98050-476-0 02 1 0708- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 02 1 0708-0710 ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-98050-479-0 02 1 0708-0710 ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 02 1 0711- ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 0211-0304 ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 0305-0501 ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 02 1 0502-0707 ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		1-47619-009-0 02 1 0708-0710 ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 02 1 0708-0710 ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97349-732-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-732-0 02 1 0502- ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-97372-831-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL 8-97372-831-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-97372-832-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL 8-97372-832-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97349-729-0 01 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97349-730-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL 8-97078-622-0 03 1 0211-0501 ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		8-97078-622-0 03 1 0211-0501 ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-727-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		8-97349-727-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97332-229-0 03 1 0211-0501 ●
99 04.668 PISTON; RR WHEEL CYL 8-97332-229-0 03 1 0211-0501 ● ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-728-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		8-97349-728-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-97353-579-0 03 1 0211-0501 ●
99 04.668 PISTON; RR WHEEL CYL 8-97353-579-0 03 1 0211-0501 ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97349-731-0 02 1 0502- ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-731-0 02 1 0502- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(B) 		8-97349-747-0 04 1 0502- ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) (B) 		8-97349-747-0 04 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) (A) 		8-97349-741-0 02 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) 		8-97349-741-0 02 1 0502- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) (A) 		8-97349-742-0 02 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) 		8-97349-742-0 02 1 0502- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97372-837-0 02 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) 		8-97372-837-0 02 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97372-838-0 02 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) 		8-97372-838-0 02 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
05.110 (A) 		8-97078-623-0 04 1 0211-0501 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 05.110 (A) 		8-97078-623-0 04 1 0211-0501 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) (A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) (A) 		8-94414-702-0 04 1 0211-0501 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) 		8-94414-702-0 04 1 0211-0501 ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 0502- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) (A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 0502- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) (B) 		8-97372-833-0 04 1 0502- ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97372-833-0 04 1 0502- ●
102 04.668 PISTON; REAR WHEEL CYL
(B) D=25.4 		8-94128-531-1 04 1 0211- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) (B) D=25.4 		8-94128-531-1 04 1 0211- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (B) 		8-97332-043-0 04 1 0211-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97332-043-0 04 1 0211-0501 ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) (B) 		8-97332-043-0 04 1 0502- ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97332-043-0 04 1 0502- ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) (B) 		8-97353-578-0 04 1 0211-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97353-578-0 04 1 0211-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
(A) 		8-97078-622-0 01 1 0211-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) (A) 		8-97078-622-0 01 1 0211-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW) (B) 		8-97078-045-0 04 1 0502- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (A) 		8-97332-229-0 01 1 0211-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
(A) 		8-97332-229-0 01 1 0211-0501 ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW) (A) 		8-97349-729-0 01 1 0502- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97353-579-0 01 1 0211-0501 ●
102 04.668 PISTON; REAR WHEEL CYL
(A) 		8-97353-579-0 01 1 0211-0501 ●
104 05.103 LEVER; ADJ 8-97349-743-0 02 1 0502- ● ● ●
104 05.103 LEVER; ADJ
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97349-743-0 02 1 0502- ●
104 05.103 LEVER; ADJ 8-97349-744-0 02 1 0502- ● ● ●
104 05.103 LEVER; ADJ
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97349-744-0 02 1 0502- ●
104 05.103 LEVER; ADJ
G.V.W. 8.0-8.5TON(RPZ) 		1-47619-133-0 02 1 0502- ●
104 05.103 LEVER; ADJ 1-47619-133-0 02 1 0502- ●
104 05.103 LEVER; ADJ
G.V.W. 8.0-8.5TON(RPZ) 		1-47619-134-0 02 1 0502- ●
104 05.103 LEVER; ADJ 1-47619-134-0 02 1 0502- ●
106 05.107 SPRING; ADJ LEVER 8-97349-745-0 04 1 0502- ● ● ●
106 05.107 SPRING; ADJ LEVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97349-745-0 04 1 0502- ●
106 05.107 SPRING; ADJ LEVER
G.V.W. 8.0-8.5TON(RPZ) 04.665 		1-09583-345-0 04 1 0502- ●
106 05.107 SPRING; ADJ LEVER
04.665 		1-09583-345-0 04 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97349-737-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 4.0-4.5TON(RPR) 		8-97349-737-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97349-739-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 4.0-4.5TON(RPR) 		8-97349-739-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 7.5-8.0TON(RPY) 04.665 		8-97358-894-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL
04.665 		8-97358-894-0 02 1 0502- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 7.5-8.0TON(RPY) 04.665 		8-97358-895-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL
04.665 		8-97358-895-0 02 1 0502- ● ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-97372-835-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97372-835-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-97372-836-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97372-836-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97349-738-0 02 1 0502- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97349-740-0 02 1 0502- ●
108 05.110 WASHER; THRUST,GEAR ADJ 8-97029-304-0 04 1 0502- ●
108 05.110 WASHER; THRUST,GEAR ADJ
G.V.W. 4.0-4.5TON(RPR) 		8-97029-304-0 04 1 0502- ●
108 05.110 WASHER; THRUST,GEAR ADJ
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97349-736-0 04 1 0502- ●
108 05.110 WASHER; THRUST,GEAR ADJ 8-97349-736-0 04 1 0502- ● ●
108 05.110 WASHER; THRUST,GEAR ADJ
G.V.W. 8.0-8.5TON(RPZ) 05.020 		1-47629-135-0 04 1 0502- ●
108 05.110 WASHER; THRUST,GEAR ADJ
05.020 		1-47629-135-0 04 1 0502- ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 8.0-8.5TON(RPZ) 		8-97373-425-0 04 1 0502- ●
124 05.017 SHOE ASM; BRK,RR 8-97373-425-0 04 1 0502- ●
124 05.017 SHOE ASM; BRK,RR 8-97287-778-0 04 1 0211- ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 4.0-4.5TON(RPR) 		8-97287-778-0 04 1 0211- ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97201-061-0 04 1 0211-0501 ●
124 05.017 SHOE ASM; BRK,RR 8-97201-061-0 04 1 0211-0501 ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 6.5-7.0TON(RPW) 		8-97201-061-0 04 1 0502- ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 8.0-8.5TON(RPZ) 		8-97188-455-0 04 1 0211-0501 ●
124 05.017 SHOE ASM; BRK,RR 8-97188-455-0 04 1 0211-0501 ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 7.5-8.0TON(RPY) 		8-97188-455-0 04 1 0502- ●
124 05.017 SHOE ASM; BRK,RR 8-97188-455-0 04 1 0502- ● ●
136 05.002 GROMMET
04.670 (B) 		1-47154-008-0 04 1 0502- ● ● ● ● ●
136 05.002 GROMMET
G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97044-742-1 04 1 0211-0302 ●
136 05.002 GROMMET
(A) 		8-97044-742-1 04 1 0211-0302 ●
136 05.002 GROMMET
(A) 		9-09756-034-0 02 1 0211-0302 ●
136 05.002 GROMMET
G.V.W. 4.0-4.5TON(RPR) (A) 		9-09756-034-0 02 1 0211-0302 ●
136 05.002 GROMMET
(A) 		9-09756-034-0 04 1 0303-0501 ●
136 05.002 GROMMET
G.V.W. 4.0-4.5TON(RPR) (A) 		9-09756-034-0 04 1 0303-0501 ●
136 05.002 GROMMET
(C) 		8-94171-287-0 04 1 0502- ●
136 05.002 GROMMET
G.V.W. 4.0-4.5TON(RPR) (C) 		8-94171-287-0 04 1 0502- ●
136 05.002 GROMMET
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (A) 		8-97044-742-1 02 1 0211-0302 ●
136 05.002 GROMMET
(A) 		8-97044-742-1 02 1 0211-0302 ● ●
136 05.002 GROMMET
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97044-742-1 04 1 0303-0501 ●
136 05.002 GROMMET
(A) 		8-97044-742-1 04 1 0303-0501 ● ● ●
136 05.002 GROMMET
G.V.W. 6.5-7.0TON(RPW) (C) 		8-97017-507-0 04 1 0502- ●
199 05.056 NUT
G.V.W. 8.0-8.5TON(RPZ) 		1-09400-100-0 04 1 0502- ●
199 05.056 NUT 1-09400-100-0 04 1 0502- ●
200 05.056 BOLT
G.V.W. 8.0-8.5TON(RPZ) 		1-47162-017-0 04 1 0502-0904 ●
200 05.056 BOLT 1-47162-017-0 04 1 0502-0904 ●
200 05.056 BOLT
G.V.W. 8.0-8.5TON(RPZ) 		1-47162-050-0 04 1 0905- ●
200 05.056 BOLT 1-47162-050-0 04 1 0905- ●
217 05.018 LINING KIT; RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		5-87832-134-0 01 1 0502- ●
217 05.018 LINING KIT; RR BRK 5-87832-134-0 01 1 0502- ●
217 05.018 LINING KIT; RR BRK 5-87831-801-0 01 1 0211- ●
217 05.018 LINING KIT; RR BRK
G.V.W. 4.0-4.5TON(RPR) 		5-87831-801-0 01 1 0211- ●
217 05.018 LINING KIT; RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		5-87831-774-0 01 1 0211-0501 ●
217 05.018 LINING KIT; RR BRK 5-87831-774-0 01 1 0211-0501 ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 6.5-7.0TON(RPW) 		5-87831-774-0 01 1 0502- ●
217 05.018 LINING KIT; RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		5-87831-692-0 01 1 0211-0501 ●
217 05.018 LINING KIT; RR BRK 5-87831-692-0 01 1 0211-0501 ●
217 05.018 LINING KIT; RR BRK
G.V.W. 7.5-8.0TON(RPY) 		5-87831-692-0 01 1 0502- ●
217 05.018 LINING KIT; RR BRK 5-87831-692-0 01 1 0502- ● ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 8.0-8.5TON(RPZ) 		5-87832-132-0 01 1 0502- ●
218 05.017 SHOE KIT; BRK,RR 5-87832-132-0 01 1 0502- ●
218 05.017 SHOE KIT; BRK,RR 5-87832-047-0 01 1 0211- ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 4.0-4.5TON(RPR) 		5-87832-047-0 01 1 0211- ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		5-87831-775-0 01 1 0211-0501 ●
218 05.017 SHOE KIT; BRK,RR 5-87831-775-0 01 1 0211-0501 ● ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 6.5-7.0TON(RPW) 		5-87831-775-0 01 1 0502- ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 8.0-8.5TON(RPZ) 		5-87831-693-0 01 1 0211-0501 ●
218 05.017 SHOE KIT; BRK,RR 5-87831-693-0 01 1 0211-0501 ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 7.5-8.0TON(RPY) 		5-87831-693-0 01 1 0502- ●
218 05.017 SHOE KIT; BRK,RR 5-87831-693-0 01 1 0502- ● ●
297 05.125 RING; SNAP
G.V.W. 8.0-8.5TON(RPZ) 04.665 		1-47629-263-0 04 1 0502- ●
297 05.125 RING; SNAP
04.665 		1-47629-263-0 04 1 0502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
