3-02 — FRONT DISC BRAKE CALIPER (#34316) — 174 parça

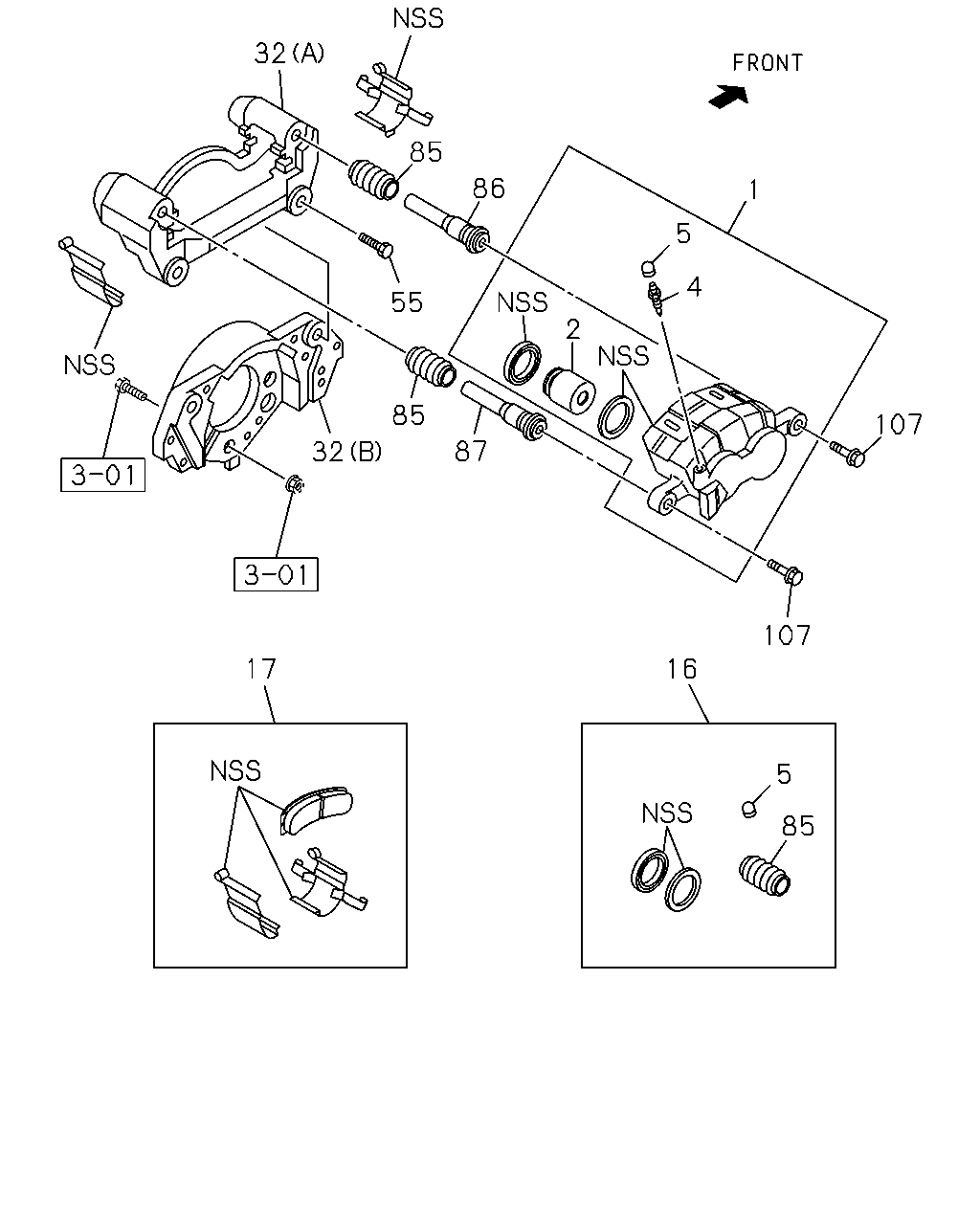

çizim 34702
32 85 86 1 5 4 55 2 85 107 87 32 107 17 16 5 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.665 CALIPER; FRT DISC BRK 8-97365-907-0 01 1 0502- ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-97365-907-0 01 1 0502- ●
1 04.665 CALIPER; FRT DISC BRK 8-97365-908-0 01 1 0502- ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-97365-908-0 01 1 0502- ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97365-909-0 01 1 0502- ●
1 04.665 CALIPER; FRT DISC BRK 8-97365-909-0 01 1 0502- ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97365-910-0 01 1 0502- ●
1 04.665 CALIPER; FRT DISC BRK 8-97365-910-0 01 1 0502- ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97168-587-1 01 1 0502-0502 ●
1 04.665 CALIPER; FRT DISC BRK 8-97168-587-1 01 1 0502-0502 ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97368-919-0 01 1 0503- ●
1 04.665 CALIPER; FRT DISC BRK 8-97368-919-0 01 1 0503- ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97168-588-1 01 1 0502-0502 ●
1 04.665 CALIPER; FRT DISC BRK 8-97168-588-1 01 1 0502-0502 ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97368-920-0 01 1 0503- ●
1 04.665 CALIPER; FRT DISC BRK 8-97368-920-0 01 1 0503- ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97168-593-0 04 1 0502-0502 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97168-593-0 04 1 0502-0502 ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 0502- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-97365-269-0 04 1 0502- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 8.0-8.5TON(RPZ) 		8-97365-279-0 04 1 0502-0502 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-279-0 04 1 0502-0502 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97365-279-0 04 1 0503- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-279-0 04 1 0503- ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0502- ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0502- ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97168-636-0 01 1 0502-0502 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-97168-636-0 01 1 0502-0502 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98120-357-0 01 1 0502- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-98120-357-0 01 1 0502- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 8.0-8.5TON(RPZ) 		8-98120-358-0 01 1 0502-0502 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98120-358-0 01 1 0502-0502 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-98120-358-0 01 1 0503- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98120-358-0 01 1 0503- ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97329-266-0 01 1 0502- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-97329-266-0 01 1 0502- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 8.0-8.5TON(RPZ) 		8-97211-691-0 01 1 0502- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97211-691-0 01 1 0502- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97168-634-0 01 1 0502-0502 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97168-634-0 01 1 0502-0502 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97378-446-0 01 1 0503- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97378-446-0 01 1 0503- ● ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-271-0 02 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) (A) 		8-97365-271-0 02 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97168-583-2 01 1 0502- ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) (B) 		8-97168-583-2 01 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97168-584-2 01 1 0502- ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) (B) 		8-97168-584-2 01 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 8.0-8.5TON(RPZ) (B) 		8-97182-999-0 01 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97182-999-0 01 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 8.0-8.5TON(RPZ) (B) 		8-97183-000-0 01 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97183-000-0 01 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97365-284-0 02 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-284-0 02 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) (A) 		8-97168-599-1 02 1 0502-0502 ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97168-599-1 02 1 0502-0502 ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) (A) 		8-97365-281-0 02 1 0503- ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-281-0 02 1 0503- ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK 8-97168-639-0 04 1 0502-0611 ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97168-639-0 04 1 0502-0611 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE 		8-97359-816-0 04 1 0612- ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) M16X31 FLANGE 		8-97359-816-0 04 1 0612- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97207-106-0 04 1 0502-0611 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK 8-97207-106-0 04 1 0502-0611 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
G.V.W. 8.0-8.5TON(RPZ) M16X40 FLANGE 		8-97359-817-0 04 1 0612- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X40 FLANGE 		8-97359-817-0 04 1 0612- ●
85 04.665 BOOT; PIN
G.V.W. 7.5-8.0TON(RPY) 		8-97168-612-0 04 1 0502-0502 ●
85 04.665 BOOT; PIN 8-97168-612-0 04 1 0502-0502 ● ●
85 04.665 BOOT; PIN 8-97365-265-0 04 1 0502-0502 ● ●
85 04.665 BOOT; PIN
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 8.0-8.5TON(RPZ) 		8-97365-265-0 04 1 0502-0502 ●
85 04.665 BOOT; PIN 8-97365-265-0 04 1 0503-0901 ● ● ● ● ●
85 04.665 BOOT; PIN 8-98120-354-0 04 1 0902- ● ● ● ● ●
86 04.665 PIN; GUIDE
G.V.W. 7.5-8.0TON(RPY) 		8-97168-609-1 02 1 0502-0502 ●
86 04.665 PIN; GUIDE 8-97168-609-1 02 1 0502-0502 ● ●
86 04.665 PIN; GUIDE 8-97365-275-0 02 1 0502-0502 ● ●
86 04.665 PIN; GUIDE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 8.0-8.5TON(RPZ) 		8-97365-275-0 02 1 0502-0502 ●
86 04.665 PIN; GUIDE 8-97365-275-0 02 1 0503-0610 ● ● ● ● ●
86 04.665 PIN; GUIDE 8-98047-529-0 02 1 0611- ● ● ● ● ●
87 04.665 PIN; LOCK
G.V.W. 7.5-8.0TON(RPY) 		8-97168-611-1 02 1 0502-0502 ●
87 04.665 PIN; LOCK 8-97168-611-1 02 1 0502-0502 ● ●
87 04.665 PIN; LOCK 8-97365-276-0 02 1 0502-0502 ● ●
87 04.665 PIN; LOCK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 8.0-8.5TON(RPZ) 		8-97365-276-0 02 1 0502-0502 ●
87 04.665 PIN; LOCK 8-97365-276-0 02 1 0503-0610 ● ● ● ● ●
87 04.665 PIN; LOCK 8-98047-531-0 02 1 0611- ● ● ● ● ●
107 04.665 BOLT; PIN 8-97365-264-0 04 1 0502-0502 ● ●
107 04.665 BOLT; PIN
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 8.0-8.5TON(RPZ) 		8-97365-264-0 04 1 0502-0502 ●
107 04.665 BOLT; PIN 8-97365-264-0 04 1 0503- ● ● ● ● ●

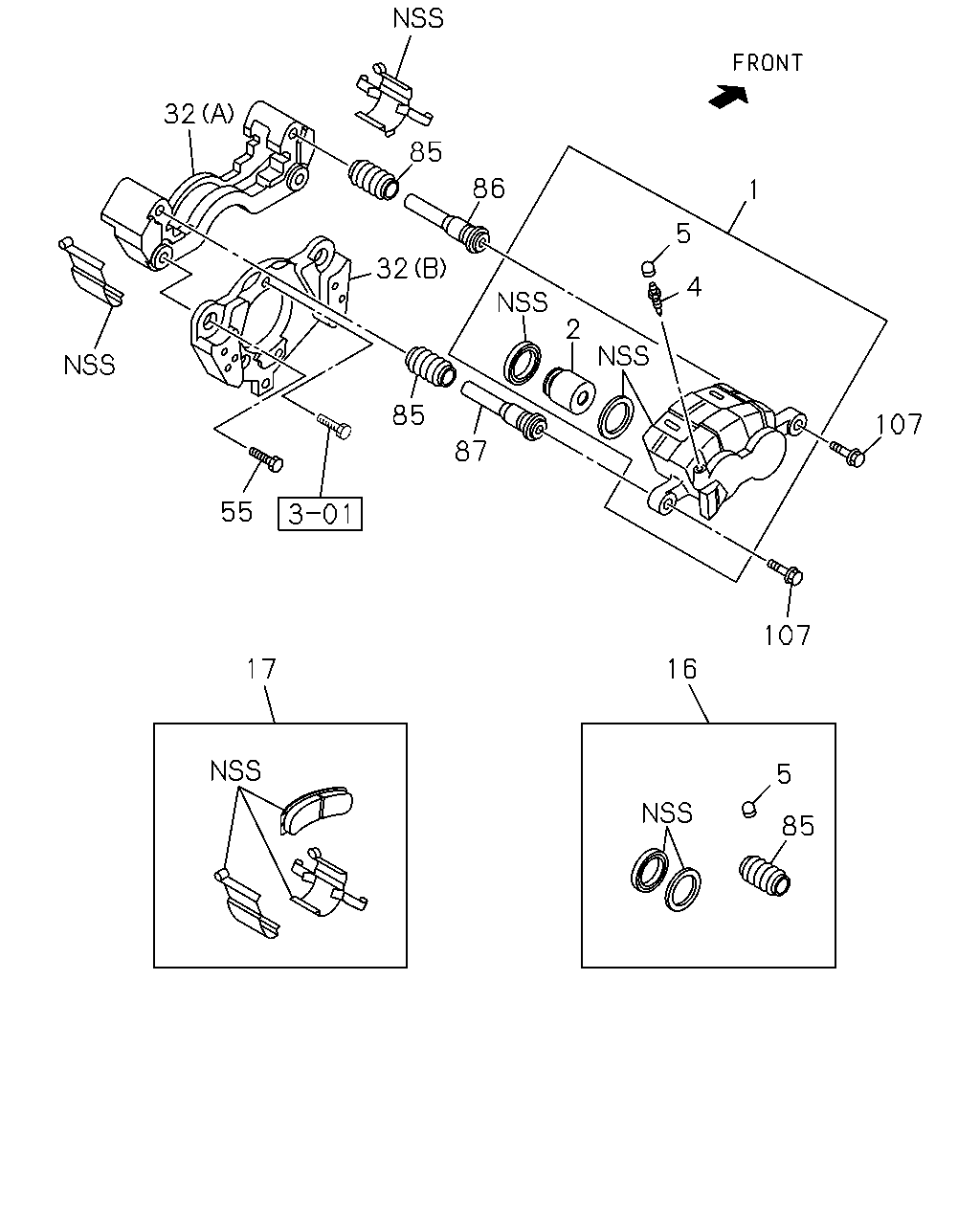

çizim 35008
32 85 86 1 5 32 4 2 85 107 87 55 107 17 16 5 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.665 CALIPER; FRT DISC BRK 8-97365-907-0 01 1 0502- ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-97365-907-0 01 1 0502- ●
1 04.665 CALIPER; FRT DISC BRK 8-97365-908-0 01 1 0502- ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-97365-908-0 01 1 0502- ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97365-909-0 01 1 0502- ●
1 04.665 CALIPER; FRT DISC BRK 8-97365-909-0 01 1 0502- ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97365-910-0 01 1 0502- ●
1 04.665 CALIPER; FRT DISC BRK 8-97365-910-0 01 1 0502- ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97168-587-1 01 1 0502-0502 ●
1 04.665 CALIPER; FRT DISC BRK 8-97168-587-1 01 1 0502-0502 ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97368-919-0 01 1 0503- ●
1 04.665 CALIPER; FRT DISC BRK 8-97368-919-0 01 1 0503- ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97168-588-1 01 1 0502-0502 ●
1 04.665 CALIPER; FRT DISC BRK 8-97168-588-1 01 1 0502-0502 ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97368-920-0 01 1 0503- ●
1 04.665 CALIPER; FRT DISC BRK 8-97368-920-0 01 1 0503- ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97168-593-0 04 1 0502-0502 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97168-593-0 04 1 0502-0502 ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 0502- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-97365-269-0 04 1 0502- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 8.0-8.5TON(RPZ) 		8-97365-279-0 04 1 0502-0502 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-279-0 04 1 0502-0502 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97365-279-0 04 1 0503- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-279-0 04 1 0503- ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0502- ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0502- ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97168-636-0 01 1 0502-0502 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-97168-636-0 01 1 0502-0502 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98120-357-0 01 1 0502- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-98120-357-0 01 1 0502- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 8.0-8.5TON(RPZ) 		8-98120-358-0 01 1 0502-0502 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98120-358-0 01 1 0502-0502 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-98120-358-0 01 1 0503- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98120-358-0 01 1 0503- ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97329-266-0 01 1 0502- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) 		8-97329-266-0 01 1 0502- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 8.0-8.5TON(RPZ) 		8-97211-691-0 01 1 0502- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97211-691-0 01 1 0502- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97168-634-0 01 1 0502-0502 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97168-634-0 01 1 0502-0502 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97378-446-0 01 1 0503- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97378-446-0 01 1 0503- ● ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-271-0 02 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW) (A) 		8-97365-271-0 02 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97168-583-2 01 1 0502- ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) (B) 		8-97168-583-2 01 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97168-584-2 01 1 0502- ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) (B) 		8-97168-584-2 01 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 8.0-8.5TON(RPZ) (B) 		8-97182-999-0 01 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97182-999-0 01 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 8.0-8.5TON(RPZ) (B) 		8-97183-000-0 01 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97183-000-0 01 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97365-284-0 02 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-284-0 02 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) (A) 		8-97168-599-1 02 1 0502-0502 ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97168-599-1 02 1 0502-0502 ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) (A) 		8-97365-281-0 02 1 0503- ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-281-0 02 1 0503- ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK 8-97168-639-0 04 1 0502-0611 ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97168-639-0 04 1 0502-0611 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE 		8-97359-816-0 04 1 0612- ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) M16X31 FLANGE 		8-97359-816-0 04 1 0612- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97207-106-0 04 1 0502-0611 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK 8-97207-106-0 04 1 0502-0611 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
G.V.W. 8.0-8.5TON(RPZ) M16X40 FLANGE 		8-97359-817-0 04 1 0612- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X40 FLANGE 		8-97359-817-0 04 1 0612- ●
85 04.665 BOOT; PIN
G.V.W. 7.5-8.0TON(RPY) 		8-97168-612-0 04 1 0502-0502 ●
85 04.665 BOOT; PIN 8-97168-612-0 04 1 0502-0502 ● ●
85 04.665 BOOT; PIN 8-97365-265-0 04 1 0502-0502 ● ●
85 04.665 BOOT; PIN
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 8.0-8.5TON(RPZ) 		8-97365-265-0 04 1 0502-0502 ●
85 04.665 BOOT; PIN 8-97365-265-0 04 1 0503-0901 ● ● ● ● ●
85 04.665 BOOT; PIN 8-98120-354-0 04 1 0902- ● ● ● ● ●
86 04.665 PIN; GUIDE
G.V.W. 7.5-8.0TON(RPY) 		8-97168-609-1 02 1 0502-0502 ●
86 04.665 PIN; GUIDE 8-97168-609-1 02 1 0502-0502 ● ●
86 04.665 PIN; GUIDE 8-97365-275-0 02 1 0502-0502 ● ●
86 04.665 PIN; GUIDE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 8.0-8.5TON(RPZ) 		8-97365-275-0 02 1 0502-0502 ●
86 04.665 PIN; GUIDE 8-97365-275-0 02 1 0503-0610 ● ● ● ● ●
86 04.665 PIN; GUIDE 8-98047-529-0 02 1 0611- ● ● ● ● ●
87 04.665 PIN; LOCK
G.V.W. 7.5-8.0TON(RPY) 		8-97168-611-1 02 1 0502-0502 ●
87 04.665 PIN; LOCK 8-97168-611-1 02 1 0502-0502 ● ●
87 04.665 PIN; LOCK 8-97365-276-0 02 1 0502-0502 ● ●
87 04.665 PIN; LOCK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 8.0-8.5TON(RPZ) 		8-97365-276-0 02 1 0502-0502 ●
87 04.665 PIN; LOCK 8-97365-276-0 02 1 0503-0610 ● ● ● ● ●
87 04.665 PIN; LOCK 8-98047-531-0 02 1 0611- ● ● ● ● ●
107 04.665 BOLT; PIN 8-97365-264-0 04 1 0502-0502 ● ●
107 04.665 BOLT; PIN
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 8.0-8.5TON(RPZ) 		8-97365-264-0 04 1 0502-0502 ●
107 04.665 BOLT; PIN 8-97365-264-0 04 1 0503- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
