3-01 — FRONT WHEEL BRAKE (#34315) — 184 parça

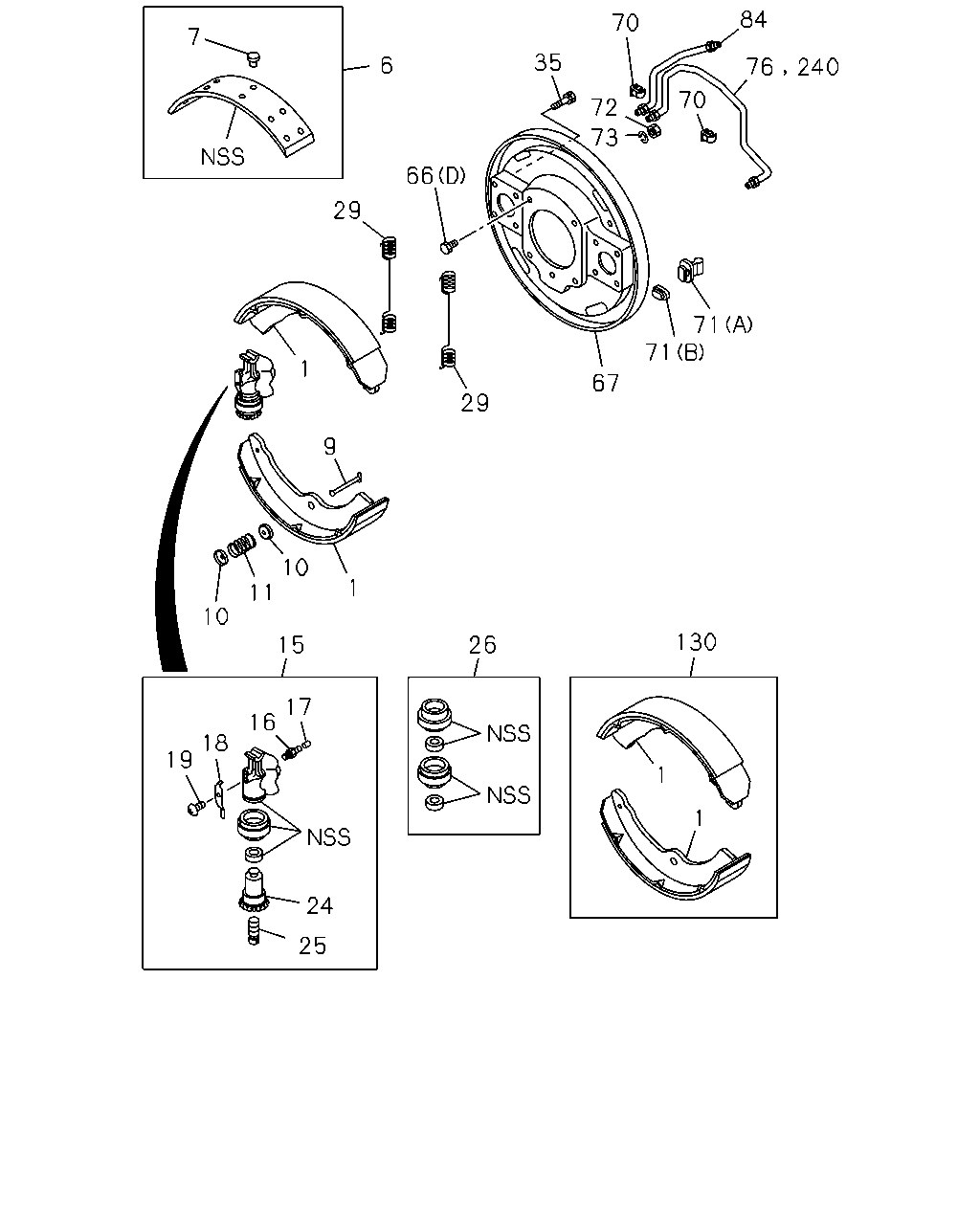

çizim 36035
84 70 7 35 6 70 72 73 66 29 71 71 1 67 29 9 10 1 11 10 130 15 26 17 16 18 19 1 1 24 25 76 240
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 05.017 SHOE; BRK,FRT 8-97287-778-0 04 1 0211-0501 ●
1 05.017 SHOE; BRK,FRT
G.V.W. 4.0-4.5TON(RPR) 		8-97287-778-0 04 1 0211-0501 ●
1 05.017 SHOE; BRK,FRT
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97201-061-0 04 1 0211-0501 ●
1 05.017 SHOE; BRK,FRT 8-97201-061-0 04 1 0211-0501 ● ●
1 05.017 SHOE; BRK,FRT
G.V.W. 8.0-8.5TON(RPZ) 		8-97188-455-0 04 1 0211-0501 ●
1 05.017 SHOE; BRK,FRT 8-97188-455-0 04 1 0211-0501 ●
6 05.018 LINING KIT; FRT BRK 5-87831-801-0 01 1 0211-0501 ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 4.0-4.5TON(RPR) 		5-87831-801-0 01 1 0211-0501 ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		5-87831-774-0 01 1 0211-0501 ●
6 05.018 LINING KIT; FRT BRK 5-87831-774-0 01 1 0211-0501 ● ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 8.0-8.5TON(RPZ) 		5-87831-692-0 01 1 0211-0501 ●
6 05.018 LINING KIT; FRT BRK 5-87831-692-0 01 1 0211-0501 ●
7 05.019 RIVET; LINING,FRT BRK 1-09732-029-0 40 1 0211-0501 ●
7 05.019 RIVET; LINING,FRT BRK
G.V.W. 4.0-4.5TON(RPR) 		1-09732-029-0 40 1 0211-0501 ●
7 05.019 RIVET; LINING,FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		1-09732-029-0 48 1 0211-0501 ●
7 05.019 RIVET; LINING,FRT BRK 1-09732-029-0 48 1 0211-0501 ● ●
7 05.019 RIVET; LINING,FRT BRK
G.V.W. 8.0-8.5TON(RPZ) 		1-09732-029-0 64 1 0211-0501 ●
7 05.019 RIVET; LINING,FRT BRK 1-09732-029-0 64 1 0211-0501 ●
9 05.026 PIN; SHOE HOLDER
05.043 		5-47162-001-0 04 1 0211-0501 ●
9 05.026 PIN; SHOE HOLDER
G.V.W. 4.0-4.5TON(RPR) 05.043 		5-47162-001-0 04 1 0211-0501 ●
9 05.026 PIN; SHOE HOLDER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 05.043 		8-97022-089-0 04 1 0211-0501 ●
9 05.026 PIN; SHOE HOLDER
05.043 		8-97022-089-0 04 1 0211-0501 ● ●
9 05.026 PIN; SHOE HOLDER
G.V.W. 8.0-8.5TON(RPZ) 05.043 		8-97122-870-0 04 1 0211-0501 ●
9 05.026 PIN; SHOE HOLDER
05.043 		8-97122-870-0 04 1 0211-0501 ●
10 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0211-0501 ● ● ● ● ●
11 05.027 SPRING; SHOE HOLDING
05.043 		5-09580-101-1 04 1 0211-0501 ● ● ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97170-950-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 4.0-4.5TON(RPR) FRONT 		8-97170-950-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97170-951-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 4.0-4.5TON(RPR) FRONT 		8-97170-951-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-97170-952-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 4.0-4.5TON(RPR) REAR 		8-97170-952-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-97170-953-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 4.0-4.5TON(RPR) REAR 		8-97170-953-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) REAR 		8-97139-818-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-97139-818-0 01 1 0211-0501 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) REAR 		8-97139-819-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-97139-819-0 01 1 0211-0501 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRONT 		8-97139-820-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97139-820-0 01 1 0211-0501 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRONT 		8-97139-821-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97139-821-0 01 1 0211-0501 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> FRONT 		8-97353-573-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97353-573-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> FRONT 		8-97353-574-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97353-574-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> REAR 		8-97353-575-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-97353-575-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> REAR 		8-97353-576-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-97353-576-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO BRAKE BOOSTER<7QQ> REAR 		8-97144-795-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO BRAKE BOOSTER<7QQ> REAR 		8-97144-796-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO BRAKE BOOSTER<7QQ> FRONT 		8-97144-797-0 01 1 0211-0501 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO BRAKE BOOSTER<7QQ> FRONT 		8-97144-798-0 01 1 0211-0501 ●
16 04.666 SCREW; BLEEDER,FRT BRK 9-47615-027-0 02 1 0211-0501 ● ● ● ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL 1-47619-009-0 02 1 0211-0501 ● ● ● ● ●
18 05.107 STOPPER; ADJ SCREW 8-94128-486-0 04 1 0211-0501 ● ● ● ● ●
19 05.107 SCREW; STOPPER SETTING 8-94128-727-0 04 1 0211-0501 ● ● ● ● ●
24 04.668 PISTON; FRT WHEEL CYL 8-97078-621-0 04 1 0211-0501 ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		8-97078-621-0 04 1 0211-0501 ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-94414-700-1 04 1 0211-0501 ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-94414-700-1 04 1 0211-0501 ●
24 04.668 PISTON; FRT WHEEL CYL 8-94414-700-1 04 1 0211-0501 ● ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97353-579-0 04 1 0211-0501 ●
24 04.668 PISTON; FRT WHEEL CYL 8-97353-579-0 04 1 0211-0501 ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL 8-97078-623-0 04 1 0211-0501 ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		8-97078-623-0 04 1 0211-0501 ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 04.666 		8-94414-702-0 04 1 0211-0501 ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
04.666 		8-94414-702-0 04 1 0211-0501 ● ● ●
26 04.667 CUP SET; FRT WHEEL CYL 5-87831-602-0 01 1 0211-0501 ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		5-87831-602-0 01 1 0211-0501 ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 04.665 		5-87831-598-0 01 1 0211-0501 ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.665 		5-87831-598-0 01 1 0211-0501 ●
26 04.667 CUP SET; FRT WHEEL CYL
04.665 		5-87831-598-0 01 1 0211-0501 ● ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 04.665 		5-87832-080-0 01 1 0211-0501 ●
26 04.667 CUP SET; FRT WHEEL CYL
04.665 		5-87832-080-0 01 1 0211-0501 ●
29 05.026 SPRING; RETURN,FRT BRK SHOE 5-09583-118-0 04 1 0211-0501 ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
G.V.W. 4.0-4.5TON(RPR) 		5-09583-118-0 04 1 0211-0501 ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97022-087-0 04 1 0211-0501 ●
29 05.026 SPRING; RETURN,FRT BRK SHOE 8-97022-087-0 04 1 0211-0501 ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
G.V.W. 8.0-8.5TON(RPZ) 		8-97122-869-0 04 1 0211-0501 ●
29 05.026 SPRING; RETURN,FRT BRK SHOE 8-97122-869-0 04 1 0211-0501 ●
35 04.665 BOLT; FRT WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97022-088-0 16 1 0211-0501 ●
35 04.665 BOLT; FRT WHEEL CYL 8-97022-088-0 16 1 0211-0501 ● ●
35 04.665 BOLT; FRT WHEEL CYL 5-09030-016-1 16 1 0211-0501 ●
35 04.665 BOLT; FRT WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		5-09030-016-1 16 1 0211-0501 ●
35 04.665 BOLT; FRT WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) 		8-97081-305-0 16 1 0211-0501 ●
35 04.665 BOLT; FRT WHEEL CYL 8-97081-305-0 16 1 0211-0501 ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 8.0-8.5TON(RPZ) (C) M14X43 		8-97168-638-1 08 1 0502- ●
66 05.815 BOLT; OIL SHIELD COVER
(C) M14X43 		8-97168-638-1 08 1 0502- ●
66 05.815 BOLT; OIL SHIELD COVER
(D) M12X33 		9-09600-043-3 08 1 0211-0501 ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (D) M12X33 		9-09600-043-3 08 1 0211-0501 ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97168-637-0 02 1 0502-0611 ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) (A) M14X23.5 		8-97168-637-0 02 1 0502-0611 ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 0612- ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) (A) M14X23.5 		8-97359-814-0 02 1 0612- ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 8.0-8.5TON(RPZ) 05.002 (D) M14X35 		8-97122-853-2 08 1 0211-0501 ●
66 05.815 BOLT; OIL SHIELD COVER
05.002 (D) M14X35 		8-97122-853-2 08 1 0211-0501 ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0502- ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) (B) M14X43 		8-97168-638-1 06 1 0502- ●
67 05.001 PLATE; BACK,FRT BRK 8-97302-588-0 01 1 0211-0501 ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 4.0-4.5TON(RPR) 		8-97302-588-0 01 1 0211-0501 ●
67 05.001 PLATE; BACK,FRT BRK 8-97302-589-0 01 1 0211-0501 ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 4.0-4.5TON(RPR) 		8-97302-589-0 01 1 0211-0501 ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97302-596-0 01 1 0211-0501 ●
67 05.001 PLATE; BACK,FRT BRK 8-97302-596-0 01 1 0211-0501 ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97302-597-0 01 1 0211-0501 ●
67 05.001 PLATE; BACK,FRT BRK 8-97302-597-0 01 1 0211-0501 ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97160-410-0 01 1 0211-0501 ●
67 05.001 PLATE; BACK,FRT BRK 8-97160-410-0 01 1 0211-0501 ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97160-411-0 01 1 0211-0501 ●
67 05.001 PLATE; BACK,FRT BRK 8-97160-411-0 01 1 0211-0501 ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97122-858-0 01 1 0211-0501 ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97122-859-0 01 1 0211-0501 ●
70 04.685 CLIP; PIPE HOLD 8-94128-306-0 02 1 0211-0501 ●
70 04.685 CLIP; PIPE HOLD
G.V.W. 4.0-4.5TON(RPR) 		8-94128-306-0 02 1 0211-0501 ●
70 04.685 CLIP; PIPE HOLD
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97022-086-0 04 1 0211-0501 ●
70 04.685 CLIP; PIPE HOLD 8-97022-086-0 04 1 0211-0501 ● ● ●
71 05.002 GROMMET; CHECK HOLE
(B) 		8-94171-287-0 02 1 0211-0501 ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 4.0-4.5TON(RPR) (B) 		8-94171-287-0 02 1 0211-0501 ●
71 05.002 GROMMET; CHECK HOLE
(A) 		9-09756-034-0 04 1 0211-0501 ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 4.0-4.5TON(RPR) (A) 		9-09756-034-0 04 1 0211-0501 ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) (B) 		8-97017-507-0 02 1 0211-0501 ●
71 05.002 GROMMET; CHECK HOLE
(B) 		8-97017-507-0 02 1 0211-0501 ● ● ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97044-742-1 04 1 0211-0501 ●
71 05.002 GROMMET; CHECK HOLE
(A) 		8-97044-742-1 04 1 0211-0501 ● ● ●
72 05.815 NUT; OIL SHIELD COVER
04.634 M12 		9-99110-512-0 08 1 0211-0501 ● ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 04.634 M12 		9-99110-512-0 08 1 0211-0501 ●
72 05.815 NUT; OIL SHIELD COVER
07.347 M14 FLANGE 		8-97167-635-0 06 1 0502-0611 ● ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 07.347 M14 FLANGE 		8-97167-635-0 06 1 0502-0611 ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 0612- ● ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97359-815-0 06 1 0612- ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 8.0-8.5TON(RPZ) 07.529 M14 		9-99110-514-0 08 1 0211-0501 ●
72 05.815 NUT; OIL SHIELD COVER
07.529 M14 		9-99110-514-0 08 1 0211-0501 ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 8.0-8.5TON(RPZ) 07.347 M14 FLANGE 		8-97167-635-0 08 1 0502-0611 ●
72 05.815 NUT; OIL SHIELD COVER
07.347 M14 FLANGE 		8-97167-635-0 08 1 0502-0611 ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 8.0-8.5TON(RPZ) 		8-97359-815-0 08 1 0612- ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 08 1 0612- ●
73 05.815 WASHER; LK,OIL SHIELD COVER
06.515 ID=12.2 		9-09150-612-0 08 1 0211-0501 ● ● ●
73 05.815 WASHER; LK,OIL SHIELD COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 06.515 ID=12.2 		9-09150-612-0 08 1 0211-0501 ●
73 05.815 WASHER; LK,OIL SHIELD COVER
G.V.W. 8.0-8.5TON(RPZ) 05.387 ID=14.2 		9-09150-614-0 08 1 0211-0501 ●
73 05.815 WASHER; LK,OIL SHIELD COVER
05.387 ID=14.2 		9-09150-614-0 08 1 0211-0501 ●
76 04.685 PIPE; OIL,BACKWARD,FRT BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97079-847-0 02 1 0211-0501 ●
76 04.685 PIPE; OIL,BACKWARD,FRT BRK 8-97079-847-0 02 1 0211-0501 ● ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-94154-917-0 01 1 0211-0501 ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 4.0-4.5TON(RPR) 		8-94154-917-0 01 1 0211-0501 ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-94154-918-0 01 1 0211-0501 ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 4.0-4.5TON(RPR) 		8-94154-918-0 01 1 0211-0501 ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97039-676-0 01 1 0211-0501 ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-676-0 01 1 0211-0501 ● ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97039-677-0 01 1 0211-0501 ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-677-0 01 1 0211-0501 ● ● ●
130 05.017 SHOE KIT; BRK,FRT 5-87832-047-0 01 1 0211-0501 ●
130 05.017 SHOE KIT; BRK,FRT
G.V.W. 4.0-4.5TON(RPR) 		5-87832-047-0 01 1 0211-0501 ●
130 05.017 SHOE KIT; BRK,FRT
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		5-87831-775-0 01 1 0211-0501 ●
130 05.017 SHOE KIT; BRK,FRT 5-87831-775-0 01 1 0211-0501 ● ●
130 05.017 SHOE KIT; BRK,FRT
G.V.W. 8.0-8.5TON(RPZ) 		5-87831-693-0 01 1 0211-0501 ●
130 05.017 SHOE KIT; BRK,FRT 5-87831-693-0 01 1 0211-0501 ●
240 04.685 PIPE; OIL,FRT BRK 8-94154-916-0 02 1 0211-0501 ●
240 04.685 PIPE; OIL,FRT BRK
G.V.W. 4.0-4.5TON(RPR) 		8-94154-916-0 02 1 0211-0501 ●
çizim 99990
66 66 72 66 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 8.0-8.5TON(RPZ) (C) M14X43 		8-97168-638-1 08 1 0502- ●
66 05.815 BOLT; OIL SHIELD COVER
(C) M14X43 		8-97168-638-1 08 1 0502- ●
66 05.815 BOLT; OIL SHIELD COVER
(D) M12X33 		9-09600-043-3 08 1 0211-0501 ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (D) M12X33 		9-09600-043-3 08 1 0211-0501 ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97168-637-0 02 1 0502-0611 ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) (A) M14X23.5 		8-97168-637-0 02 1 0502-0611 ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 0612- ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) (A) M14X23.5 		8-97359-814-0 02 1 0612- ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 8.0-8.5TON(RPZ) 05.002 (D) M14X35 		8-97122-853-2 08 1 0211-0501 ●
66 05.815 BOLT; OIL SHIELD COVER
05.002 (D) M14X35 		8-97122-853-2 08 1 0211-0501 ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0502- ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) (B) M14X43 		8-97168-638-1 06 1 0502- ●
72 05.815 NUT; OIL SHIELD COVER
04.634 M12 		9-99110-512-0 08 1 0211-0501 ● ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 04.634 M12 		9-99110-512-0 08 1 0211-0501 ●
72 05.815 NUT; OIL SHIELD COVER
07.347 M14 FLANGE 		8-97167-635-0 06 1 0502-0611 ● ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 07.347 M14 FLANGE 		8-97167-635-0 06 1 0502-0611 ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 0612- ● ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97359-815-0 06 1 0612- ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 8.0-8.5TON(RPZ) 07.529 M14 		9-99110-514-0 08 1 0211-0501 ●
72 05.815 NUT; OIL SHIELD COVER
07.529 M14 		9-99110-514-0 08 1 0211-0501 ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 8.0-8.5TON(RPZ) 07.347 M14 FLANGE 		8-97167-635-0 08 1 0502-0611 ●
72 05.815 NUT; OIL SHIELD COVER
07.347 M14 FLANGE 		8-97167-635-0 08 1 0502-0611 ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 8.0-8.5TON(RPZ) 		8-97359-815-0 08 1 0612- ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 08 1 0612- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
