2-85 — POWER TAKE OFF CONTROL (#34314) — 74 parça

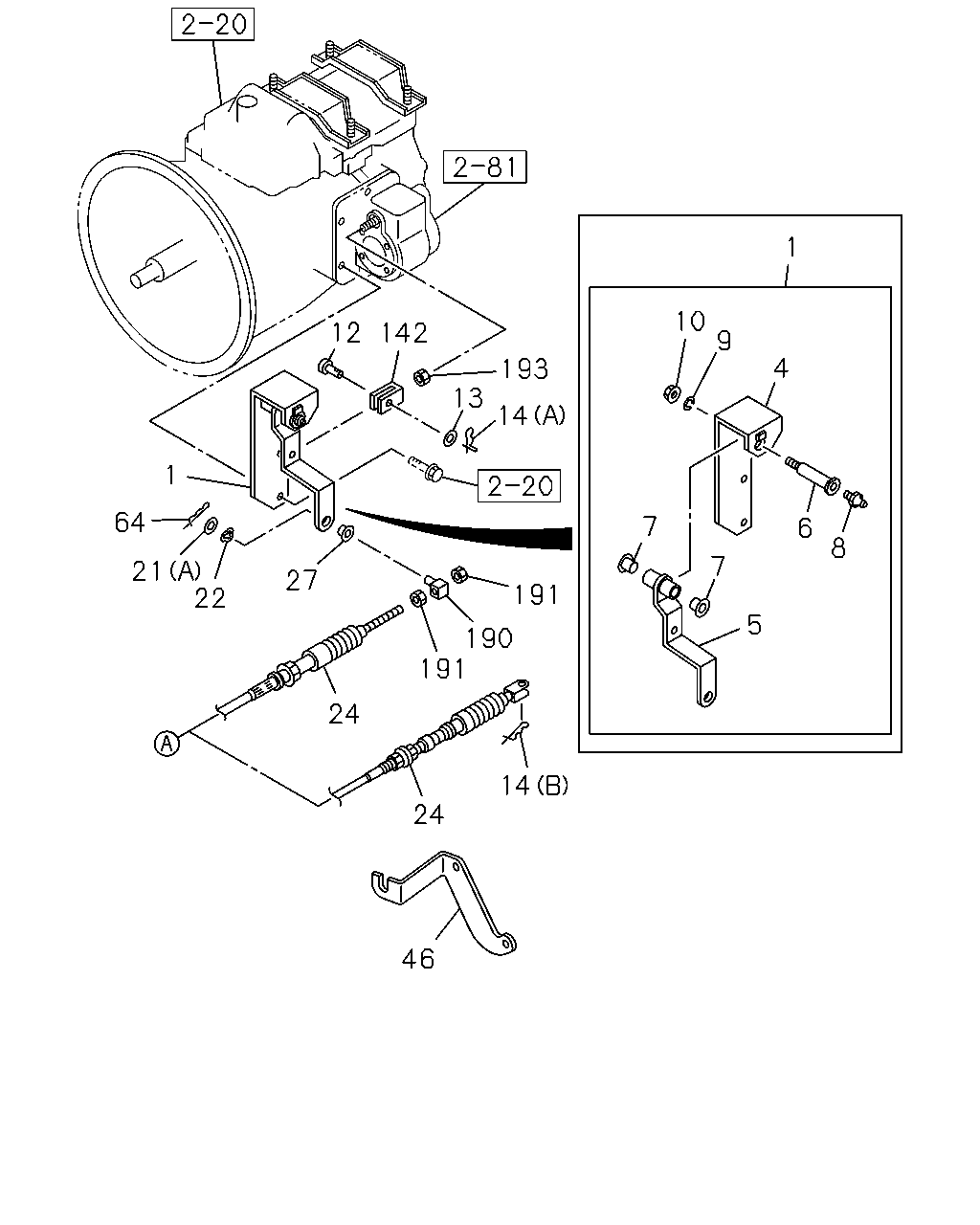

1 10 9 12 142 4 193 13 14 1 64 7 6 8 7 21 22 27 191 5 190 191 24 14 24 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-97310-741-0	01	1	0609-	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97310-740-0	01	1	0609-	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-97310-747-0	01	1	0609-	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97204-596-0	01	1	0609-	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0609-	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0609-	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0609-	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.334 M8	0-91110-508-0	01	1	0609-	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0609-0610	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0611-	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0609-	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) (B) OD=2.8 L=18	0-81123-018-0	01	1	0609-			●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003 (A)	1-09987-158-1	01	1	0609-0805	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) (A)	8-97581-216-0	01	1	0806-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0609-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 04.595 (B) ID=8.4 OD=22	0-91610-708-0	01	1	0609-	●	●	●
22	04.439 WASHER; LK,LEVER PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	0609-	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3174	8-98020-125-1	01	1	0609-	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3100	8-98020-124-1	01	1	0609-	●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3333	8-98020-128-1	01	1	0609-			●
27	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.042	8-94367-367-0	01	1	0609-	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97366-039-0	01	1	0609-	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97264-954-1	01	1	0609-	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0609-	●	●
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66)	8-97327-588-0	01	1	0609-	●	●
190	04.439 BOSS; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-2	01	1	0609-	●	●
191	04.439 NUT; BOSS PTO TRANSMISSION SIDE(V66) 03.330 M6	0-91110-506-0	02	1	0609-	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0609-	●	●

195 195 172 24 173 173 195 172 172 195 173 195 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3174	8-98020-125-1	01	1	0609-	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3100	8-98020-124-1	01	1	0609-	●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3333	8-98020-128-1	01	1	0609-			●
172	04.439 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) 06.216 (C) M8X25 FLANGE	0-28650-825-0	03	1	0609-	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) (B) M6X12 W/LK&PL WASHER	0-36230-612-0	01	1	0609-	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 01.531 (A) M8X16 W/LK WASHER	0-50540-816-0	02	1	0609-	●	●	●
172	04.439 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0609-			●
173	04.439 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) 01.062 M8 FLANGE	0-91180-108-0	02	1	0609-	●	●	●
173	04.439 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) 03.162 M10 FLANGE	0-91180-110-0	01	1	0609-			●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (B)	8-97248-931-0	01	1	0609-	●	●	●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (C)	8-97248-932-1	01	1	0609-	●	●	●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (D)	8-98018-978-0	01	1	0609-	●	●	●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (E)	8-98020-130-0	01	1	0609-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) 04.027 (A)	8-97088-407-1	01	1	0609-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (F)	8-97231-502-0	01	1	0609-			●

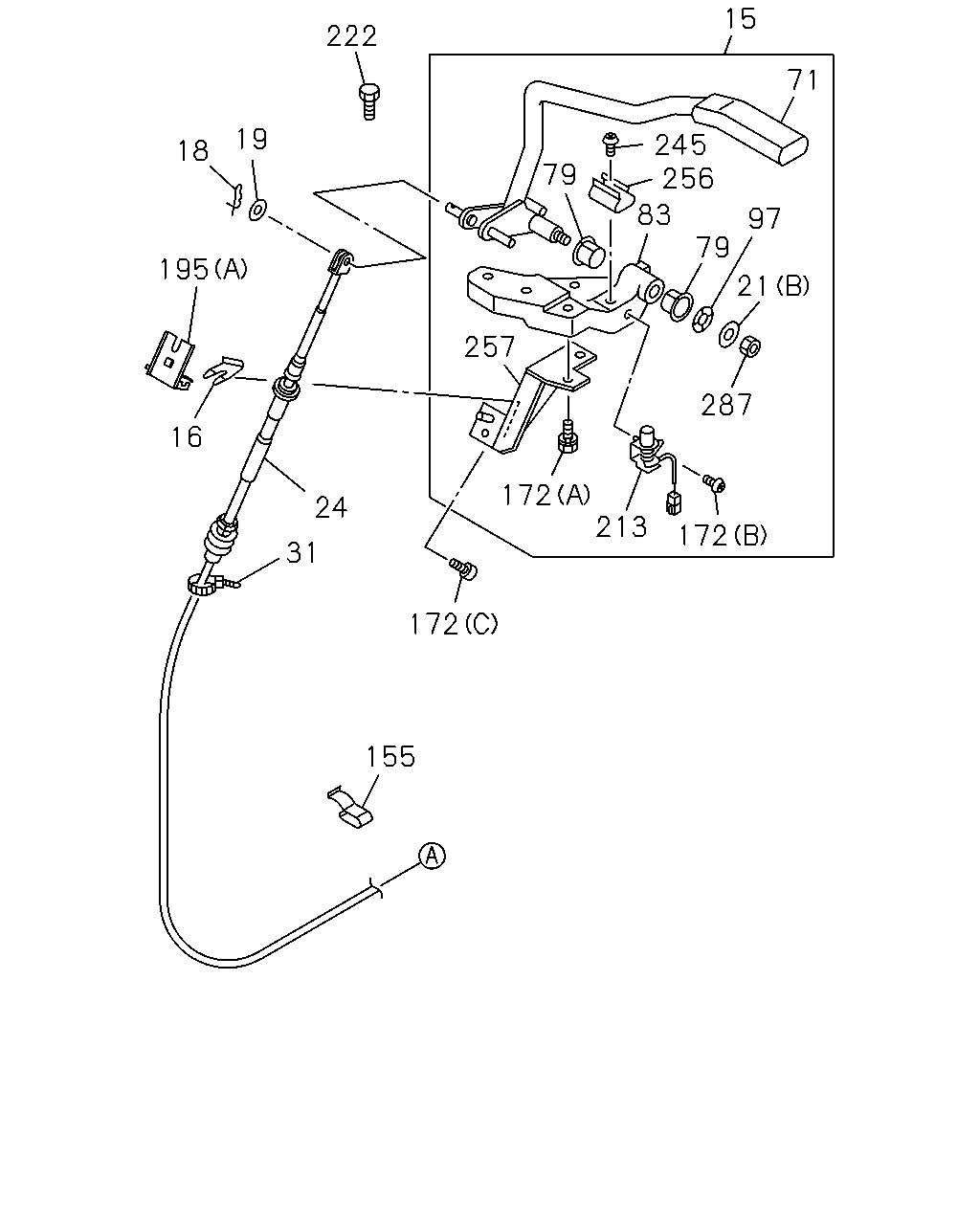

15 222 71 19 245 256 18 79 83 97 79 195 21 257 287 16 172 213 24 172 31 172 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97177-805-3	01	1	0609-	●	●	●
16	04.439 CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66) 04.027	8-94152-900-0	01	1	0609-	●	●	●
18	04.439 PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0609-	●	●	●
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0609-	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0609-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 04.595 (B) ID=8.4 OD=22	0-91610-708-0	01	1	0609-	●	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3174	8-98020-125-1	01	1	0609-	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3100	8-98020-124-1	01	1	0609-	●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3333	8-98020-128-1	01	1	0609-			●
31	04.439 CLIP; BAND,CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) 02.559 L=250	5-09707-030-1	01	1	0609-	●	●	●
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97177-806-1	01	1	0609-	●	●	●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.792	8-94238-596-0	02	1	0609-	●	●	●
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97117-352-0	01	1	0609-	●	●	●
97	04.439 WASHER; LK PTO TRANSMISSION SIDE(V66) 00.832 ID=15 OD=25	8-11053-111-0	01	1	0609-	●	●	●
155	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.240 T=5.5	5-09709-047-0	01	1	0609-	●	●
172	04.439 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) 06.216 (C) M8X25 FLANGE	0-28650-825-0	03	1	0609-	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) (B) M6X12 W/LK&PL WASHER	0-36230-612-0	01	1	0609-	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 01.531 (A) M8X16 W/LK WASHER	0-50540-816-0	02	1	0609-	●	●	●
172	04.439 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0609-			●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (B)	8-97248-931-0	01	1	0609-	●	●	●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (C)	8-97248-932-1	01	1	0609-	●	●	●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (D)	8-98018-978-0	01	1	0609-	●	●	●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (E)	8-98020-130-0	01	1	0609-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) 04.027 (A)	8-97088-407-1	01	1	0609-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (F)	8-97231-502-0	01	1	0609-			●
213	04.439 SWITCH; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97370-568-0	01	1	0609-	●	●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	04	1	0609-	●	●	●
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0609-	●	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66)	8-97117-351-0	01	1	0609-	●	●	●
257	04.439 REINFORCEMENT; PTO PTO TRANSMISSION SIDE(V66)	8-97088-406-3	01	1	0609-	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE(V66) 00.777 M8 W/LK WASHER	8-94279-050-0	01	1	0609-	●	●	●
