Isuzu WW
▶
TRUCKS
▶
NPR
▶
51397 - NPR/NQR(AUST)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-55 - AUTO TRANS SHIFT CONTROL LEVER
▶

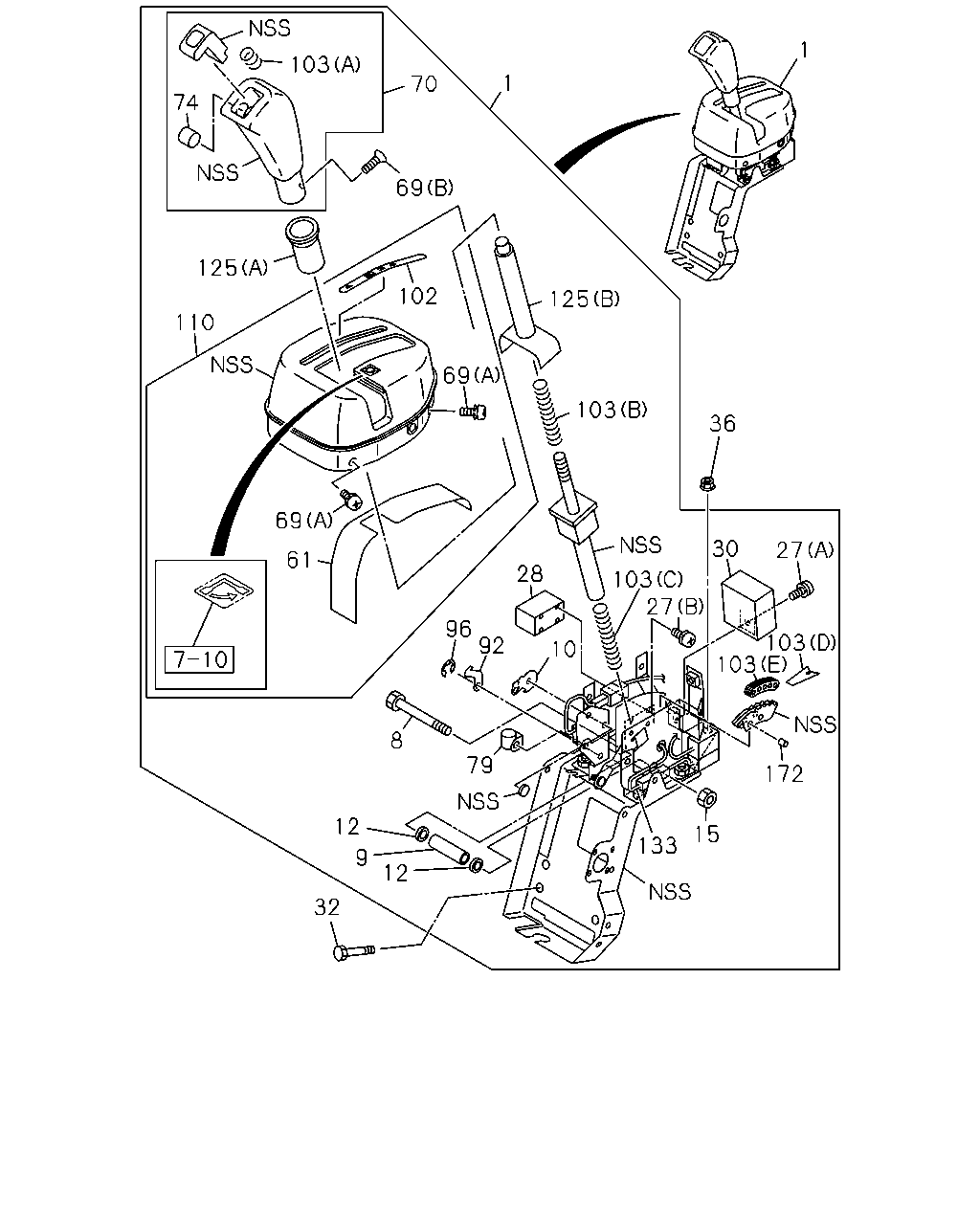

2-55 — AUTO TRANS SHIFT CONTROL LEVER
(#34311) — 31 parça
1
103
1
70
74
69
125
102
125
110
69
103
36
69
30
27
61
28
103
27
96
92
103
103
10
8
79
172
12
15
133
9
12
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.006 LEVER; SHIFT,A/T
DARK GRAY
8-97293-332-2
01
1
0211-0501
8
04.008 PIN; SELECT GATE
8-97100-848-0
01
1
0211-0501
9
04.006 SLEEVE; KNOB,SHIFT LEVER
8-97100-764-0
01
1
0211-0501
10
04.006 LEVER; A/T CONT
8-97173-358-0
01
1
0211-0501
12
04.008 BUSHING; SELECT LEVER
8-97100-765-0
02
1
0211-0501
15
04.042 NUT; LEVER TO SHAFT
01.540 M8 FLANGE
0-91150-208-0
01
1
0211-0501
27
04.022 SCREW; INDICATOR TO BRKT
14.865 (A) M5X12 W/LK&PL WASHER
9-03920-512-0
01
1
0211-0501
27
04.022 SCREW; INDICATOR TO BRKT
02.485 (B) M4X8 W/WASHER
9-03920-408-0
03
1
0211-0501
28
04.006 SOLENOID ASM
8-97140-486-0
01
1
0211-0501
30
04.006 CONTROLLER; A/T
8-97140-481-0
01
1
0211-0501
32
04.008 BOLT; CONT LEVER TO BODY
01.062 M8X16 FLANGE
0-28080-816-0
02
1
0211-0501
36
04.008 NUT; CONT LEVER
07.633 M8 FLANGE
0-91150-108-0
02
1
0211-0501
61
04.030 PANEL; SHIFT LEVER
8-97173-352-0
01
1
0211-0501
69
04.012 SCREW; COVER,SHIFT LEVER
(B)
8-97173-340-0
02
1
0211-0501
69
04.012 SCREW; COVER,SHIFT LEVER
16.585 (A) M6X14 W/PL WASHER
9-03900-614-0
04
1
0211-0501
70
04.006 KNOB; SHIFT LEVER
DARK GRAY
8-97294-590-0
01
1
0211-0501
74
04.057 SWITCH; OVERDRIVE,A/T CONT LEVER
DARK GRAY
8-97158-969-0
01
1
0211-0501
79
04.057 CLIP; LAMP CABLE,A/T CONT LEVER
8-97116-312-0
01
1
0211-0501
92
04.030 GUIDE; SLIDER
8-97173-357-0
01
1
0211-0501
96
04.057 RING; SNAP
ID=5
9-09185-405-0
02
1
0211-0501
102
04.030 PLATE; SELECT
8-97219-282-0
01
1
0211-0501
103
04.008 SPRING; PLATE
(A)
8-97173-339-0
01
1
0211-0501
103
04.008 SPRING; PLATE
(B)
8-97173-345-0
01
1
0211-0501
103
04.008 SPRING; PLATE
(C)
8-97173-346-0
01
1
0211-0501
103
04.008 SPRING; PLATE
(D)
8-97173-355-0
01
1
0211-0501
103
04.008 SPRING; PLATE
(E)
8-97173-356-0
01
1
0211-0501
110
04.030 COVER; INDICATOR,A/T CONT
DARK GRAY
8-97199-881-1
01
1
0211-0501
125
04.020 COVER; SHIFT LEVER
(A) DARK GRAY
8-97158-970-0
01
1
0211-0501
125
04.020 COVER; SHIFT LEVER
(B) DARK GRAY
8-97158-971-0
01
1
0211-0501
133
04.030 HARNESS; INDICATOR
8-97173-344-1
01
1
0211-0501
172
04.008 PIN; SPRING
8-97173-349-0
02
1
0211-0501
